XPI-108L Series Hydraulic Piston Pump 108 cc/rev for Hydraulic Systems

変位:108 cc/rev

定格圧力:38 MPa (5511 psi)

最大圧力:42 MPa (6091 psi)

最大回転速度:1900 r/min

回転方向:左 (逆時針)

ベンダー:BXHS

製品タイプ:油圧ピストン・ポンプ

製品シリーズ:XPIシリーズ 油圧ピストン・ポンプ

梱包サイズ:37*17*17

総重量:18.00 kg

在庫状況: 在庫あり

150 この製品を探している人もいます

XPI-108L Series Hydraulic Piston Pump 108 cc/rev for Hydraulic Systems

XPI-108L Series Hydraulic Piston Pump 108 cc/rev for Hydraulic Systems

XPI-108L Series Hydraulic Piston Pump 108 cc/rev for Hydraulic Systems drawing image

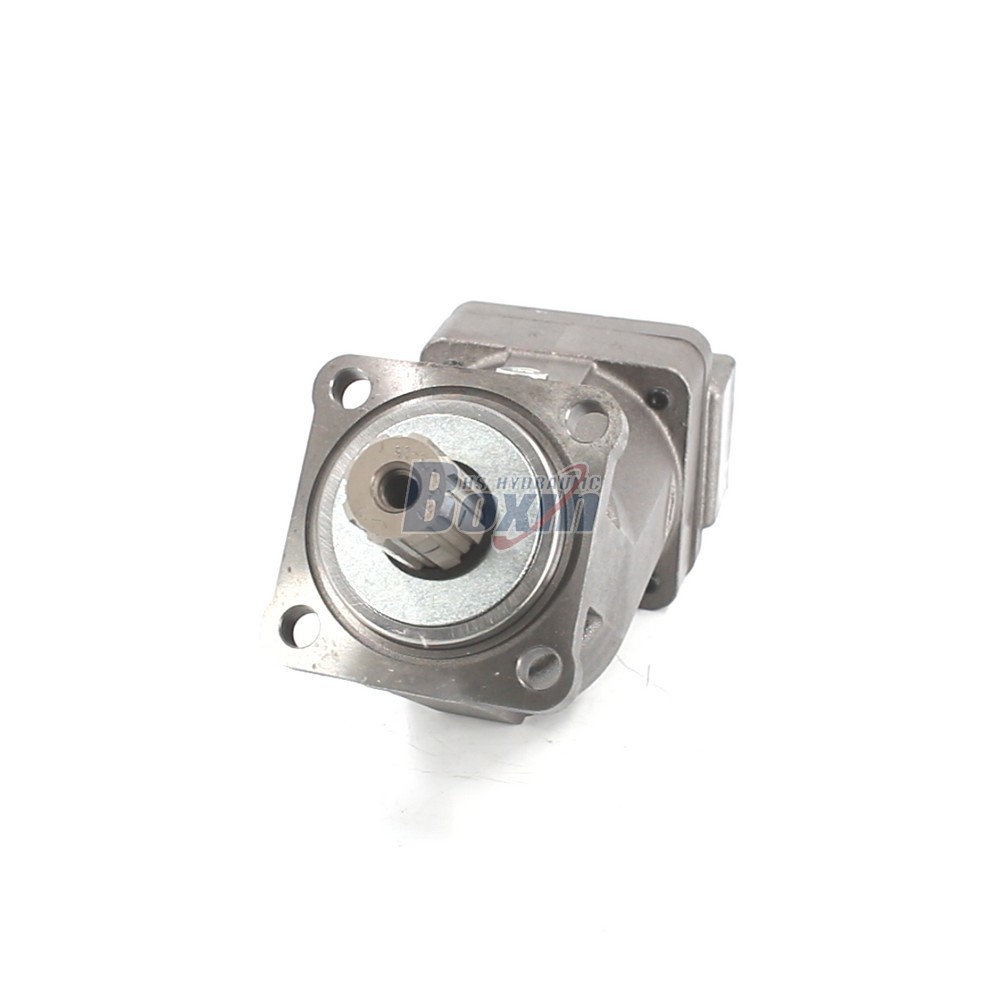

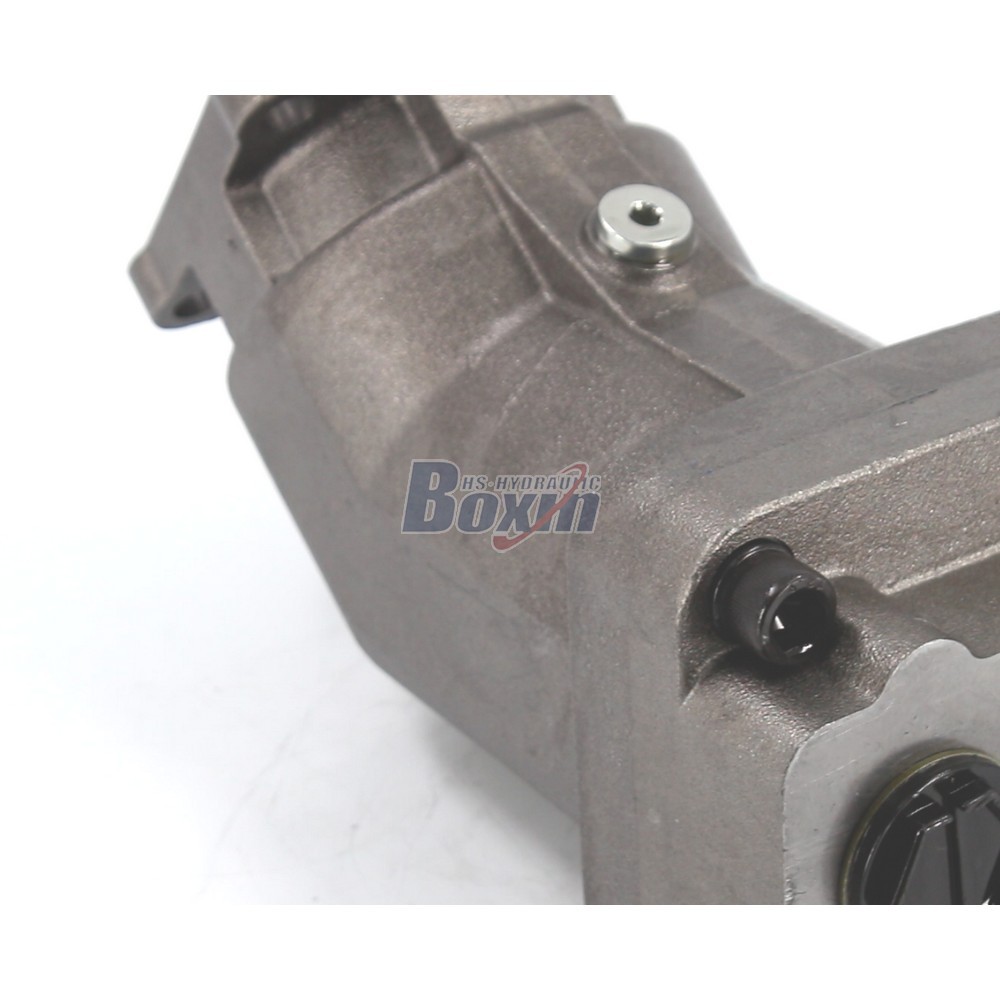

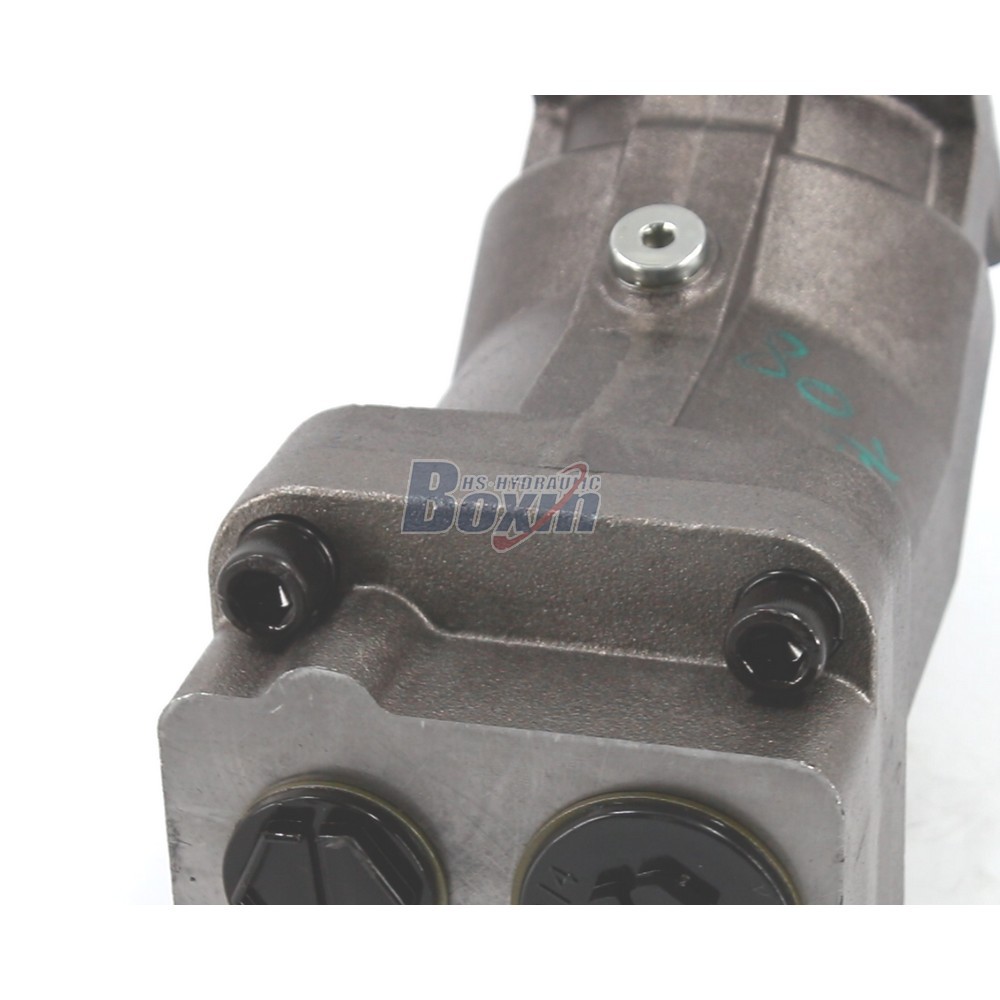

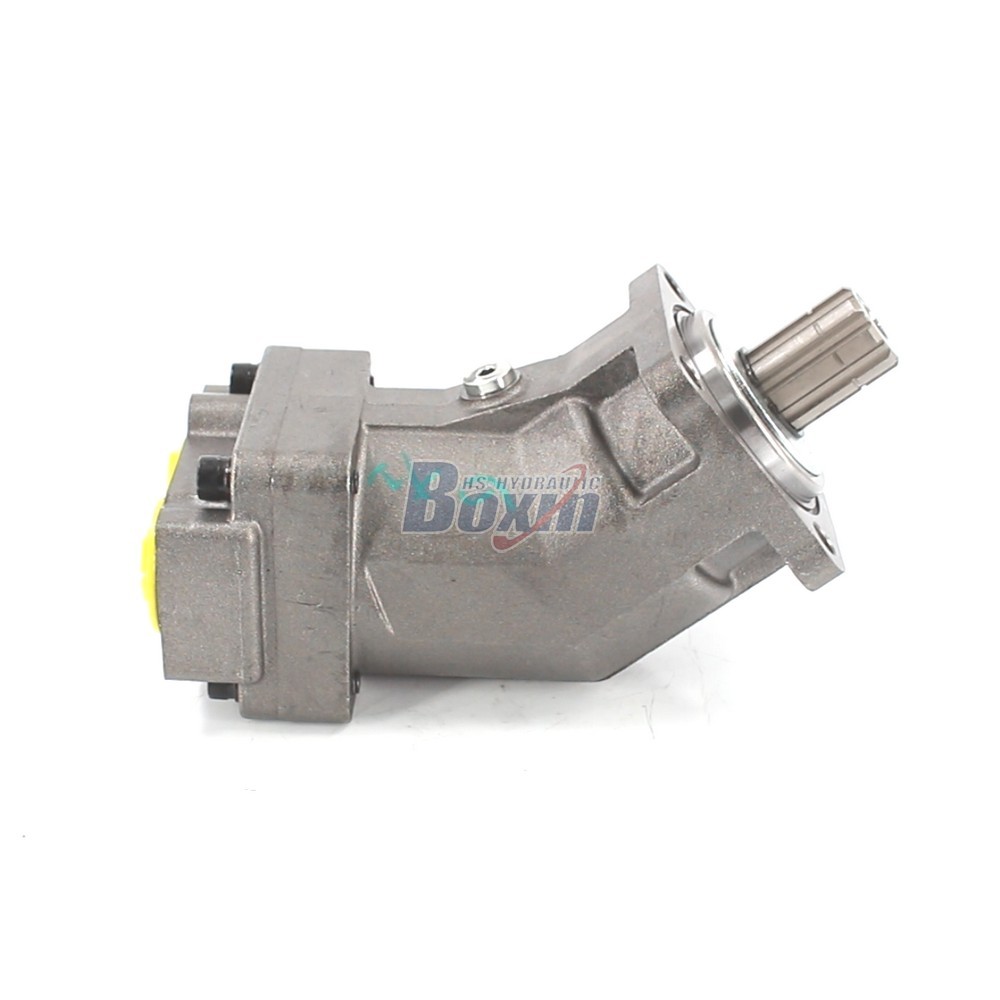

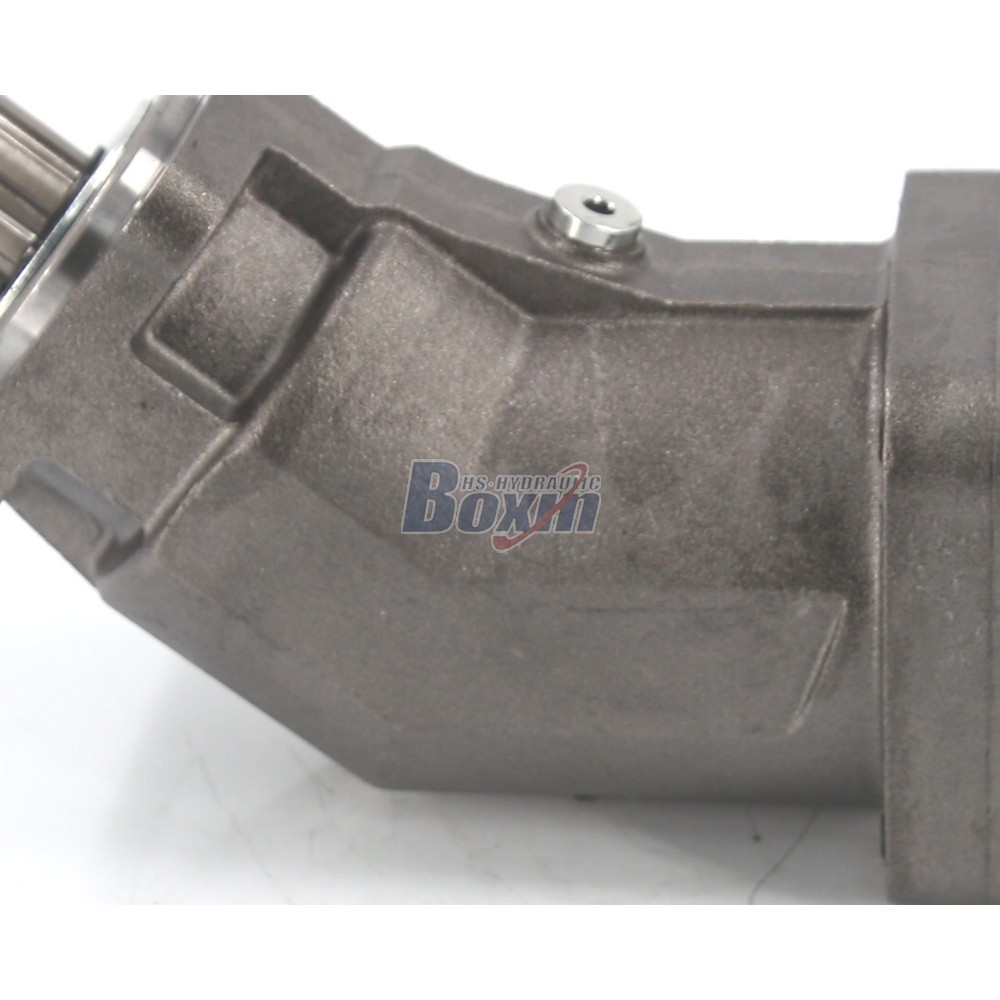

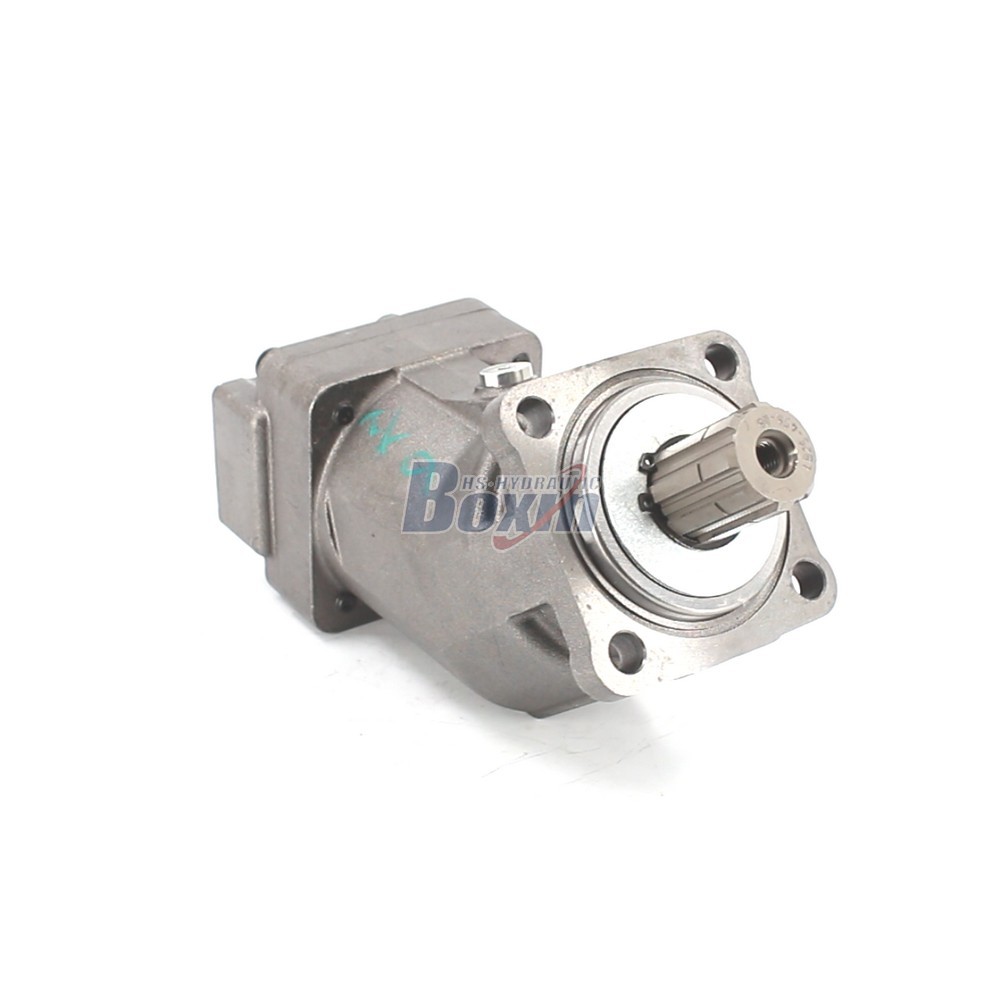

The XPI-108L Series is a high-performance 108 cc/rev fixed displacement axial piston pump designed for demanding hydraulic systems. Operating at a rated pressure of 38 MPa with peaks up to 42 MPa, this left-hand rotation pump is engineered for durability and efficiency in heavy-duty applications ranging from construction machinery to agricultural equipment.

XPIシリーズ 油圧ピストン・ポンプ パラメーター
変位 32 cc/回転, 40 cc/回転, 45 cc/回転, 50 cc/回転, 63 cc/回転, 80 cc/回転, 25 cc/回転, 108 cc/rev
定格圧力 38 MPa (5511 psi)
最大圧力 42 MPa (6091 psi)
定格回転速度 1600 r/min
最大回転速度 1900 r/min
回転方向 左 (逆時針), 右 (順時針)
材質 鋳鉄
構造 擺盤
フランジモデル ISO-4 安裝孔
軸タイプ H:矩形花鍵

As a leading large-scale manufacturer of hydraulic solutions, we offer the XPI-108L Series Hydraulic Piston Pump, specifically engineered for high-pressure environments. With a displacement of 108 cc/rev and a maximum speed of 1900 r/min, this pump is ideal for concrete boom pumps, wheel loaders, mini-excavators, and truck-mounted cranes. We provide comprehensive manufacturing services including OEM, private labeling, and custom engineering to meet specific technical requirements. Our factory direct supply ensures competitive wholesale pricing for global markets. We are actively seeking long-term partnerships with distributors, wholesalers, agents, and traders worldwide. Whether you need bulk procurement or specialized customization for material handling and earthmoving equipment, our facility provides reliable support and consistent quality. Join our global distribution network and benefit from our extensive manufacturing expertise in industrial vehicle and agricultural hydraulic systems.
