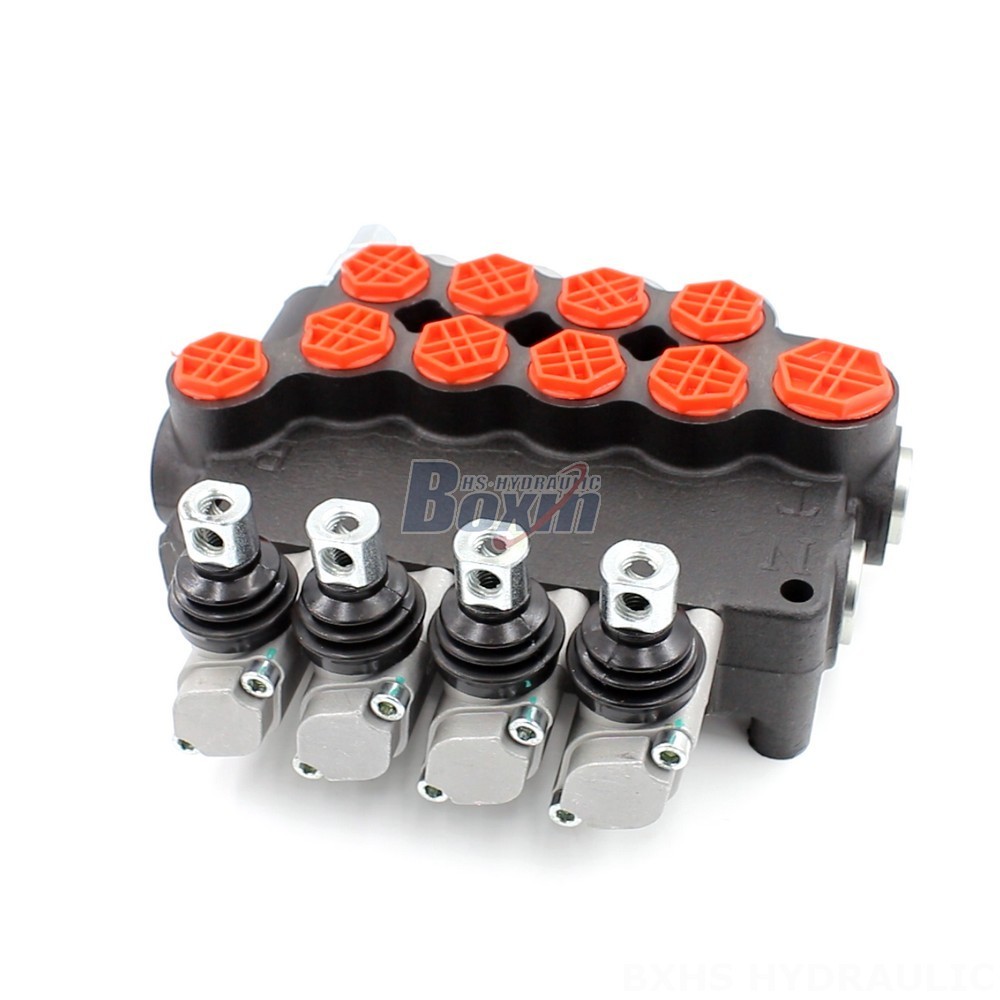

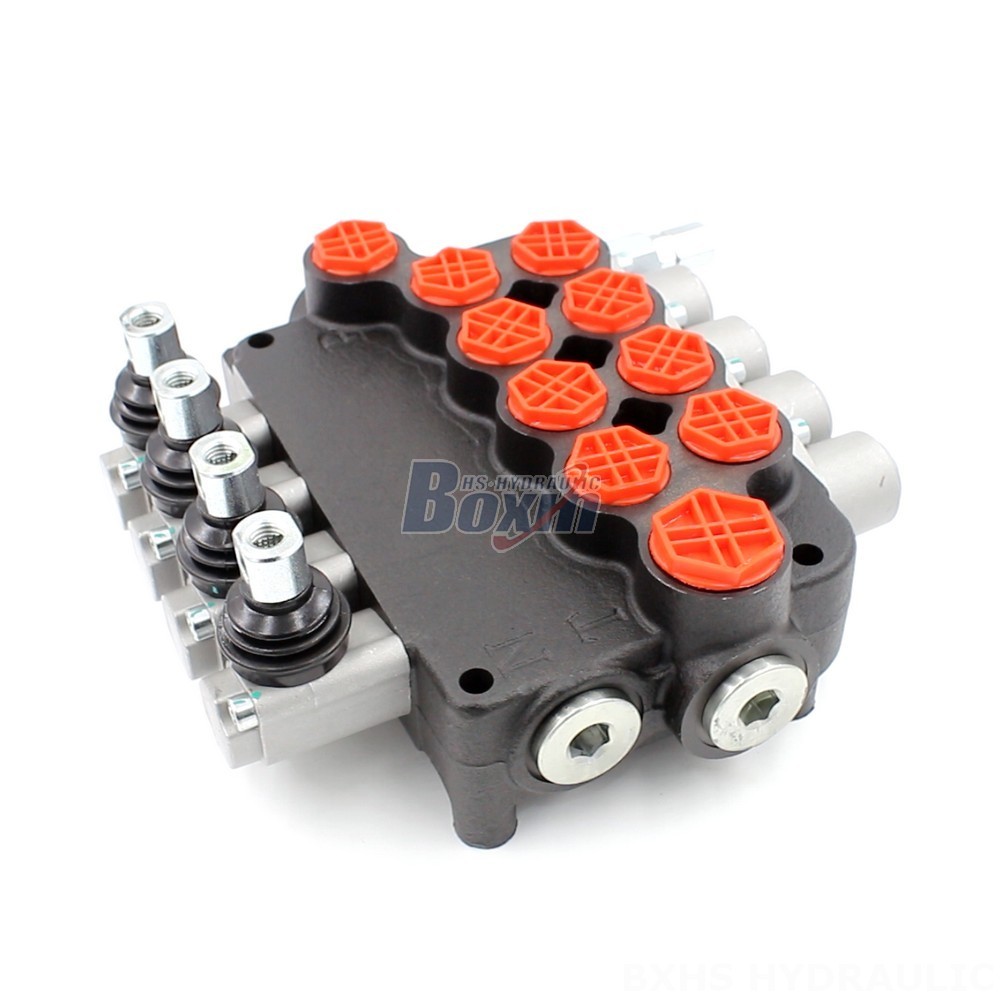

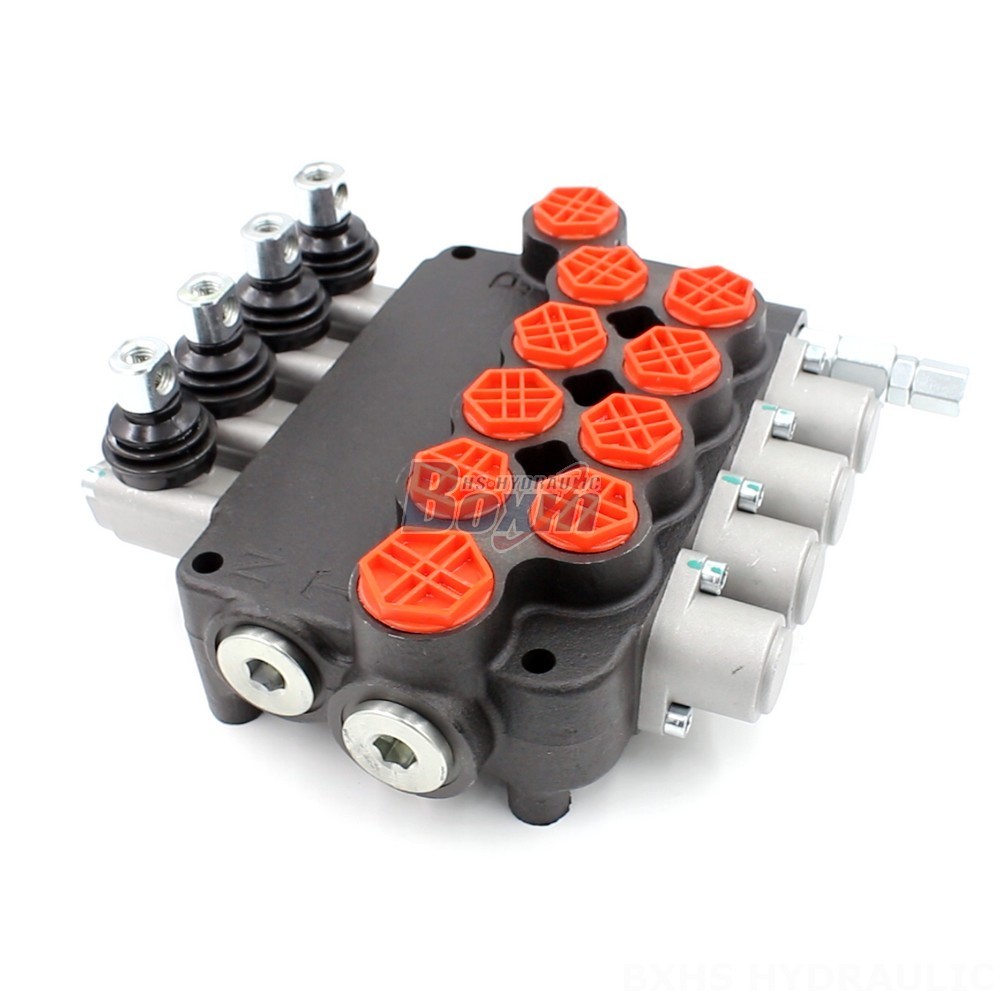

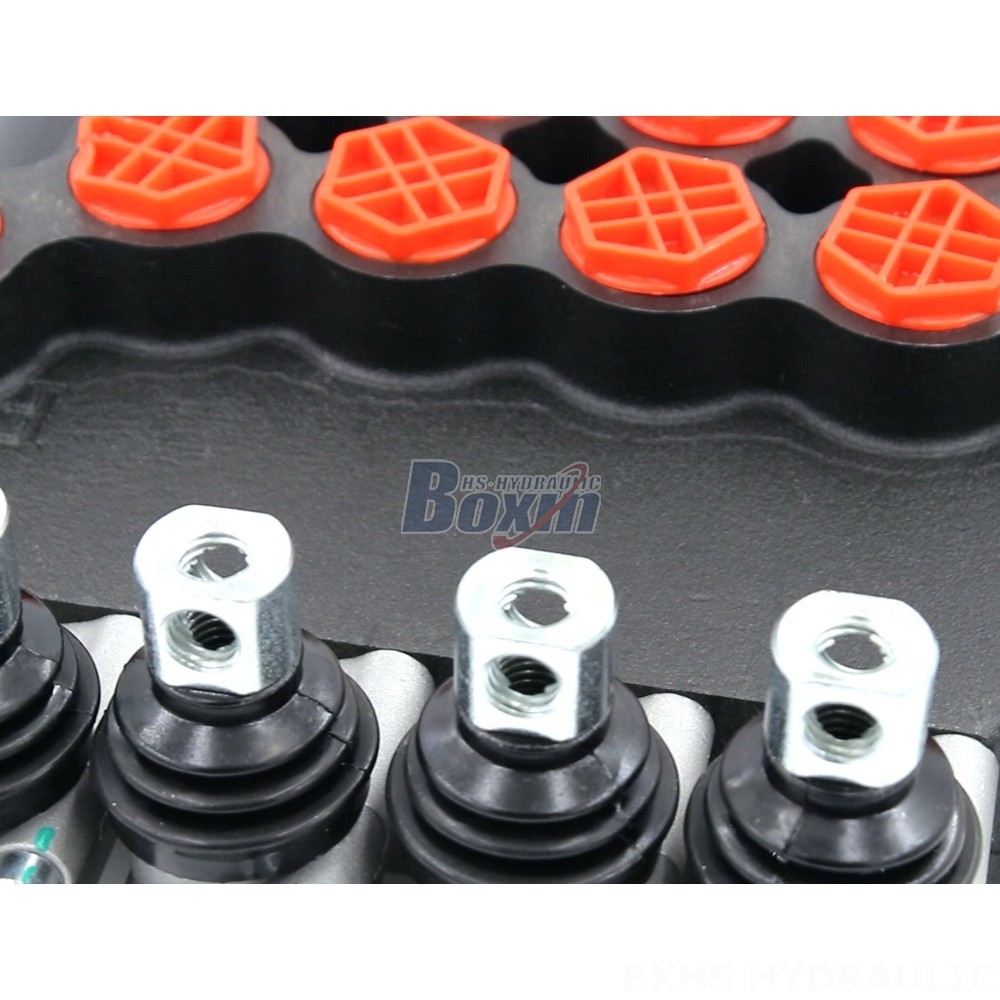

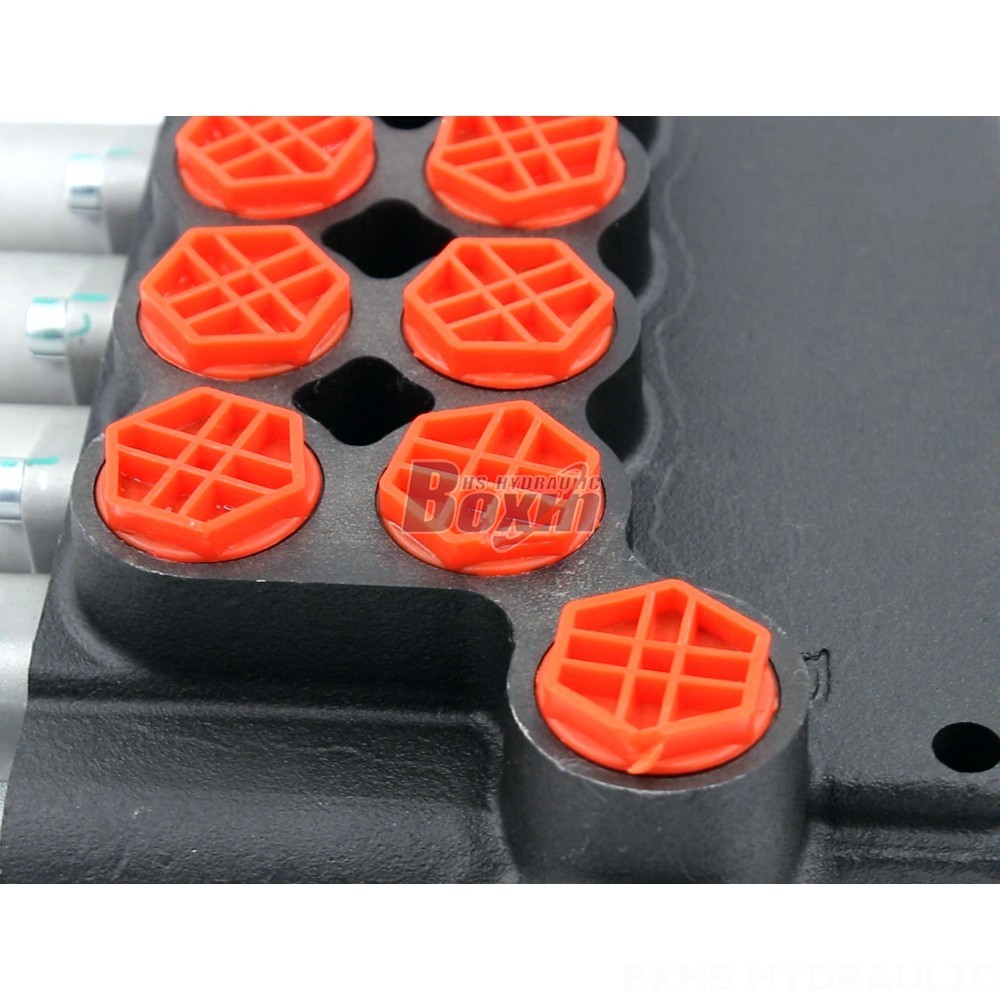

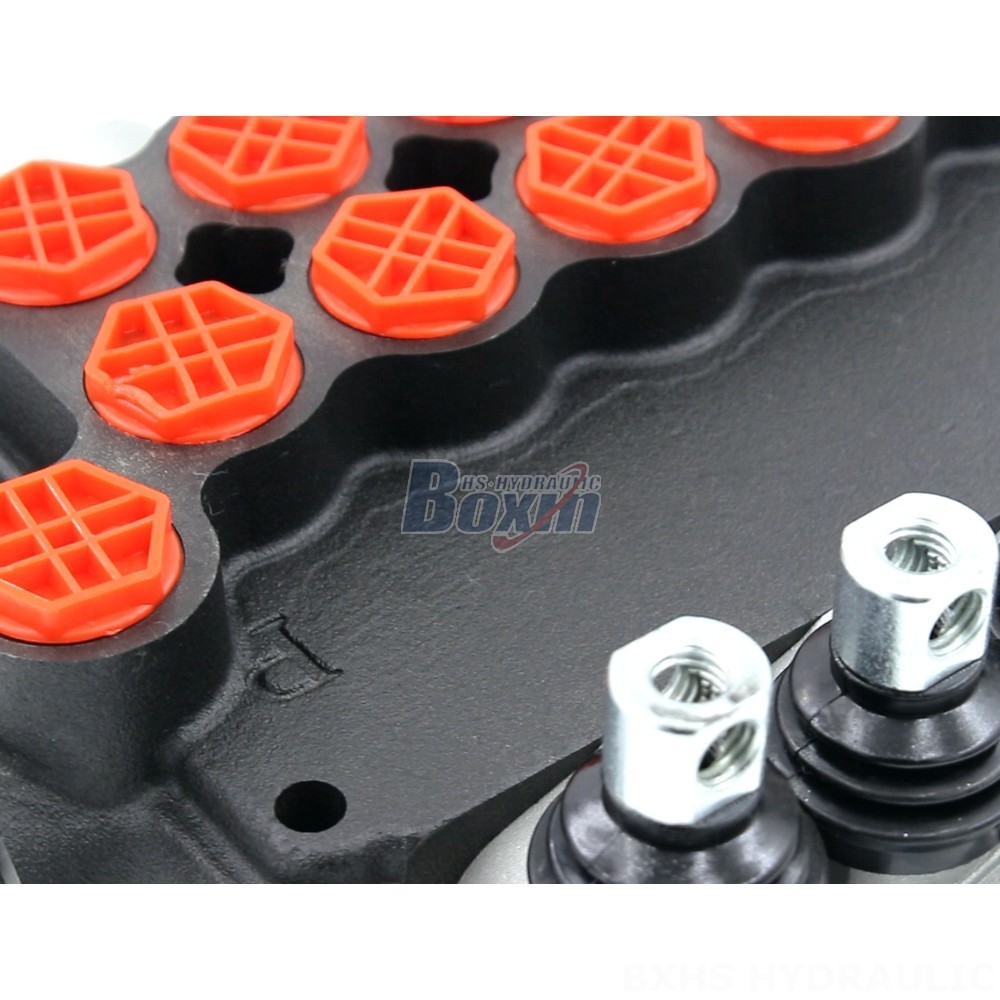

Spool Type Valve | G34 Series | 4 Spools

制御方法:手動

スプール:4スプール

定格流量:毎分80リットル (21.2 US gpm)

最大圧力:250 bar (3600 psi)

吸入口:G3/4

吐出口:G3/4

ポートサイズ:G1/2

ベンダー:BXHS

製品タイプ:モノブロック方向制御弁

製品シリーズ:P80シリーズ モノブロック方向制御弁

梱包サイズ:26*27*11

総重量:13.40 kg

在庫状況: 在庫あり

1231 この製品を探している人もいます

Spool Type Valve | G34 Series | 4 Spools

Spool Type Valve | G34 Series | 4 Spools

Spool Type Valve | G34 Series | 4 Spools drawing image

The G34 Series 4-Spool Hydraulic Sectional Directional Control Valve is a robust and reliable solution for various applications in construction, material handling, agriculture, and industrial vehicles. It features a monoblock valve design, manual control, and a rated flow of 80 L/min, making it suitable for demanding tasks.

P80シリーズ モノブロック方向制御弁 パラメーター
制御方法 手動, 空圧, 電空, 電気油圧, ソレノイド, 油圧, 油圧および手動, ケーブル, ジョイスティック, 手動・ジョイスティック
スプール 1スプール, 2スプール, 3スプール, 4スプール, 5スプール, 6スプール, 7スプール
周囲温度範囲 -40°C to +80°C (-40°F to +176°F)
構造タイプ モノブロック弁
セクション 1セクション, 2セクション, 3セクション, 4セクション, 5セクション, 6セクション, 7セクション
作動粘度範囲 15 - 75 mm²/s (15 cSt to 75 cSt)
定格流量 毎分80リットル (21.2 US gpm)
最大圧力 315 bar (4600 psi)
吸入口 G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
吐出口 G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
ポートサイズ G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT

This G34 Series 4-Spool Hydraulic Sectional Directional Control Valve is a high-performance valve designed for demanding applications in construction, material handling, agriculture, and industrial vehicles. It boasts a robust monoblock valve structure with 4 spools, offering precise and efficient control of hydraulic systems. The valve is manually controlled and has a rated flow of 80 L/min, making it ideal for handling various tasks. It operates at a maximum pressure of 250 bar and is compatible with a wide viscosity range (15 - 75 mm²/s). Designed for durability and reliability, this valve can withstand ambient temperatures ranging from -40°C to +80°C. Its versatile design makes it suitable for a wide range of applications, including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders.
