What is the primary application of the Source Your SD4 Directional Control Valves from a Trusted Manufacturer?

The Source Your SD4 Directional Control Valves from a Trusted Manufacturer is designed for mobile hydraulic systems, agricultural machinery (such as tractors and harvesters), construction equipment (such as loaders and excavators), and industrial machinery. It ensures precise flow and directional control.

Is Boxinhuasheng a factory-direct manufacturer?

Yes, Boxinhuasheng (Qingzhou Boxinhuasheng Hydraulic Technology Co., Ltd.) is a factory-direct manufacturer established in 2001. We operate a 68,000m虏 facility with 4 modern manufacturing plants and 260+ production machines, supplying certified products directly to global customers.

What quality certifications do Boxinhuasheng products have?

All Boxinhuasheng directional control valves, gear pumps, and hydraulic accessories are CE certified, IATF 16949 compliant, and verified on-site by SGS, meeting international engineering standards.

Can Boxinhuasheng provide OEM/ODM customization services?

Yes, Boxinhuasheng has a team of 35 senior hydraulic engineers providing custom OEM manufacturing, ODM development, private labeling, and customized hydraulic system solutions tailored to specific operating pressures and flows.

What is the warranty and shipping lead time?

We offer a 1-year warranty with free replacement for any quality defects. Standard express delivery is within 30 days, supported by our robust annual capacity of 1.5 million hydraulic units and export experience to 80+ countries.

Source Your SD4 Directional Control Valves from a Trusted Manufacturer

Name: Source Your SD4 Directional Control Valves from a Trusted Manufacturer
Brand: Boxinhuasheng
SKU: BXHS-50793
Availability: InStock

イノベーションが開発を推進し、テクノロジーが未来を築きます

ホームモノブロック方向制御弁SD4シリーズ製品詳細

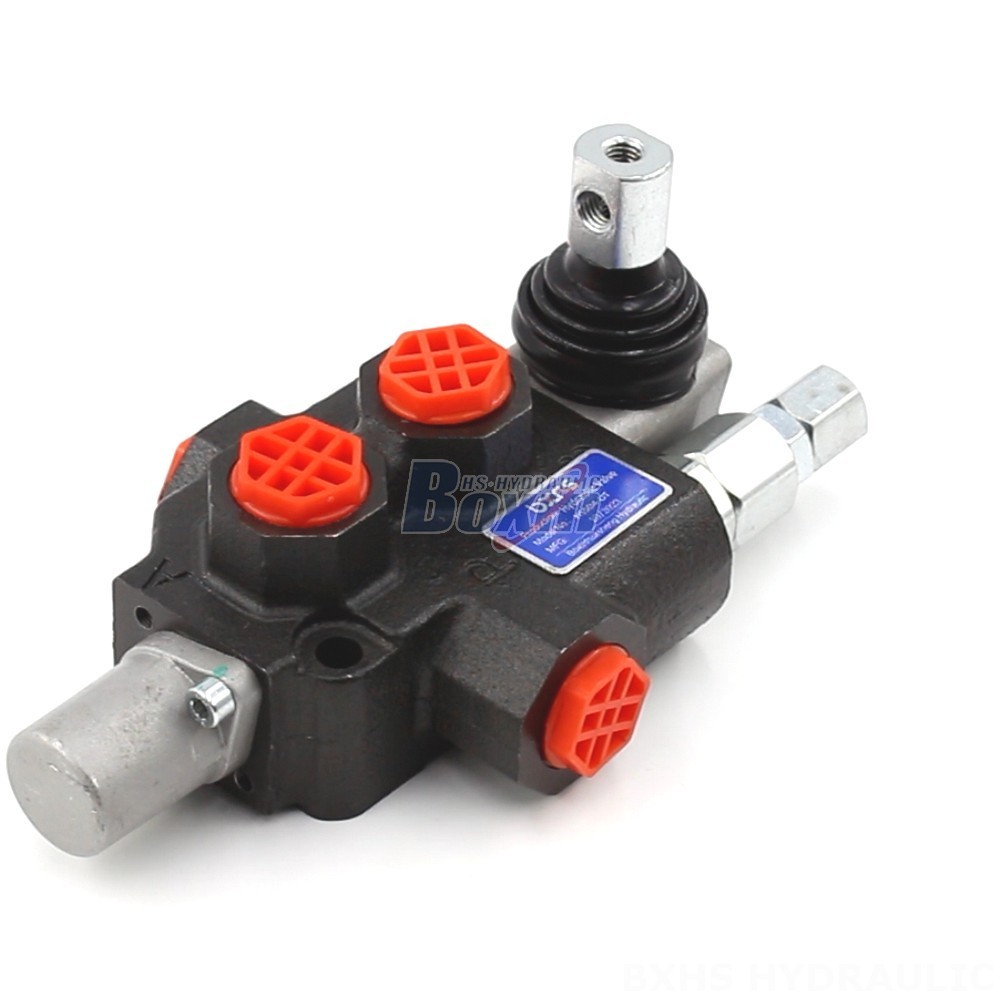

Source Your SD4 Directional Control Valves from a Trusted Manufacturer cover photo

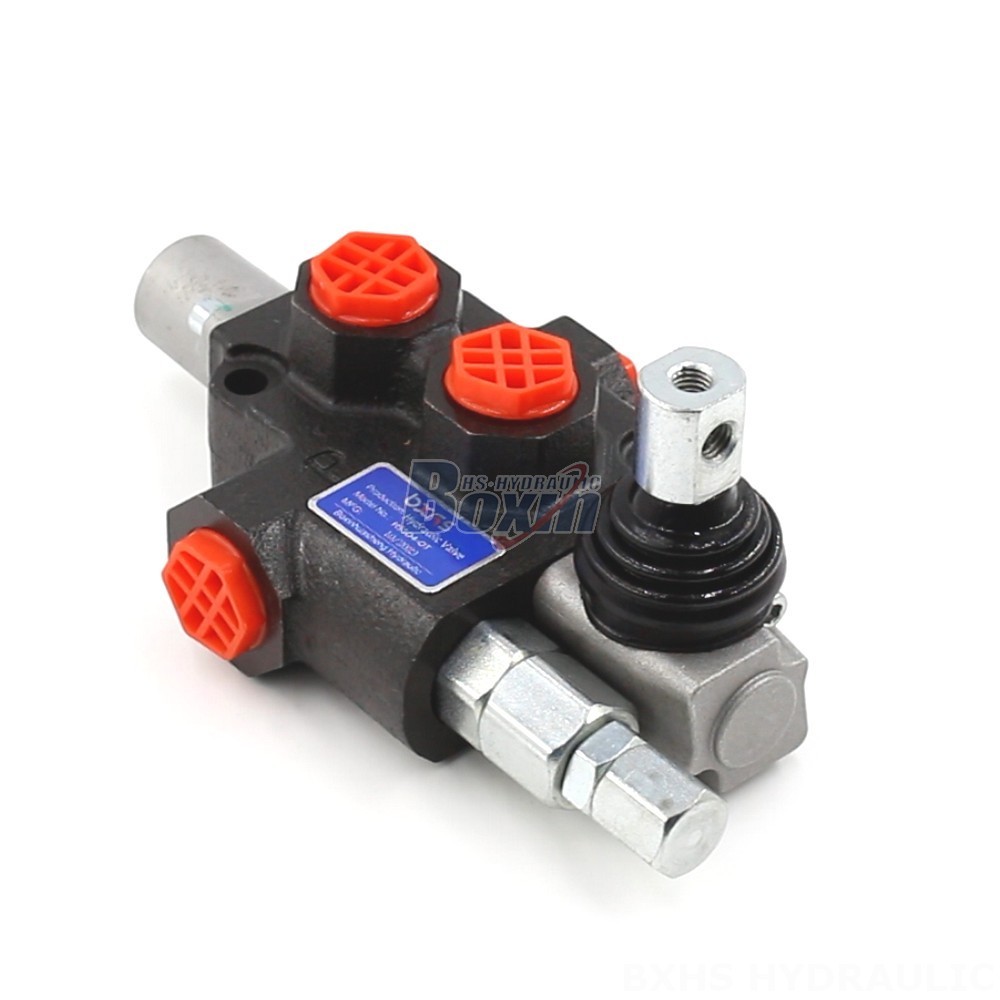

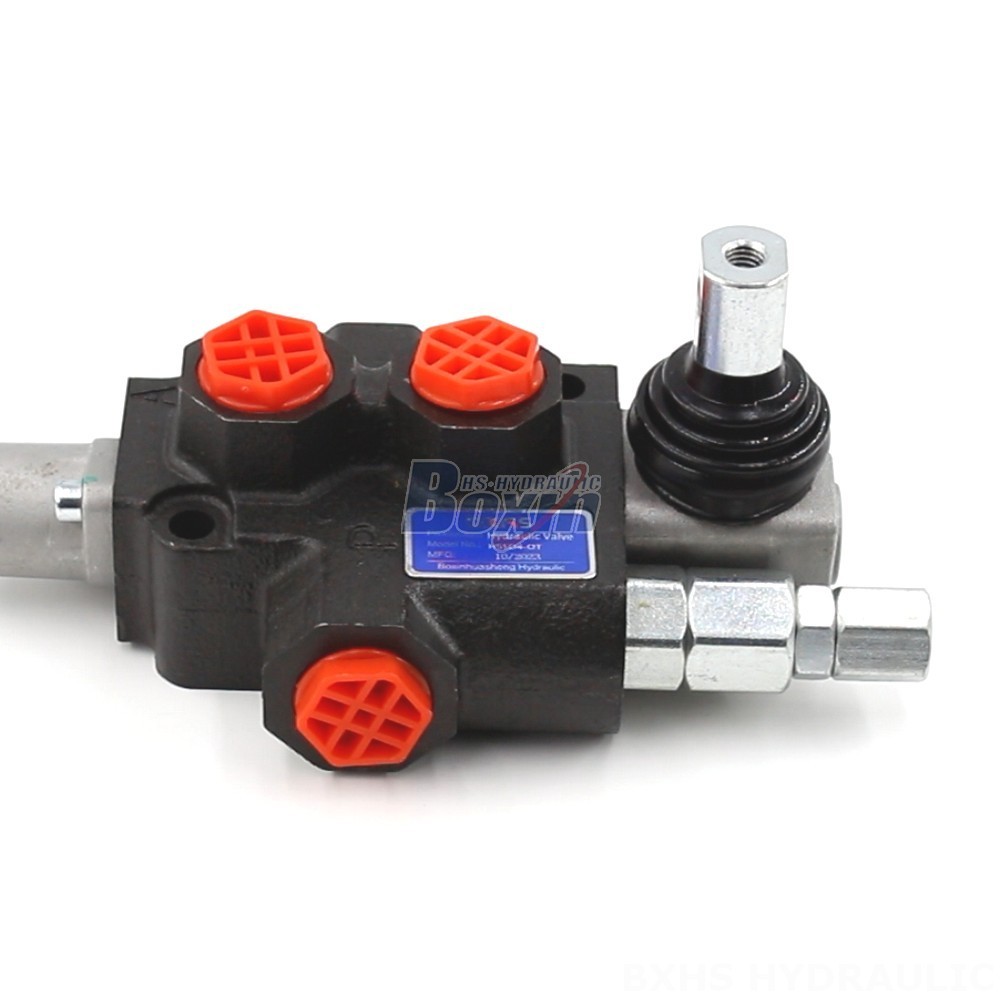

Source Your SD4 Directional Control Valves from a Trusted Manufacturer main image

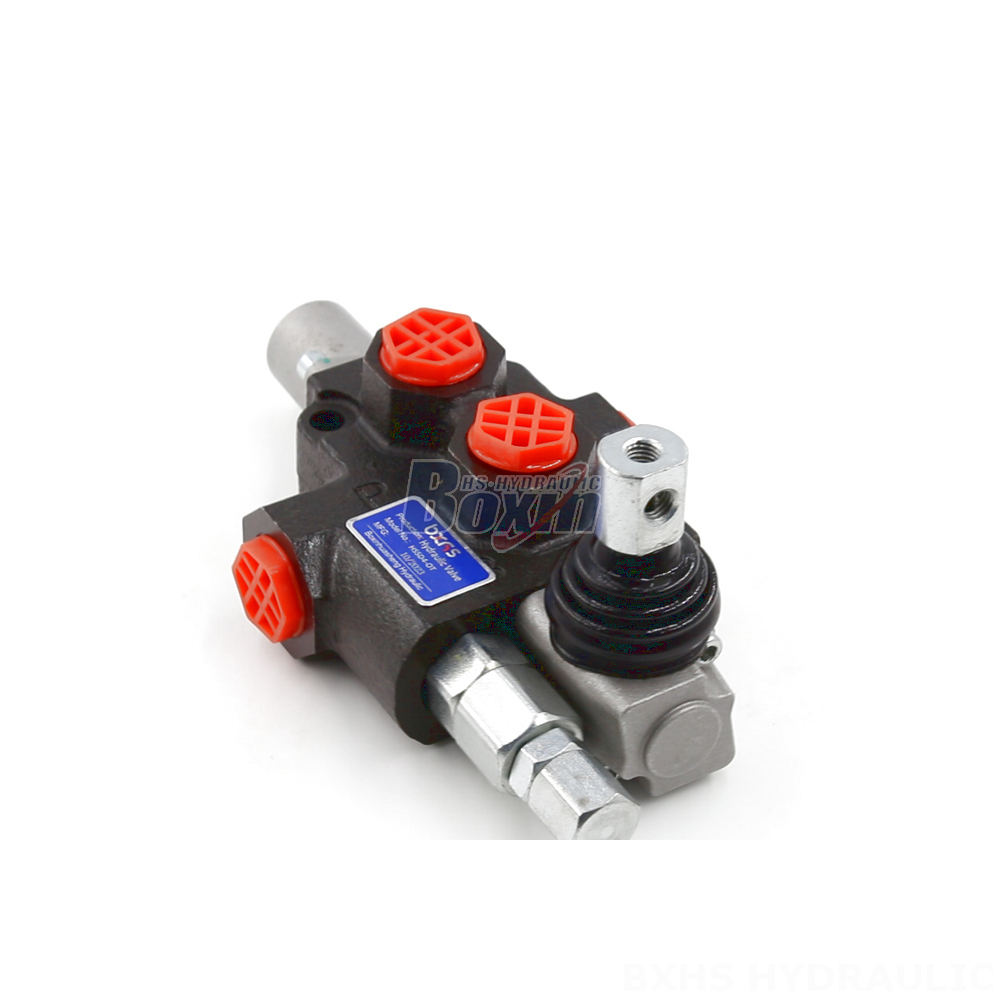

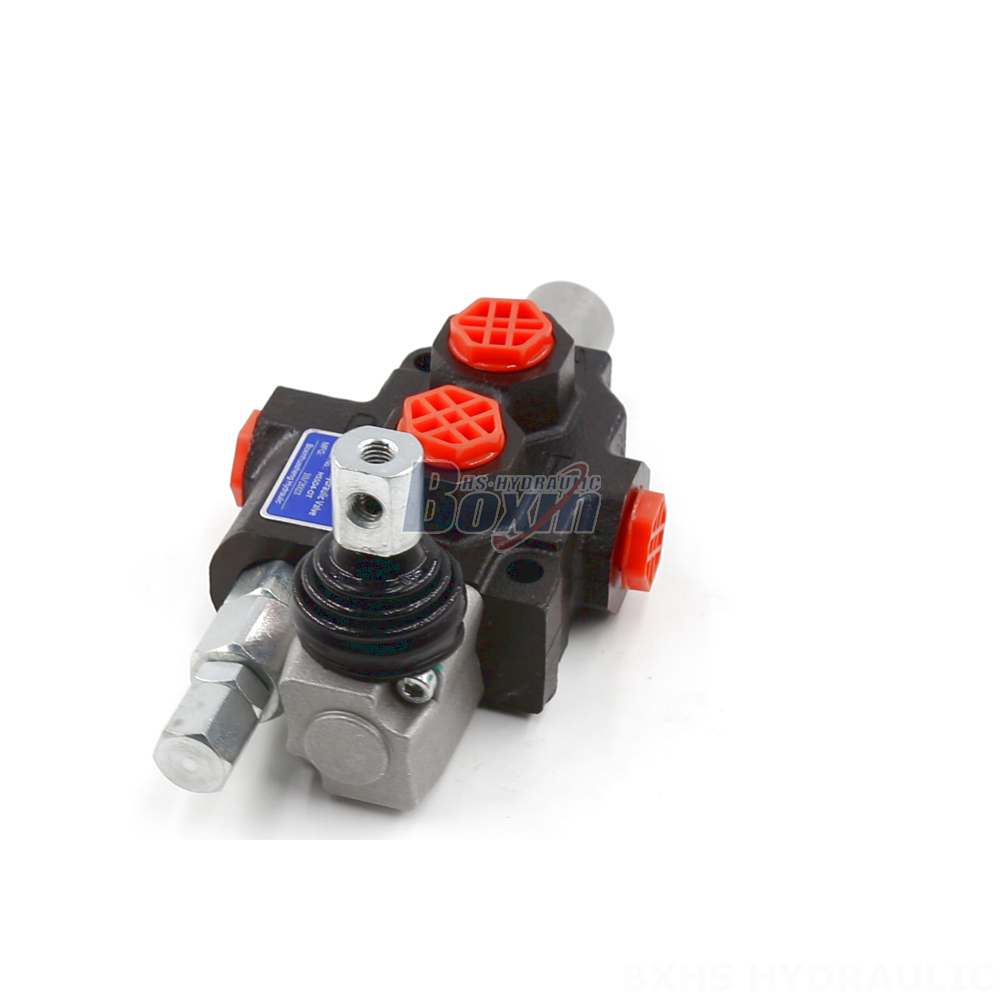

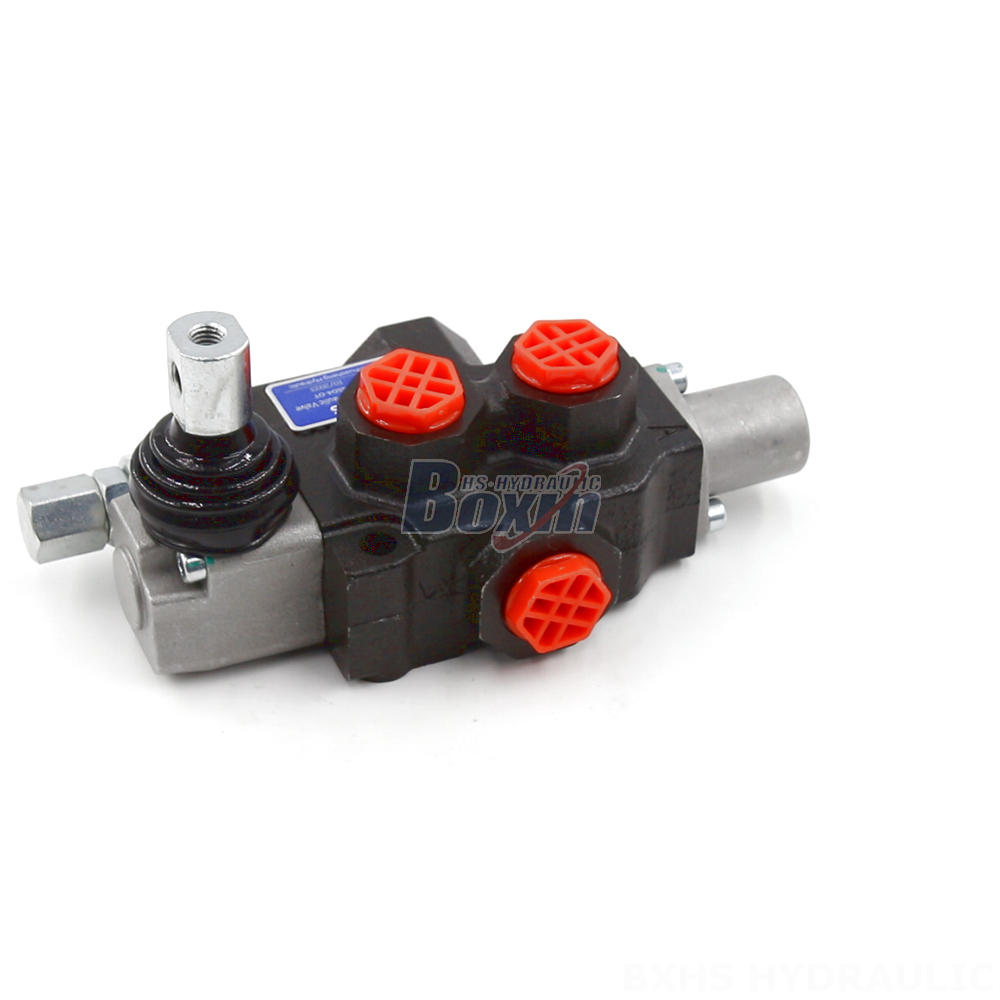

Source Your SD4 Directional Control Valves from a Trusted Manufacturer detail image

Source Your SD4 Directional Control Valves from a Trusted Manufacturer

制御方法:手動

スプール:1スプール

定格流量:毎分45リットル (11.8 US gpm)

最大圧力:315 bar (4600 psi)

吸入口:G3/8

吐出口:G3/8

ポートサイズ:G3/8

ベンダー:BXHS

製品タイプ:モノブロック方向制御弁

製品シリーズ:SD4シリーズモノブロック方向制御弁

梱包サイズ:13*22*13

総重量:3.50 kg

在庫状況: 在庫あり

お問い合わせ

1004 この製品を探している人もいます

Source Your SD4 Directional Control Valves from a Trusted Manufacturer

Source Your SD4 Directional Control Valves from a Trusted Manufacturer drawing image

This is a reliable and durable 4-way hydraulic directional control valve (SD4 series) designed for demanding applications in construction, agriculture, and material handling. It features a compact monoblock design, manual control, and a rated flow of 40 L/min.

SD4シリーズモノブロック方向制御弁パラメーター
制御方法	手動
スプール	1スプール
定格流量	毎分40リットル (10.5 US gpm)
最大圧力	250 bar (3600 psi), 305 bar (4400 psi)
吸入口	G3/8, SAE 6
吐出口	G3/8, SAE 6
ポートサイズ	G3/8, SAE 6
セクション	1セクション
構造タイプ	モノブロック弁
周囲温度範囲	-40°C to +60°C (-40°F to +140°F)
作動粘度範囲	15 - 75 mm²/s (15 cSt to 75 cSt)

The SD4 Series 4-Way Hydraulic Valve is a manual, monoblock valve offering a rated flow of 40 L/min (10.5 US gpm) and a maximum pressure of 230 bar (3300 psi). Its robust construction and wide operating temperature range (-40°C to +80°C) make it suitable for various demanding applications. This valve is perfect for use in a variety of equipment, including telehandlers, forklifts, cranes, excavators, and loaders, making it a versatile solution for a wide range of industries.
