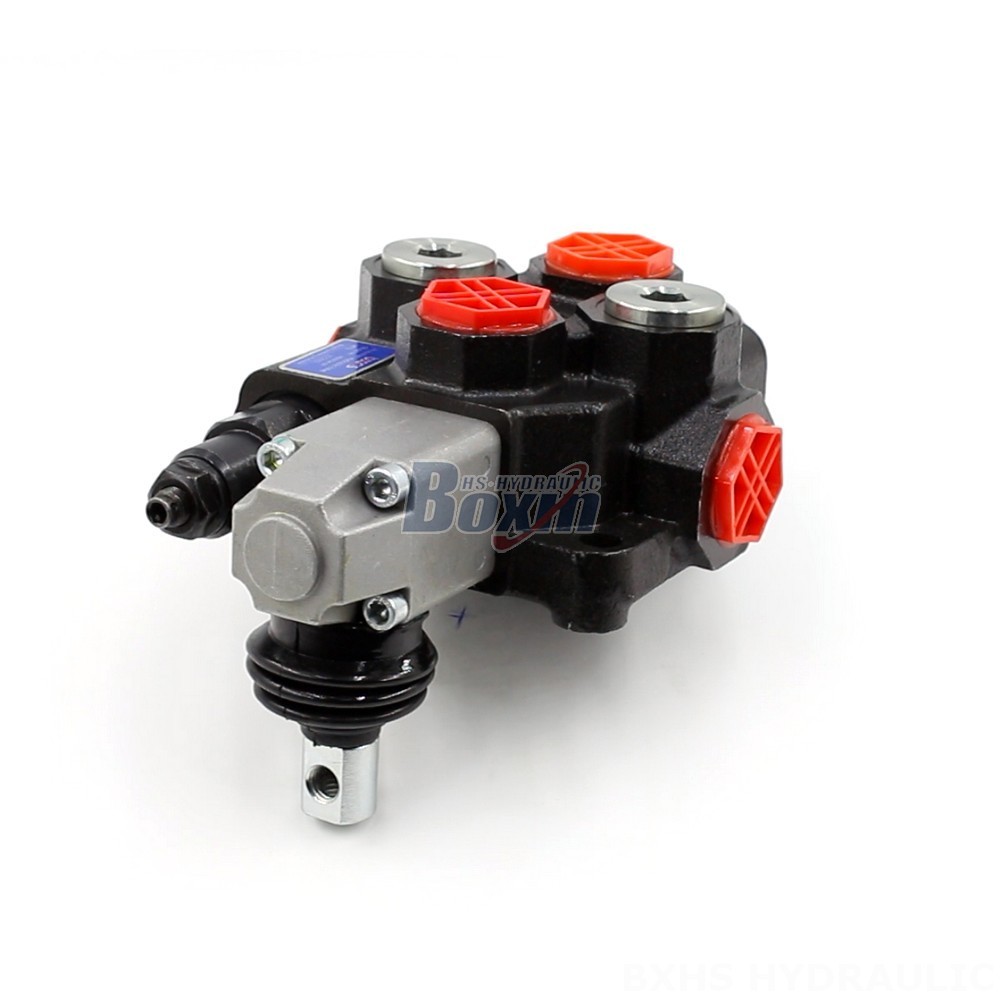

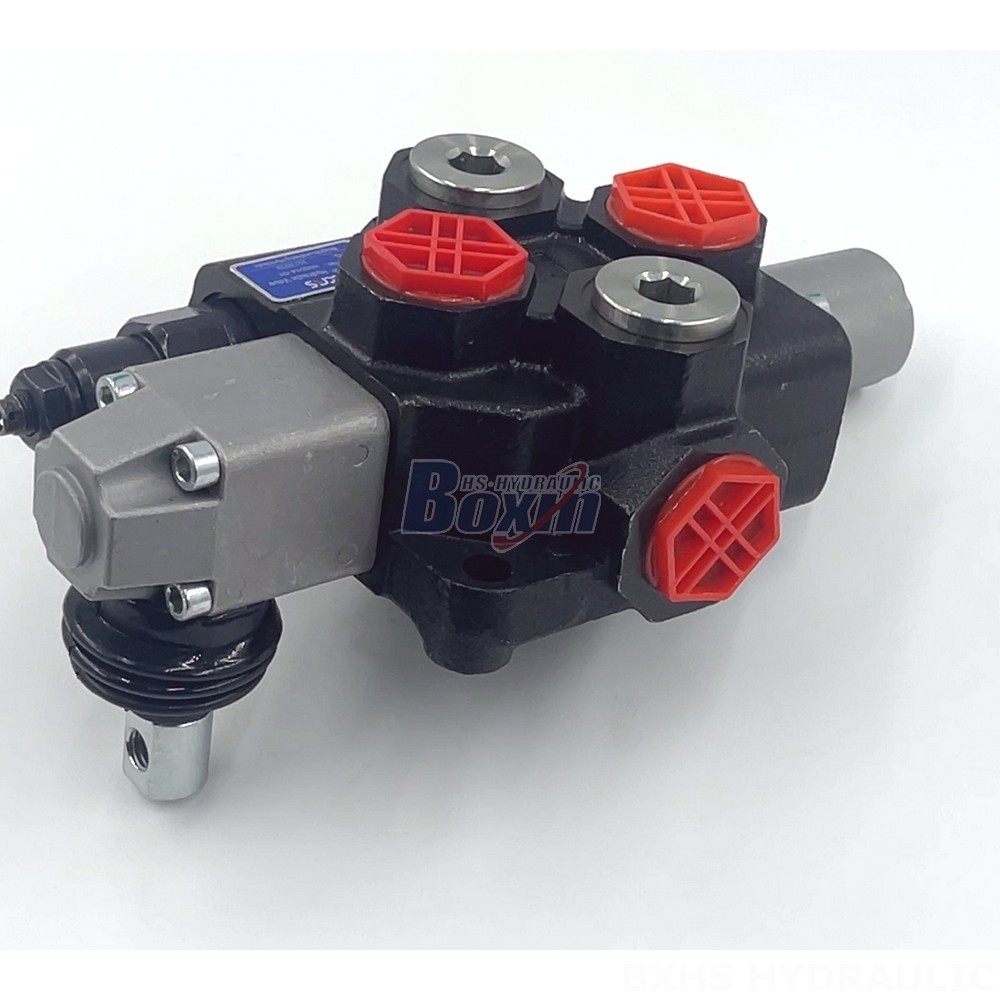

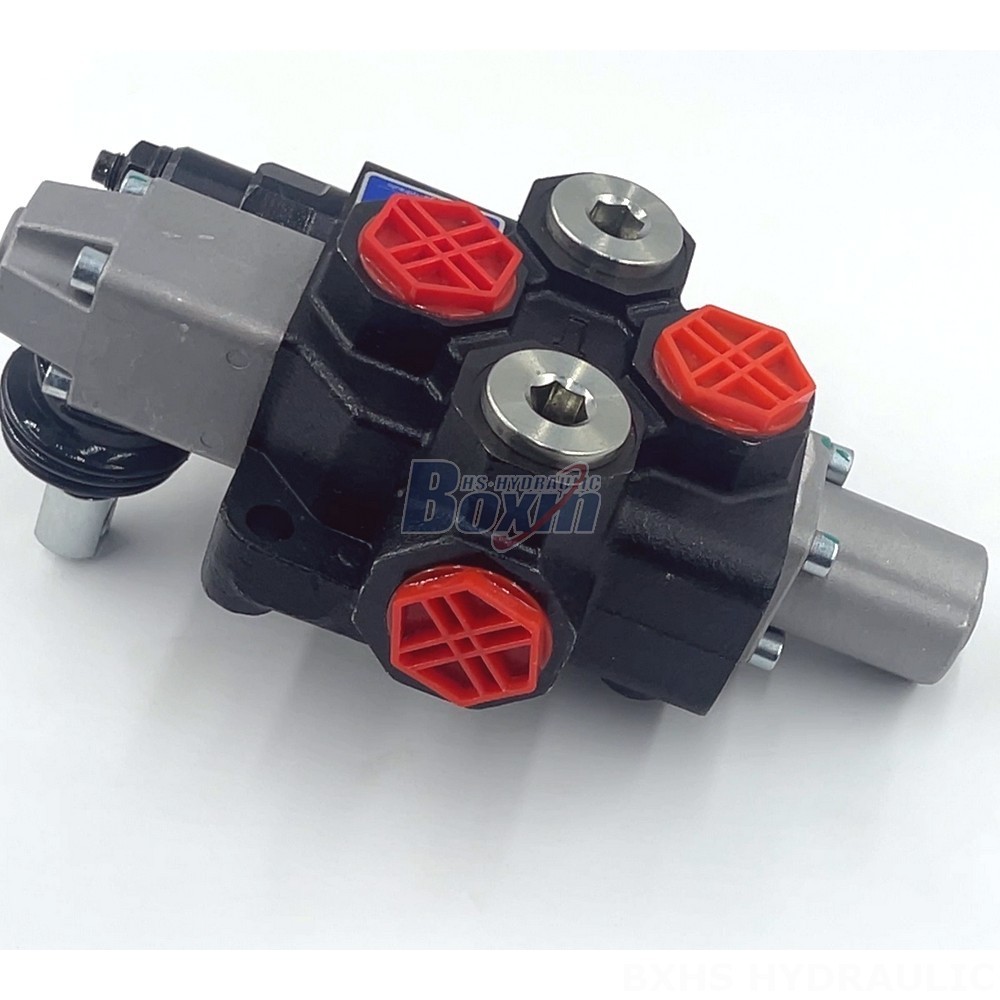

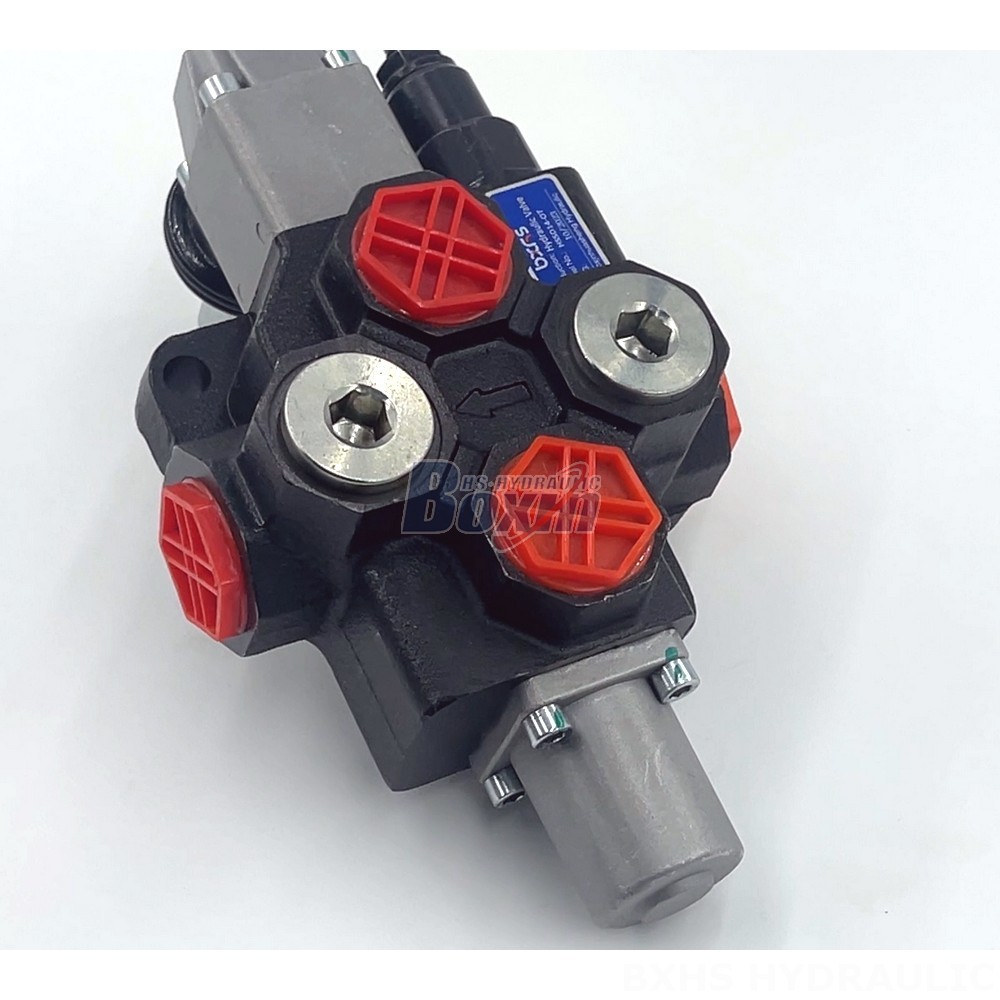

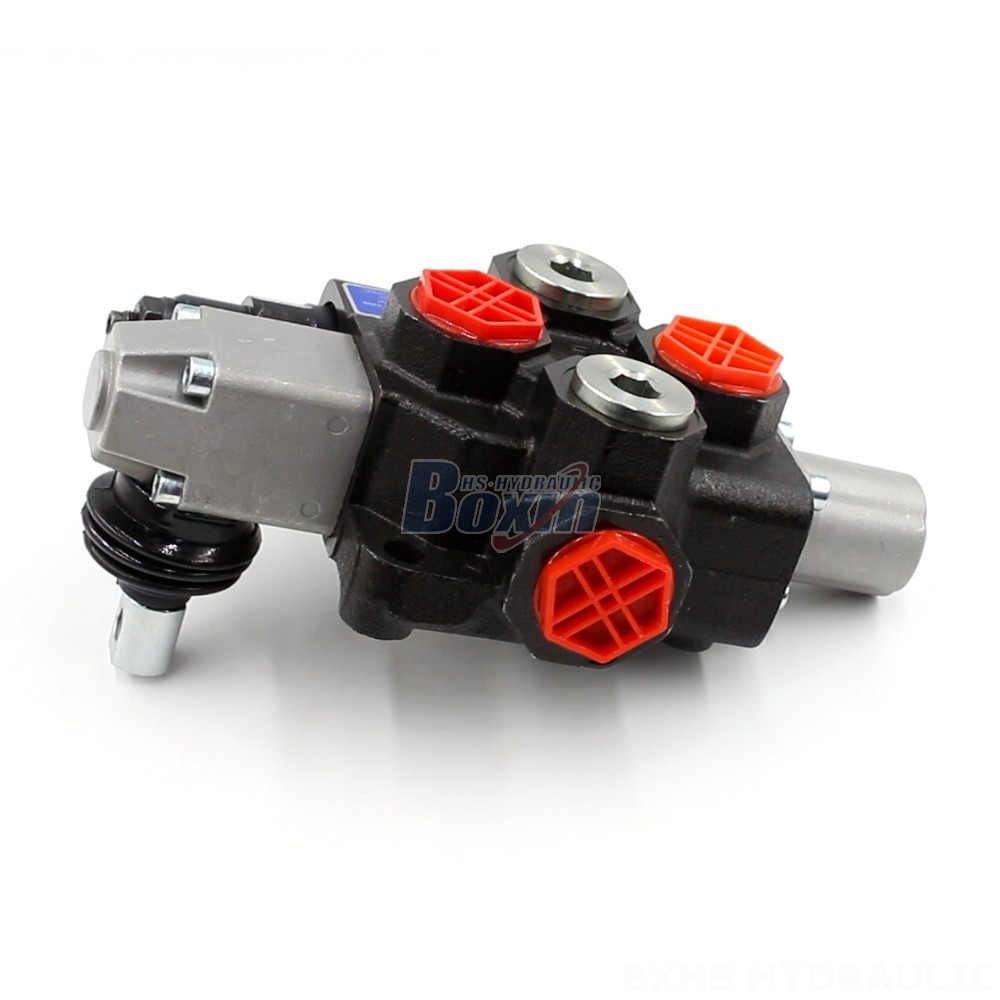

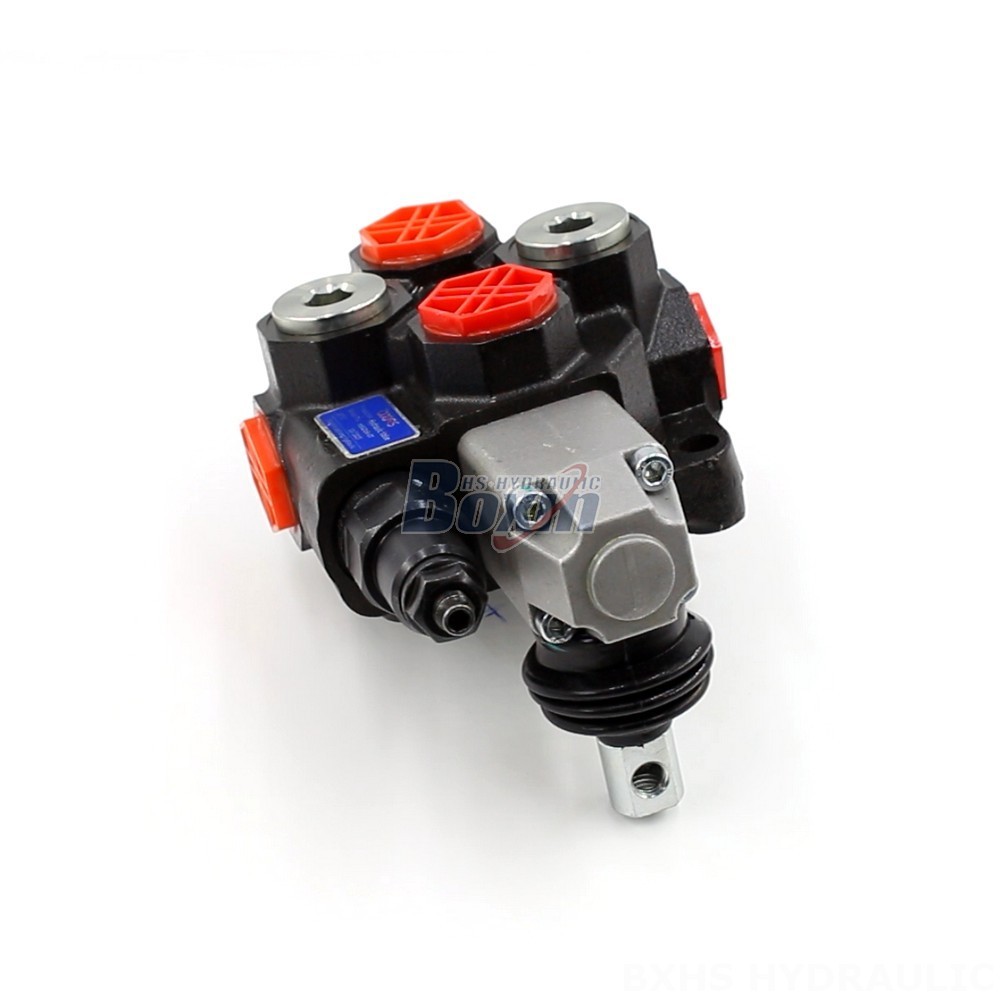

The SD14 Directional Control Valve is a reliable and robust manual control valve designed for use in a wide range of applications including construction, material handling, agriculture and industrial vehicles. This monoblock valve features a compact design with a 120 L/min flow rate and a maximum pressure rating of 315 bar.
| SD14 シリーズ モノブロック方向制御弁 パラメーター | |
|---|---|
| 制御方法 | 手動, 空圧, 油圧 |
| スプール | 1スプール |
| 周囲温度範囲 | -40°C to +60°C (-40°F to +140°F) |
| 構造タイプ | モノブロック弁 |
| セクション | 1セクション |
| 作動粘度範囲 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 定格流量 | 120 L/分 (31.7 US gpm) |
| 最大圧力 | 315 bar (4600 psi) |
| 吸入口 | G3/4 |
| 吐出口 | G3/4 |
| ポートサイズ | G3/4 |
The SD14 Series Directional Control Valve is a high-quality, manual control valve manufactured for durability and performance. It features a compact monoblock design with a single spool and offers a flow rate of 120 L/min at a maximum pressure of 315 bar. Designed for a wide range of operating temperatures (-40°C to +60°C), this valve is ideal for use in demanding applications involving construction equipment, material handling machinery, agricultural equipment, and industrial vehicles. Specific applications include telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, mini- and midi- excavators, skid steer loaders, and compact wheel loaders.
