生産と納品
15~30日の生産リードタイム

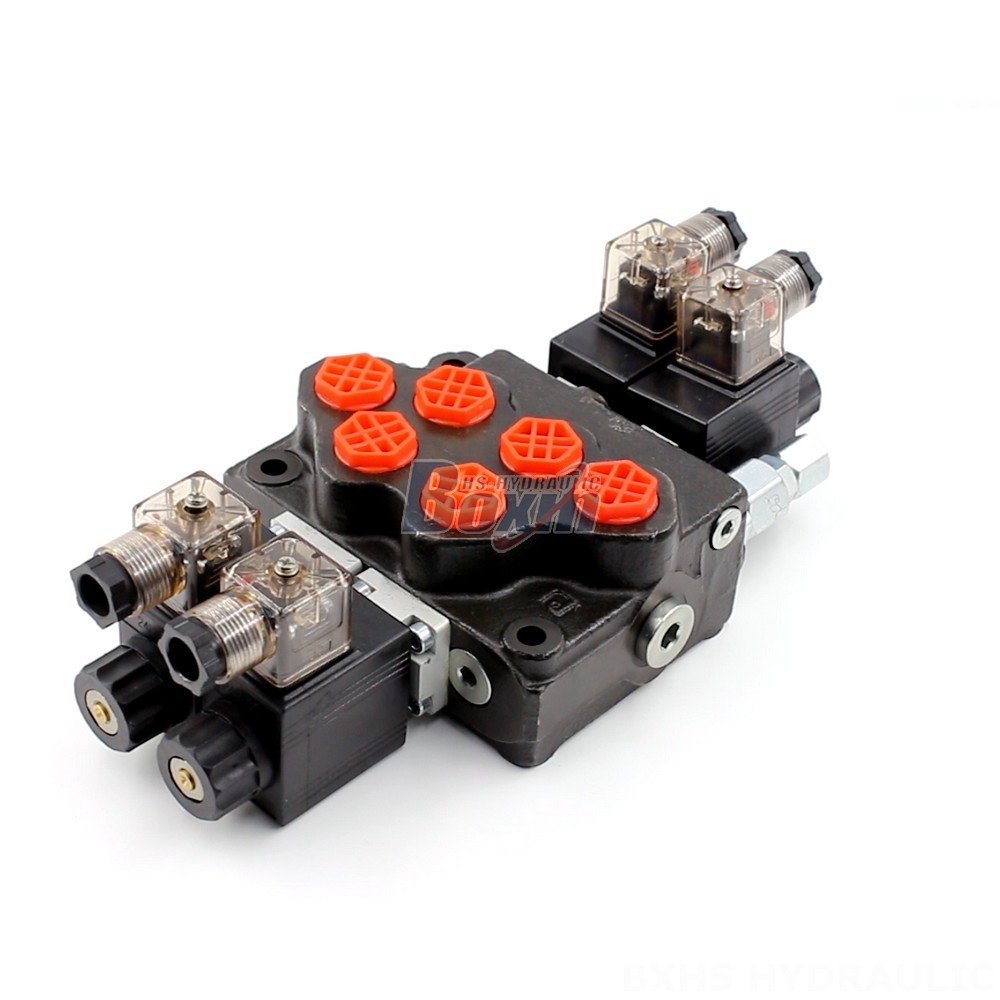

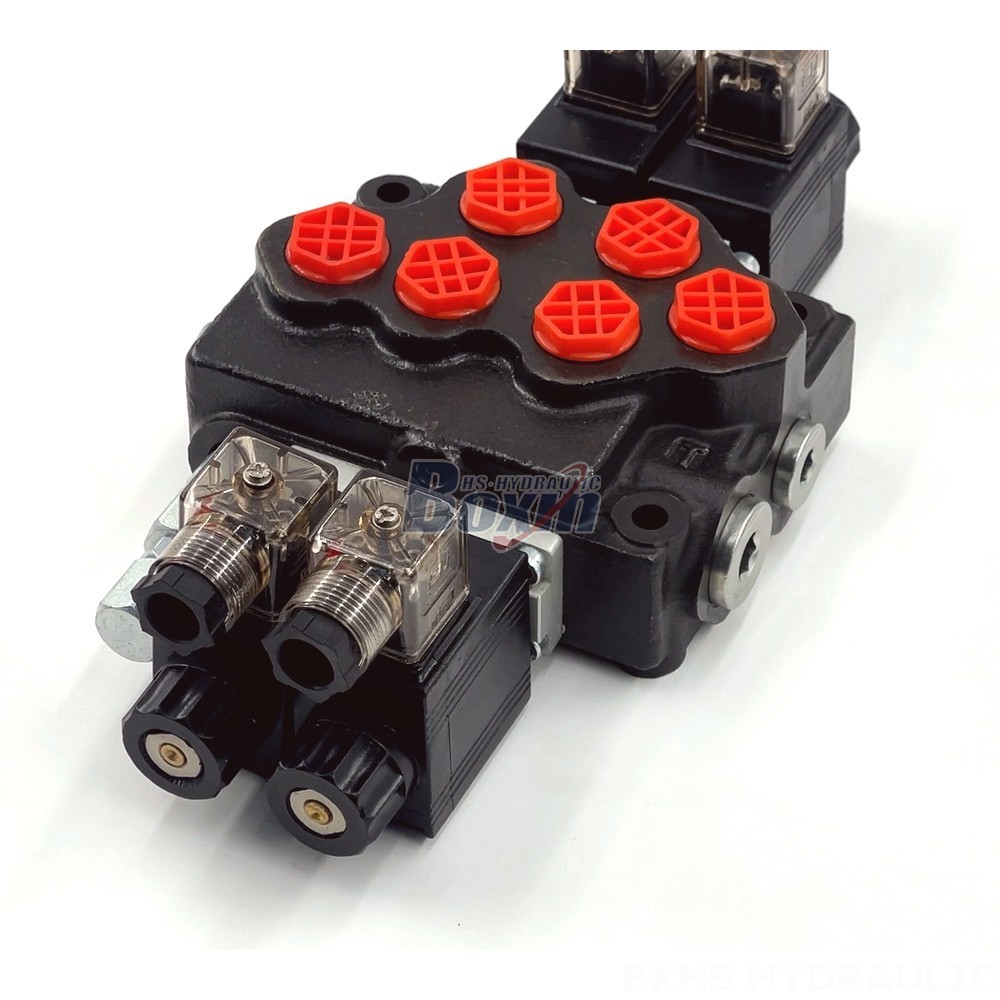

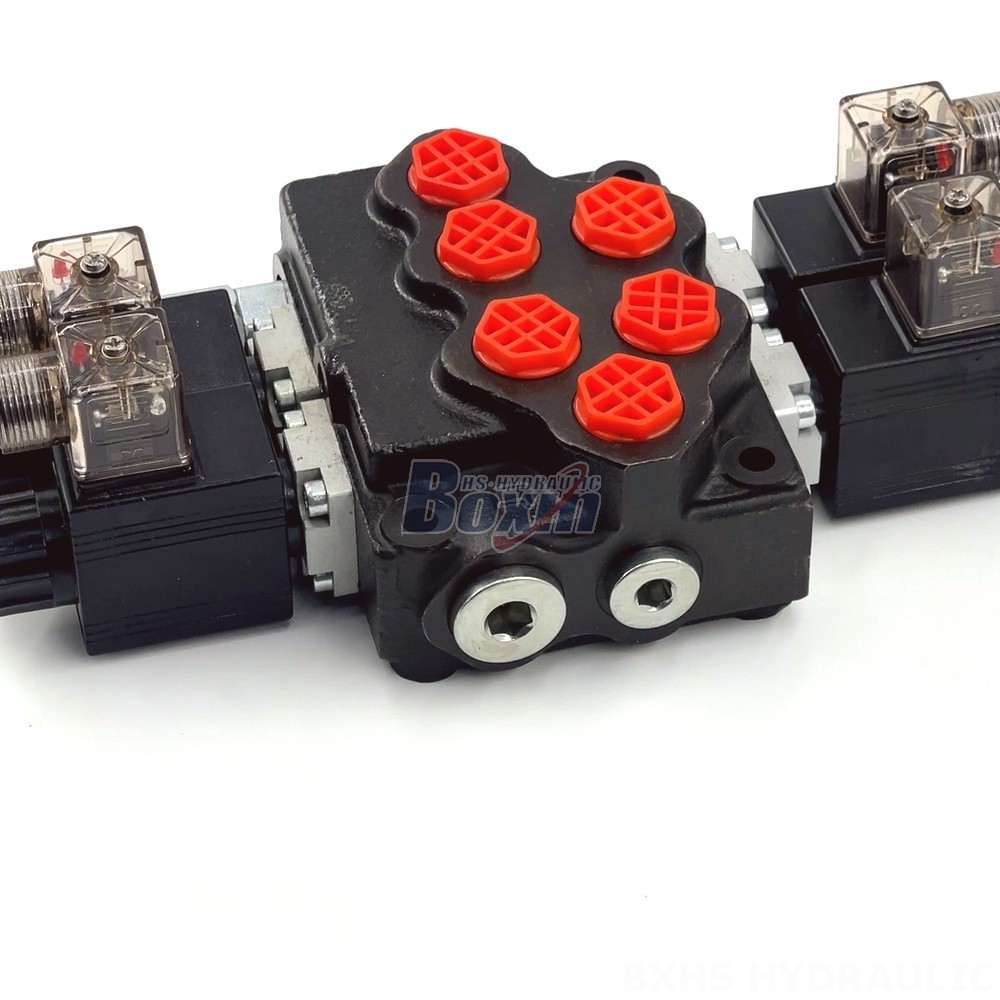

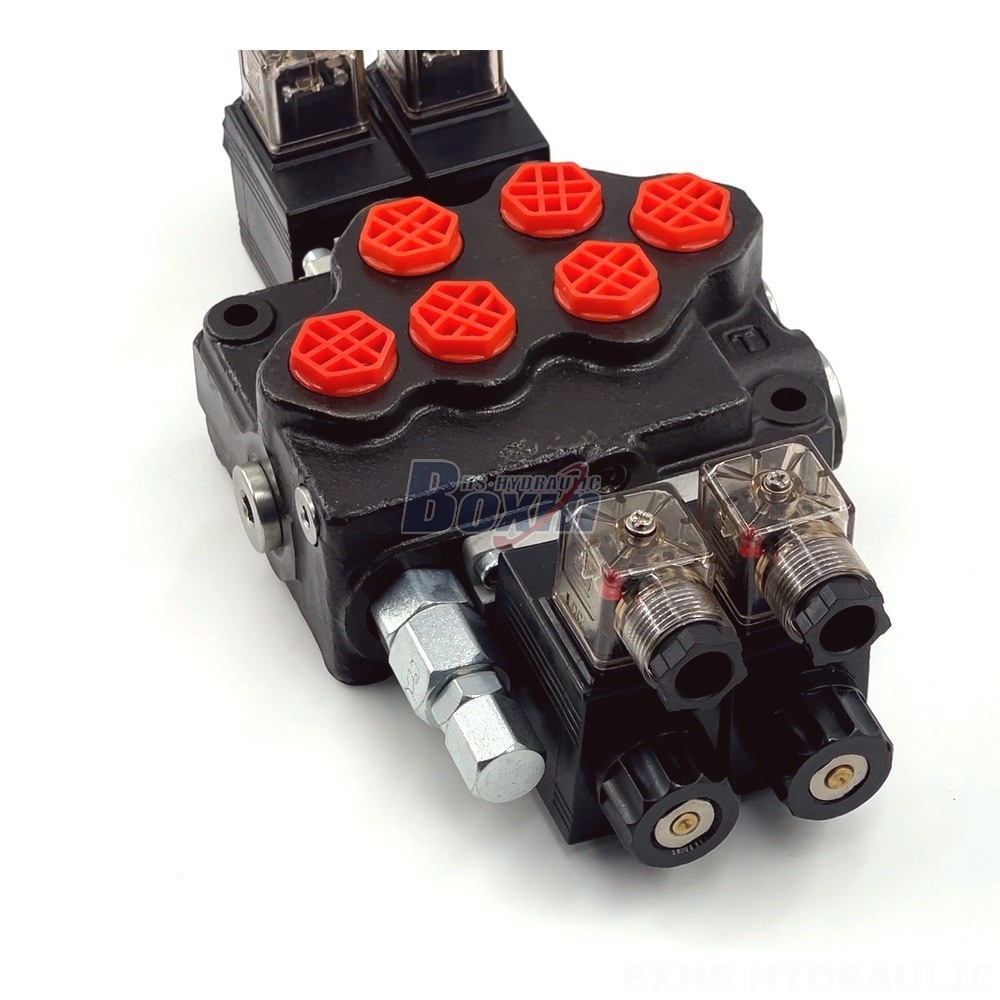

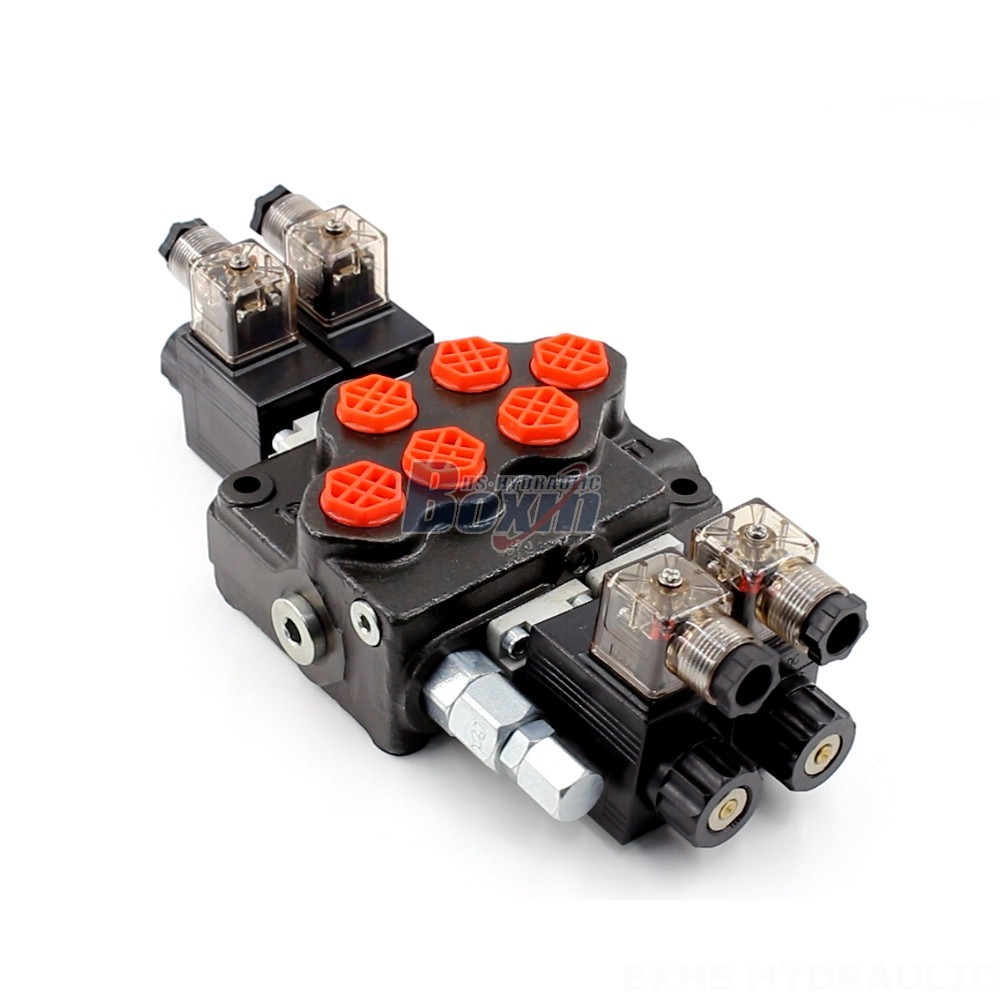

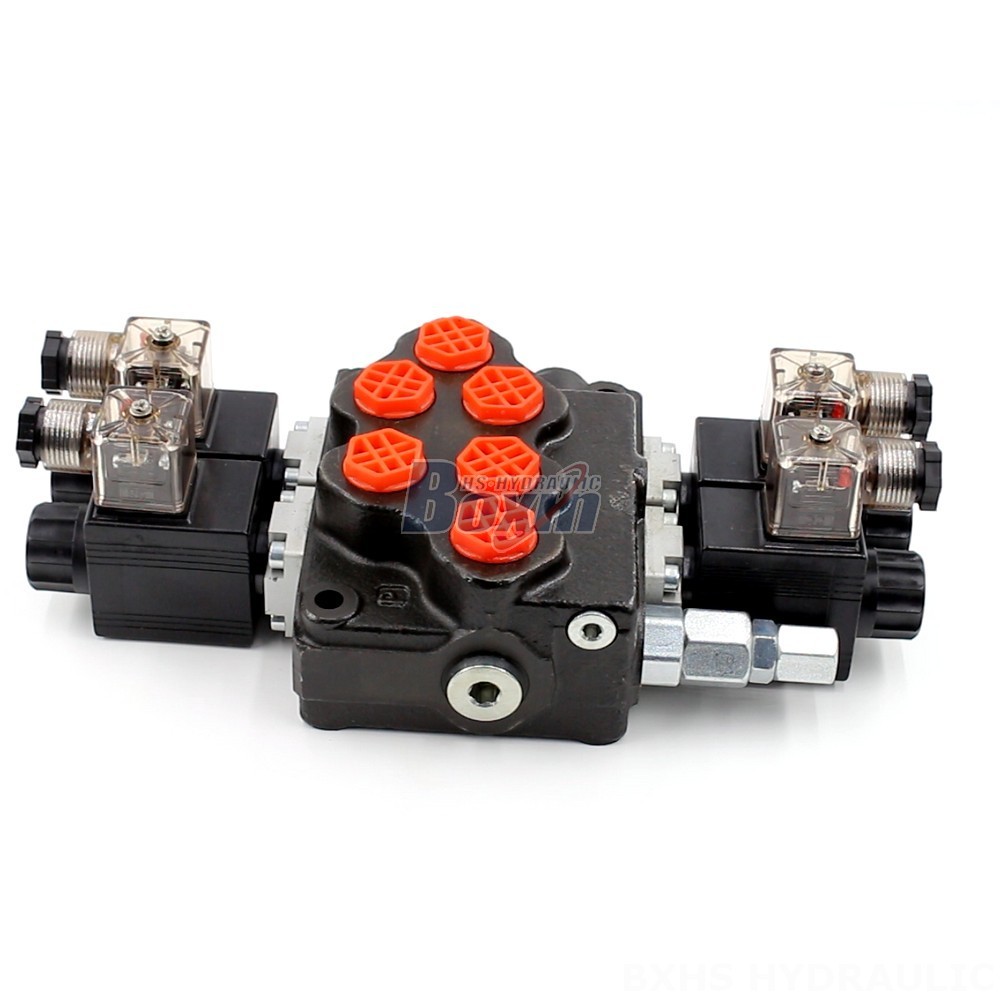

The SD5 Solenoid Valve is a high-quality hydraulic spool valve designed for tractors and other heavy-duty equipment. It offers a reliable and efficient way to control hydraulic flow, providing smooth operation and long service life. This valve is available in a variety of configurations to meet your specific application requirements.
| SD5シリーズ モノブロック方向制御弁 パラメーター | |
|---|---|
| 制御方法 | 手動, 空圧, 電空, 電気油圧, ソレノイド, 油圧, 油圧および手動, ケーブル, ジョイスティック |
| スプール | 1スプール, 2スプール, 3スプール, 4スプール, 5スプール, 6スプール, 7スプール |
| 周囲温度範囲 | -40°C to +60°C (-40°F to +140°F) |
| 構造タイプ | モノブロック弁 |
| セクション | 1セクション, 2セクション, 3セクション, 4セクション, 5セクション, 6セクション, 7セクション |
| 作動粘度範囲 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 定格流量 | 毎分40リットル (10.5 US gpm) |
| 最大圧力 | 305 bar (4400 psi) |
| 吸入口 | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8, G1-1/2 |
| 吐出口 | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |
| ポートサイズ | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |
The SD5 Series Solenoid Valve is a high-performance hydraulic valve manufactured for tractors and other heavy-duty machinery. This 2-section monoblock valve is built to withstand demanding conditions with a rated flow of 40 L/min (10.5 US gpm) and a maximum pressure of 305 bar (4400 psi). The valve features a solenoid control method, offering precise and responsive operation. It is suitable for a wide range of applications, including material handling, construction and earthmoving, agriculture, and industrial vehicles. We are a manufacturer, offering factory supply, factory wholesale, and customized options to meet your specific needs. Our commitment to quality and customer satisfaction ensures that you receive a reliable and durable product that exceeds your expectations.
