Solenoid Hydraulic Valve | SD5 Model | Factory Direct & Customizable

制御方法:ソレノイド

スプール:1スプール

定格流量:毎分45リットル (11.8 US gpm)

最大圧力:315 bar (4600 psi)

吸入口:G3/8

吐出口:G3/8

ポートサイズ:G3/8

ベンダー:BXHS

製品タイプ:モノブロック方向制御弁

製品シリーズ:SD5シリーズ モノブロック方向制御弁

梱包サイズ:30*13*13

総重量:5.40 kg

在庫状況: 在庫あり

1128 この製品を探している人もいます

Solenoid Hydraulic Valve | SD5 Model | Factory Direct & Customizable

Solenoid Hydraulic Valve | SD5 Model | Factory Direct & Customizable

Solenoid Hydraulic Valve | SD5 Model | Factory Direct & Customizable drawing image

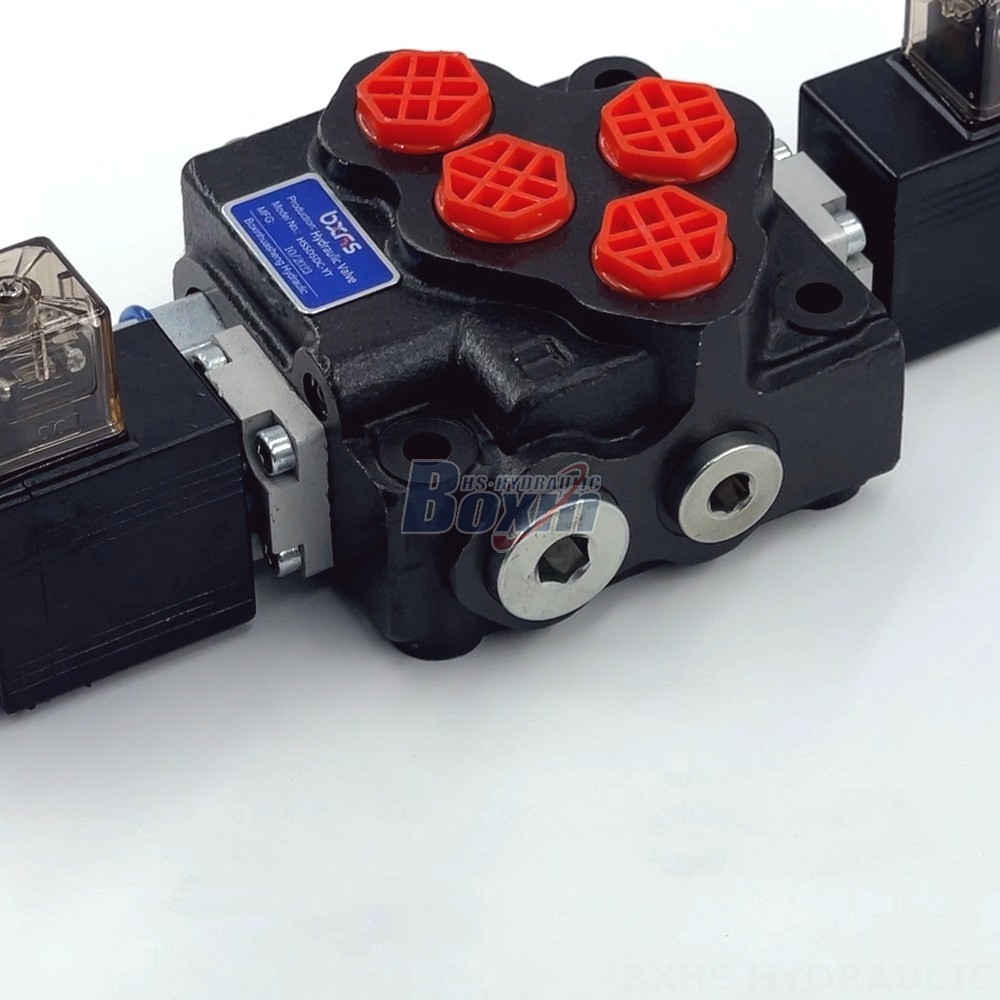

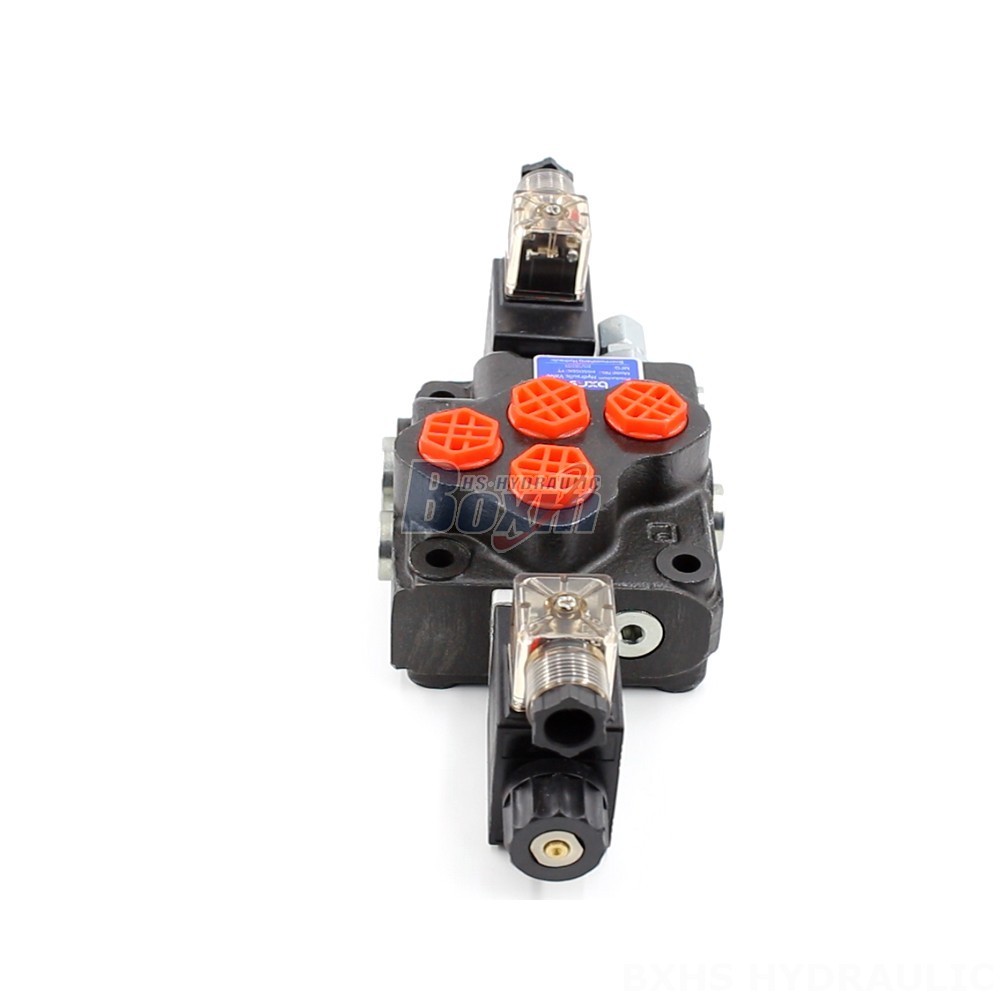

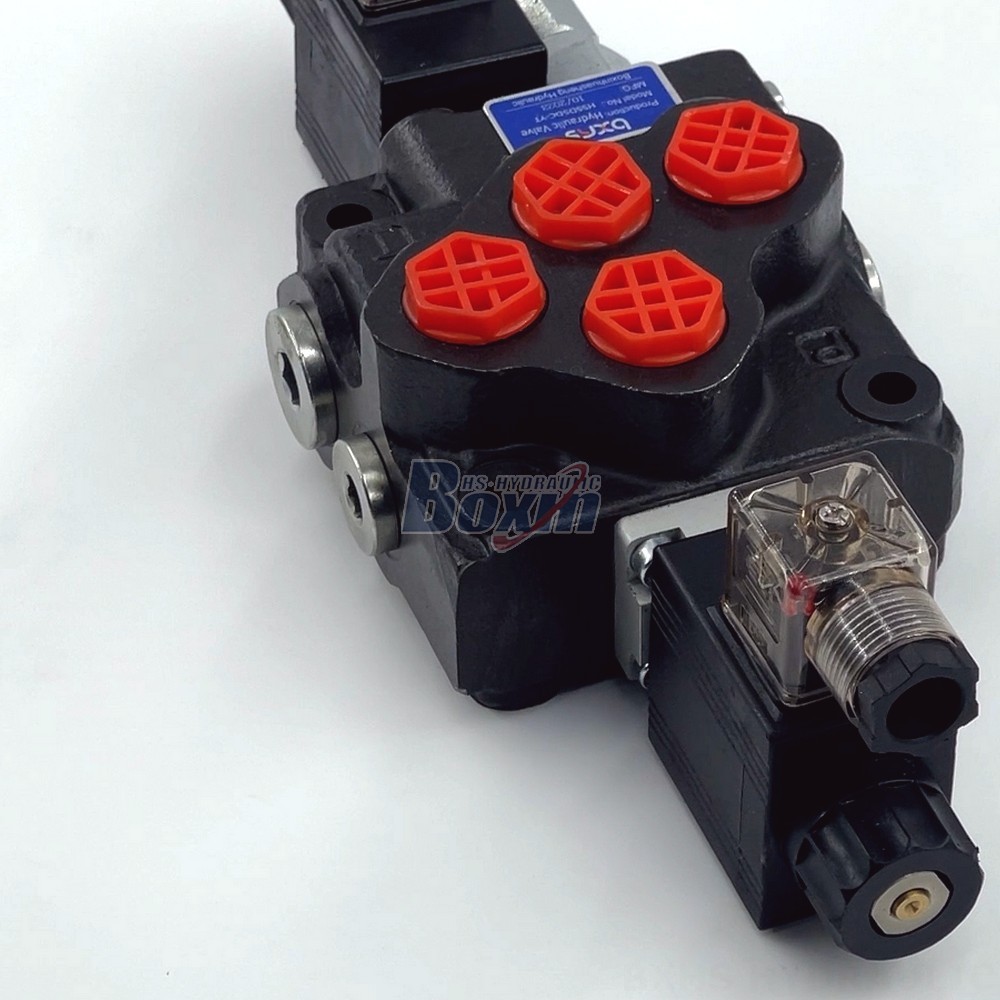

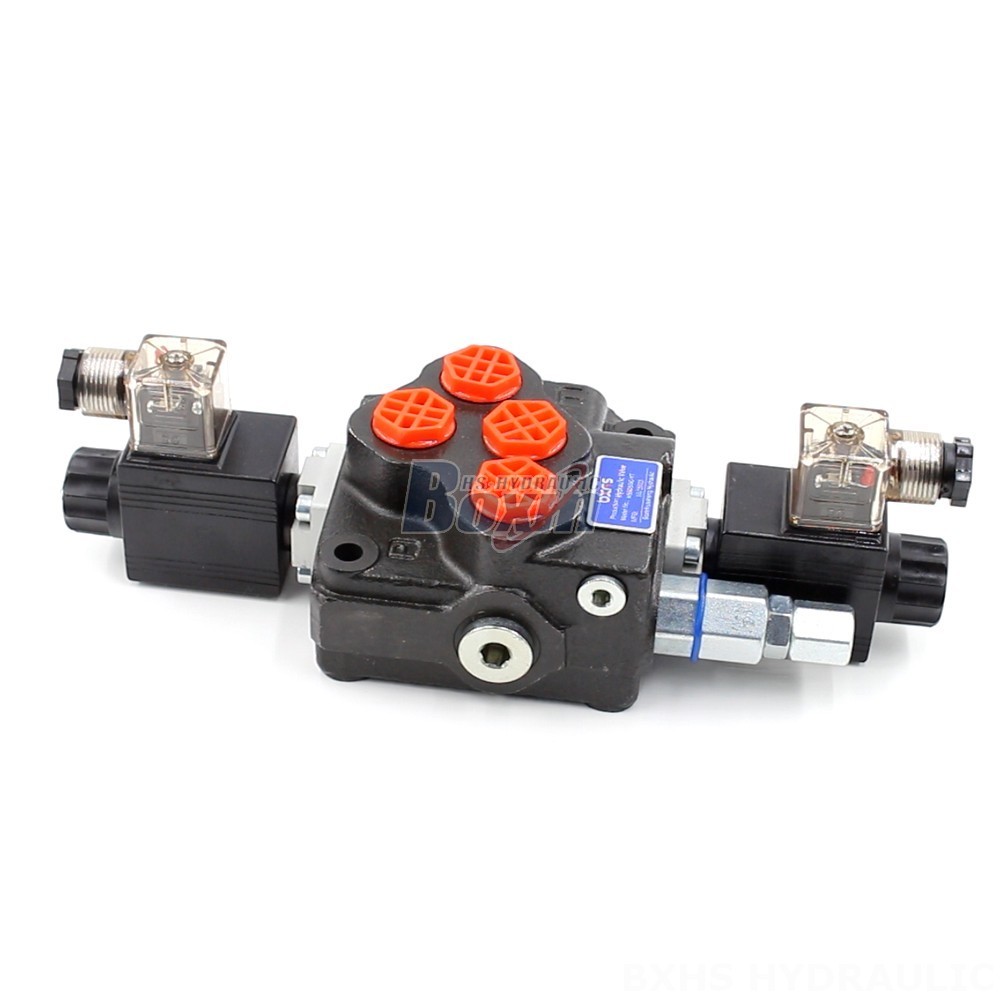

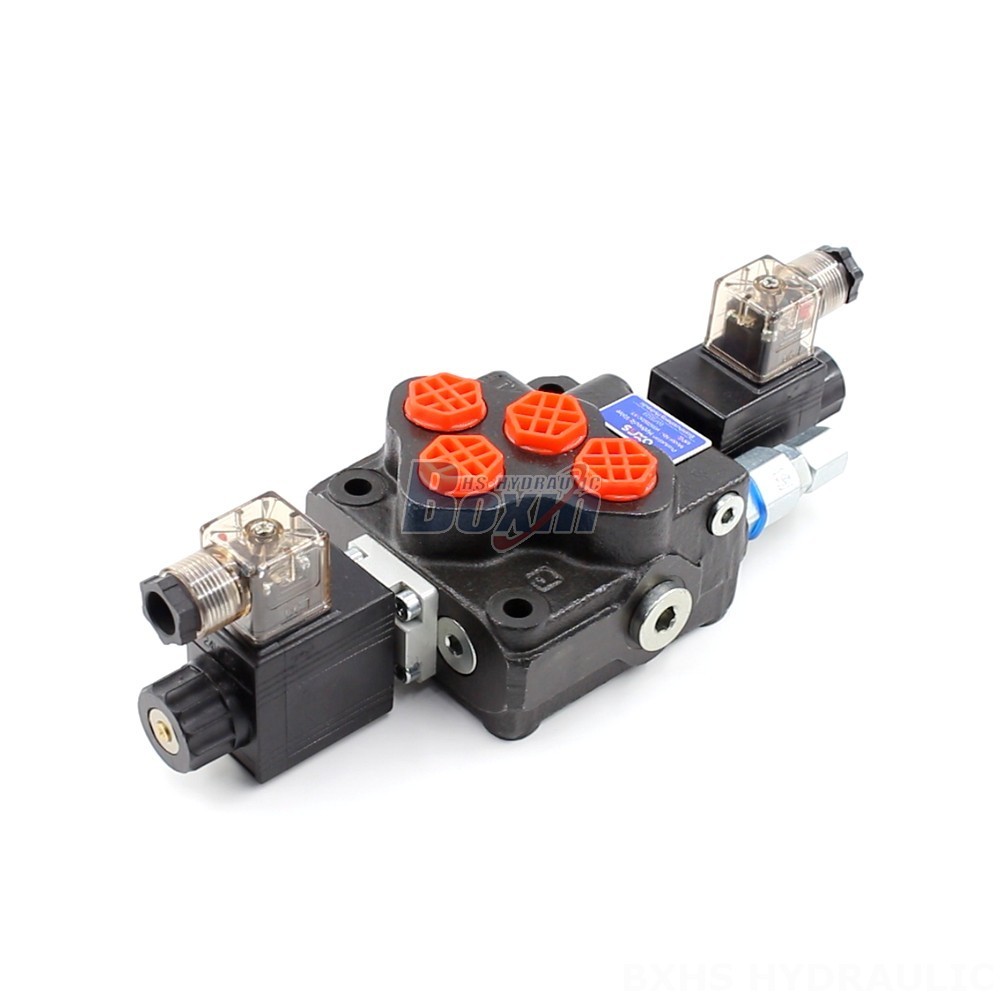

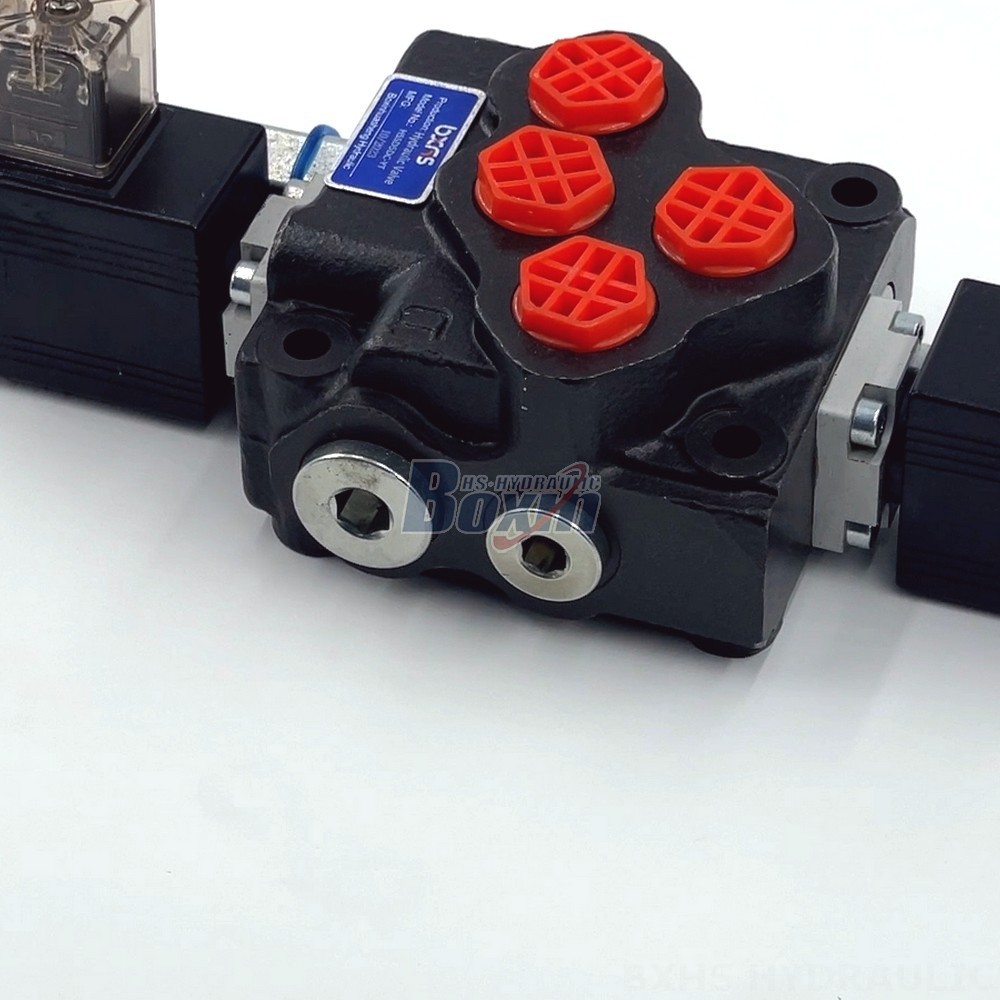

The SD5 Series Log Splitter Spool Valve Solenoid Hydraulic Valve is a durable and reliable valve designed for use in a variety of applications, including material handling, construction, agriculture, and industrial vehicles. This monoblock valve features a solenoid control method, 1 section, 40 L/min rated flow, and 305 bar maximum pressure. It's available directly from the factory and can be customized to meet your specific needs.

SD5シリーズ モノブロック方向制御弁 パラメーター
制御方法 手動, 空圧, 電空, 電気油圧, ソレノイド, 油圧, 油圧および手動, ケーブル, ジョイスティック
スプール 1スプール, 2スプール, 3スプール, 4スプール, 5スプール, 6スプール, 7スプール
周囲温度範囲 -40°C to +60°C (-40°F to +140°F)
構造タイプ モノブロック弁
セクション 1セクション, 2セクション, 3セクション, 4セクション, 5セクション, 6セクション, 7セクション
作動粘度範囲 15 - 75 mm²/s (15 cSt to 75 cSt)
定格流量 毎分40リットル (10.5 US gpm)
最大圧力 305 bar (4400 psi)
吸入口 G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8, G1-1/2
吐出口 G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8
ポートサイズ G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8

The SD5 Series Log Splitter Spool Valve Solenoid Hydraulic Valve is a high-performance, heavy-duty valve designed for use in demanding applications. It features a compact design, robust construction, and reliable performance. This monoblock valve is controlled by a solenoid, offering precise and responsive operation. The valve is available in a variety of configurations to meet your specific needs. It is also available with a range of options and accessories, including custom-engineered solutions. The SD5 Series is the perfect choice for a wide range of applications including material handling, construction, agriculture, and industrial vehicles. It is also suitable for use in a variety of harsh environments. Contact us today to learn more about this high-quality hydraulic valve.
