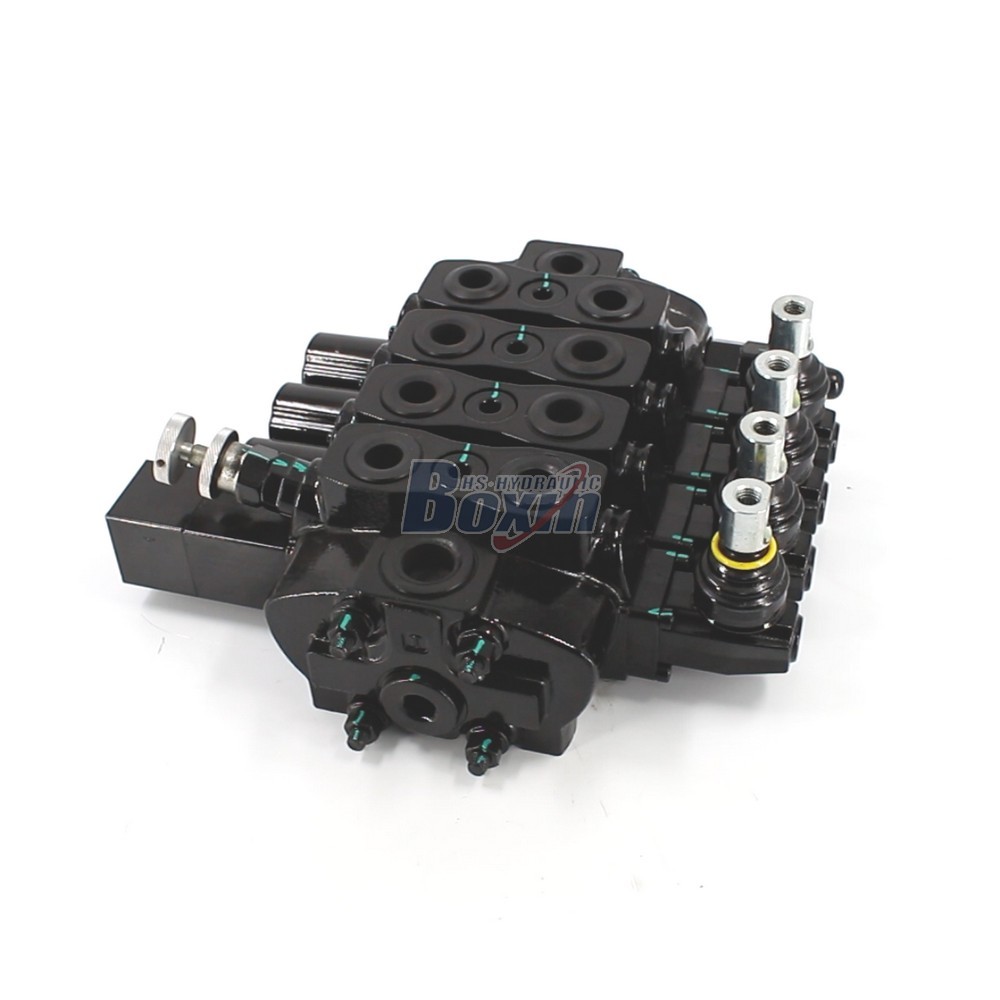

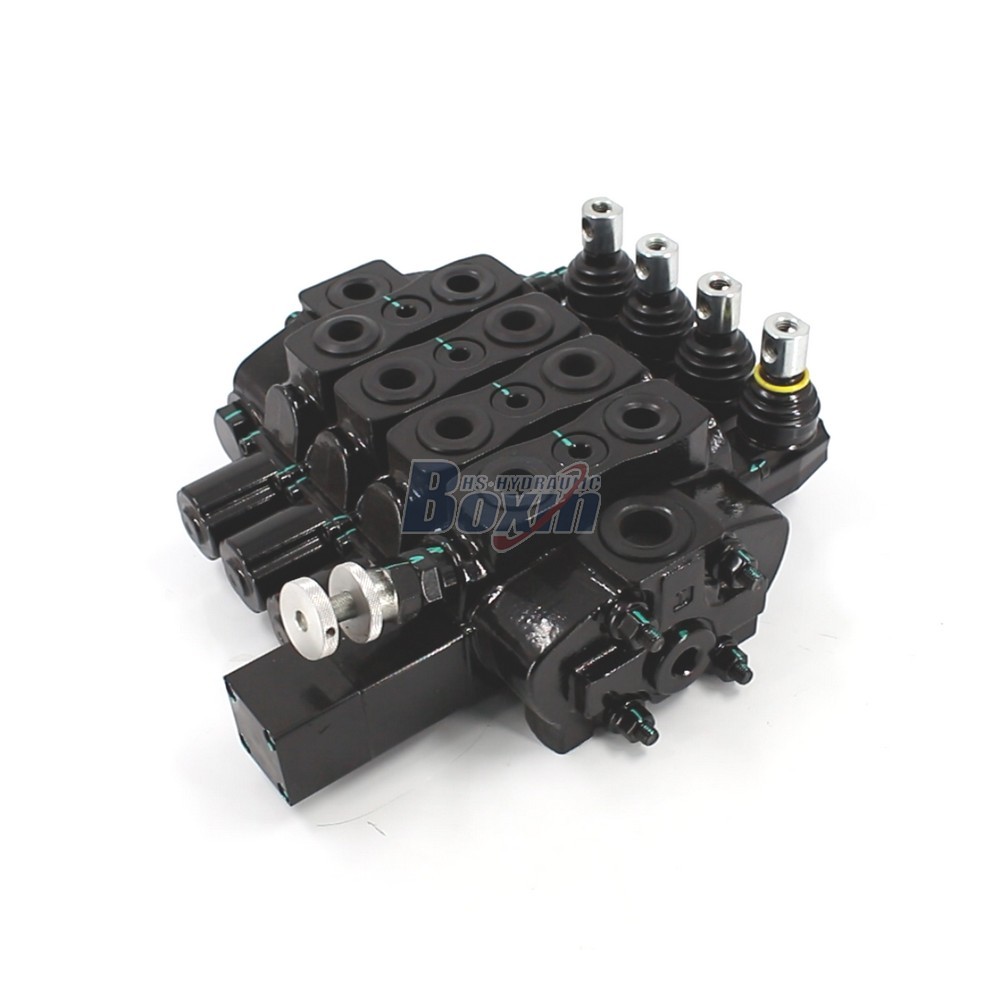

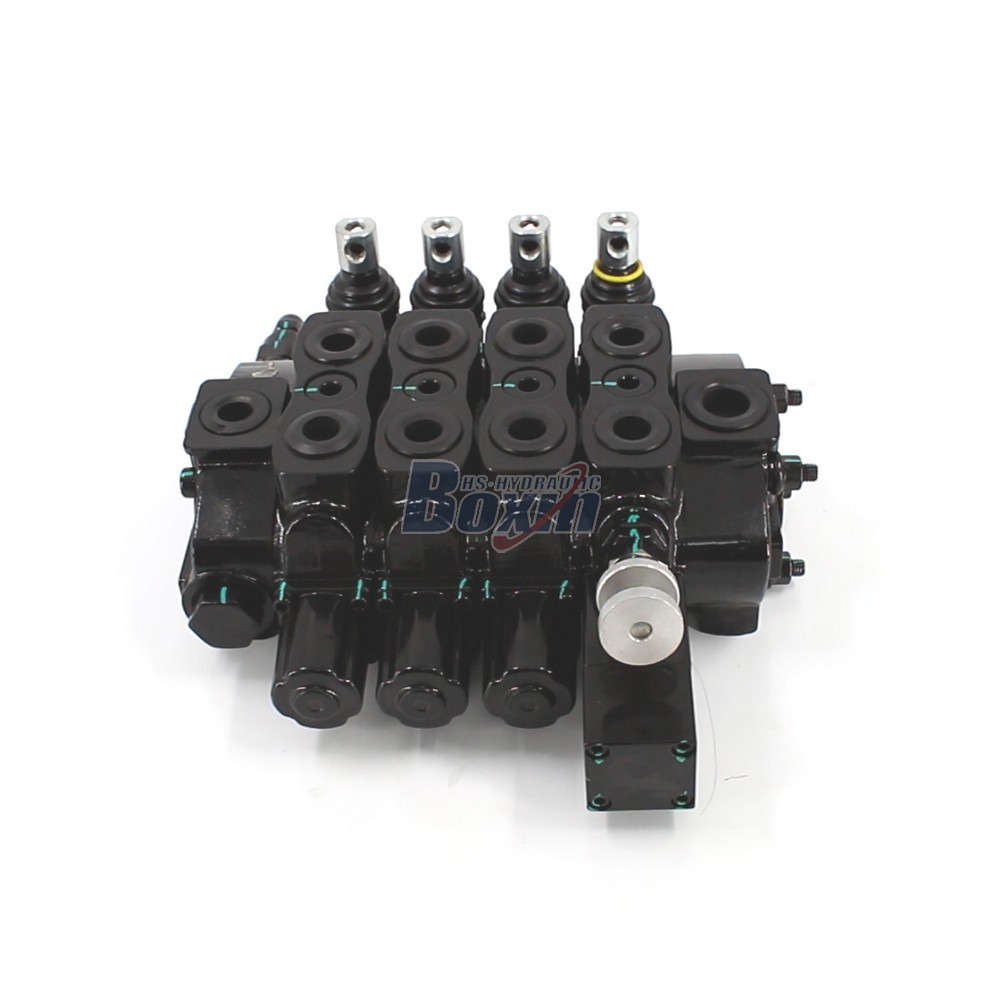

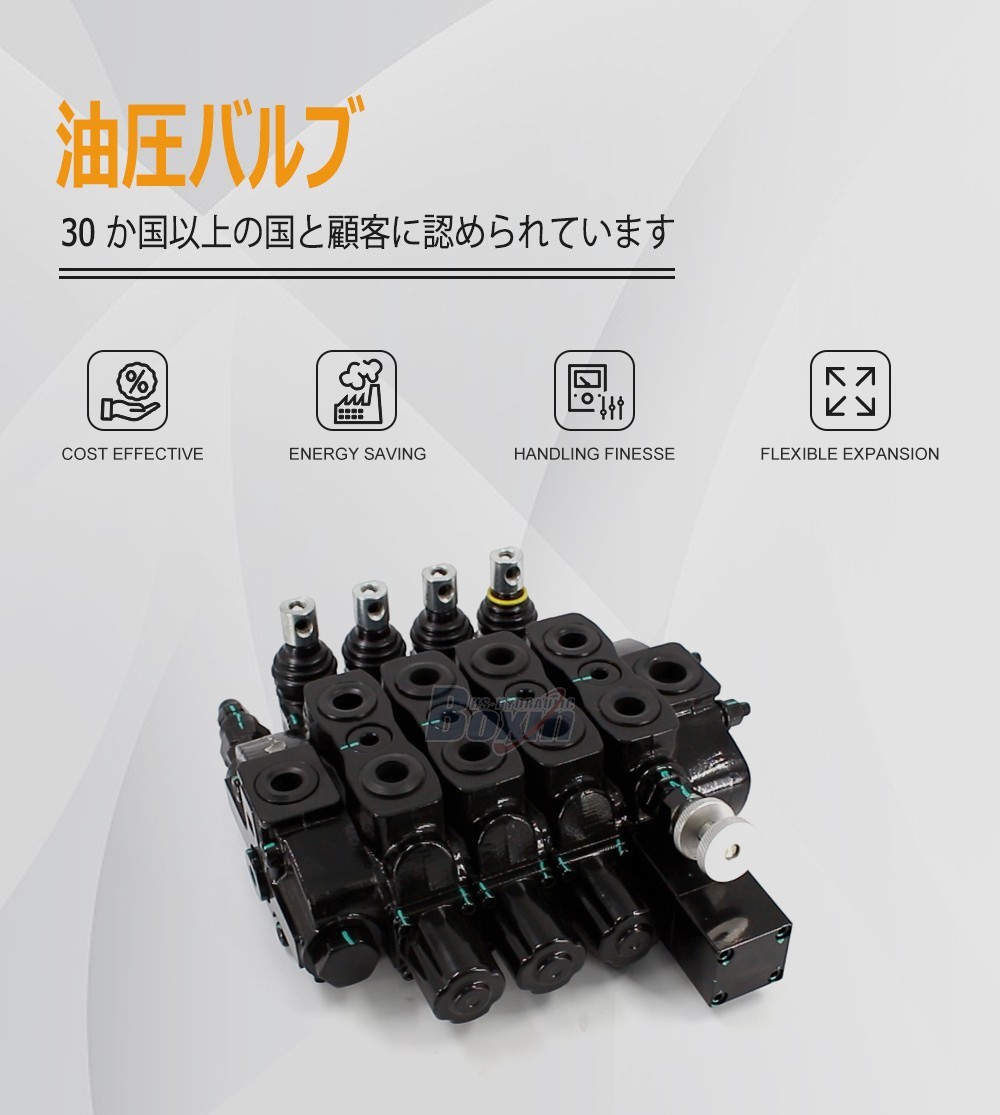

Sectional Directional Control Valve SD8-OTAMW 4 Spool Manual Operation

制御方法:手動

スプール:4スプール

定格流量:毎分90リットル (23.8 US gpm)

最大圧力:315 bar (4600 psi)

吸入口:G1/2

吐出口:G3/4

ポートサイズ:G1/2

ベンダー:BXHS

製品タイプ:セクショナル方向弁

製品シリーズ:SD8シリーズ セクショナル方向弁

梱包サイズ:34*34*15.5

総重量:18.50 kg

在庫状況: 在庫あり

79 この製品を探している人もいます

Sectional Directional Control Valve SD8-OTAMW 4 Spool Manual Operation

Sectional Directional Control Valve SD8-OTAMW 4 Spool Manual Operation

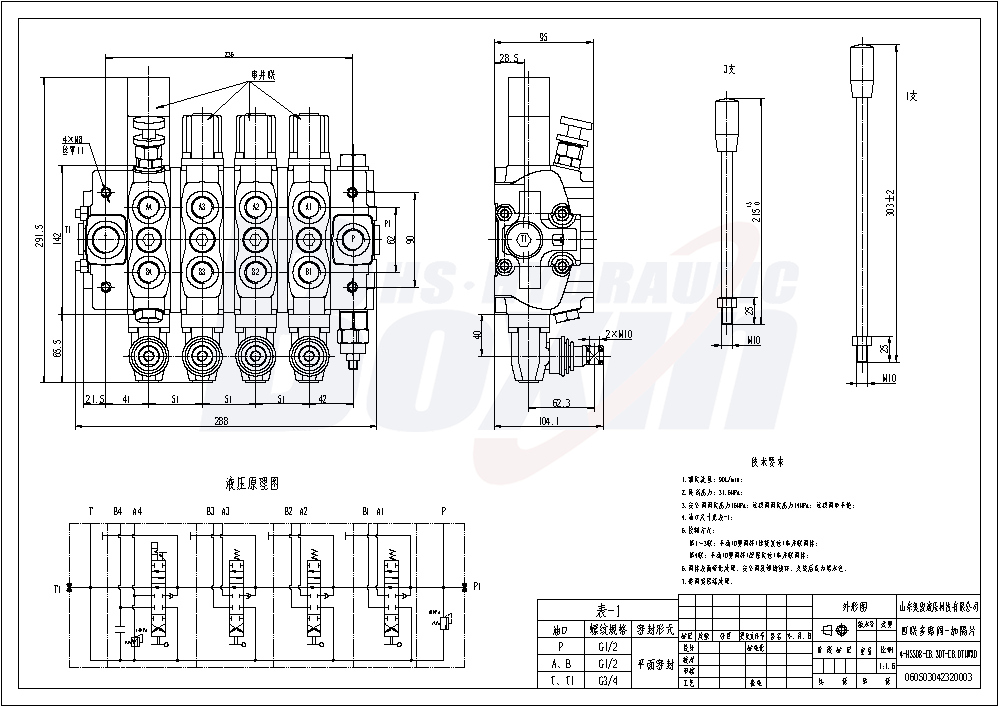

Sectional Directional Control Valve SD8-OTAMW 4 Spool Manual Operation drawing image

The SD8-OTAMW is a high-performance 4-spool manual sectional directional control valve designed for demanding mobile applications. Featuring a rated flow of 80 L/min and a maximum pressure capacity of 315 bar, this SD8 series valve offers precise manual control for various machinery including excavators, loaders, and agricultural equipment.

SD8シリーズ セクショナル方向弁 パラメーター
制御方法 手動, 空圧, 電空, 電気油圧, ソレノイド, 油圧, 油圧および手動, ケーブル, ジョイスティック, ソレノイド・ジョイスティック, 手動・ジョイスティック
スプール 1スプール, 2スプール, 3スプール, 4スプール, 5スプール, 6スプール, 7スプール, 8スプール, 9スプール, 10スプール
周囲温度範囲 -40°C to +80°C (-40°F to +176°F)
構造タイプ ブロック弁
セクション 1セクション, 2セクション, 3セクション, 4セクション, 5セクション, 6セクション, 7セクション, 8セクション, 9セクション, 10セクション
作動粘度範囲 12 - 400 mm²/s (12 cSt to 400 cSt)
定格流量 毎分90リットル (23.8 US gpm)
最大圧力 315 bar (4600 psi)
吸入口 G1/2, G3/4, SAE 10
吐出口 G1/2, G3/4, SAE 10, 3/4 NPT
ポートサイズ G1/2, SAE 10

As a leading manufacturer of hydraulic components, we provide the SD8-OTAMW 4-spool sectional directional control valve for the global market. This manual valve is engineered for heavy-duty performance in material handling, construction, and agriculture, supporting machinery like skid steer loaders, telehandlers, and forklifts. With a flow rate of 80 L/min (21.2 US gpm) and G1/2 inlet/outlet ports, it ensures reliability under high-pressure conditions up to 315 bar. We specialize in factory supply, wholesale, and professional OEM/ODM services, offering customized solutions and private labeling to meet specific technical requirements. We are actively seeking long-term cooperation with global distributors, wholesalers, agents, and traders. Our factory provides competitive wholesale pricing and consistent quality for international trade, ensuring your fleet or retail business benefits from robust hydraulic power and precise spool operation.
