The SDS180 Manual 2 Spool Sectional Directional Valve is a versatile and high-performance hydraulic valve designed for a wide range of applications in industries such as material handling, construction, and agriculture. With its robust construction, precise control, and durability, it offers reliable operation and enhanced system efficiency.
| SDS180シリーズ セクショナル方向弁 パラメーター | |
|---|---|
| 制御方法 | 手動, 油圧 |
| スプール | 1スプール, 2スプール, 3スプール, 4スプール, 5スプール, 6スプール, 7スプール |
| 周囲温度範囲 | -40°C to +80°C (-40°F to +176°F) |
| 構造タイプ | ブロック弁 |
| セクション | 1セクション, 2セクション, 3セクション, 4セクション, 5セクション, 6セクション, 7セクション, 8セクション, 9セクション, 10セクション |
| 作動粘度範囲 | 12 - 400 mm²/s (12 cSt to 400 cSt) |
| 定格流量 | 毎分160リットル (42.2 US gpm) |
| 最大圧力 | 315 bar (4600 psi), 350 bar (5100 psi) |
| 吸入口 | G3/4, G1, SAE 12 |
| 吐出口 | G1, SAE 16 |
| ポートサイズ | G3/4, G1, SAE 12 |

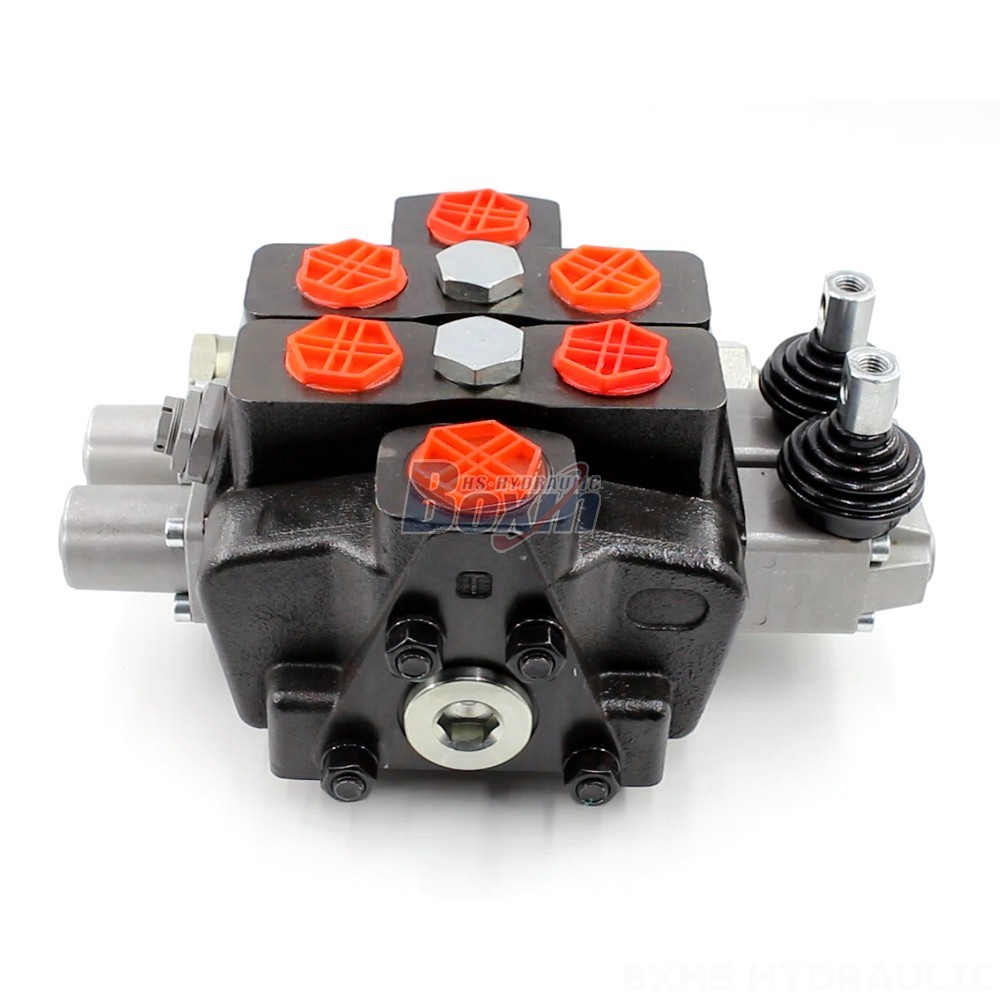

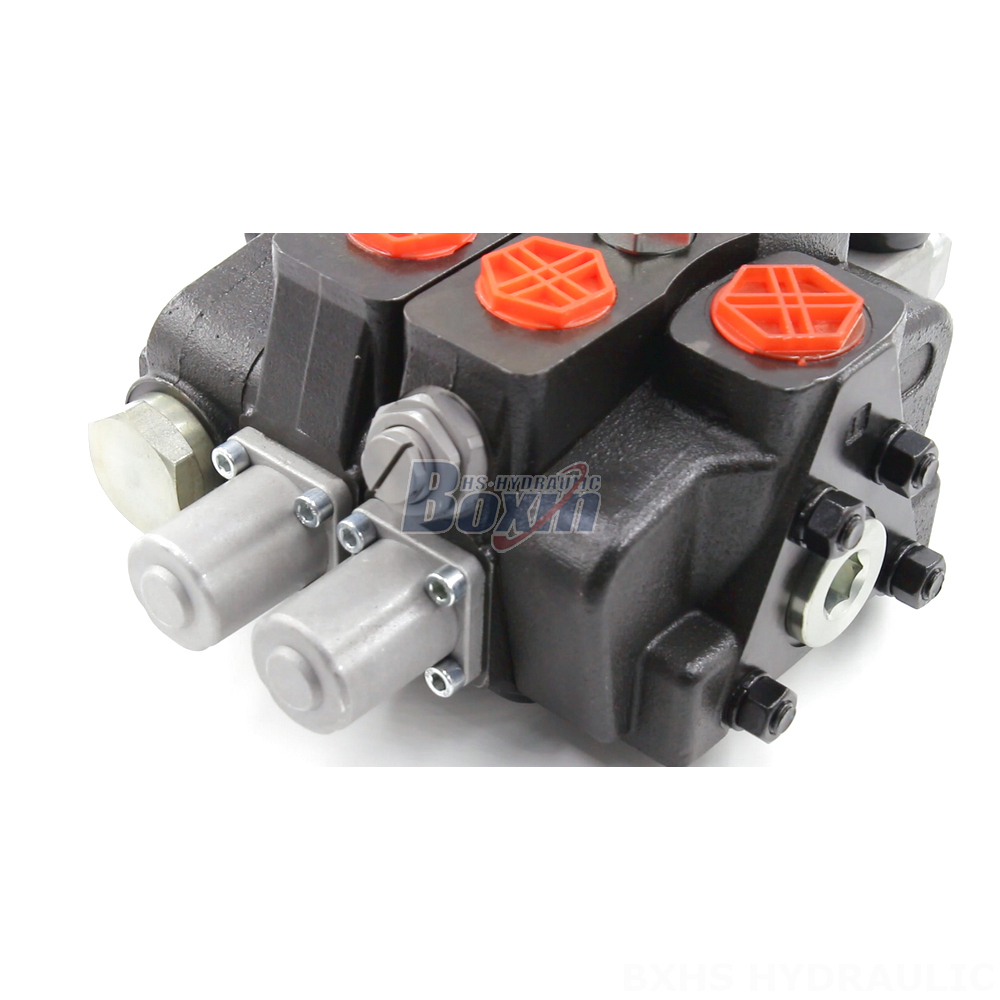

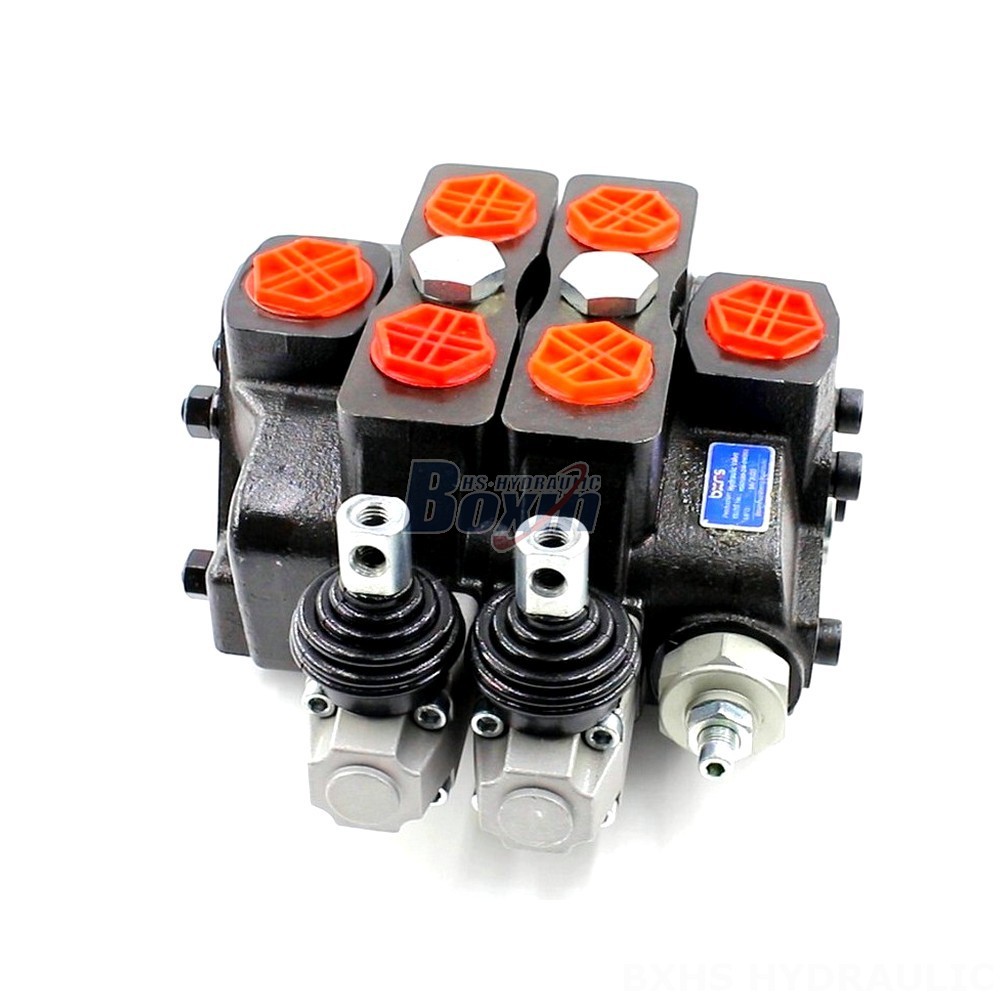

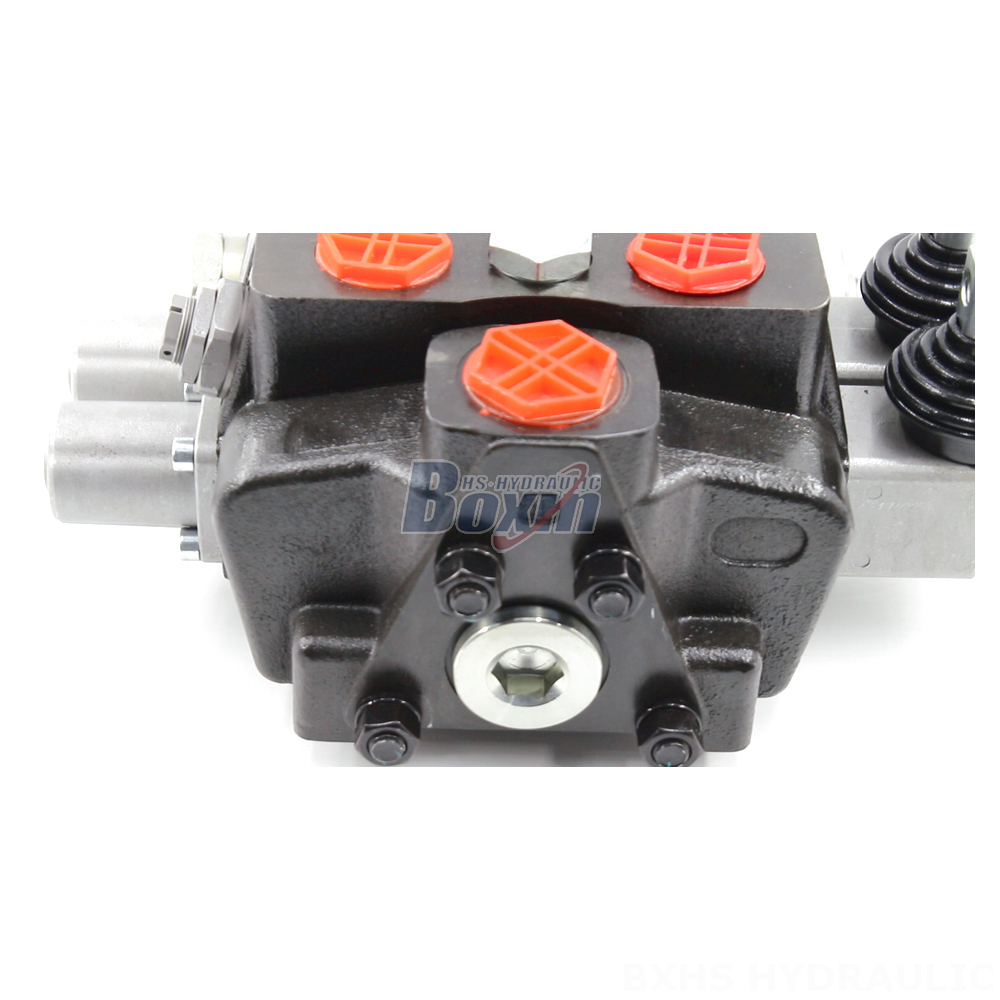

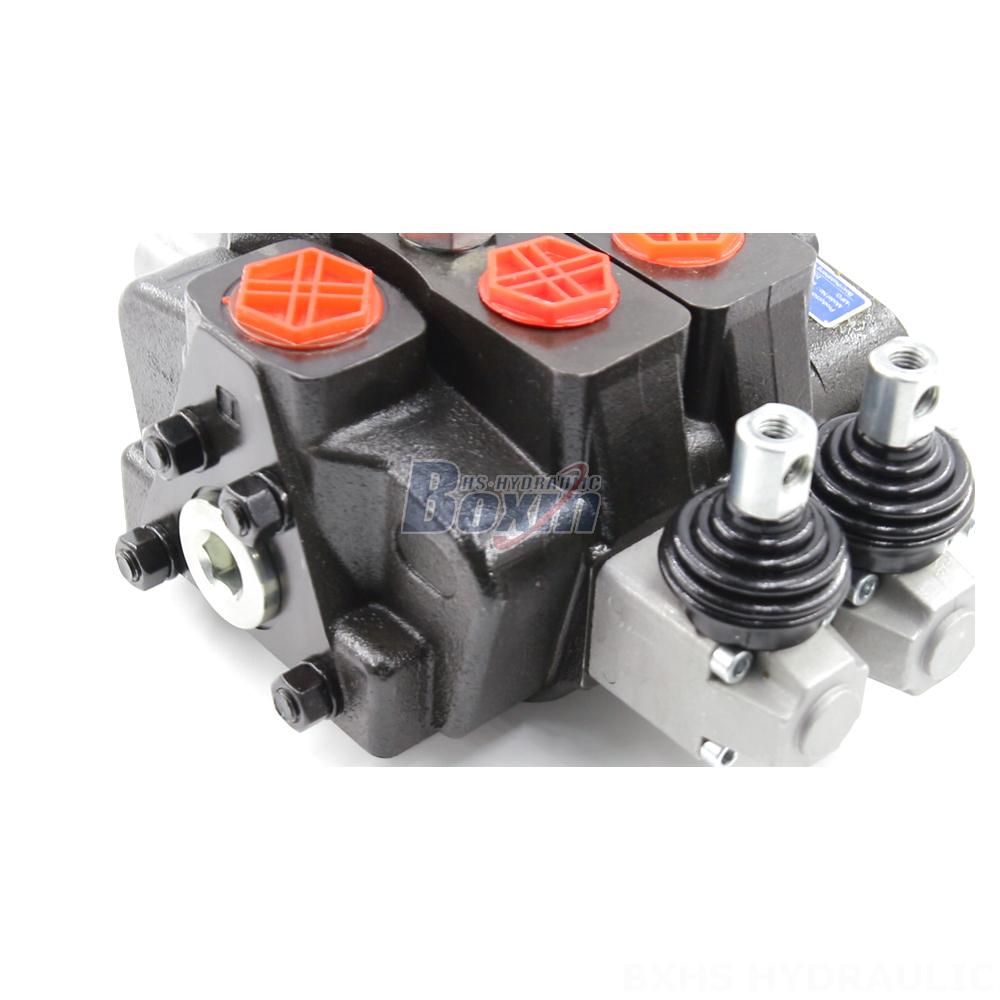

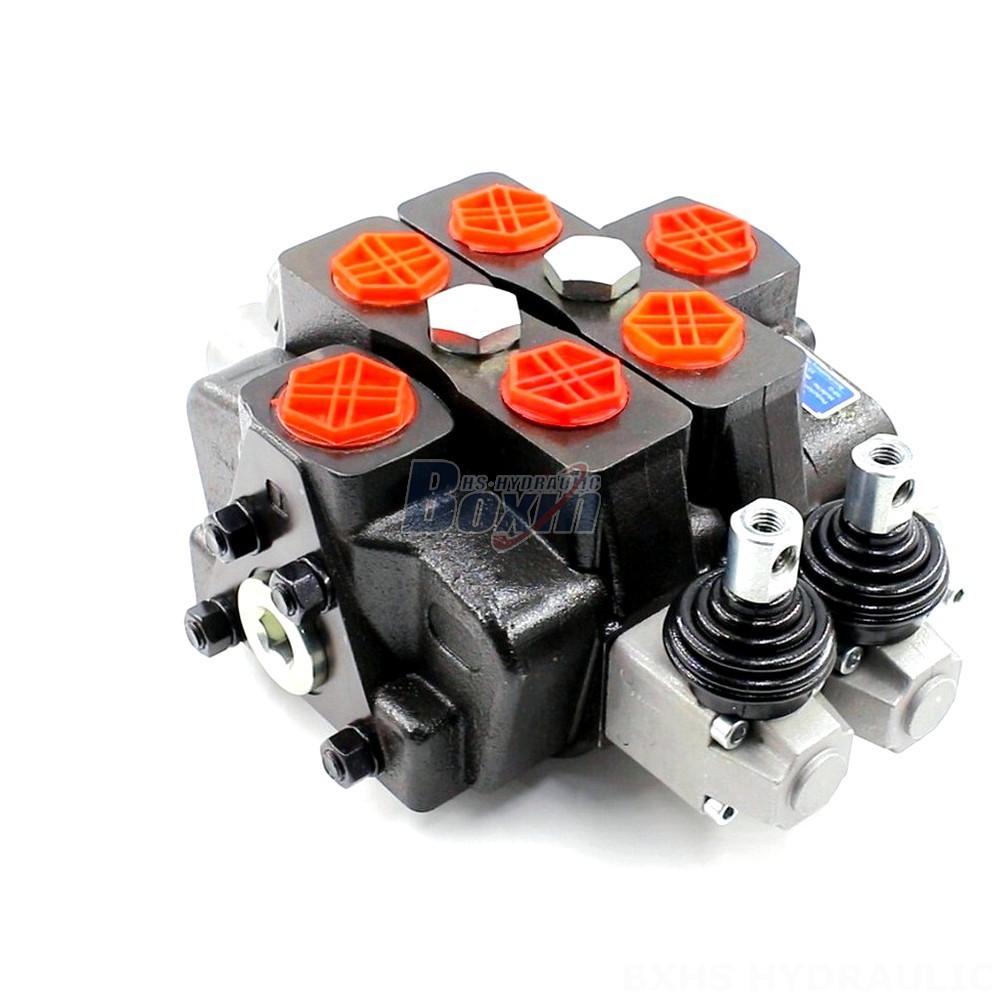

**Product Name:** SDS180 Manual 2 Spool Sectional Directional Valve
**Product Description:**
The SDS180 Manual 2 Spool Sectional Directional Valve is a 2-section, manually controlled hydraulic valve that provides precise and efficient flow control in hydraulic systems. It features a rated flow of 160 L/min (42.2 US gpm) and a maximum pressure of 350 bar (5100 psi), making it suitable for demanding applications.
**Key Features:**
* Manual control for precise and responsive operation
* 2-spool design for versatile flow control
* Sectional valve construction for modularity and flexibility
* Rated flow of 160 L/min (42.2 US gpm)
* Maximum pressure of 350 bar (5100 psi)
* Operating viscosity range of 12 - 400 mm²/s (12 cSt to 400 cSt)
* Wide range of applications in material handling, construction, and agriculture
* Applicable models include telehandlers, forklifts, cranes, stackers, and excavators
