生産と納品
15~30日の生産リードタイム

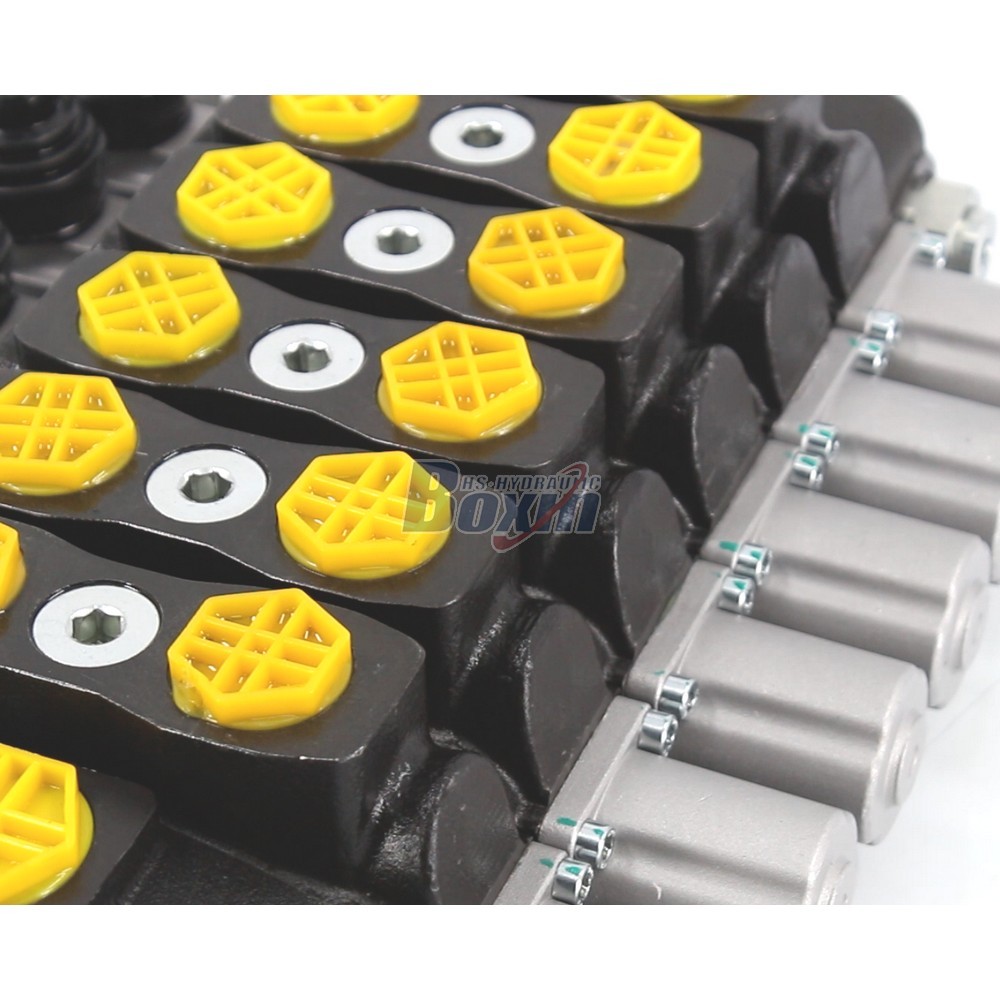

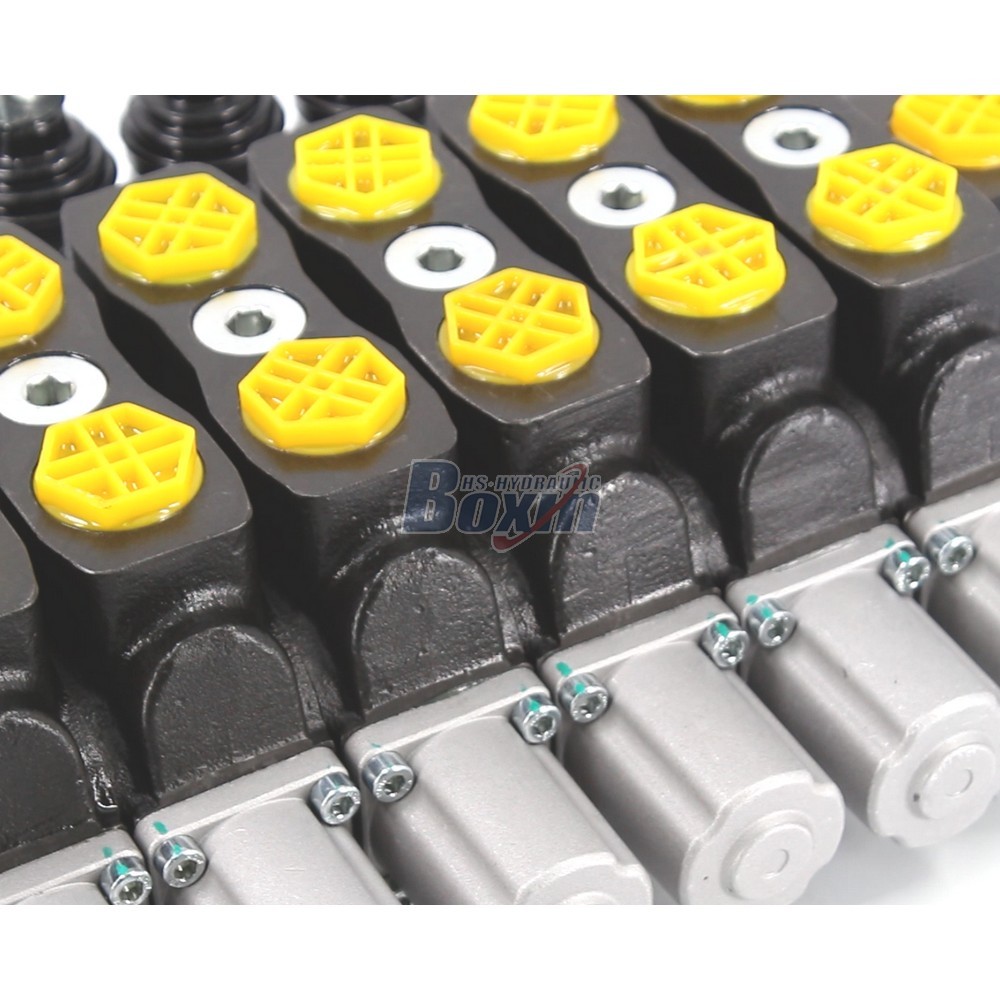

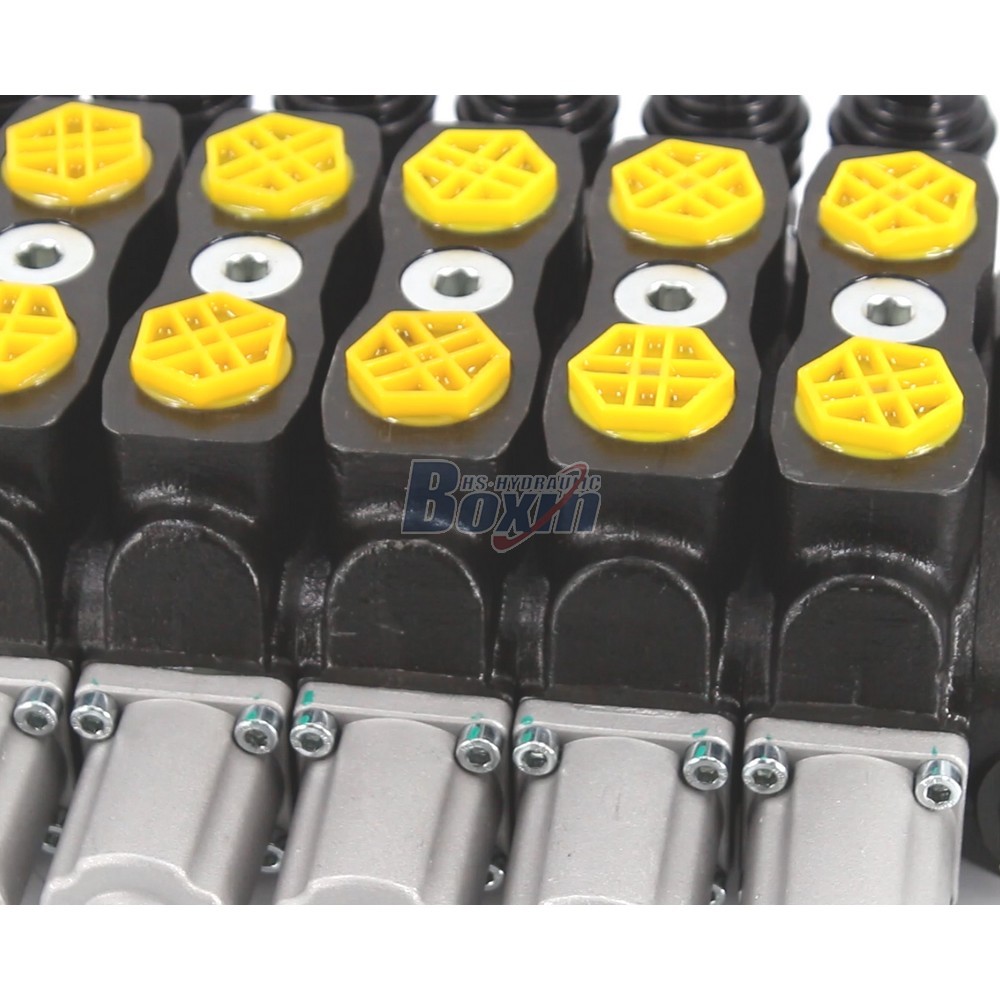

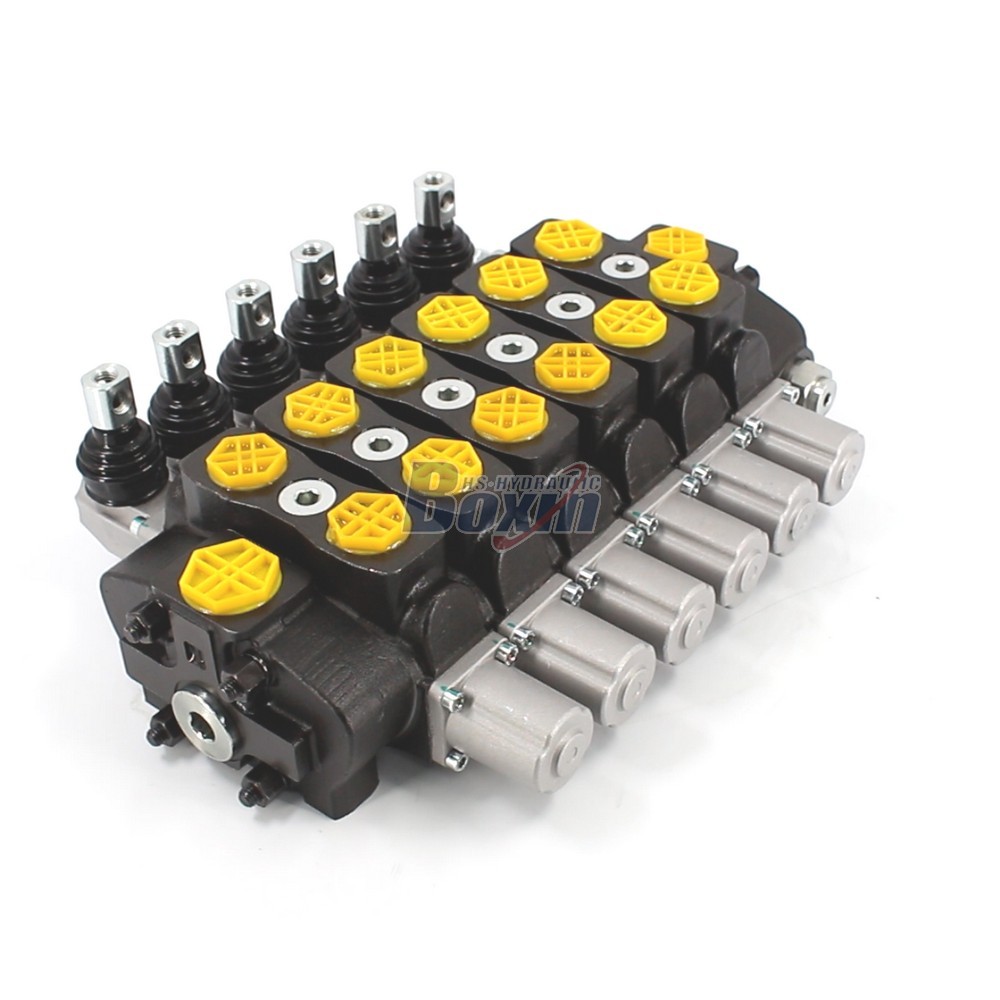

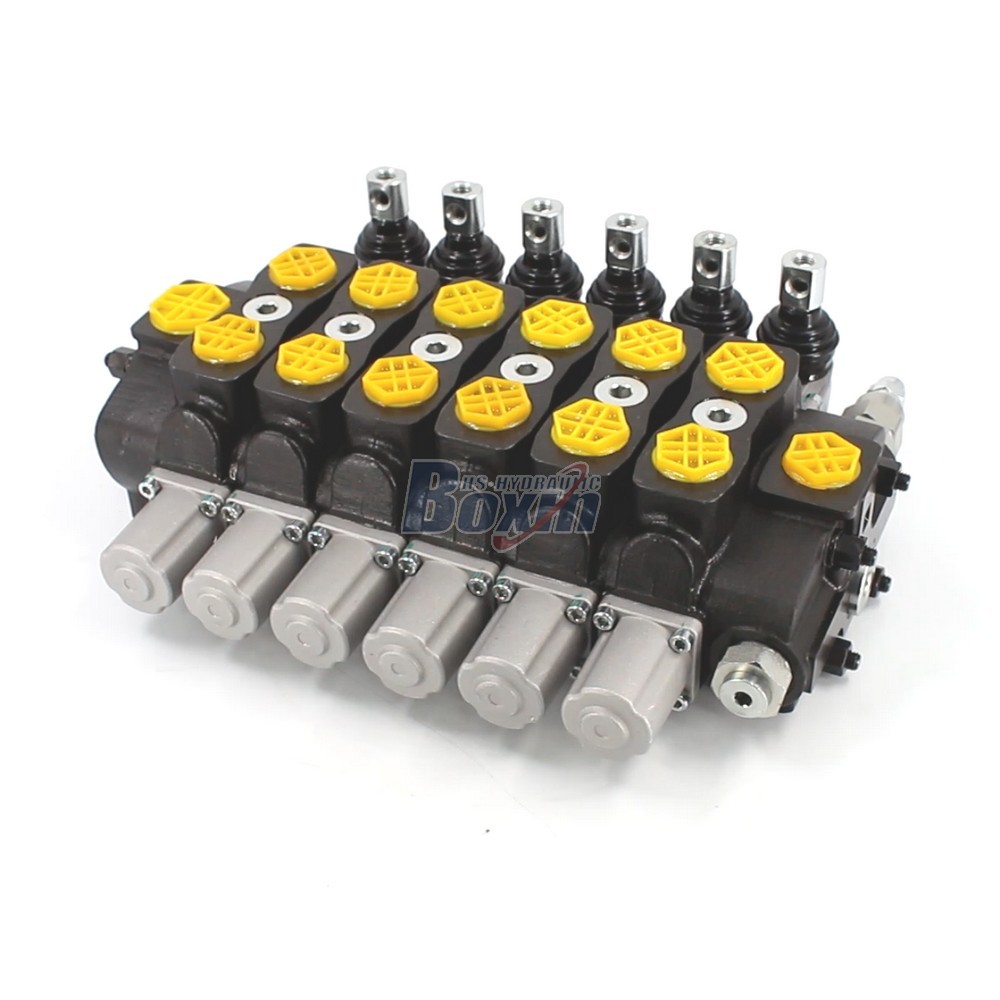

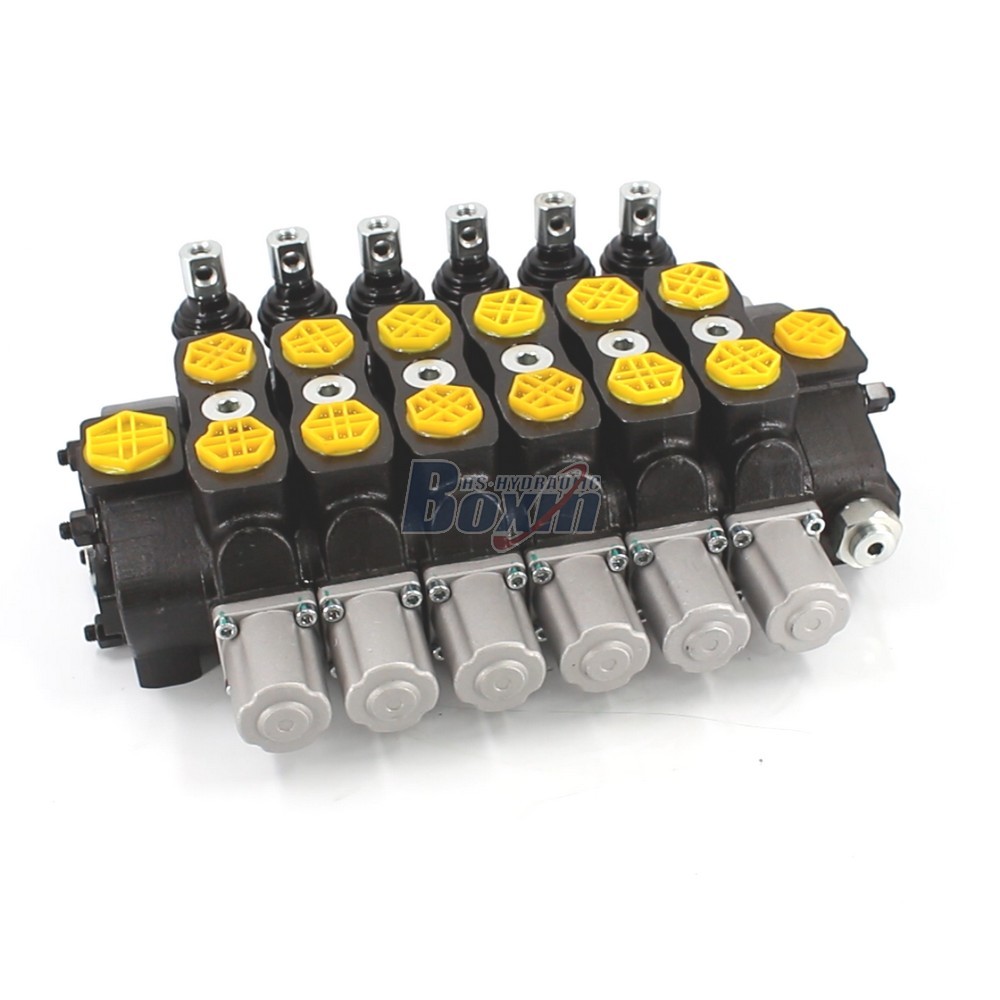

The SD8 Series 6 Spool Hydraulic Sectional Control Valve is a high-performance manual control solution designed for versatile applications. With a rated flow of 80 L/min and a maximum pressure capacity of 315 bar, it provides reliable fluid power management for construction, agriculture, and material handling equipment including excavators and tractors.
| SD8シリーズ セクショナル方向弁 パラメーター | |
|---|---|
| 制御方法 | 手動, 空圧, 電空, 電気油圧, ソレノイド, 油圧, 油圧および手動, ケーブル, ジョイスティック, ソレノイド・ジョイスティック, 手動・ジョイスティック |
| スプール | 1スプール, 2スプール, 3スプール, 4スプール, 5スプール, 6スプール, 7スプール, 8スプール, 9スプール, 10スプール |
| 周囲温度範囲 | -40°C to +80°C (-40°F to +176°F) |
| 構造タイプ | ブロック弁 |
| セクション | 1セクション, 2セクション, 3セクション, 4セクション, 5セクション, 6セクション, 7セクション, 8セクション, 9セクション, 10セクション |
| 作動粘度範囲 | 12 - 400 mm²/s (12 cSt to 400 cSt) |
| 定格流量 | 毎分90リットル (23.8 US gpm) |
| 最大圧力 | 315 bar (4600 psi) |
| 吸入口 | G1/2, G3/4, SAE 10 |
| 吐出口 | G1/2, G3/4, SAE 10, 3/4 NPT |
| ポートサイズ | G1/2, SAE 10 |
As a leading manufacturer of hydraulic products, we offer the SD8 Series 6 Spool Hydraulic Sectional Control Valve, engineered for precision and durability in demanding environments. This manual valve features a robust sectional design, supporting a rated flow of 80 L/min (21.2 US gpm) and operating pressures up to 315 bar (4600 psi). It is an ideal component for mini-excavators, skid steer loaders, backhoe loaders, wood splitters, and forklifts. Our factory provides comprehensive solutions for global markets, including direct wholesale, OEM manufacturing, and private label (ODM) services. We specialize in customized hydraulic configurations tailored to specific industrial vehicle needs. We are actively seeking long-term partnerships with distributors, wholesalers, regional agents, and international traders. By choosing our factory-direct supply, partners benefit from professional manufacturing standards and consistent product quality across construction and agricultural applications.
