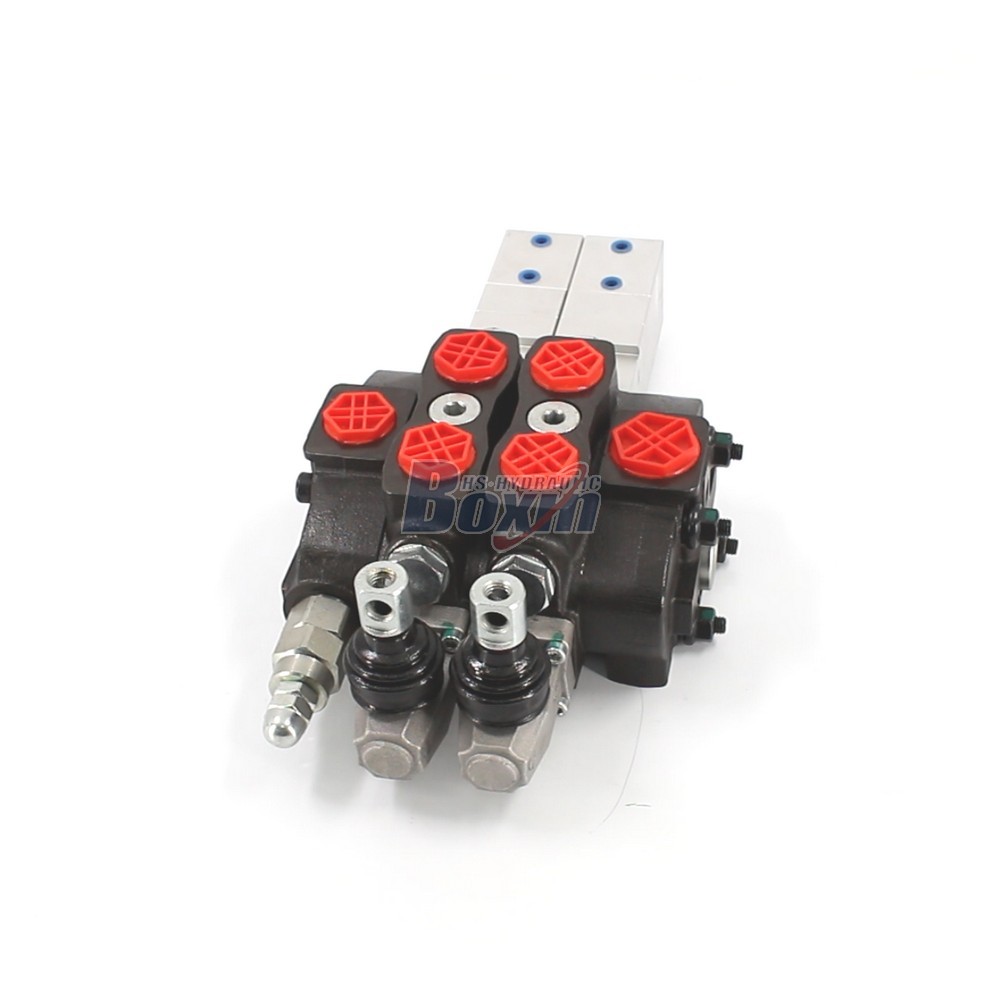

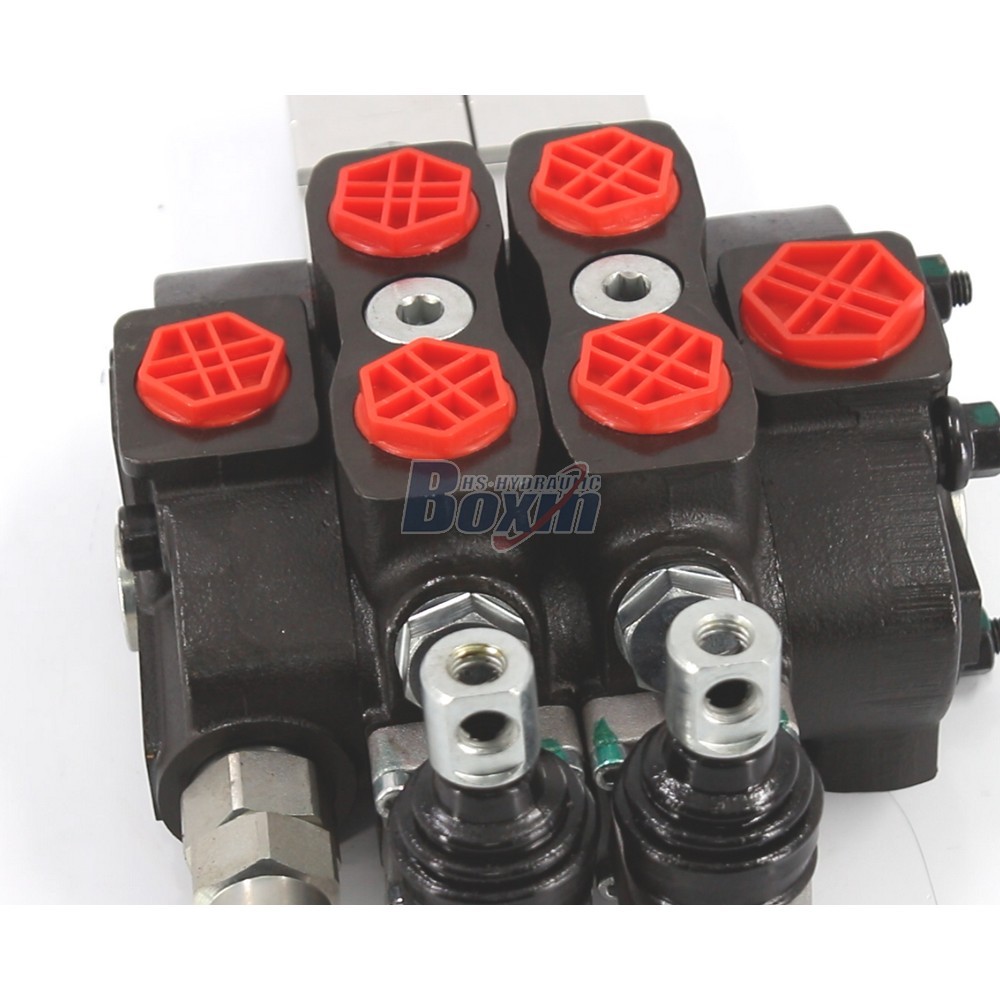

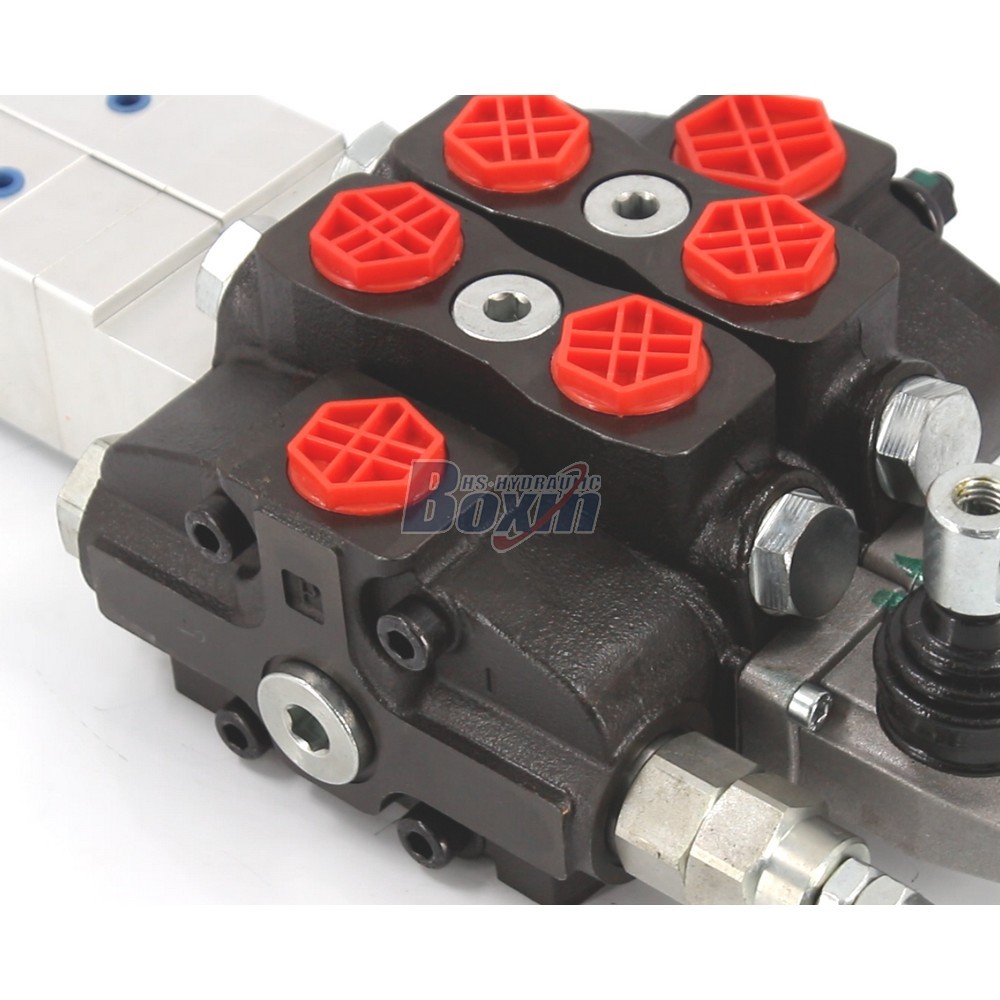

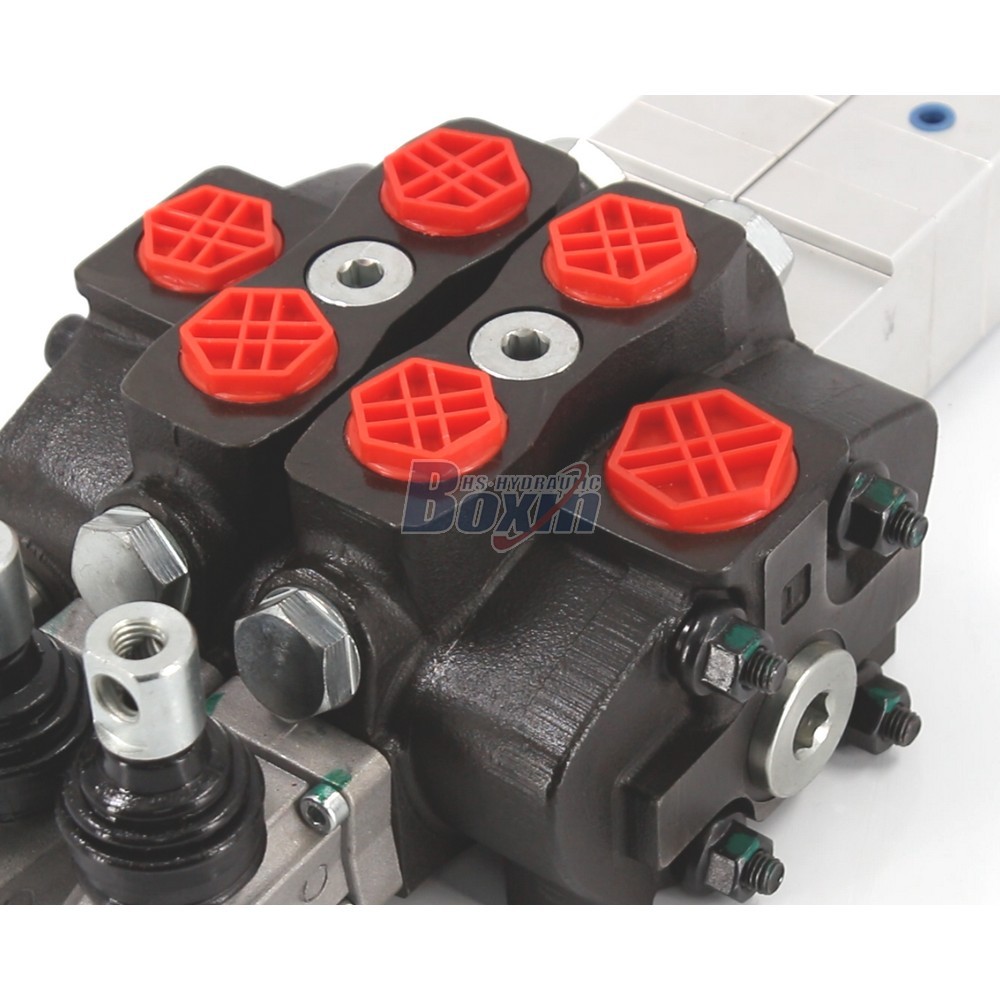

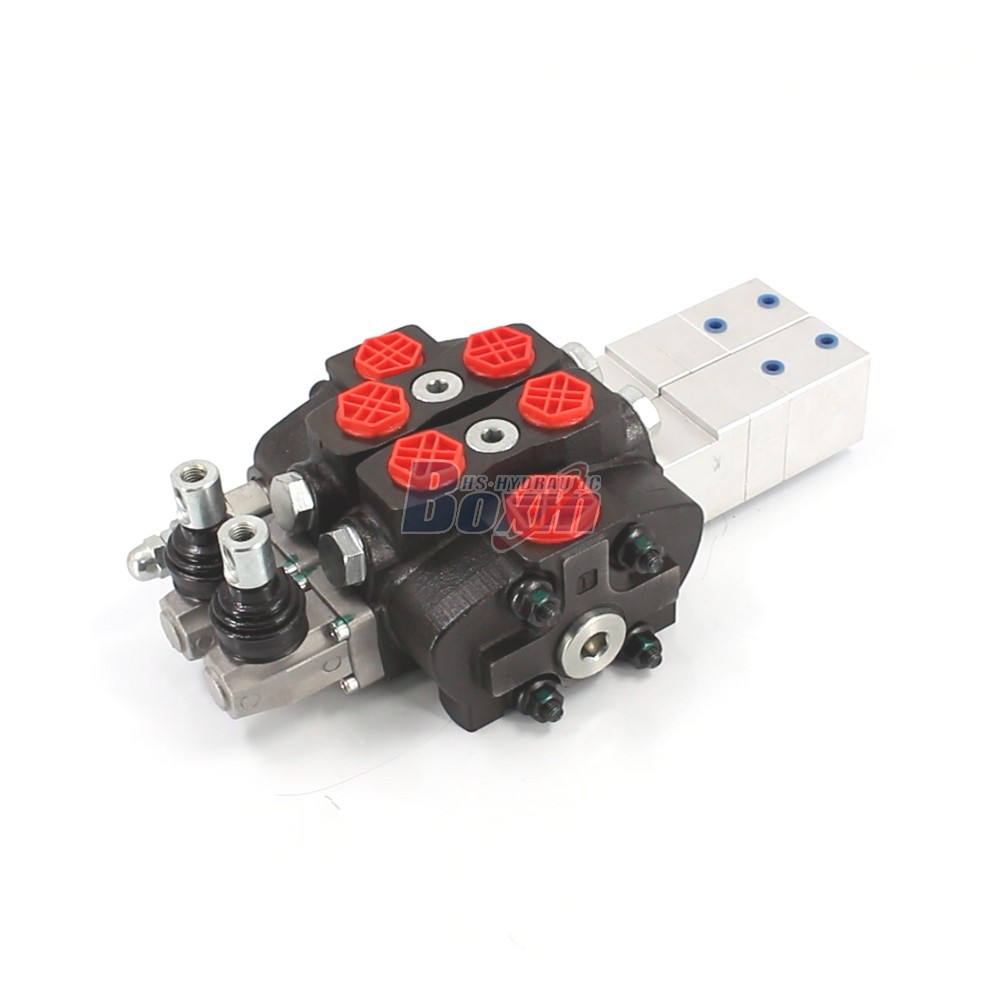

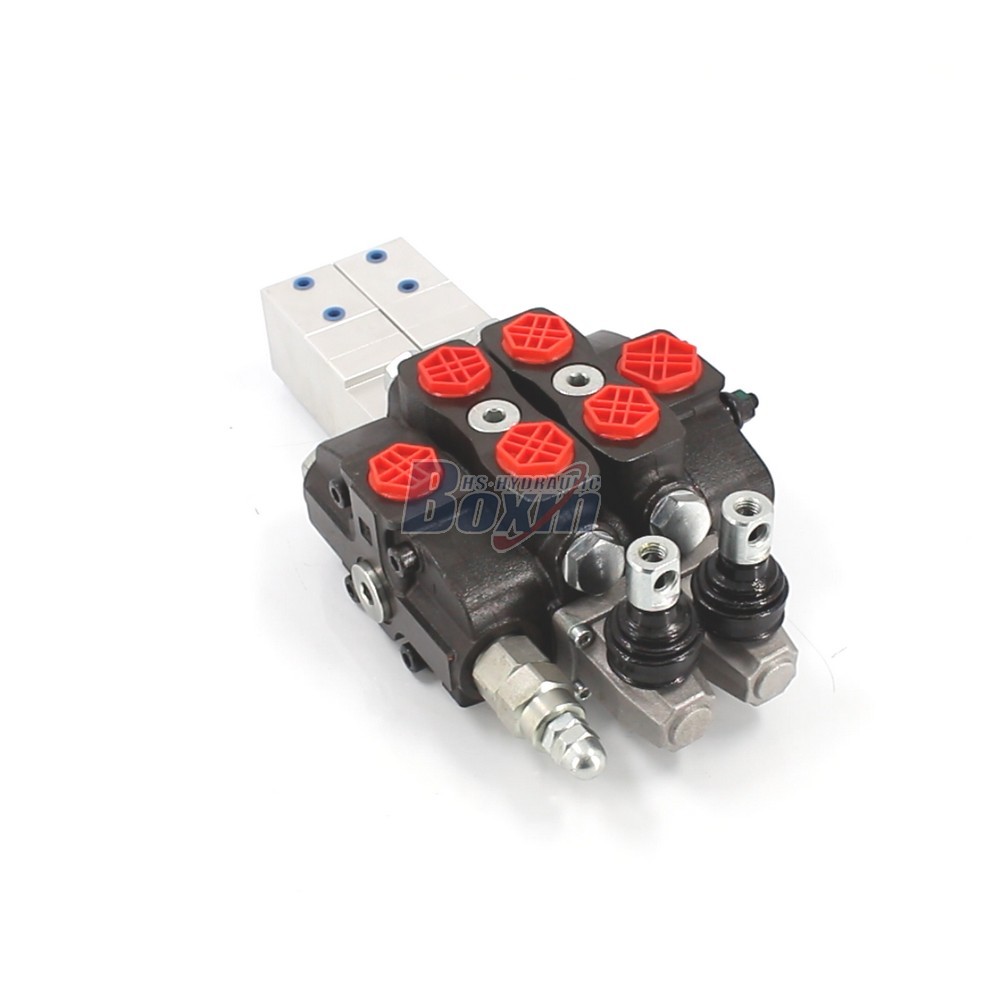

SD8 Pneumatic Control Valve 2 Spool Sectional Type for Machinery

制御方法:空圧

スプール:2スプール

定格流量:毎分90リットル (23.8 US gpm)

最大圧力:315 bar (4600 psi)

吸入口:SAE 10

吐出口:SAE 10

ポートサイズ:SAE 10

ベンダー:BXHS

製品タイプ:セクショナル方向弁

製品シリーズ:SD8シリーズ セクショナル方向弁

梱包サイズ:34*24*15.5

総重量:12.50 kg

在庫状況: 在庫あり

88 この製品を探している人もいます

SD8 Pneumatic Control Valve 2 Spool Sectional Type for Machinery

SD8 Pneumatic Control Valve 2 Spool Sectional Type for Machinery

SD8 Pneumatic Control Valve 2 Spool Sectional Type for Machinery drawing image

The SD8 Series Pneumatic Control Valve is a high-performance 2-spool sectional valve designed for heavy-duty machinery. With a rated flow of 80 L/min and a maximum pressure of 350 bar, it provides precise pneumatic control for applications in construction, agriculture, and material handling.

SD8シリーズ セクショナル方向弁 パラメーター
制御方法 手動, 空圧, 電空, 電気油圧, ソレノイド, 油圧, 油圧および手動, ケーブル, ジョイスティック, ソレノイド・ジョイスティック, 手動・ジョイスティック
スプール 1スプール, 2スプール, 3スプール, 4スプール, 5スプール, 6スプール, 7スプール, 8スプール, 9スプール, 10スプール
周囲温度範囲 -40°C to +80°C (-40°F to +176°F)
構造タイプ ブロック弁
セクション 1セクション, 2セクション, 3セクション, 4セクション, 5セクション, 6セクション, 7セクション, 8セクション, 9セクション, 10セクション
作動粘度範囲 12 - 400 mm²/s (12 cSt to 400 cSt)
定格流量 毎分90リットル (23.8 US gpm)
最大圧力 315 bar (4600 psi)
吸入口 G1/2, G3/4, SAE 10
吐出口 G1/2, G3/4, SAE 10, 3/4 NPT
ポートサイズ G1/2, SAE 10

As a leading large-scale manufacturer of hydraulic products, we offer the SD8 Series Pneumatic Control Valve, a robust 2-spool sectional type solution engineered for global markets. This valve features a rated flow of 80 L/min (21.2 US gpm) and can withstand pressures up to 350 bar (5100 psi), ensuring reliable performance in demanding environments like construction sites and agricultural fields. It is widely compatible with forklifts, mini-excavators, skid steer loaders, and tractors. We provide comprehensive manufacturing services including OEM, ODM, and custom branding to meet specific technical requirements. Our factory offers direct wholesale supply with competitive pricing for bulk orders. We are actively seeking long-term partnerships with distributors, wholesalers, agents, and traders worldwide. Contact us for factory-direct sourcing and professional hydraulic solutions tailored to your machinery needs.
