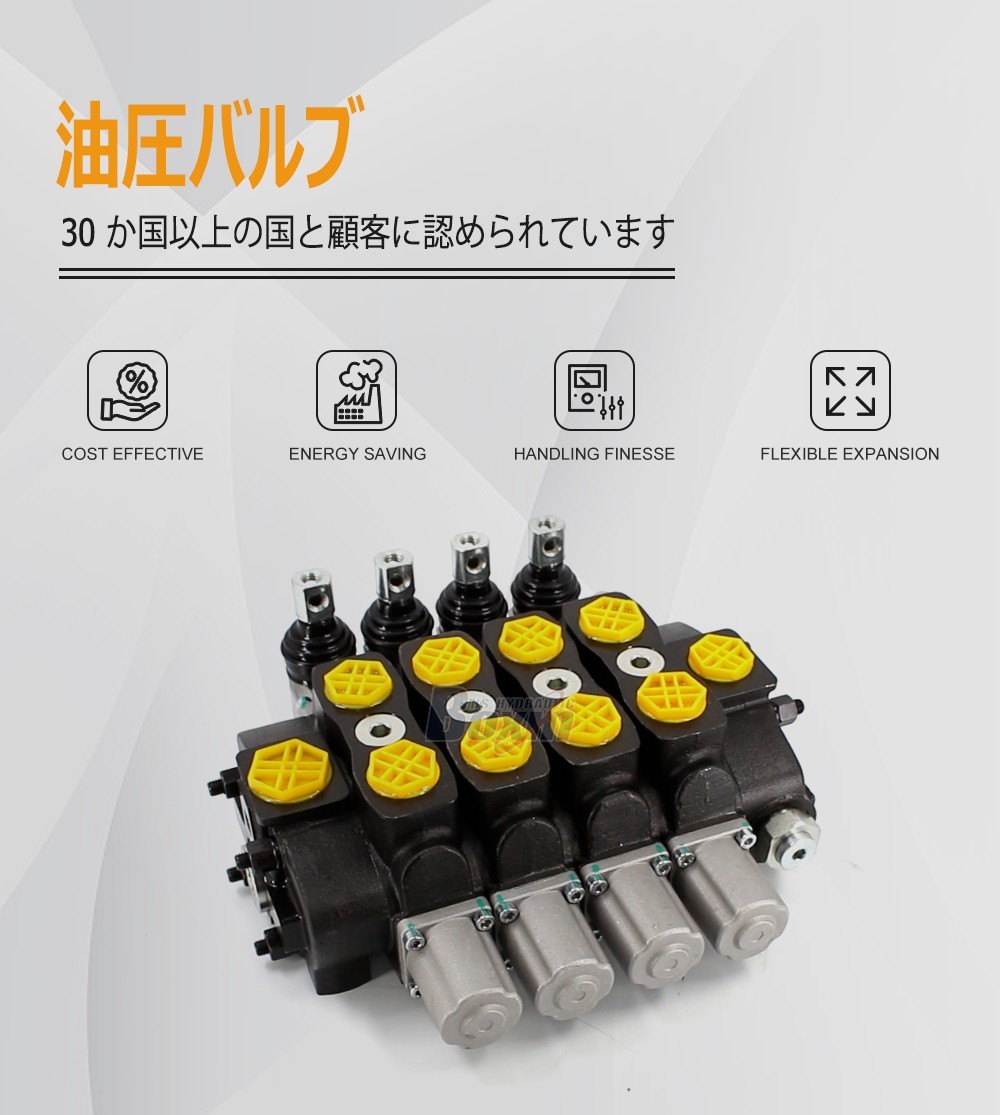

SD8 Manual 4 Spool Sectional Directional Valve for Hydraulic Systems

制御方法:手動

スプール:4スプール

定格流量:毎分90リットル (23.8 US gpm)

最大圧力:315 bar (4600 psi)

吸入口:G1/2

吐出口:G3/4

ポートサイズ:G1/2

ベンダー:BXHS

製品タイプ:セクショナル方向弁

製品シリーズ:SD8シリーズ セクショナル方向弁

梱包サイズ:32*36*16

総重量:18.00 kg

在庫状況: 在庫あり

100 この製品を探している人もいます

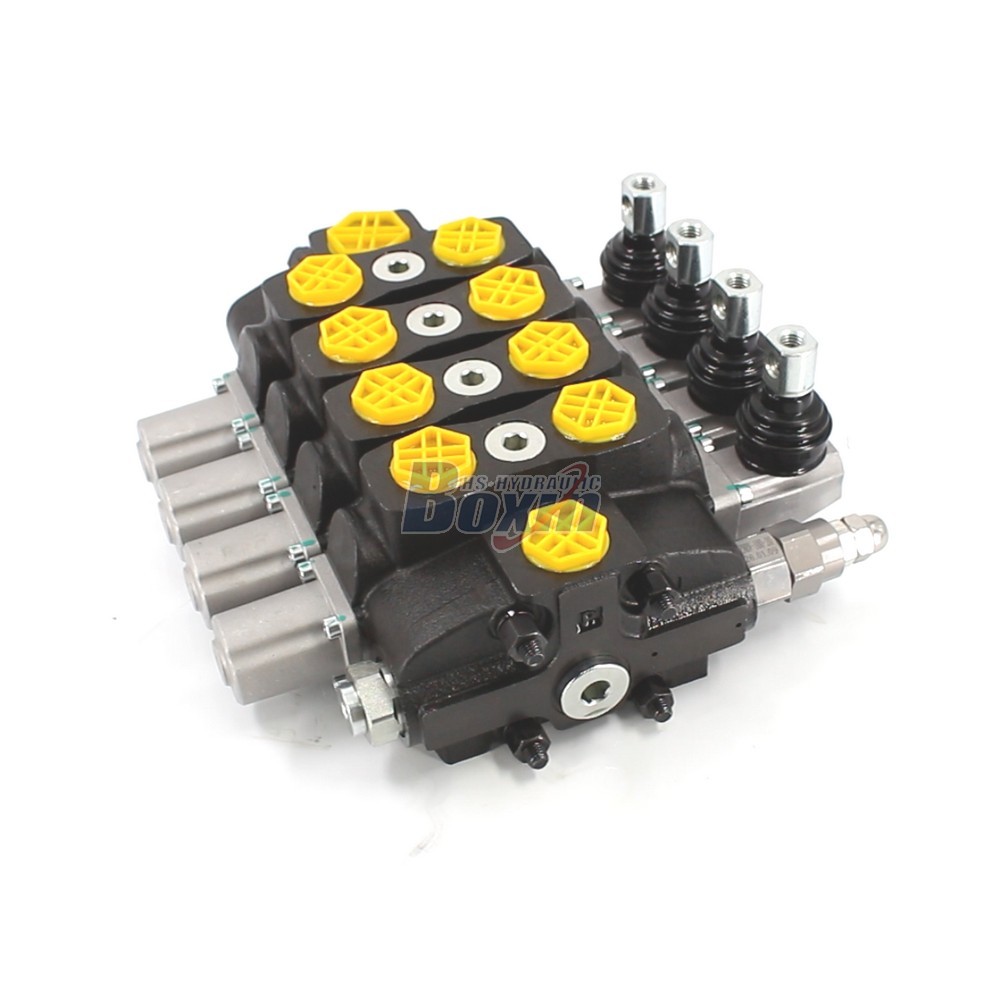

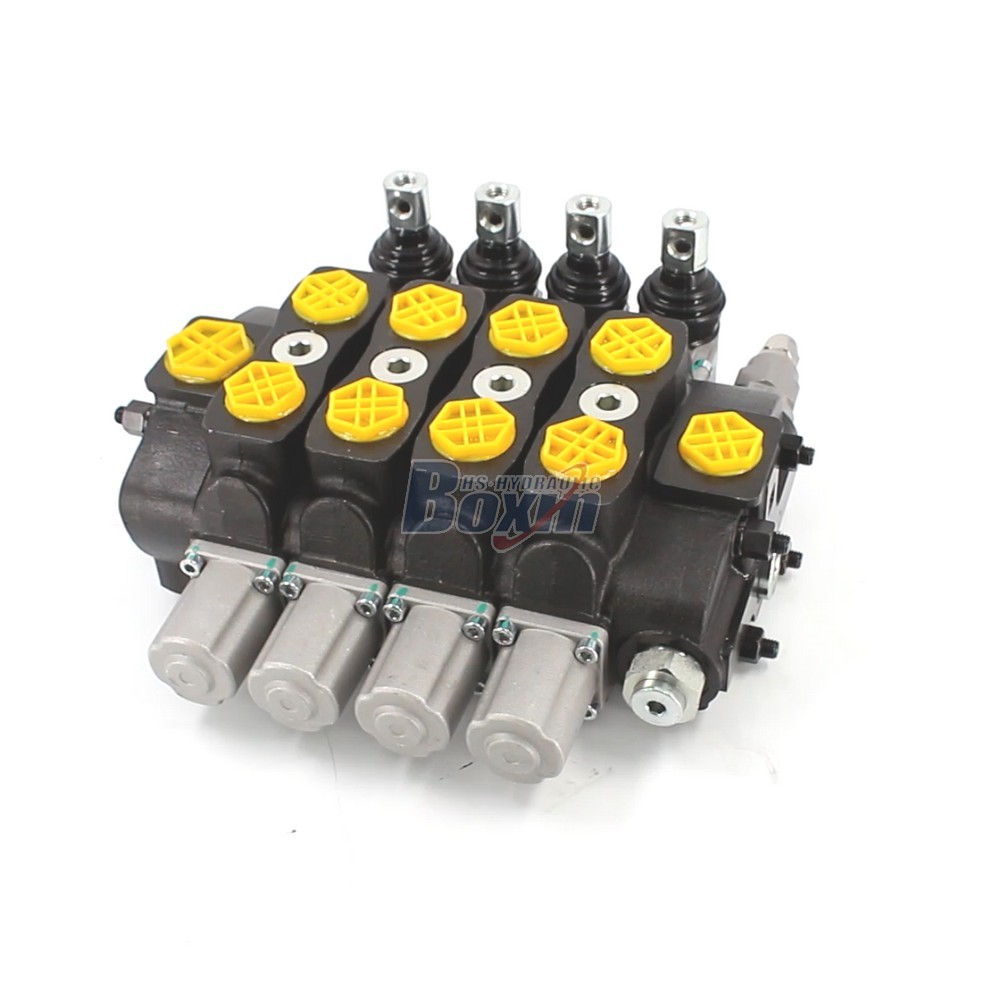

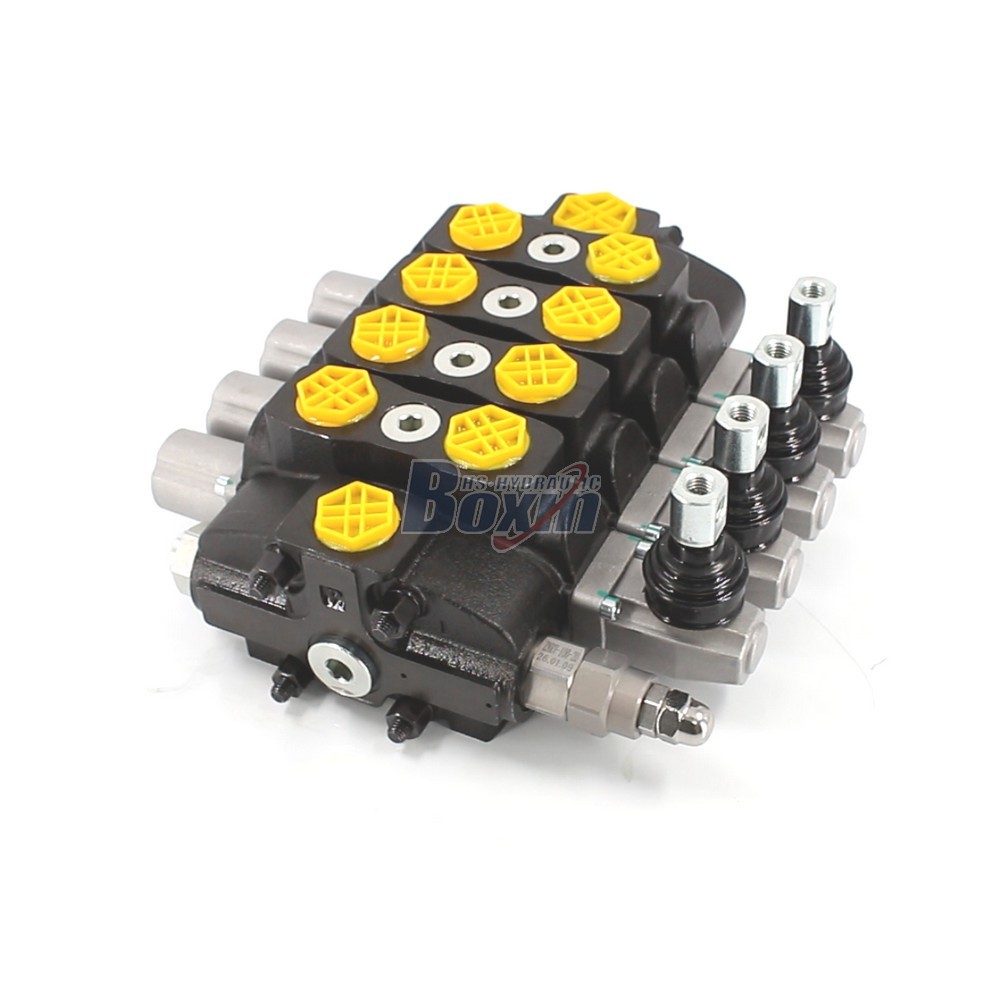

SD8 Manual 4 Spool Sectional Directional Valve for Hydraulic Systems

SD8 Manual 4 Spool Sectional Directional Valve for Hydraulic Systems

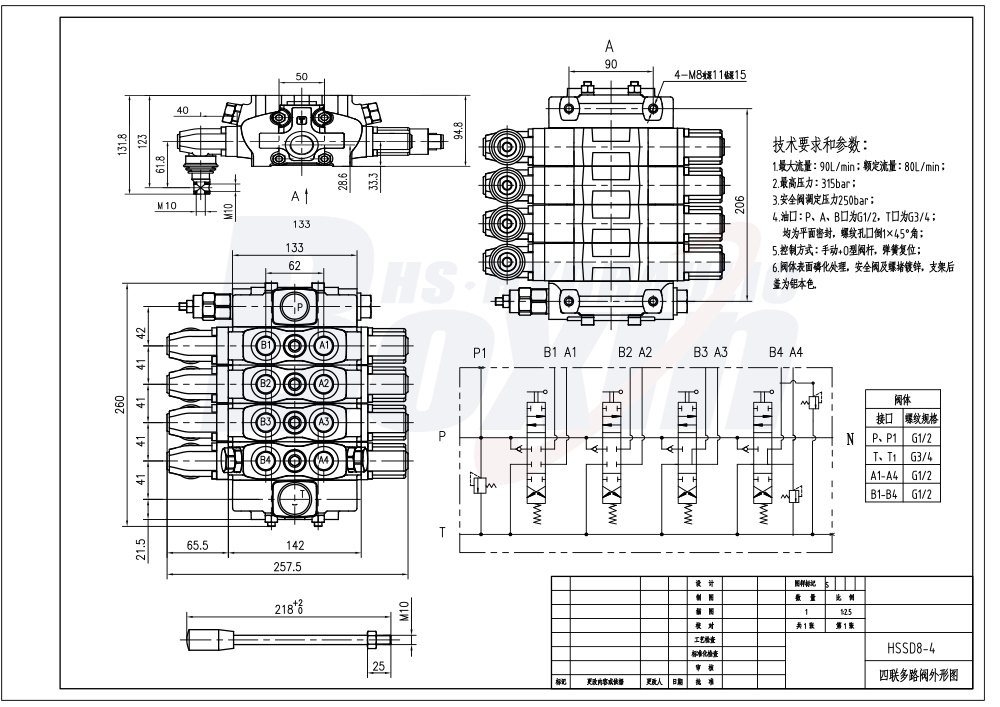

SD8 Manual 4 Spool Sectional Directional Valve for Hydraulic Systems drawing image

The SD8 Series 4 Spool Manual Sectional Directional Valve is a high-performance hydraulic control solution designed for flow rates up to 80 L/min and pressures up to 315 bar. Ideal for material handling, agriculture, and construction machinery, it offers precise manual control for versatile industrial applications.

SD8シリーズ セクショナル方向弁 パラメーター
制御方法 手動, 空圧, 電空, 電気油圧, ソレノイド, 油圧, 油圧および手動, ケーブル, ジョイスティック, ソレノイド・ジョイスティック, 手動・ジョイスティック
スプール 1スプール, 2スプール, 3スプール, 4スプール, 5スプール, 6スプール, 7スプール, 8スプール, 9スプール, 10スプール
周囲温度範囲 -40°C to +80°C (-40°F to +176°F)
構造タイプ ブロック弁
セクション 1セクション, 2セクション, 3セクション, 4セクション, 5セクション, 6セクション, 7セクション, 8セクション, 9セクション, 10セクション
作動粘度範囲 12 - 400 mm²/s (12 cSt to 400 cSt)
定格流量 毎分90リットル (23.8 US gpm)
最大圧力 315 bar (4600 psi)
吸入口 G1/2, G3/4, SAE 10
吐出口 G1/2, G3/4, SAE 10, 3/4 NPT
ポートサイズ G1/2, SAE 10

As a leading manufacturer of hydraulic components, we specialize in offering the SD8 Series 4 Spool Sectional Directional Valve to the global market. This robust manual valve is engineered for demanding environments, featuring a rated flow of 80 L/min (21.2 US gpm) and a maximum pressure capability of 315 bar (4600 psi). It is widely applicable for forklifts, mini-excavators, tractors, skid steer loaders, and wood splitters. We provide comprehensive manufacturing services including OEM, private labeling (ODM), and custom configurations to meet specific technical requirements. Our factory ensures stable supply and competitive wholesale pricing for large-scale orders. We are actively seeking long-term cooperation with international distributors, wholesalers, agents, and professional traders. By partnering with us, you gain access to factory-direct supply, reliable technical support, and high-quality hydraulic solutions tailored for construction, agricultural, and industrial vehicle sectors.
