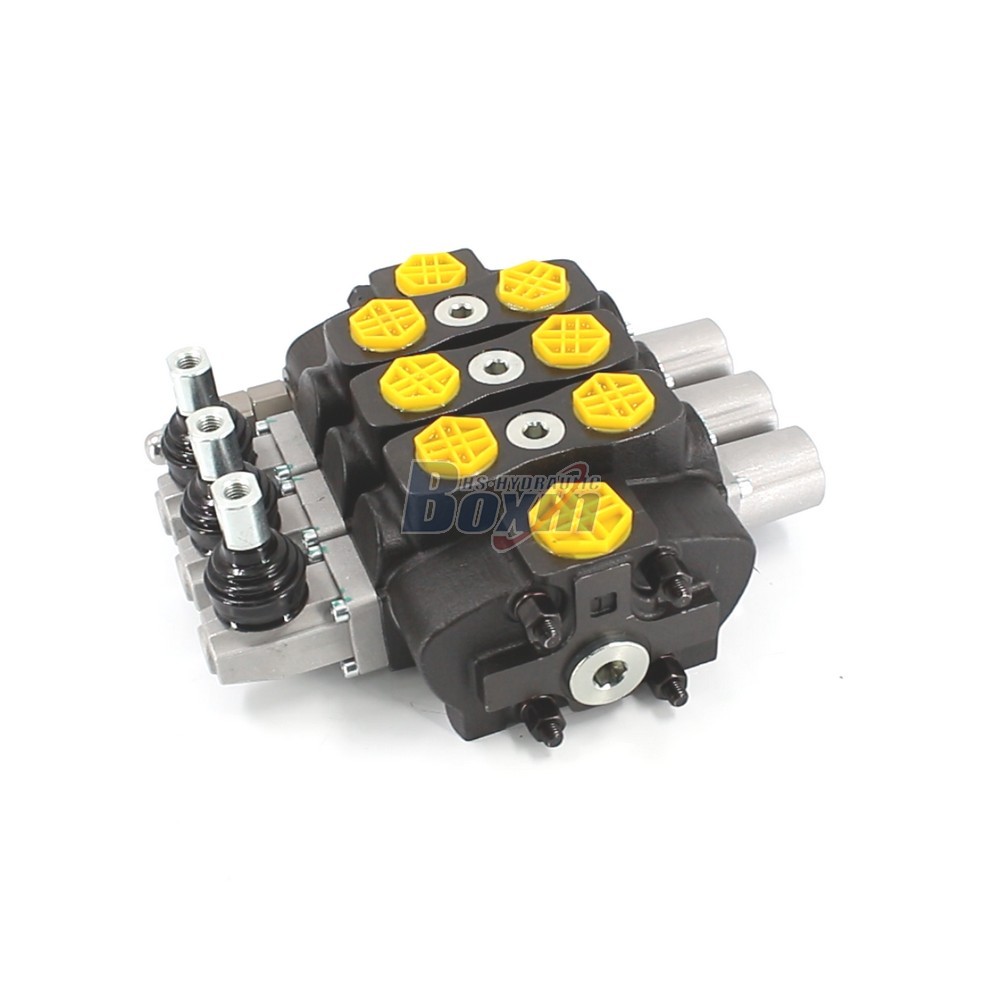

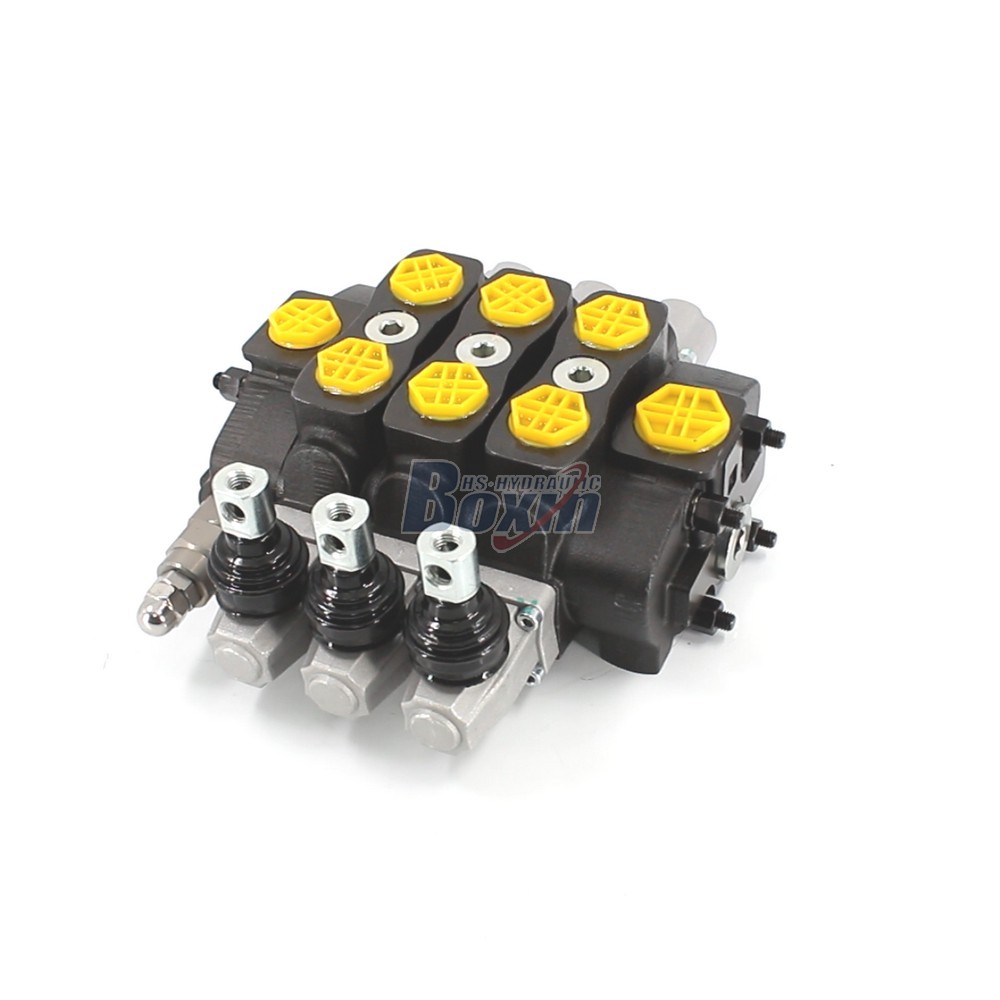

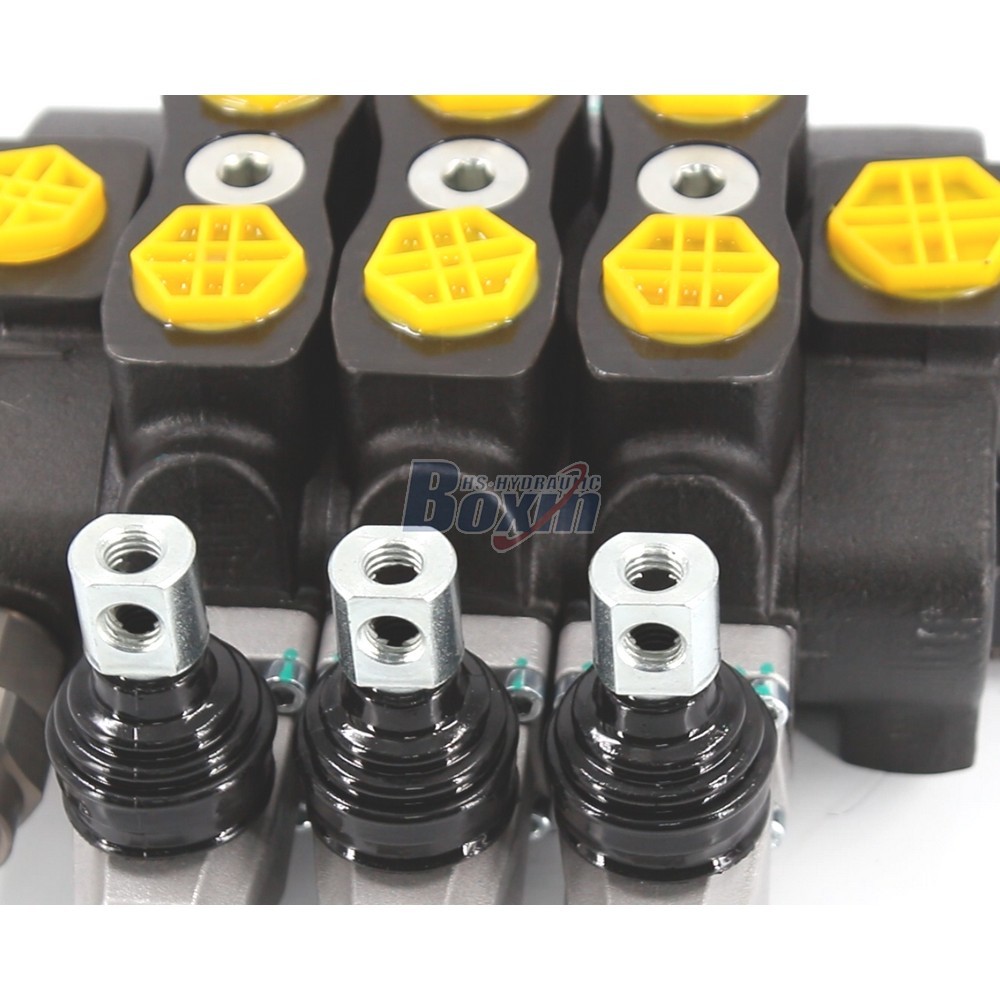

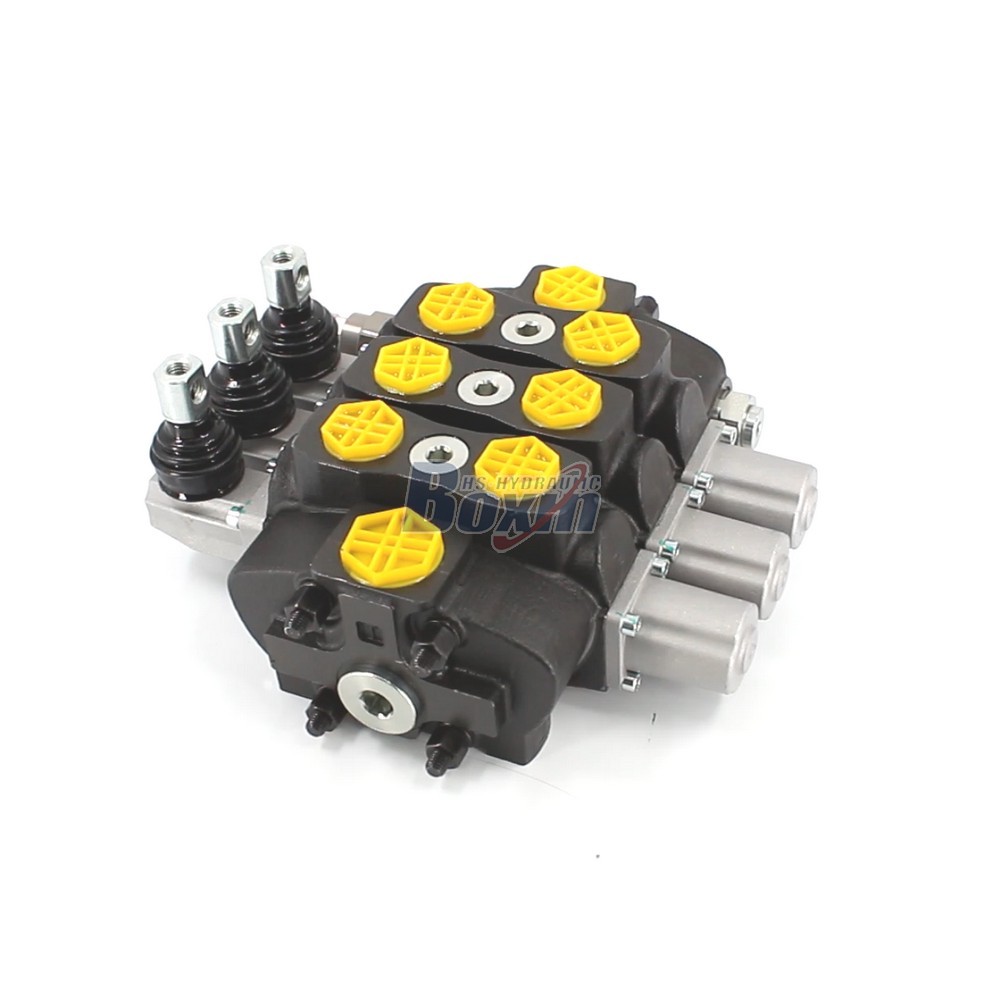

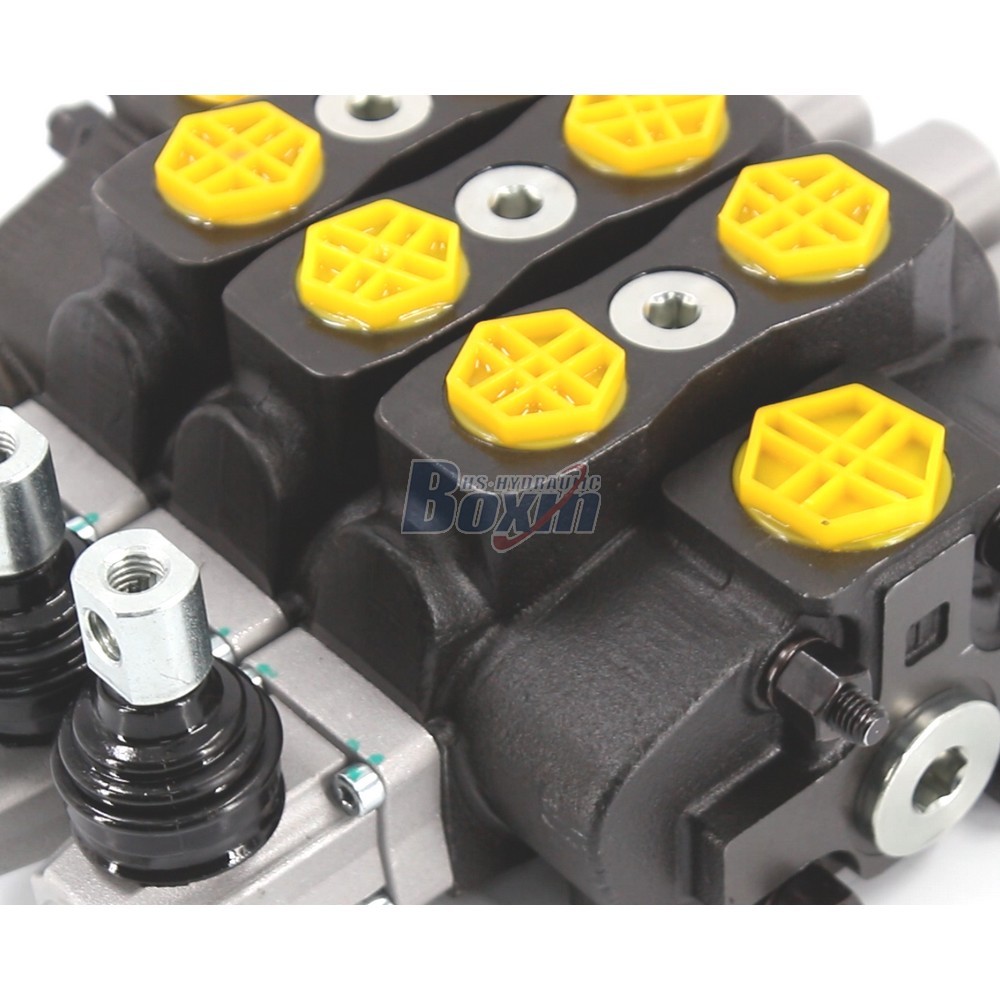

SD8 Manual 3 Spool Sectional Directional Valve for Hydraulic Systems

制御方法:手動

スプール:3スプール

定格流量:毎分90リットル (23.8 US gpm)

最大圧力:315 bar (4600 psi)

吸入口:G1/2

吐出口:G3/4

ポートサイズ:G1/2

ベンダー:BXHS

製品タイプ:セクショナル方向弁

製品シリーズ:SD8シリーズ セクショナル方向弁

梱包サイズ:26*36*16

総重量:14.50 kg

在庫状況: 在庫あり

74 この製品を探している人もいます

SD8 Manual 3 Spool Sectional Directional Valve for Hydraulic Systems

SD8 Manual 3 Spool Sectional Directional Valve for Hydraulic Systems

SD8 Manual 3 Spool Sectional Directional Valve for Hydraulic Systems drawing image

The SD8 Series 3-spool manual sectional directional valve is designed for high-performance hydraulic systems, offering a rated flow of 80 L/min and operating pressure up to 250 bar. This versatile component is engineered for precise fluid control in demanding material handling, agricultural, and construction machinery.

SD8シリーズ セクショナル方向弁 パラメーター
制御方法 手動, 空圧, 電空, 電気油圧, ソレノイド, 油圧, 油圧および手動, ケーブル, ジョイスティック, ソレノイド・ジョイスティック, 手動・ジョイスティック
スプール 1スプール, 2スプール, 3スプール, 4スプール, 5スプール, 6スプール, 7スプール, 8スプール, 9スプール, 10スプール
周囲温度範囲 -40°C to +80°C (-40°F to +176°F)
構造タイプ ブロック弁
セクション 1セクション, 2セクション, 3セクション, 4セクション, 5セクション, 6セクション, 7セクション, 8セクション, 9セクション, 10セクション
作動粘度範囲 12 - 400 mm²/s (12 cSt to 400 cSt)
定格流量 毎分90リットル (23.8 US gpm)
最大圧力 315 bar (4600 psi)
吸入口 G1/2, G3/4, SAE 10
吐出口 G1/2, G3/4, SAE 10, 3/4 NPT
ポートサイズ G1/2, SAE 10

As a leading manufacturer of hydraulic solutions, we present the SD8 Series Manual 3 Spool Sectional Directional Valve. Built for durability and precision, this valve features a robust sectional design and G1/2 | G3/4 porting, making it compatible with a wide range of equipment including mini-excavators, forklifts, wood splitters, and tractors. Our factory specializes in large-scale production, offering professional OEM, ODM, and customized manufacturing services to meet specific technical requirements. We provide flexible wholesale options and factory-direct supply to ensure competitive pricing and consistent quality for global markets. We are actively seeking long-term partnerships with professional distributors, wholesalers, regional agents, and international traders. Whether you need reliable private labeling (white label) services or bulk inventory for industrial applications, our factory is equipped to support your business growth with high-quality hydraulic components and dependable technical support.
