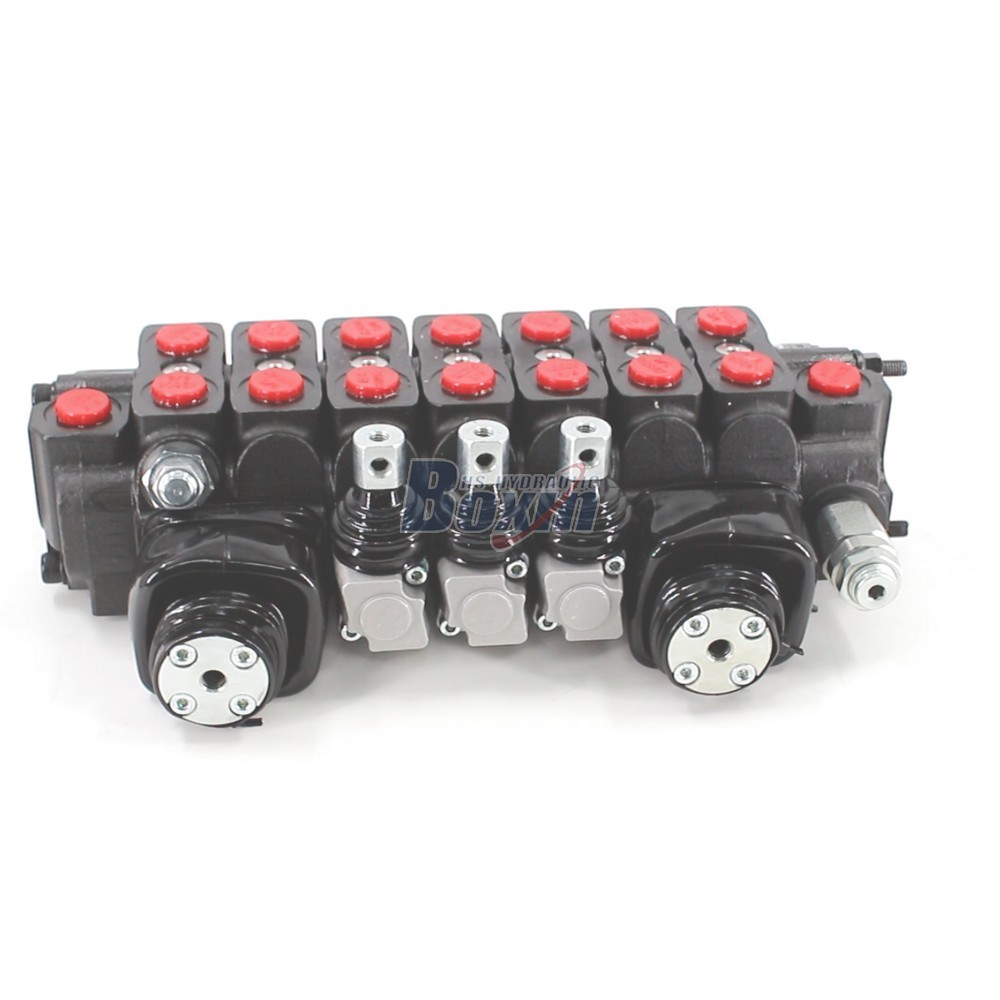

SD6 Sectional Valve 7 Spool Configuration with Manual and Joystick Levers

制御方法:手動・ジョイスティック

スプール:7スプール

定格流量:毎分45リットル (11.8 US gpm)

最大圧力:315 bar (4600 psi)

吸入口:G3/8

吐出口:G1/2

ポートサイズ:G3/8

ベンダー:BXHS

製品タイプ:セクショナル方向弁

製品シリーズ:SD6 シリーズ セクショナル方向弁

梱包サイズ:37*30*20

総重量:30.00 kg

在庫状況: 在庫あり

184 この製品を探している人もいます

SD6 Sectional Valve 7 Spool Configuration with Manual and Joystick Levers

SD6 Sectional Valve 7 Spool Configuration with Manual and Joystick Levers

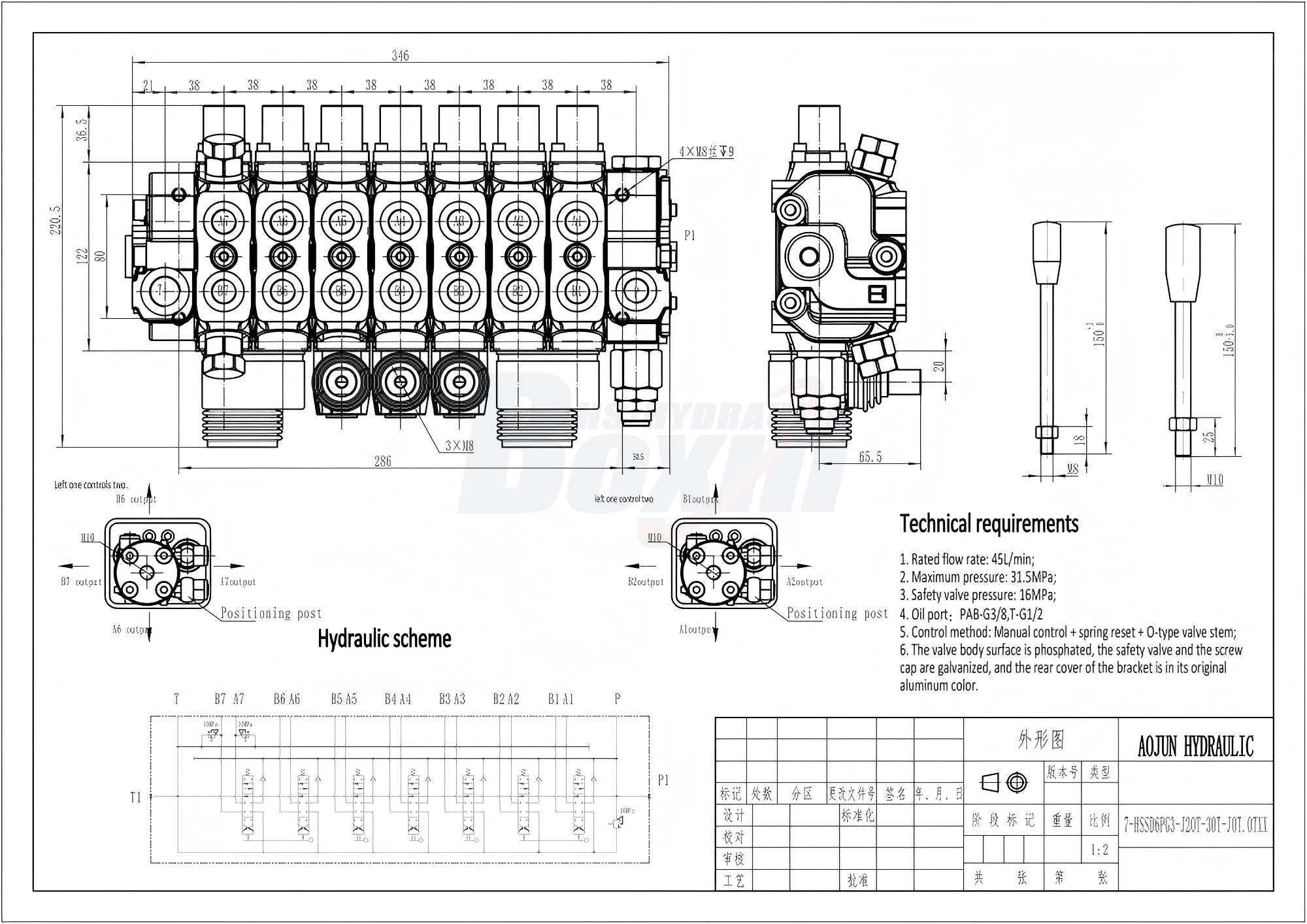

SD6 Sectional Valve 7 Spool Configuration with Manual and Joystick Levers drawing image

The SD6 Series 7-spool sectional valve offers high-performance manual and joystick control for hydraulic systems, handling flows up to 45 L/min and pressures up to 315 bar. Designed for versatility in construction and agricultural machinery, it provides precise multi-function fluid management for tractors, loaders, and material handling equipment.

SD6 シリーズ セクショナル方向弁 パラメーター
制御方法 手動, 空圧, 電空, 電気油圧, 油圧, ケーブル, ジョイスティック, 手動・ジョイスティック
スプール 1スプール, 2スプール, 3スプール, 4スプール, 5スプール, 6スプール, 7スプール, 8スプール, 9スプール, 10スプール
周囲温度範囲 -40°C to +60°C (-40°F to +140°F)
構造タイプ ブロック弁
セクション 1セクション, 2セクション, 3セクション, 4セクション, 5セクション, 6セクション, 7セクション, 8セクション, 9セクション, 10セクション
作動粘度範囲 15 - 75 mm²/s (15 cSt to 75 cSt)
定格流量 毎分45リットル (11.8 US gpm)
最大圧力 315 bar (4600 psi)
吸入口 G3/8, G1/2
吐出口 G1/2
ポートサイズ G3/8

As a leading manufacturer of premium hydraulic solutions, we present the SD6 Series 7 Spool Sectional Valve, engineered for demanding mobile and industrial applications. This robust manual and joystick-operated valve supports a rated flow of 45 L/min (11.8 US gpm) and a maximum pressure of 315 bar (4600 psi), ensuring reliable performance in mini-excavators, forklifts, skid steers, and forestry trailers. Our factory provides comprehensive manufacturing capabilities, including OEM, ODM, and customized private labeling services to meet specific technical requirements. We specialize in factory-direct wholesale and are actively seeking global partners, including distributors, wholesalers, agents, and trade companies to expand our international footprint. Whether you need reliable components for tractors, bale wrappers, or aerial platforms, our G3/8 and G1/2 ported valves deliver superior durability and precision. Partner with us for professional factory supply, competitive bulk pricing, and tailored hydraulic solutions designed for global market standards.
