生産と納品
15~30日の生産リードタイム

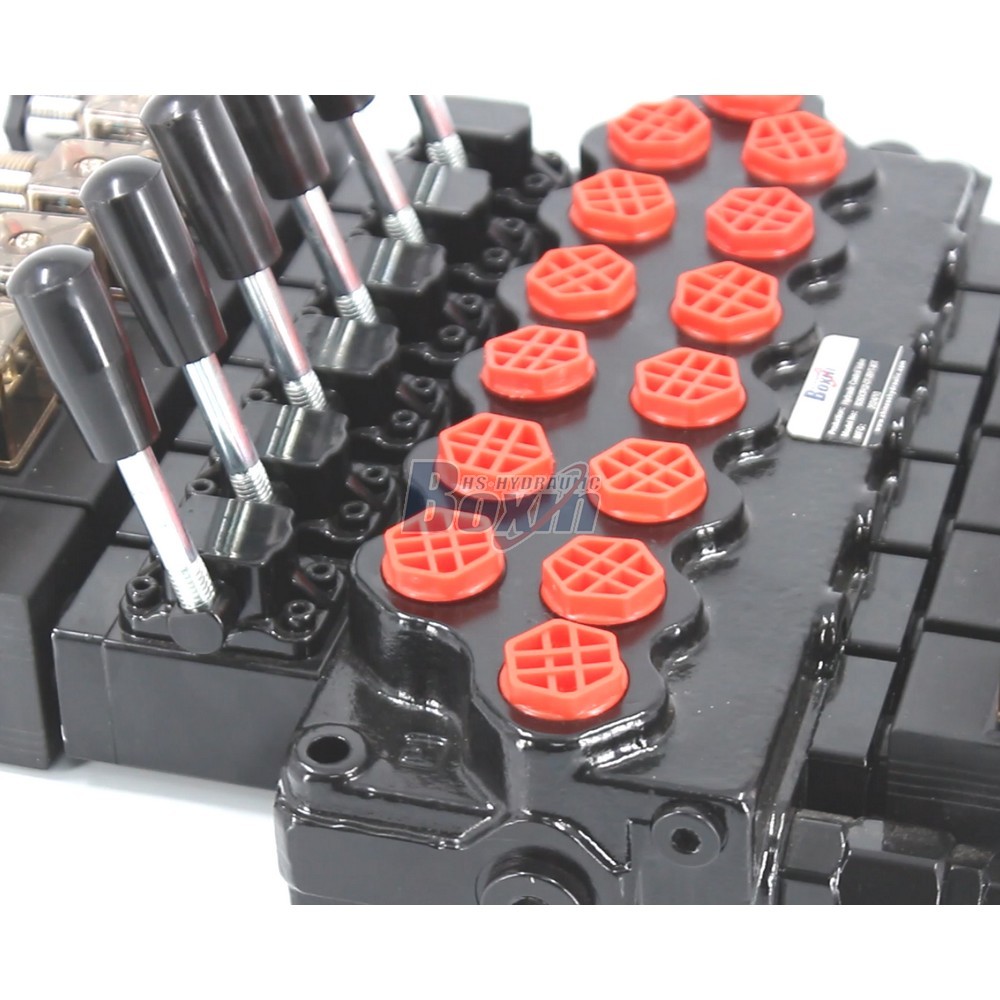

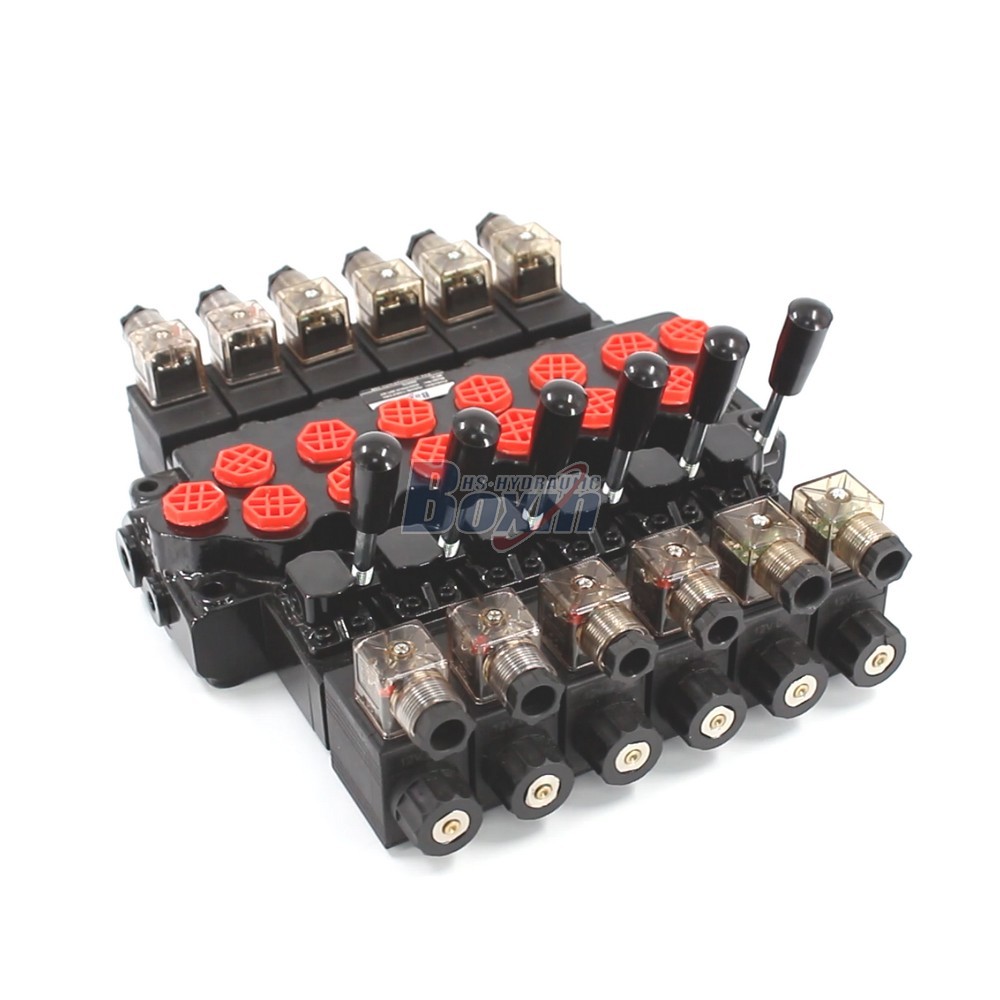

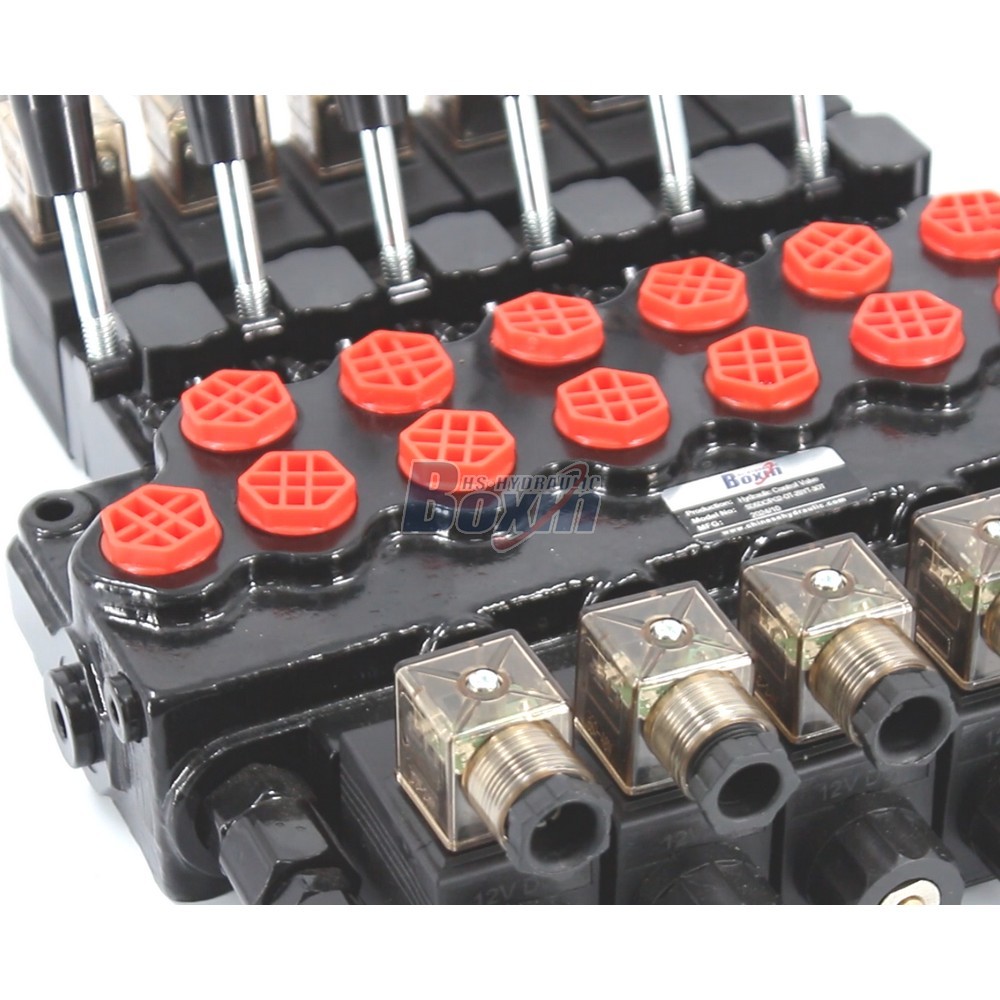

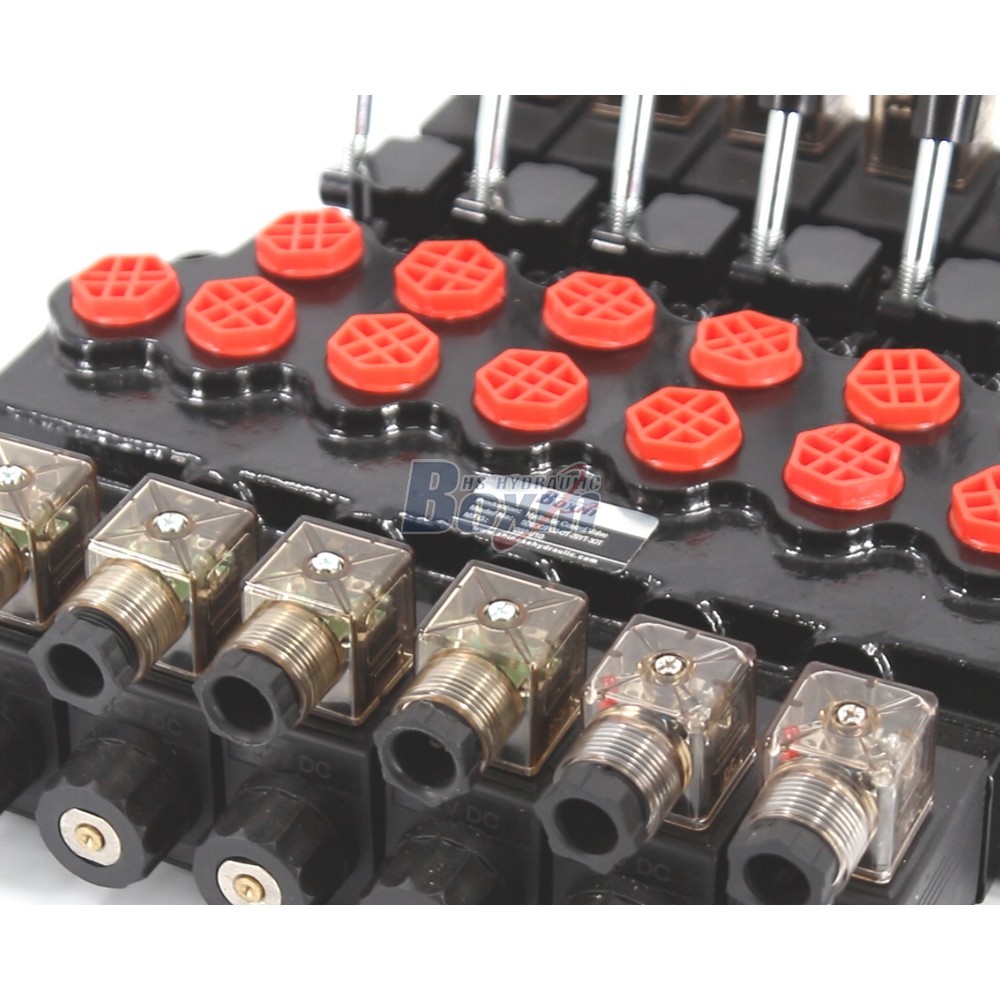

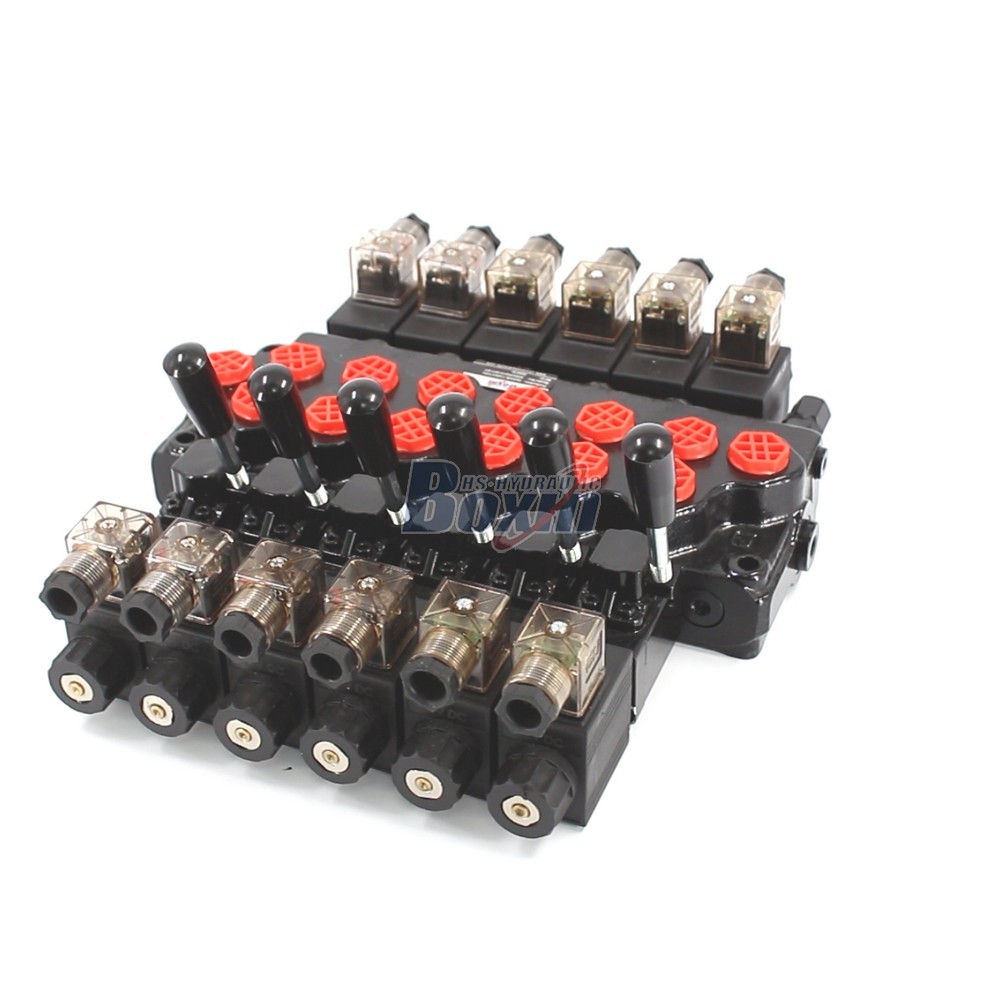

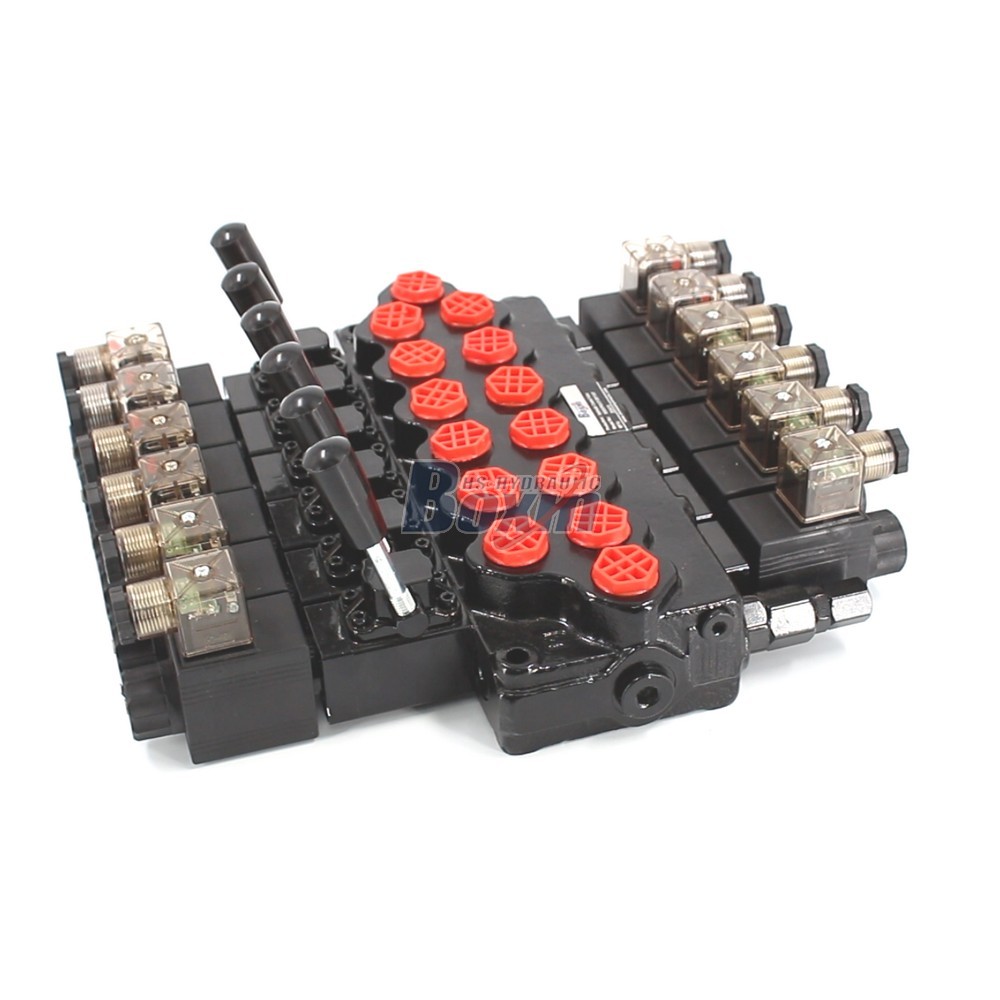

The SD5-PG2 Series is a high-performance 6-spool solenoid directional control valve designed for precision flow management. With a 45 L/min flow rate and 315 bar pressure capacity, it serves diverse heavy-duty applications including construction, agriculture, and material handling machinery.
| SD5シリーズ モノブロック方向制御弁 パラメーター | |
|---|---|
| 制御方法 | 手動, 空圧, 電空, 電気油圧, ソレノイド, 油圧, 油圧および手動, ケーブル, ジョイスティック |
| スプール | 1スプール, 2スプール, 3スプール, 4スプール, 5スプール, 6スプール, 7スプール |
| 周囲温度範囲 | -40°C to +60°C (-40°F to +140°F) |
| 構造タイプ | モノブロック弁 |
| セクション | 1セクション, 2セクション, 3セクション, 4セクション, 5セクション, 6セクション, 7セクション |
| 作動粘度範囲 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 定格流量 | 毎分40リットル (10.5 US gpm) |
| 最大圧力 | 305 bar (4400 psi) |
| 吸入口 | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8, G1-1/2 |
| 吐出口 | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |
| ポートサイズ | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |
As a prominent manufacturer specializing in advanced fluid power solutions, we provide the SD5-PG2 Series 6 Spool Solenoid Directional Control Valve to global markets. Our facility excels in precision engineering, offering comprehensive services in manufacturing, OEM, private labeling, and custom design to meet specific project requirements. We support large-scale factory wholesale and are actively seeking long-term partnerships with distributors, wholesalers, agents, and international traders. Our valves are engineered for reliability in demanding environments such as tractors, forklifts, mini-excavators, and harvesters. By choosing our factory direct supply, partners gain access to competitive pricing, robust logistical support, and consistent manufacturing quality. We welcome inquiries for tailored hydraulic solutions and invite industry professionals to discuss partnership opportunities to expand our reach in the global construction and industrial vehicle sectors.
