What is the primary application of the SD5 Hydraulic Valve | Key Features and Applications?

The SD5 Hydraulic Valve | Key Features and Applications is designed for mobile hydraulic systems, agricultural machinery (such as tractors and harvesters), construction equipment (such as loaders and excavators), and industrial machinery. It ensures precise flow and directional control.

Is Boxinhuasheng a factory-direct manufacturer?

Yes, Boxinhuasheng (Qingzhou Boxinhuasheng Hydraulic Technology Co., Ltd.) is a factory-direct manufacturer established in 2001. We operate a 68,000m虏 facility with 4 modern manufacturing plants and 260+ production machines, supplying certified products directly to global customers.

What quality certifications do Boxinhuasheng products have?

All Boxinhuasheng directional control valves, gear pumps, and hydraulic accessories are CE certified, IATF 16949 compliant, and verified on-site by SGS, meeting international engineering standards.

Can Boxinhuasheng provide OEM/ODM customization services?

Yes, Boxinhuasheng has a team of 35 senior hydraulic engineers providing custom OEM manufacturing, ODM development, private labeling, and customized hydraulic system solutions tailored to specific operating pressures and flows.

What is the warranty and shipping lead time?

We offer a 1-year warranty with free replacement for any quality defects. Standard express delivery is within 30 days, supported by our robust annual capacity of 1.5 million hydraulic units and export experience to 80+ countries.

SD5 Hydraulic Valve | Key Features and Applications

Name: SD5 Hydraulic Valve | Key Features and Applications
Brand: Boxinhuasheng
SKU: BXHS-51304
Availability: InStock

イノベーションが開発を推進し、テクノロジーが未来を築きます

ホームモノブロック方向制御弁SD5シリーズ製品詳細

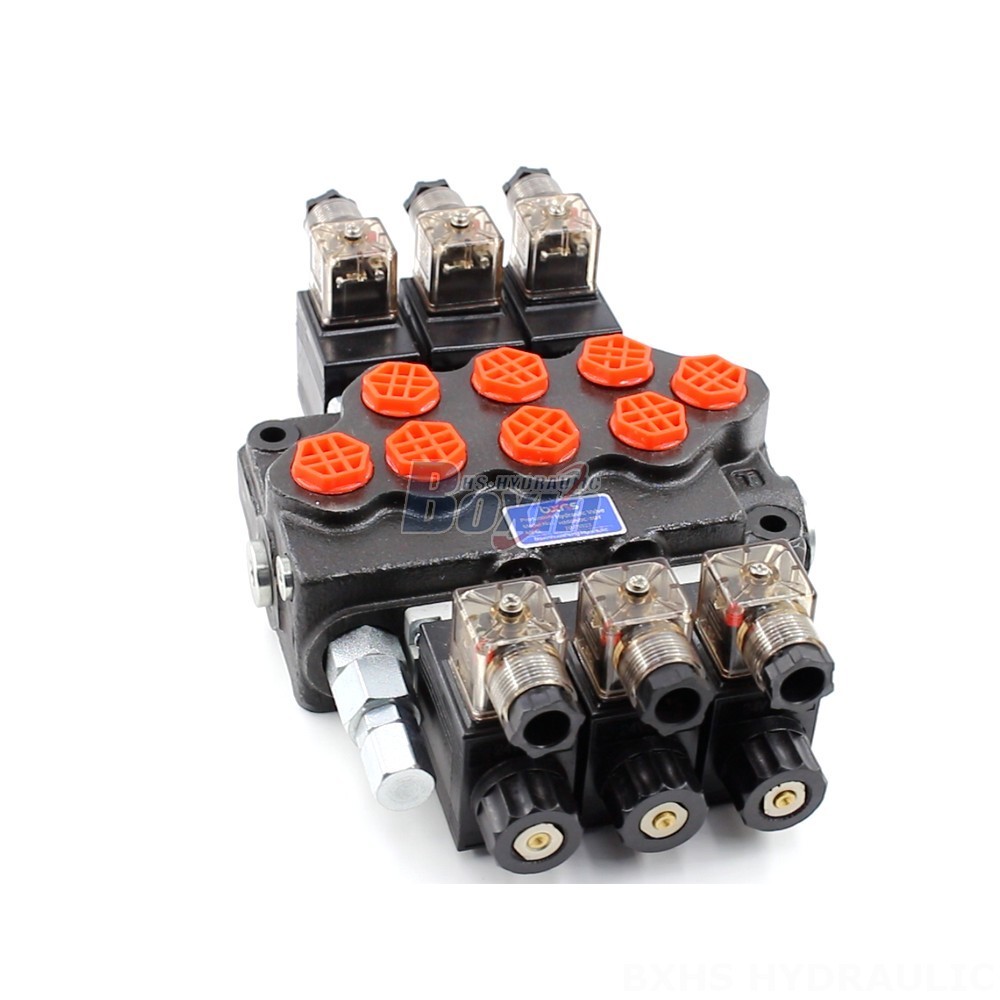

SD5 Hydraulic Valve | Key Features and Applications cover photo

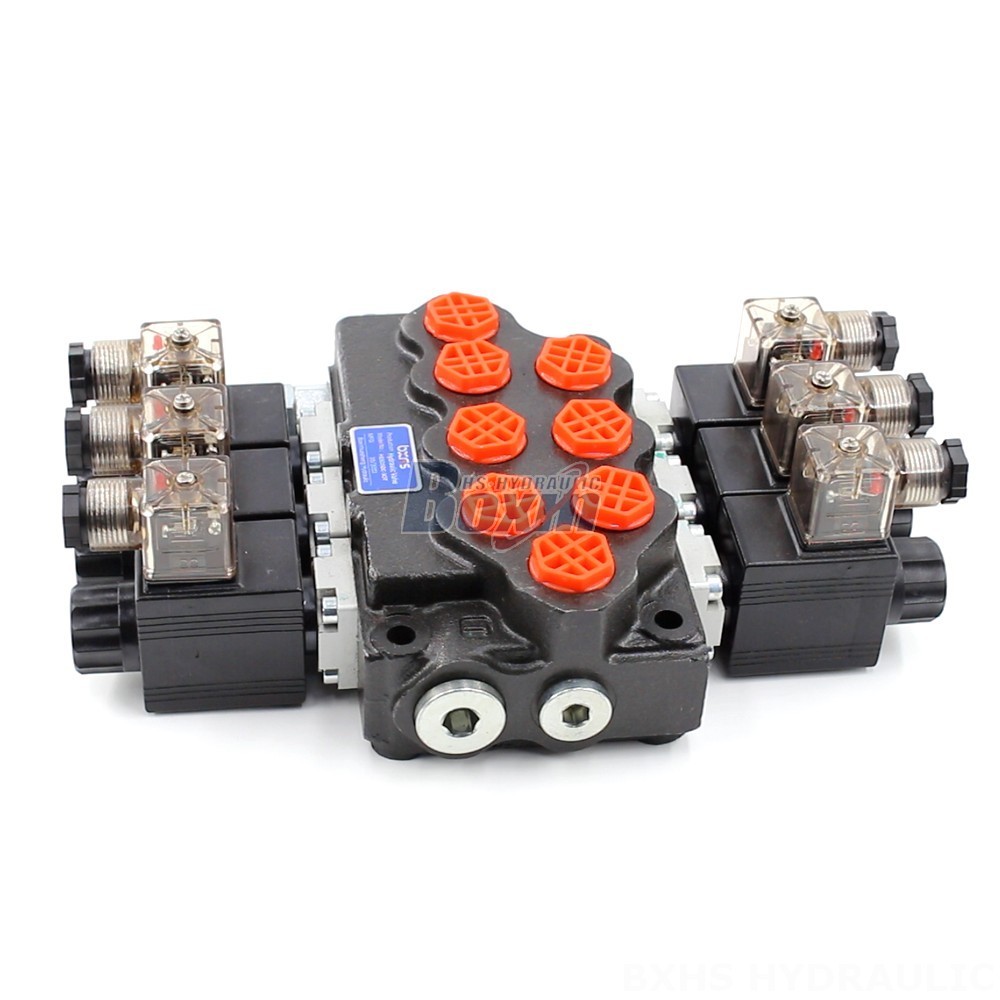

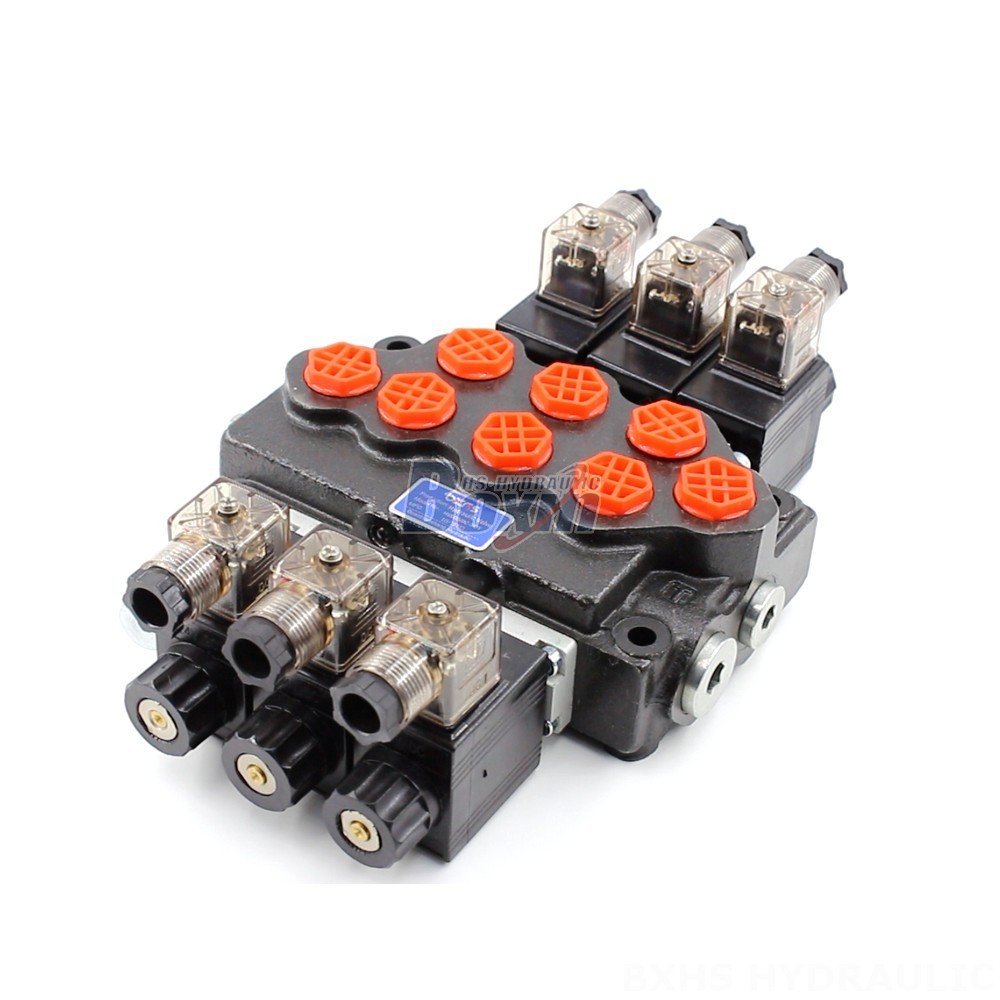

SD5 Hydraulic Valve | Key Features and Applications main image

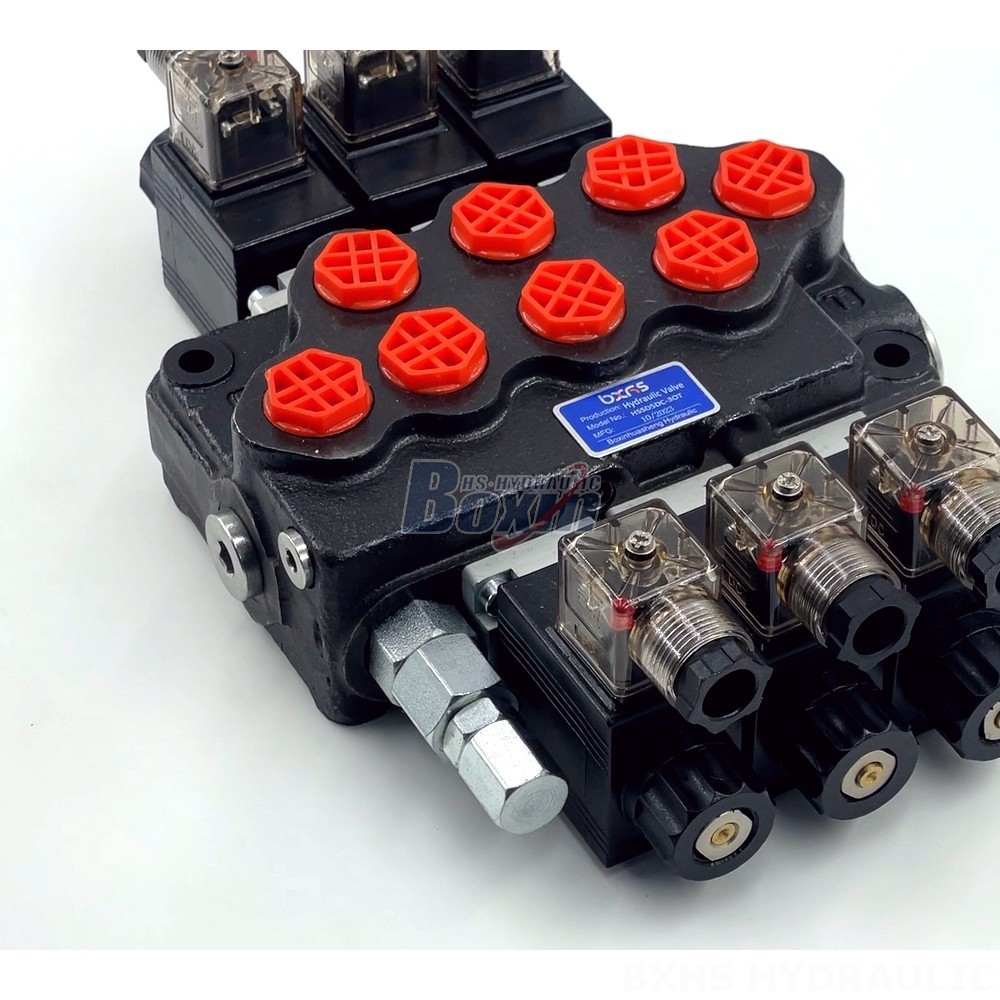

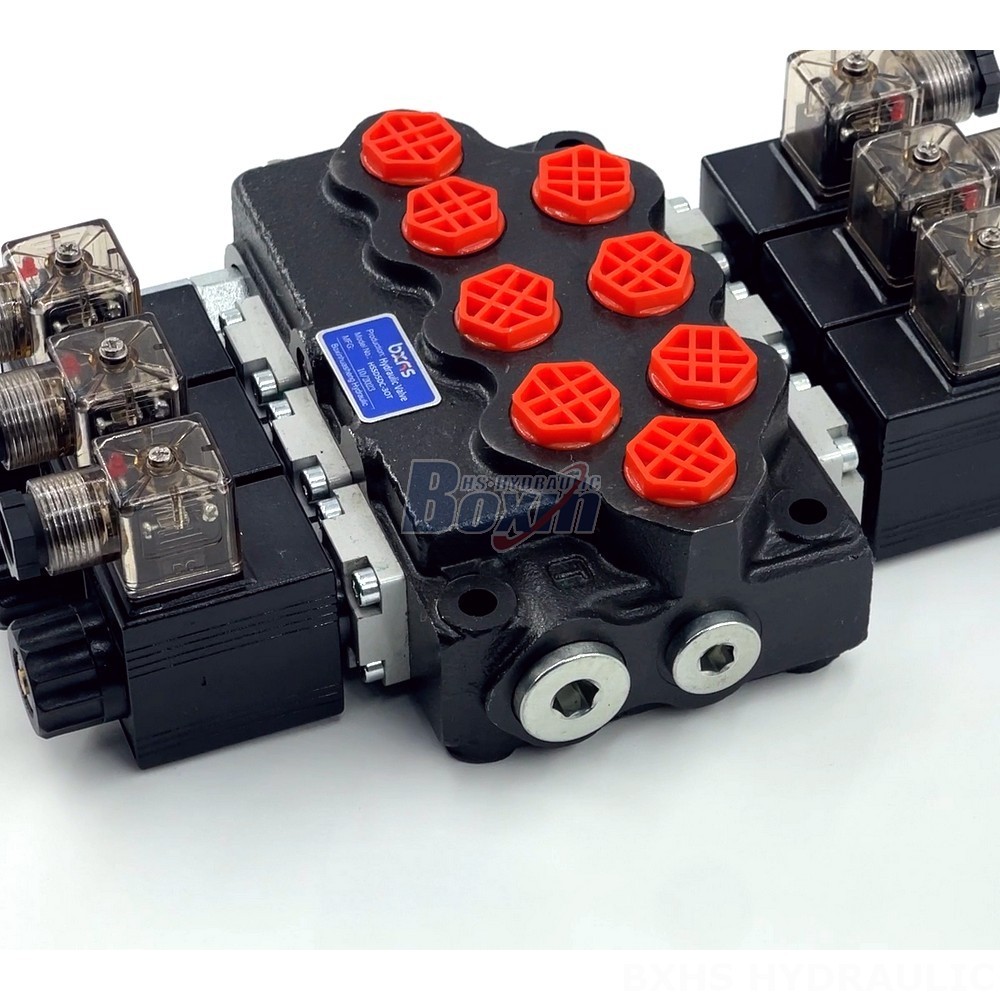

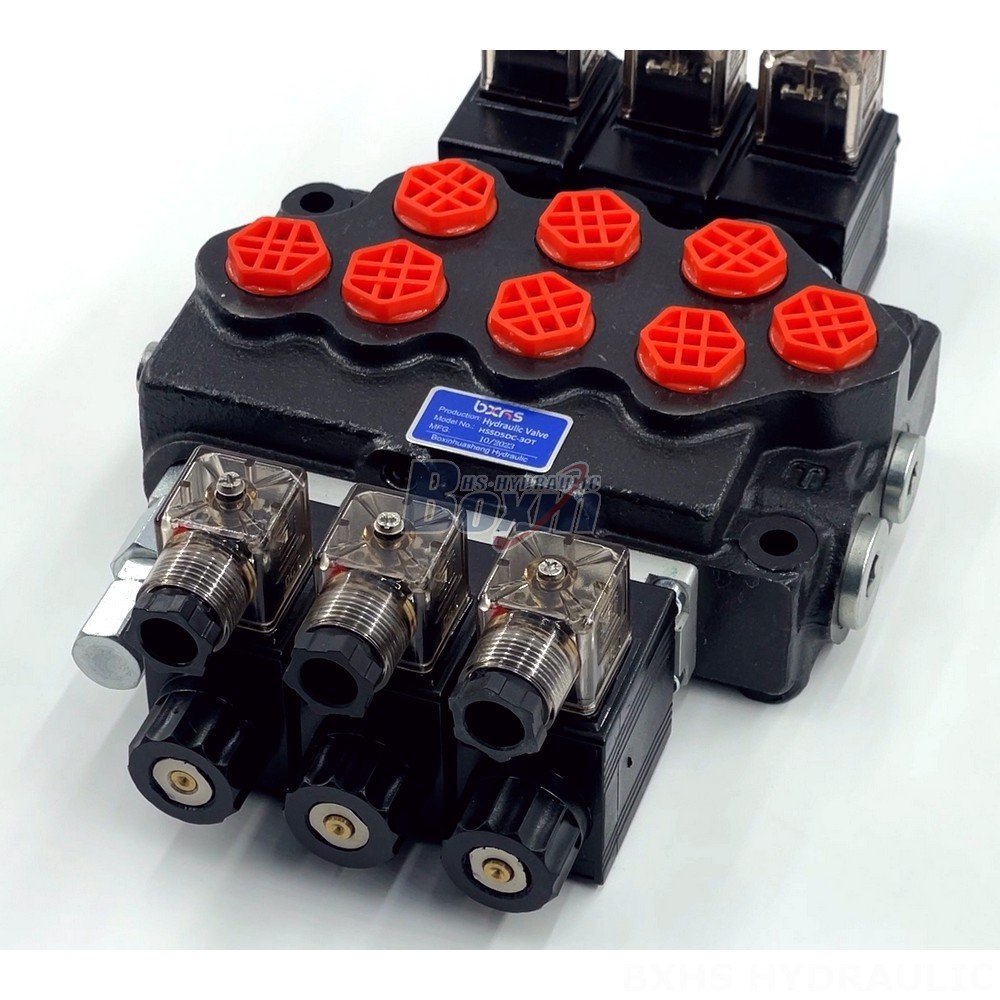

SD5 Hydraulic Valve | Key Features and Applications detail image

SD5 Hydraulic Valve | Key Features and Applications

制御方法:ソレノイド

スプール:3スプール

定格流量:毎分45リットル (11.8 US gpm)

最大圧力:315 bar (4600 psi)

吸入口:G3/8

吐出口:G3/8

ポートサイズ:G3/8

ベンダー:BXHS

製品タイプ:モノブロック方向制御弁

製品シリーズ:SD5シリーズモノブロック方向制御弁

梱包サイズ:30*21*13

総重量:9.00 kg

在庫状況: 在庫あり

お問い合わせ

1220 この製品を探している人もいます

SD5 Hydraulic Valve | Key Features and Applications

SD5 Hydraulic Valve | Key Features and Applications drawing image

The SD5 Hydraulic Valve is a high-performance solenoid-controlled monoblock valve designed for use in agricultural machinery, construction equipment, and industrial vehicles. With a rated flow of 40 L/min and a maximum pressure of 305 bar, it's ideal for applications demanding reliable hydraulic control.

SD5シリーズモノブロック方向制御弁パラメーター
制御方法	手動, 空圧, 電空, 電気油圧, ソレノイド, 油圧, 油圧および手動, ケーブル, ジョイスティック
スプール	1スプール, 2スプール, 3スプール, 4スプール, 5スプール, 6スプール, 7スプール
周囲温度範囲	-40°C to +60°C (-40°F to +140°F)
構造タイプ	モノブロック弁
セクション	1セクション, 2セクション, 3セクション, 4セクション, 5セクション, 6セクション, 7セクション
作動粘度範囲	15 - 75 mm²/s (15 cSt to 75 cSt)
定格流量	毎分40リットル (10.5 US gpm)
最大圧力	305 bar (4400 psi)
吸入口	G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8, G1-1/2
吐出口	G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8
ポートサイズ	G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8

This 3-section SD5 Series valve offers exceptional control with its solenoid operation and robust construction. Designed for demanding environments, it boasts an operating viscosity range of 15 - 75 mm²/s and a wide ambient temperature range from -40°C to +60°C. With its 3 spools and 40 L/min rated flow, it's perfect for controlling hydraulic systems in a variety of agricultural machinery, including telehandlers, forklifts, mini-excavators, skid steer loaders, and more. Its monoblock design ensures durability and reliable performance, making it a valuable asset for any hydraulic system.

SD5 Hydraulic Valve | Key Features and Applications
