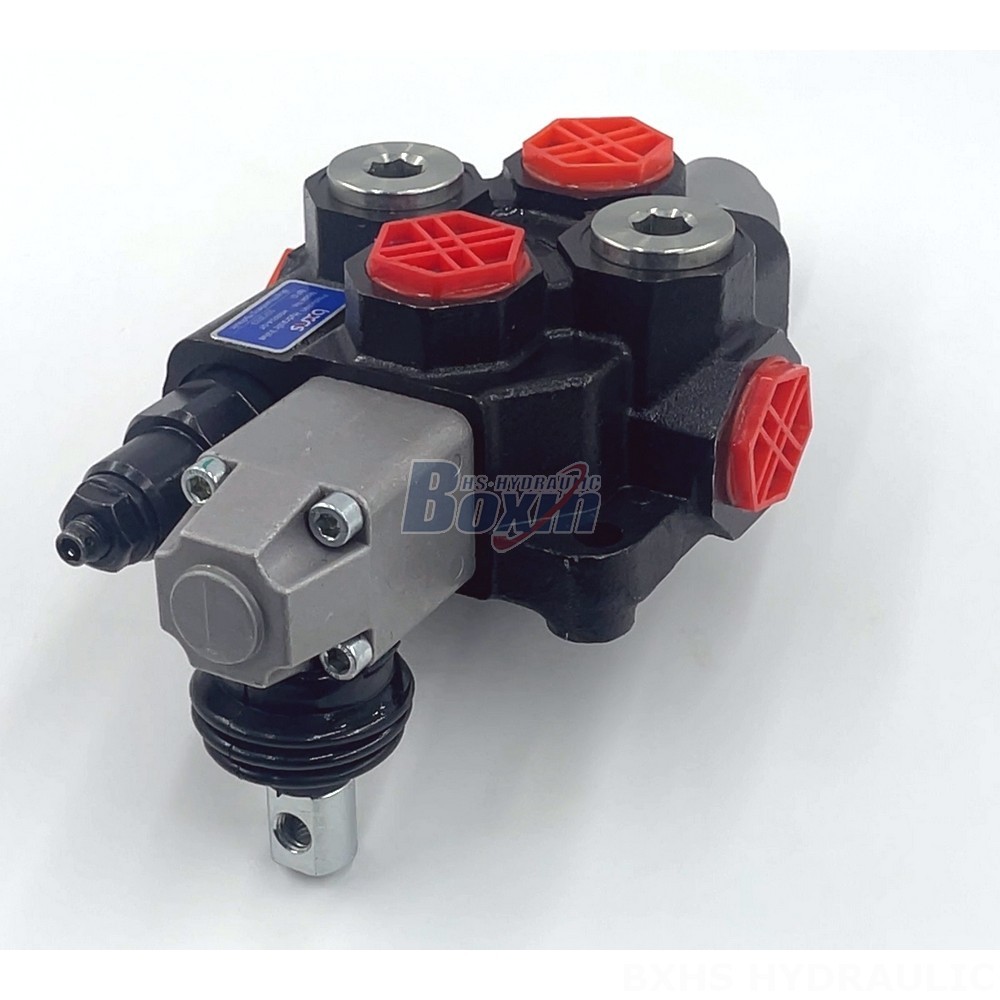

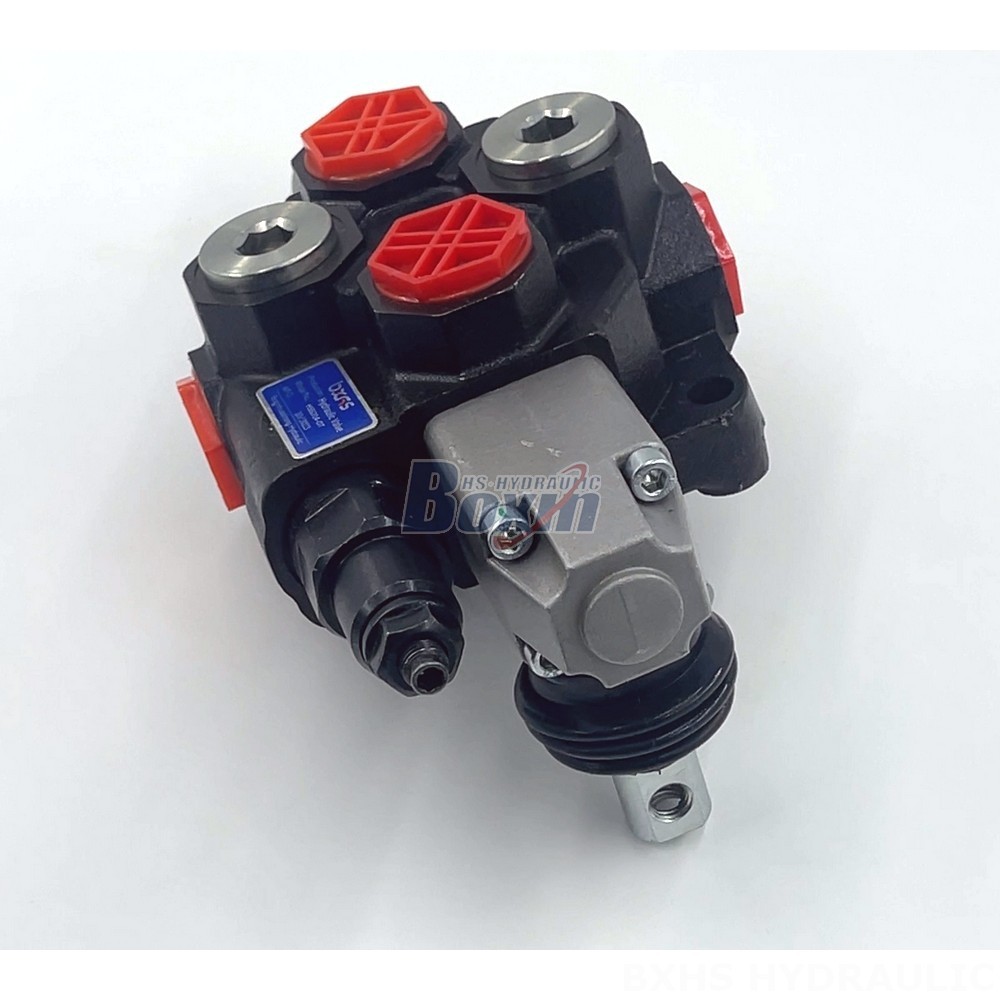

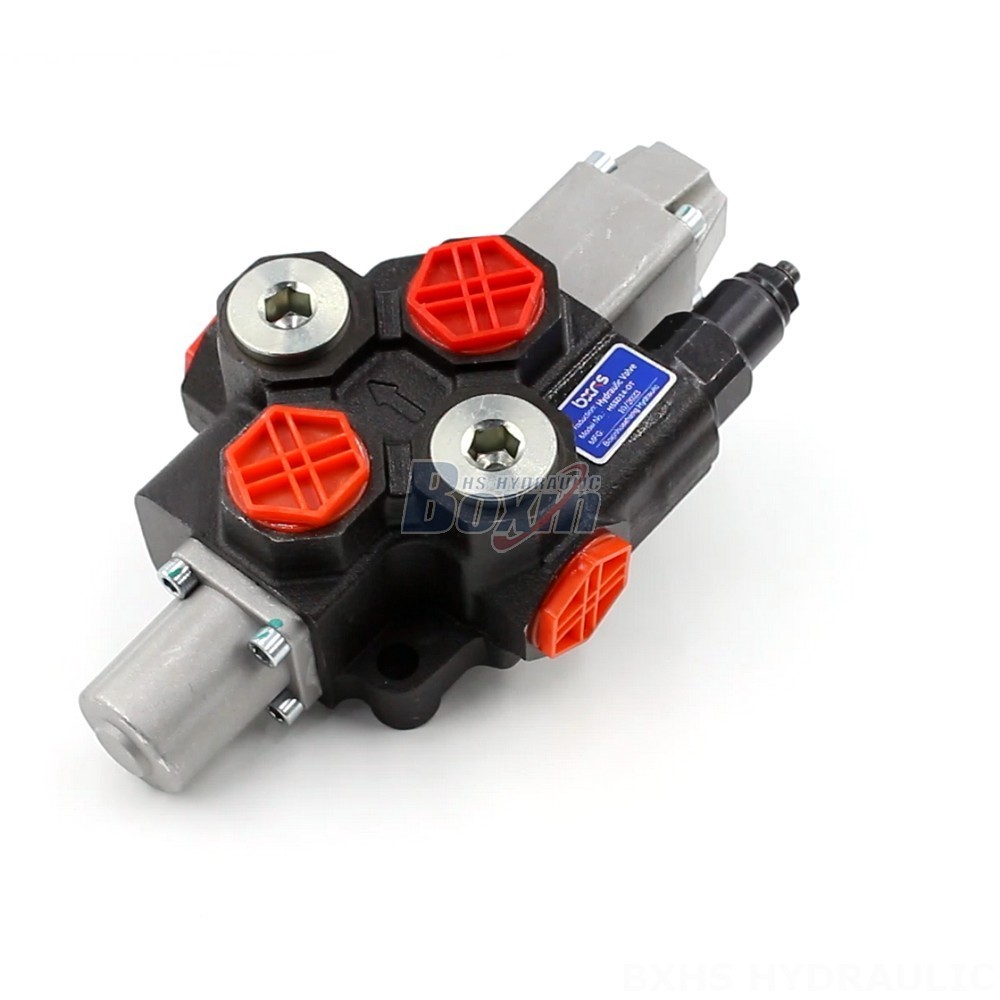

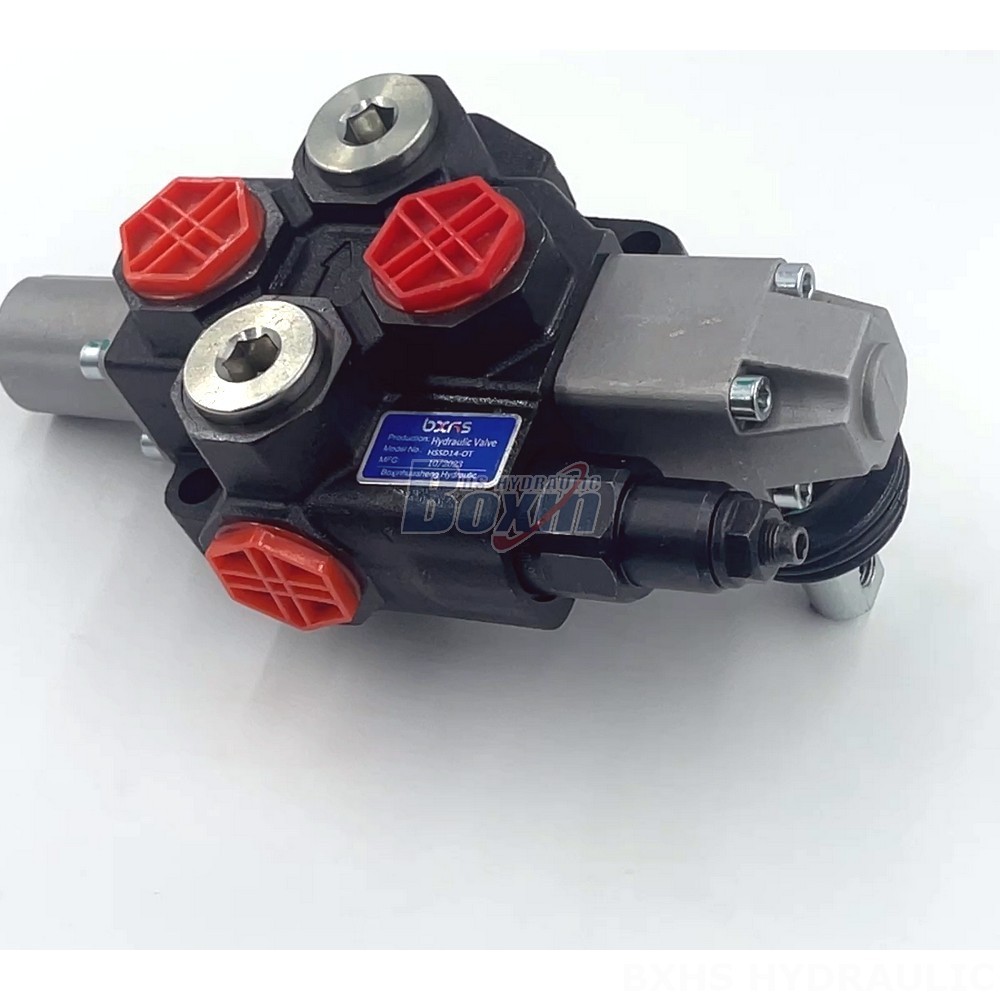

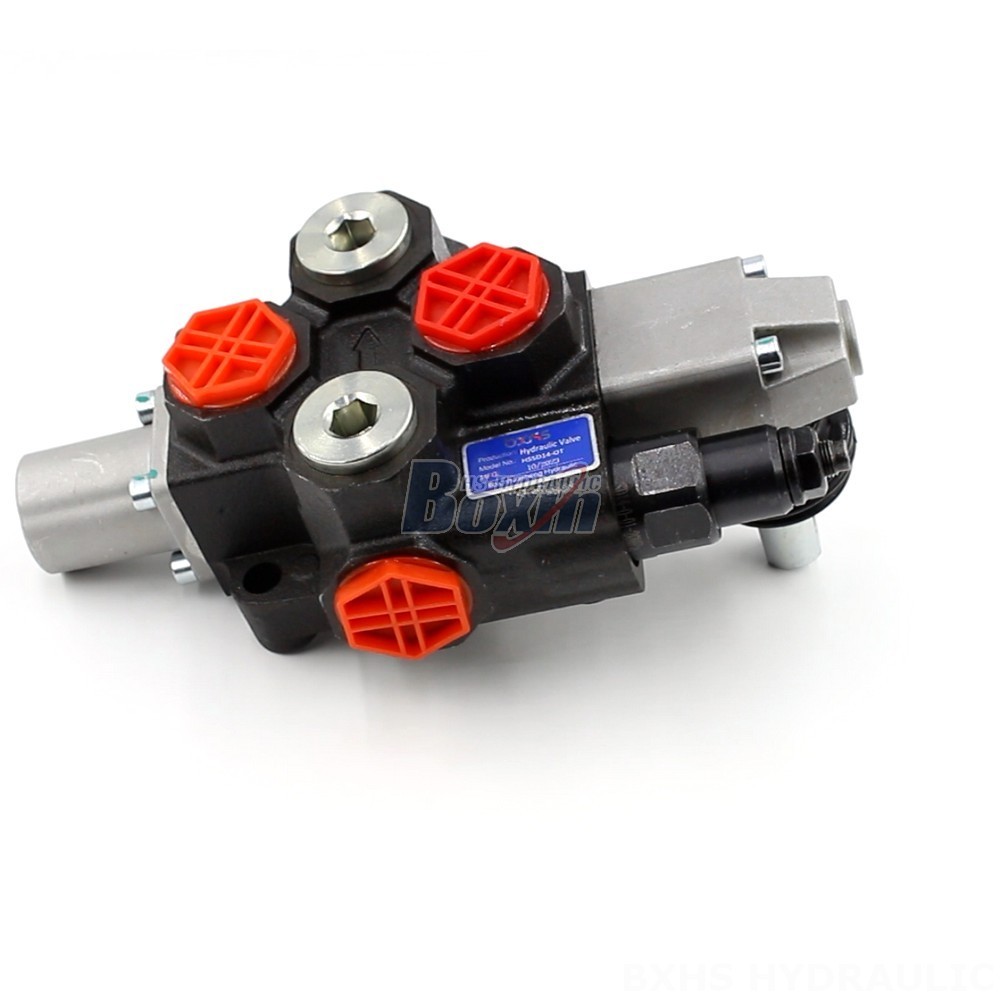

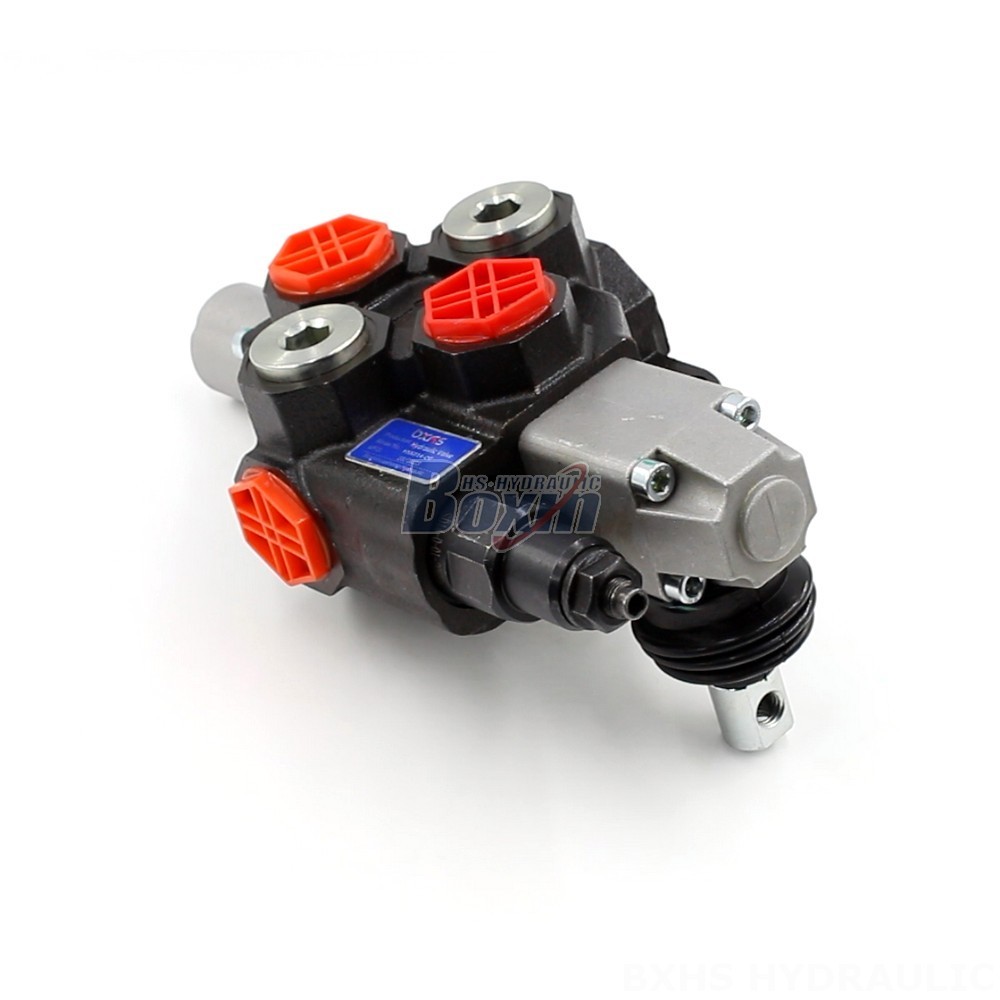

The SD14 Manual 1 Spool Monoblock Directional Valve is a high-performance hydraulic valve designed for various industrial applications. With its manual control mechanism, 1 spool design, and robust monoblock construction, this valve offers precise flow control and reliable operation. Its rated flow capacity of 120 L/min and maximum pressure of 315 bar make it suitable for demanding hydraulic systems.
| SD14 シリーズ モノブロック方向制御弁 パラメーター | |
|---|---|
| 制御方法 | 手動, 空圧, 油圧 |
| スプール | 1スプール |
| 周囲温度範囲 | -40°C to +60°C (-40°F to +140°F) |
| 構造タイプ | モノブロック弁 |
| セクション | 1セクション |
| 作動粘度範囲 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 定格流量 | 120 L/分 (31.7 US gpm) |
| 最大圧力 | 315 bar (4600 psi) |
| 吸入口 | G3/4 |
| 吐出口 | G3/4 |
| ポートサイズ | G3/4 |
**Product Highlights:**
- Manual control for precise flow regulation
- Monoblock construction for enhanced durability and reduced leakage
- 1 spool design for efficient flow management
- Rated flow of 120 L/min (31.7 US gpm) for high flow capacity
- Maximum pressure of 315 bar (4600 psi) for demanding applications
- Operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) for wide compatibility
- Ambient temperature range of -40°C to +60°C (-40°F to +140°F) for reliable performance in various environments
**Applications:**
The SD14 Manual 1 Spool Monoblock Directional Valve finds applications in various industries, including:
- Material handling: Telehandlers, forklifts, stackers
- Construction and earth moving: All-terrain cranes, motor graders, excavators
- Agriculture: Tractors, harvesters
- Industrial vehicles: Aerial platforms, skid steer loaders, compact wheel loaders
