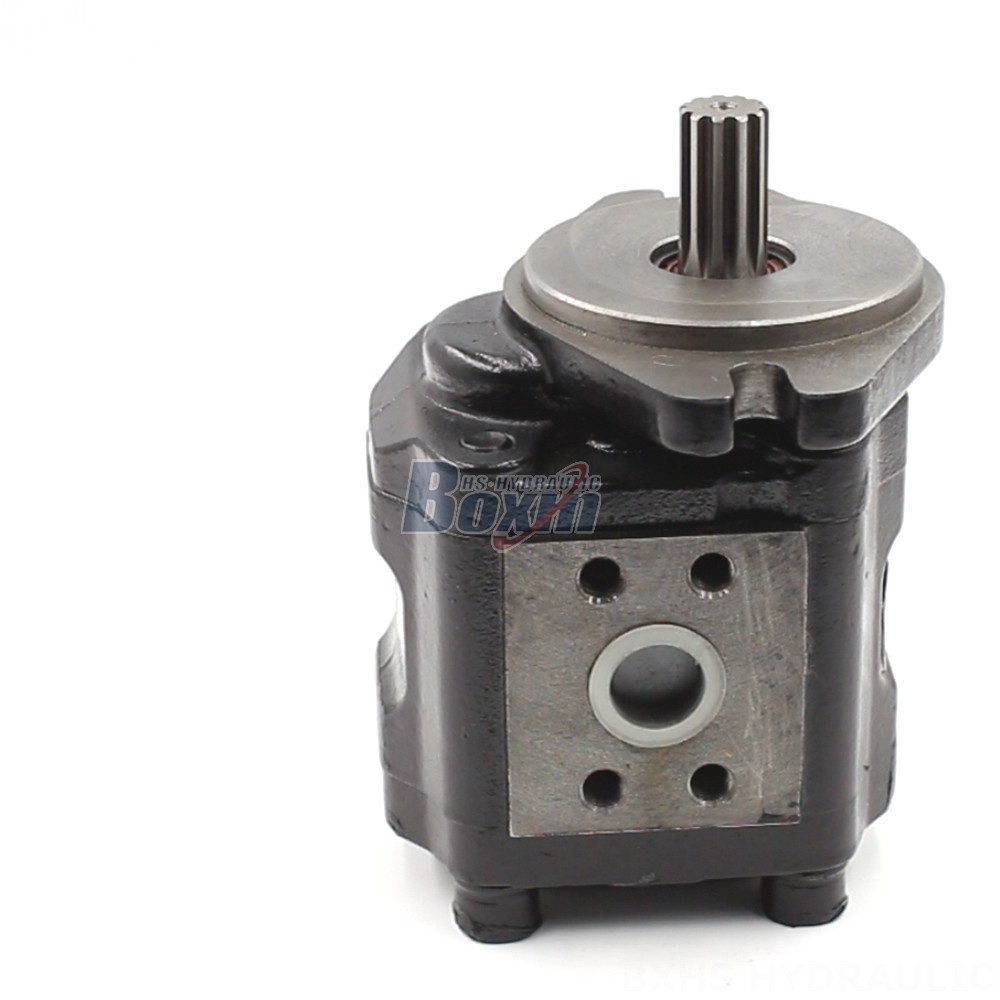

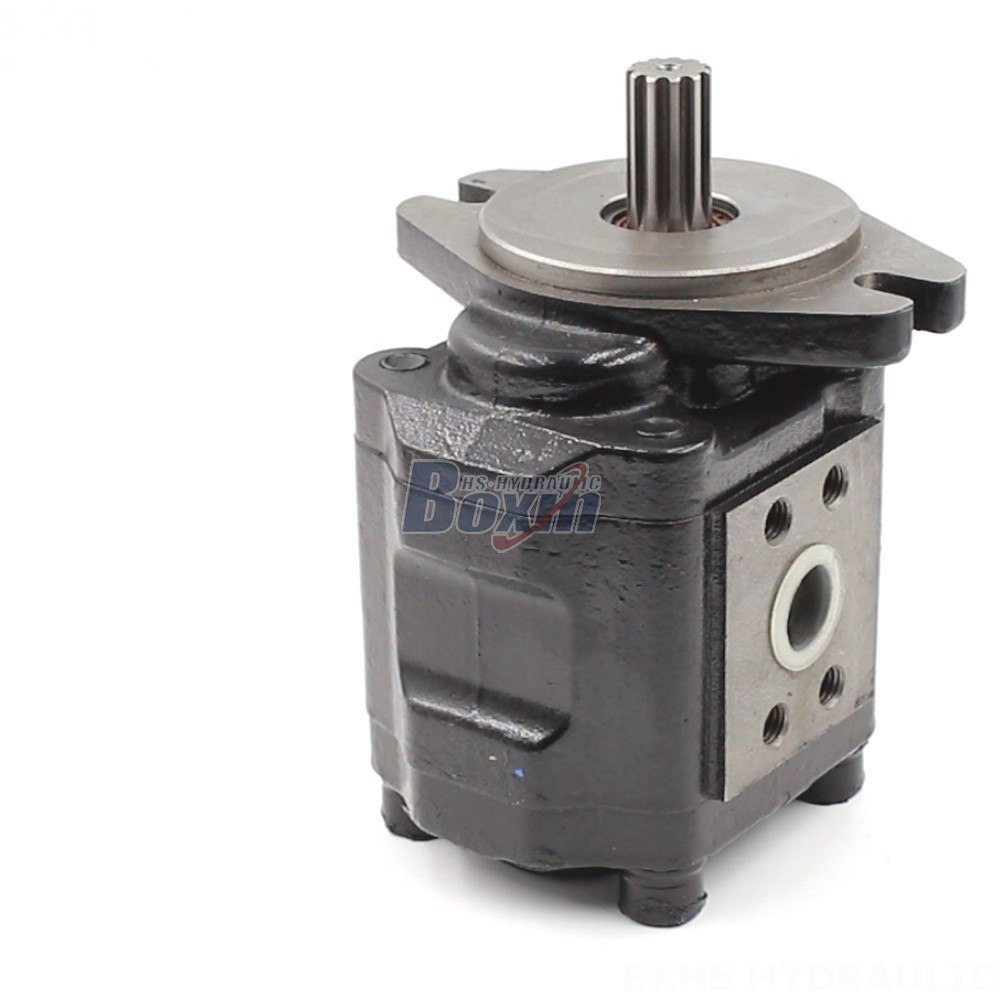

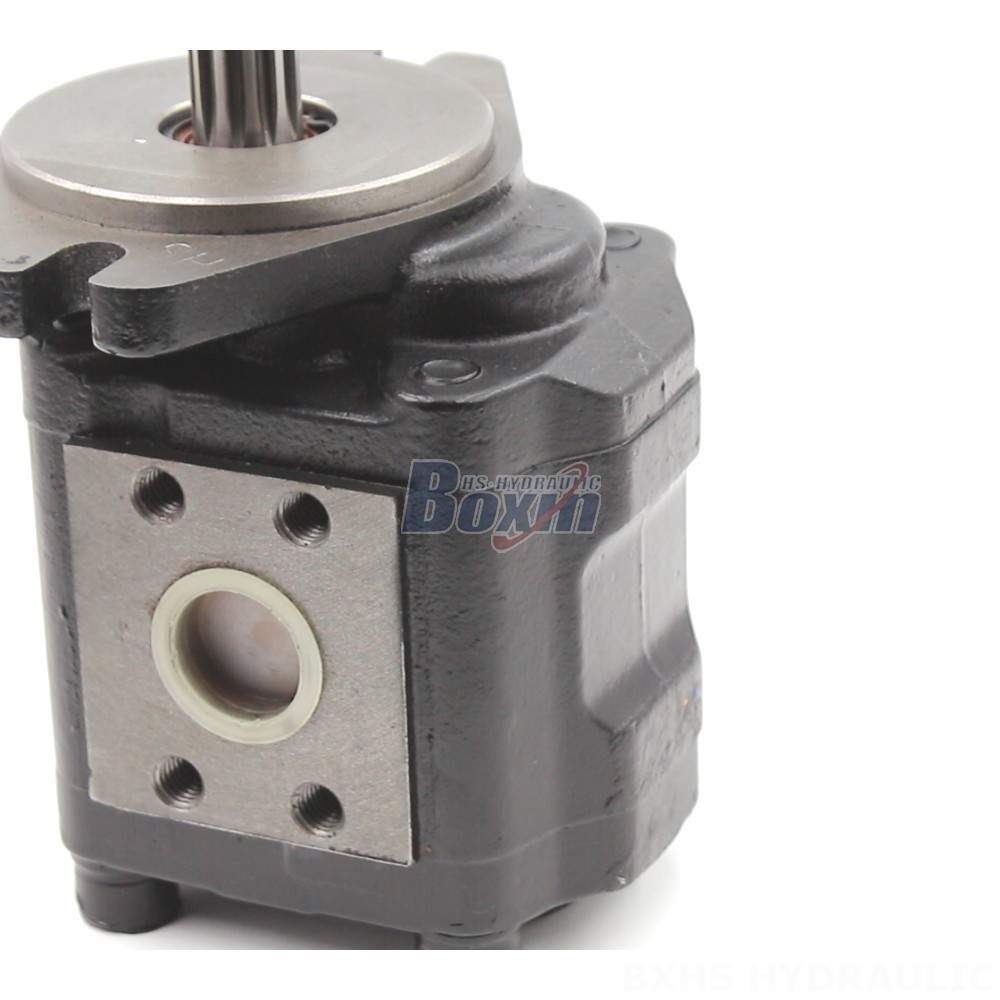

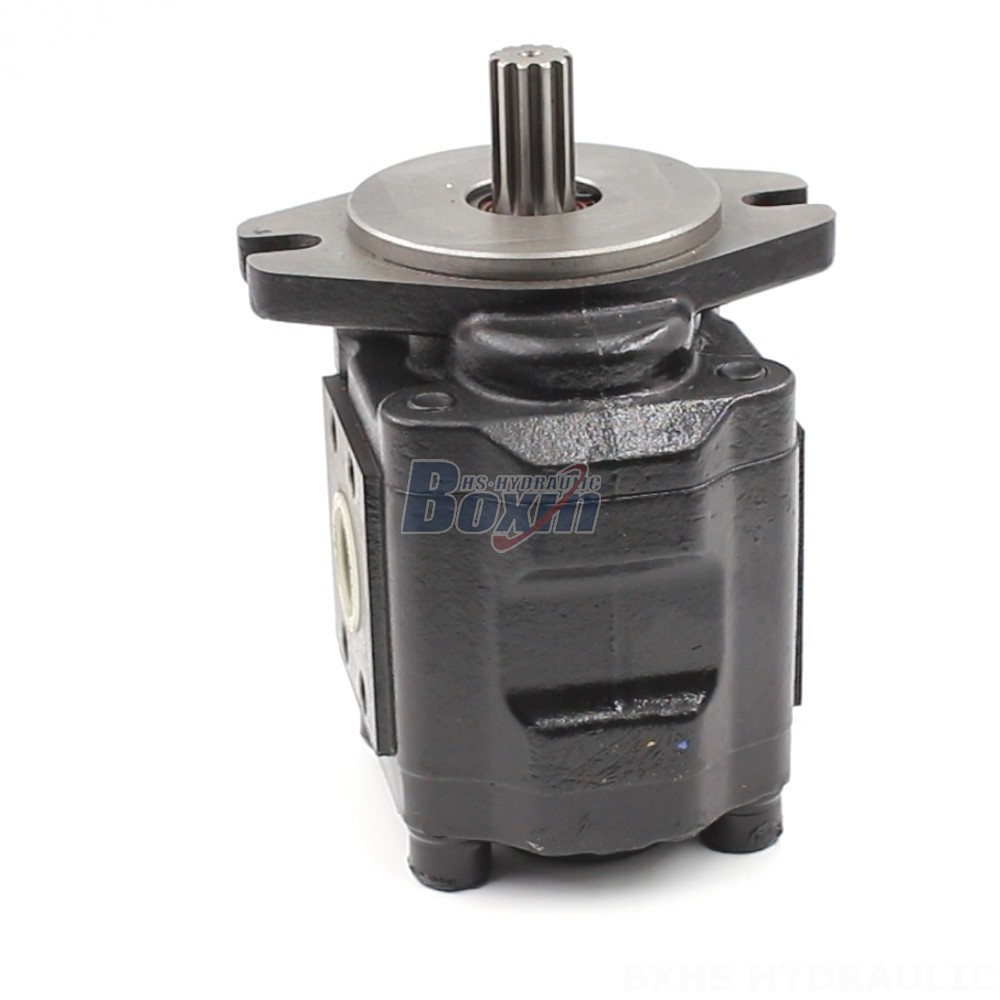

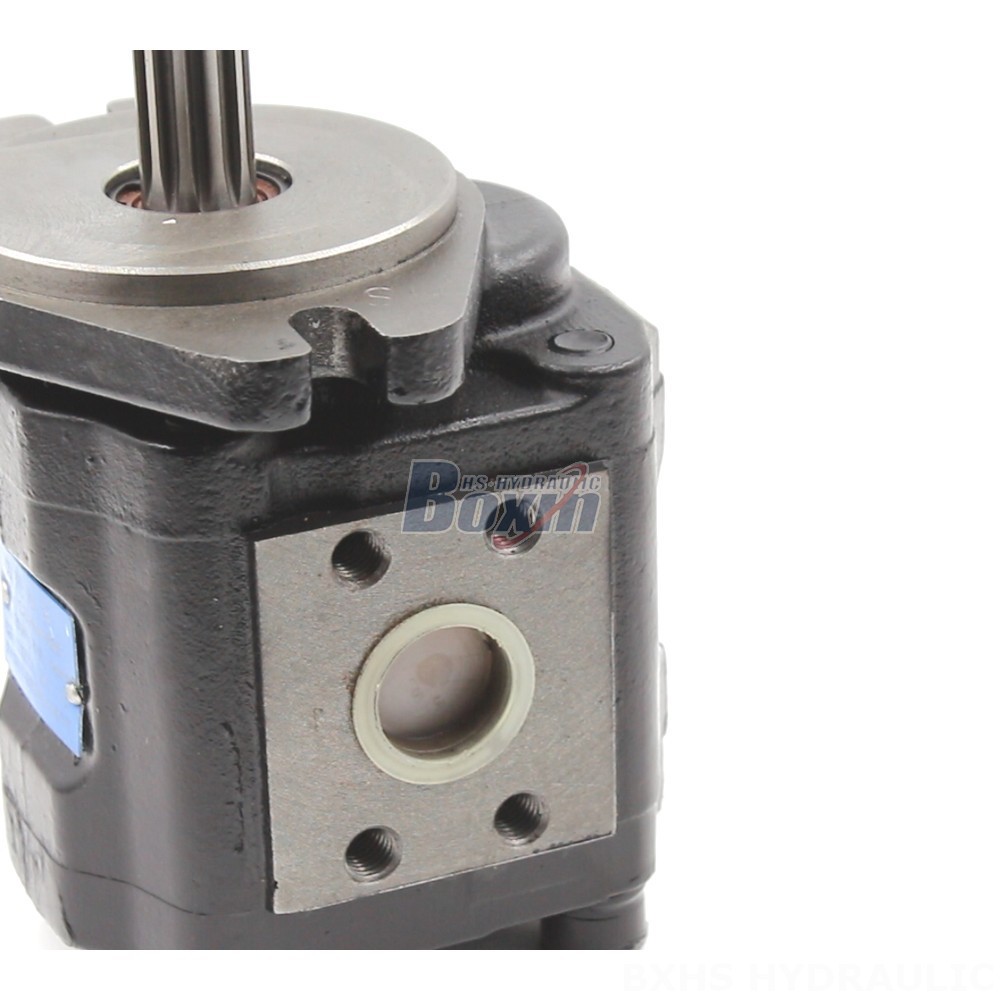

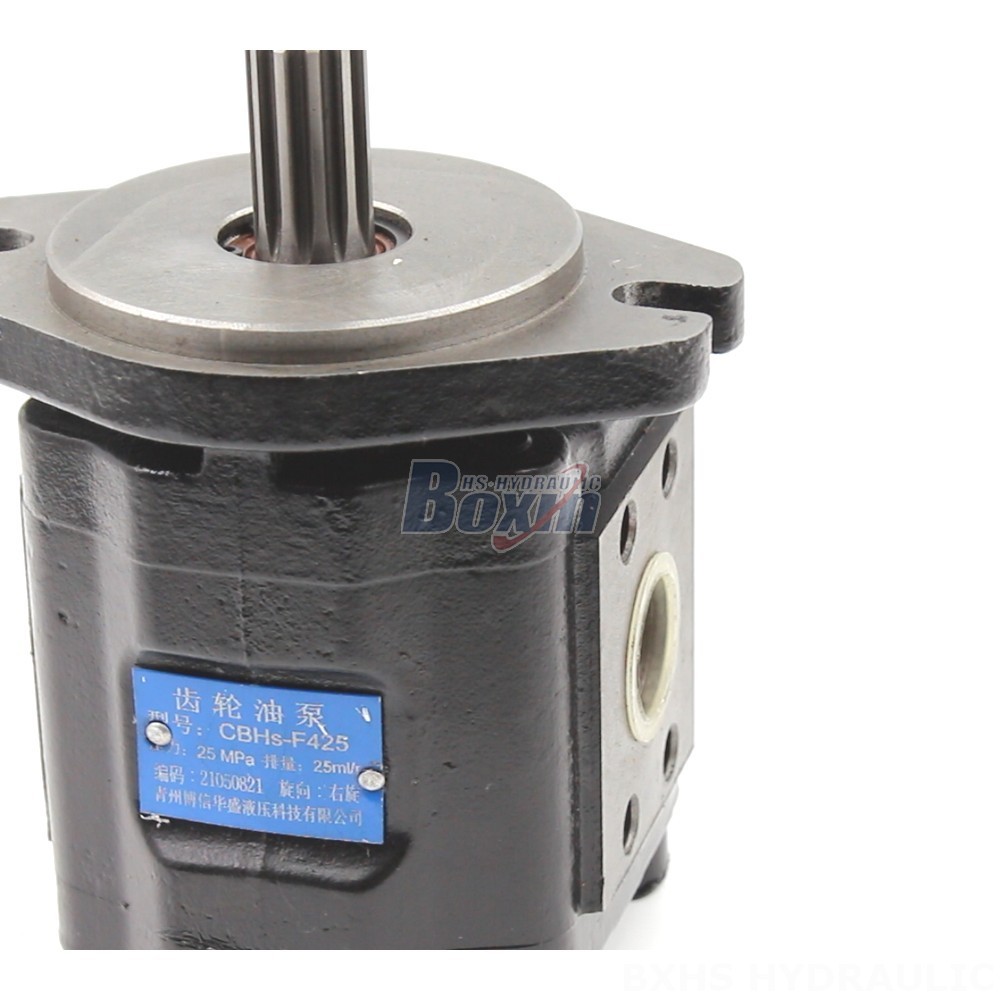

This Reliable 40 cc/rev Hydraulic Gear Pump is manufactured directly from our factory and can be customized to meet your specific needs. It offers high pressure, heavy duty performance and is ideal for a wide range of applications in construction, material handling, agriculture and industrial vehicles.
| CBHS-F4 シリーズ 油圧ギア・ポンプ パラメーター | |
|---|---|
| 変位 | 40 cc/回転, 25 cc/回転, 20 cc/回転 |
| 定格圧力 | 20 MPa (2900 psi), 25 MPa (3625 psi) |
| 最大圧力 | 25 MPa (3625 psi) |
| 定格回転速度 | 2000 r/min |
| 最大回転速度 | 2500 r/min |
| 回転方向 | 左 (逆時針), 右 (順時針) |
| 材質 | 鋳鉄, 鋁鑄鐵, 鋁 |
| 構造 | 斜盤式 |
| フランジモデル | A-橢圓形凸緣, B-方形凸緣, ISO-4 安裝孔, UNI-3 安裝孔, SAEフランジ |
| 軸タイプ | H：矩形花鍵, X：漸開線花鍵, P：プレーンキー |
This Reliable 40 cc/rev Hydraulic Gear Pump is a high-performance, durable and reliable solution for various applications. It is available in different displacement options, including 63 cc/rev, 80 cc/rev, 40 cc/rev, 45 cc/rev and 32 cc/rev, offering flexibility for various equipment needs. The pump operates at high pressure up to 25 MPa (3625 psi) and features different flange and shaft type options for optimal compatibility. This pump is designed for use in construction and earth moving equipment, agricultural machinery, and industrial vehicles like telehandlers, forklifts, mini-excavators, skid steer loaders, compact wheel loaders, wheel loaders, backhoe loaders, tractors, harvesters, and balers.
