生産と納品
15~30日の生産リードタイム

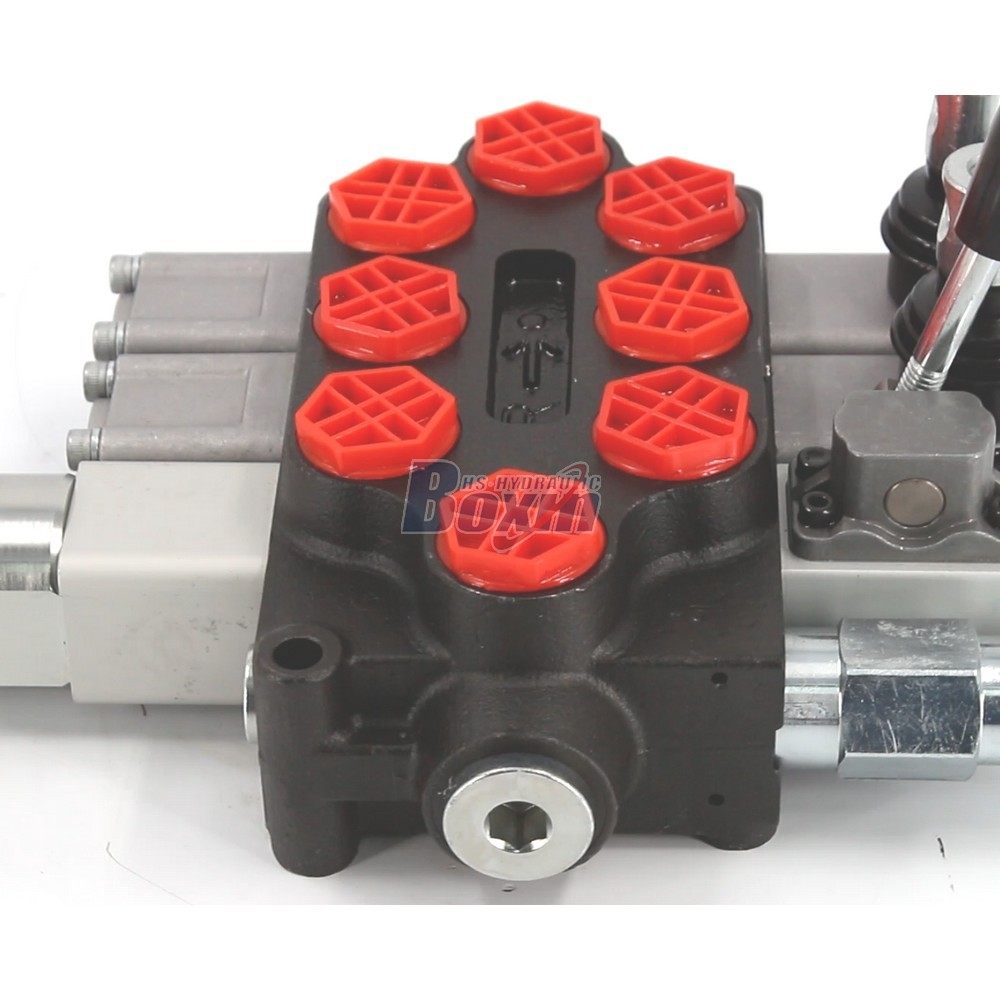

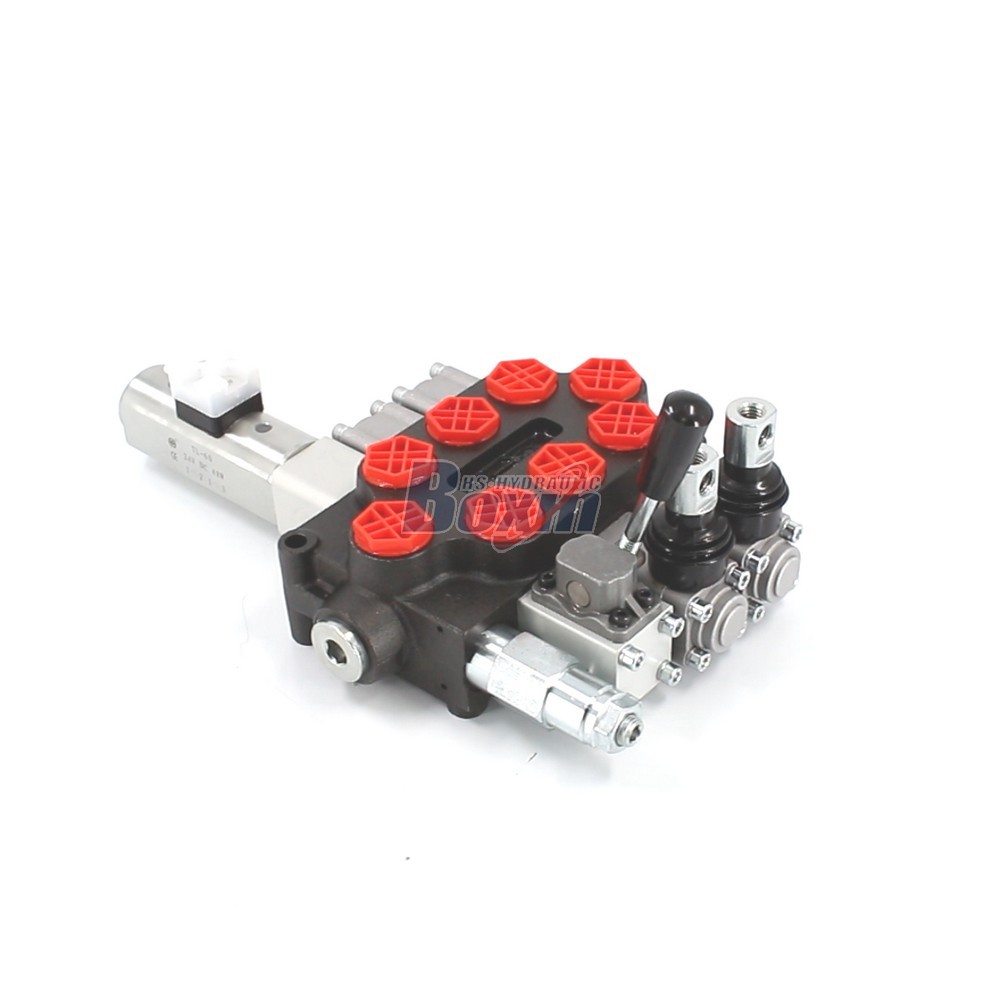

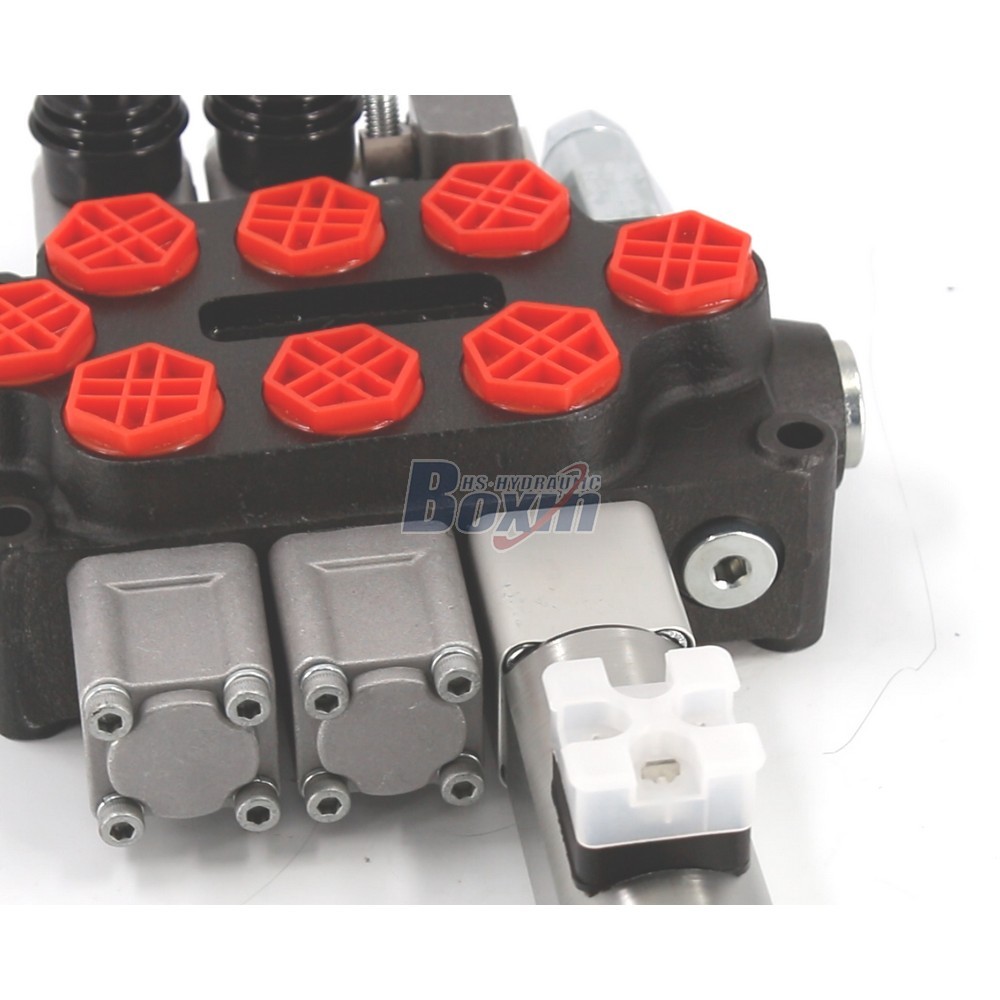

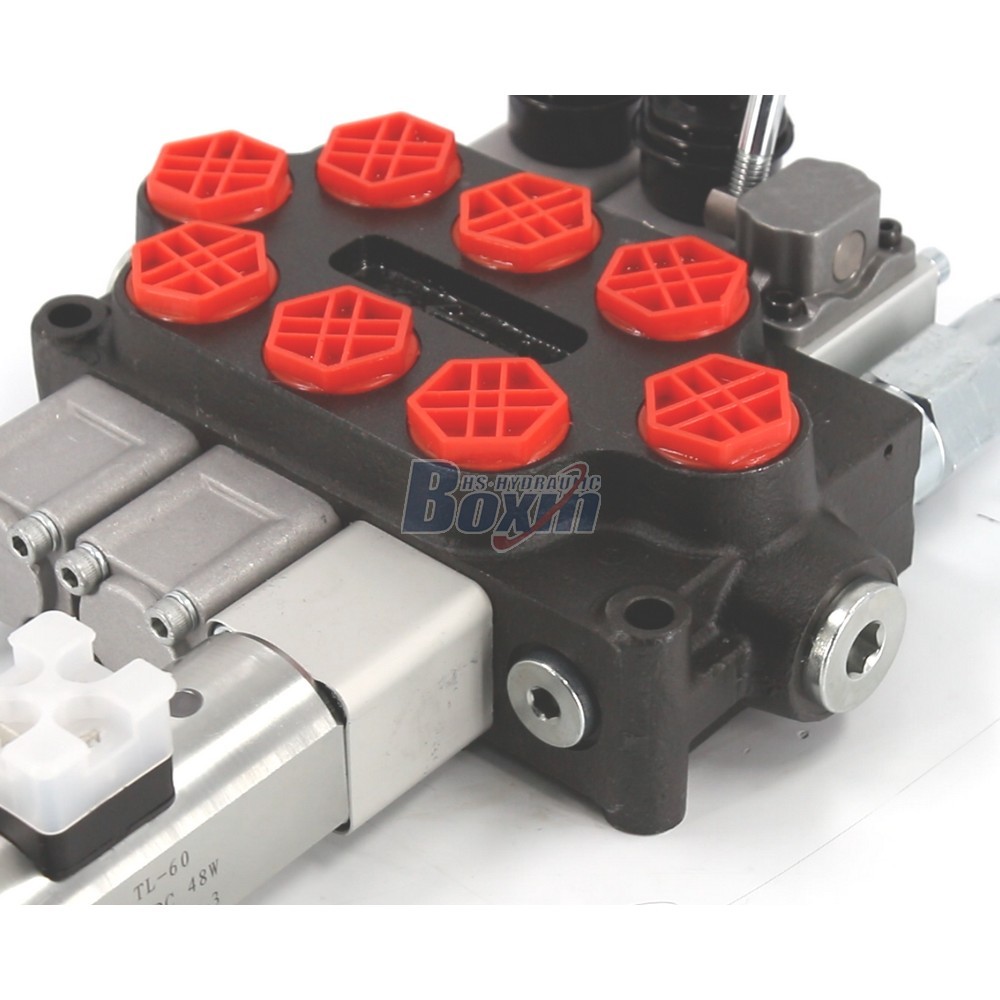

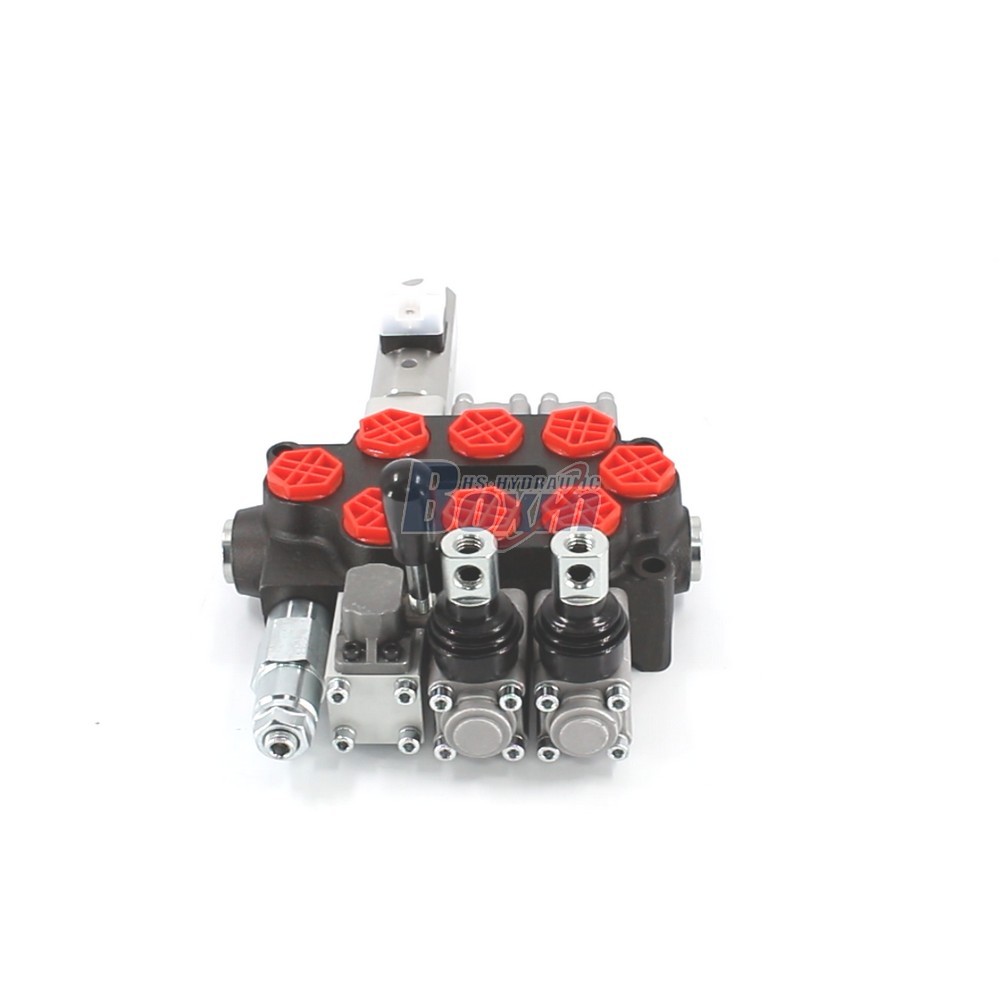

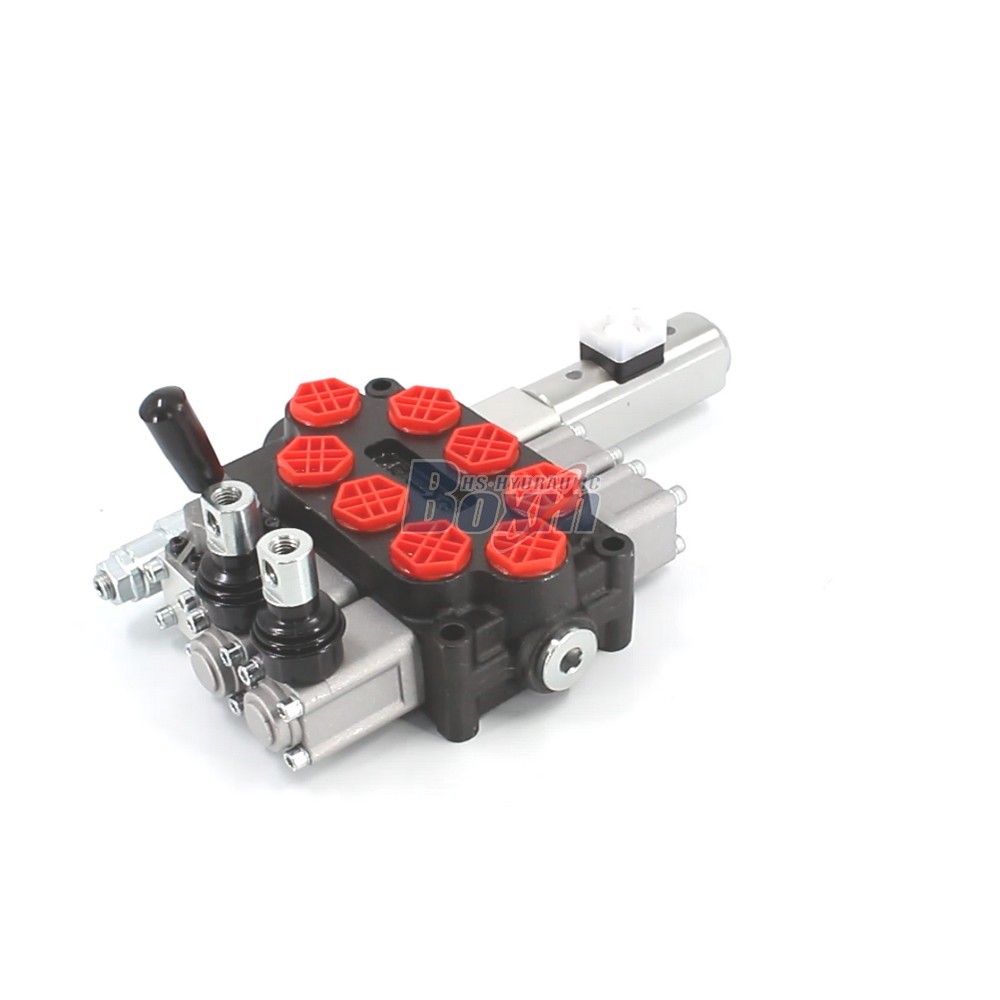

The Q45-DT-2OT is a versatile 3-spool monoblock directional control valve featuring both manual and push-pull electromagnet control. With a rated flow of 45 L/min and a maximum pressure of 315 bar, it is designed for precision and reliability in demanding mobile applications.
| Q45シリーズ モノブロック方向制御弁 パラメーター | |
|---|---|
| 制御方法 | 手動, 空圧, 電空, 電気油圧, ソレノイド, ジョイスティック, ソレノイドおよび手動, 手動およびプッシュプル形電磁石, プッシュプル形電磁石 |
| スプール | 1スプール, 2スプール, 3スプール, 4スプール, 5スプール, 6スプール, 7スプール |
| 周囲温度範囲 | -20°C 至 +80°C (-4°F 至 +176°F) |
| 構造タイプ | モノブロック弁 |
| セクション | 1セクション, 2セクション, 3セクション, 4セクション, 5セクション, 6セクション, 7セクション |
| 作動粘度範囲 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 定格流量 | 毎分45リットル (11.8 US gpm) |
| 最大圧力 | 315 bar (4600 psi) |
| 吸入口 | G1/2 |
| 吐出口 | G1/2 |
| ポートサイズ | G1/2 |
As a leading manufacturer of high-performance hydraulic solutions, we offer the Q45-DT-2OT 3 Spool Monoblock Directional Valve for global markets. This valve integrates manual and push-pull electromagnet control methods, ensuring flexible operation for material handling, construction, and agricultural machinery. It handles a rated flow of 45 L/min (11.8 US gpm) and pressures up to 315 bar (4600 psi), featuring standard G1/2 ports. We provide comprehensive OEM, ODM, and customized manufacturing services to meet specific technical requirements. Our factory provides direct wholesale pricing and high-volume supply capabilities. We are actively seeking long-term partnerships with distributors, wholesalers, agents, and traders worldwide. Whether you need reliable components for tractors, mini-excavators, or forklifts, our Q45 series offers robust quality and versatile functionality for industrial vehicle manufacturers and aftermarket suppliers.
