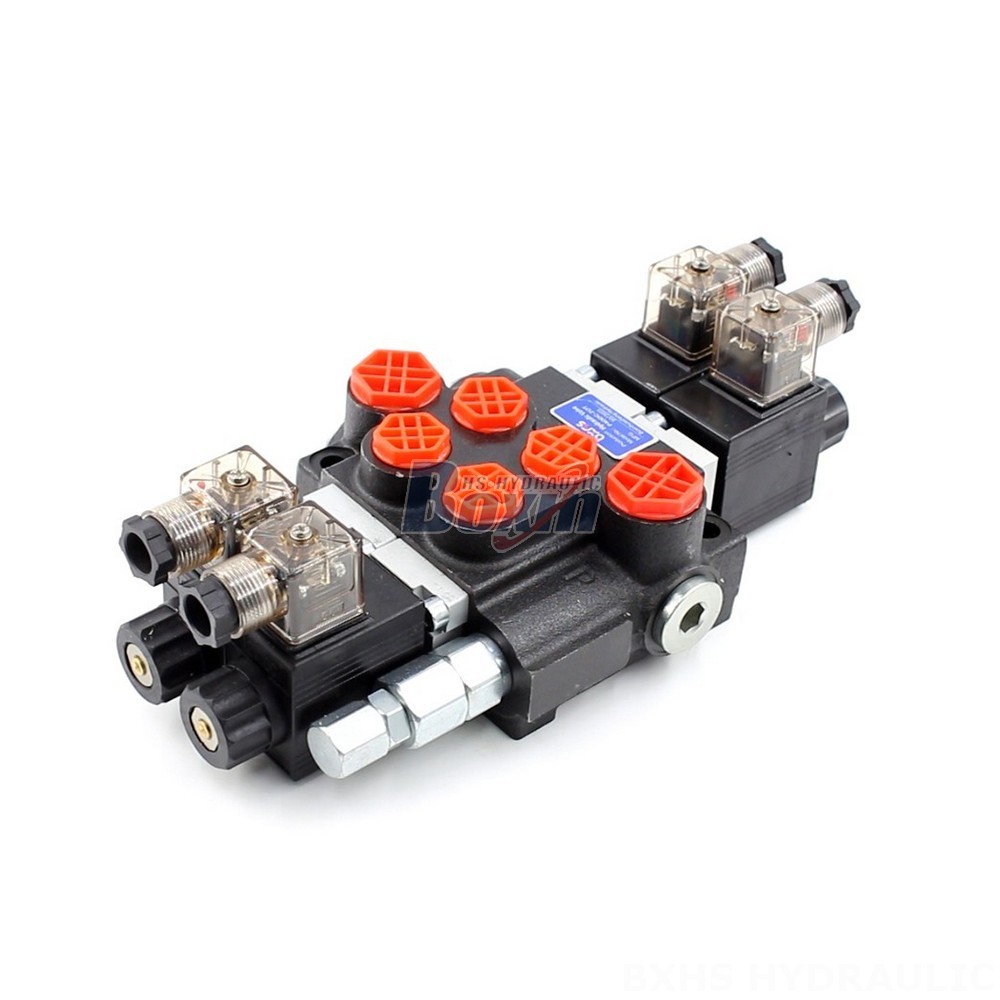

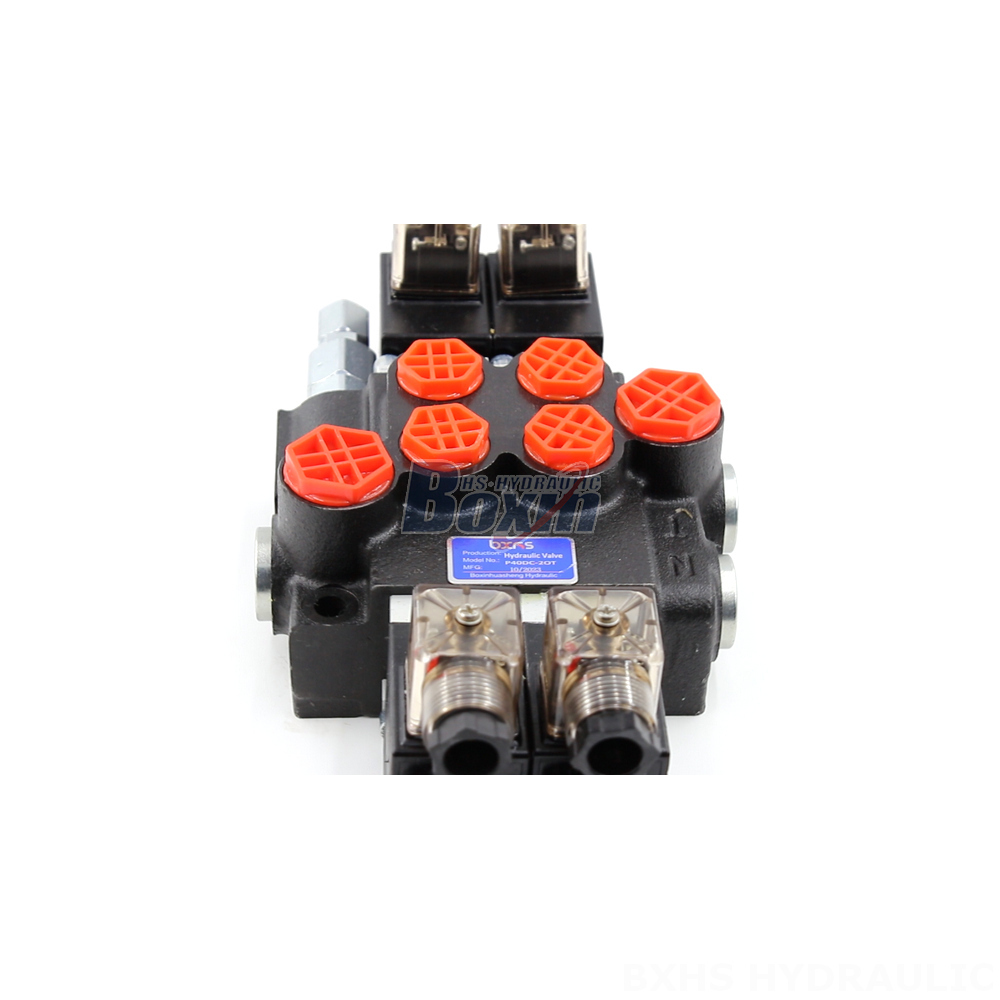

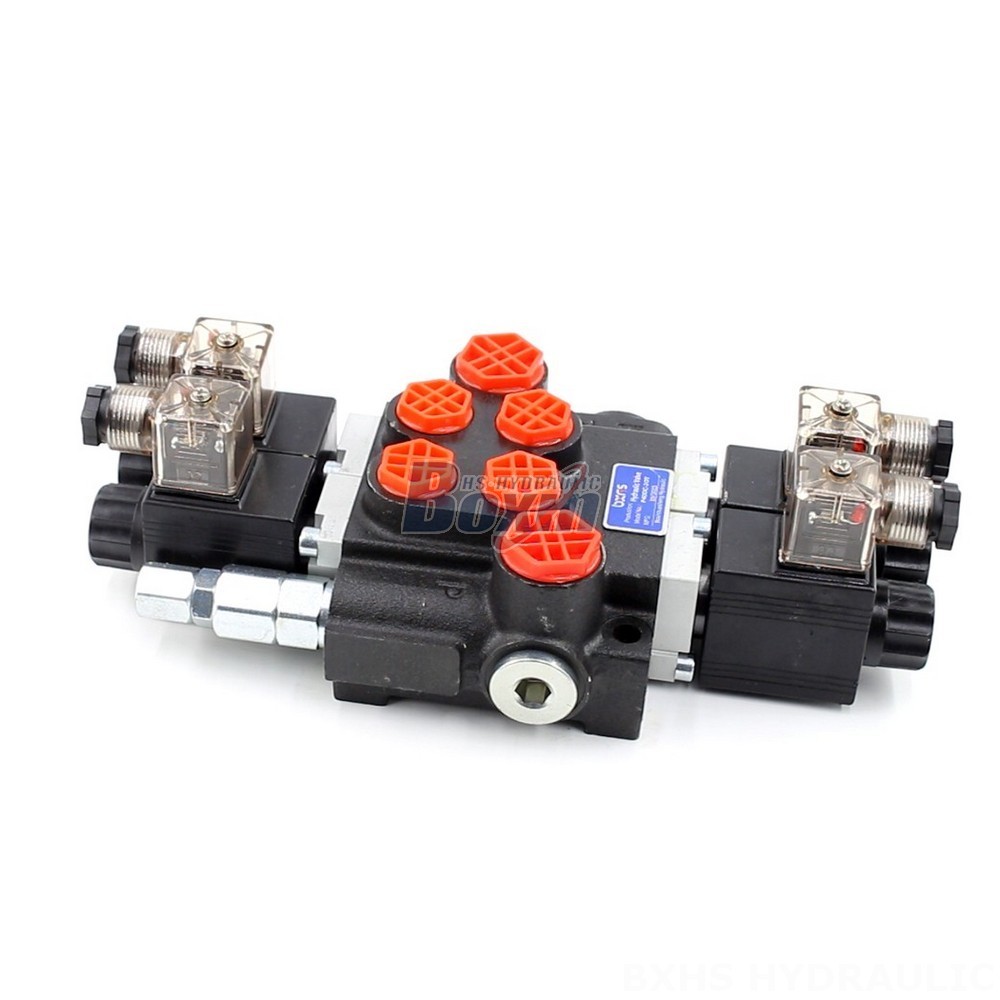

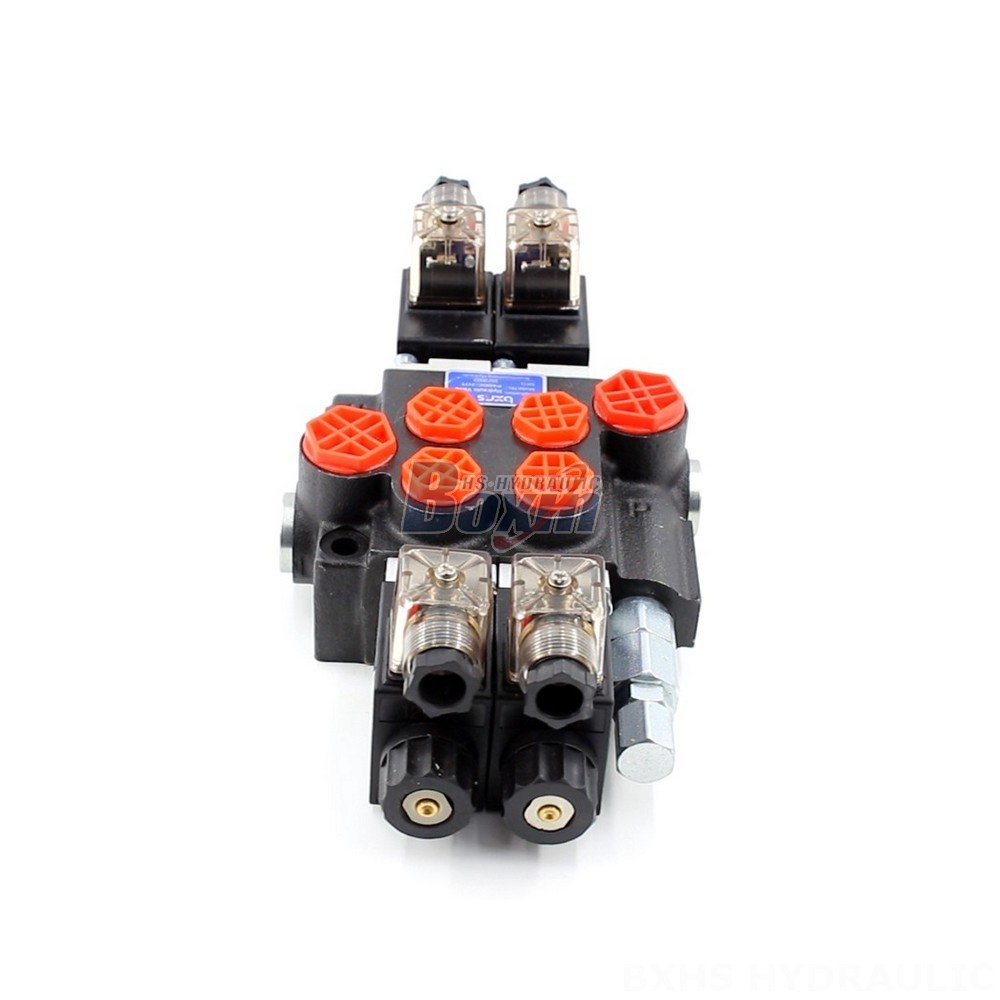

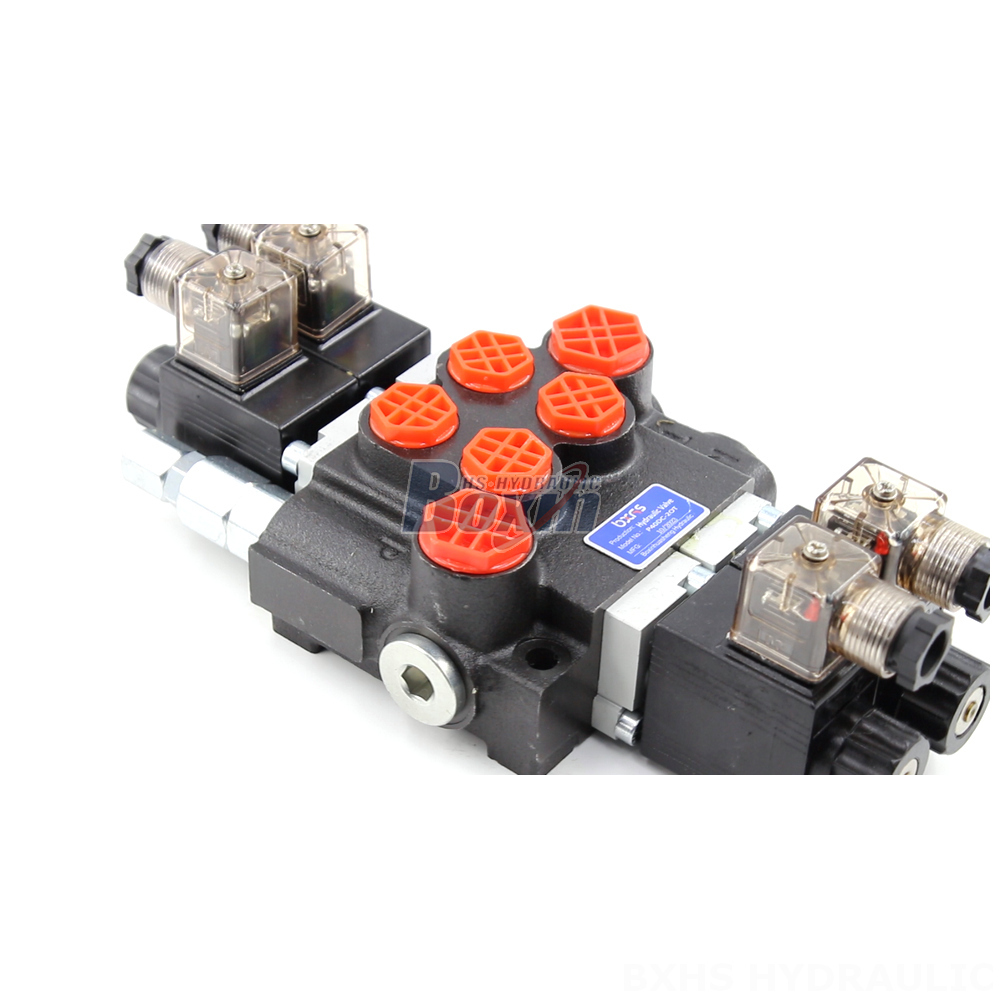

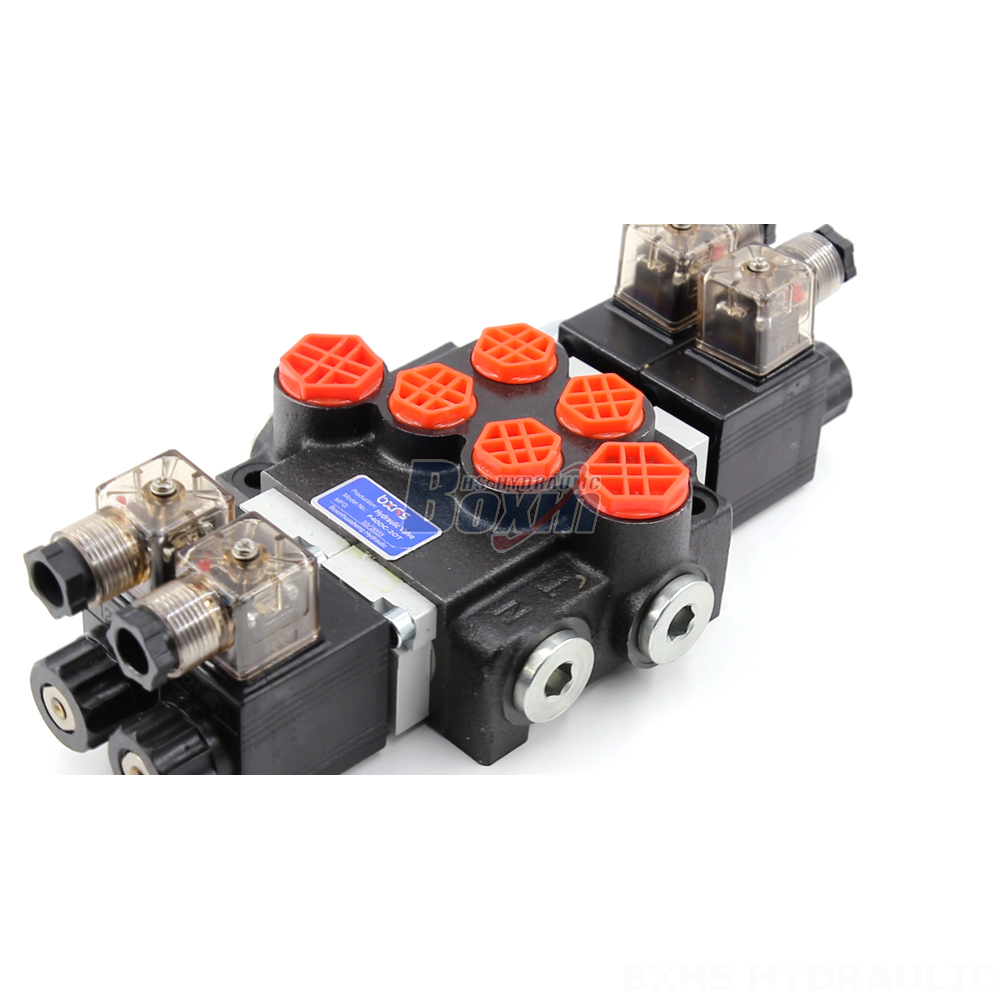

Private Label P40 Solenoid 2 Spool Monoblock Directional Valves

制御方法:ソレノイド

スプール:2スプール

定格流量:毎分40リットル (10.5 US gpm)

最大圧力:250 bar (3600 psi)

吸入口:G1/2

吐出口:G1/2

ポートサイズ:G3/8

ベンダー:BXHS

製品タイプ:モノブロック方向制御弁

製品シリーズ:P40シリーズ モノブロック方向制御弁

梱包サイズ:30*18*12

総重量:6.50 kg

在庫状況: 在庫あり

1086 この製品を探している人もいます

Private Label P40 Solenoid 2 Spool Monoblock Directional Valves

Private Label P40 Solenoid 2 Spool Monoblock Directional Valves

Private Label P40 Solenoid 2 Spool Monoblock Directional Valves drawing image

The P40 Series Solenoid 2 Spool Monoblock Directional Valve is a high-performance hydraulic valve designed for a wide range of applications in material handling, construction, agriculture, and industrial vehicles. It features a compact design, robust construction, and reliable operation with a flow rate of 40 L/min and a maximum pressure rating of 250 bar.

P40シリーズ モノブロック方向制御弁 パラメーター
制御方法 手動, 空圧, 電空, 電気油圧, ソレノイド, 油圧, 油圧および手動, ケーブル, ジョイスティック, ソレノイド・ジョイスティック, 手動・ジョイスティック, ソレノイドおよびケーブル式
スプール 1スプール, 2スプール, 3スプール, 4スプール, 5スプール, 6スプール, 7スプール
周囲温度範囲 -40°C to +80°C (-40°F to +176°F)
構造タイプ モノブロック弁
セクション 1セクション, 2セクション, 3セクション, 4セクション, 5セクション, 6セクション, 7セクション
作動粘度範囲 15 - 75 mm²/s (15 cSt to 75 cSt)
定格流量 毎分40リットル (10.5 US gpm)
最大圧力 250 bar (3600 psi)
吸入口 G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
吐出口 G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
ポートサイズ G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT

This P40 Series Solenoid 2 Spool Monoblock Directional Valve is a powerful hydraulic valve that offers precise control and efficient operation. With its compact monoblock structure, it's designed for easy installation and integration into various hydraulic systems. The valve features a 2 spool design with a rated flow of 40 L/min and a maximum pressure rating of 250 bar, making it suitable for demanding applications in material handling, construction, agriculture, and industrial vehicles. The valve's solenoid control provides reliable and responsive operation. It is also designed for a wide operating viscosity range and ambient temperature range, ensuring performance in various environments. This versatile valve is compatible with a wide range of applications, including telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, excavators, skid steer loaders, wheel loaders, backhoe loaders, and dumpers. We offer this valve for manufacturing, OEM, ODM, private label, and wholesale. We are also actively seeking distributors, wholesalers, agents, and traders to expand our global reach.
