The SDS180 Sectional Valve is a precision hydraulic control valve designed for use in various applications including material handling, construction, earth moving, agriculture, and industrial vehicles. It offers precise control with a manual operation, a rated flow of 160 L/min, and a maximum pressure of 350 bar.
| SDS180シリーズ セクショナル方向弁 パラメーター | |
|---|---|
| 制御方法 | 手動, 油圧 |
| スプール | 1スプール, 2スプール, 3スプール, 4スプール, 5スプール, 6スプール, 7スプール |
| 周囲温度範囲 | -40°C to +80°C (-40°F to +176°F) |
| 構造タイプ | ブロック弁 |
| セクション | 1セクション, 2セクション, 3セクション, 4セクション, 5セクション, 6セクション, 7セクション, 8セクション, 9セクション, 10セクション |
| 作動粘度範囲 | 12 - 400 mm²/s (12 cSt to 400 cSt) |
| 定格流量 | 毎分160リットル (42.2 US gpm) |
| 最大圧力 | 315 bar (4600 psi), 350 bar (5100 psi) |
| 吸入口 | G3/4, G1, SAE 12 |
| 吐出口 | G1, SAE 16 |
| ポートサイズ | G3/4, G1, SAE 12 |

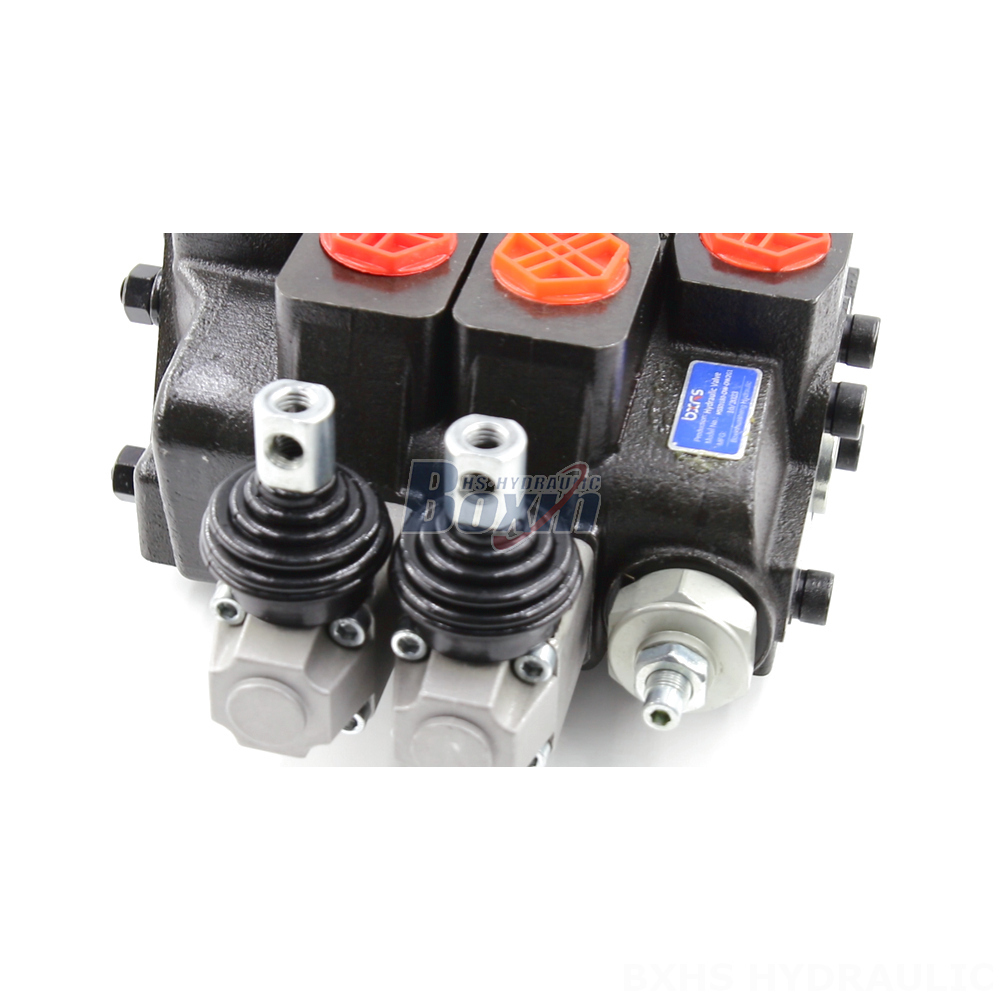

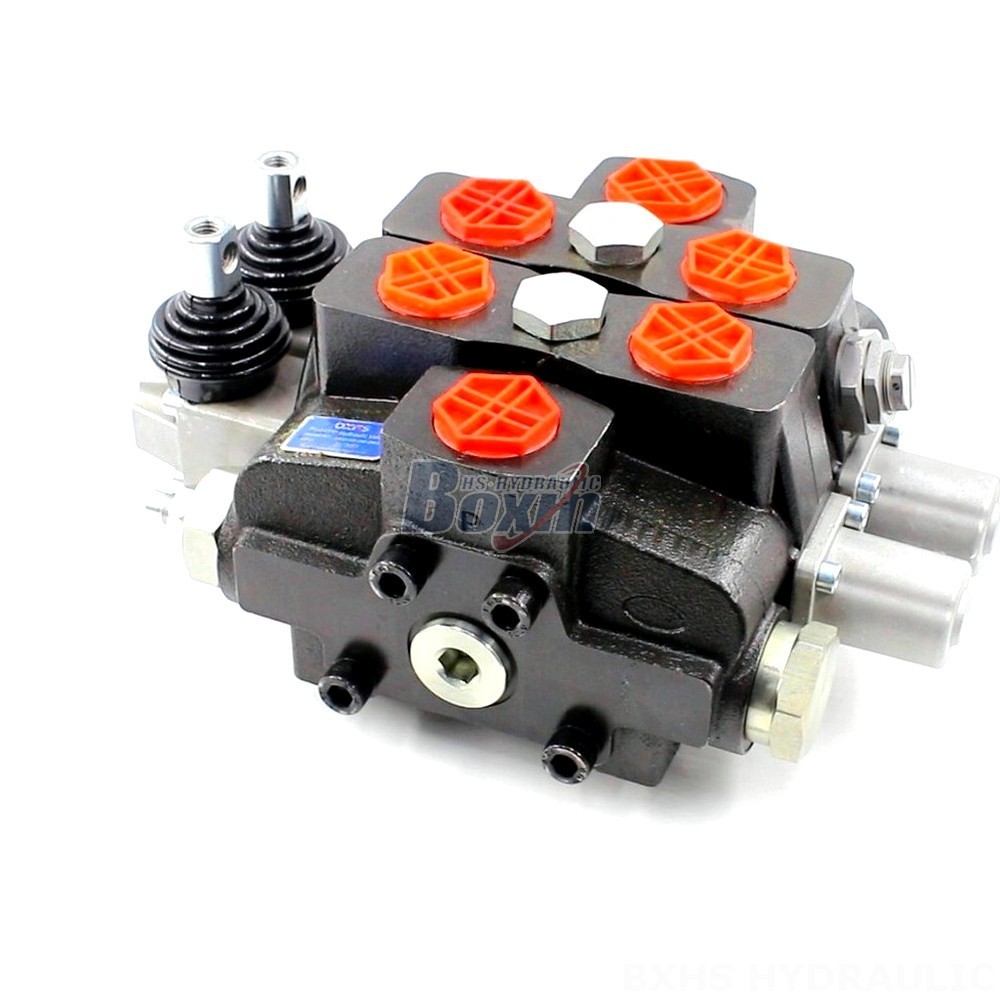

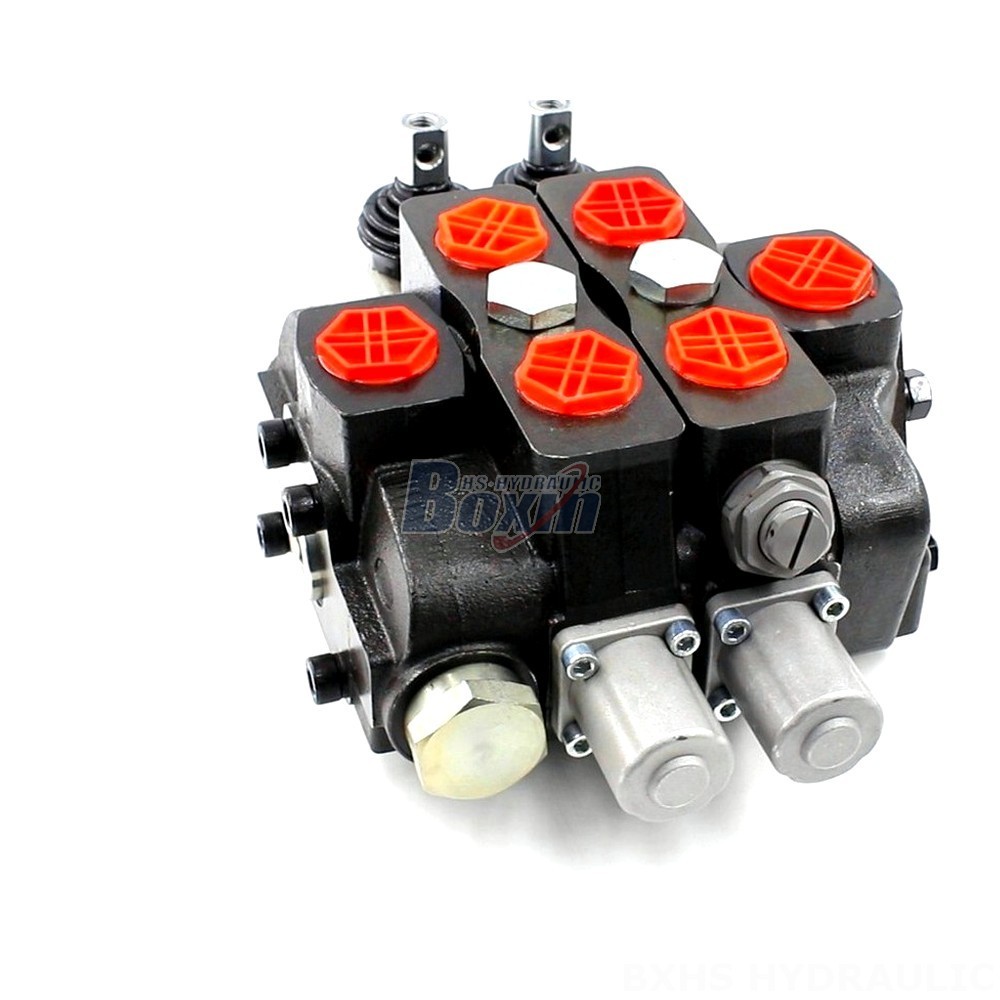

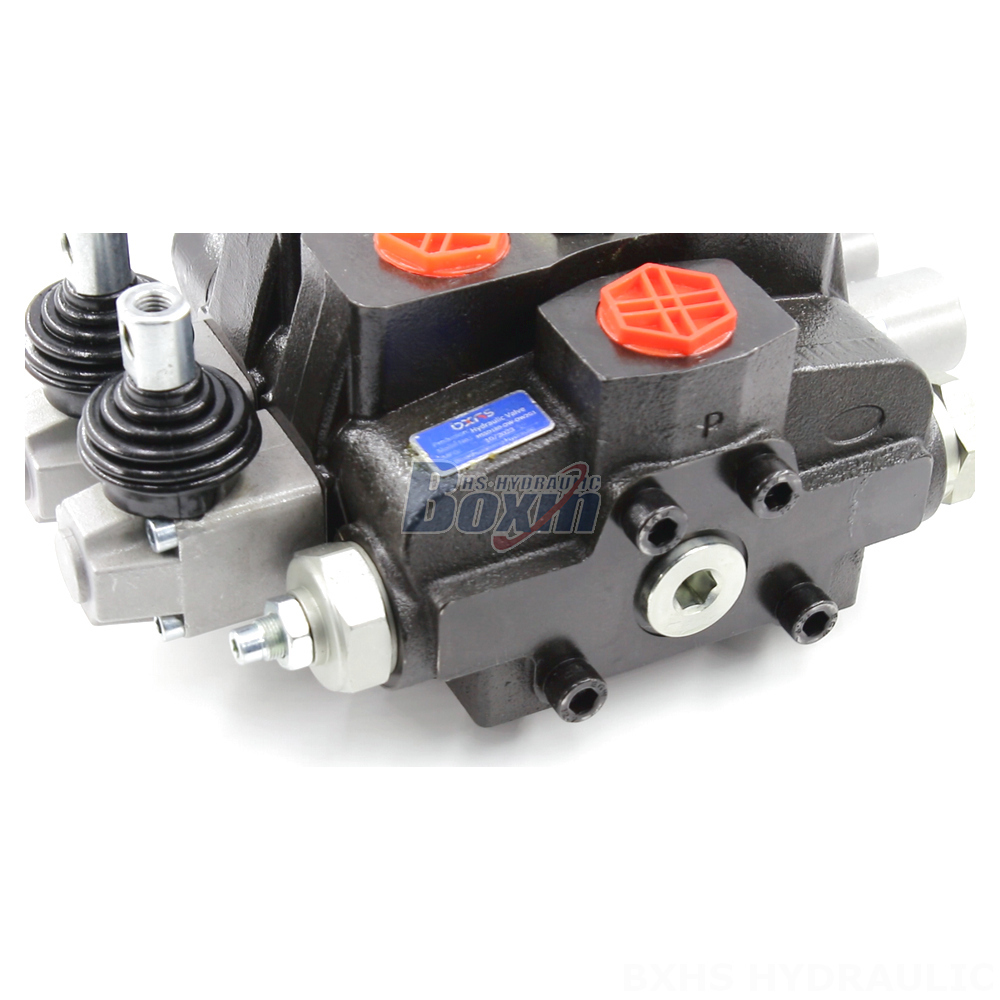

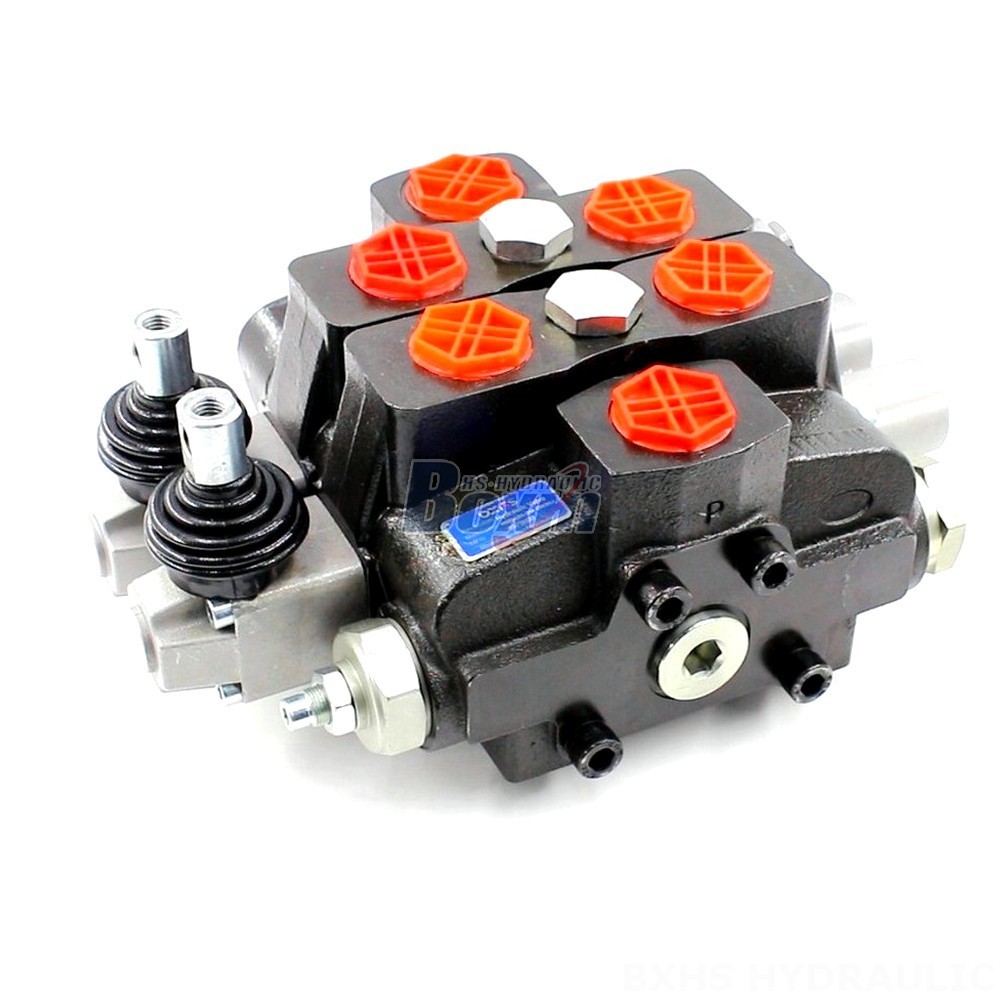

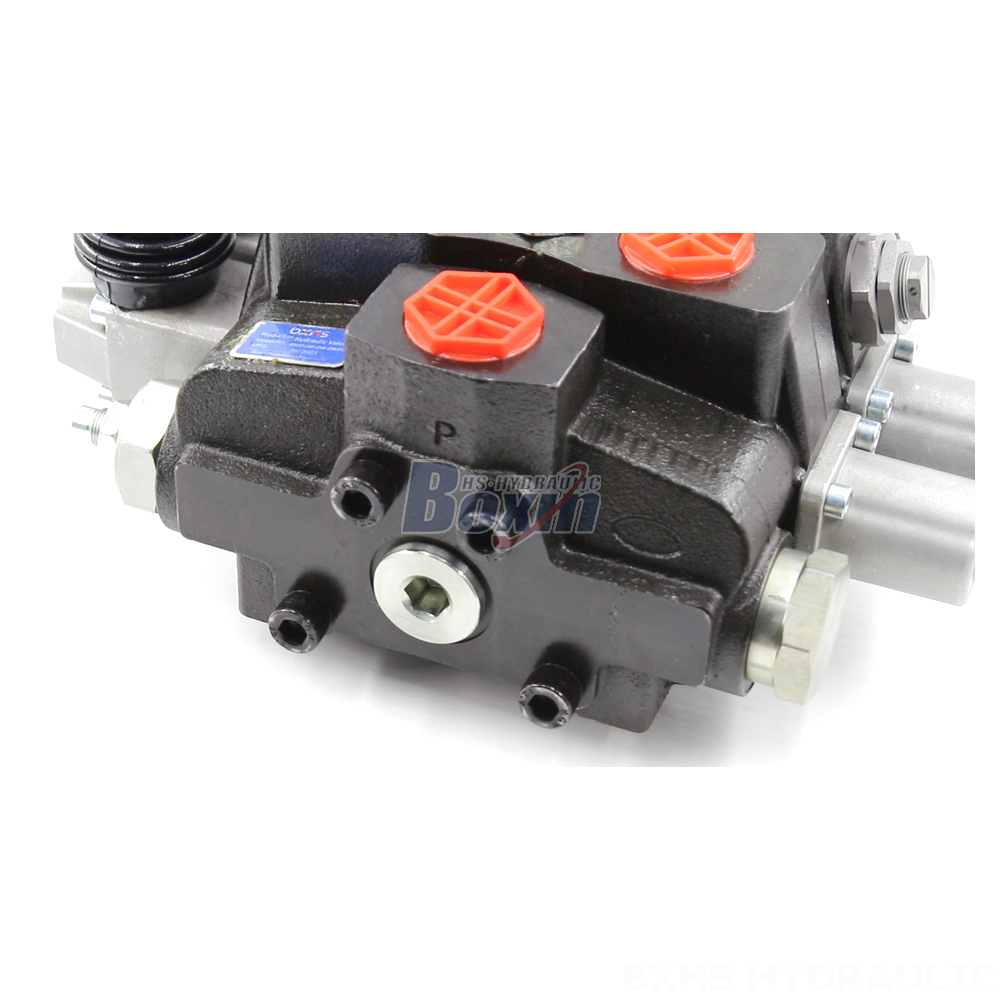

**SDS180 Sectional Valve**
The SDS180 Sectional Valve is a 2-section, manually operated hydraulic valve designed to provide precise control of hydraulic systems. It features a rated flow of 160 L/min, a maximum pressure of 350 bar, and an operating viscosity range of 12 - 400 mm²/s. The valve is constructed using high-quality materials and is engineered to meet the demands of demanding applications.
**Key Features:**
* Manual control for precise operation
* 2-section design for versatility
* Rated flow of 160 L/min
* Maximum pressure of 350 bar
* Operating viscosity range of 12 - 400 mm²/s
* Durable construction for long-lasting performance
**Applications:**
The SDS180 Sectional Valve is suitable for a wide range of applications, including:
* Material Handling
* Construction and Earth Moving
* Agriculture
* Industrial Vehicles
**Applicable Models:**
The SDS180 Sectional Valve is commonly used in the following types of equipment:
* Telehandlers
* Forklifts
* All Terrain Cranes
* Stackers
* Aerial Platforms
* Motor Graders
* Midi-Excavators
* Mini-Excavators
* Skid Steer Loaders
* Compact Wheel Loaders
