Pneumatic Valve

制御方法:空圧

スプール:2スプール

定格流量:毎分40リットル (10.5 US gpm)

最大圧力:250 bar (3600 psi)

吸入口:G1/2

吐出口:G1/2

ポートサイズ:G3/8

ベンダー:BXHS

製品タイプ:モノブロック方向制御弁

製品シリーズ:P40シリーズ モノブロック方向制御弁

梱包サイズ:23*18*13

総重量:6.00 kg

在庫状況: 在庫あり

1242 この製品を探している人もいます

Pneumatic Valve

Pneumatic Valve

Pneumatic Valve drawing image

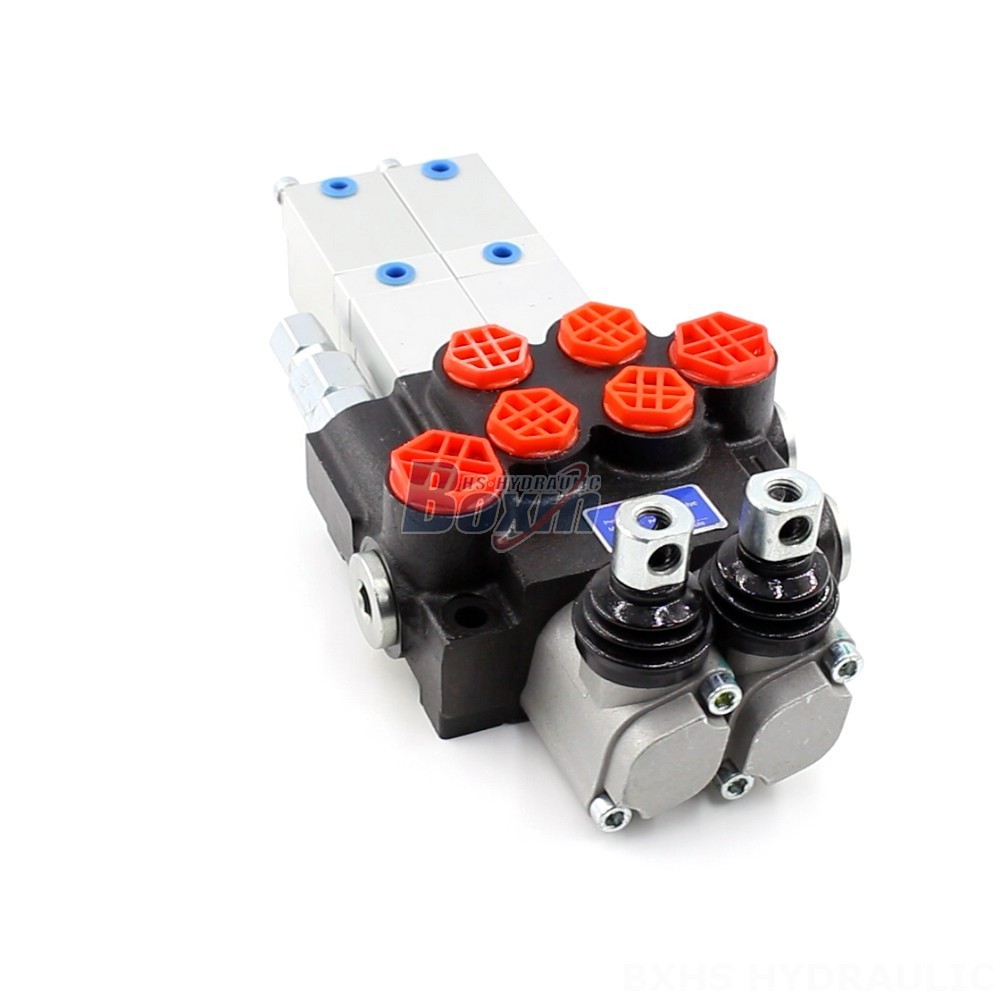

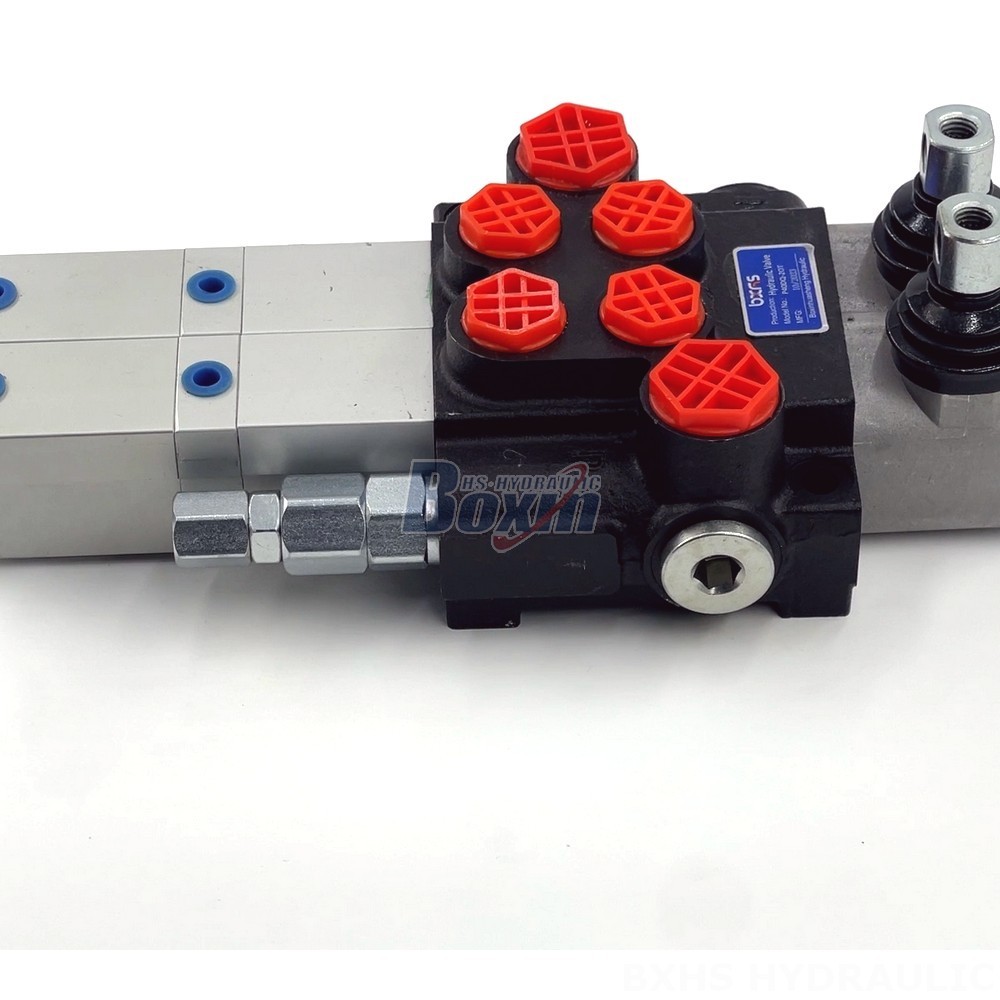

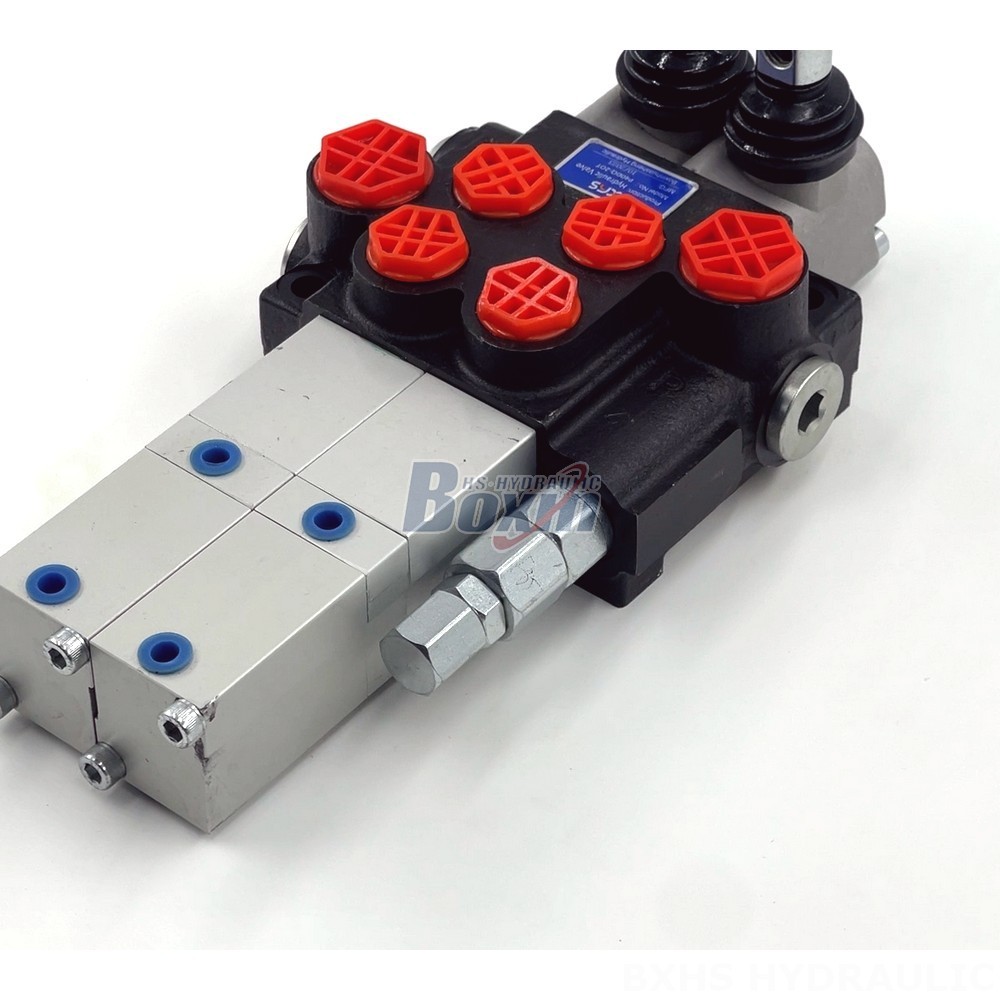

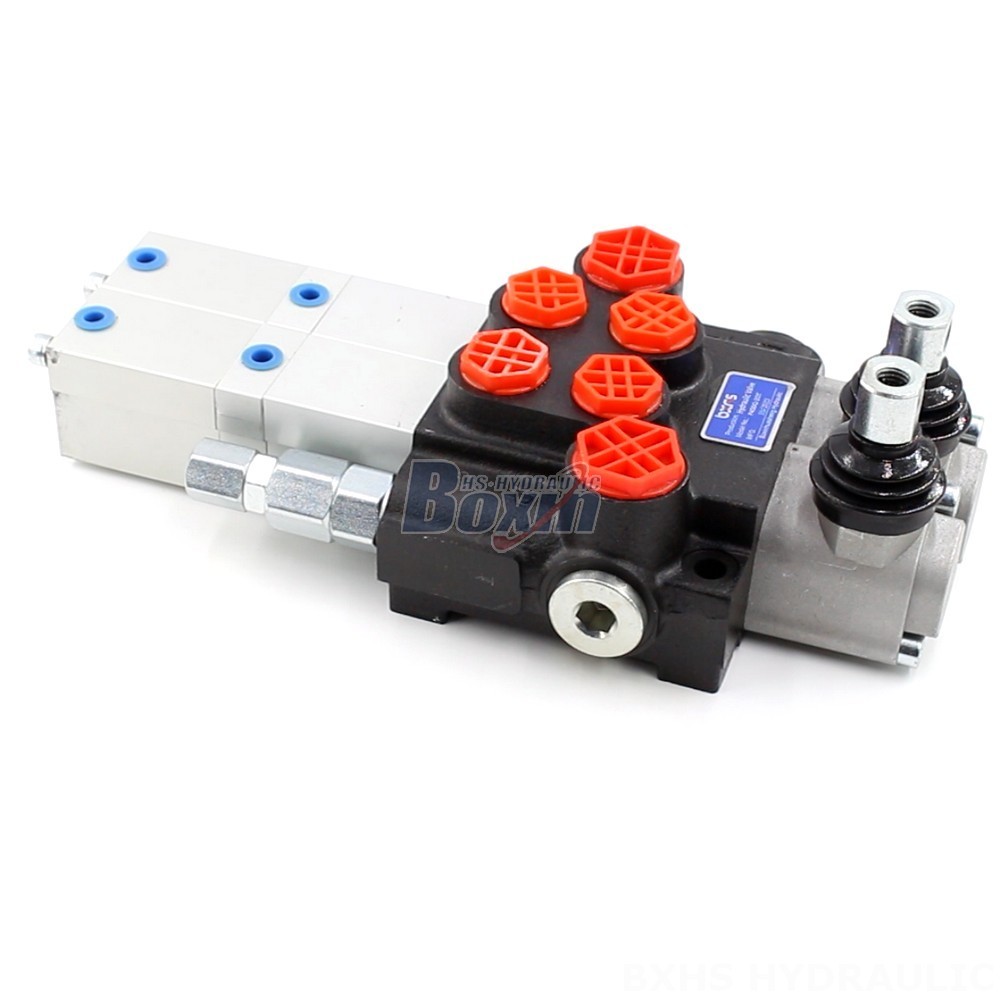

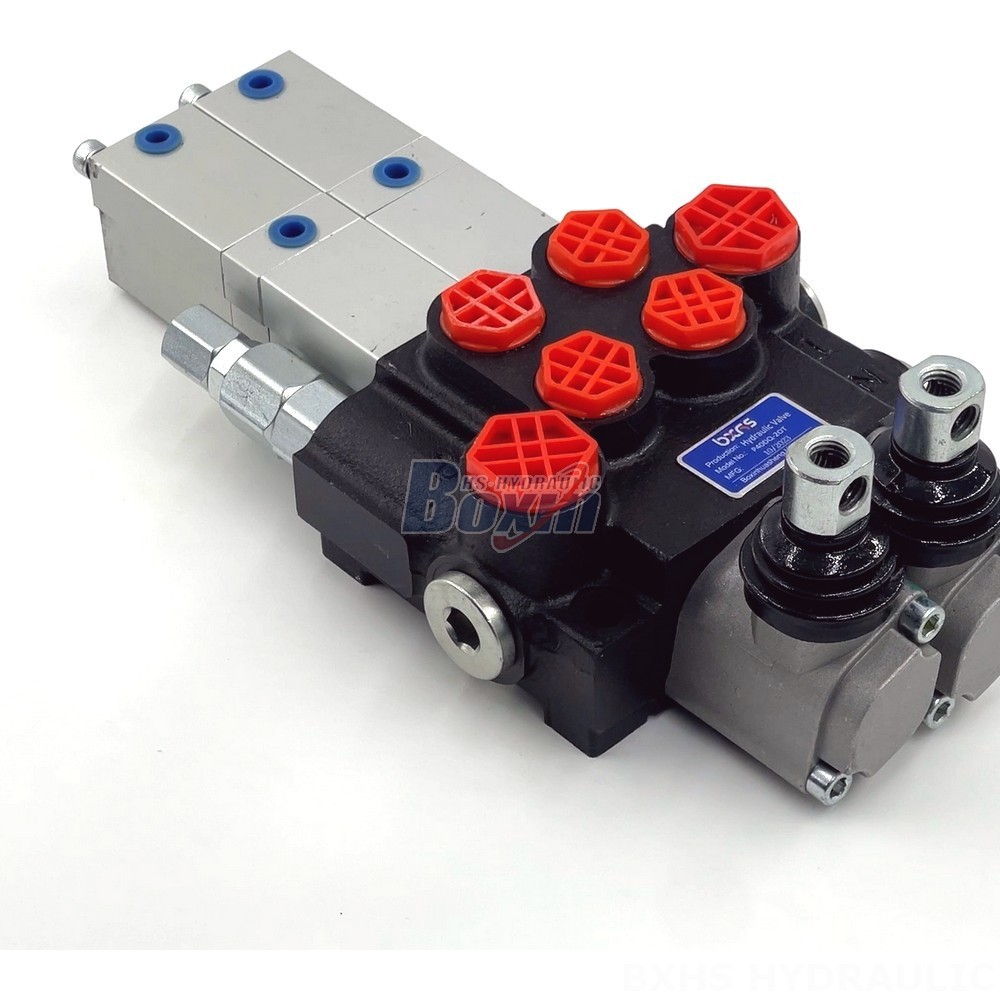

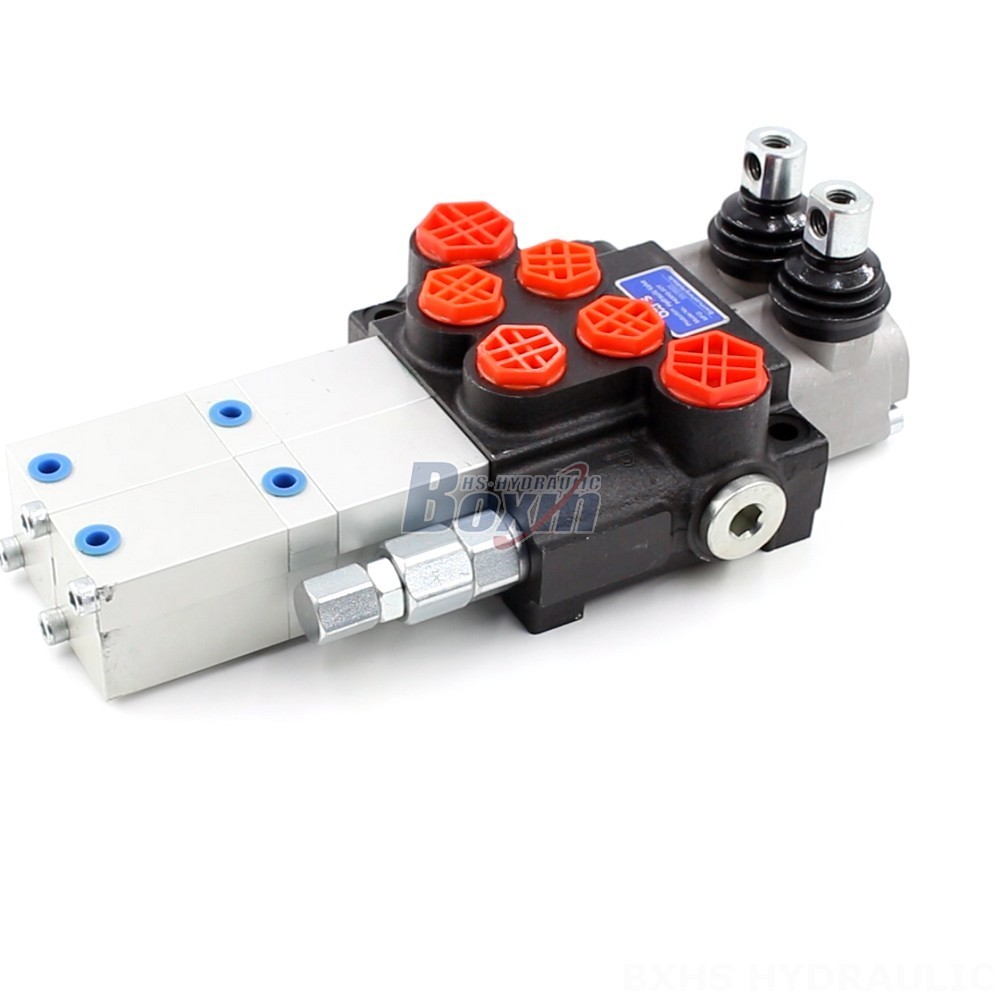

This P40 Series 6 Port Solenoid Diverter Selector Valve is a high-performance hydraulic valve designed for various applications in material handling, construction, and industrial vehicles. It features a monoblock structure, pneumatic control, and a rated flow of 40 L/min.

P40シリーズ モノブロック方向制御弁 パラメーター
制御方法 手動, 空圧, 電空, 電気油圧, ソレノイド, 油圧, 油圧および手動, ケーブル, ジョイスティック, ソレノイド・ジョイスティック, 手動・ジョイスティック, ソレノイドおよびケーブル式
スプール 1スプール, 2スプール, 3スプール, 4スプール, 5スプール, 6スプール, 7スプール
周囲温度範囲 -40°C to +80°C (-40°F to +176°F)
構造タイプ モノブロック弁
セクション 1セクション, 2セクション, 3セクション, 4セクション, 5セクション, 6セクション, 7セクション
作動粘度範囲 15 - 75 mm²/s (15 cSt to 75 cSt)
定格流量 毎分40リットル (10.5 US gpm)
最大圧力 250 bar (3600 psi)
吸入口 G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
吐出口 G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
ポートサイズ G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT

This Hydraulic 6 Port Solenoid Diverter Selector Valve is a robust and reliable valve designed for demanding applications in material handling, construction, and industrial vehicles. It features a 2-section monoblock structure for durability and efficiency. The valve is controlled pneumatically, allowing for precise and responsive operation. With a rated flow of 40 L/min and a maximum pressure of 250 bar, it provides ample flow and pressure capabilities for a wide range of applications. It is suitable for use in telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, excavators, skid steer loaders, and compact wheel loaders. The valve operates within a viscosity range of 15-75 mm²/s and can withstand temperatures from -40°C to +80°C. This valve is a versatile and reliable solution for controlling hydraulic circuits in a variety of applications.
