The SD11 Series Pneumatic Directional Control Valve is a high-performance valve designed for use in a wide range of industrial applications. With a rated flow of 70 L/min and a maximum pressure of 250 bar, this valve is capable of handling even the most demanding applications. The valve is constructed from high-quality materials and is built to last.
| SD11シリーズ モノブロック方向制御弁 パラメーター | |
|---|---|
| 制御方法 | 手動, 空圧, 電空, 電気油圧, ソレノイド, 油圧, 油圧および手動, ケーブル, ジョイスティック, 電磁, 空気圧および手動 |
| スプール | 1スプール, 2スプール, 3スプール, 4スプール, 5スプール |
| 周囲温度範囲 | -40°C to +60°C (-40°F to +140°F) |
| 構造タイプ | モノブロック弁 |
| セクション | 1セクション, 2セクション, 3セクション, 4セクション, 5セクション, 6セクション, 7セクション |
| 作動粘度範囲 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 定格流量 | 毎分70リットル (18.5 US gpm) |
| 最大圧力 | 305 bar (4400 psi), 315 bar (4600 psi) |
| 吸入口 | G3/4, SAE 12 |
| 吐出口 | G3/4, SAE 12 |
| ポートサイズ | G3/4, SAE 12 |

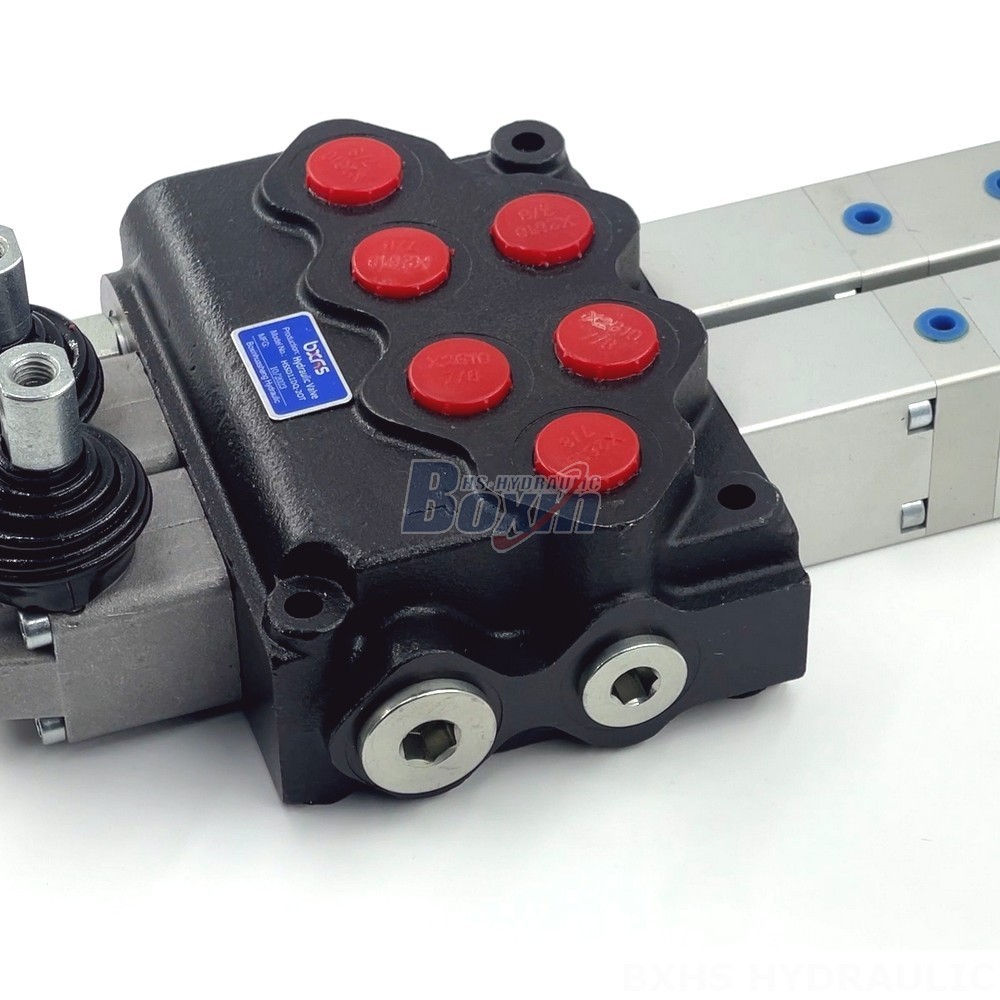

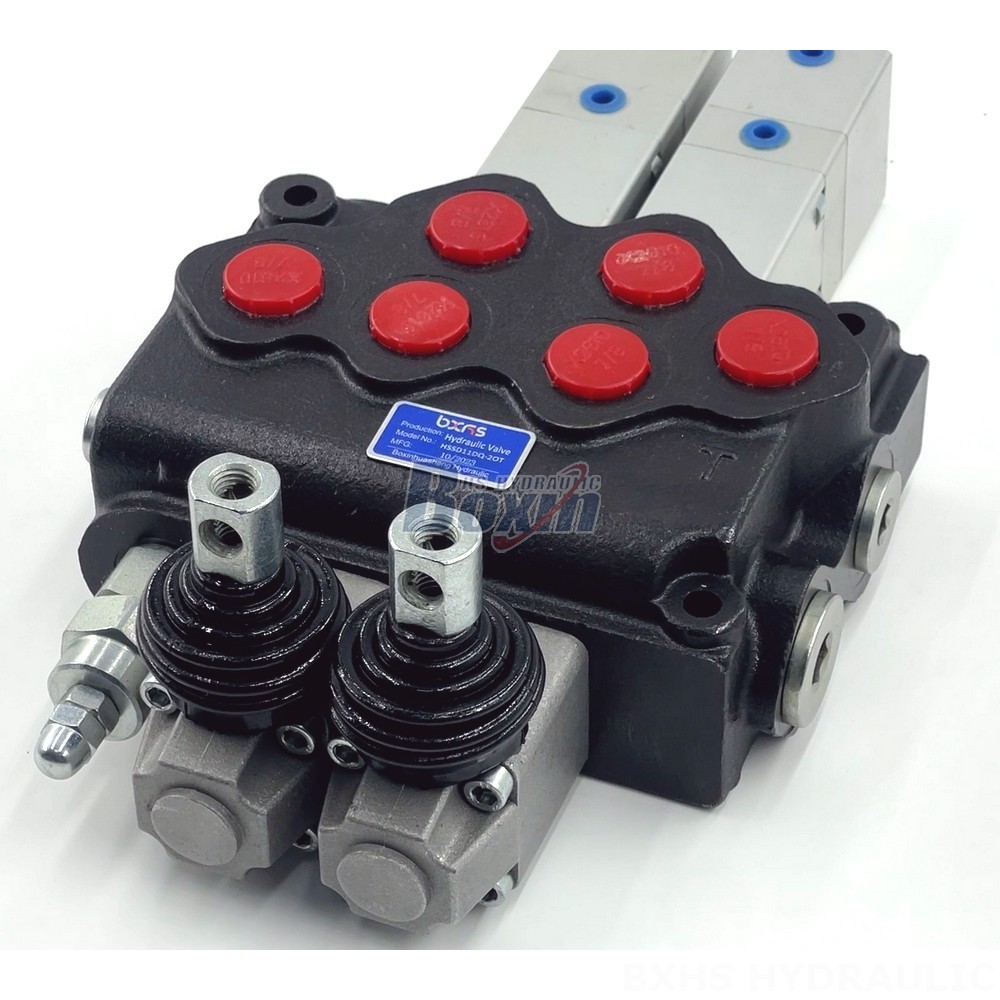

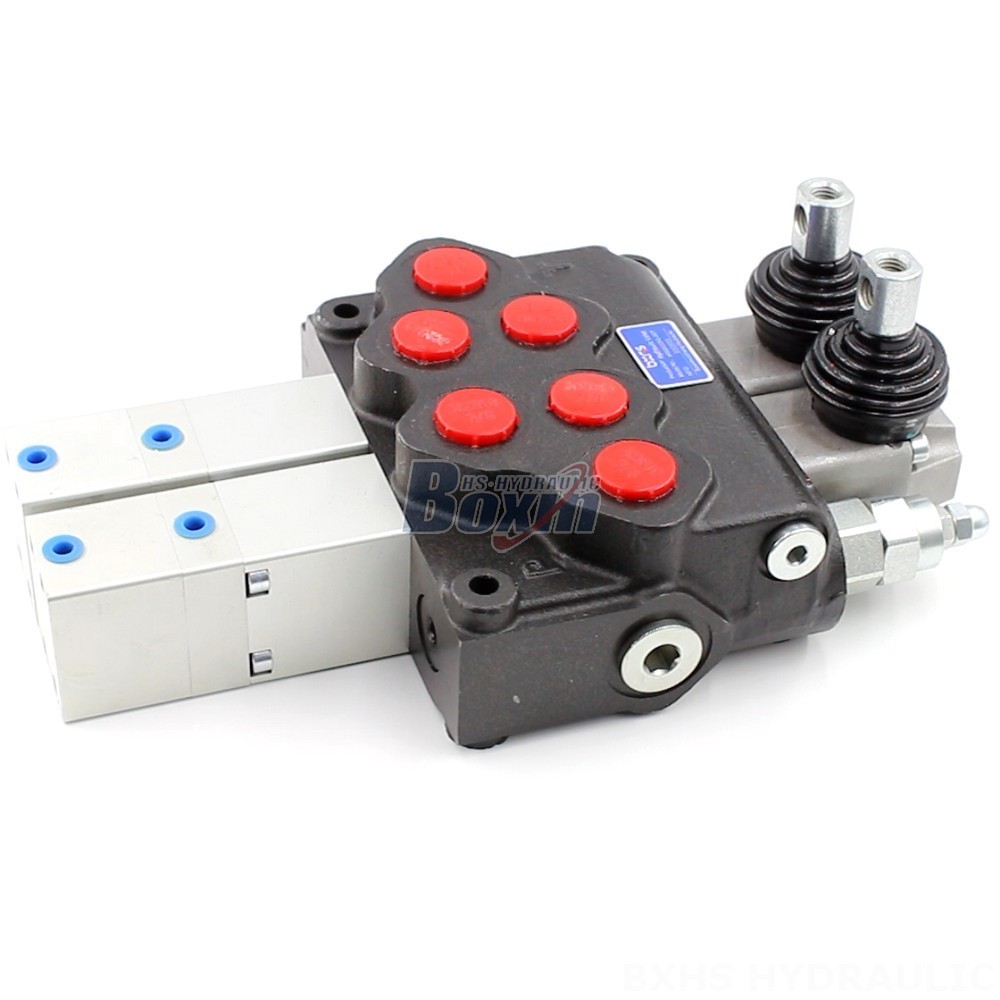

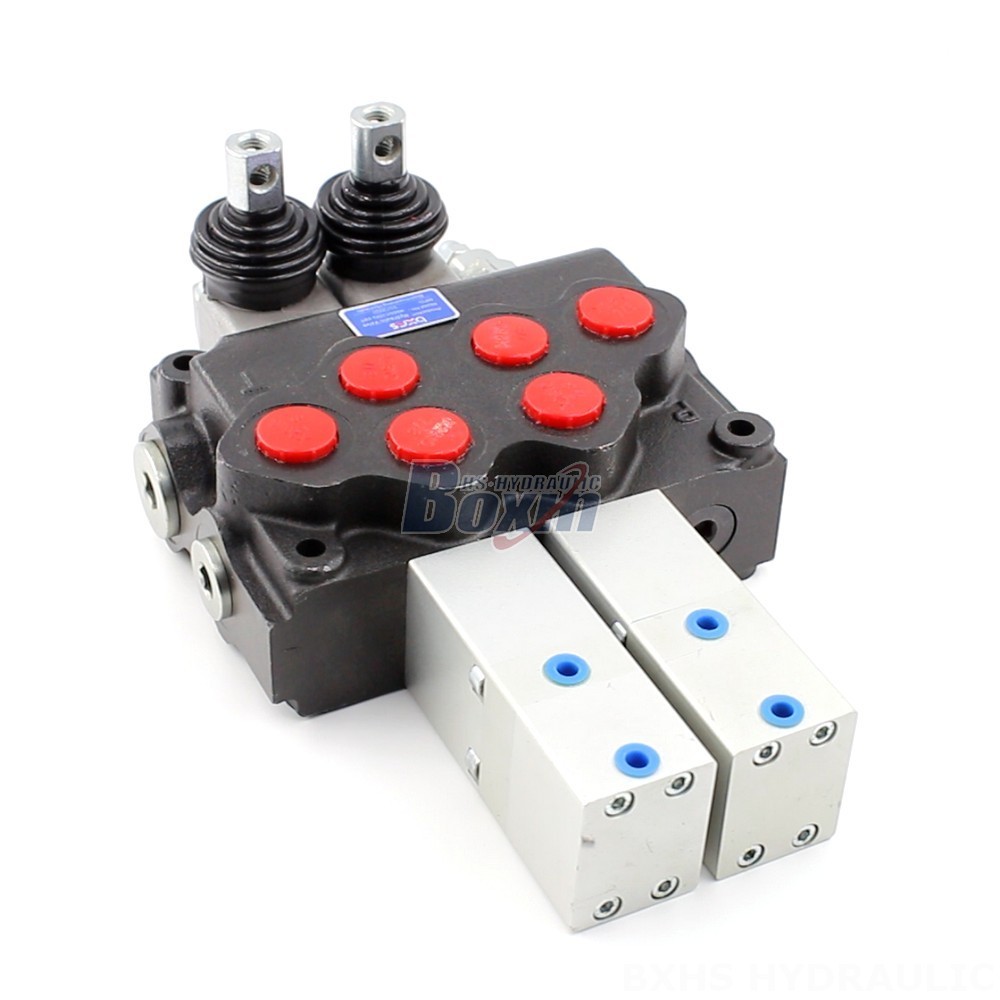

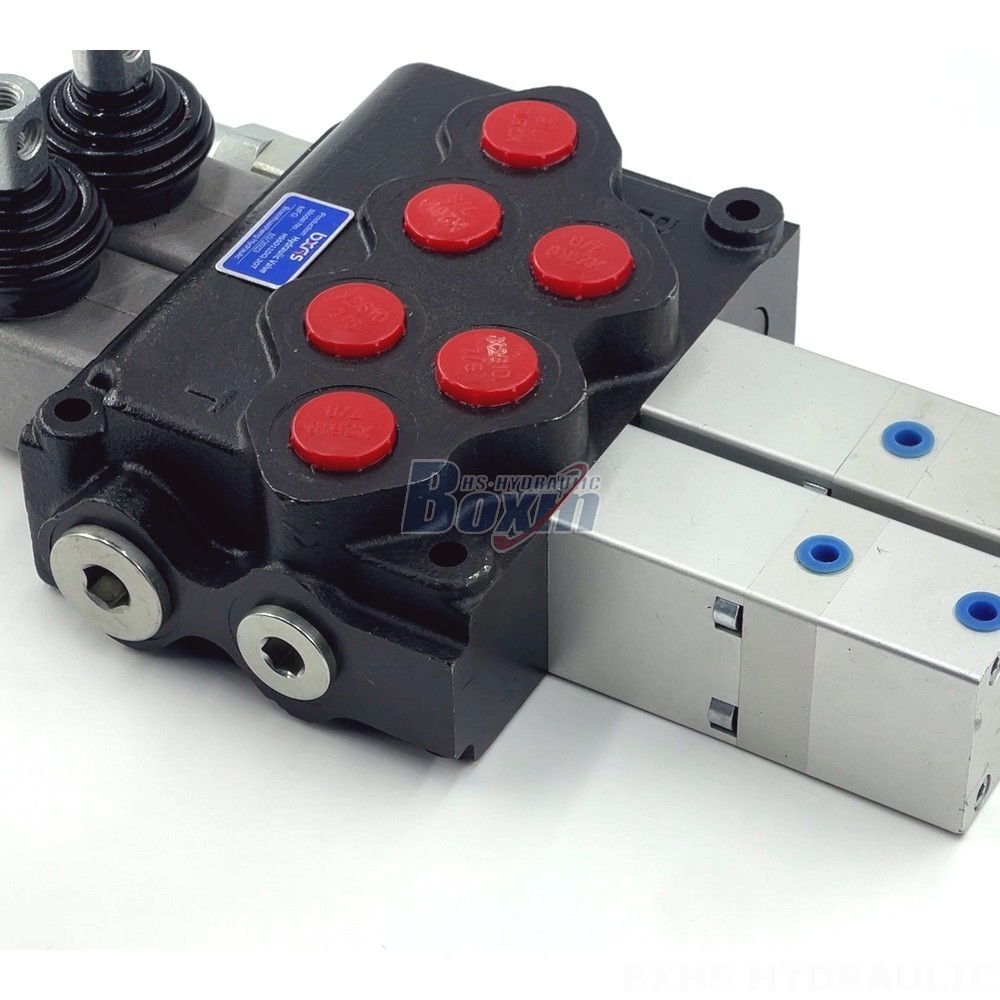

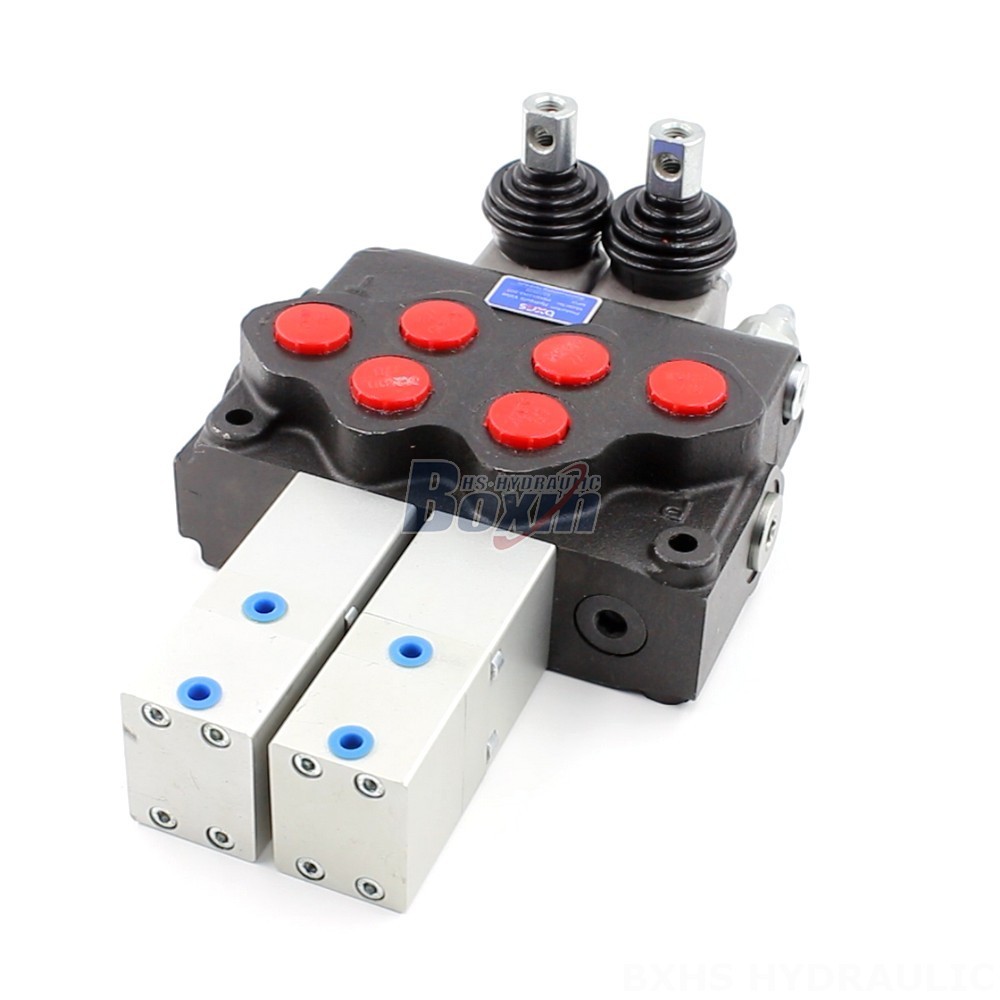

**SD11 Series Pneumatic Directional Control Valve**
The SD11 Series Pneumatic Directional Control Valve is a 2-section, monoblock valve with a rated flow of 70 L/min and a maximum pressure of 250 bar. The valve is constructed from high-quality materials and is built to last. It is ideal for use in a wide range of industrial applications, including:
* MATERIAL HANDLING
* CONSTRUCTION AND EARTH MOVING
* AGRICULTURE
* INDUSTRIAL VEHICLES
The valve is available with a variety of spool options to meet the specific requirements of your application. It also features a wide operating temperature range of -40°C to +60°C, making it suitable for use in even the most challenging environments.
**Key Features:**
* Rated flow of 70 L/min
* Maximum pressure of 250 bar
* 2-section, monoblock valve
* Wide operating temperature range of -40°C to +60°C
* Variety of spool options available
* Compact and lightweight design
* Easy to install and maintain
