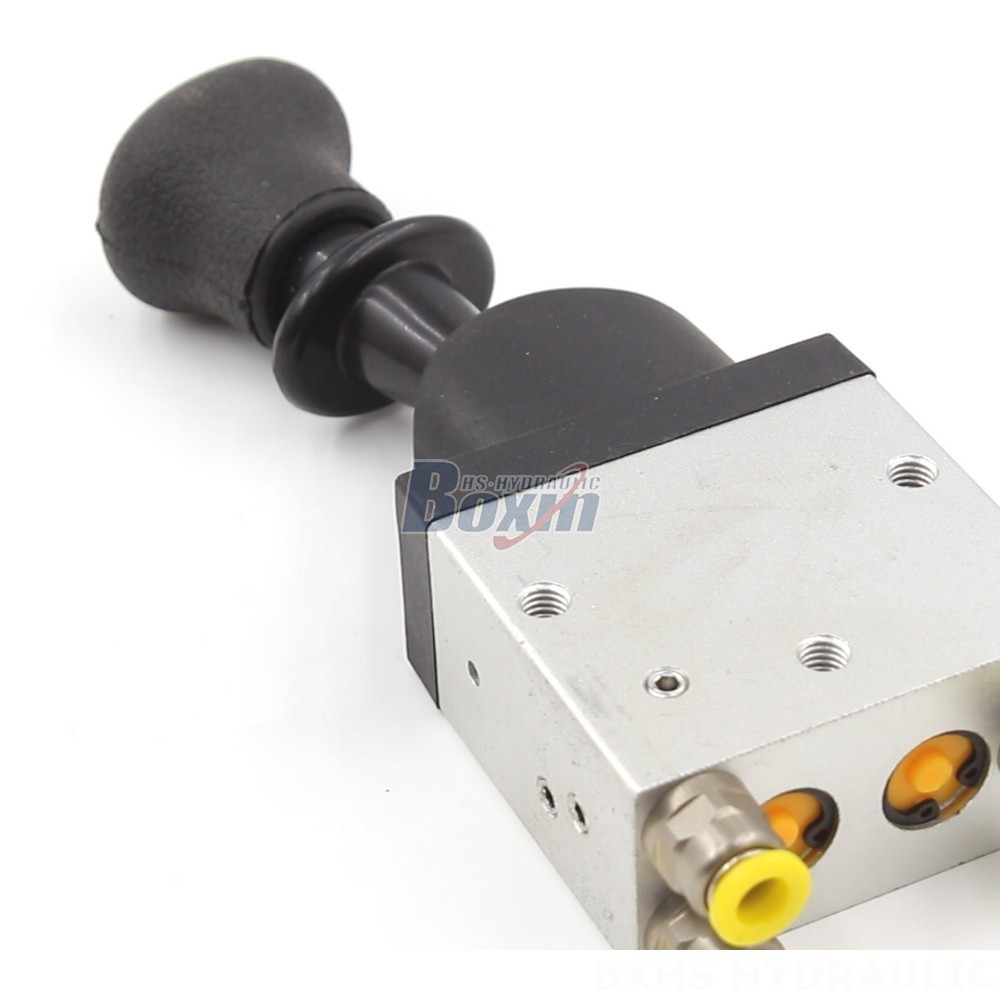

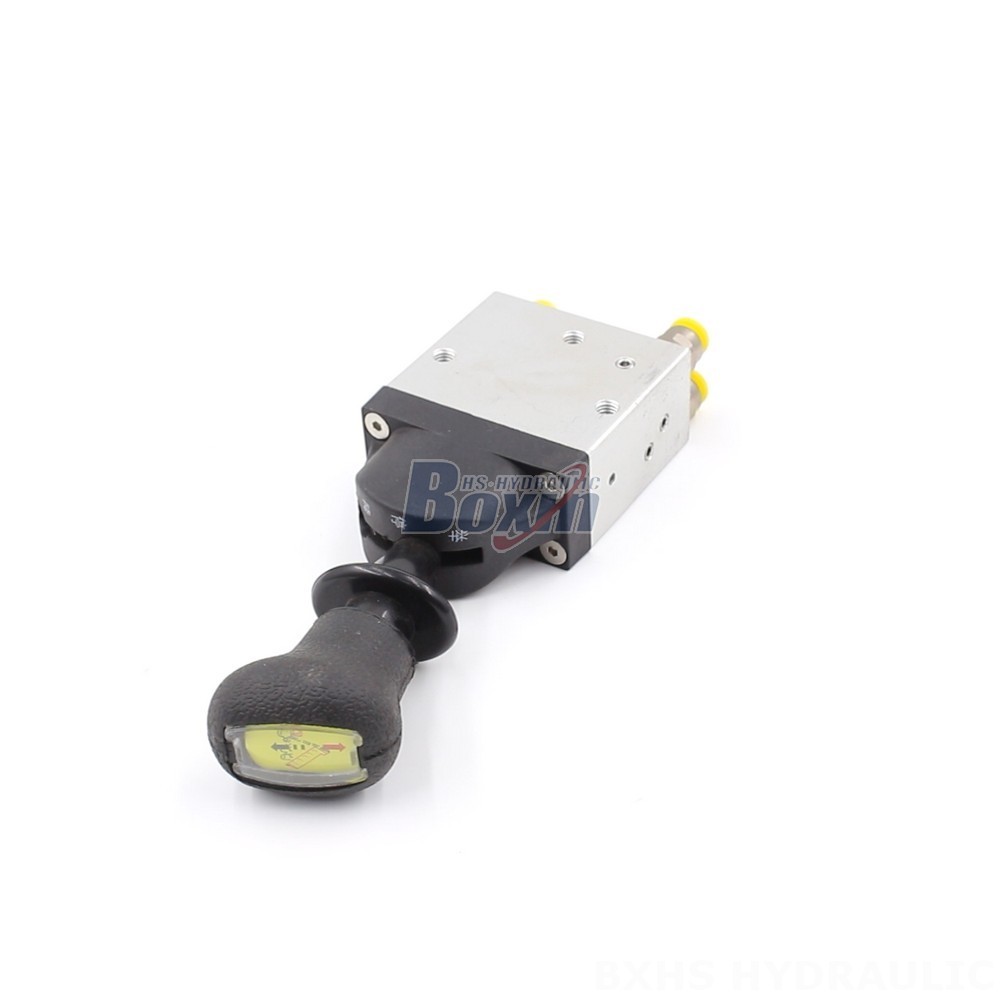

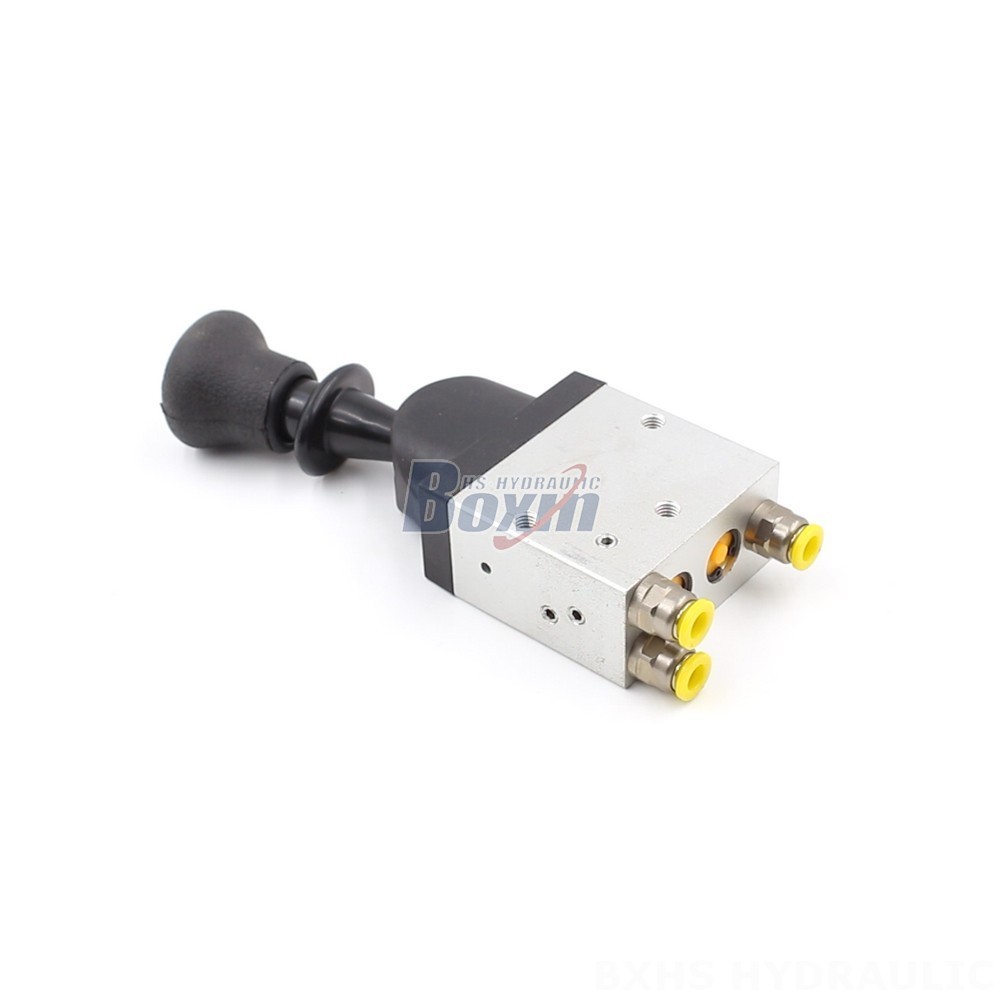

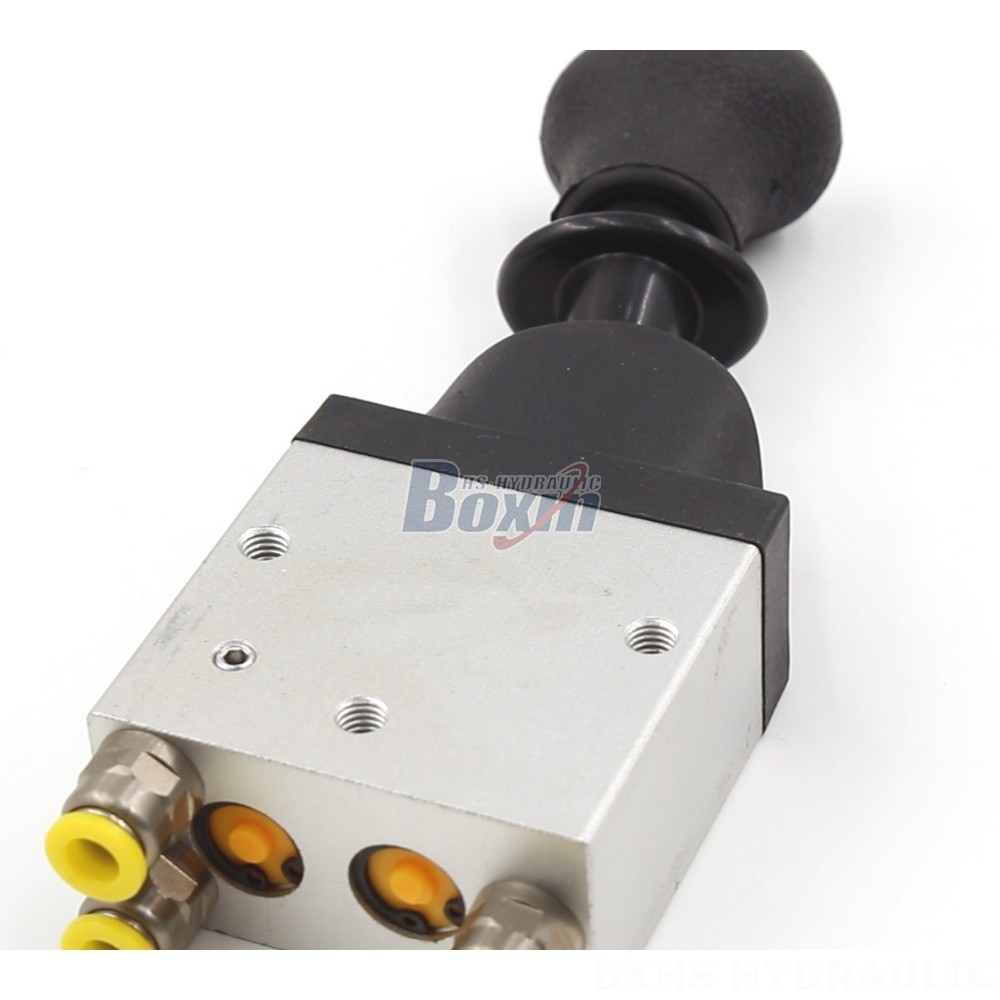

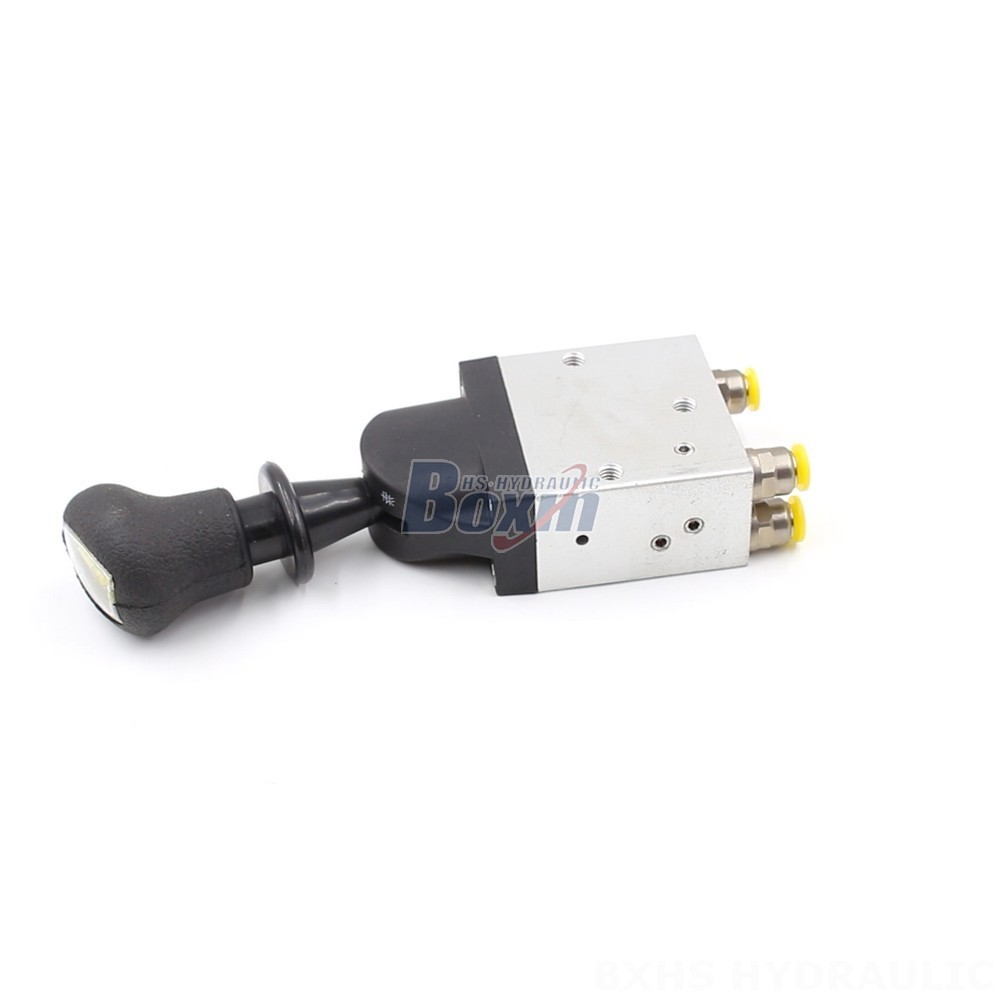

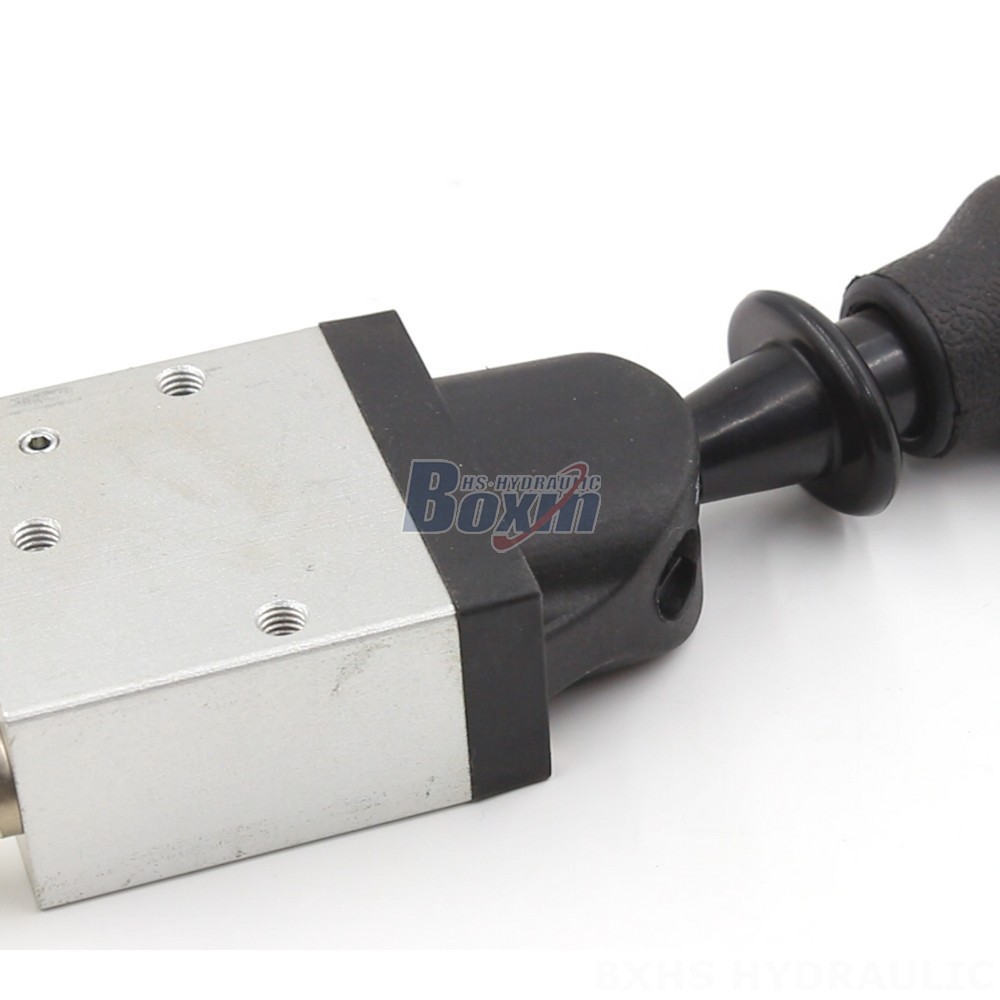

The BKQF34 Series multi-channel directional valve is a high-performance pneumatic control valve designed for a variety of construction and industrial applications. It offers a rated flow of 40 L/min and a maximum pressure of 1 MPa, making it ideal for use in forklifts, telehandlers, skid steer loaders, and other heavy equipment.
| BKQF34シリーズ 空気圧制御弁 パラメーター | |
|---|---|
| 制御方法 | 空圧 |
| スプール | 1スプール |
| 周囲温度範囲 | -40°C to +80°C (-40°F to +176°F) |
| 構造タイプ | モノブロック弁 |
| セクション | 1セクション |
| 作動粘度範囲 | 12 - 400 mm²/s (12 cSt to 400 cSt) |
| 定格流量 | 毎分40リットル (10.5 US gpm) |
| 最大圧力 | 1 MPa (145 psi) |
| 吸入口 | G1/4 |
| 吐出口 | G1/4 |
| ポートサイズ | G1/4 |
This 1-section, monoblock valve features a single spool and is designed for use in harsh environments, with an operating temperature range of -40°C to +80°C. Its compact design and reliable performance make it a popular choice for manufacturers of construction, material handling, and agricultural equipment. The BKQF34 Series is available in a variety of configurations to meet specific application requirements. It is widely used in forklifts, telehandlers, skid steer loaders, compact wheel loaders, mini-excavators, midi-excavators, tractors, front-end loaders, harvesters, balers, and sprayers.
