What is the primary application of the Pneumatic 1 Spool Valve | Factory Direct & Customizable?

The Pneumatic 1 Spool Valve | Factory Direct & Customizable is designed for mobile hydraulic systems, agricultural machinery (such as tractors and harvesters), construction equipment (such as loaders and excavators), and industrial machinery. It ensures precise flow and directional control.

Is Boxinhuasheng a factory-direct manufacturer?

Yes, Boxinhuasheng (Qingzhou Boxinhuasheng Hydraulic Technology Co., Ltd.) is a factory-direct manufacturer established in 2001. We operate a 68,000m虏 facility with 4 modern manufacturing plants and 260+ production machines, supplying certified products directly to global customers.

What quality certifications do Boxinhuasheng products have?

All Boxinhuasheng directional control valves, gear pumps, and hydraulic accessories are CE certified, IATF 16949 compliant, and verified on-site by SGS, meeting international engineering standards.

Can Boxinhuasheng provide OEM/ODM customization services?

Yes, Boxinhuasheng has a team of 35 senior hydraulic engineers providing custom OEM manufacturing, ODM development, private labeling, and customized hydraulic system solutions tailored to specific operating pressures and flows.

What is the warranty and shipping lead time?

We offer a 1-year warranty with free replacement for any quality defects. Standard express delivery is within 30 days, supported by our robust annual capacity of 1.5 million hydraulic units and export experience to 80+ countries.

Pneumatic 1 Spool Valve | Factory Direct & Customizable

Name: Pneumatic 1 Spool Valve | Factory Direct & Customizable
Brand: Boxinhuasheng
SKU: BXHS-56356
Availability: InStock

イノベーションが開発を推進し、テクノロジーが未来を築きます

ホーム空気圧制御弁BKQF34シリーズ製品詳細

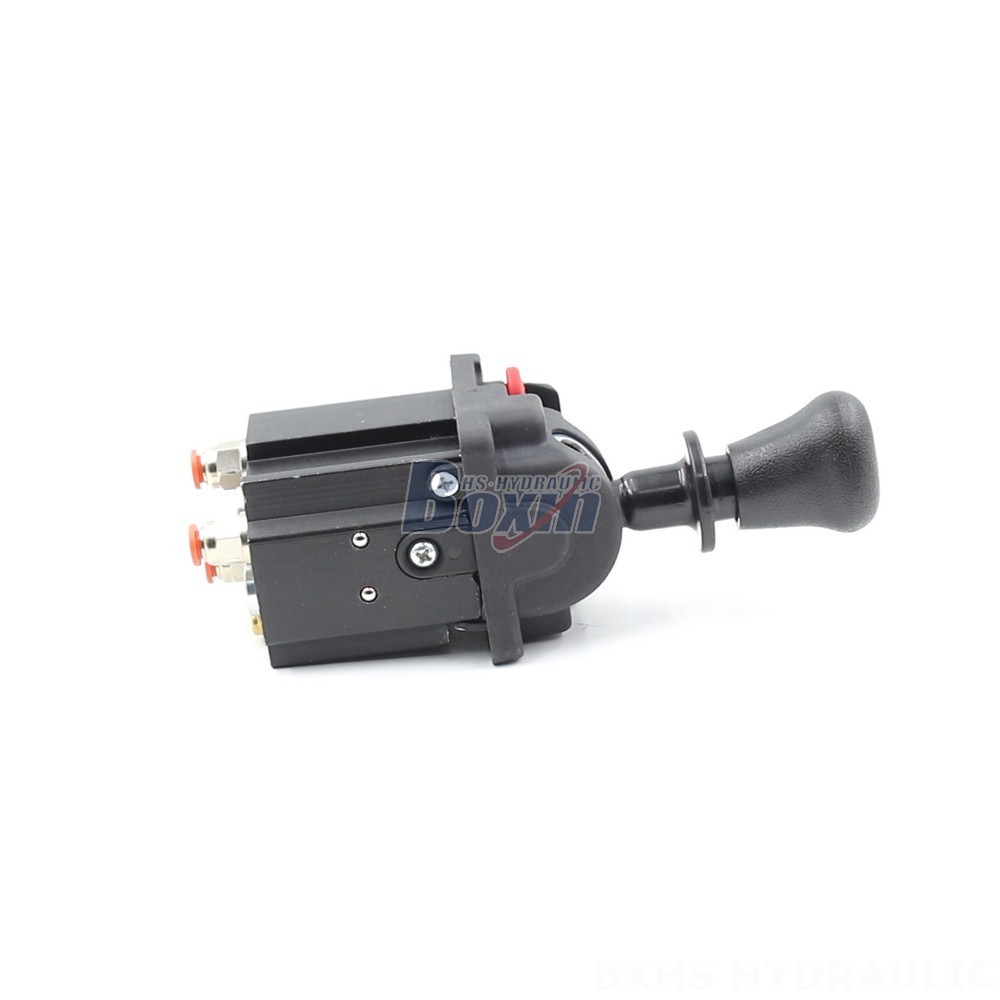

Pneumatic 1 Spool Valve | Factory Direct & Customizable cover photo

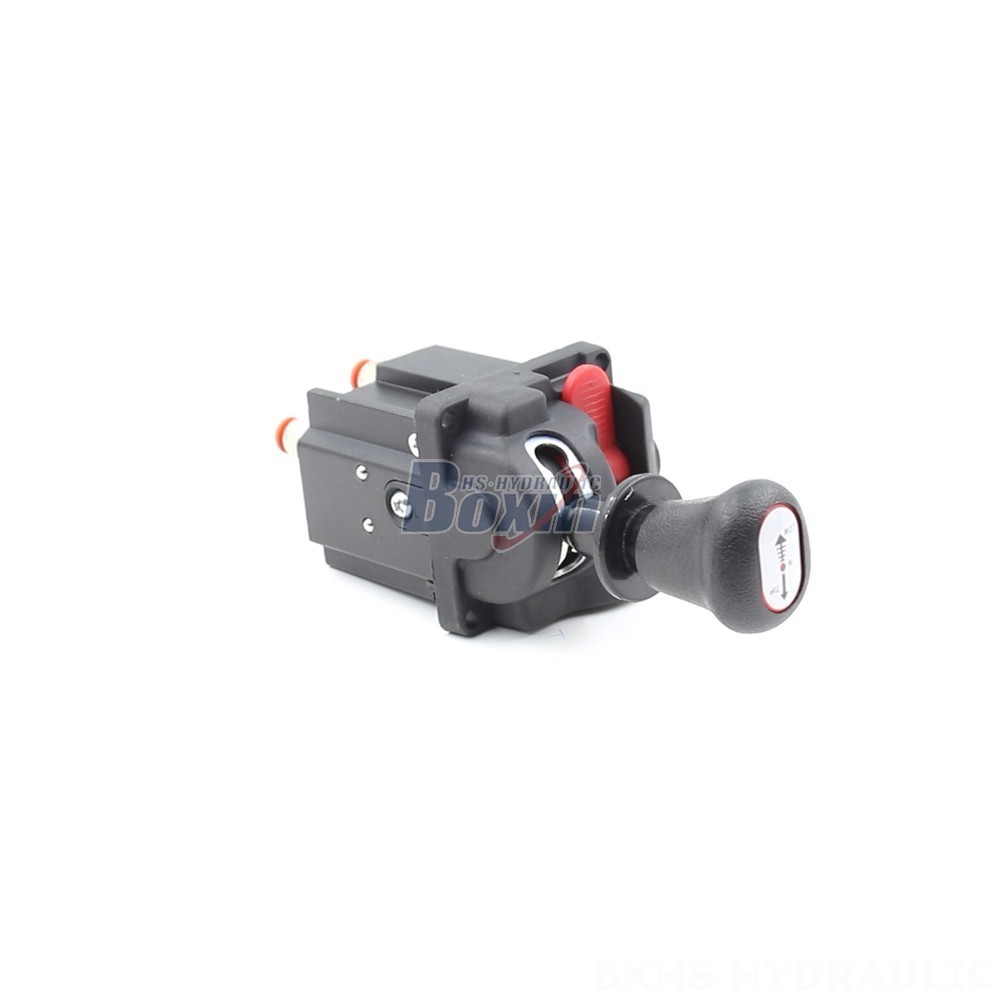

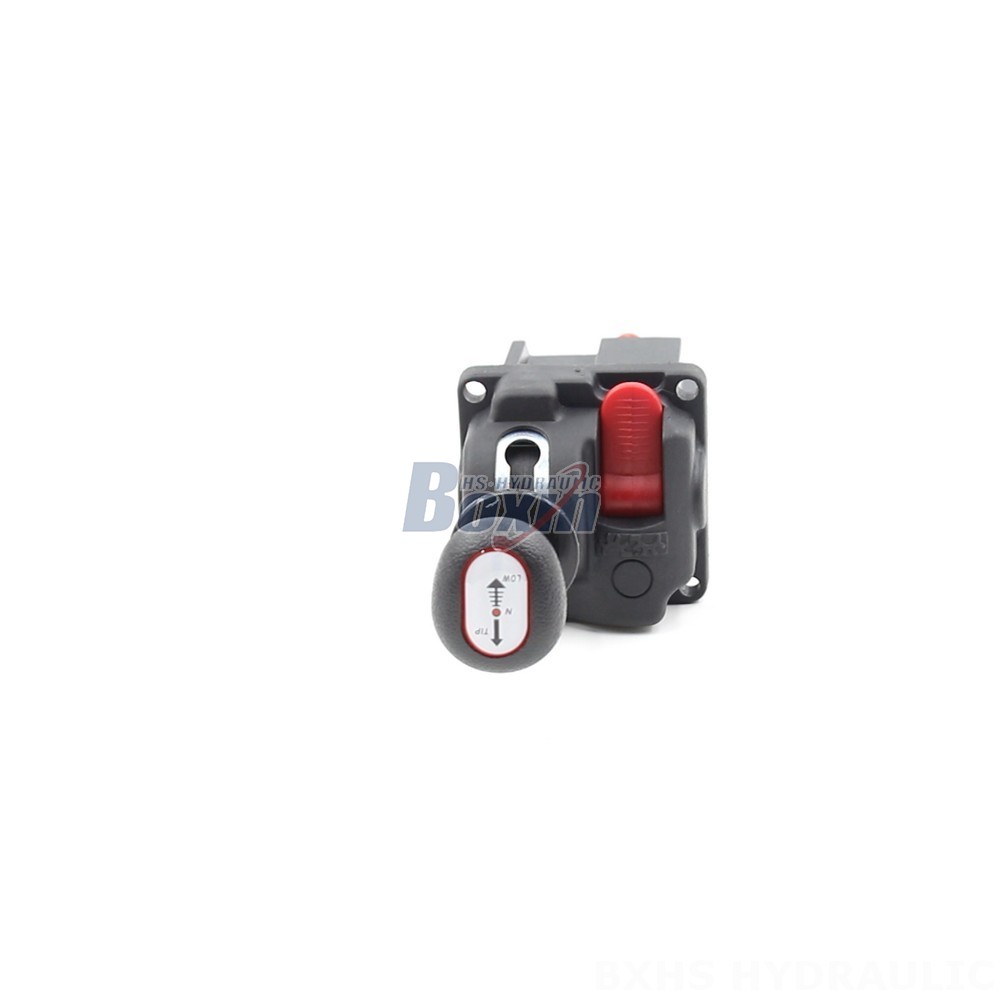

Pneumatic 1 Spool Valve | Factory Direct & Customizable main image

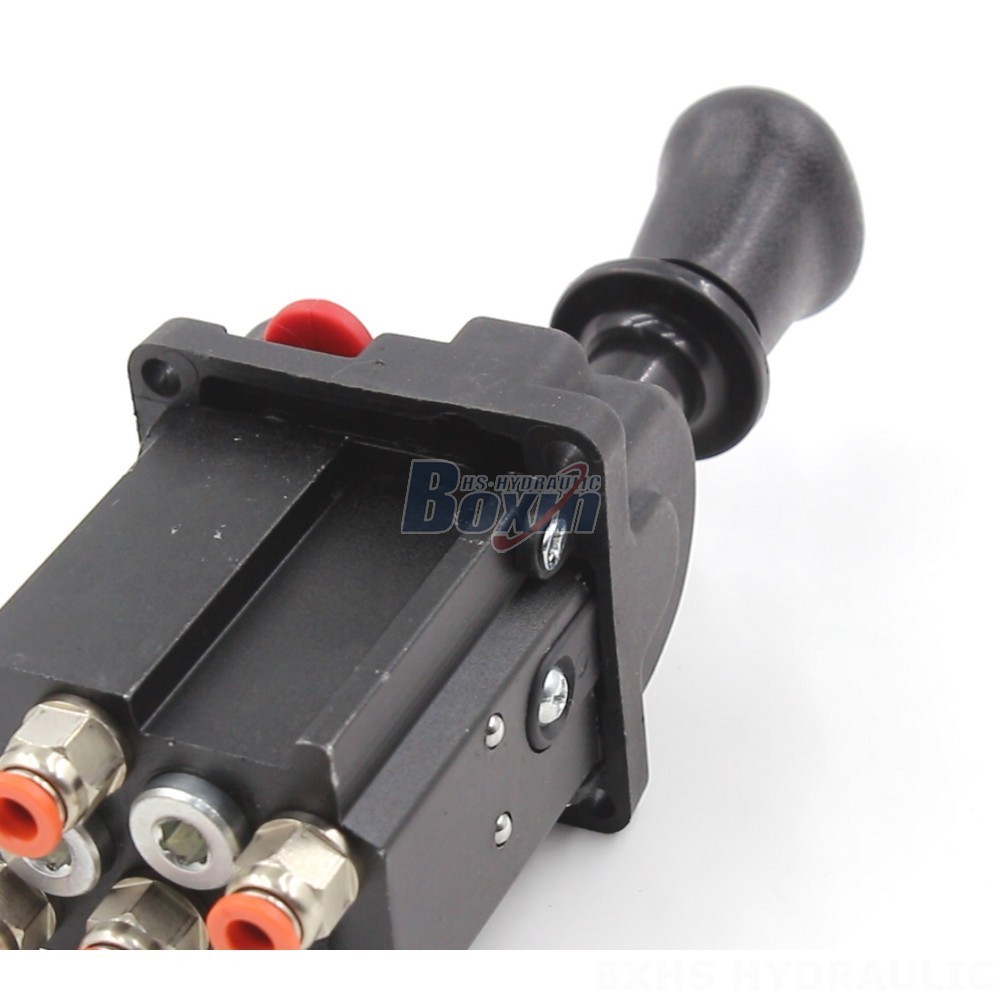

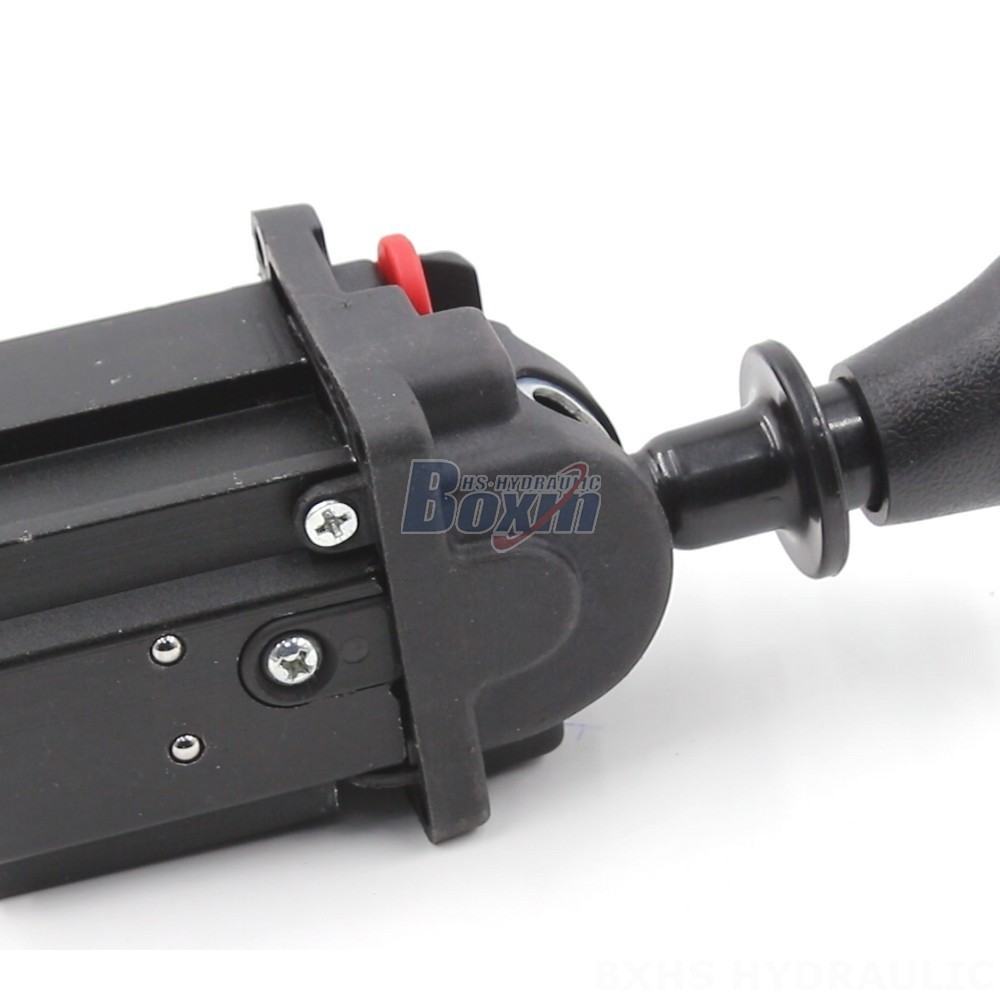

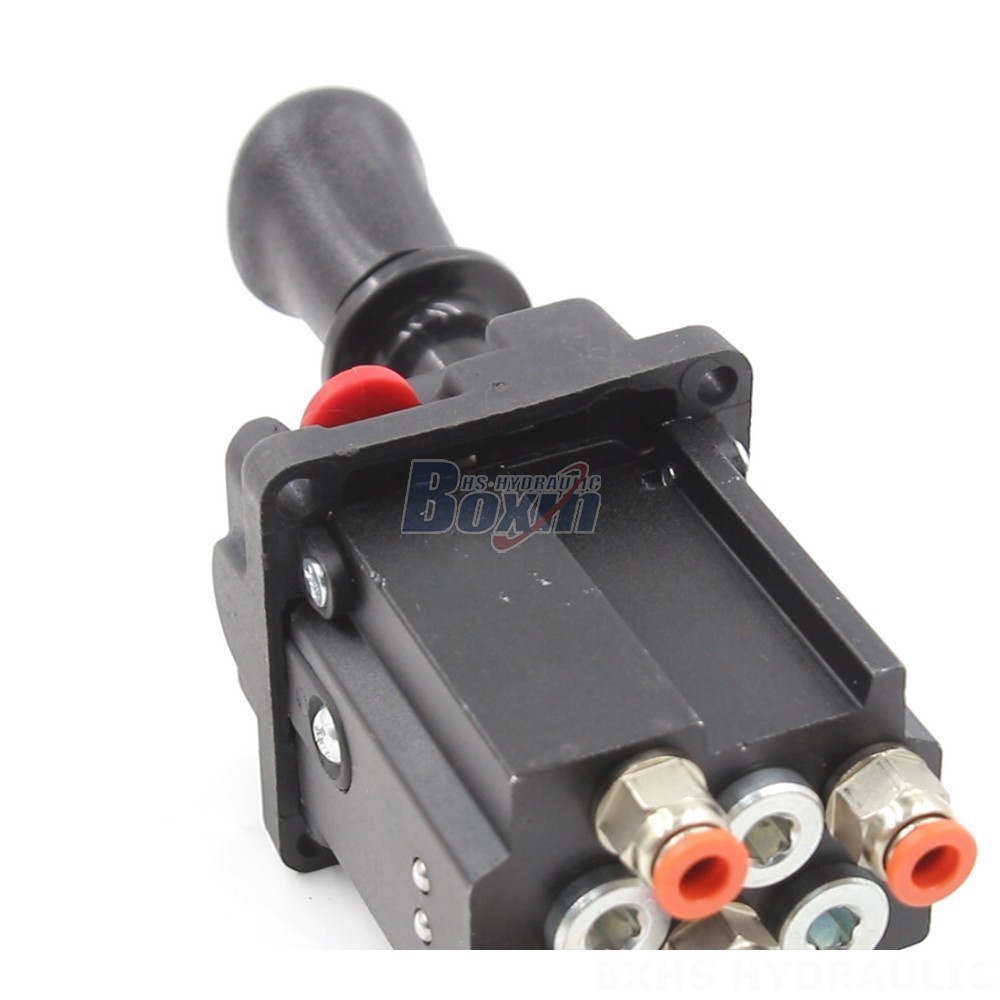

Pneumatic 1 Spool Valve | Factory Direct & Customizable detail image

Pneumatic 1 Spool Valve | Factory Direct & Customizable

制御方法:空圧

スプール:1スプール

定格流量:毎分50リットル (13.2 US gpm)

最大圧力:1 MPa (145 psi)

吸入口:G1/4

吐出口:G1/4

ポートサイズ:G1/4

ベンダー:BXHS

製品タイプ:空気圧制御弁

製品シリーズ:BKQF34シリーズ空気圧制御弁

梱包サイズ:15*10*10

総重量:0.62 kg

在庫状況: 在庫あり

お問い合わせ

861 この製品を探している人もいます

Pneumatic 1 Spool Valve | Factory Direct & Customizable

Pneumatic 1 Spool Valve | Factory Direct & Customizable drawing image

This 3-way electric hydraulic diverter valve with pneumatic control is a reliable and versatile solution for a wide range of applications, including construction, material handling, agriculture, and industrial vehicles.

BKQF34シリーズ空気圧制御弁パラメーター
制御方法	空圧
スプール	1スプール
周囲温度範囲	-40°C to +80°C (-40°F to +176°F)
構造タイプ	モノブロック弁
セクション	1セクション
作動粘度範囲	12 - 400 mm²/s (12 cSt to 400 cSt)
定格流量	毎分40リットル (10.5 US gpm)
最大圧力	1 MPa (145 psi)
吸入口	G1/4
吐出口	G1/4
ポートサイズ	G1/4

This BKQF34 series 3-way electric hydraulic diverter valve with pneumatic control features a monoblock valve construction with a single spool. It offers a rated flow of 40 L/min (10.5 US gpm) and a maximum pressure of 1 MPa (145 psi). The operating viscosity range is 12 - 400 mm²/s (12 cSt to 400 cSt), and the ambient temperature range is -40°C to +80°C (-40°F to +176°F). This versatile valve is ideal for applications in construction equipment such as telehandlers, forklifts, mini-excavators, skid steer loaders, compact wheel loaders, wheel loaders, and backhoe loaders.
