P80F-G34-OT Manual 5 Spool Monoblock Directional Valve

制御方法:手動

スプール:5スプール

定格流量:毎分80リットル (21.2 US gpm)

最大圧力:250 bar (3600 psi)

吸入口:G3/4

吐出口:G3/4

ポートサイズ:G3/4

ベンダー:BXHS

製品タイプ:モノブロック方向制御弁

製品シリーズ:P80F シリーズ モノブロック方向制御弁

梱包サイズ:26*30*11

総重量:16.00 kg

在庫状況: 在庫あり

2059 この製品を探している人もいます

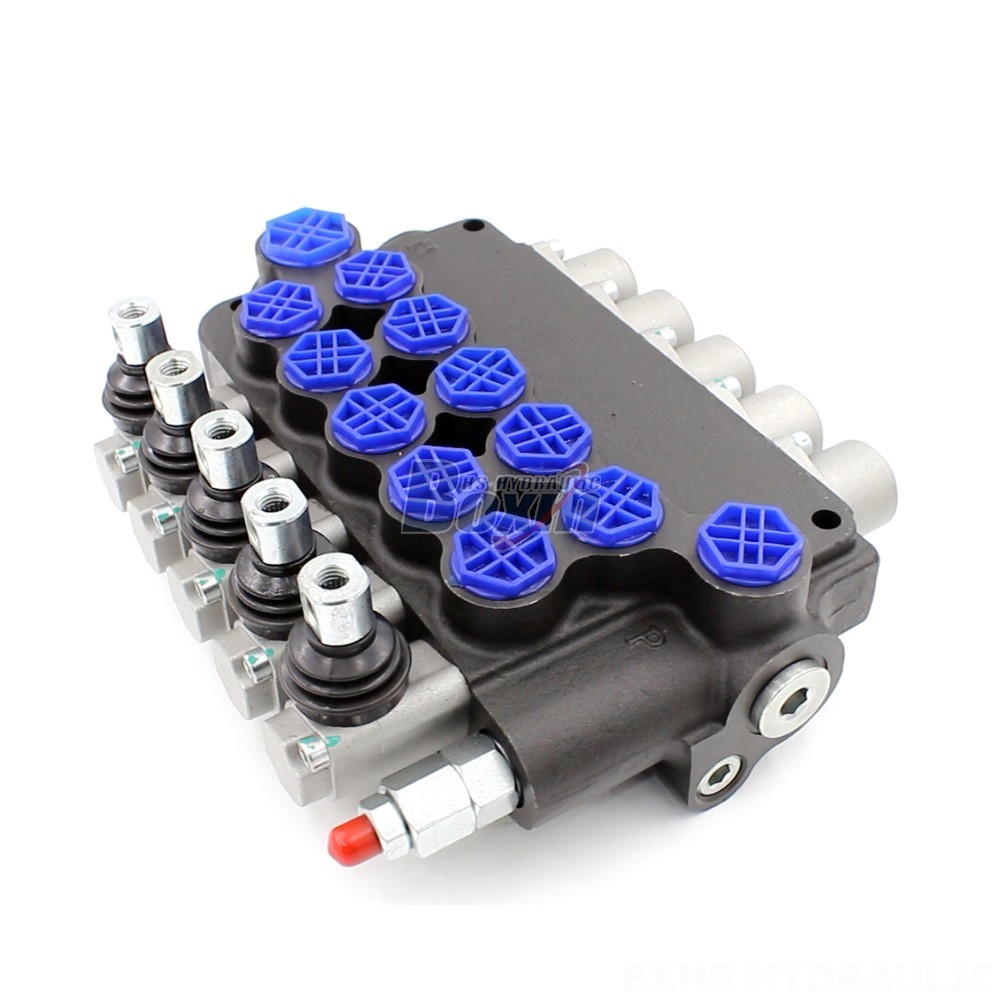

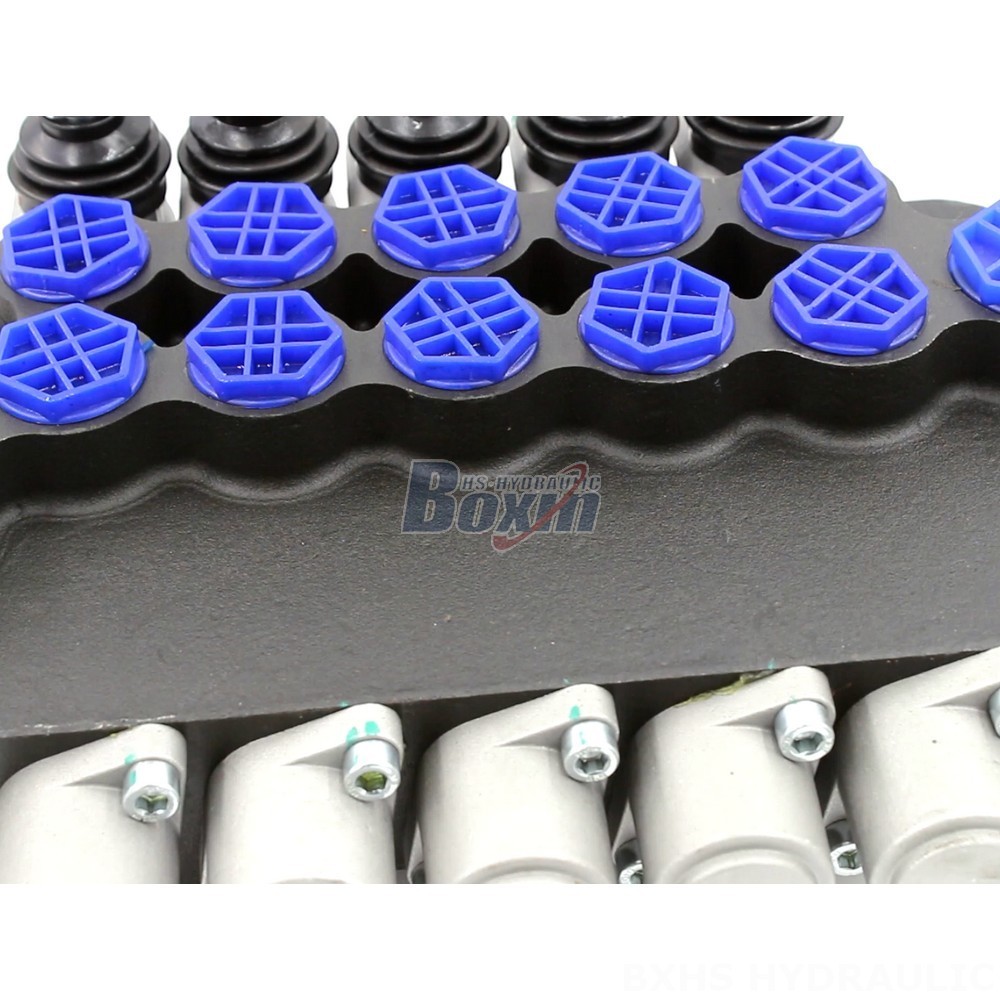

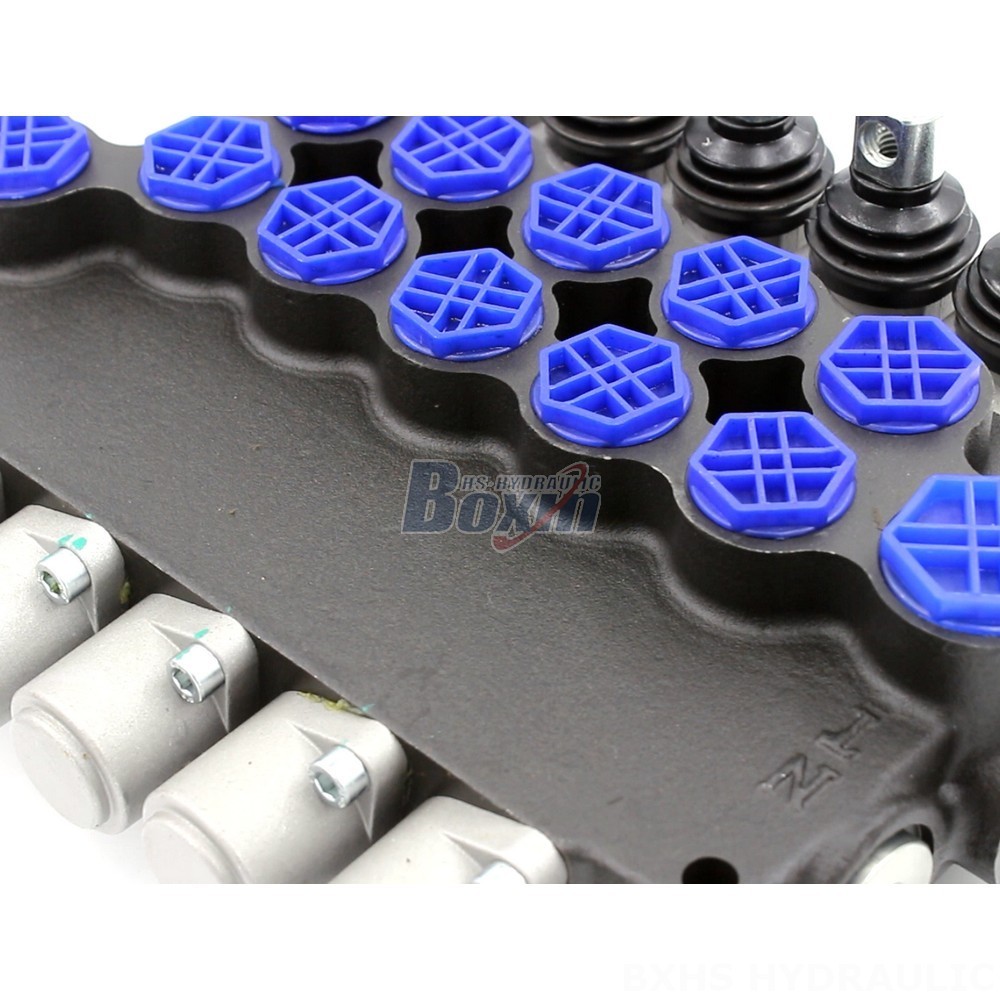

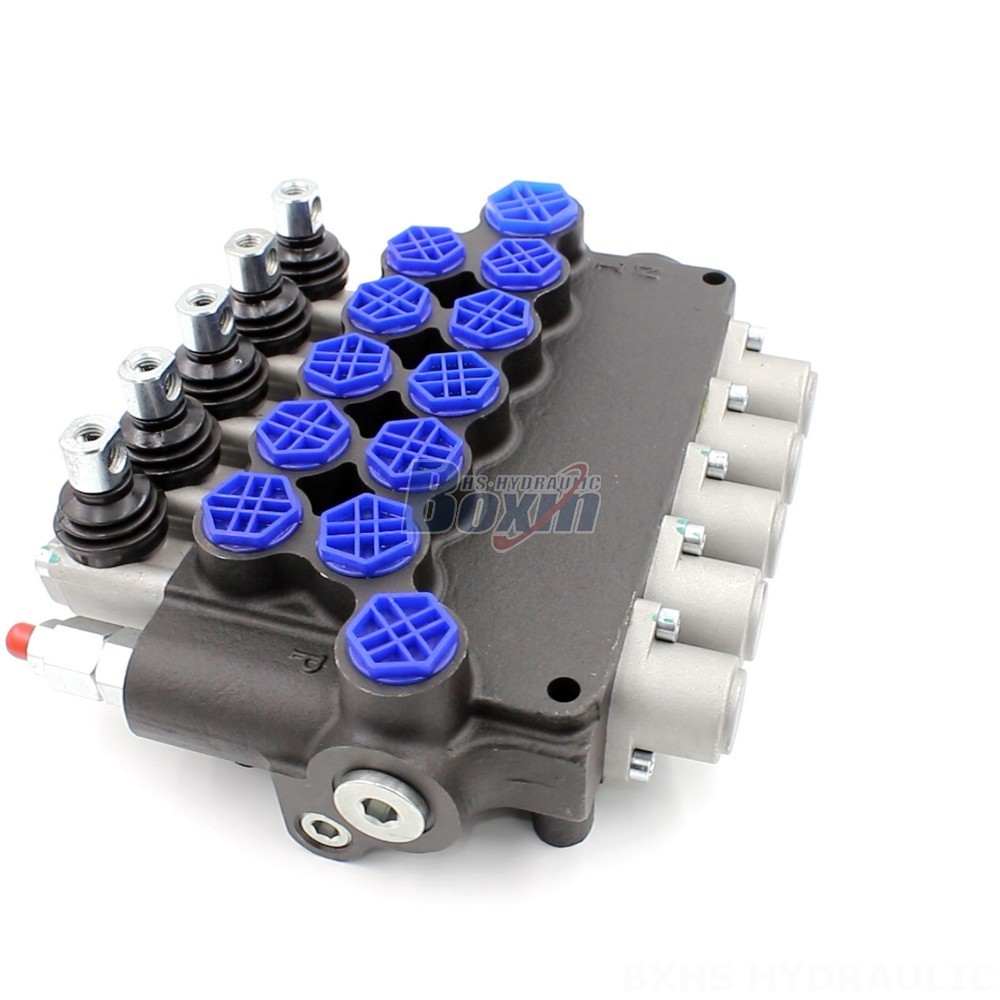

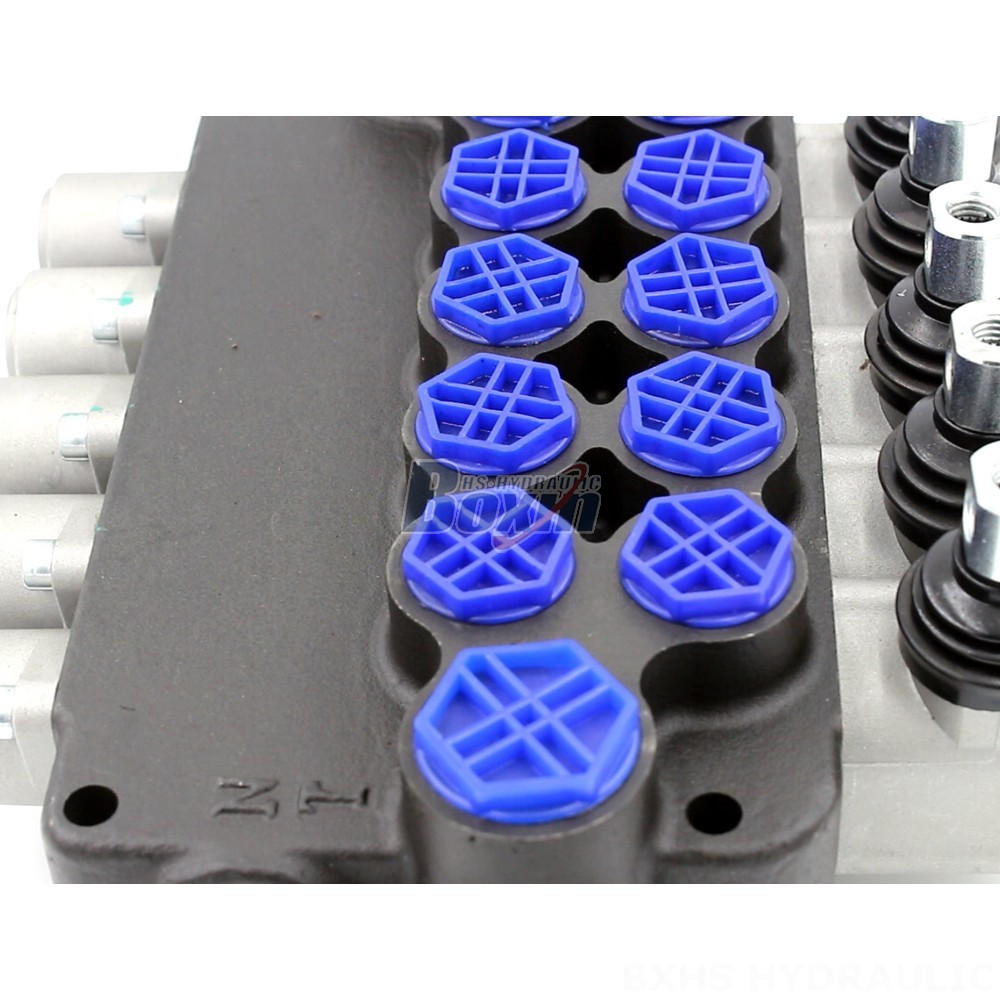

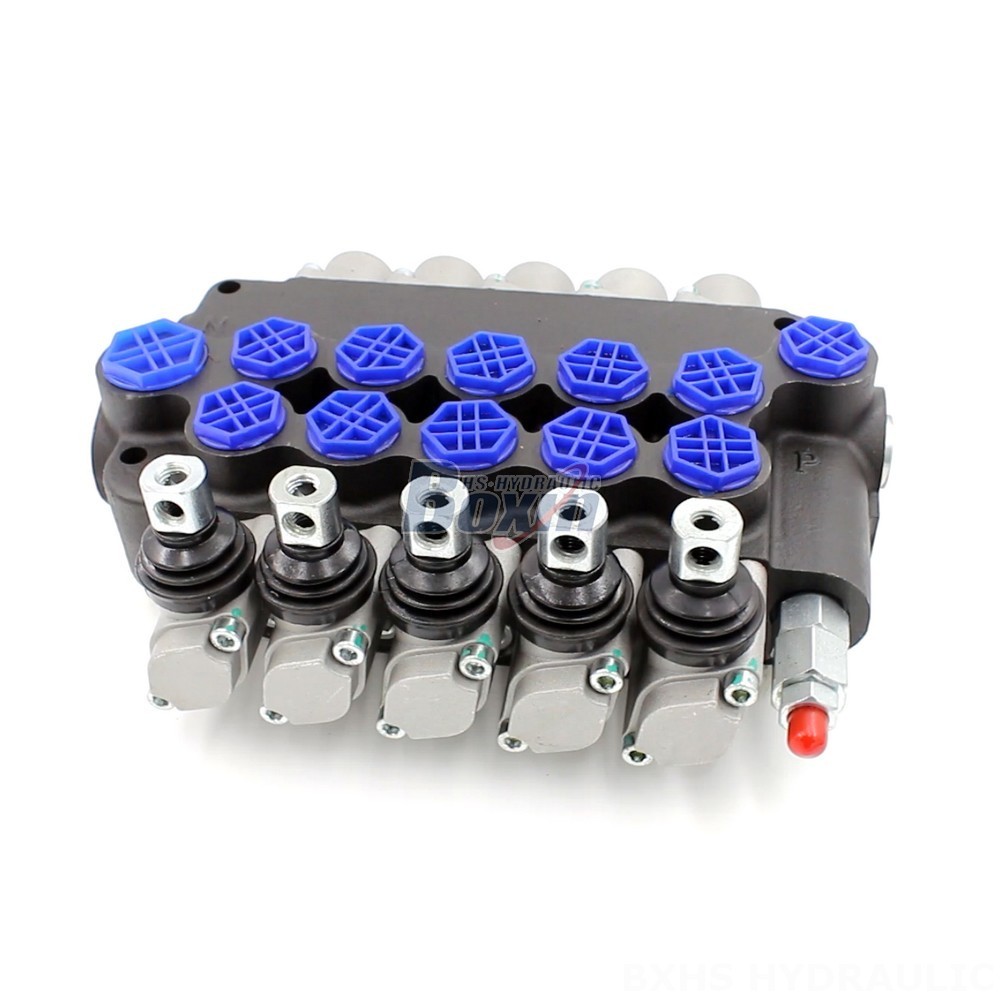

P80F-G34-OT Manual 5 Spool Monoblock Directional Valve

P80F-G34-OT Manual 5 Spool Monoblock Directional Valve

P80F-G34-OT Manual 5 Spool Monoblock Directional Valve drawing image

The P80F-G34-OT is a robust 5-spool monoblock directional valve designed for demanding applications in construction, material handling, and industrial vehicles. It features manual control, 80 L/min flow rate, and 250 bar maximum pressure, making it ideal for controlling hydraulic systems in telehandlers, forklifts, excavators, loaders, and other heavy-duty equipment.

P80F シリーズ モノブロック方向制御弁 パラメーター
スプール 1スプール, 2スプール, 3スプール, 4スプール, 5スプール, 6スプール, 7スプール
制御方法 手動, 空圧, 電空, 電気油圧, ソレノイド, 油圧, 油圧および手動, ケーブル, ジョイスティック
ポートサイズ G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
セクション 1セクション, 2セクション, 3セクション, 4セクション, 5セクション, 6セクション, 7セクション
周囲温度範囲 -40°C to +80°C (-40°F to +176°F)
作動粘度範囲 15 - 75 mm²/s (15 cSt to 75 cSt)
吐出口 G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT
最大圧力 315 bar (4600 psi)
定格流量 毎分80リットル (21.2 US gpm)
構造タイプ モノブロック弁
吸入口 G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT

The P80F-G34-OT is a high-performance, manual control, 5-spool monoblock directional valve specifically engineered for heavy-duty applications in construction, material handling, and industrial vehicles. This valve boasts a rated flow of 80 L/min (21.2 US gpm) and a maximum pressure rating of 250 bar (3600 psi), ensuring efficient and reliable operation in demanding environments. The P80F-G34-OT's robust construction and versatile design make it a versatile solution for various applications, including telehandlers, forklifts, all-terrain cranes, stackers, motor graders, mini-excavators, skid steer loaders, compact wheel loaders, backhoe loaders, harvesters, and bale wrappers. The valve's operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) allows it to operate effectively in a wide range of hydraulic fluids and temperatures, from -40°C to +80°C (-40°F to +176°F). The P80F-G34-OT is a reliable and efficient hydraulic control solution designed to withstand the rigors of heavy-duty applications.
