生産と納品
15~30日の生産リードタイム



The P80 Series Pressure Reducing Valve is a high-performance hydraulic valve designed for use in a variety of applications, including construction equipment, material handling, agriculture, and industrial vehicles. It features a manual control, monoblock construction, and a rated flow of 80 L/min (21.2 US gpm). The valve is also available with private label and bespoke production options.
| P80シリーズ モノブロック方向制御弁 パラメーター | |
|---|---|
| 制御方法 | 手動, 空圧, 電空, 電気油圧, ソレノイド, 油圧, 油圧および手動, ケーブル, ジョイスティック, 手動・ジョイスティック |
| スプール | 1スプール, 2スプール, 3スプール, 4スプール, 5スプール, 6スプール, 7スプール |
| 周囲温度範囲 | -40°C to +80°C (-40°F to +176°F) |
| 構造タイプ | モノブロック弁 |
| セクション | 1セクション, 2セクション, 3セクション, 4セクション, 5セクション, 6セクション, 7セクション |
| 作動粘度範囲 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 定格流量 | 毎分80リットル (21.2 US gpm) |
| 最大圧力 | 315 bar (4600 psi) |
| 吸入口 | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| 吐出口 | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| ポートサイズ | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |

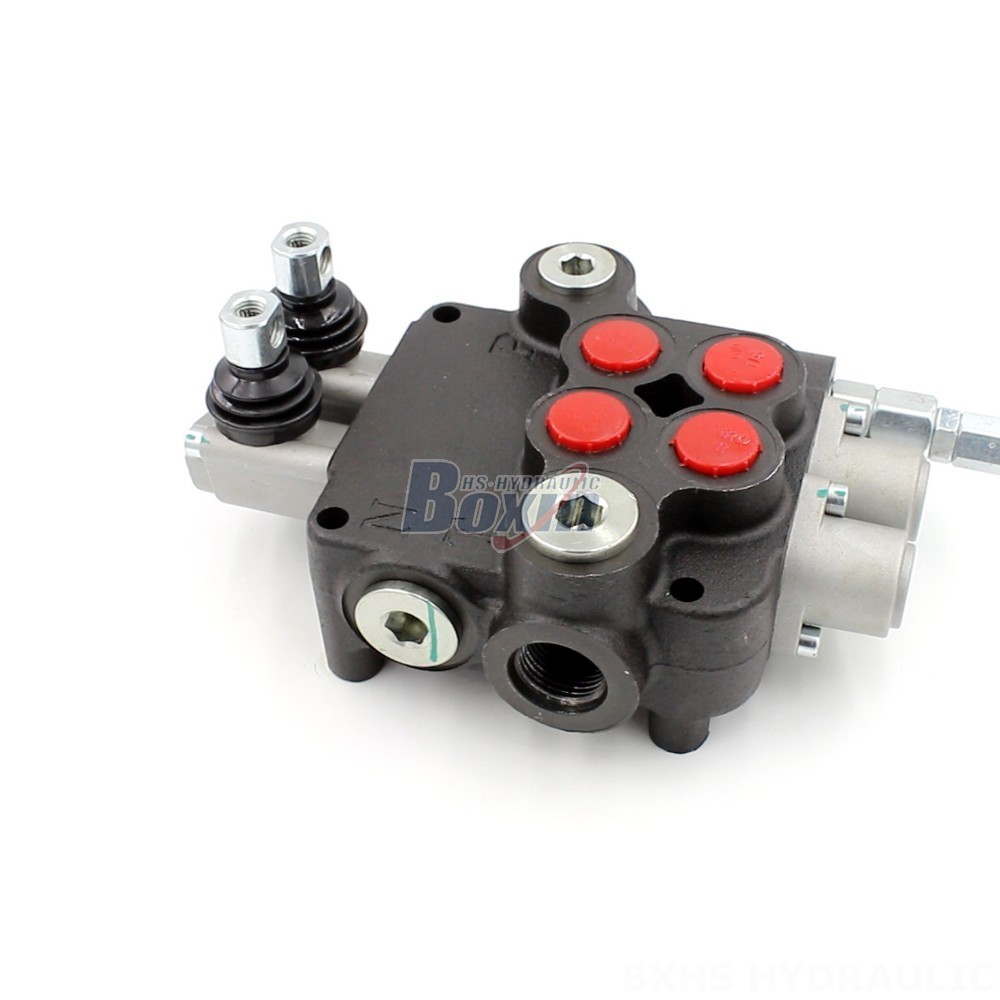

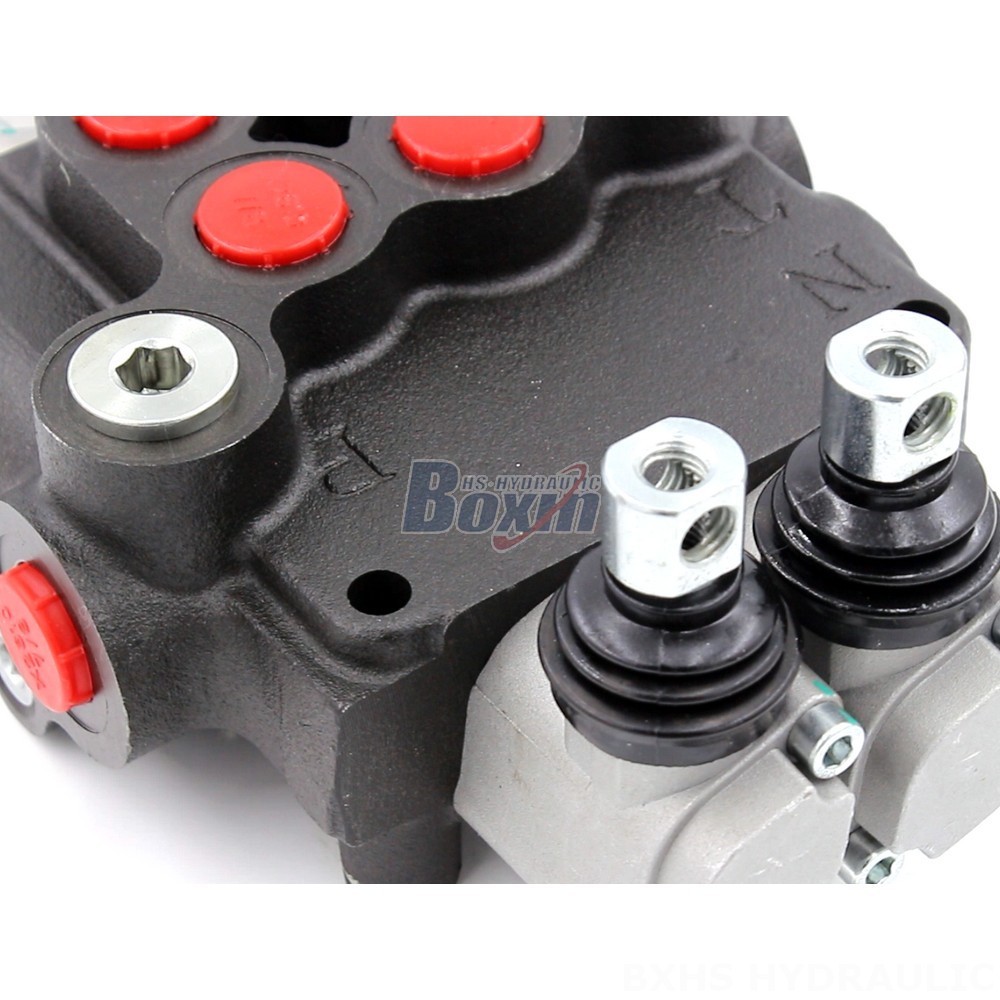

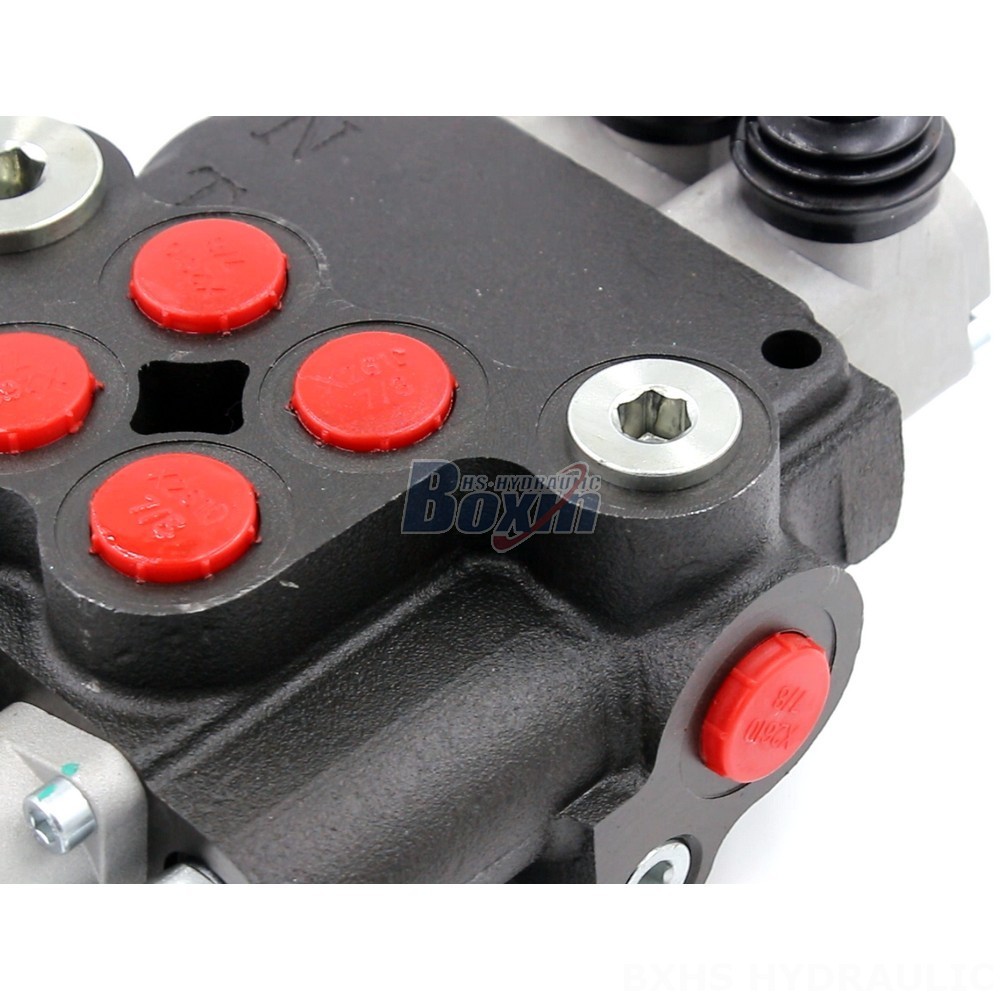

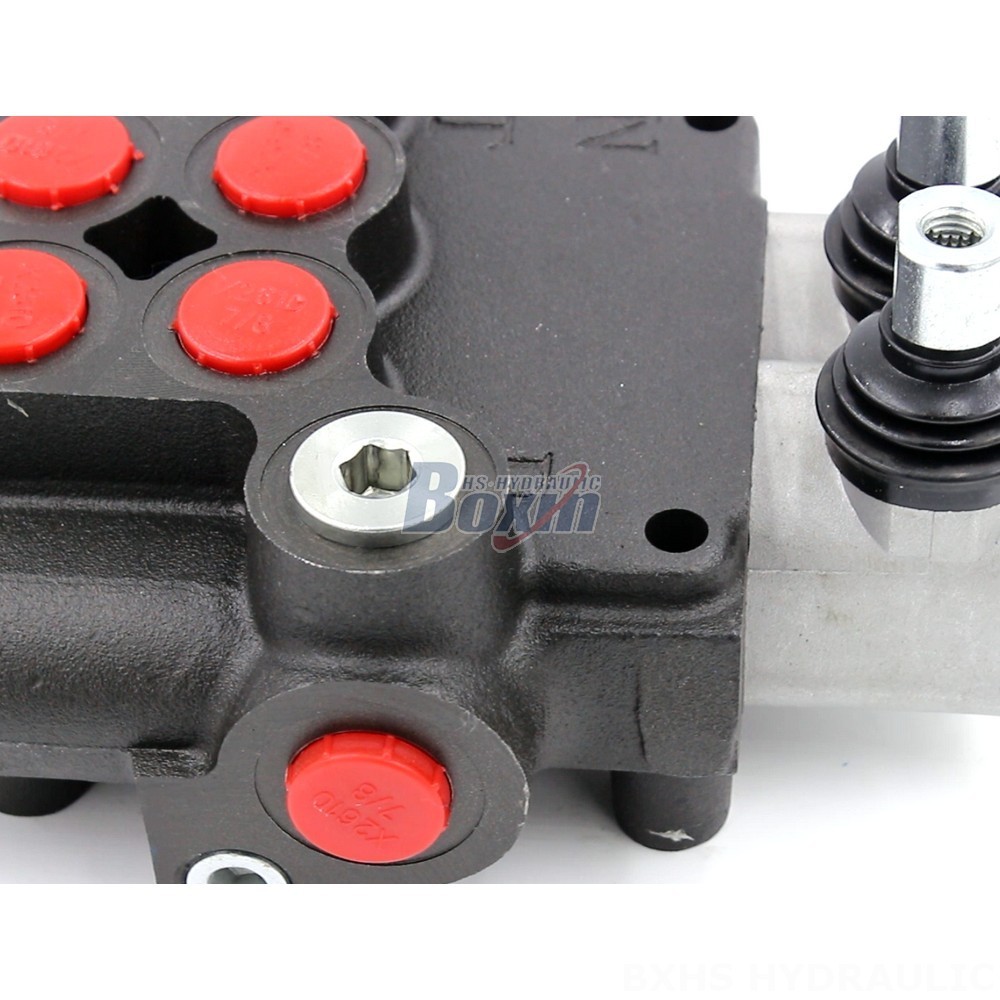

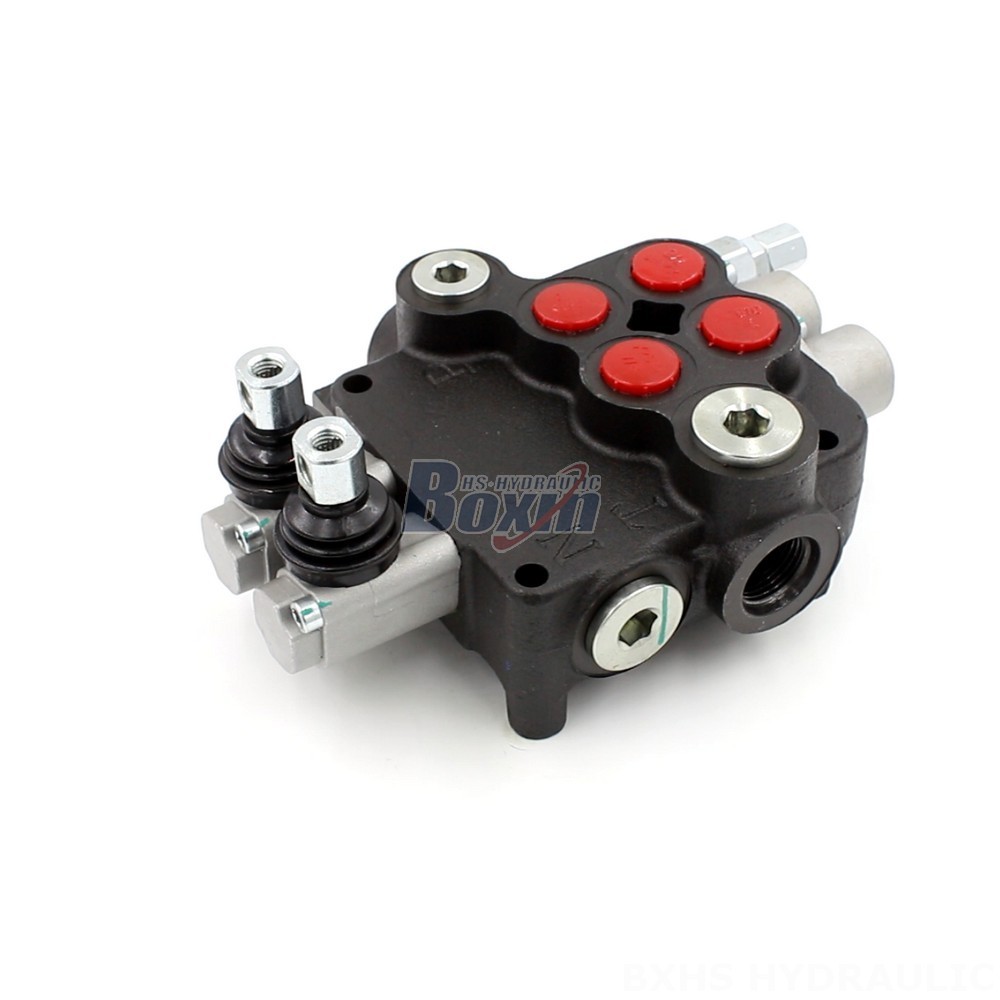

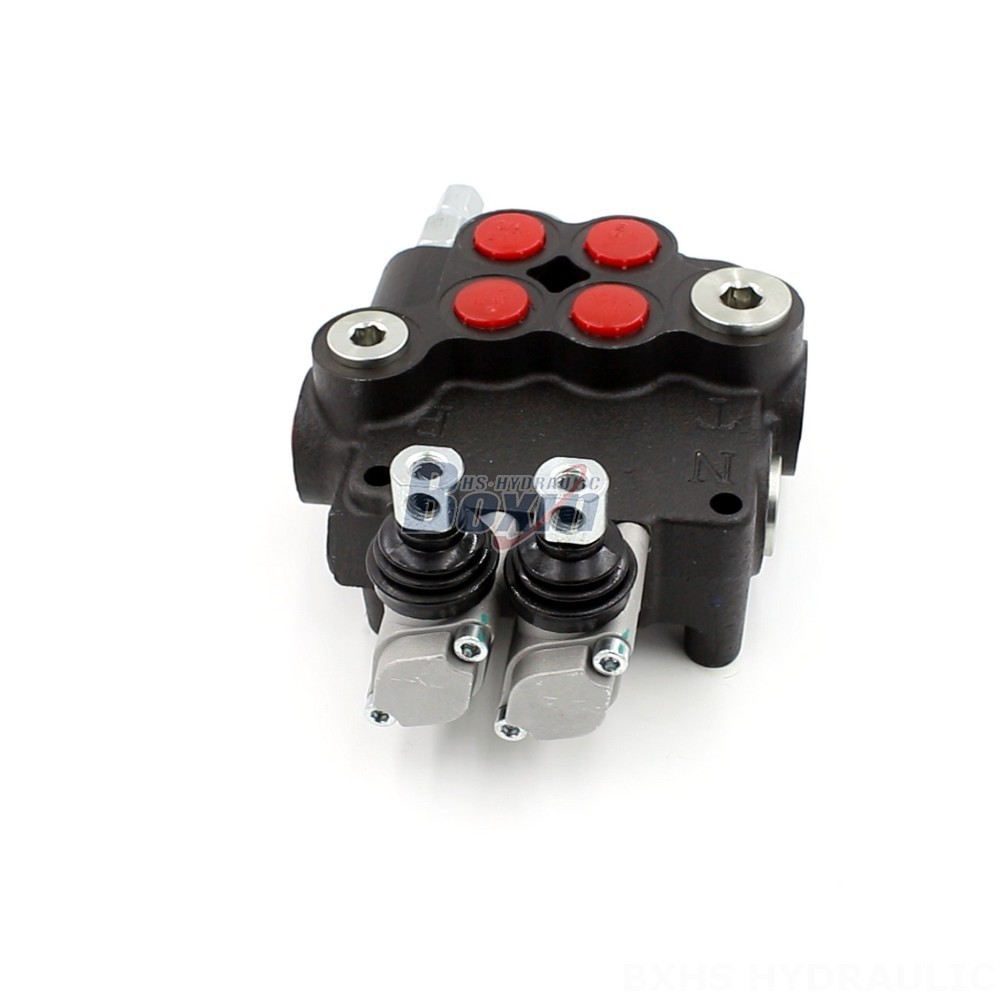

The P80-U116-U78-2OT Hydraulic Valve is a pressure reducing valve designed for precise control of hydraulic pressure in a variety of applications. This manual control valve features a compact monoblock construction and a rated flow of 80 L/min (21.2 US gpm). It is designed to withstand a maximum pressure of 250 bar (3600 psi) and operates within a viscosity range of 15-75 mm²/s (15 cSt to 75 cSt). The valve is suitable for a wide range of ambient temperatures, from -40°C to +80°C (-40°F to +176°F). The P80 Series valve is ideal for use in construction equipment, material handling, agriculture, and industrial vehicles. Specifically, it is compatible with telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, mini-excavators, skid steer loaders, and other similar machines. This valve offers private label and bespoke production options, allowing customization to meet specific requirements. This makes it an excellent choice for manufacturers seeking to differentiate their products and provide tailored solutions to their customers.
