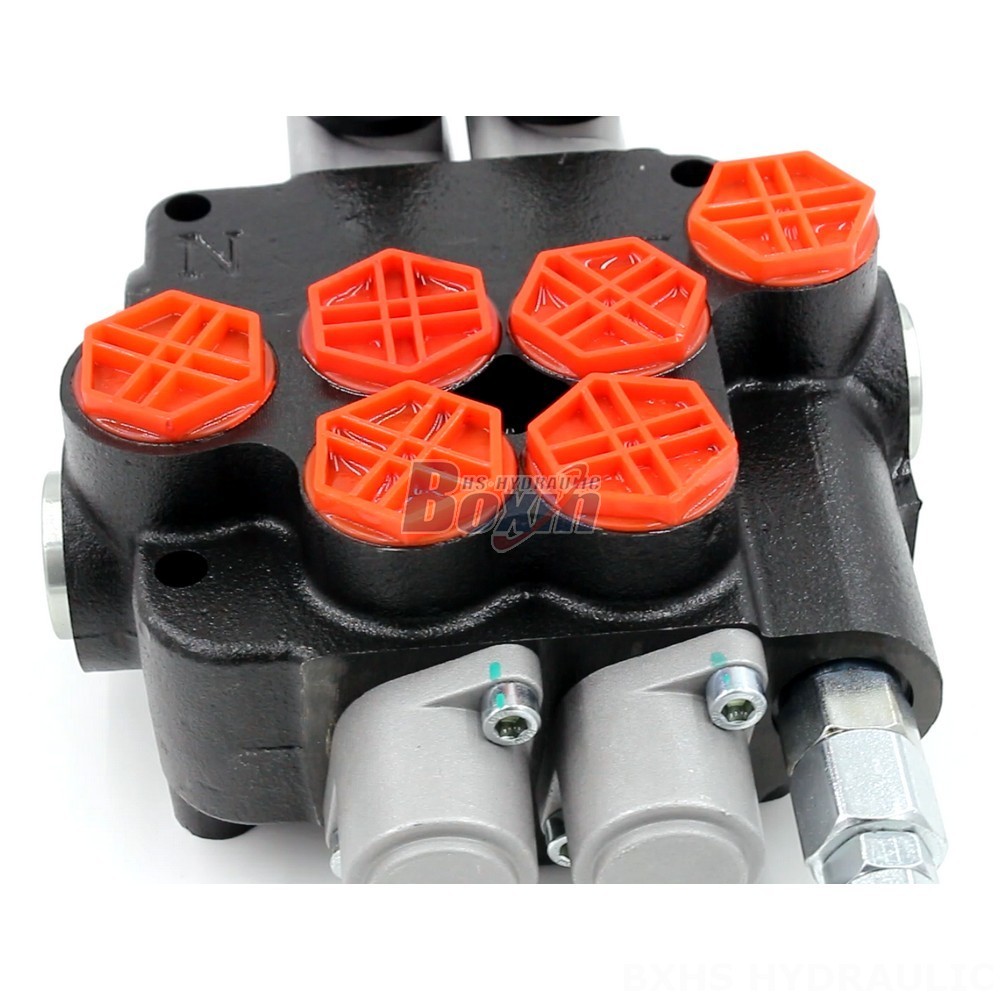

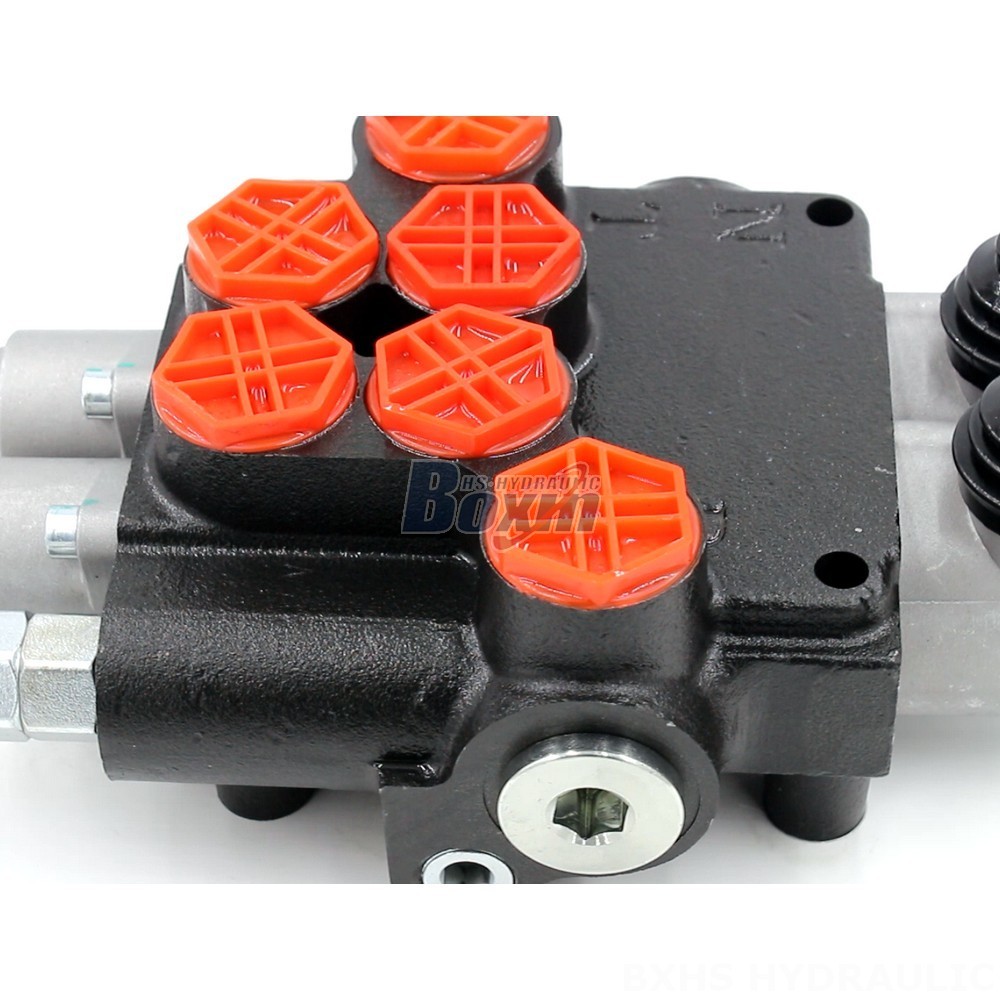

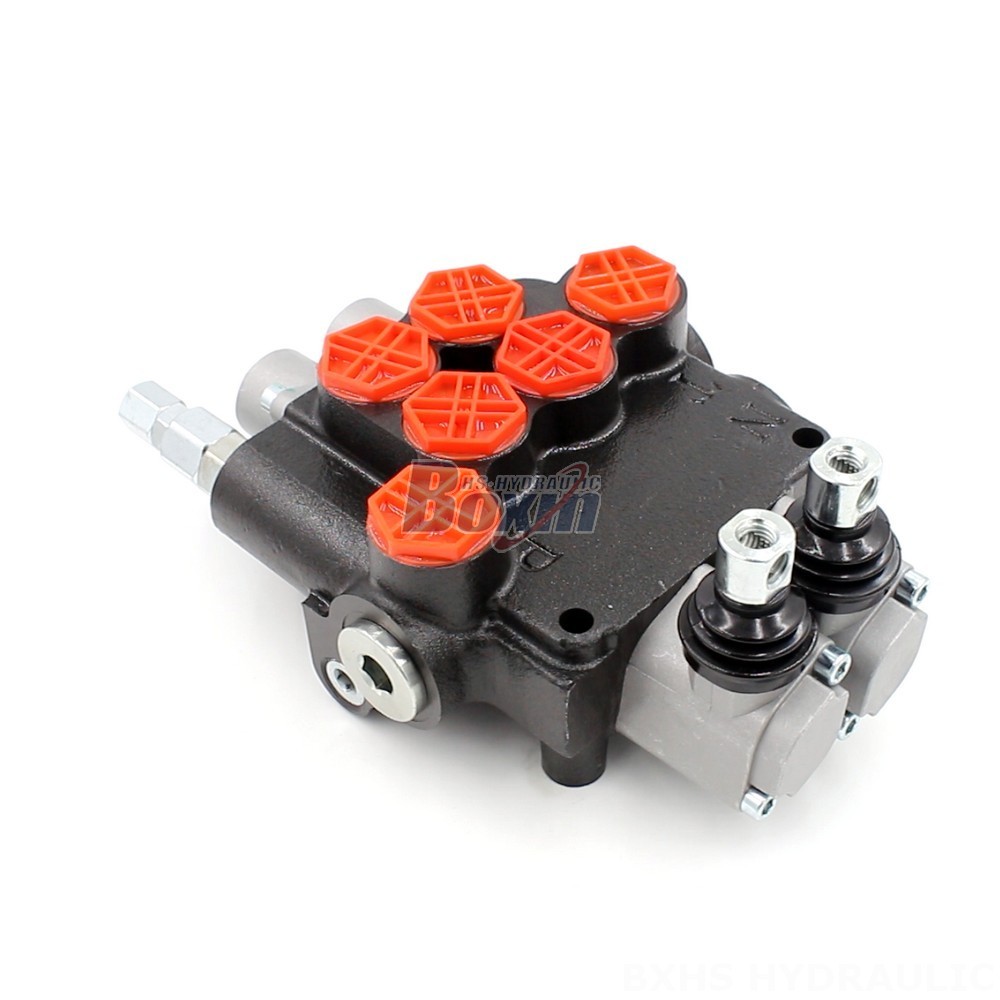

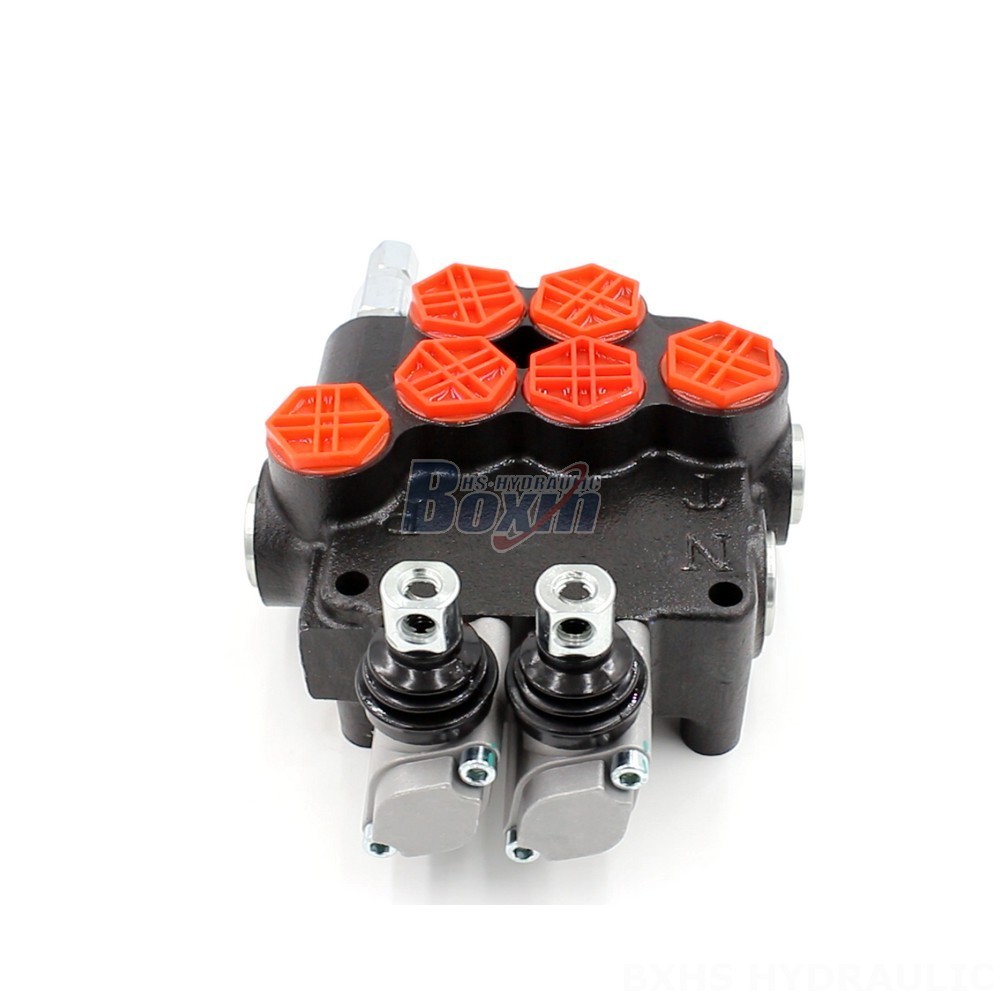

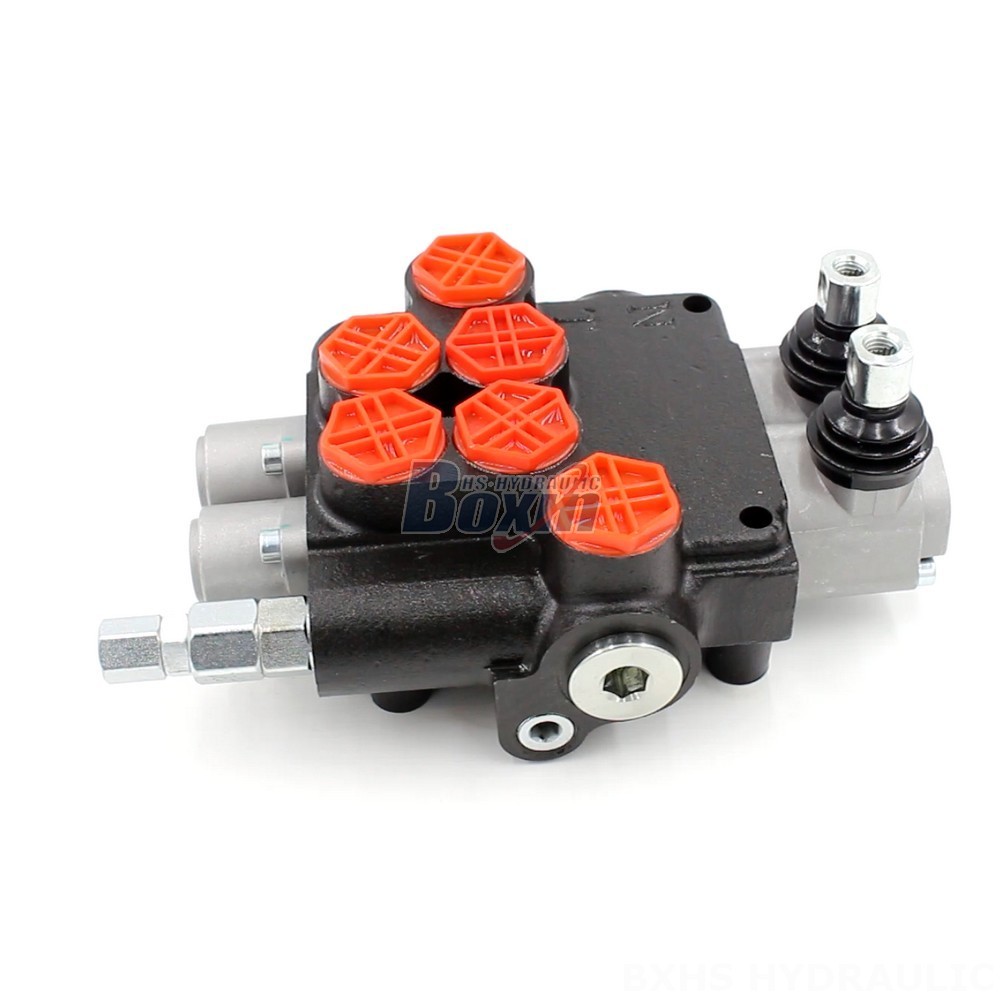

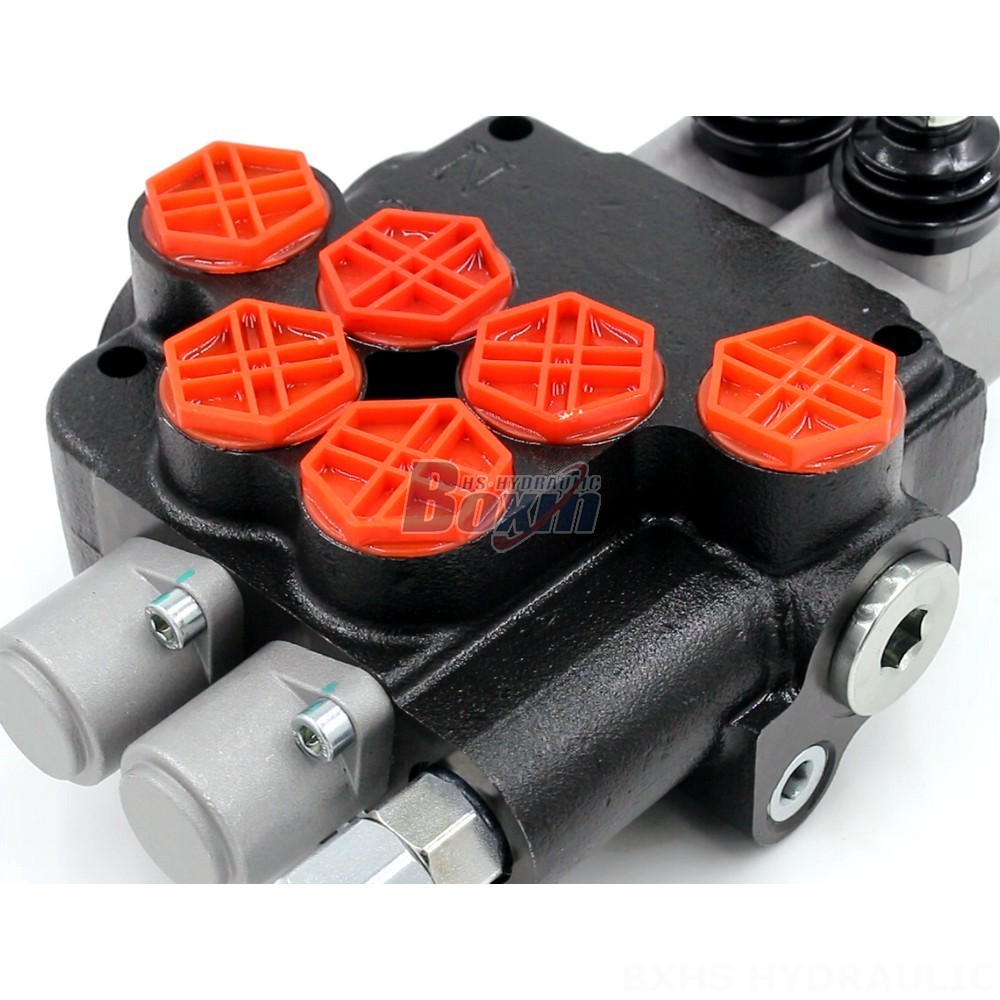

P80-G34-2OT Manual 2 Spool Monoblock Directional Valve

制御方法:手動

スプール:2スプール

定格流量:毎分80リットル (21.2 US gpm)

最大圧力:250 bar (3600 psi)

吸入口:G3/4

吐出口:G3/4

ポートサイズ:G3/4

ベンダー:BXHS

製品タイプ:モノブロック方向制御弁

製品シリーズ:P80シリーズ モノブロック方向制御弁

梱包サイズ:26*18*11

総重量:8.00 kg

在庫状況: 在庫あり

1126 この製品を探している人もいます

P80-G34-2OT Manual 2 Spool Monoblock Directional Valve

P80-G34-2OT Manual 2 Spool Monoblock Directional Valve

P80-G34-2OT Manual 2 Spool Monoblock Directional Valve drawing image

This P80 Series Hydraulic Valve is a manual, 2-spool, monoblock directional valve designed for a variety of applications including material handling, construction, and agriculture. It offers a rated flow of 80 L/min and a maximum pressure of 250 bar.

P80シリーズ モノブロック方向制御弁 パラメーター
制御方法 手動, 空圧, 電空, 電気油圧, ソレノイド, 油圧, 油圧および手動, ケーブル, ジョイスティック, 手動・ジョイスティック
スプール 1スプール, 2スプール, 3スプール, 4スプール, 5スプール, 6スプール, 7スプール
周囲温度範囲 -40°C to +80°C (-40°F to +176°F)
構造タイプ モノブロック弁
セクション 1セクション, 2セクション, 3セクション, 4セクション, 5セクション, 6セクション, 7セクション
作動粘度範囲 15 - 75 mm²/s (15 cSt to 75 cSt)
定格流量 毎分80リットル (21.2 US gpm)
最大圧力 315 bar (4600 psi)
吸入口 G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
吐出口 G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
ポートサイズ G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT

The P80-G34-2OT Manual 2 Spool Monoblock Directional Valve is a high-performance hydraulic valve designed for demanding applications. It features a manual control method, 2 sections, and a monoblock structure. With a rated flow of 80 L/min and a maximum pressure of 250 bar, this valve is suitable for various applications such as material handling, construction, and agriculture. It is specifically designed for use in telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders. The valve operates within an ambient temperature range of -40°C to +80°C and is compatible with operating viscosities ranging from 15 to 75 mm²/s.
