生産と納品
15~30日の生産リードタイム

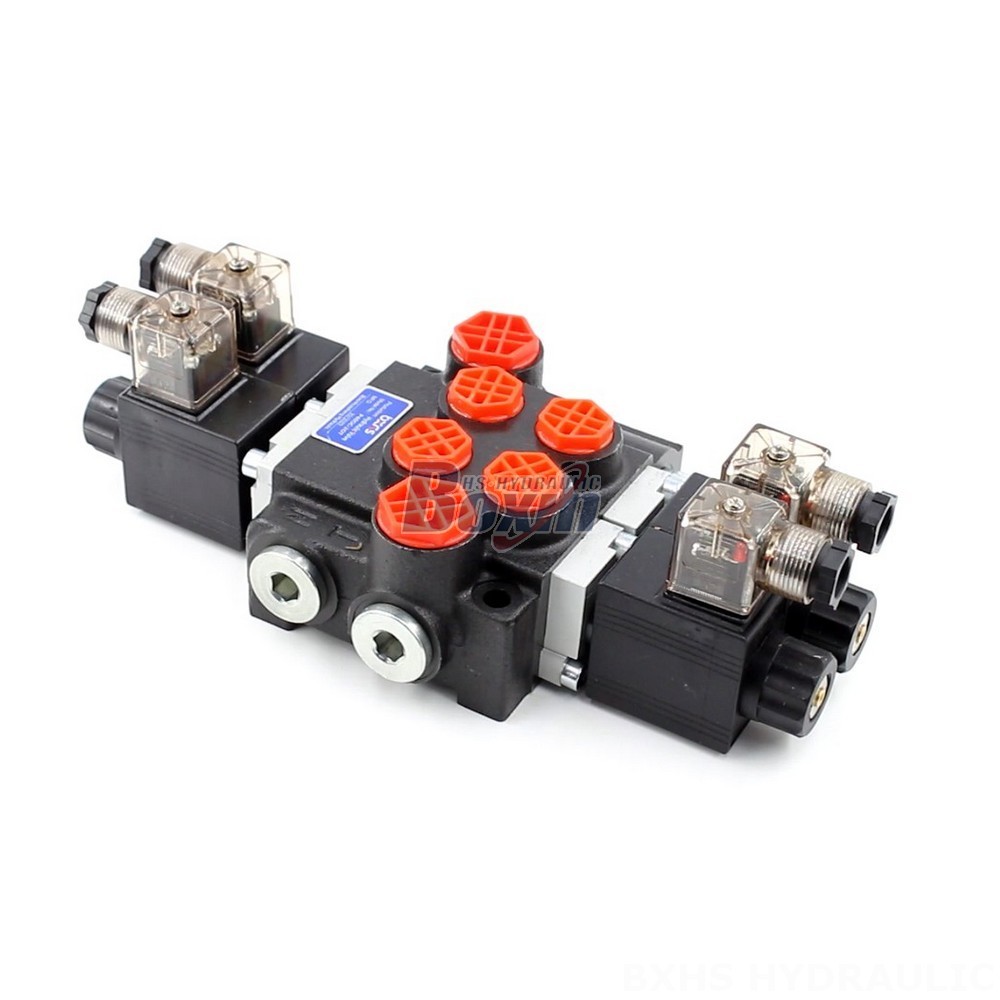

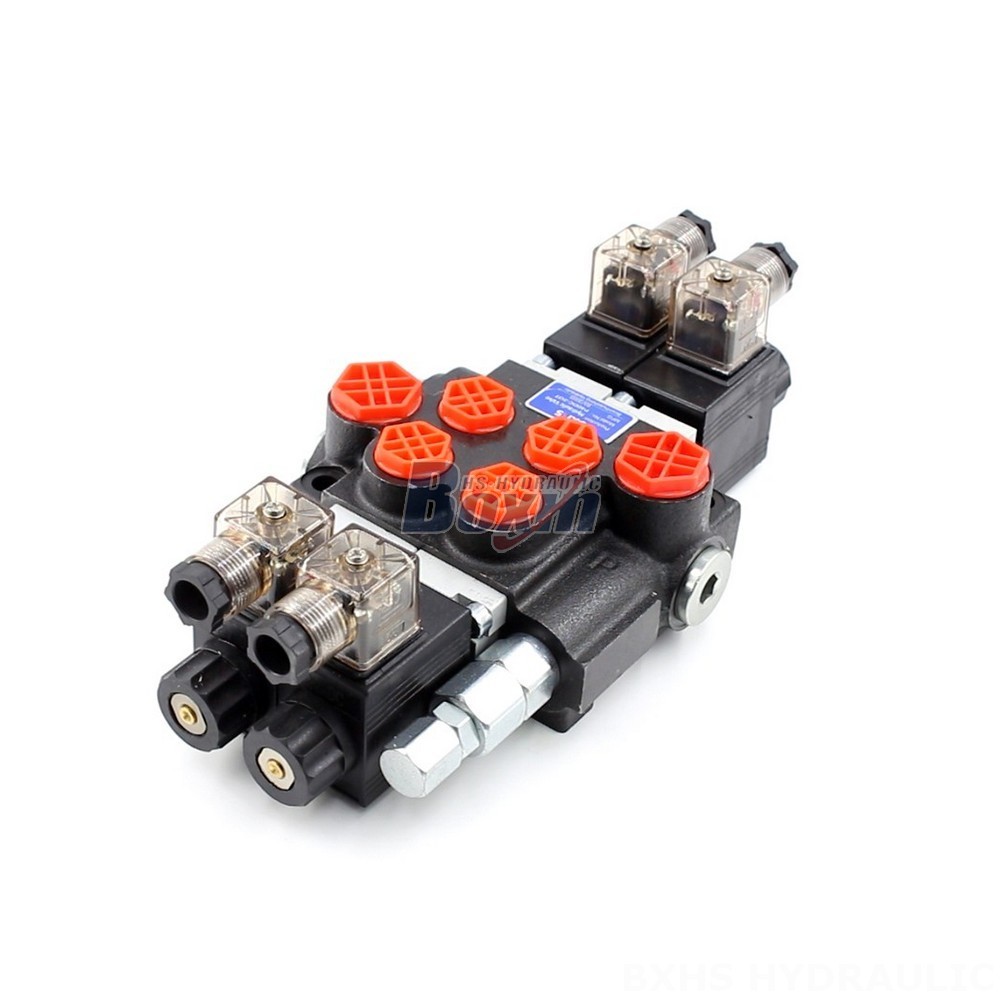

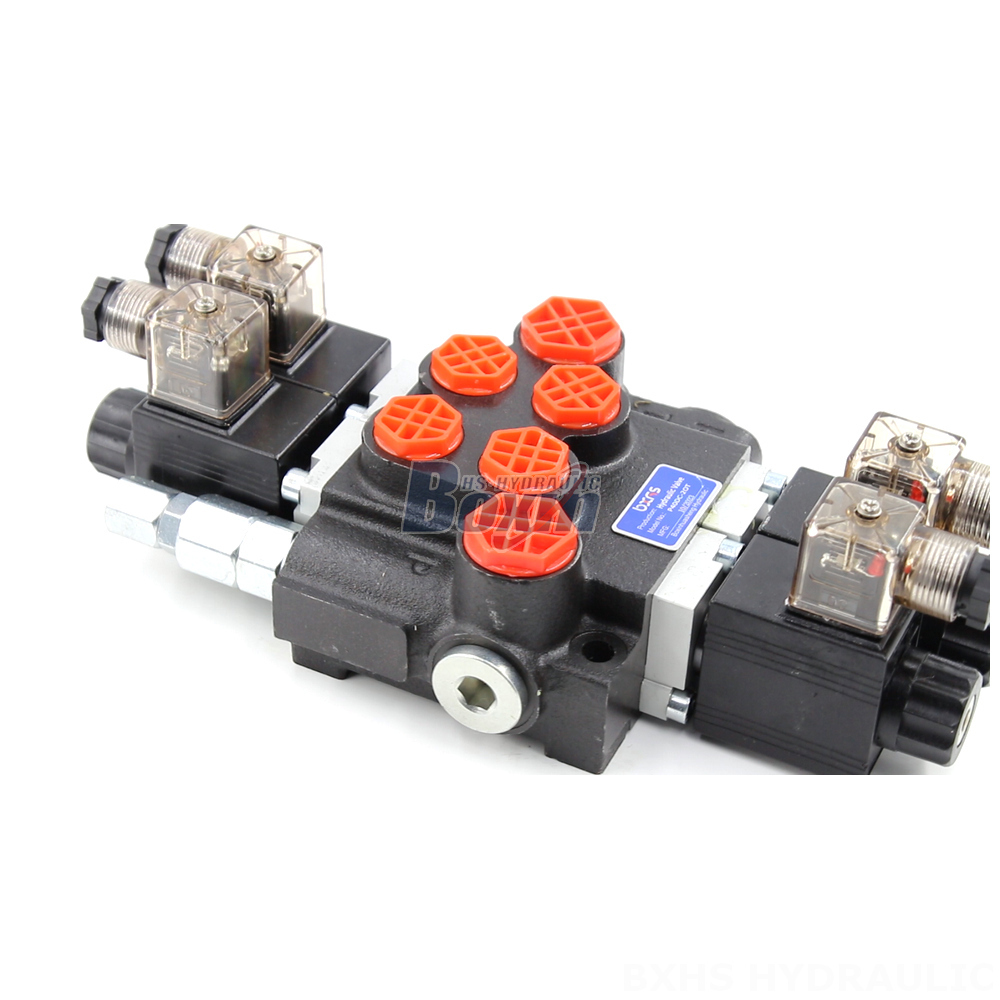

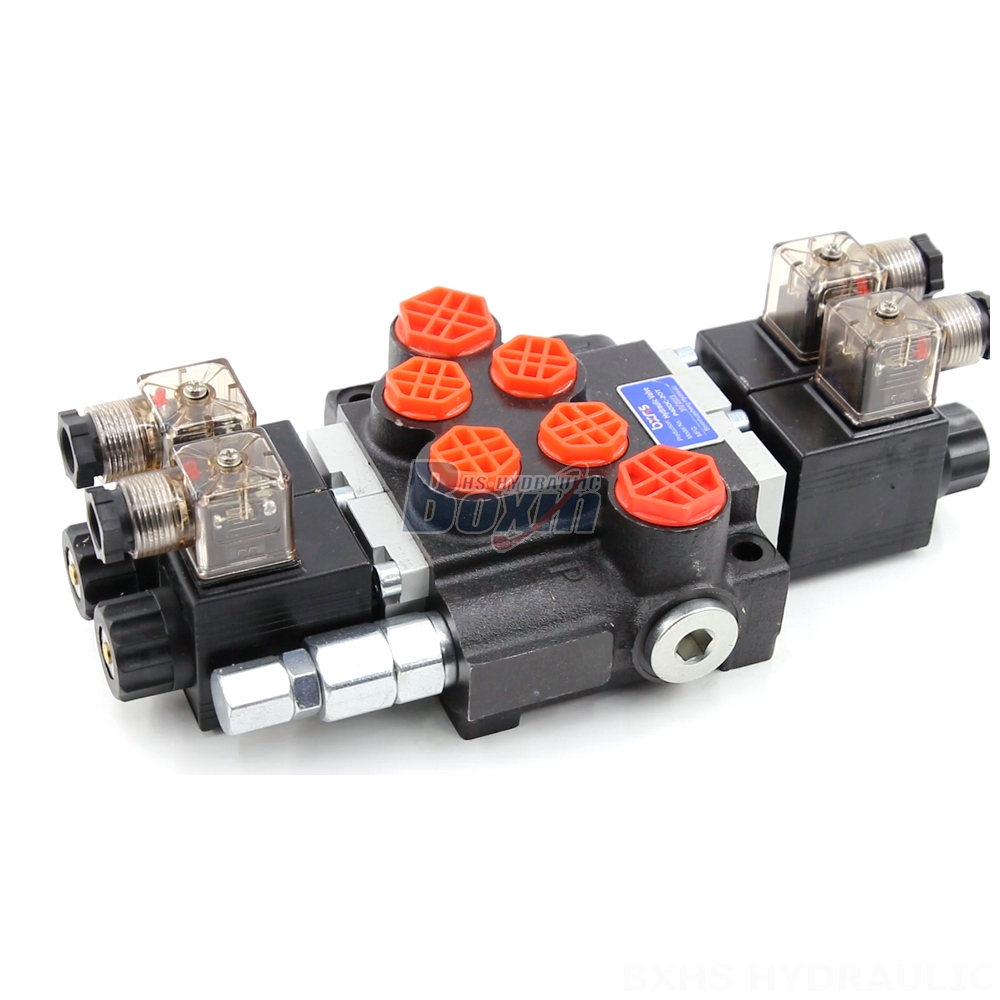

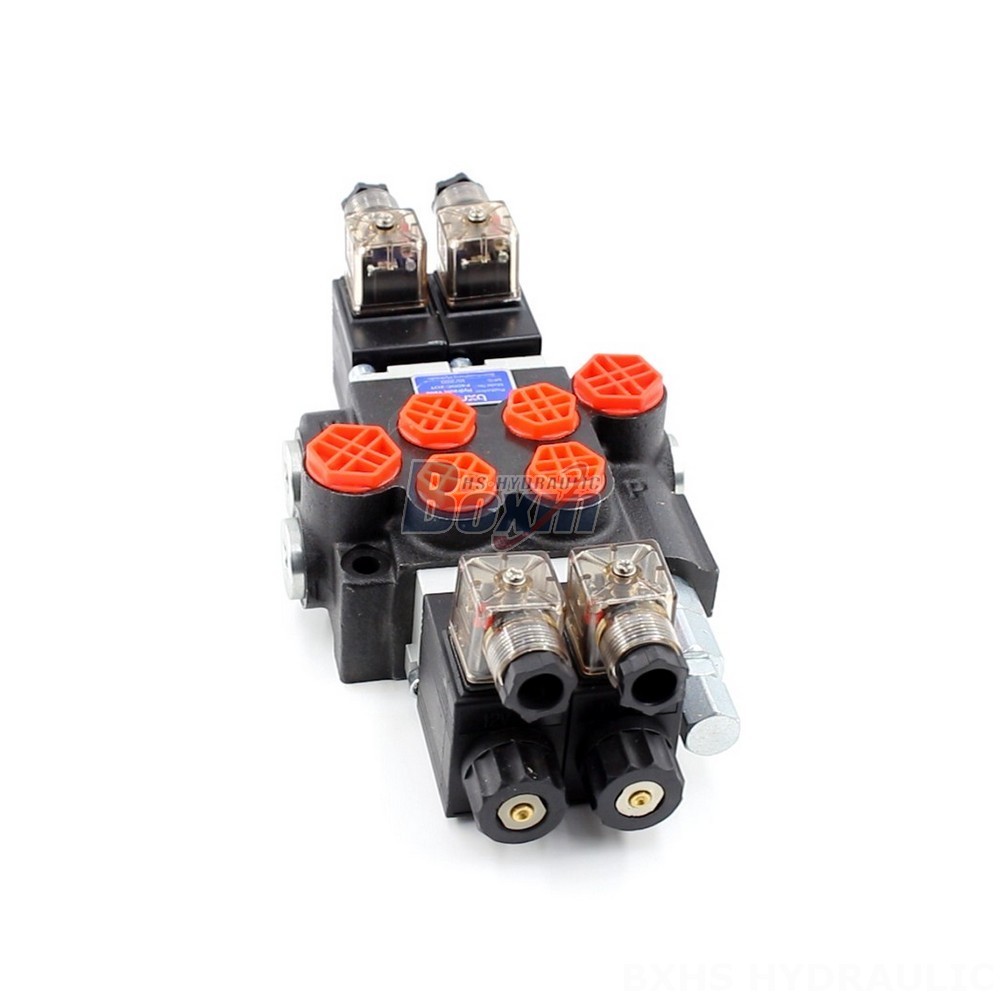

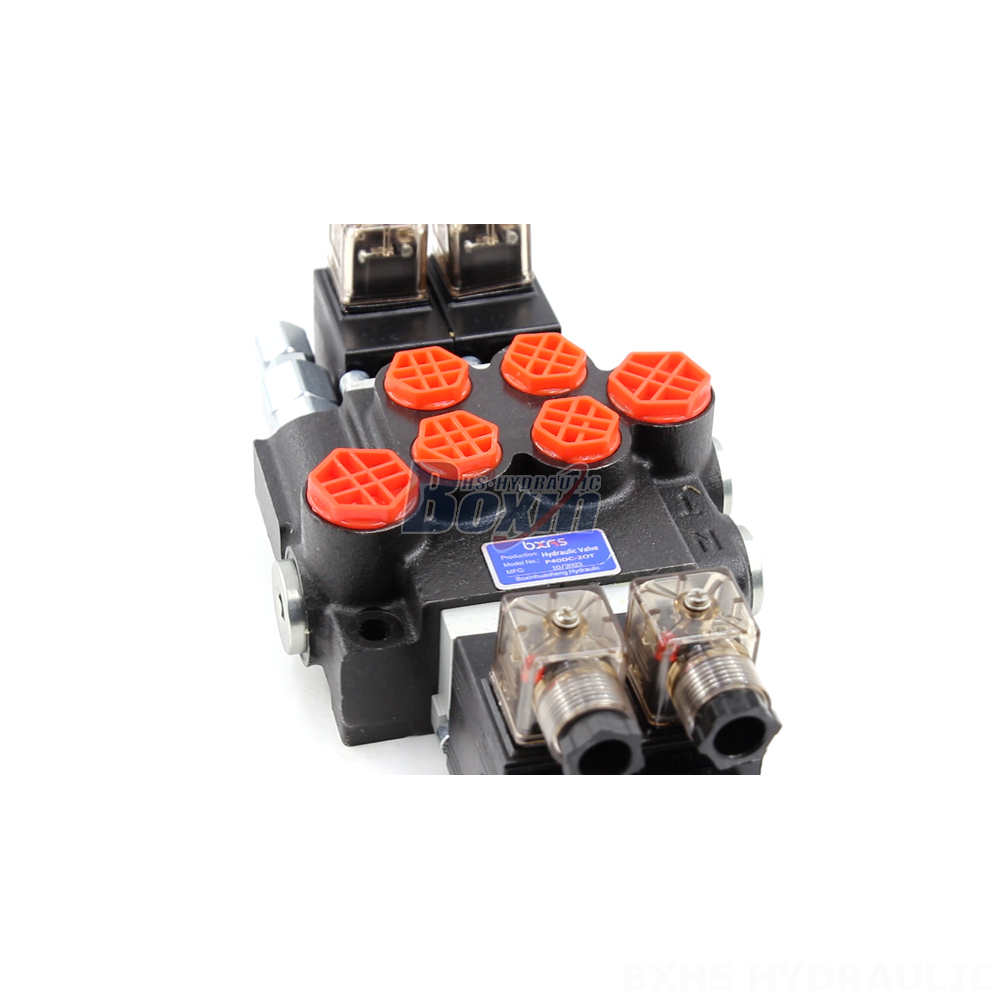

The P40 Series 5 Spool Directional Control Valve is a high-performance, reliable hydraulic valve designed for use in a variety of construction, material handling, and industrial vehicle applications. This 2-section, monoblock valve features a 40 L/min rated flow, 250 bar max pressure, and a solenoid control method. It is perfect for applications such as telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, excavators, skid steer loaders, compact wheel loaders, wheel loaders, backhoe loaders, and dumpers.
| P40シリーズ モノブロック方向制御弁 パラメーター | |
|---|---|
| 制御方法 | 手動, 空圧, 電空, 電気油圧, ソレノイド, 油圧, 油圧および手動, ケーブル, ジョイスティック, ソレノイド・ジョイスティック, 手動・ジョイスティック, ソレノイドおよびケーブル式 |
| スプール | 1スプール, 2スプール, 3スプール, 4スプール, 5スプール, 6スプール, 7スプール |
| 周囲温度範囲 | -40°C to +80°C (-40°F to +176°F) |
| 構造タイプ | モノブロック弁 |
| セクション | 1セクション, 2セクション, 3セクション, 4セクション, 5セクション, 6セクション, 7セクション |
| 作動粘度範囲 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 定格流量 | 毎分40リットル (10.5 US gpm) |
| 最大圧力 | 250 bar (3600 psi) |
| 吸入口 | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| 吐出口 | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| ポートサイズ | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
This P40 Series 5 Spool Directional Control Valve is a 2-section, monoblock valve with a solenoid control method. It boasts a 40 L/min rated flow, 250 bar max pressure, and an operating viscosity range of 15 - 75 mm²/s. Its robust design and wide operating temperature range (-40°C to +80°C) make it ideal for demanding applications in the construction, material handling, and industrial vehicle industries. This valve is suitable for a wide range of machines, including telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, compact wheel loaders, wheel loaders, backhoe loaders, and dumpers. Choose the P40 Series 5 Spool Directional Control Valve for reliable and efficient hydraulic control in your applications.
