生産と納品
15~30日の生産リードタイム

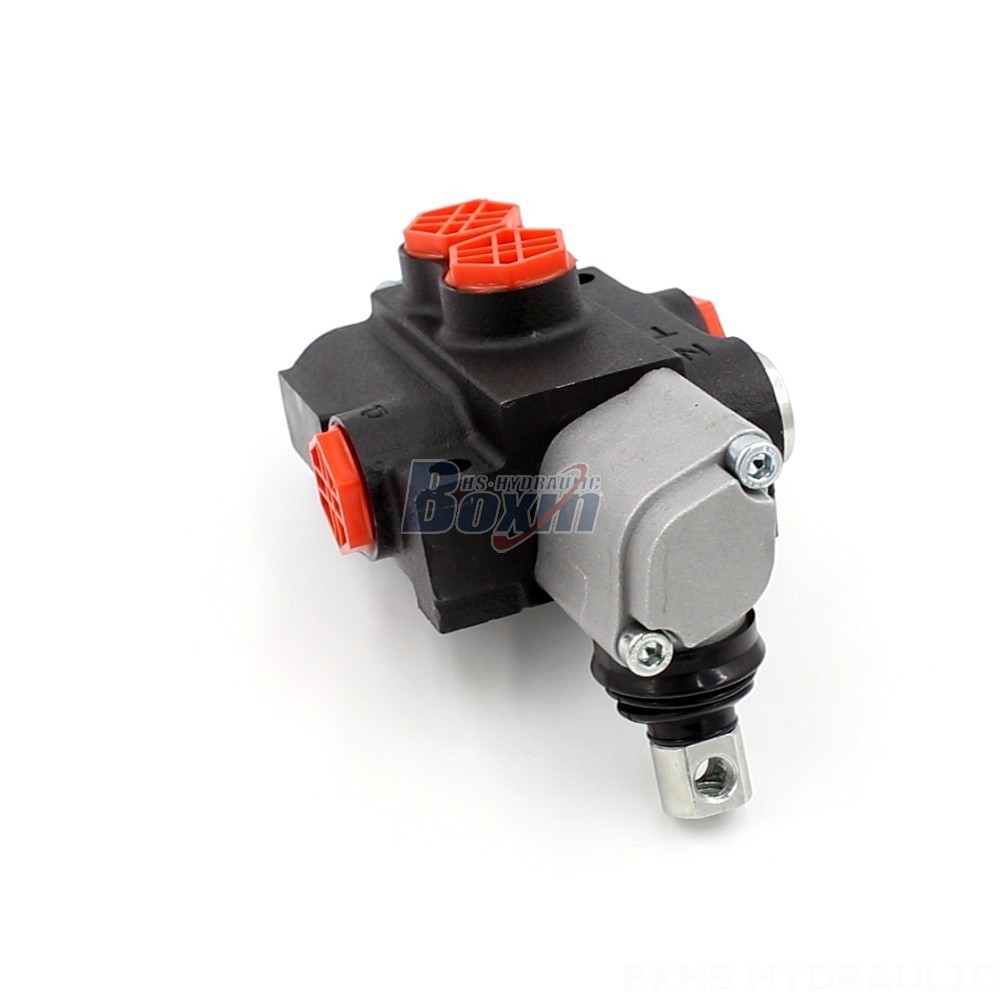

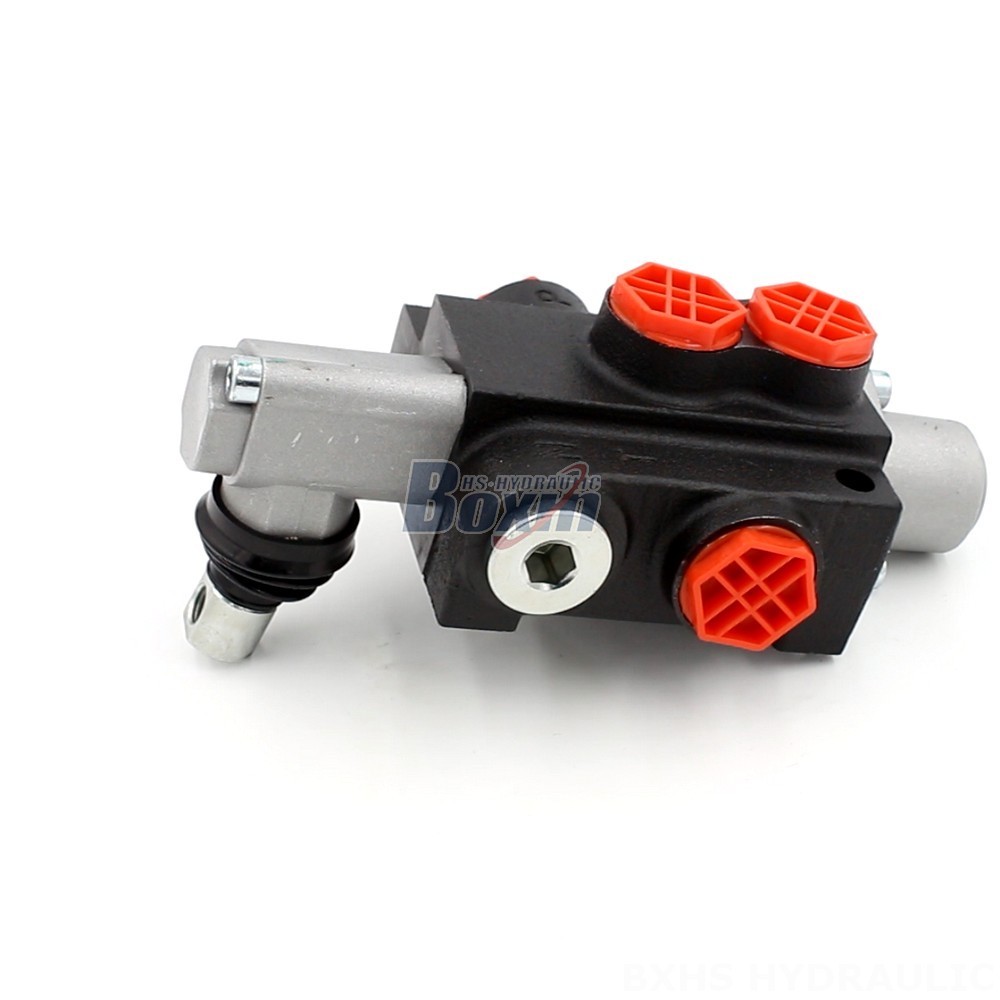

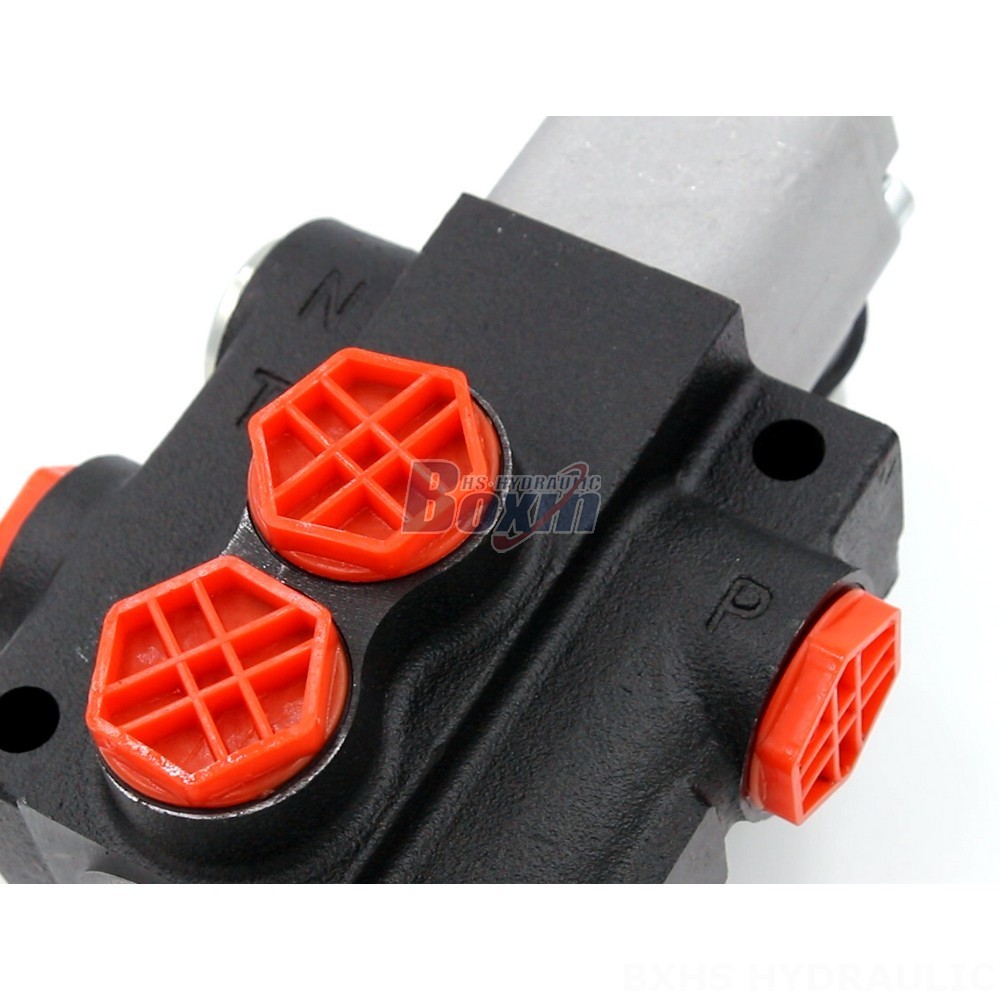

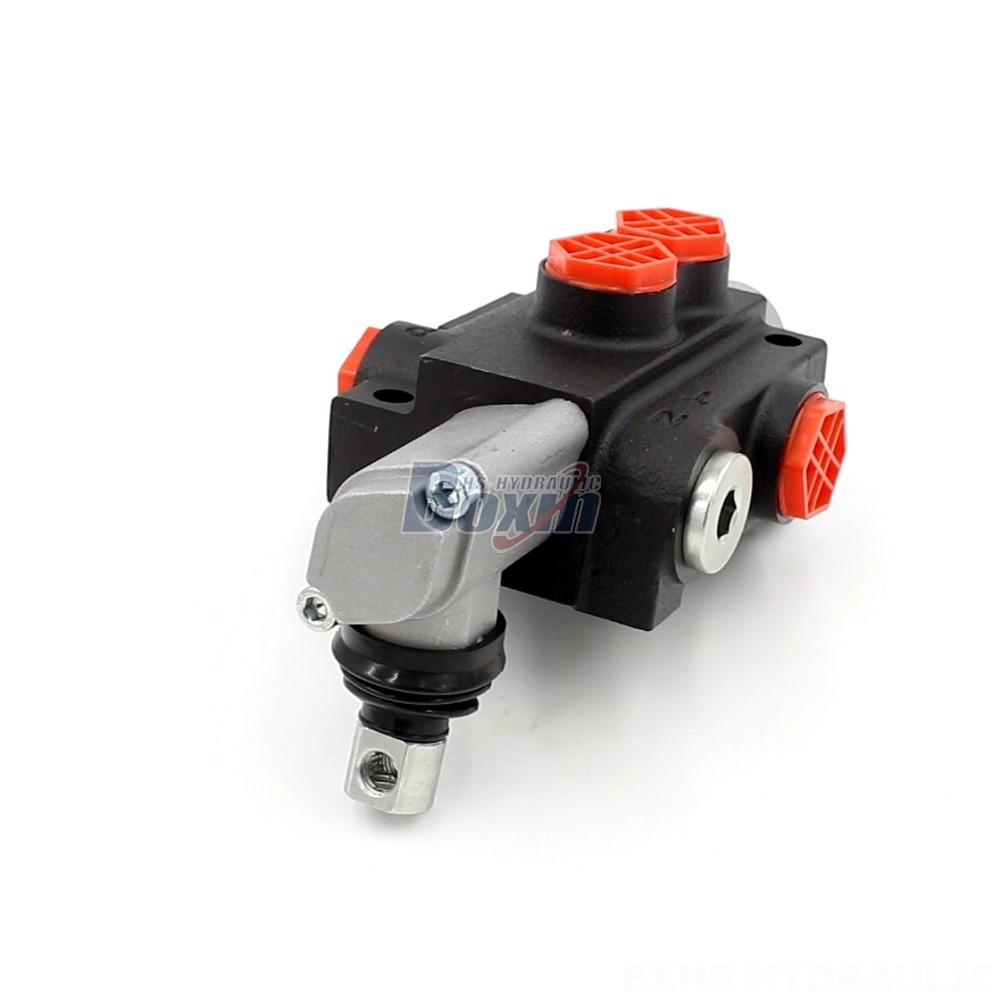

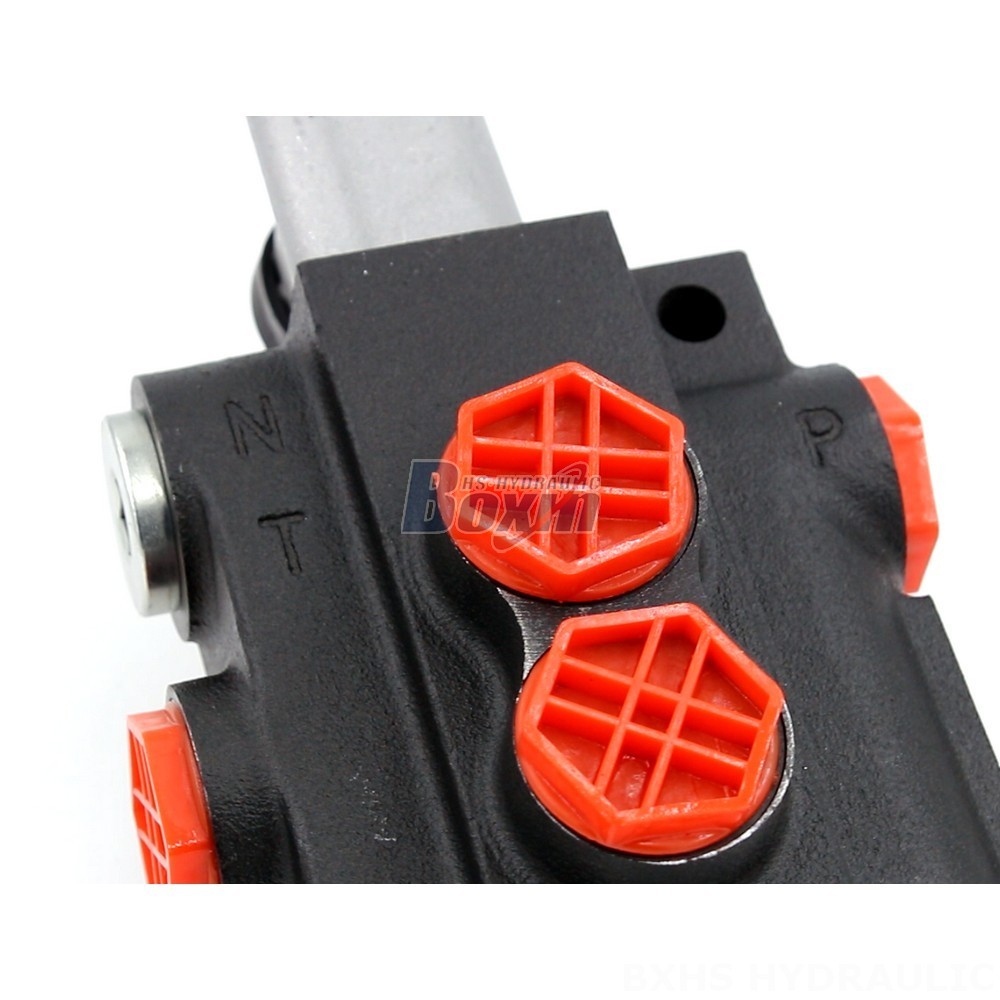

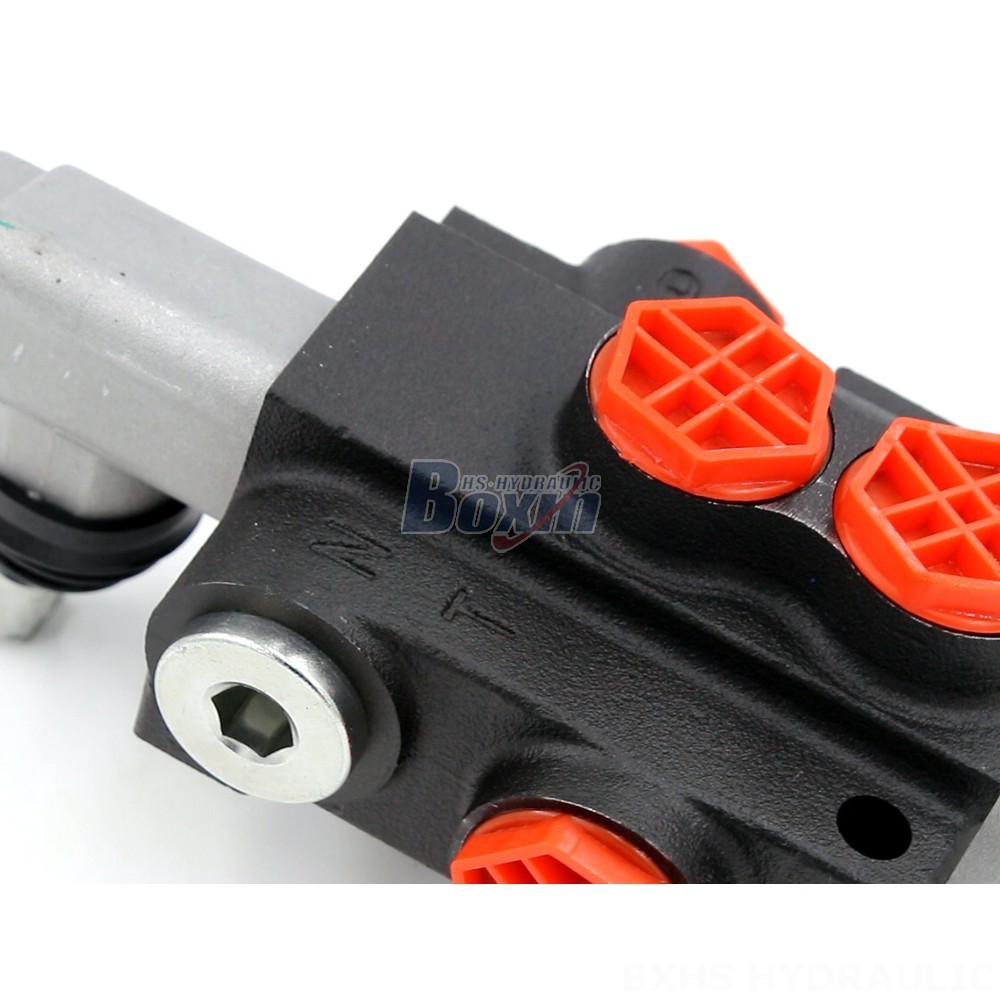

The P40-G12-OT Tipper Control Valve is a high-performance hydraulic directional valve designed for demanding applications in material handling, construction, earthmoving, agriculture, and industrial vehicles. It features a manual control method, 1 section, monoblock valve structure, 40 L/min rated flow, and 250 bar maximum pressure. This valve is available factory direct and customizable to meet your specific needs.
| P40シリーズ モノブロック方向制御弁 パラメーター | |
|---|---|
| 制御方法 | 手動, 空圧, 電空, 電気油圧, ソレノイド, 油圧, 油圧および手動, ケーブル, ジョイスティック, ソレノイド・ジョイスティック, 手動・ジョイスティック, ソレノイドおよびケーブル式 |
| スプール | 1スプール, 2スプール, 3スプール, 4スプール, 5スプール, 6スプール, 7スプール |
| 周囲温度範囲 | -40°C to +80°C (-40°F to +176°F) |
| 構造タイプ | モノブロック弁 |
| セクション | 1セクション, 2セクション, 3セクション, 4セクション, 5セクション, 6セクション, 7セクション |
| 作動粘度範囲 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 定格流量 | 毎分40リットル (10.5 US gpm) |
| 最大圧力 | 250 bar (3600 psi) |
| 吸入口 | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| 吐出口 | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| ポートサイズ | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
The P40-G12-OT Tipper Control Valve is a reliable and durable hydraulic valve designed for heavy-duty applications. It offers a compact and robust design with a 1-section monoblock valve structure. This valve is manually controlled, providing precise and responsive operation. With a rated flow of 40 L/min and a maximum pressure of 250 bar, this valve delivers powerful hydraulic performance. It's suitable for a wide range of applications, including telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, excavators, and skid steer loaders. The P40-G12-OT Tipper Control Valve is manufactured with high-quality materials and rigorous testing to ensure long-lasting performance and reliability. It's available factory direct, offering flexibility for customization to meet your specific requirements. This valve is ideal for demanding applications where robust performance and reliability are essential.
