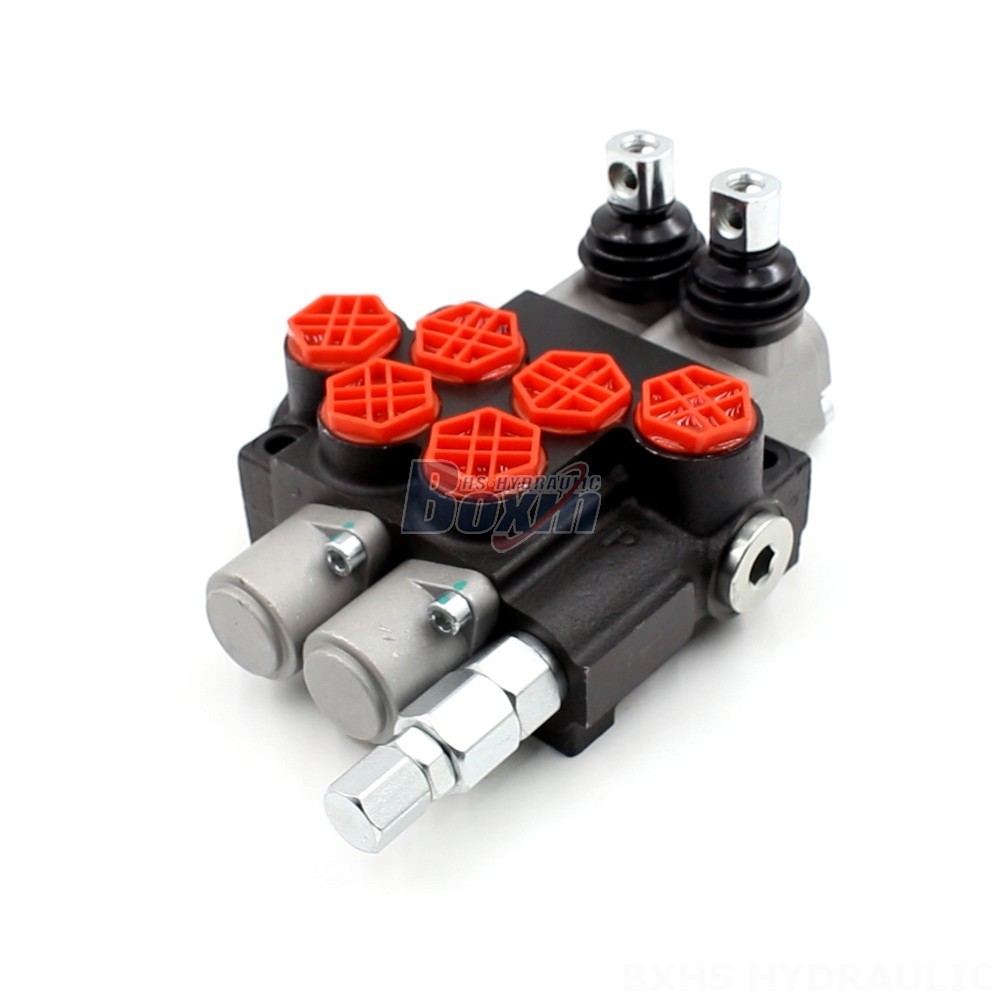

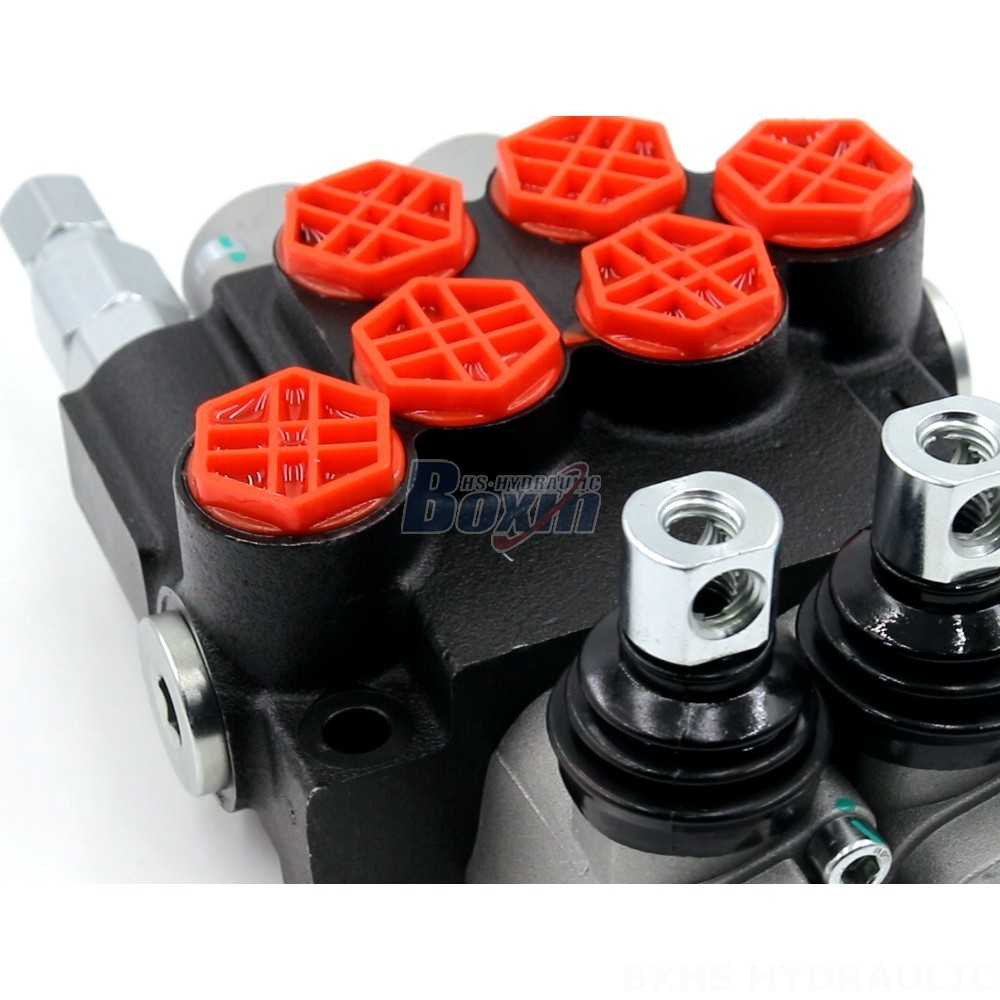

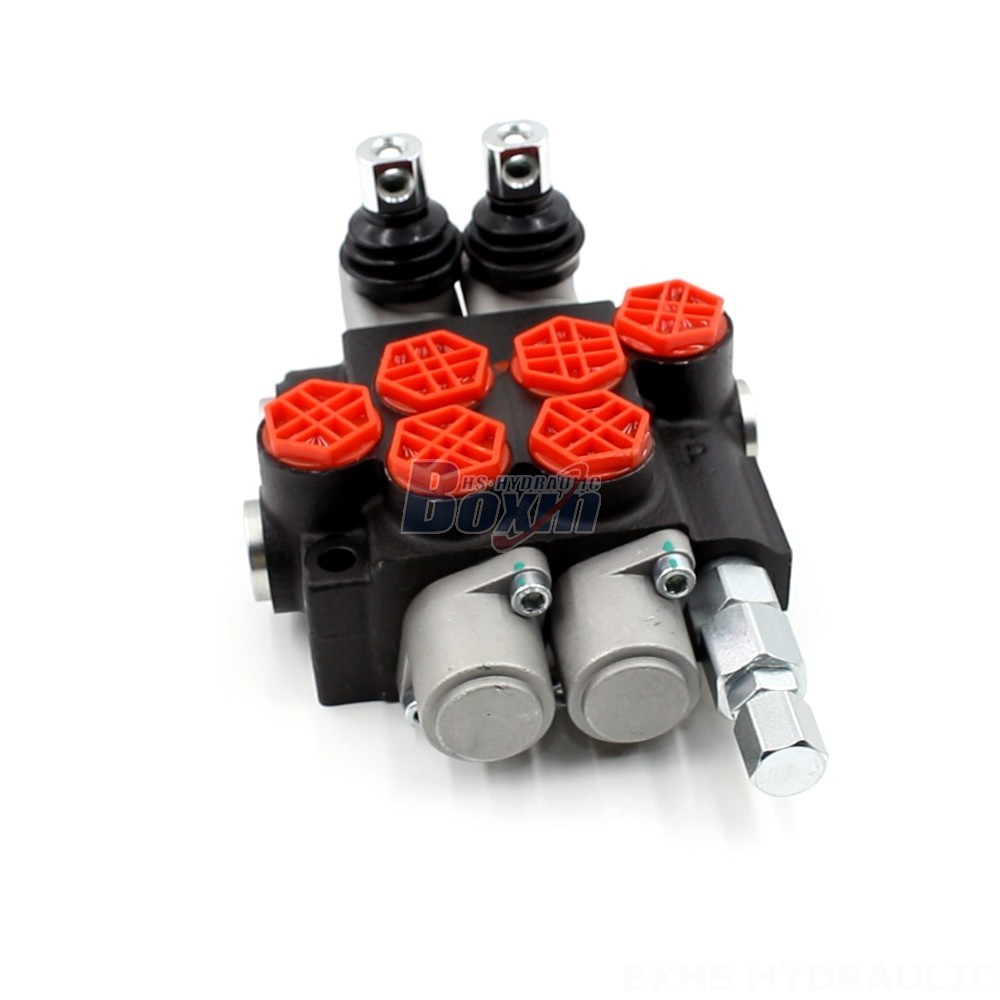

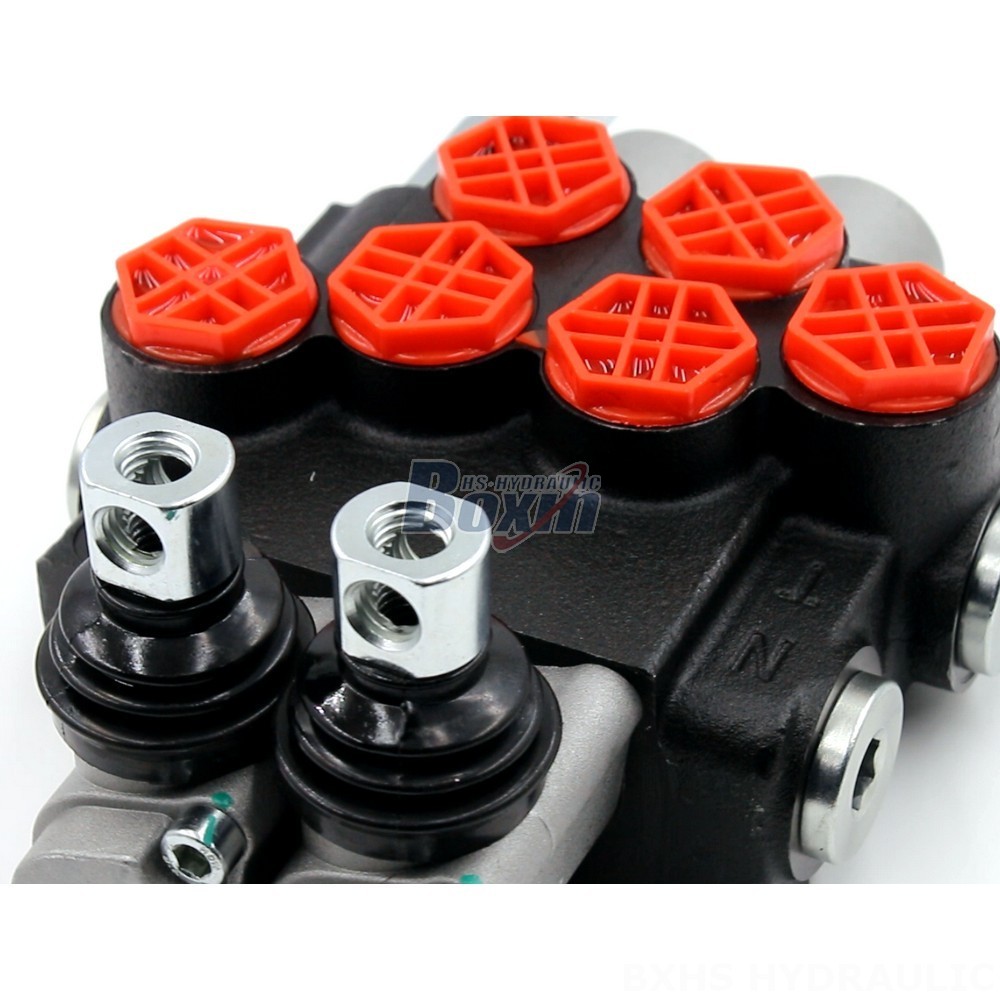

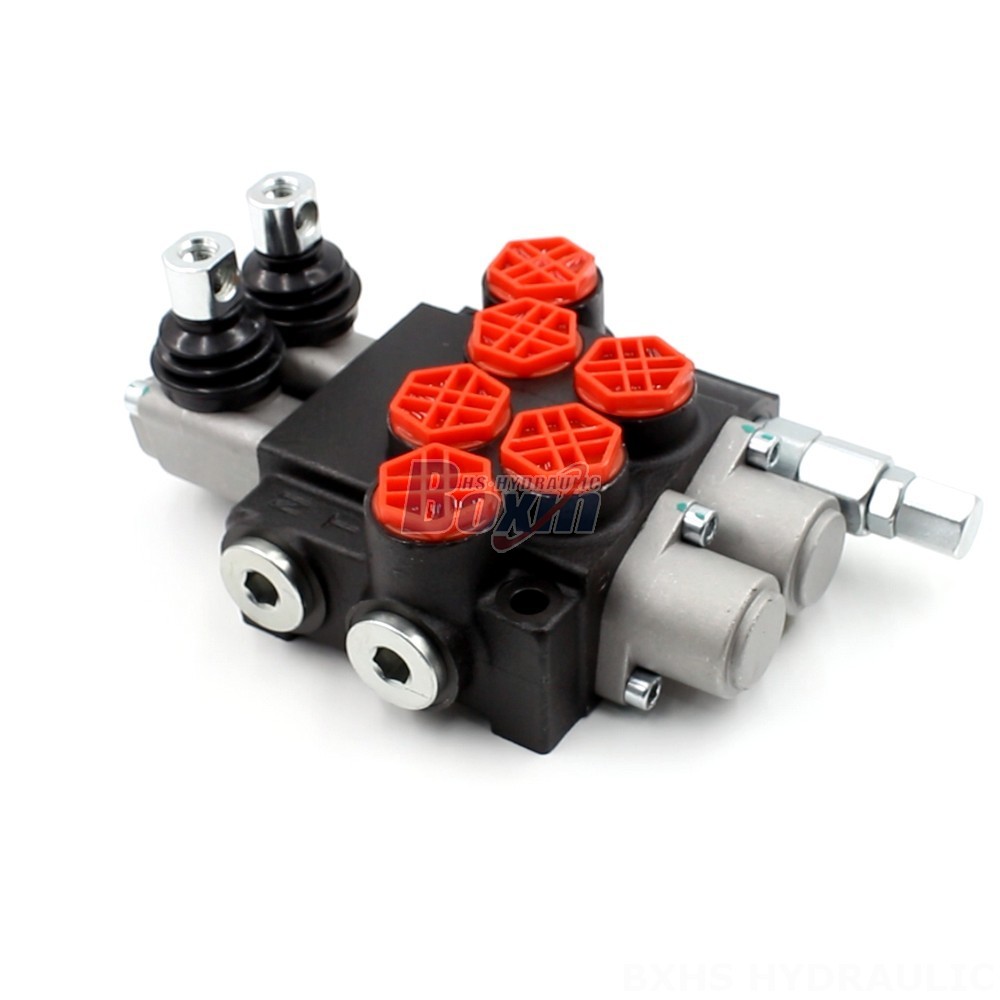

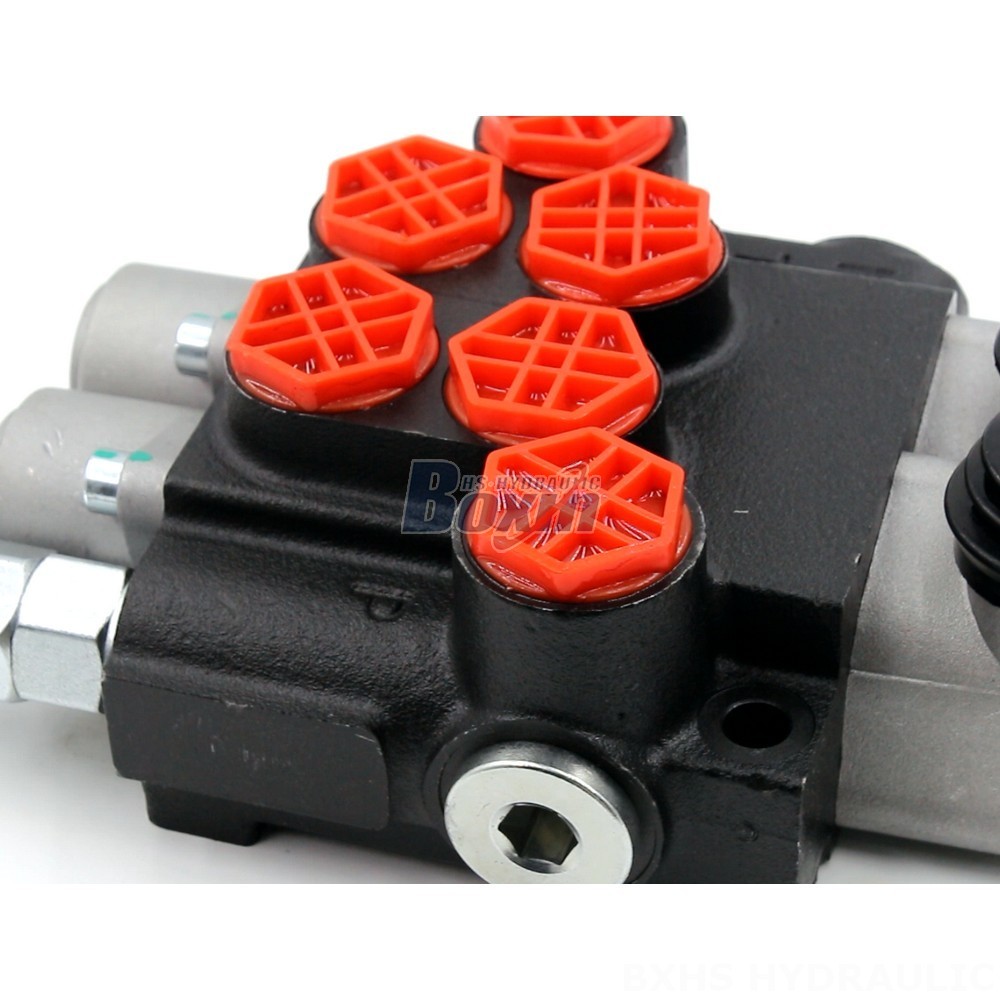

The P40-G12 Monoblock Directional Valve is a reliable and versatile hand operated hydraulic valve designed for a wide range of applications. It features a 2-section design, 40 L/min rated flow, and 250 bar maximum pressure, making it suitable for material handling, construction, earthmoving, agriculture, and industrial vehicles.
| P40シリーズ モノブロック方向制御弁 パラメーター | |
|---|---|
| 制御方法 | 手動, 空圧, 電空, 電気油圧, ソレノイド, 油圧, 油圧および手動, ケーブル, ジョイスティック, ソレノイド・ジョイスティック, 手動・ジョイスティック, ソレノイドおよびケーブル式 |
| スプール | 1スプール, 2スプール, 3スプール, 4スプール, 5スプール, 6スプール, 7スプール |
| 周囲温度範囲 | -40°C to +80°C (-40°F to +176°F) |
| 構造タイプ | モノブロック弁 |
| セクション | 1セクション, 2セクション, 3セクション, 4セクション, 5セクション, 6セクション, 7セクション |
| 作動粘度範囲 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 定格流量 | 毎分40リットル (10.5 US gpm) |
| 最大圧力 | 250 bar (3600 psi) |
| 吸入口 | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| 吐出口 | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| ポートサイズ | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
This hand-operated hydraulic valve is a 2-section monoblock valve offering a rated flow of 40 L/min and a maximum pressure of 250 bar. Designed for demanding applications in industries like material handling, construction, earthmoving, agriculture, and industrial vehicles, this valve is compatible with various equipment types including telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, compact wheel loaders, wheel loaders, backhoe loaders, dumpers, face drill rigs, concrete boom pumps, pave rollers, rotary drilling equipment, and crushers. The valve boasts a robust construction and an operating viscosity range of 15-75 mm²/s, ensuring reliable operation in diverse environments and temperature ranges from -40°C to +80°C. The P40-G12 valve is a valuable component for various hydraulic systems, offering reliable control and efficiency.
