P40-G12-G38 Directional Valve | Distributorship Opportunities

制御方法:手動

スプール:3スプール

定格流量:毎分40リットル (10.5 US gpm)

最大圧力:250 bar (3600 psi)

吸入口:G1/2

吐出口:G1/2

ポートサイズ:G3/8

ベンダー:BXHS

製品タイプ:モノブロック方向制御弁

製品シリーズ:P40シリーズ モノブロック方向制御弁

梱包サイズ:24*21*13

総重量:7.00 kg

在庫状況: 在庫あり

981 この製品を探している人もいます

P40-G12-G38 Directional Valve | Distributorship Opportunities

P40-G12-G38 Directional Valve | Distributorship Opportunities

P40-G12-G38 Directional Valve | Distributorship Opportunities drawing image

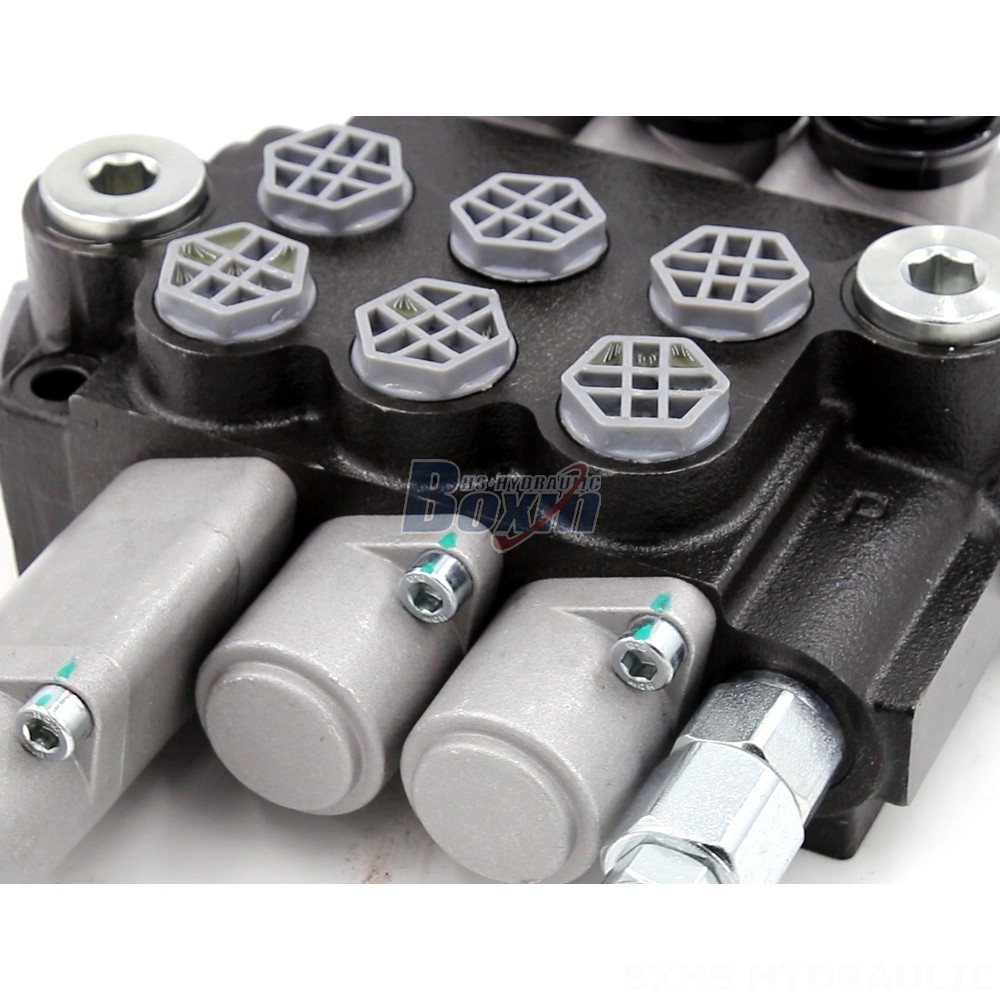

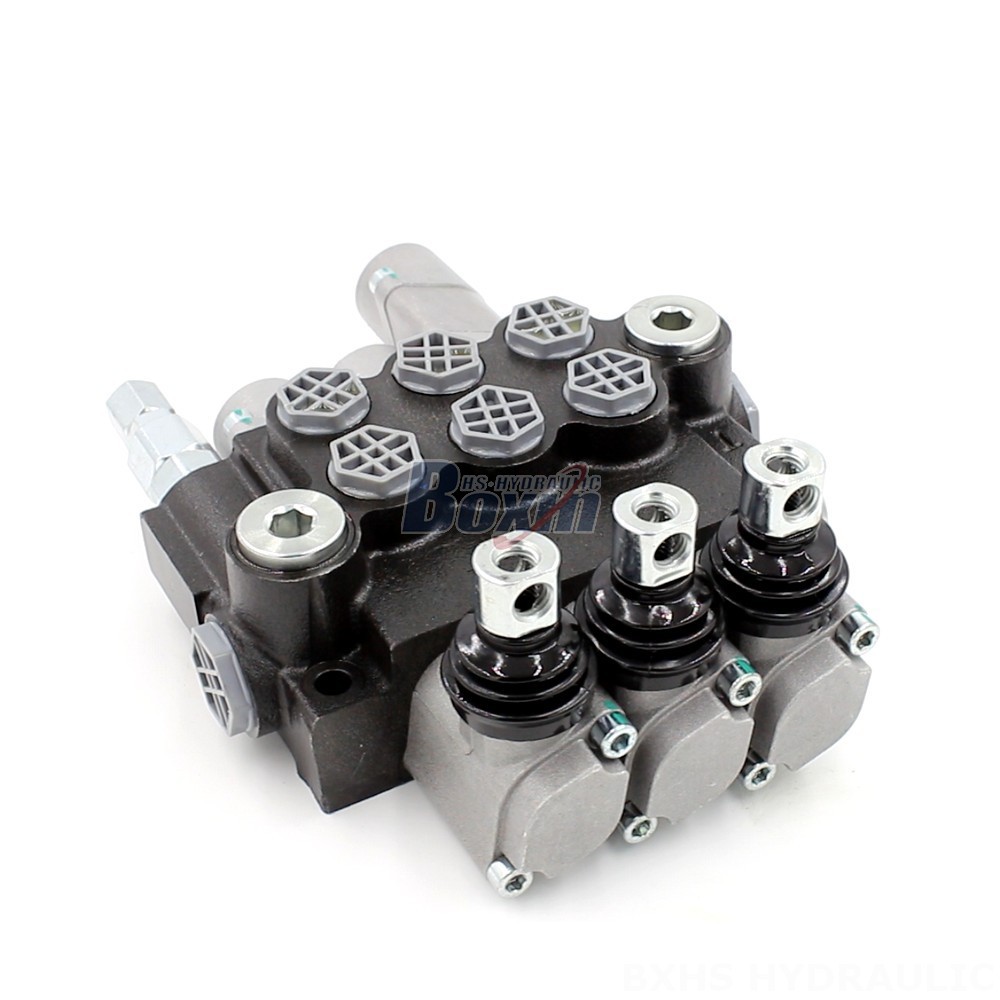

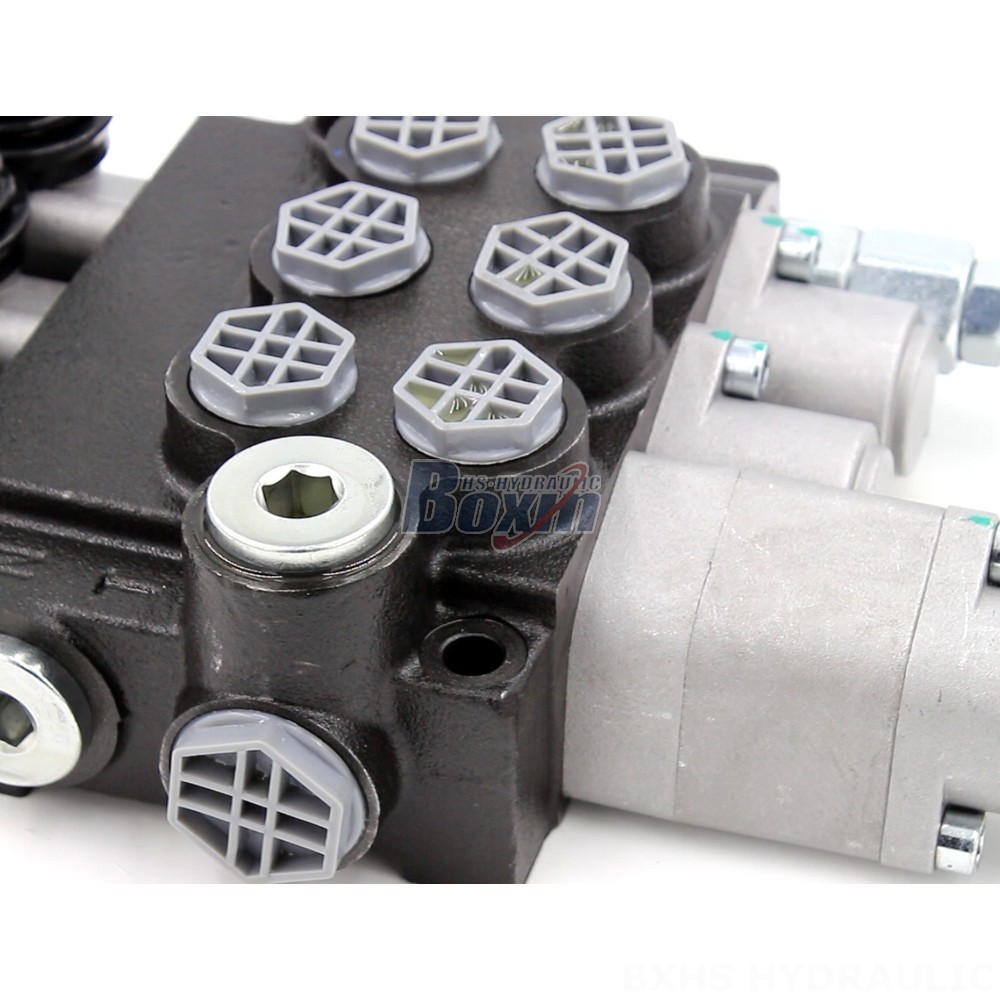

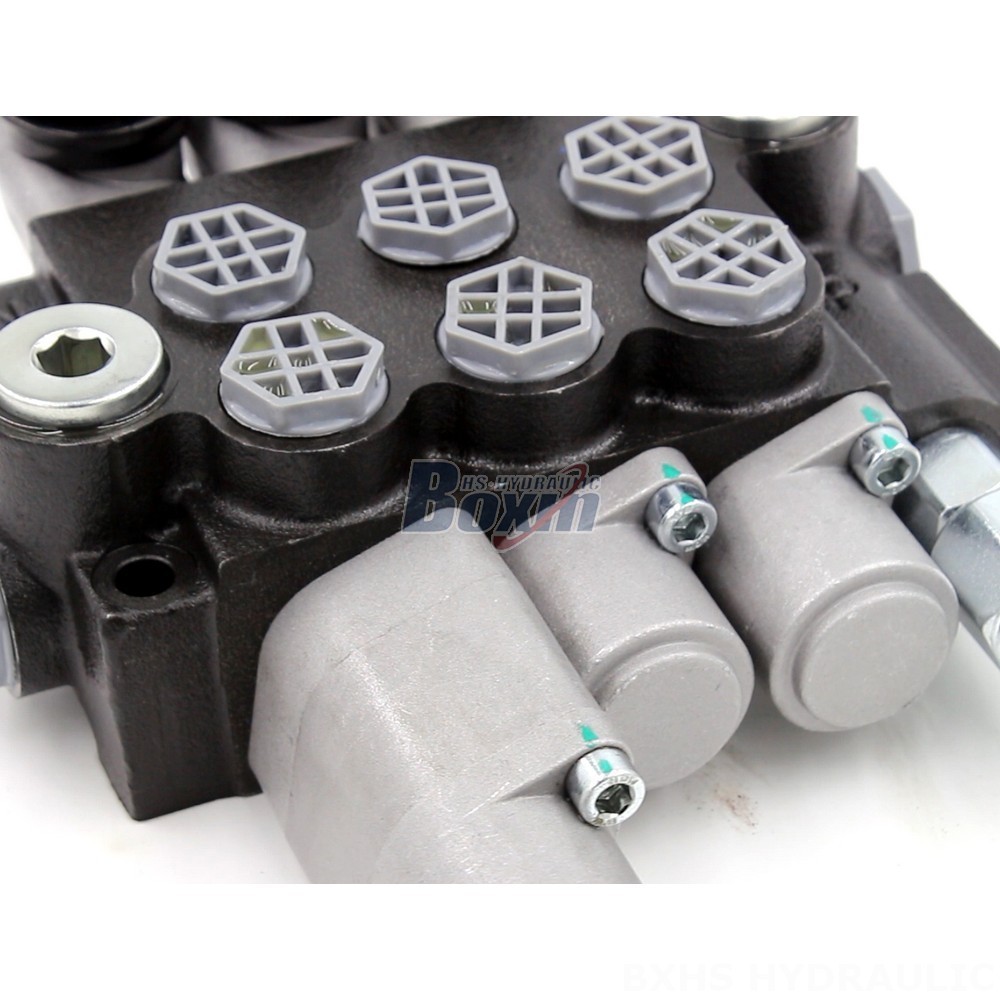

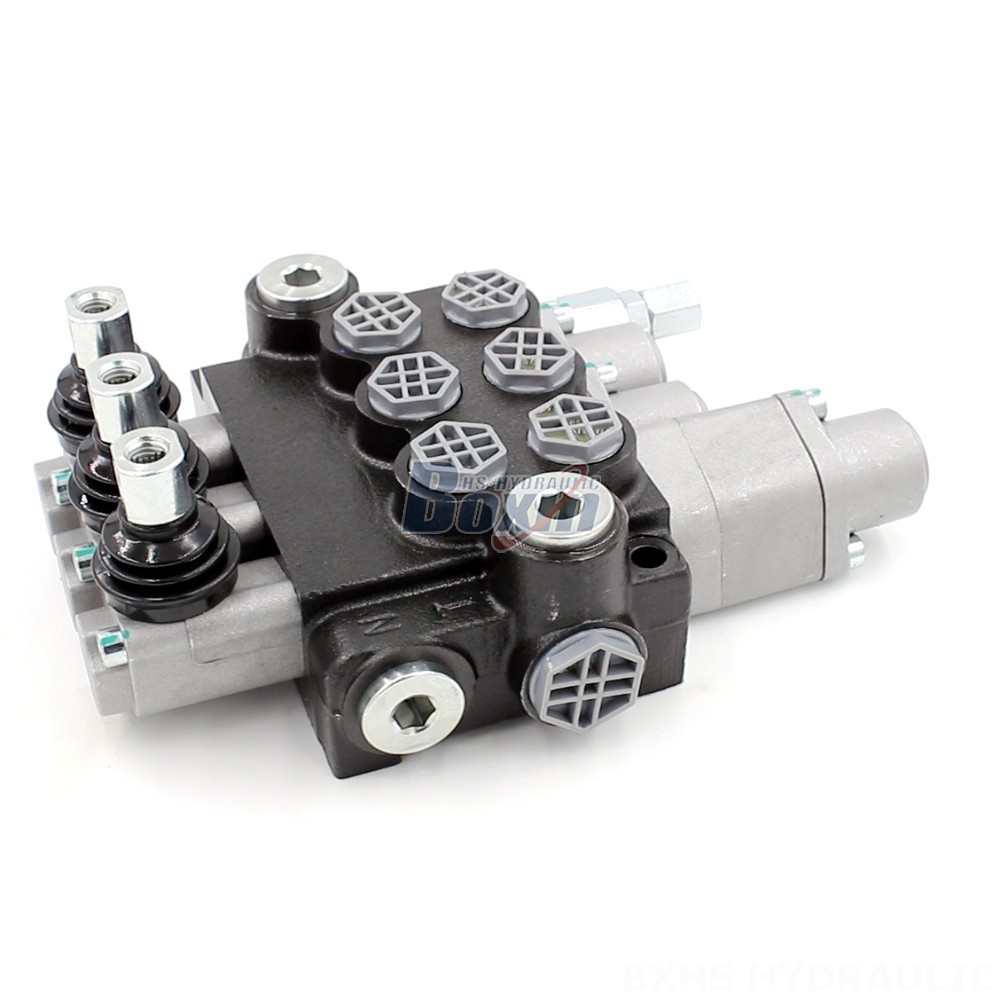

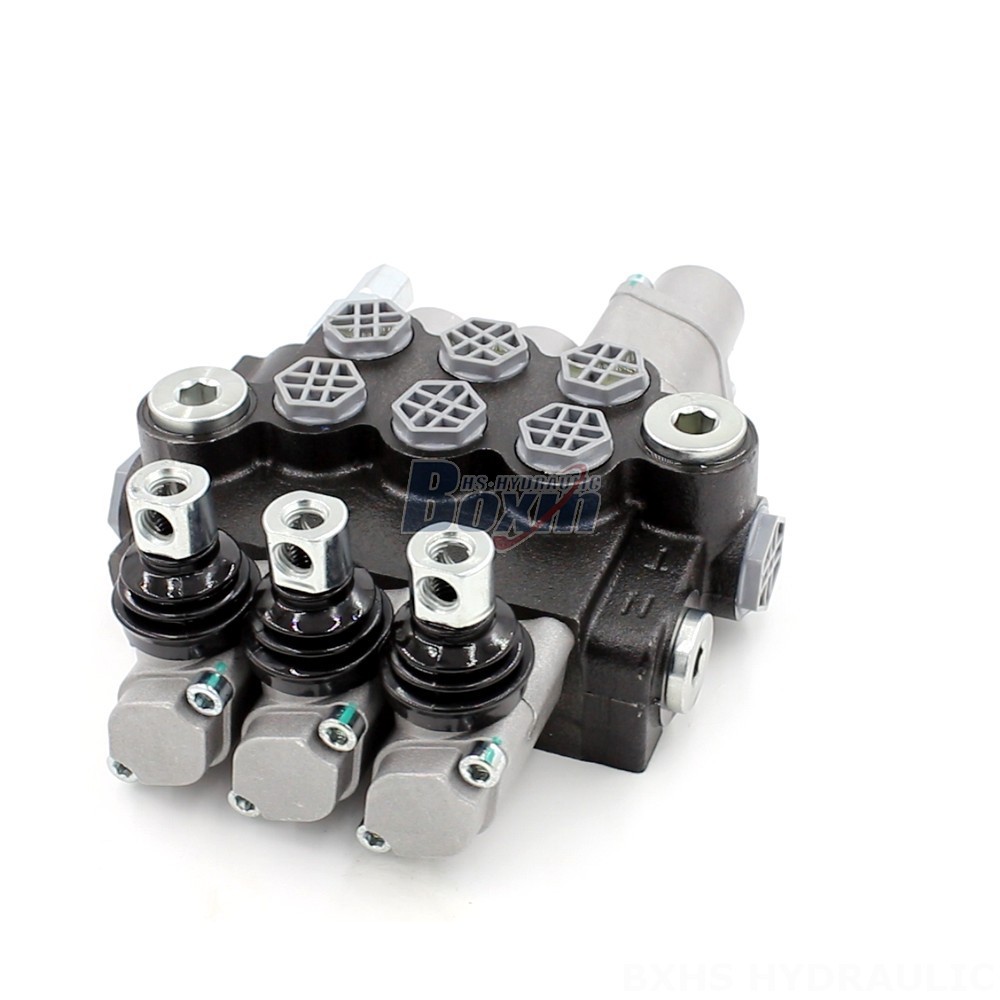

The P40-G12-G38 3 Way Directional Control Valve is a reliable and versatile hydraulic valve designed for use in a wide range of construction, industrial and agricultural applications. This monoblock valve features a manual control method and a rated flow of 40 L/min, making it ideal for operating various equipment like telehandlers, forklifts, cranes, and excavators.

P40シリーズ モノブロック方向制御弁 パラメーター
制御方法 手動, 空圧, 電空, 電気油圧, ソレノイド, 油圧, 油圧および手動, ケーブル, ジョイスティック, ソレノイド・ジョイスティック, 手動・ジョイスティック, ソレノイドおよびケーブル式
スプール 1スプール, 2スプール, 3スプール, 4スプール, 5スプール, 6スプール, 7スプール
周囲温度範囲 -40°C to +80°C (-40°F to +176°F)
構造タイプ モノブロック弁
セクション 1セクション, 2セクション, 3セクション, 4セクション, 5セクション, 6セクション, 7セクション
作動粘度範囲 15 - 75 mm²/s (15 cSt to 75 cSt)
定格流量 毎分40リットル (10.5 US gpm)
最大圧力 250 bar (3600 psi)
吸入口 G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
吐出口 G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
ポートサイズ G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT

The P40-G12-G38 3 Way Directional Control Valve is a high-performance hydraulic valve designed for demanding applications. It features a 3-section, monoblock design with a manual control method. The valve is rated for a flow rate of 40 L/min and a maximum pressure of 250 bar. It is suitable for operating viscosity ranges of 15 - 75 mm²/s and can withstand ambient temperatures from -40°C to +80°C. The P40 series valve is ideal for use in construction equipment, material handling applications, industrial vehicles, and agriculture. Its robust design and reliable performance make it suitable for various heavy-duty applications, including telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders.
