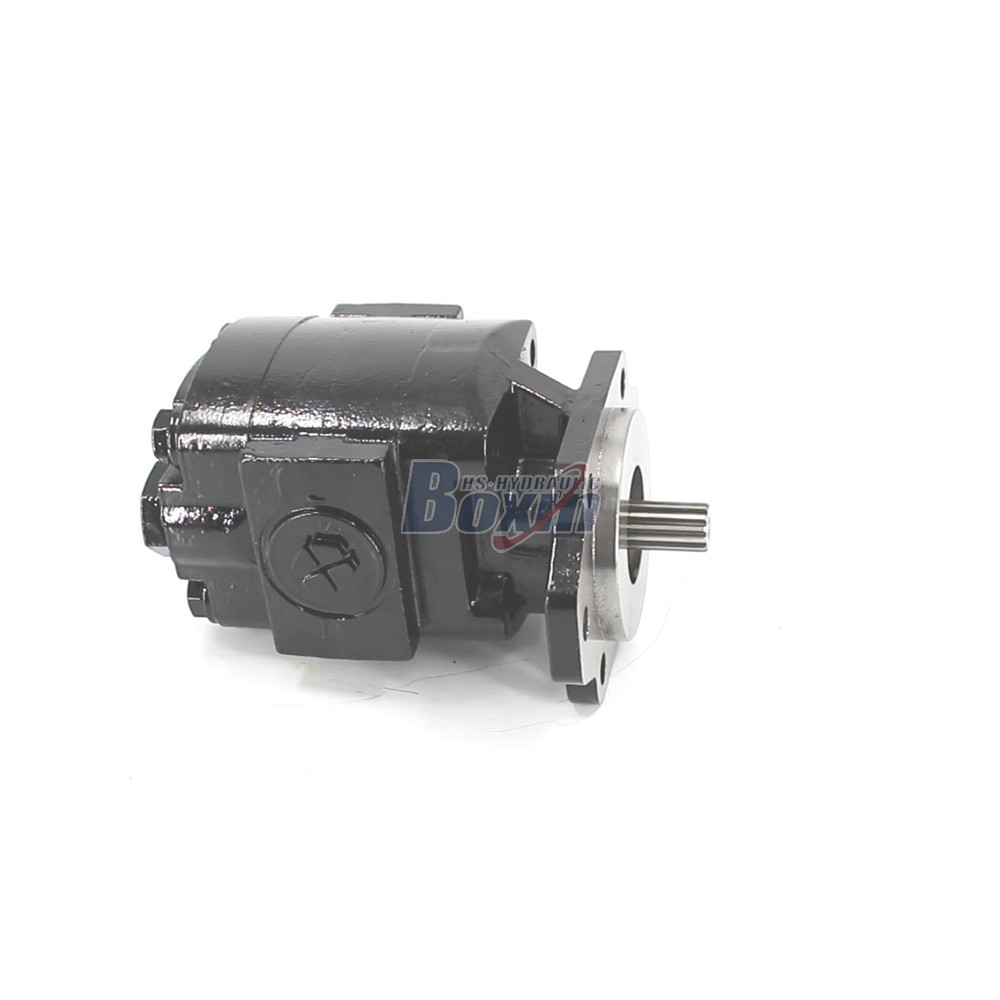

P21A646JEAL20-25 64.6 cc/rev Hydraulic Gear Pump for Industrial Machinery

変位:64.6 cc/rev

定格圧力:16 MPa (2320 psi)

最大圧力:17 MPa (2465 psi)

最大回転速度:2400 r/min

回転方向:双方向

ベンダー:BXHS

製品タイプ:油圧ギア・ポンプ

製品シリーズ:P21シリーズ 油圧ギア・ポンプ

梱包サイズ:45*25*18

総重量:16.00 kg

在庫状況: 在庫あり

243 この製品を探している人もいます

P21A646JEAL20-25 64.6 cc/rev Hydraulic Gear Pump for Industrial Machinery

P21A646JEAL20-25 64.6 cc/rev Hydraulic Gear Pump for Industrial Machinery

P21A646JEAL20-25 64.6 cc/rev Hydraulic Gear Pump for Industrial Machinery drawing image

This P21 Series Hydraulic Gear Pump features 64.6 cc/rev displacement, 16 MPa rated pressure, and bidirectional rotation for versatile industrial use. Manufactured by a 25-year IATF 16949 certified factory, it ensures reliable performance for wheel loaders, excavators, and agricultural machinery with 100% tested quality.

P21シリーズ 油圧ギア・ポンプ パラメーター
変位 64.6 cc/rev
定格圧力 16 MPa (2320 psi)
最大圧力 17 MPa (2465 psi)
定格回転速度 600 r/min
最大回転速度 2400 r/min
回転方向 双方向
材質 鋳鉄
構造 外部齒輪泵
フランジモデル A-橢圓形凸緣, B-方形凸緣, ISO-4 安裝孔, UNI-3 安裝孔, SAEフランジ
軸タイプ X:漸開線花鍵

**1. High-Efficiency Hydraulic Gear Pump Specifications**
- Delivers precise 64.6 cc/rev displacement with a rated pressure of 16 MPa (2320 psi) and max pressure of 17 MPa.
- Operates smoothly at rated speed of 2000 r/min (max 2400 r/min), ensuring stable flow for demanding hydraulic systems.

**2. Versatile P21 Series Gear Pump Applications**
- Designed for broad compatibility with construction and earth-moving equipment, including wheel loaders, backhoe loaders, and skid steers.
- Ideal for material handling vehicles like forklifts and telehandlers, as well as agricultural tractors and mini-excavators.

**3. Professional Manufacturer Quality Assurance**
- Backed by 25+ years of expertise and IATF 16949 certification, utilizing 260+ CNC centers for precision machining.
- Every unit undergoes 100% bench testing for pressure, flow, and sealing, guaranteeing zero-defect delivery and CE compliance.

**4. OEM/ODM Available Customization Services**
- Supported by 35+ senior engineers, we offer tailored solutions including logo laser marking, casting modifications, and private labeling.
- Flexible Factory Direct Sales model allows for bespoke packaging and technical adjustments to meet specific OEM requirements.

**5. Reliable China Wholesale Factory Supply**
- Annual capacity of 1,500,000 units from our 68,000 sqm facility ensures timely bulk orders and consistent stock availability.
- Products are packed in heavy-duty wooden crates with anti-rust treatment, perfect for Exported Worldwide logistics and long-term storage.
