What is the primary application of the P120-G1-OT Monoblock Valve: Specifications, Features, and Applications?

The P120-G1-OT Monoblock Valve: Specifications, Features, and Applications is designed for mobile hydraulic systems, agricultural machinery (such as tractors and harvesters), construction equipment (such as loaders and excavators), and industrial machinery. It ensures precise flow and directional control.

Is Boxinhuasheng a factory-direct manufacturer?

Yes, Boxinhuasheng (Qingzhou Boxinhuasheng Hydraulic Technology Co., Ltd.) is a factory-direct manufacturer established in 2001. We operate a 68,000m虏 facility with 4 modern manufacturing plants and 260+ production machines, supplying certified products directly to global customers.

What quality certifications do Boxinhuasheng products have?

All Boxinhuasheng directional control valves, gear pumps, and hydraulic accessories are CE certified, IATF 16949 compliant, and verified on-site by SGS, meeting international engineering standards.

Can Boxinhuasheng provide OEM/ODM customization services?

Yes, Boxinhuasheng has a team of 35 senior hydraulic engineers providing custom OEM manufacturing, ODM development, private labeling, and customized hydraulic system solutions tailored to specific operating pressures and flows.

What is the warranty and shipping lead time?

We offer a 1-year warranty with free replacement for any quality defects. Standard express delivery is within 30 days, supported by our robust annual capacity of 1.5 million hydraulic units and export experience to 80+ countries.

P120-G1-OT Monoblock Valve: Specifications, Features, and Applications

Name: P120-G1-OT Monoblock Valve: Specifications, Features, and Applications
Brand: Boxinhuasheng
SKU: BXHS-52625
Availability: InStock

イノベーションが開発を推進し、テクノロジーが未来を築きます

ホームモノブロック方向制御弁P120シリーズ製品詳細

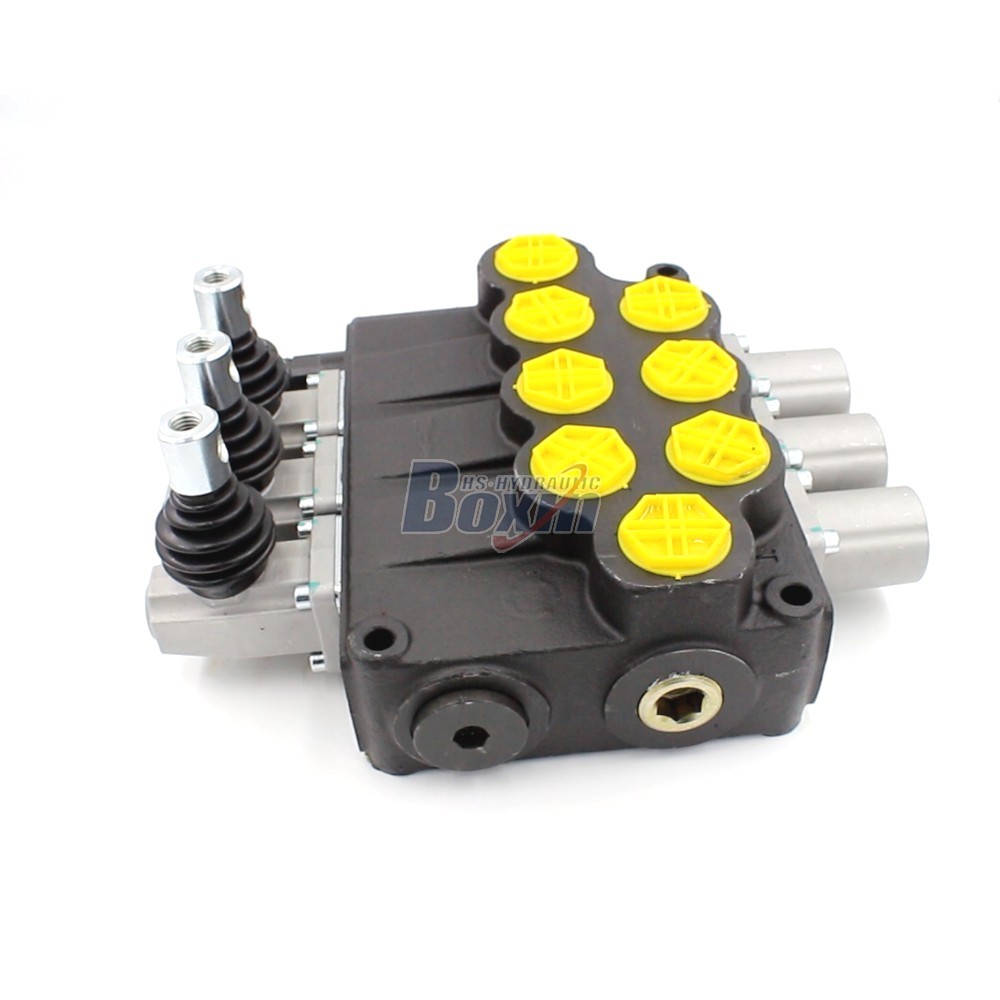

P120-G1-OT Monoblock Valve: Specifications, Features, and Applications cover photo

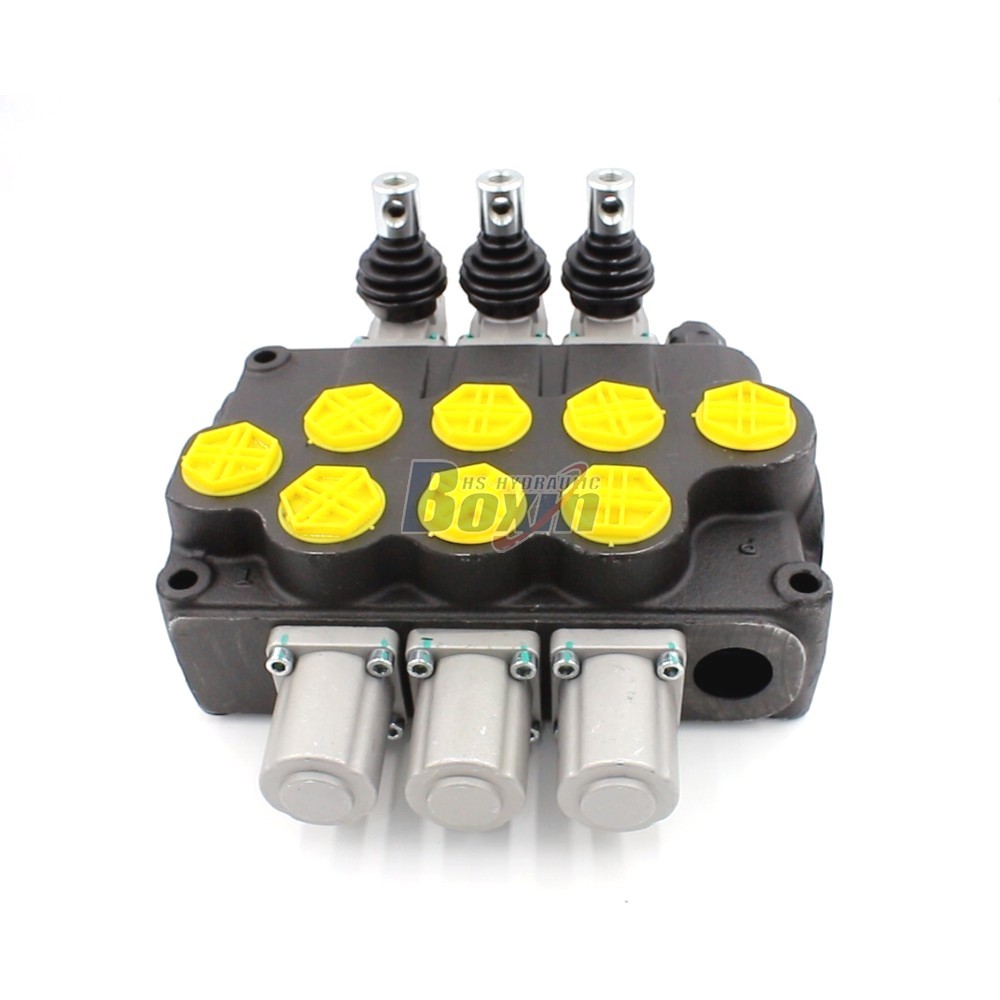

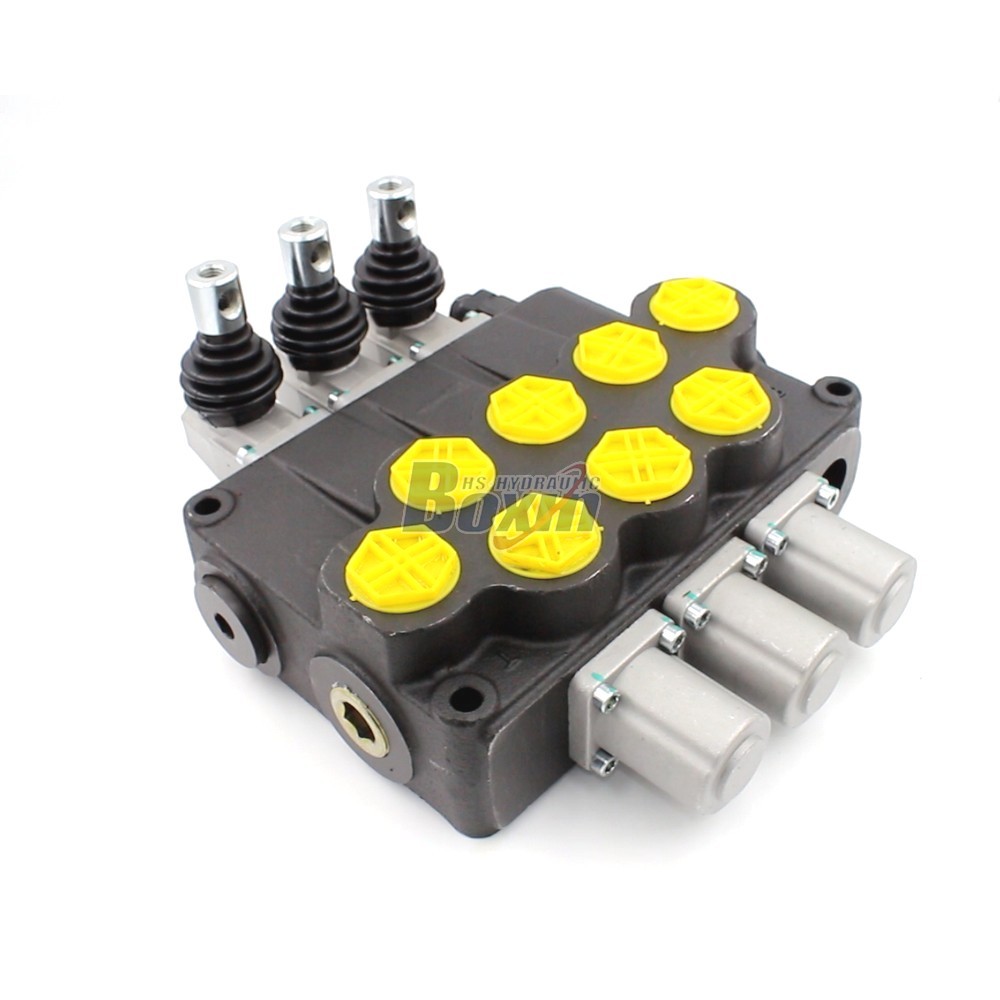

P120-G1-OT Monoblock Valve: Specifications, Features, and Applications main image

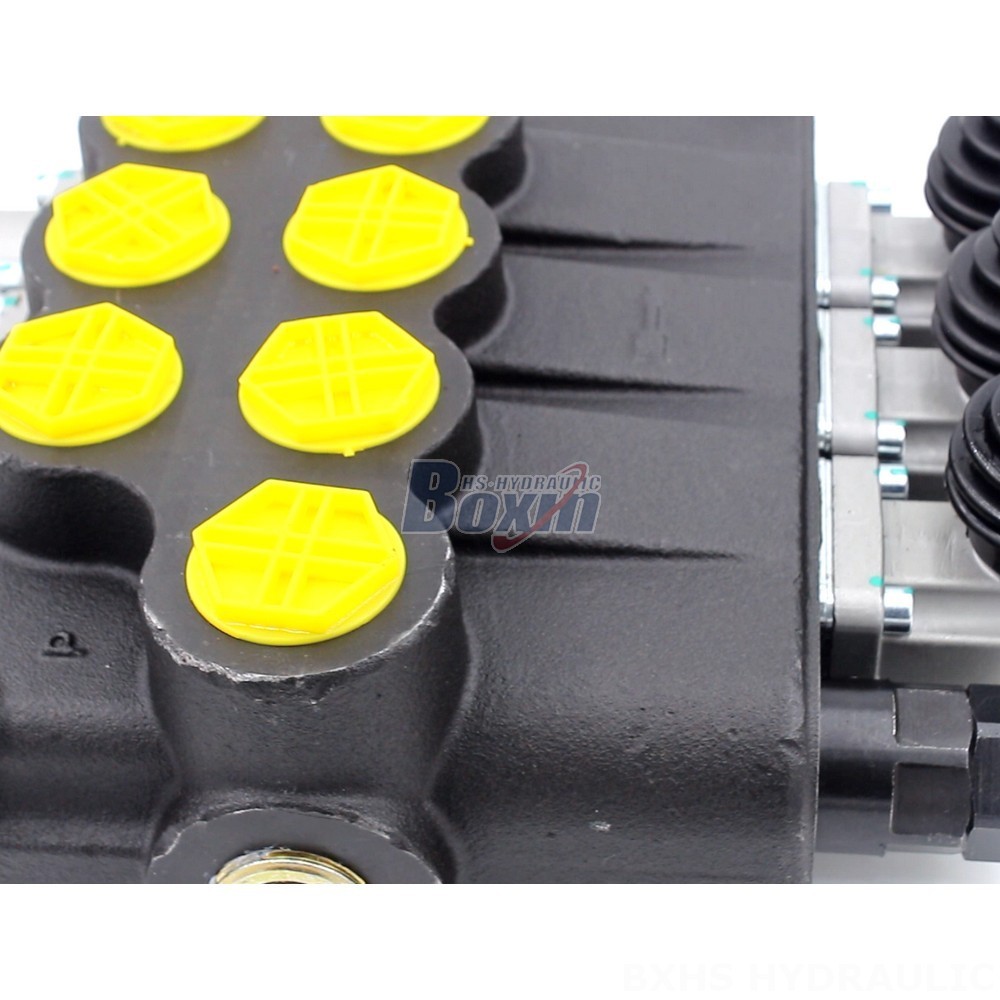

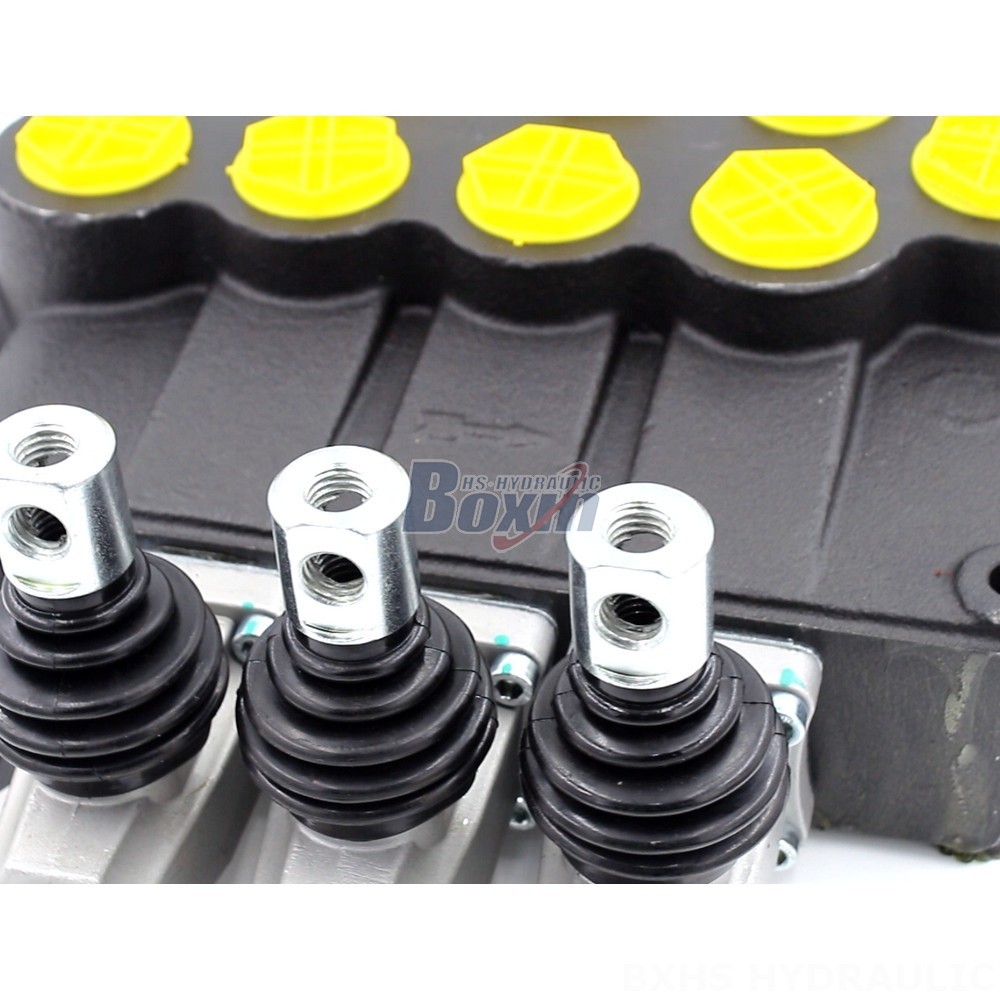

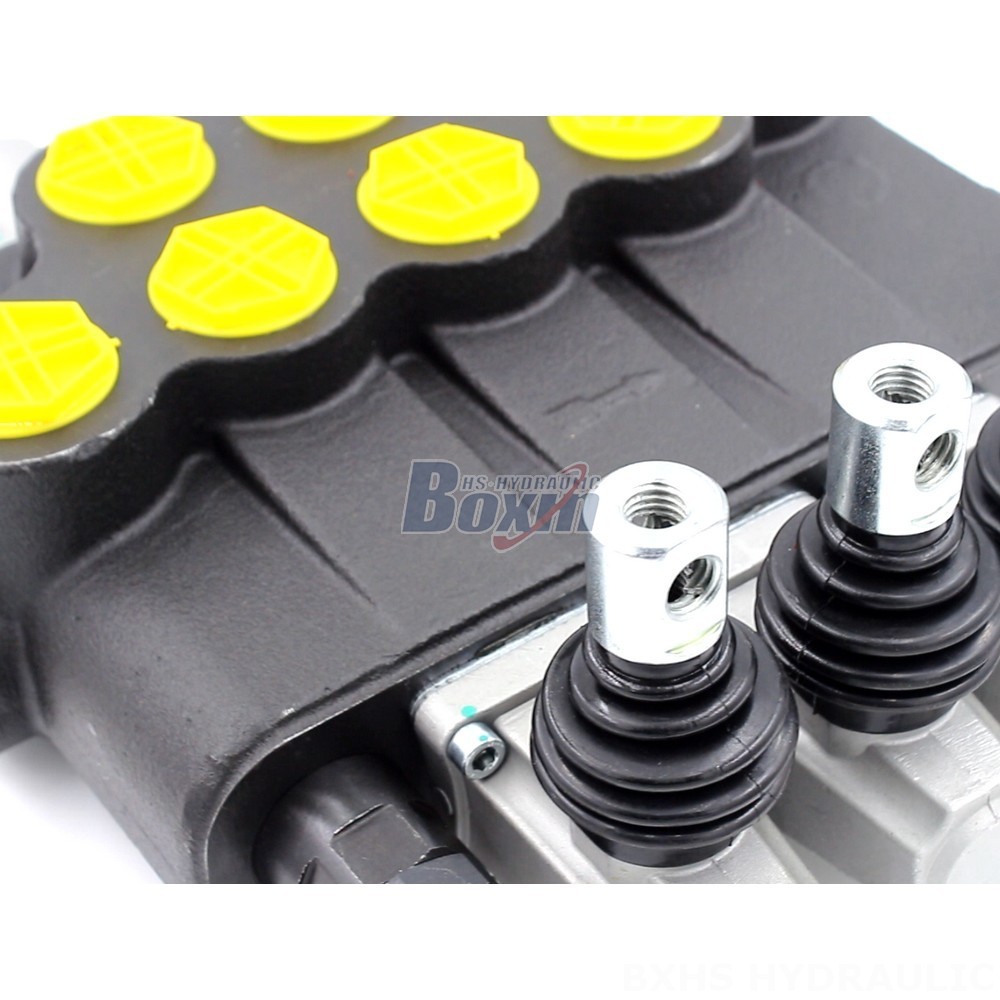

P120-G1-OT Monoblock Valve: Specifications, Features, and Applications detail image

P120-G1-OT Monoblock Valve: Specifications, Features, and Applications

制御方法:手動

スプール:3スプール

定格流量:120 L/分 (31.7 US gpm)

最大圧力:250 bar (3600 psi)

吸入口:G1

吐出口:G1

ポートサイズ:G1

ベンダー:BXHS

製品タイプ:モノブロック方向制御弁

製品シリーズ:P120シリーズモノブロック方向制御弁

梱包サイズ:37*37*18

総重量:24.10 kg

在庫状況: 在庫あり

お問い合わせ

1290 この製品を探している人もいます

P120-G1-OT Monoblock Valve: Specifications, Features, and Applications

P120-G1-OT Monoblock Valve: Specifications, Features, and Applications drawing image

The P120-G1-OT Monoblock Valve is a 2 Spool Control Valve designed for heavy-duty applications in material handling, construction, and agriculture. This manual control valve offers a rated flow of 120 L/min and a maximum pressure of 250 bar, making it ideal for use with a wide range of equipment.

P120シリーズモノブロック方向制御弁パラメーター
制御方法	手動, ケーブル, ジョイスティック, 手動・ジョイスティック
スプール	1スプール, 2スプール, 3スプール, 4スプール
定格流量	120 L/分 (31.7 US gpm)
最大圧力	250 bar (3600 psi)
吸入口	G3/4, G1, M27×2.0, SAE 14, SAE 16, 3/4 NPT, 1 NPT, M36×2
吐出口	G1, SAE 16, 1 NPT, M36×2
ポートサイズ	G3/4, G1, M27×2.0, SAE 14, SAE 16, 1 NPT, M36×2
セクション	1セクション, 2セクション, 3セクション, 4セクション
構造タイプ	モノブロック弁
周囲温度範囲	-40°C to +80°C (-40°F to +176°F)
作動粘度範囲	15 - 75 mm²/s (15 cSt to 75 cSt)

This 3 section, monoblock valve features a manual control method and is equipped with 3 spools. It is designed for a wide range of applications, including telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, midi excavators, mini excavators, skid steer loaders, compact wheel loaders, wheel loaders, backhoe loaders, and dumpers. The valve has a rated flow of 120 L/min (31.7 US gpm) and a maximum pressure of 250 bar (3600 psi). It can operate in ambient temperatures ranging from -40°C to +80°C (-40°F to +176°F) and with operating viscosity ranging from 15 - 75 mm²/s (15 cSt to 75 cSt). This durable and reliable valve is built to withstand the demands of tough working environments.
