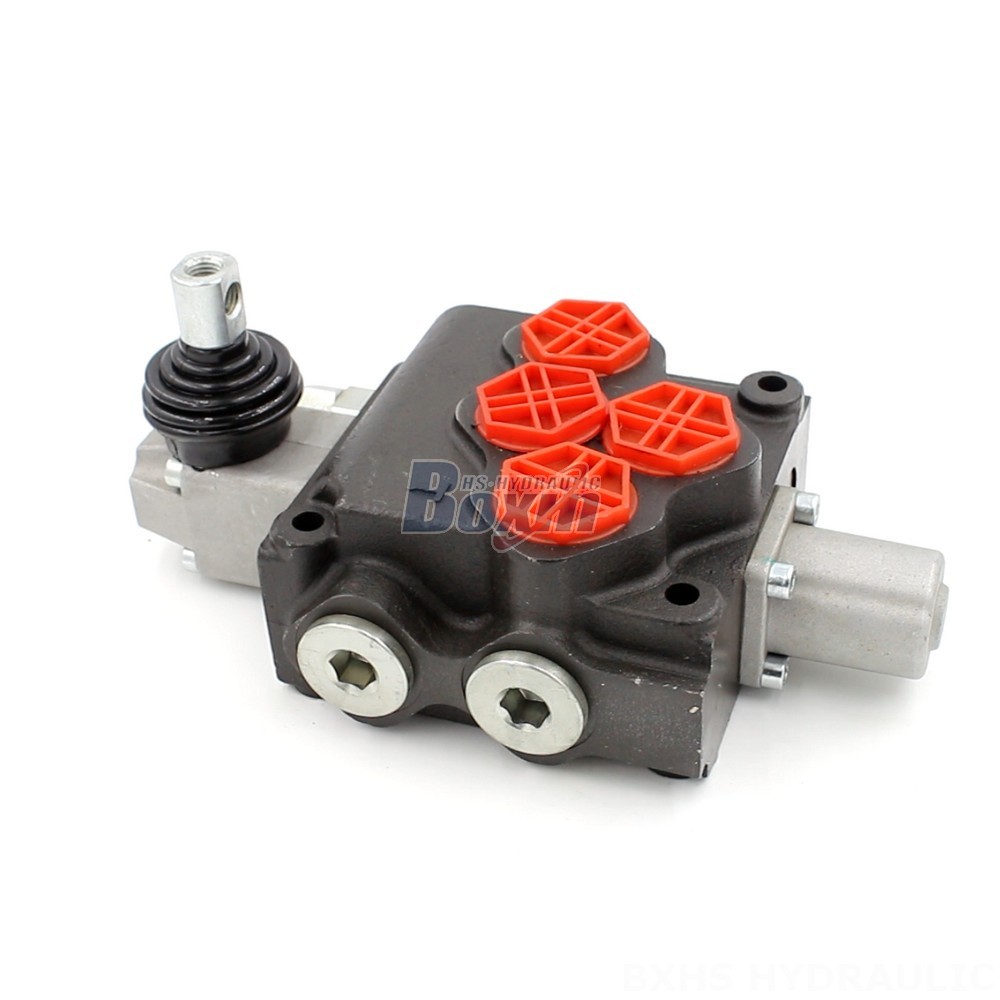

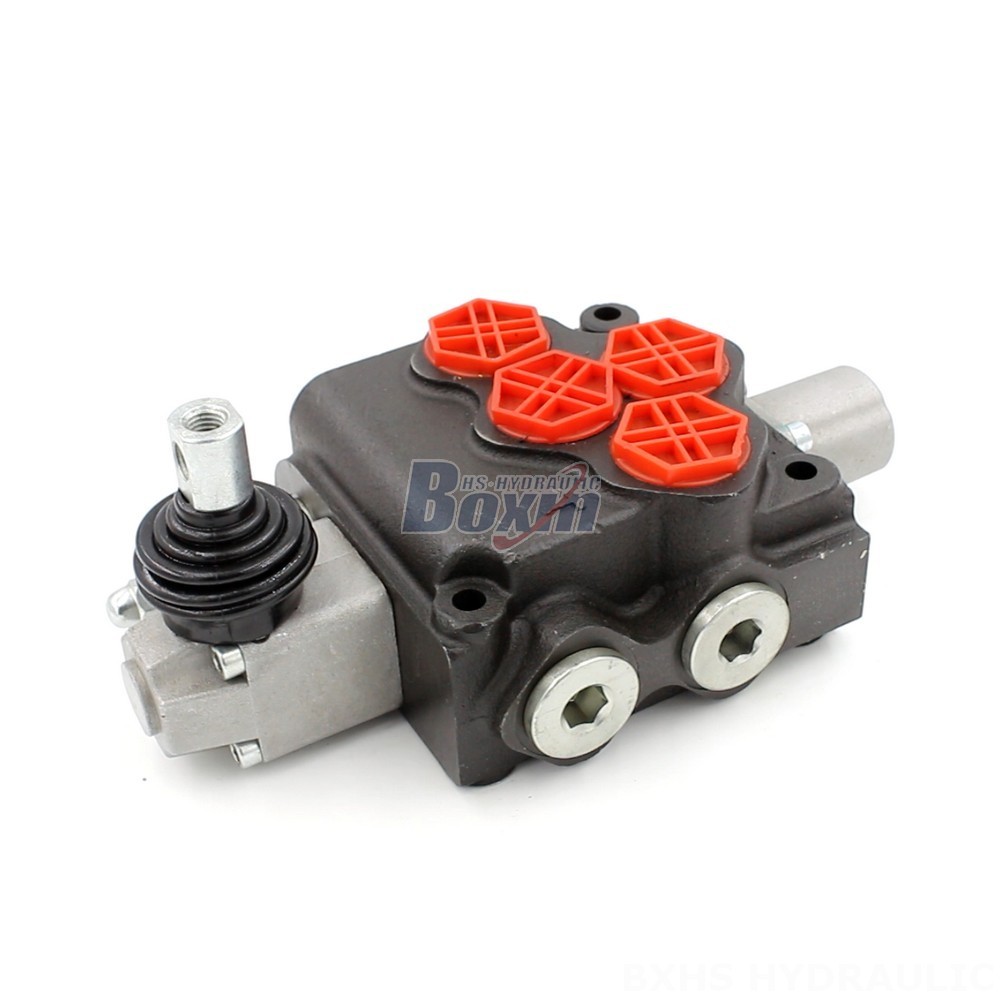

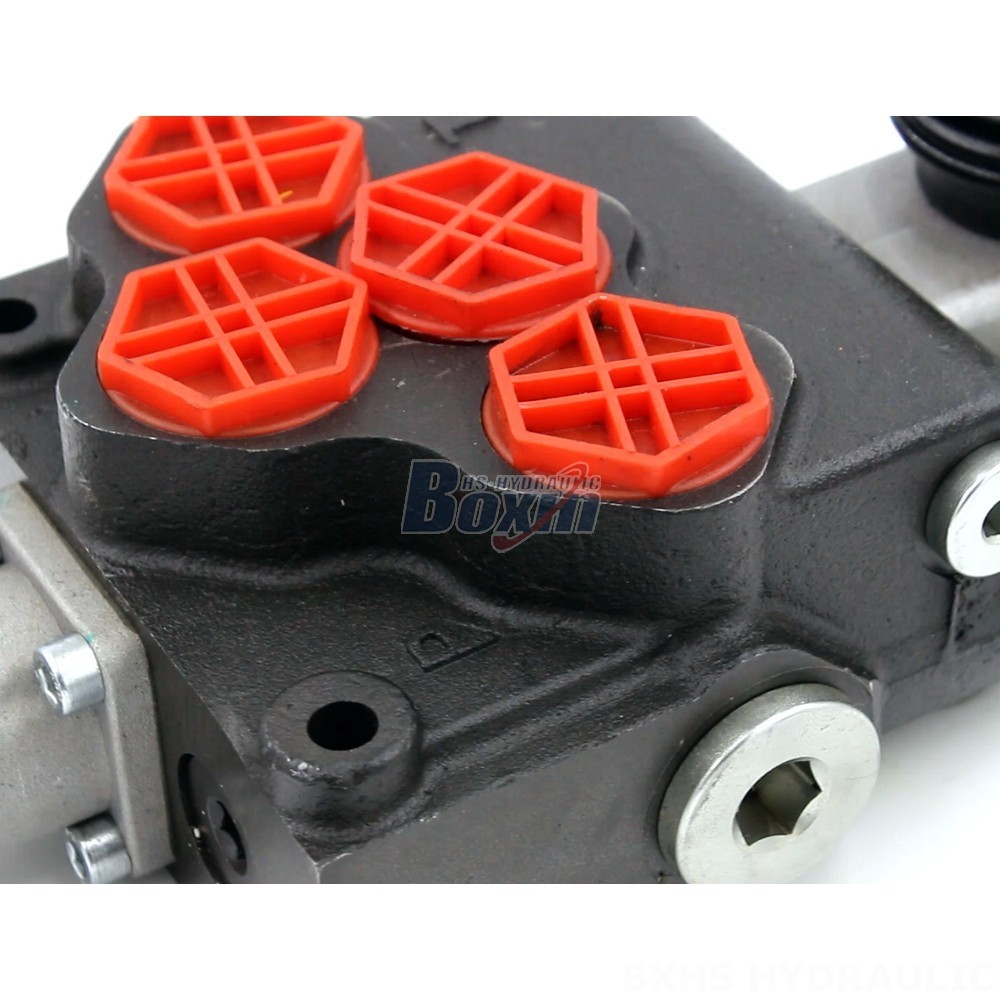

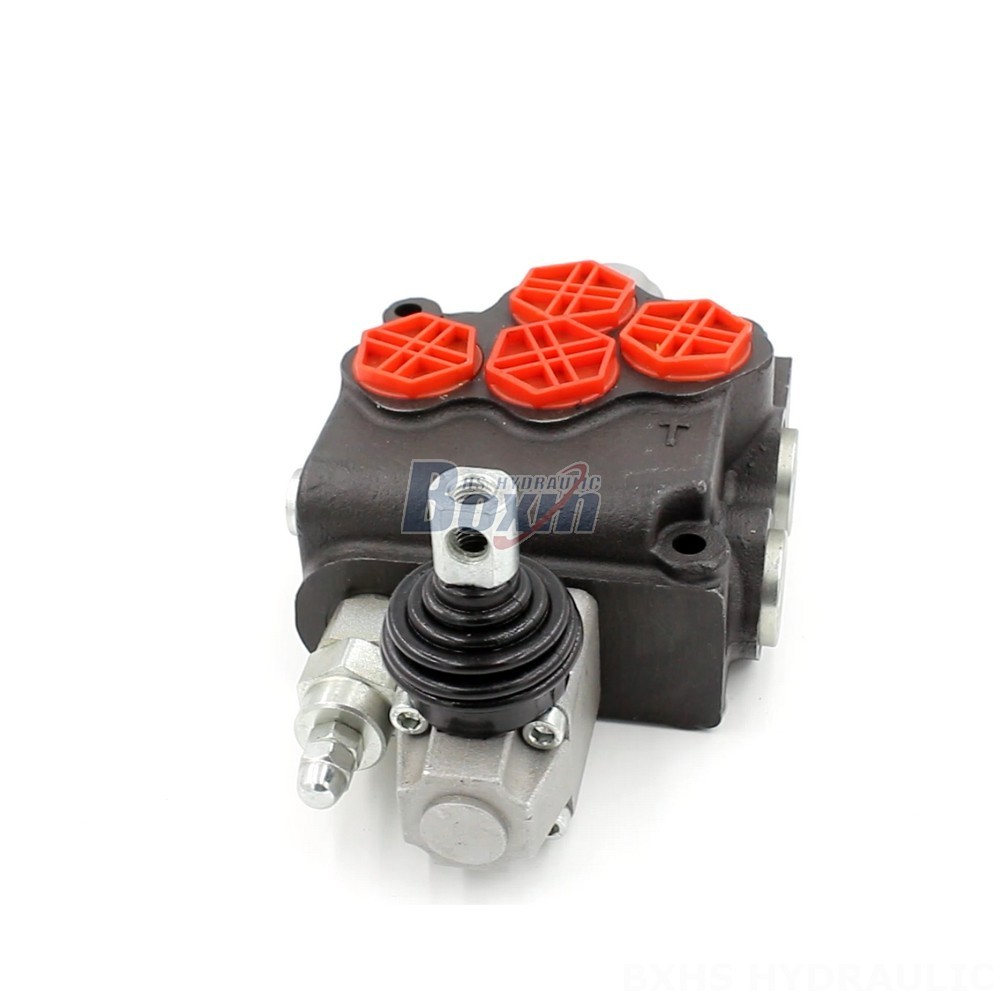

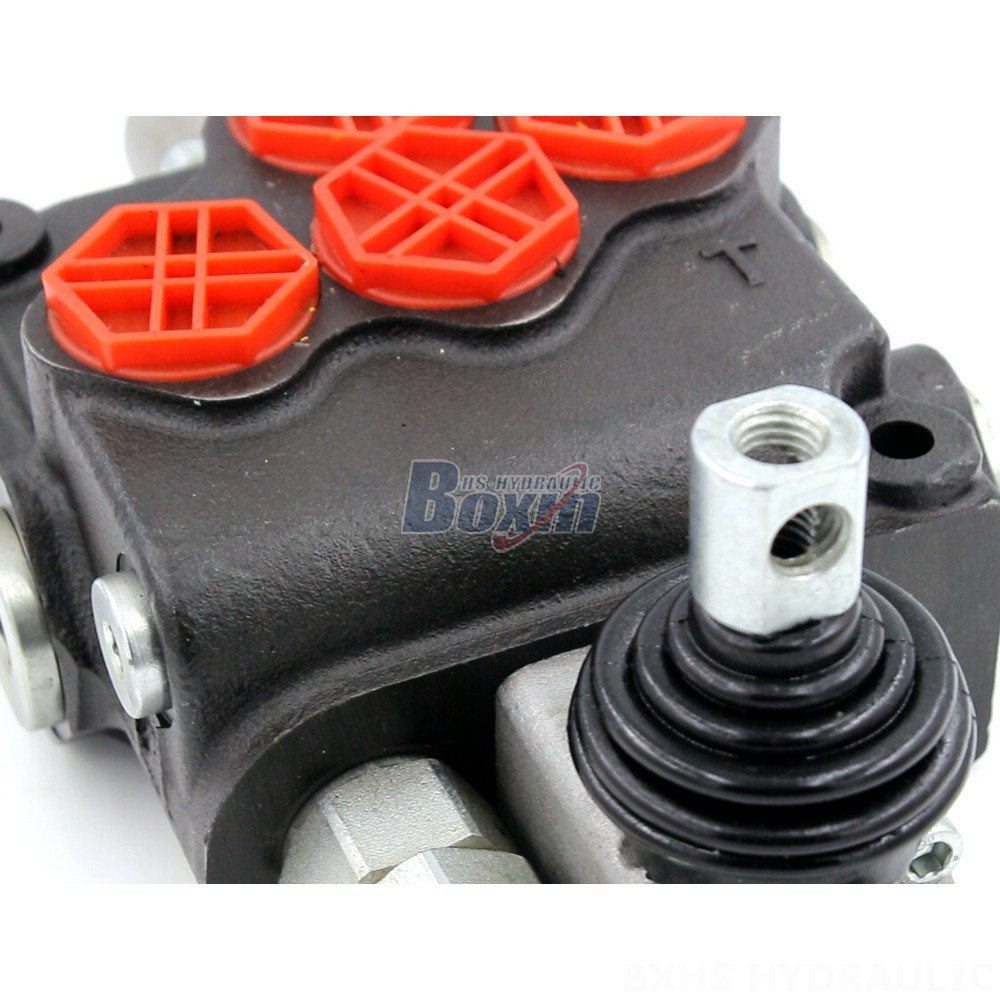

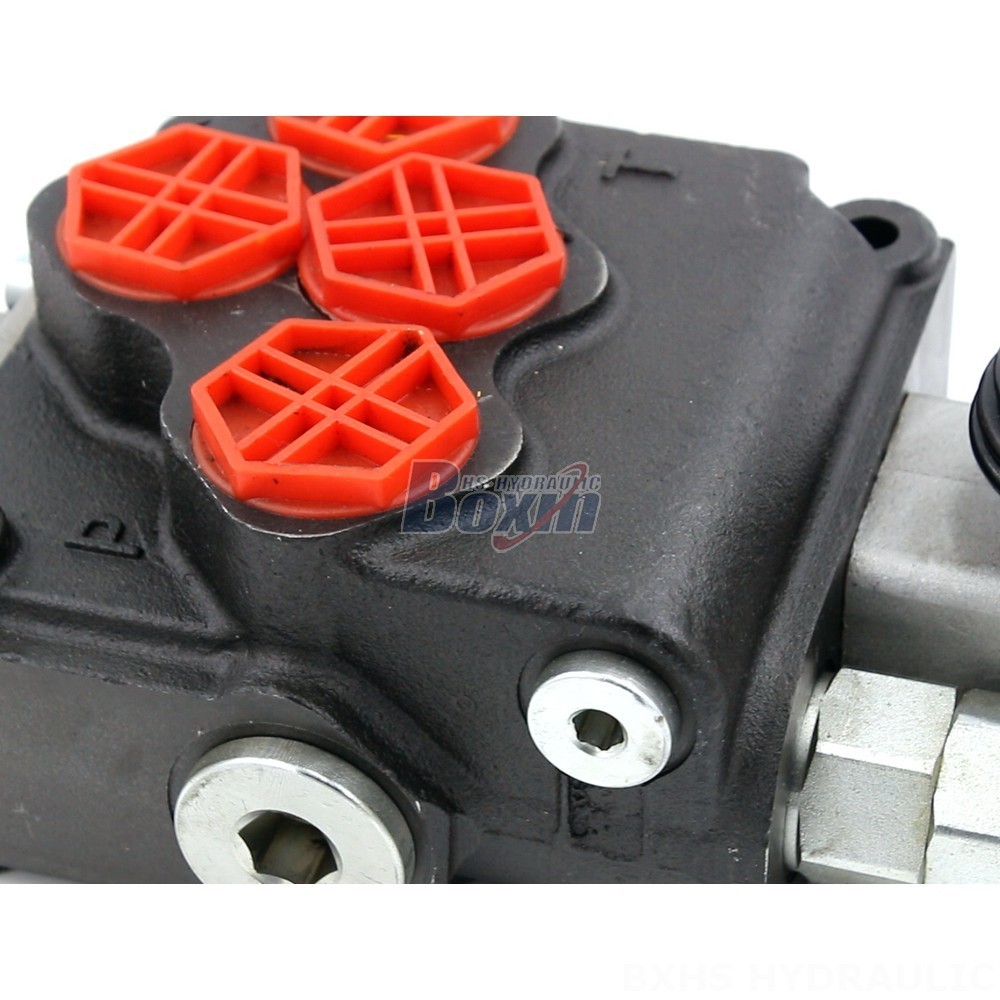

P120-G1 Monoblock Directional Valve | Precision Hydraulics

制御方法:手動

スプール:1スプール

定格流量:120 L/分 (31.7 US gpm)

最大圧力:250 bar (3600 psi)

吸入口:G1

吐出口:G1

ポートサイズ:G1

ベンダー:BXHS

製品タイプ:モノブロック方向制御弁

製品シリーズ:P120シリーズ モノブロック方向制御弁

梱包サイズ:19*35*16

総重量:13.60 kg

在庫状況: 在庫あり

1188 この製品を探している人もいます

P120-G1 Monoblock Directional Valve | Precision Hydraulics

P120-G1 Monoblock Directional Valve | Precision Hydraulics

P120-G1 Monoblock Directional Valve | Precision Hydraulics drawing image

The P120-G1 Monoblock Directional Valve is a compact and robust hydraulic cylinder control unit designed for use in a wide range of applications including material handling, construction, and agriculture. It features a 120 L/min flow rate, 250 bar pressure rating, and a manual control method. This unit is perfect for applications requiring precise and reliable hydraulic control.

P120シリーズ モノブロック方向制御弁 パラメーター
制御方法 手動, ケーブル, ジョイスティック, 手動・ジョイスティック
スプール 1スプール, 2スプール, 3スプール, 4スプール
定格流量 120 L/分 (31.7 US gpm)
最大圧力 250 bar (3600 psi)
吸入口 G3/4, G1, M27×2.0, SAE 14, SAE 16, 3/4 NPT, 1 NPT, M36×2
吐出口 G1, SAE 16, 1 NPT, M36×2
ポートサイズ G3/4, G1, M27×2.0, SAE 14, SAE 16, 1 NPT, M36×2
セクション 1セクション, 2セクション, 3セクション, 4セクション
構造タイプ モノブロック弁
周囲温度範囲 -40°C to +80°C (-40°F to +176°F)
作動粘度範囲 15 - 75 mm²/s (15 cSt to 75 cSt)

The P120-G1 Monoblock Directional Valve is a high-performance hydraulic cylinder control unit that offers exceptional reliability and durability. Designed for use in demanding environments, it features a robust monoblock valve construction and a 120 L/min flow rate, making it ideal for a wide range of applications. Its 250 bar pressure rating ensures it can handle heavy loads and demanding operating conditions. The manual control method provides precise and easy operation, while its compact design allows for easy integration into various systems. This unit is particularly well-suited for use in telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders. Its wide operating temperature range (-40°C to +80°C) ensures it can perform reliably in a variety of climates.
