P120 Directional Valve: Quality, Performance, Reliability

制御方法:手動

スプール:2スプール

定格流量:120 L/分 (31.7 US gpm)

最大圧力:250 bar (3600 psi)

吸入口:G1

吐出口:G1

ポートサイズ:G1

ベンダー:BXHS

製品タイプ:モノブロック方向制御弁

製品シリーズ:P120シリーズ モノブロック方向制御弁

梱包サイズ:30*39*17

総重量:19.00 kg

在庫状況: 在庫あり

1614 この製品を探している人もいます

P120 Directional Valve: Quality, Performance, Reliability

P120 Directional Valve: Quality, Performance, Reliability

P120 Directional Valve: Quality, Performance, Reliability drawing image

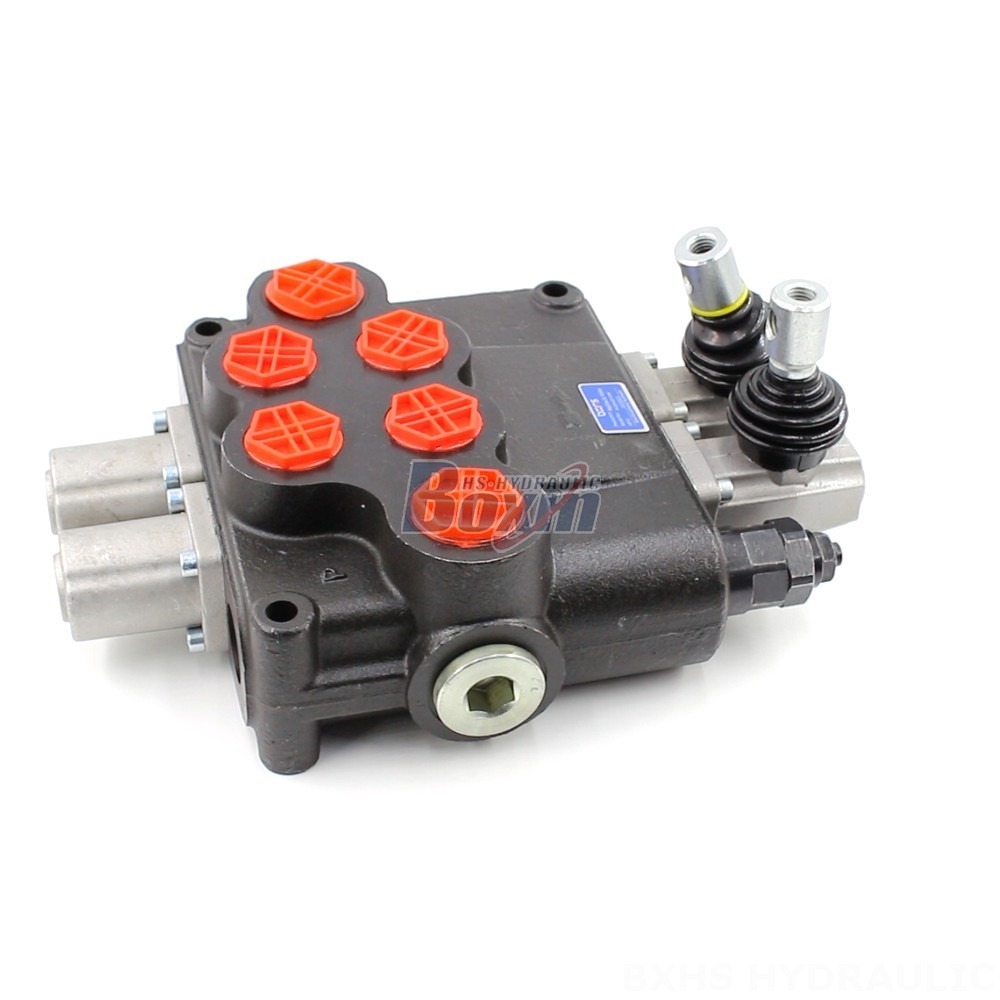

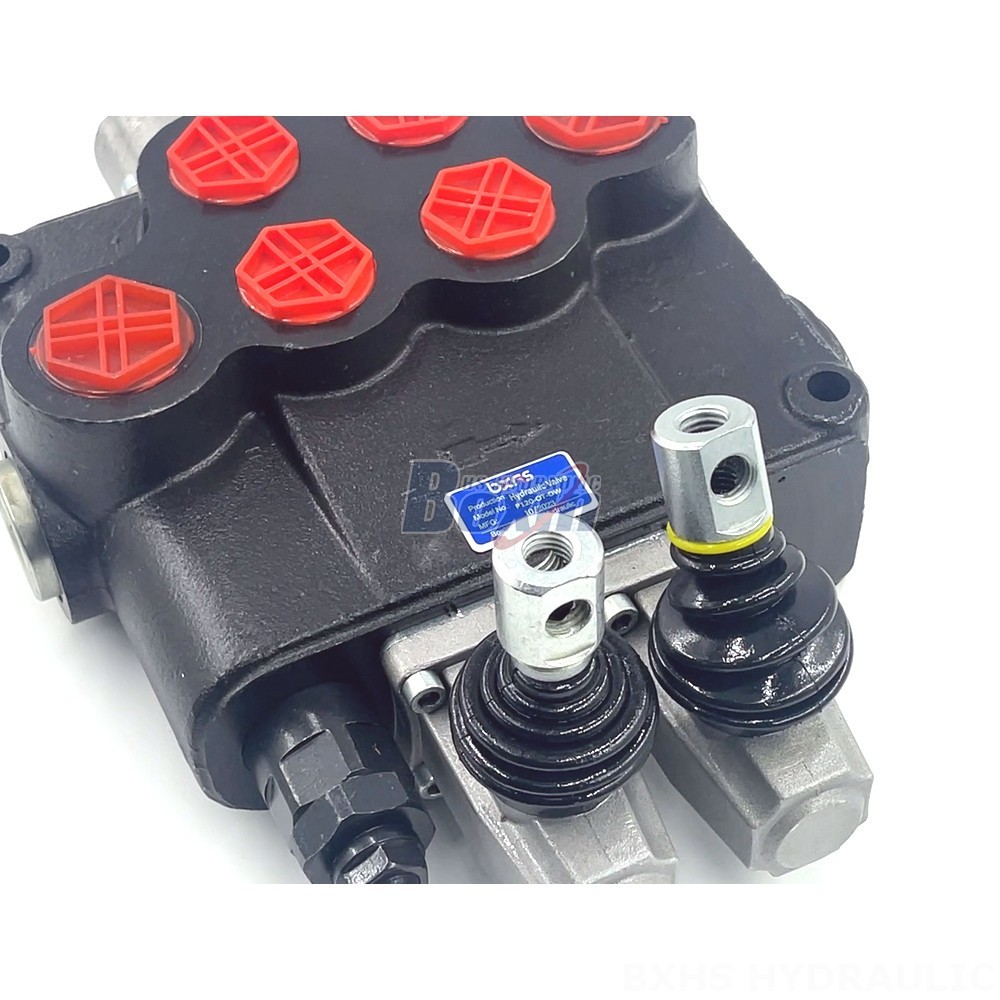

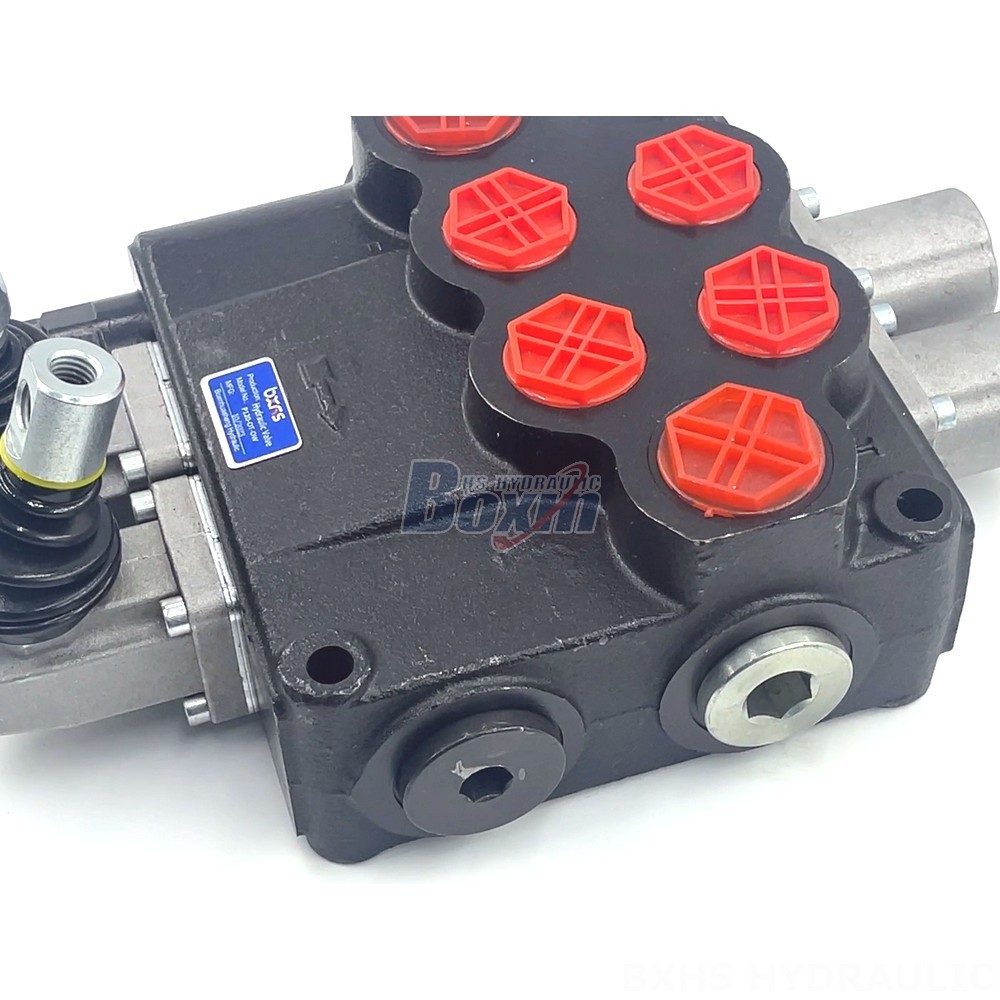

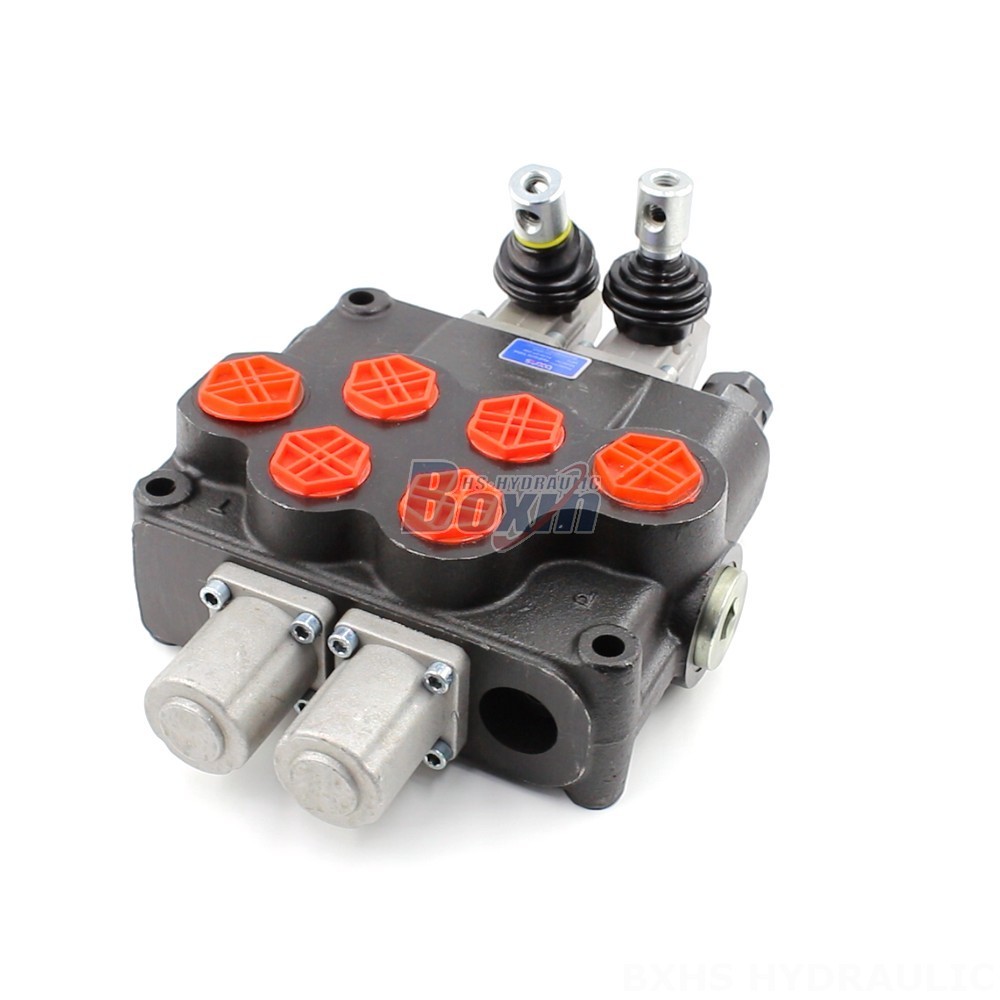

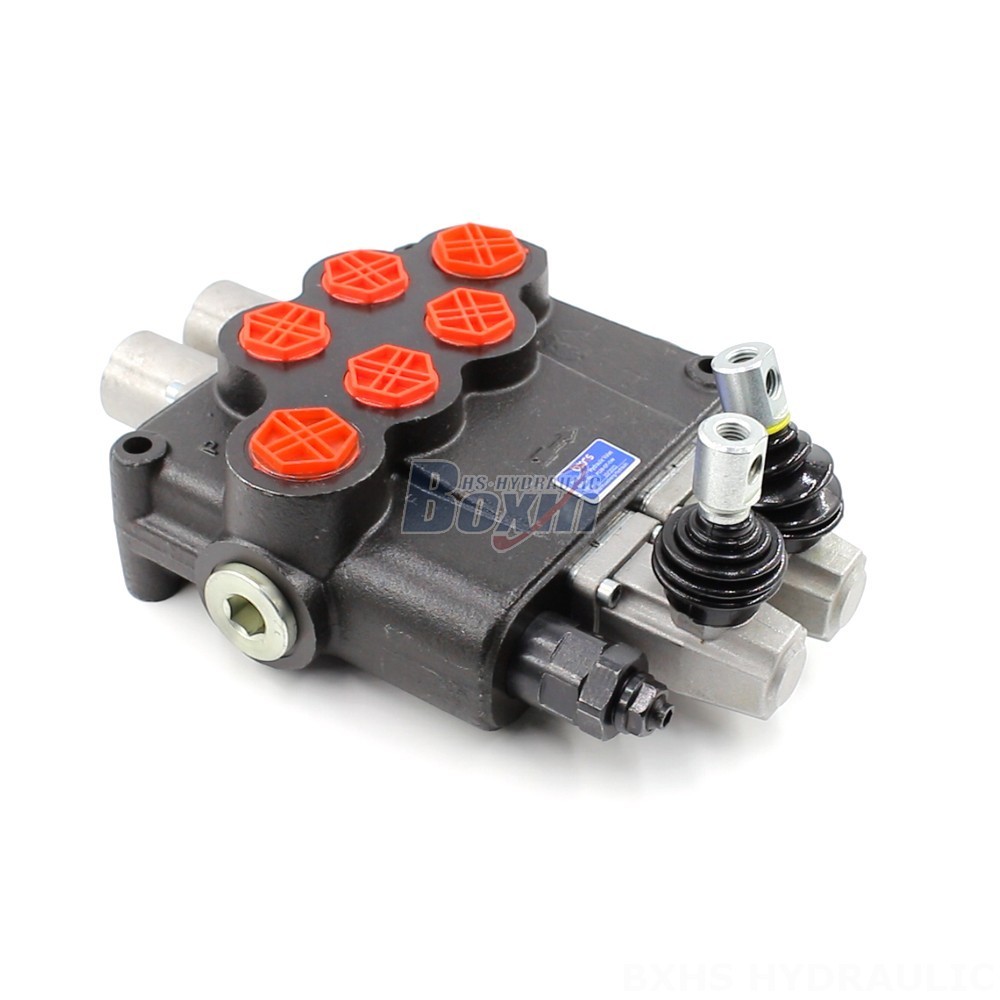

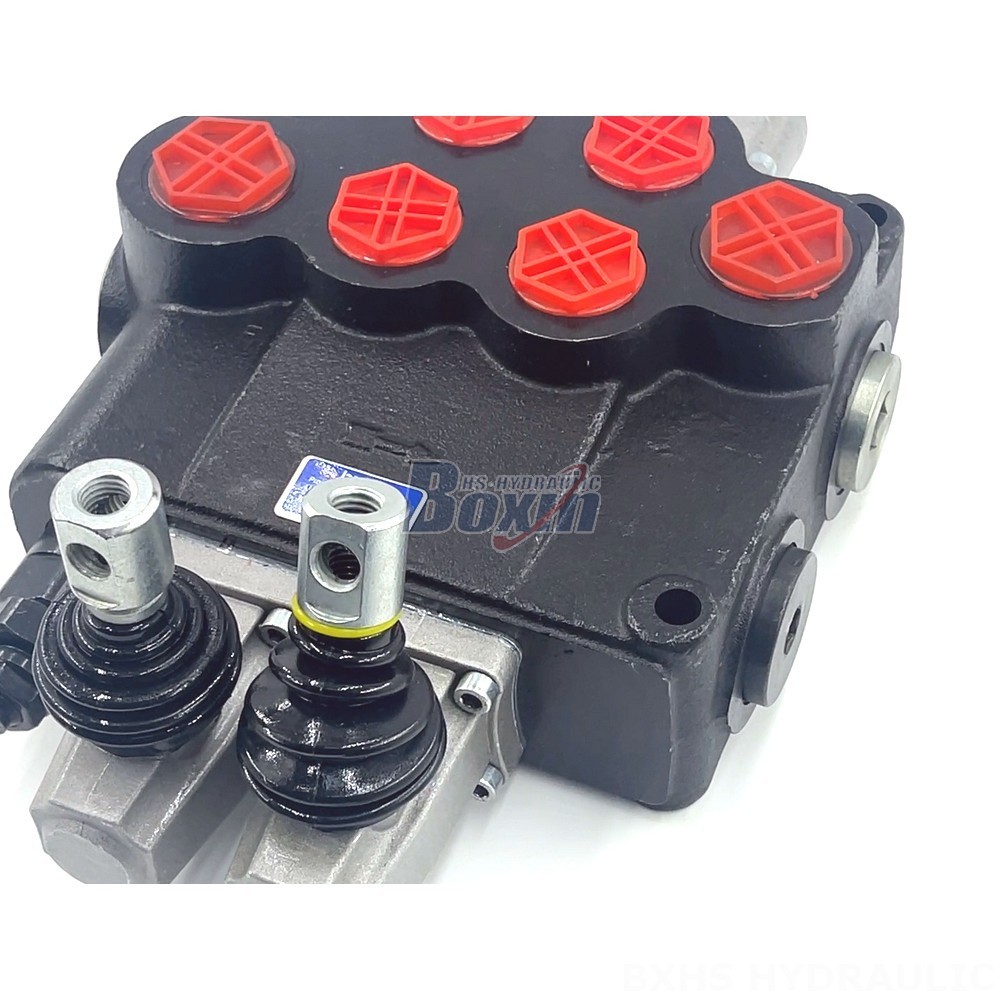

The P120 Series 5/2 Directional Control Valve is a reliable and high-performance hydraulic valve designed for a wide range of applications in material handling, construction, agriculture, and industrial vehicles. This manual control valve features a robust monoblock construction, rated flow of 120 L/min, and a maximum pressure of 250 bar, making it ideal for demanding operating conditions.

P120シリーズ モノブロック方向制御弁 パラメーター
制御方法 手動, ケーブル, ジョイスティック, 手動・ジョイスティック
スプール 1スプール, 2スプール, 3スプール, 4スプール
定格流量 120 L/分 (31.7 US gpm)
最大圧力 250 bar (3600 psi)
吸入口 G3/4, G1, M27×2.0, SAE 14, SAE 16, 3/4 NPT, 1 NPT, M36×2
吐出口 G1, SAE 16, 1 NPT, M36×2
ポートサイズ G3/4, G1, M27×2.0, SAE 14, SAE 16, 1 NPT, M36×2
セクション 1セクション, 2セクション, 3セクション, 4セクション
構造タイプ モノブロック弁
周囲温度範囲 -40°C to +80°C (-40°F to +176°F)
作動粘度範囲 15 - 75 mm²/s (15 cSt to 75 cSt)

The P120 Series 5/2 Directional Control Valve is a high-quality hydraulic valve designed for demanding applications in material handling, construction, agriculture, and industrial vehicles. This manual control valve features a robust monoblock construction, providing exceptional durability and reliability. With a rated flow of 120 L/min and a maximum pressure of 250 bar, this valve can handle high flow rates and pressures. The valve operates smoothly across a wide viscosity range (15-75 mm²/s) and can withstand temperatures from -40°C to +80°C. Its 2-section design and 2-spool configuration allow for precise control of hydraulic circuits. The valve is compatible with a wide range of applications, including telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, excavators, skid steer loaders, and compact wheel loaders.
