P120 2-Spool Hydraulic Valves | Factory Wholesale & Customization

制御方法:手動

スプール:2スプール

定格流量:120 L/分 (31.7 US gpm)

最大圧力:250 bar (3600 psi)

吸入口:G3/4

吐出口:G1

ポートサイズ:G3/4

ベンダー:BXHS

製品タイプ:モノブロック方向制御弁

製品シリーズ:P120シリーズ モノブロック方向制御弁

梱包サイズ:30*39*17

総重量:19.00 kg

在庫状況: 在庫あり

977 この製品を探している人もいます

P120 2-Spool Hydraulic Valves | Factory Wholesale & Customization

P120 2-Spool Hydraulic Valves | Factory Wholesale & Customization

P120 2-Spool Hydraulic Valves | Factory Wholesale & Customization drawing image

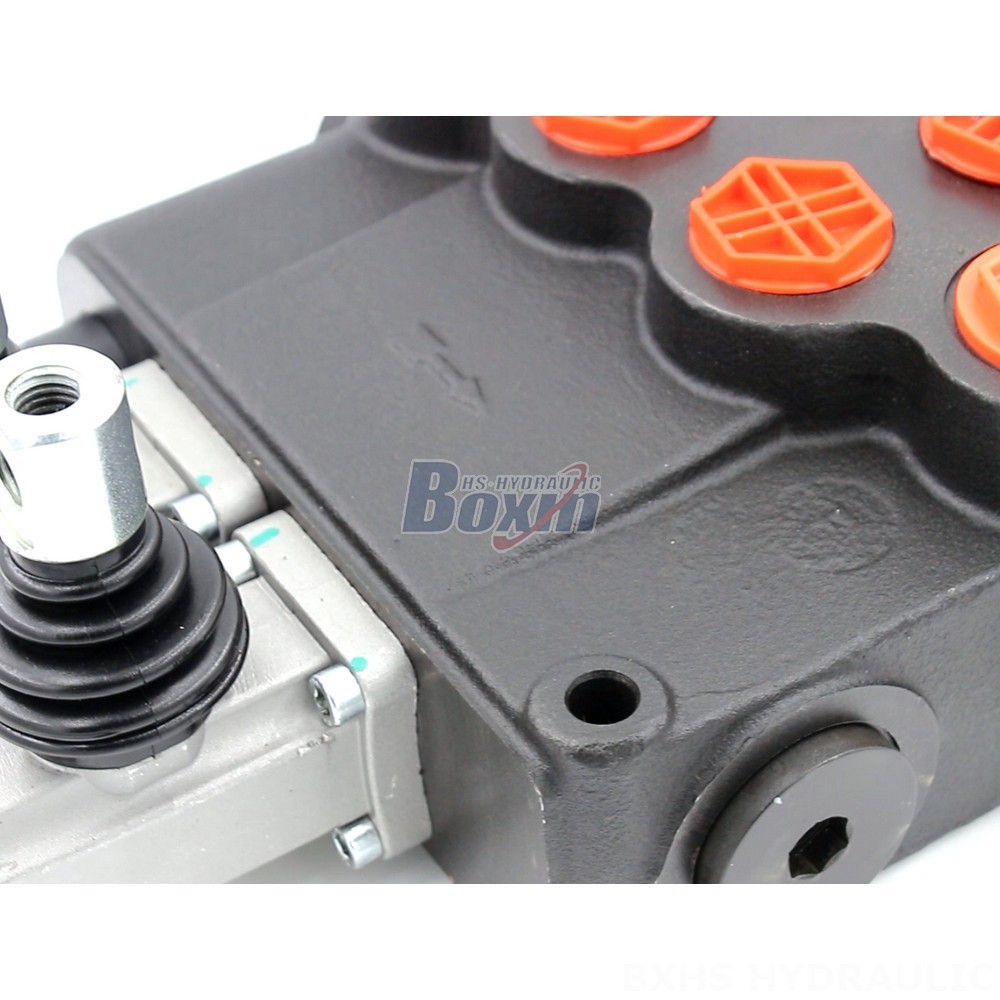

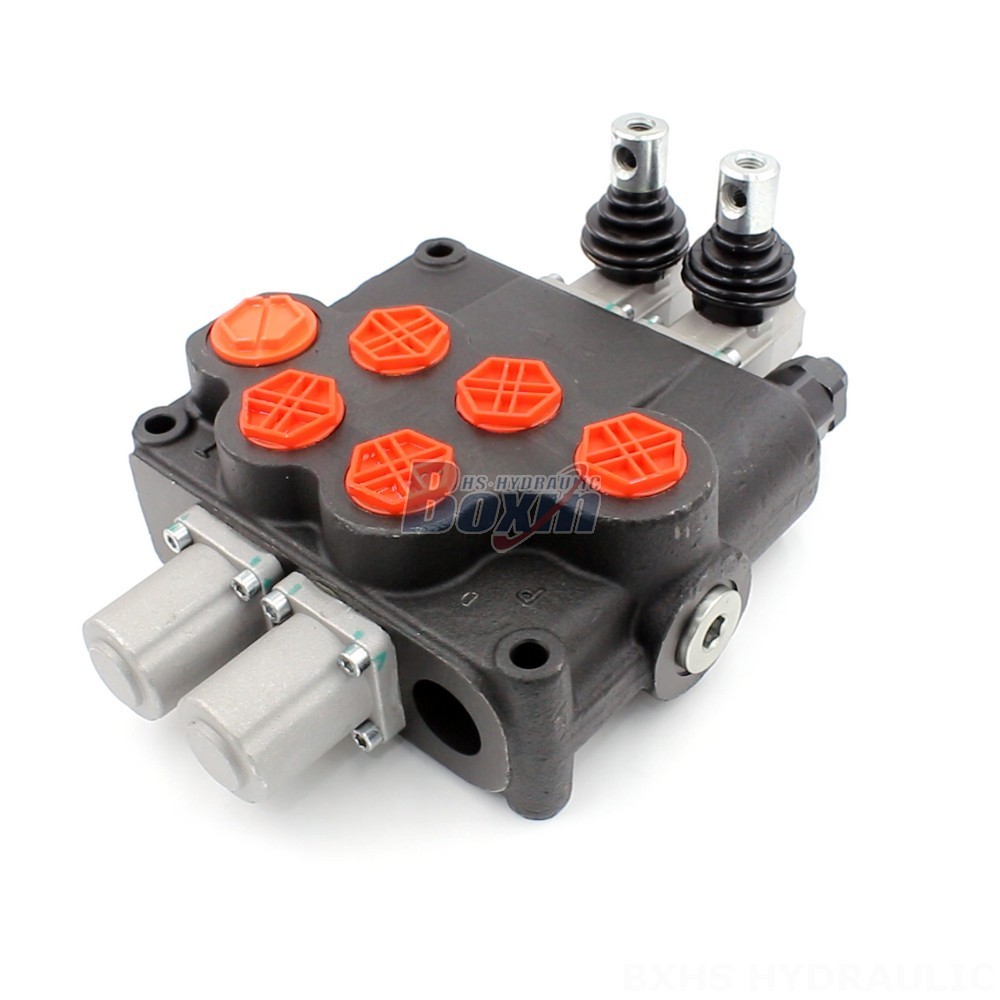

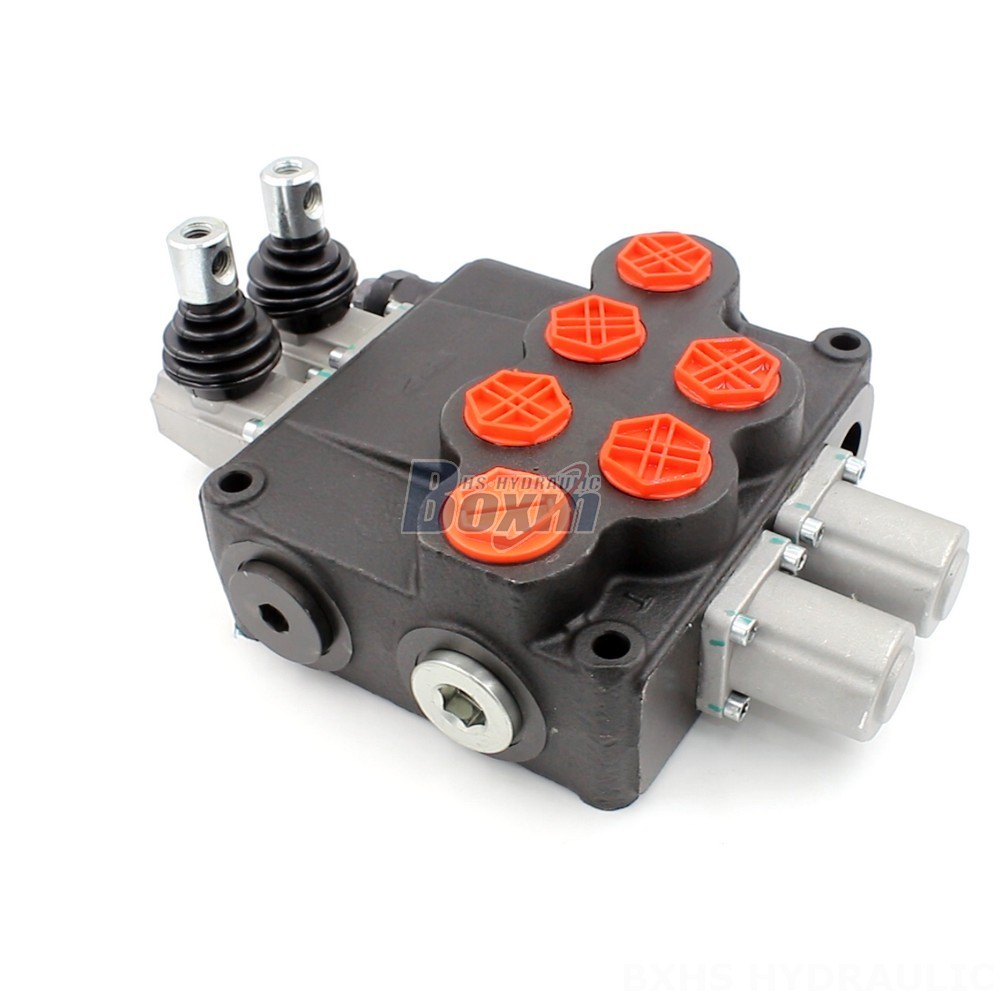

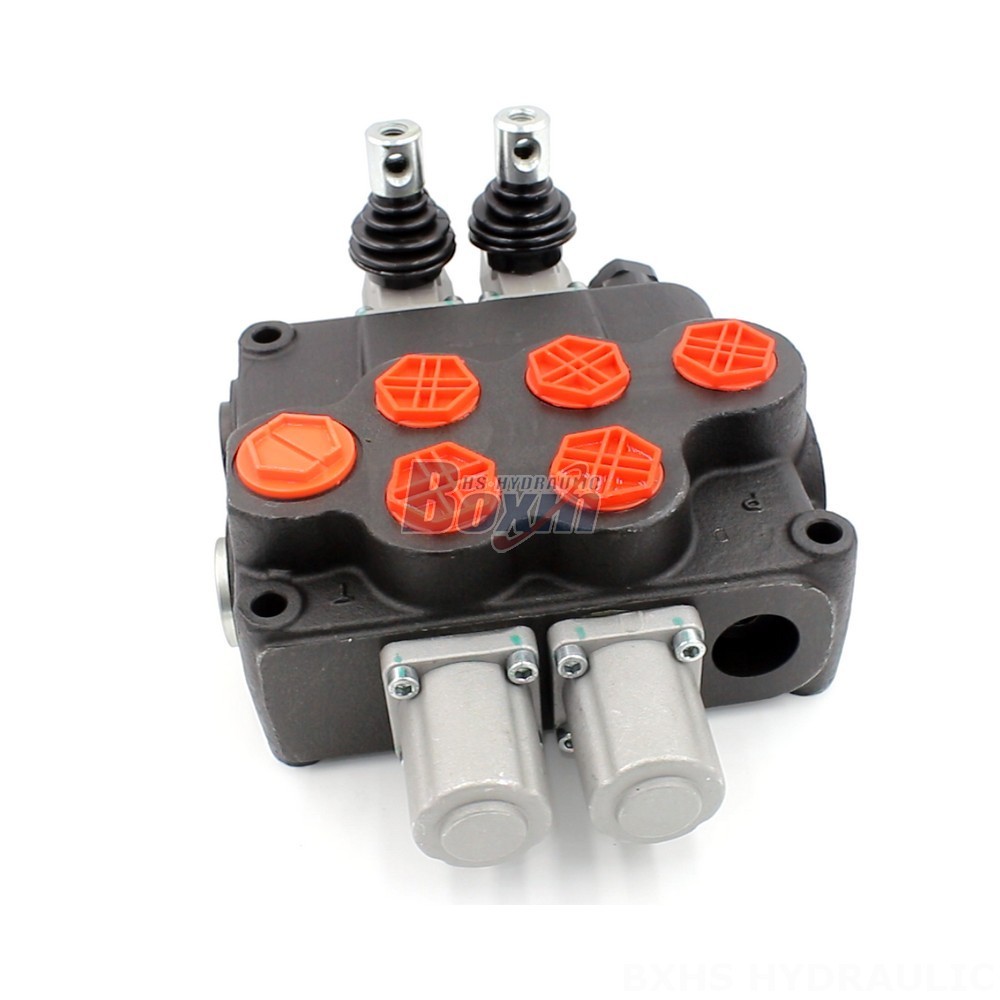

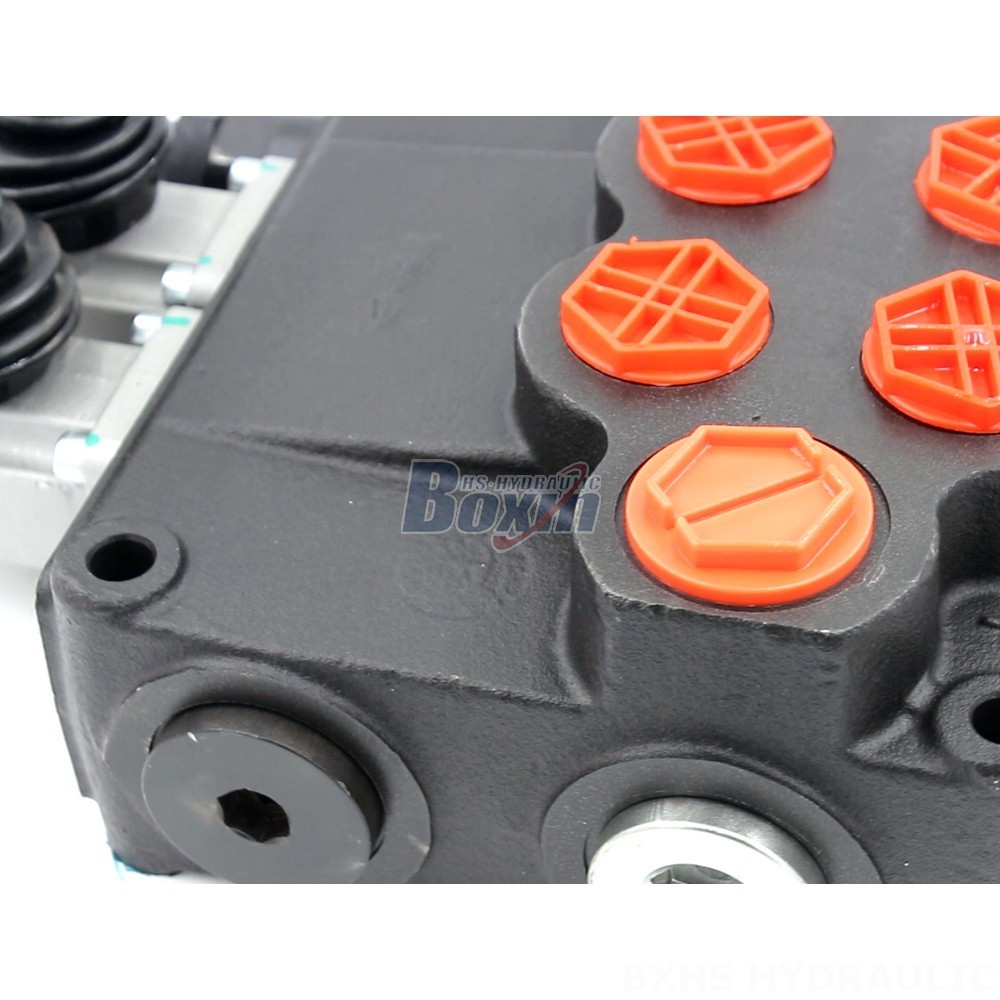

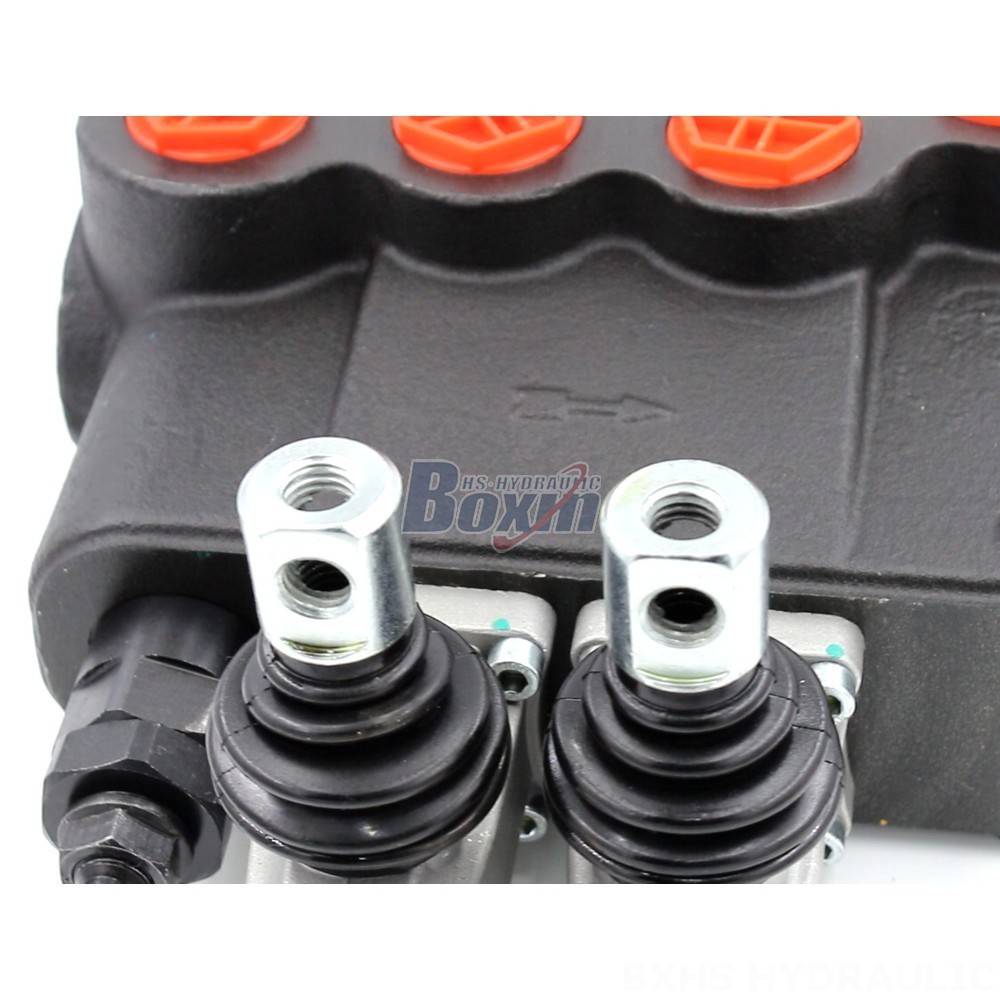

The P120 2-Spool Hydraulic Valve is a robust and reliable monoblock valve designed for a wide range of applications in material handling, construction, agriculture, and industrial vehicles. It features a rated flow of 120 L/min and a maximum pressure of 250 bar, making it suitable for demanding tasks.

P120シリーズ モノブロック方向制御弁 パラメーター
制御方法 手動, ケーブル, ジョイスティック, 手動・ジョイスティック
スプール 1スプール, 2スプール, 3スプール, 4スプール
定格流量 120 L/分 (31.7 US gpm)
最大圧力 250 bar (3600 psi)
吸入口 G3/4, G1, M27×2.0, SAE 14, SAE 16, 3/4 NPT, 1 NPT, M36×2
吐出口 G1, SAE 16, 1 NPT, M36×2
ポートサイズ G3/4, G1, M27×2.0, SAE 14, SAE 16, 1 NPT, M36×2
セクション 1セクション, 2セクション, 3セクション, 4セクション
構造タイプ モノブロック弁
周囲温度範囲 -40°C to +80°C (-40°F to +176°F)
作動粘度範囲 15 - 75 mm²/s (15 cSt to 75 cSt)

This high-performance hydraulic distributor valve is part of the P120 series and is specifically designed for 2-spool operation. It offers a compact and durable design with a robust monoblock construction. The valve is manually controlled and features a rated flow of 120 L/min (31.7 US gpm) with a maximum pressure rating of 250 bar (3600 psi). Its operating viscosity range is 15 - 75 mm²/s (15 cSt to 75 cSt), ensuring reliable performance in various operating conditions. The P120 2-Spool Hydraulic Valve can withstand ambient temperatures ranging from -40°C to +80°C (-40°F to +176°F). It is widely applicable in various equipment, including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, mini excavators, skid steer loaders, compact wheel loaders, and wheel loaders.
