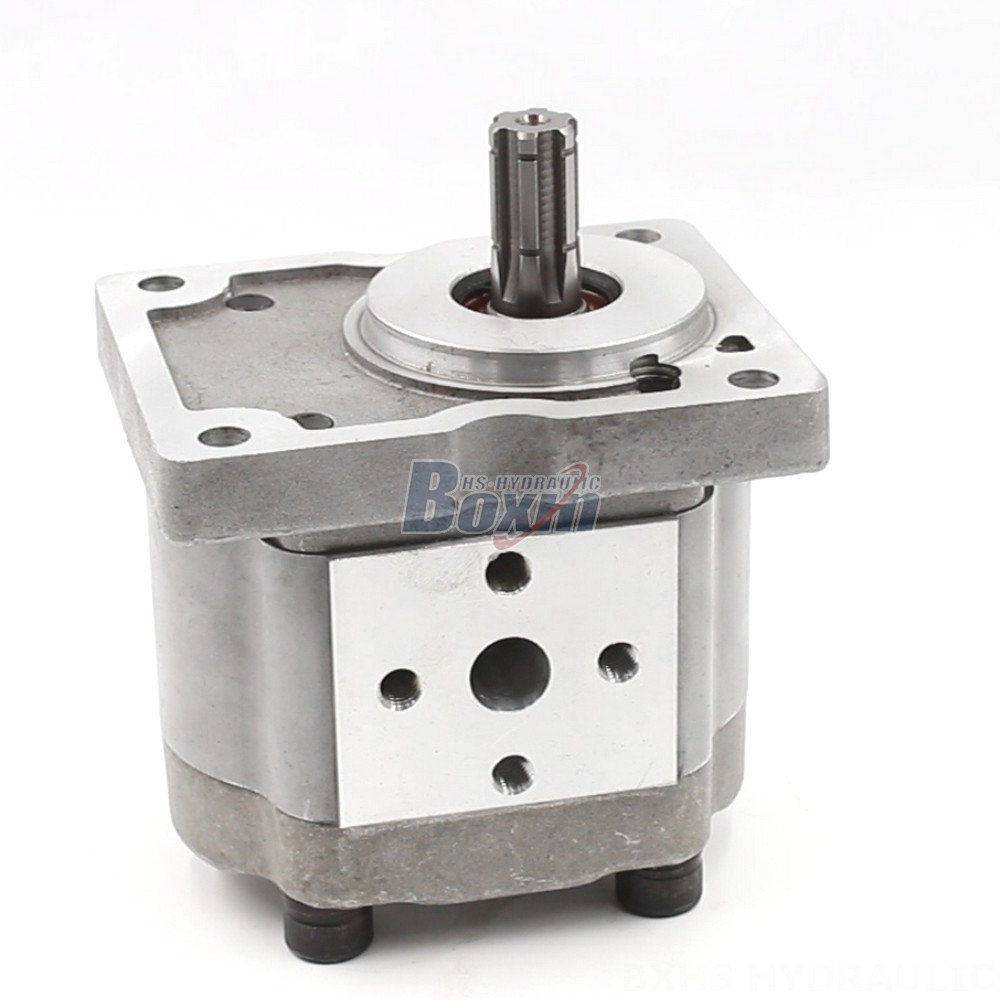

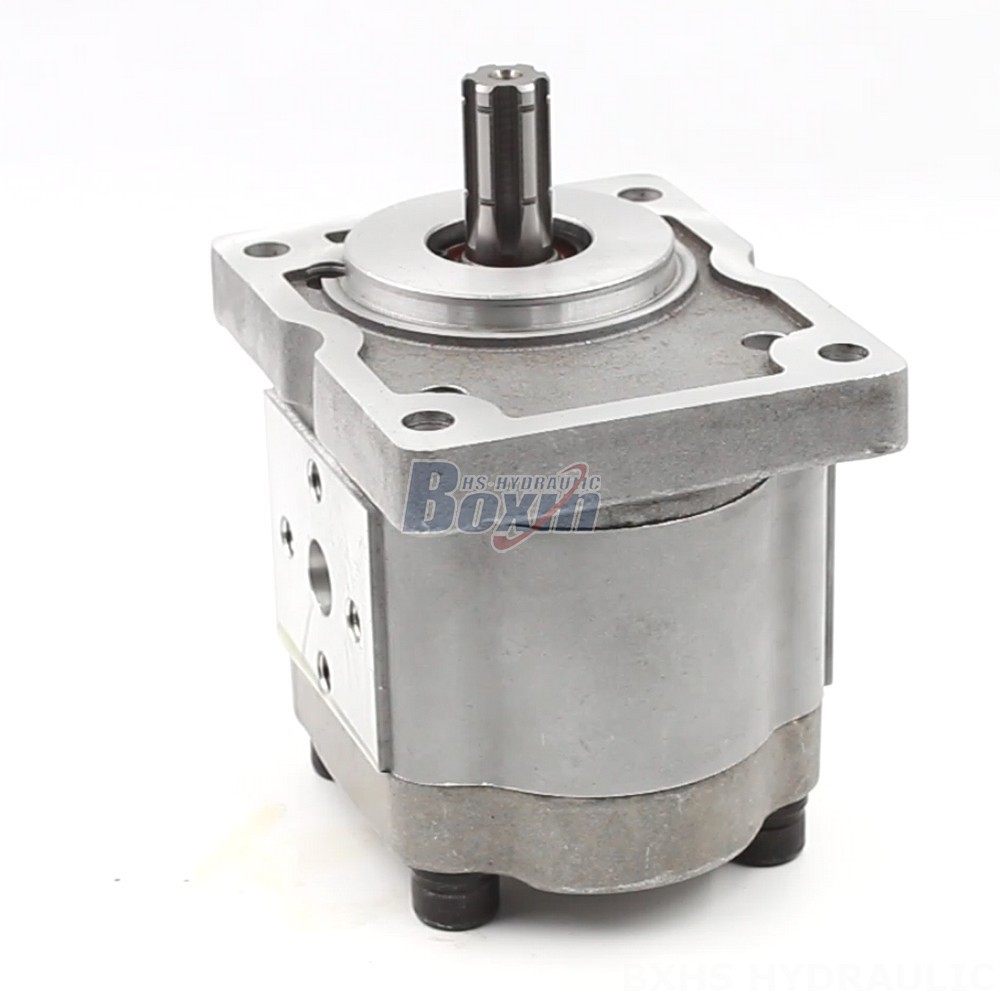

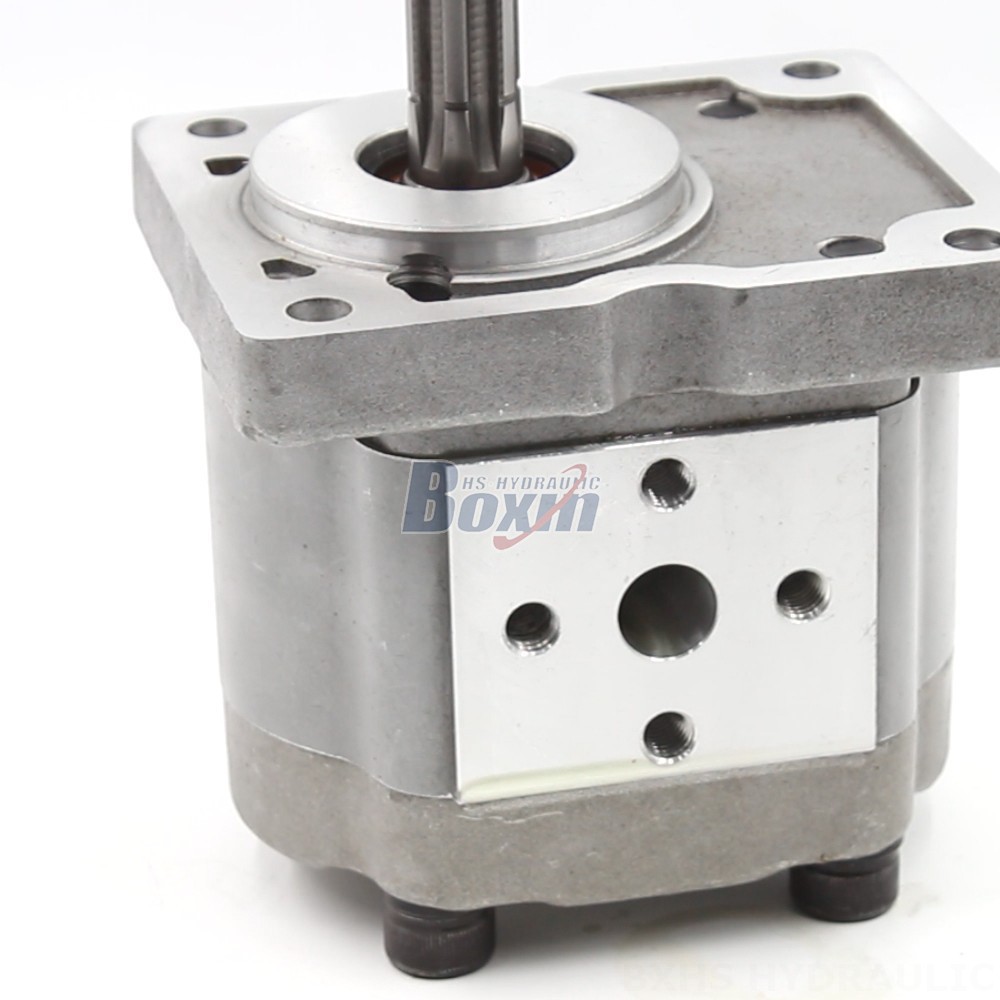

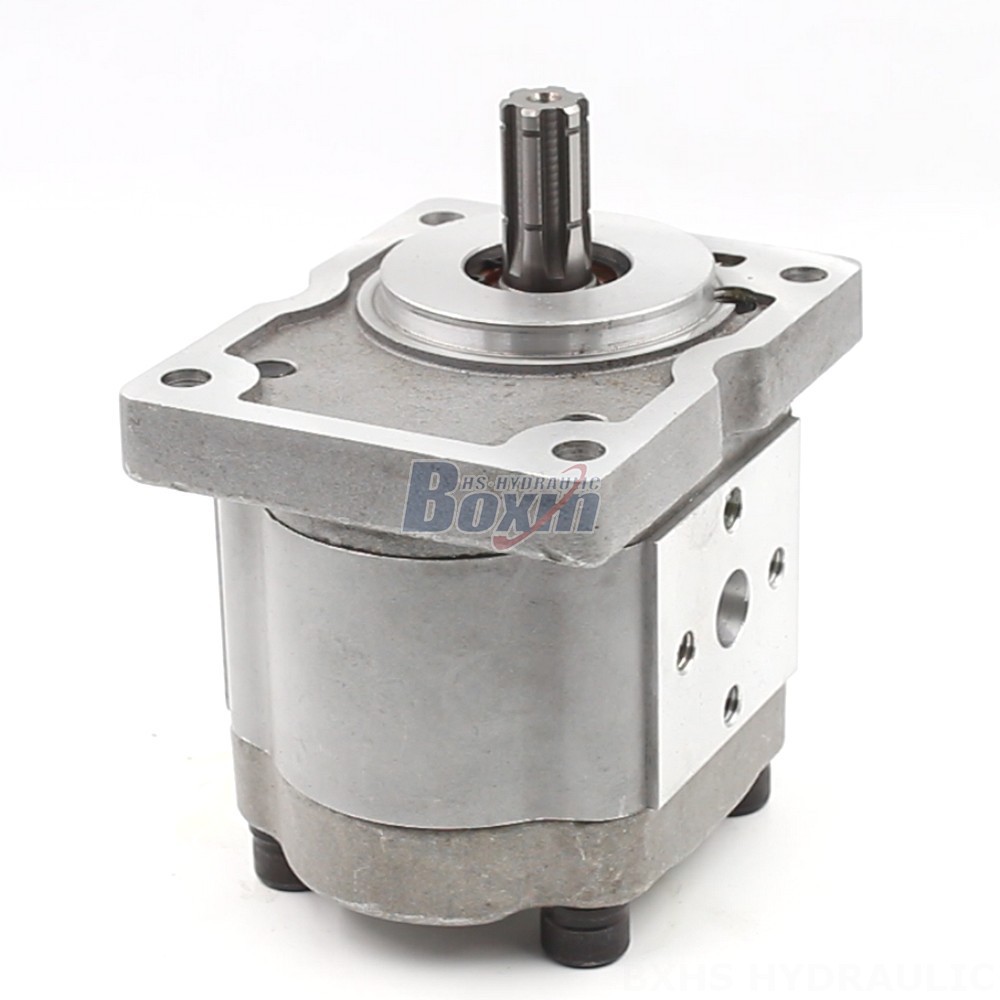

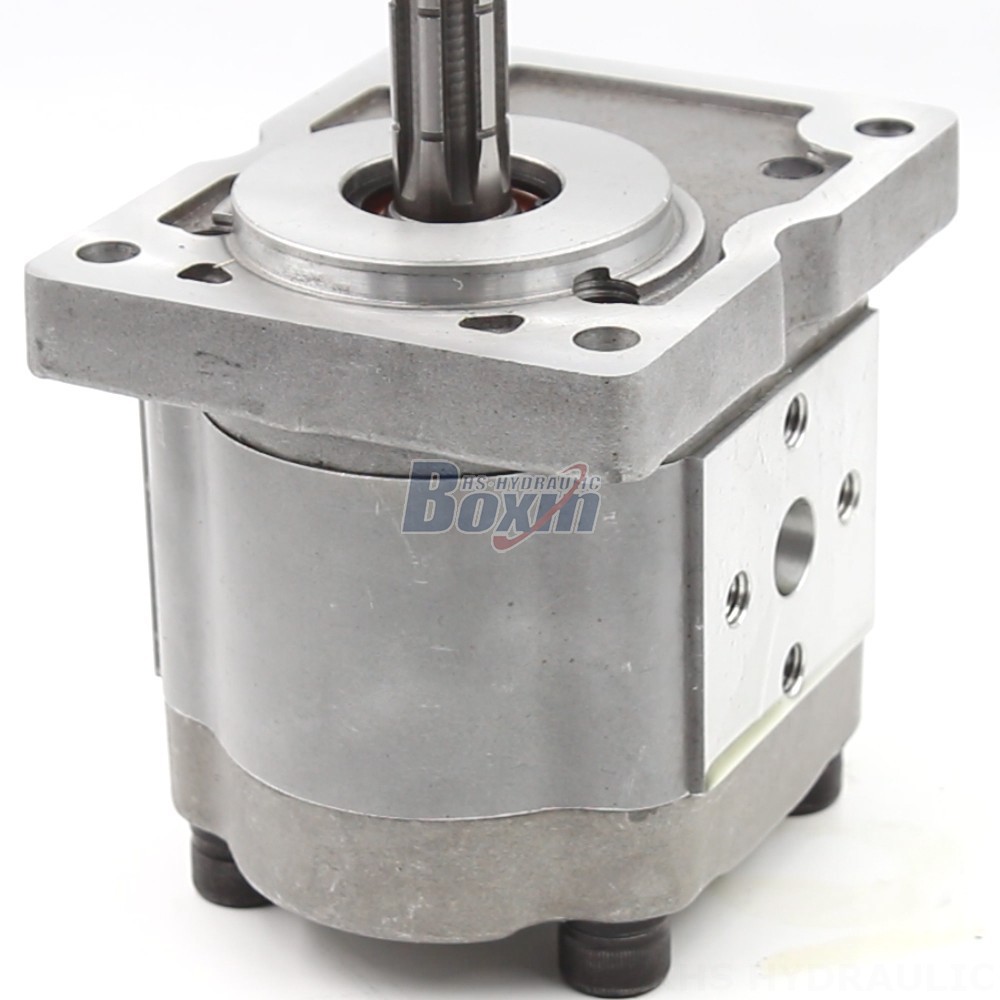

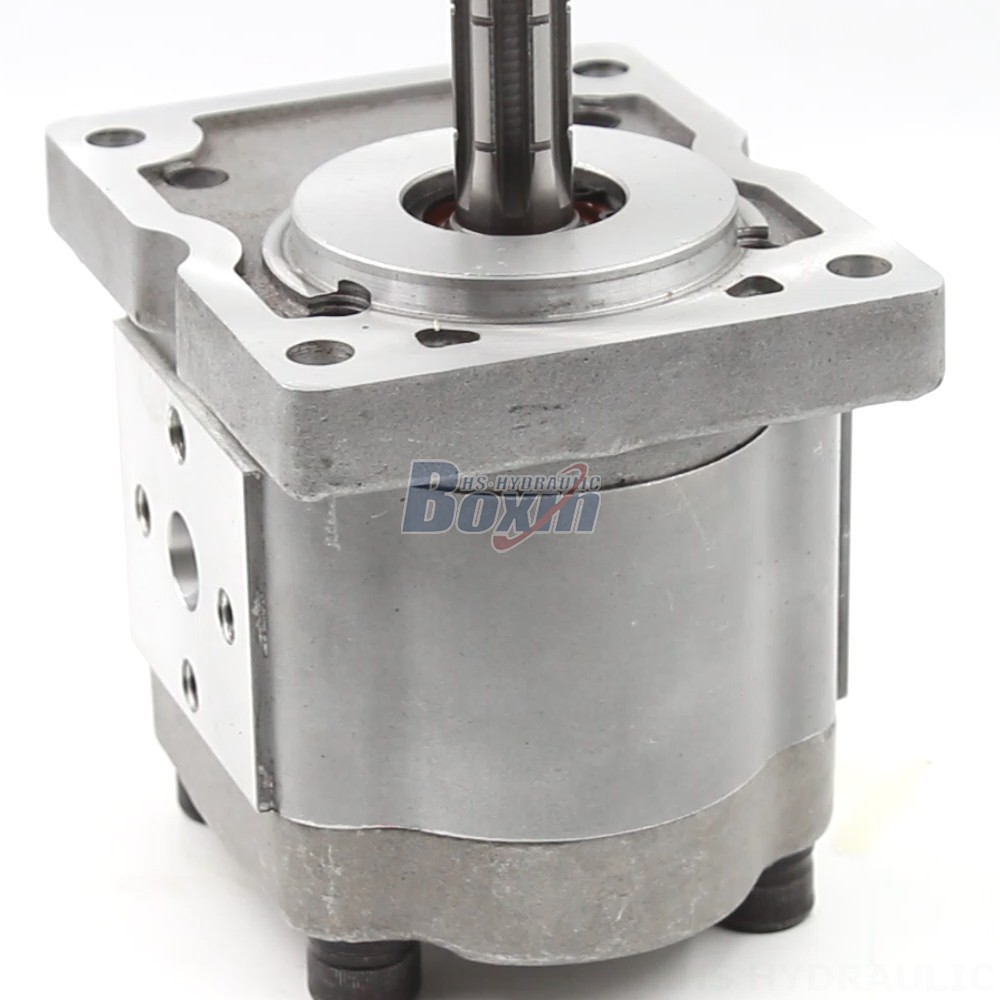

The NSH-10 Hydraulic Gear Pump is a versatile and reliable hydraulic pump designed for demanding applications in various industries, including material handling, construction, agriculture, and industrial vehicles. It delivers exceptional performance with a displacement of 100 cc/rev and a rated pressure of 18 MPa (2610 psi).
| NSHシリーズ 油圧ギア・ポンプ パラメーター | |
|---|---|
| 変位 | 10 cc/回転, 32 cc/回転, 40 cc/回転, 50 cc/回転, 100 cc/回転 |
| 定格圧力 | 18 MPa (2610 psi) |
| 最大圧力 | 20 MPa (2900 psi) |
| 定格回転速度 | 2000 r/min |
| 最大回転速度 | 4200 r/min |
| 回転方向 | 左 (逆時針) |
| 材質 | 鋁 |
| 構造 | 外部齒輪泵 |
| フランジモデル | B-方形凸緣 |
| 軸タイプ | X：漸開線花鍵 |
**NSH-10 Hydraulic Gear Pump: Power and Efficiency for Demanding Applications**
The NSH-10 Hydraulic Gear Pump is a высококачественный and durable pump constructed from robust aluminium. It features an external gear design with a B-Square Flange and an Involute Spline shaft type. This pump is part of the NSH Series and is available in various displacements, including 10 cc/rev, 40 cc/rev, and 50 cc/rev.
**Key Features and Benefits:**
* Displacement: 100 cc/rev
* Rated Pressure: 18 MPa (2610 psi)
* Rated Speed: 2000 r/min
* Max Speed: 4200 r/min
* Left (counter-clockwise) rotation
* External Gear Pump structure
* Aluminium material
* B-Square Flange version
* Involute Spline shaft type
The NSH-10 Hydraulic Gear Pump is widely used in various applications, including:
* Material Handling Equipment
* Construction and Earth Moving Equipment
* Agricultural Machinery
* Industrial Vehicles
* Telehandlers
* Forklifts
* All Terrain Cranes
* Stackers
* Aerial Platforms
* Motor Graders
* Midi-Excavators
* Mini-Excavators
* Skid Steer Loaders
With its exceptional performance, durability, and versatility, the NSH-10 Hydraulic Gear Pump is an ideal choice for a wide range of hydraulic applications that demand power and efficiency.
