Monoblock Valve P40-OW: Superior Quality and Exceptional Value

制御方法:手動

スプール:1スプール

定格流量:毎分40リットル (10.5 US gpm)

最大圧力:250 bar (3600 psi)

吸入口:G1/2

吐出口:G1/2

ポートサイズ:G3/8

ベンダー:BXHS

製品タイプ:モノブロック方向制御弁

製品シリーズ:P40シリーズ モノブロック方向制御弁

梱包サイズ:23*16*11

総重量:3.00 kg

在庫状況: 在庫あり

1142 この製品を探している人もいます

Monoblock Valve P40-OW: Superior Quality and Exceptional Value

Monoblock Valve P40-OW: Superior Quality and Exceptional Value

Monoblock Valve P40-OW: Superior Quality and Exceptional Value drawing image

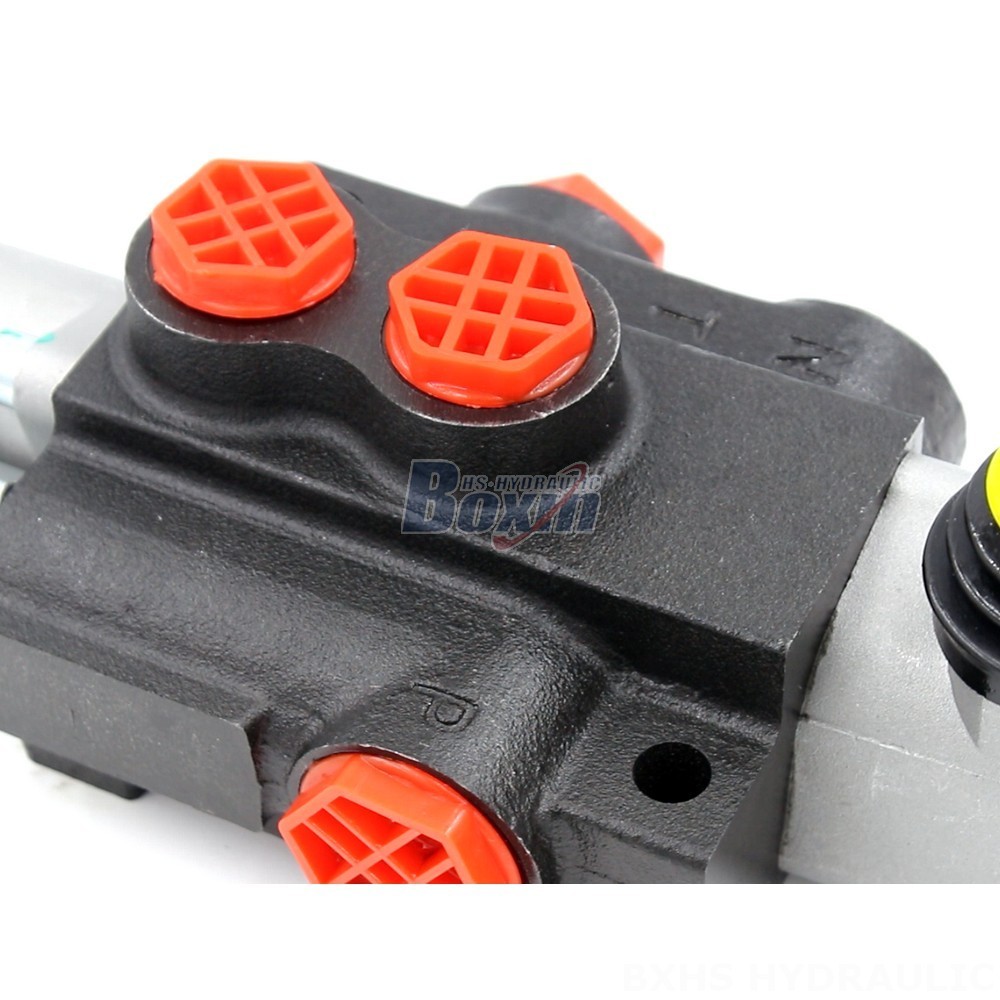

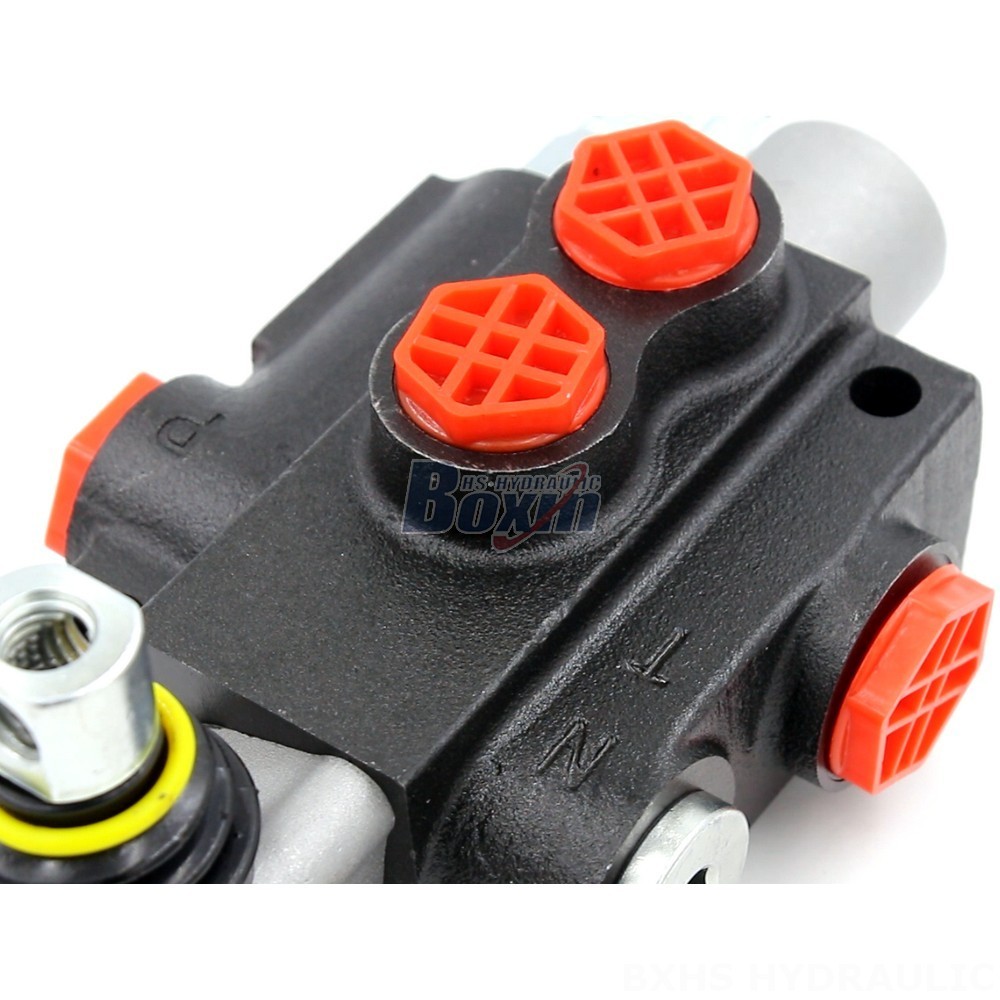

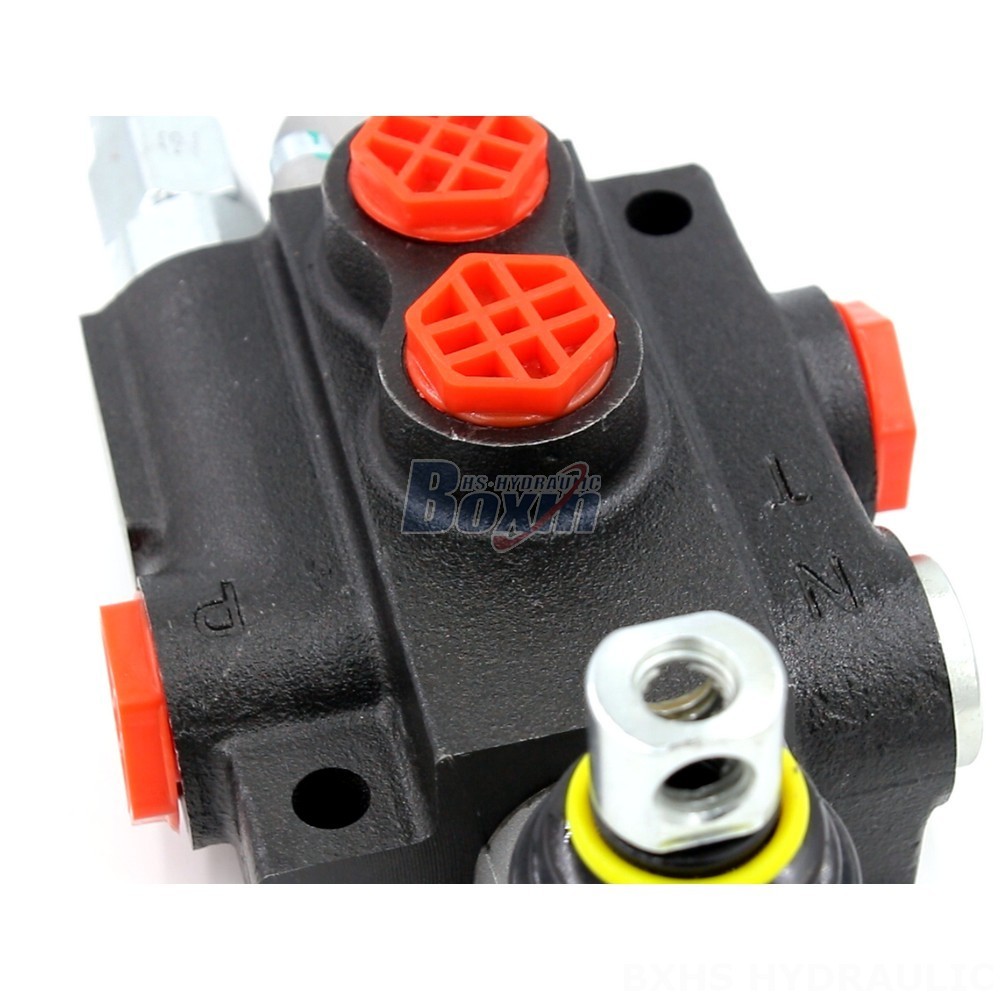

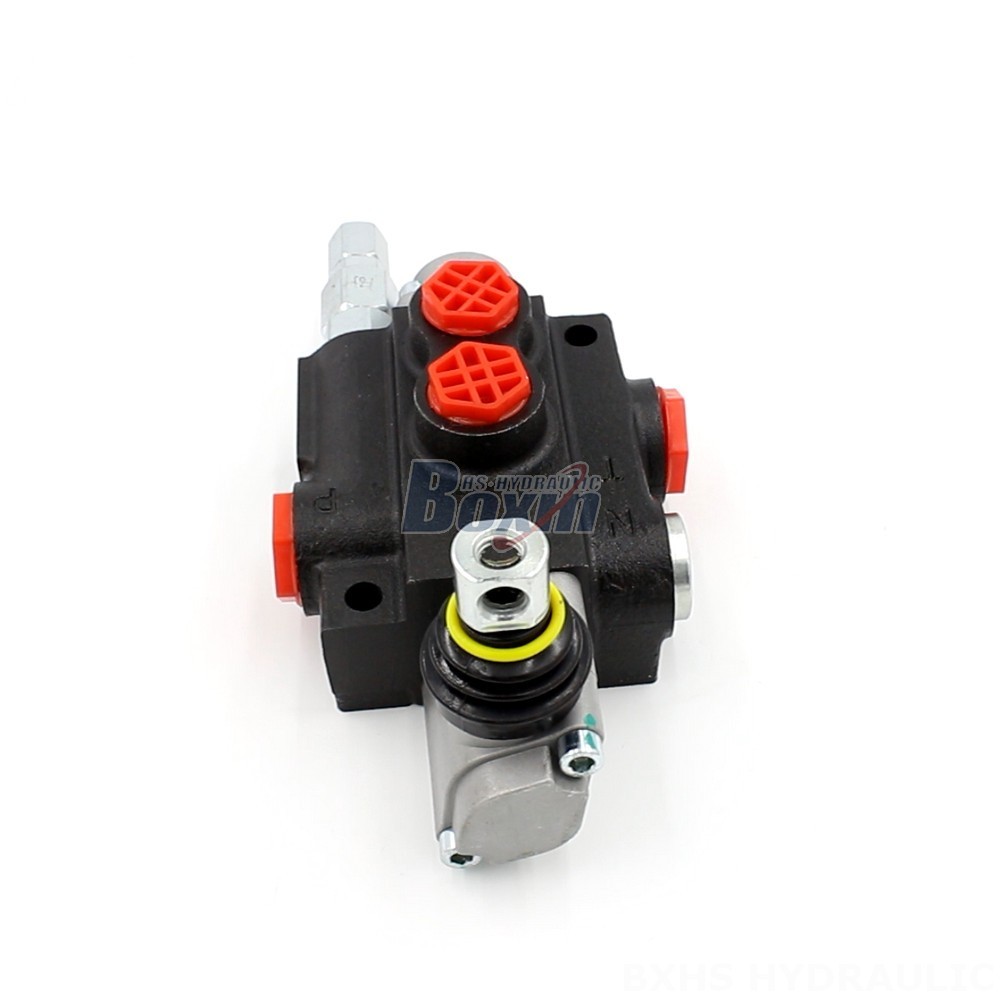

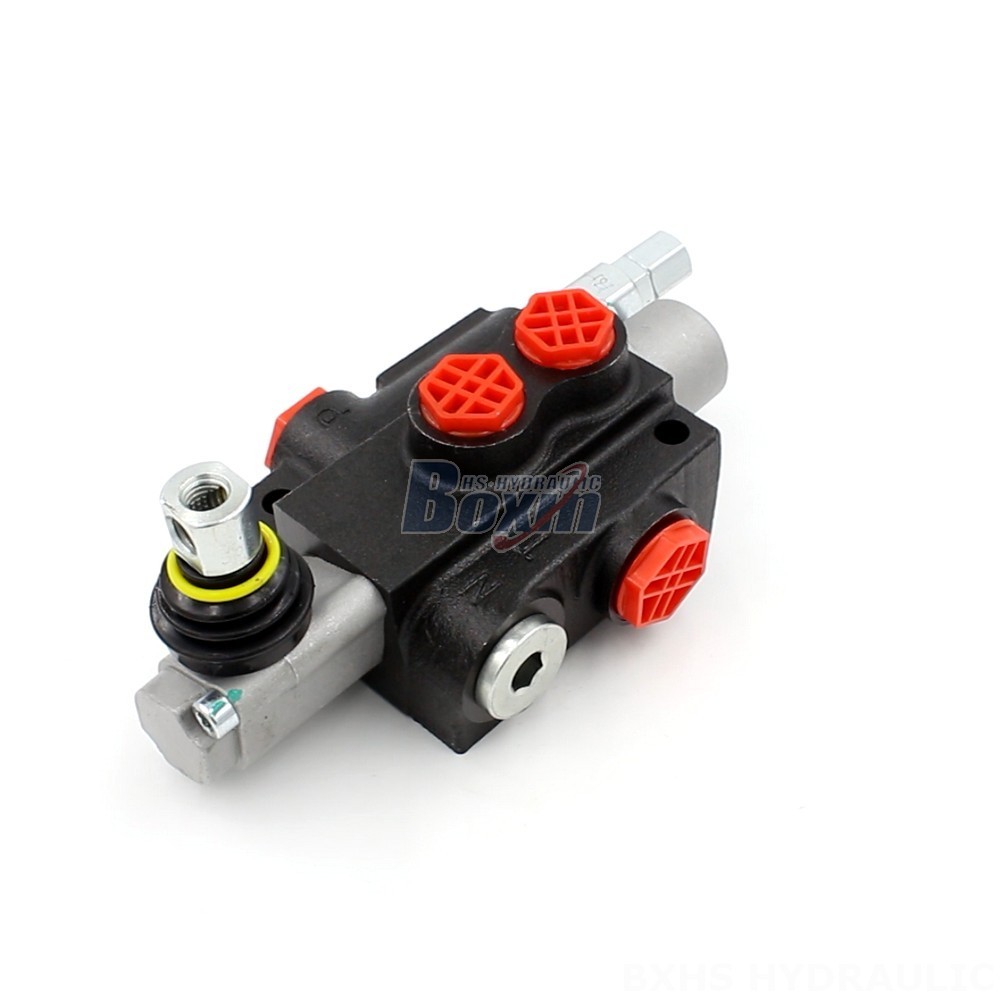

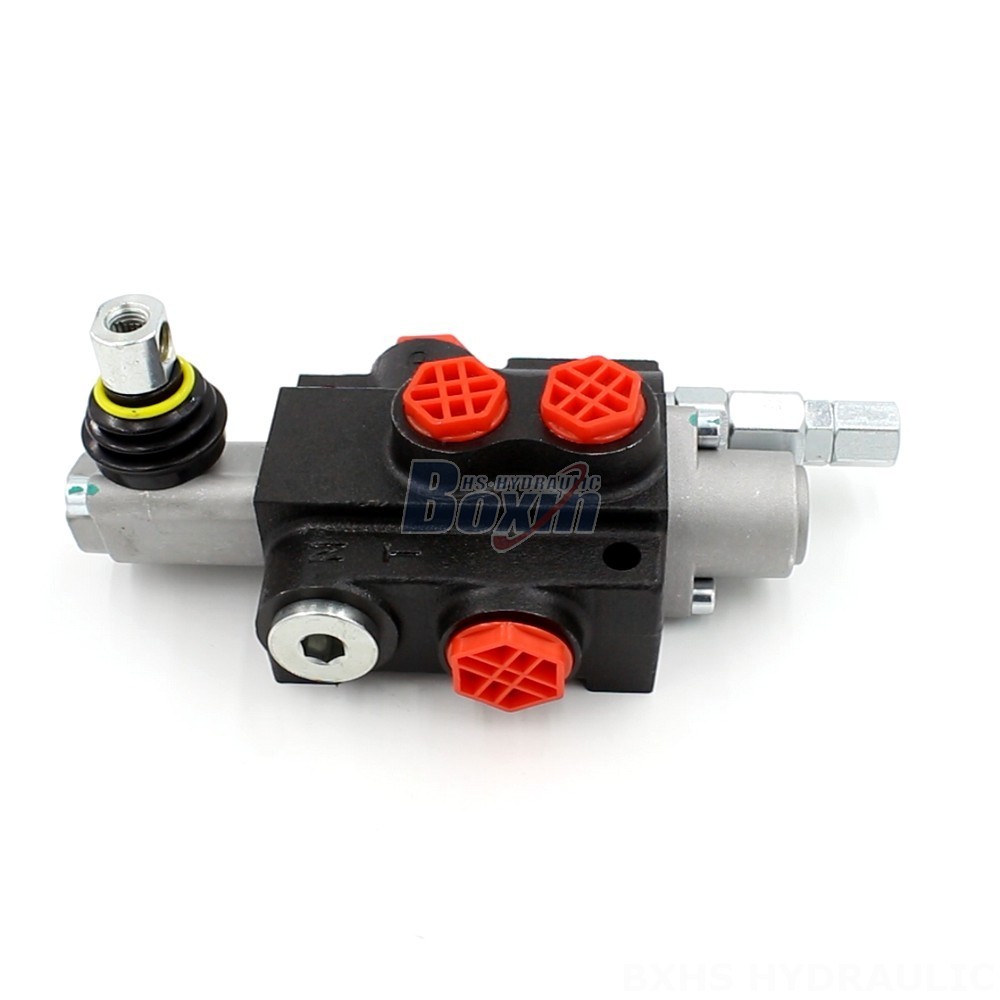

The P40-OW Hydraulic Cut Off Solenoid Valve is a high-quality, reliable valve designed for a wide range of applications, including material handling, construction, and agriculture. It features a monoblock design, rated flow of 40 L/min, and a maximum pressure of 250 bar.

P40シリーズ モノブロック方向制御弁 パラメーター
制御方法 手動, 空圧, 電空, 電気油圧, ソレノイド, 油圧, 油圧および手動, ケーブル, ジョイスティック, ソレノイド・ジョイスティック, 手動・ジョイスティック, ソレノイドおよびケーブル式
スプール 1スプール, 2スプール, 3スプール, 4スプール, 5スプール, 6スプール, 7スプール
周囲温度範囲 -40°C to +80°C (-40°F to +176°F)
構造タイプ モノブロック弁
セクション 1セクション, 2セクション, 3セクション, 4セクション, 5セクション, 6セクション, 7セクション
作動粘度範囲 15 - 75 mm²/s (15 cSt to 75 cSt)
定格流量 毎分40リットル (10.5 US gpm)
最大圧力 250 bar (3600 psi)
吸入口 G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
吐出口 G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
ポートサイズ G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT

The P40-OW Hydraulic Cut Off Solenoid Valve is a superior quality and exceptional value monoblock valve designed for a variety of demanding applications. It features a manual control method, 1 section, 1 spool, and a rated flow of 40 L/min (10.5 US gpm). This valve is capable of handling pressures up to 250 bar (3600 psi) and operates with a viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt). Its ambient temperature range is -40°C to +80°C (-40°F to +176°F), making it suitable for a wide range of operating environments. Designed for reliability and durability, this valve is ideal for use in material handling, construction, and agriculture. It is compatible with a range of equipment including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders.
