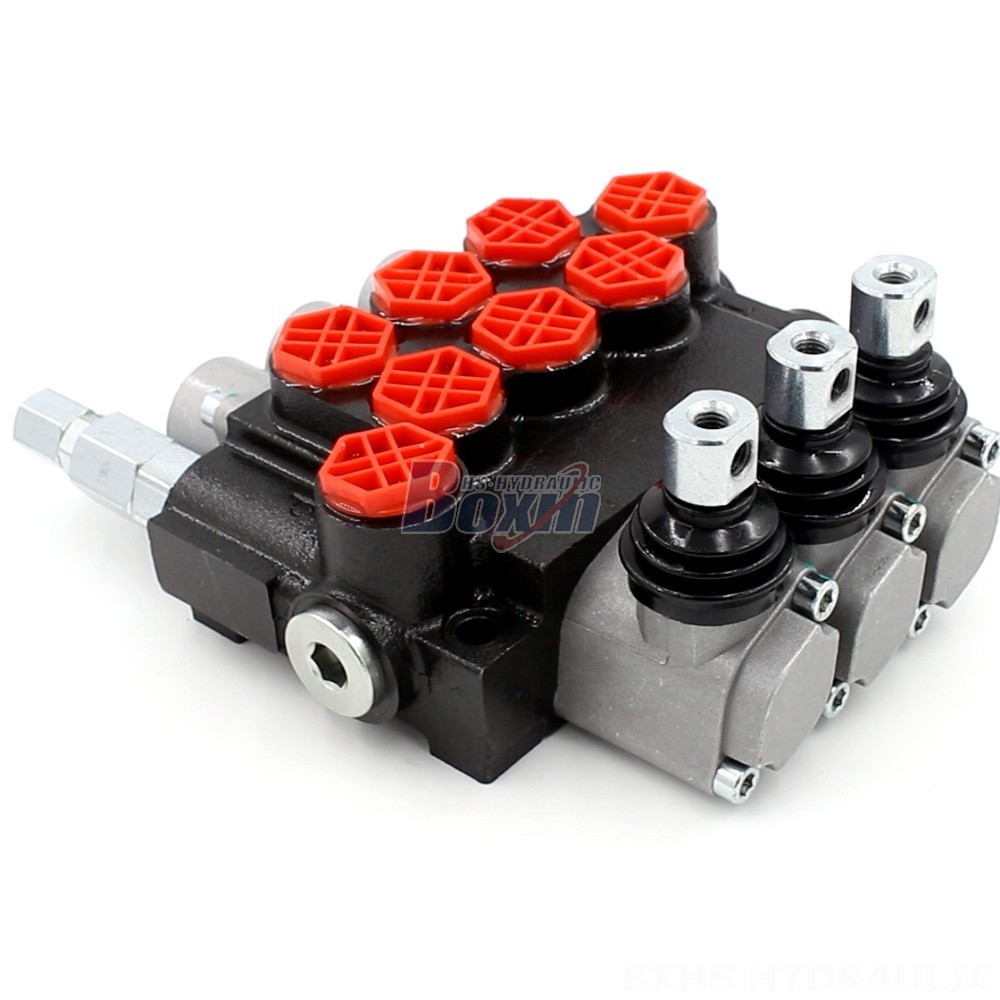

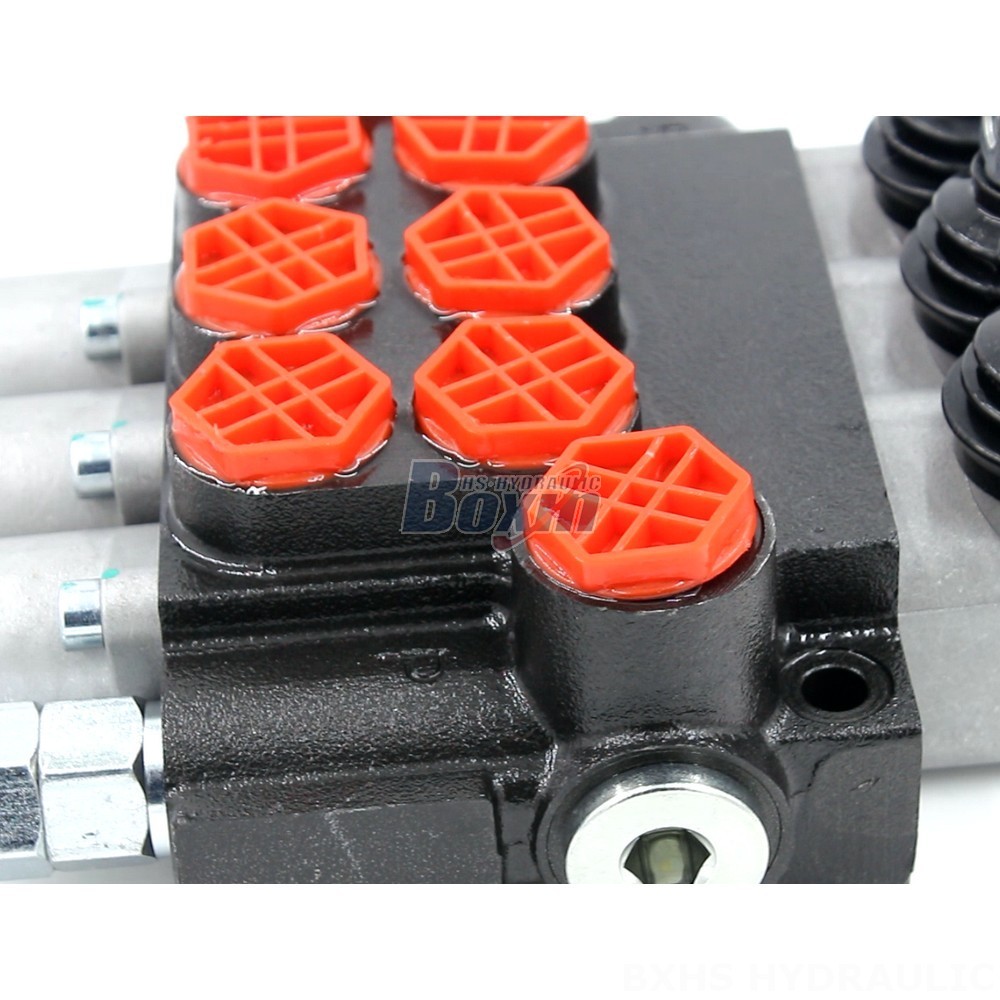

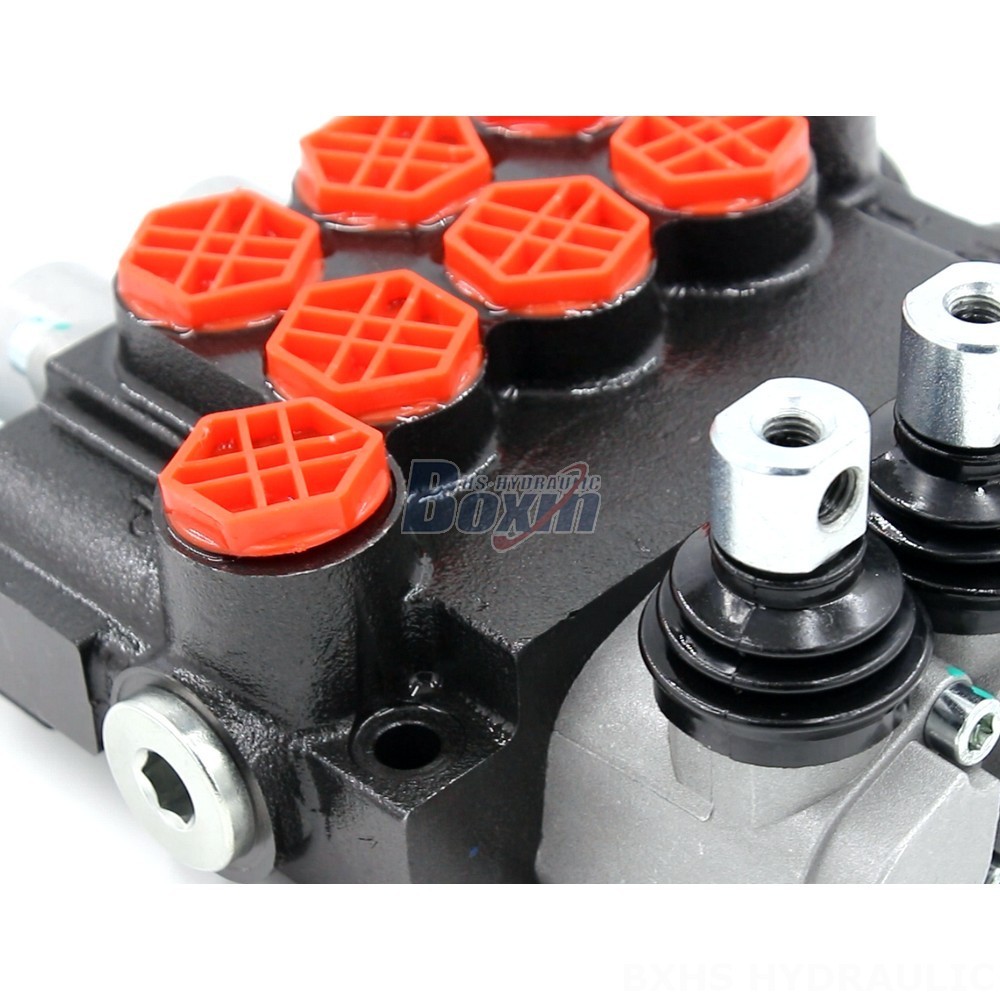

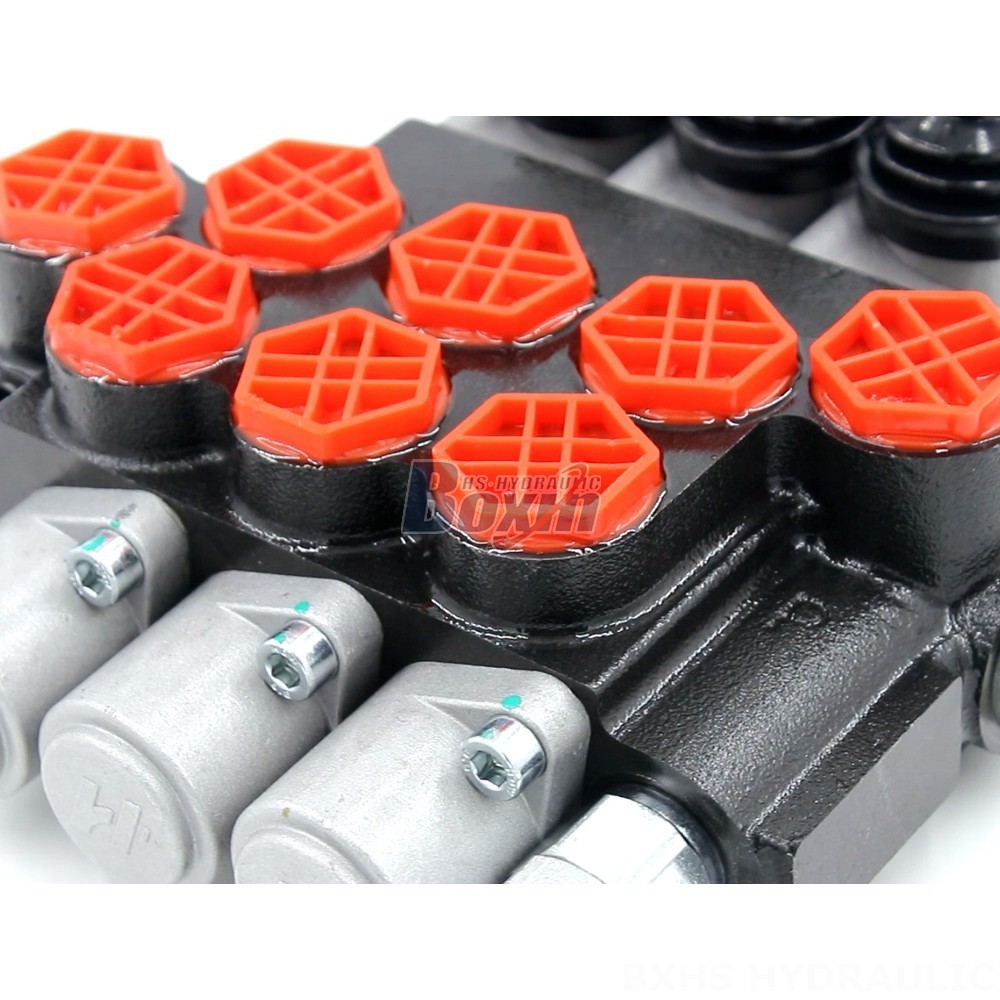

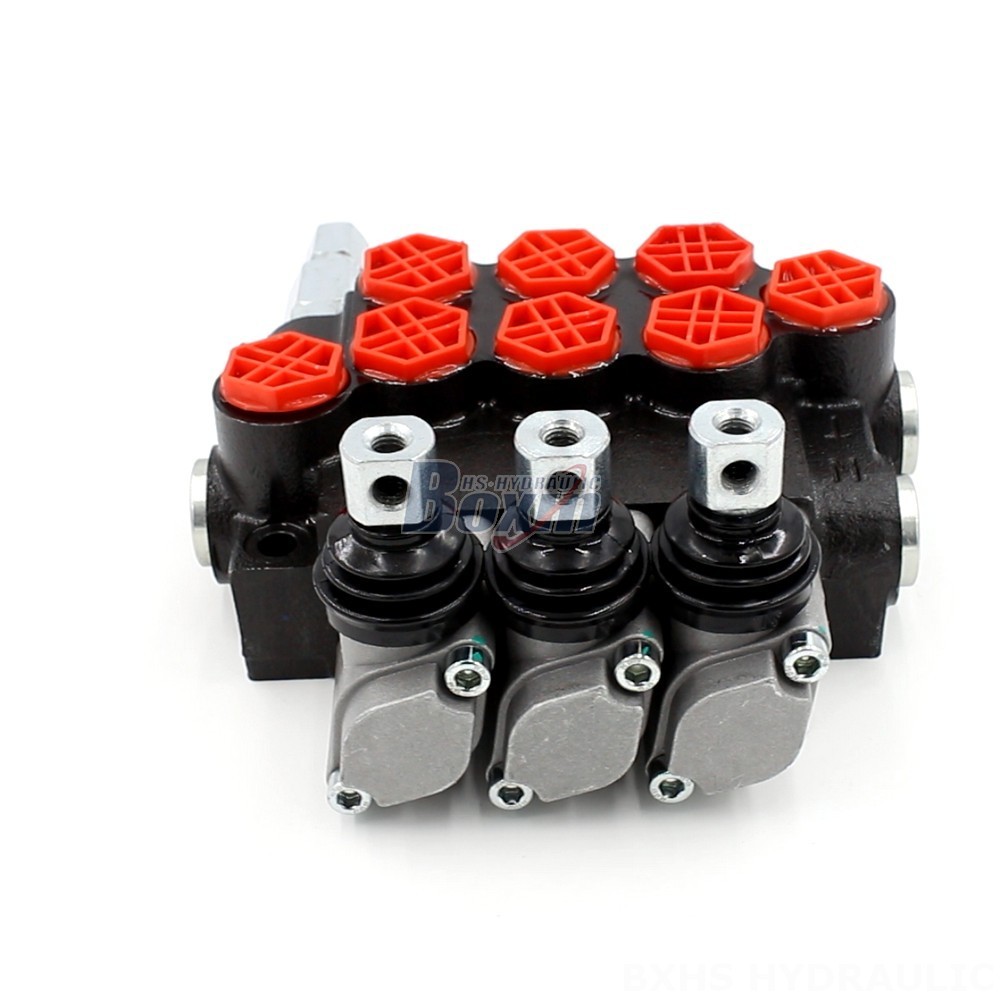

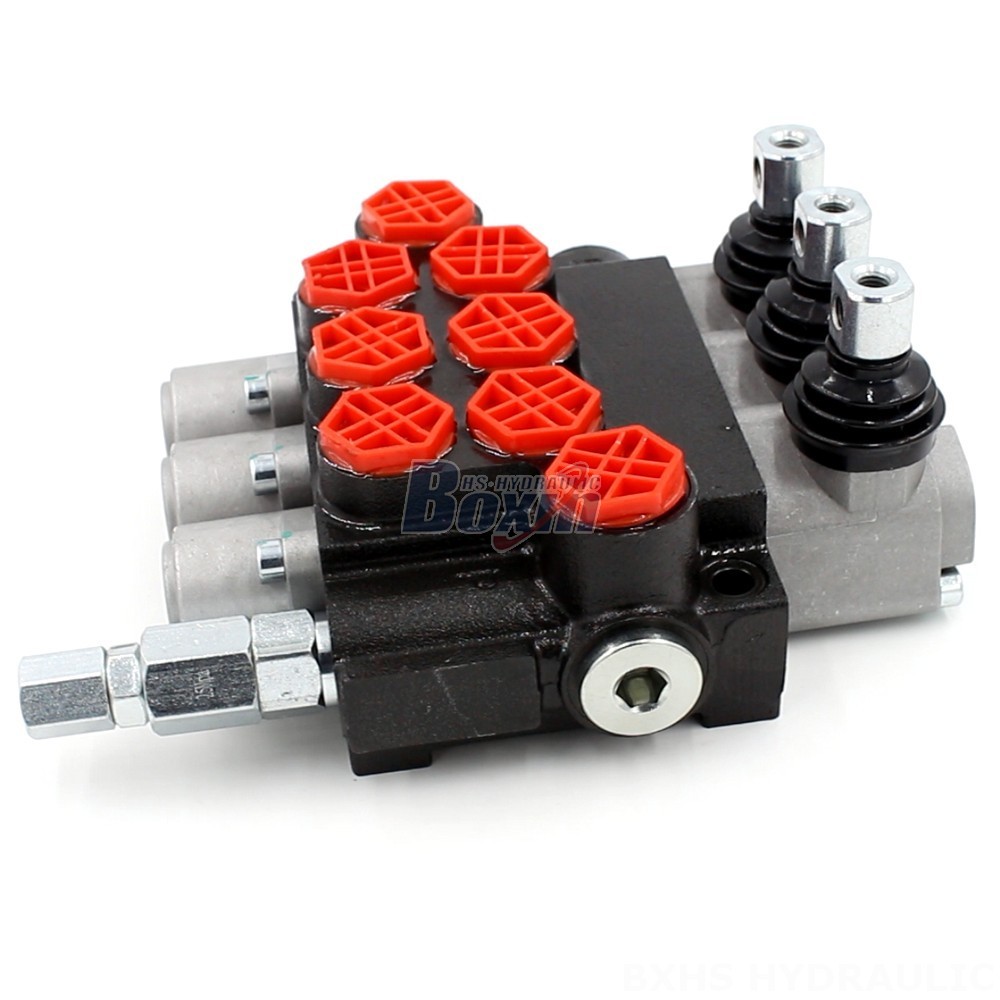

Monoblock Directional Valve P40-G12-OT | Wholesale & OEM

制御方法:手動

スプール:3スプール

定格流量:毎分40リットル (10.5 US gpm)

最大圧力:250 bar (3600 psi)

吸入口:G1/2

吐出口:G1/2

ポートサイズ:G1/2

ベンダー:BXHS

製品タイプ:モノブロック方向制御弁

製品シリーズ:P40シリーズ モノブロック方向制御弁

梱包サイズ:24*21*13

総重量:6.60 kg

在庫状況: 在庫あり

1159 この製品を探している人もいます

Monoblock Directional Valve P40-G12-OT | Wholesale & OEM

Monoblock Directional Valve P40-G12-OT | Wholesale & OEM

Monoblock Directional Valve P40-G12-OT | Wholesale & OEM drawing image

This P40 Series 3-section monoblock directional valve is a compact and powerful hydraulic valve designed for mini excavators and other construction equipment. It features a manual control method, a rated flow of 40 L/min, and a maximum pressure of 250 bar.

P40シリーズ モノブロック方向制御弁 パラメーター
制御方法 手動, 空圧, 電空, 電気油圧, ソレノイド, 油圧, 油圧および手動, ケーブル, ジョイスティック, ソレノイド・ジョイスティック, 手動・ジョイスティック, ソレノイドおよびケーブル式
スプール 1スプール, 2スプール, 3スプール, 4スプール, 5スプール, 6スプール, 7スプール
周囲温度範囲 -40°C to +80°C (-40°F to +176°F)
構造タイプ モノブロック弁
セクション 1セクション, 2セクション, 3セクション, 4セクション, 5セクション, 6セクション, 7セクション
作動粘度範囲 15 - 75 mm²/s (15 cSt to 75 cSt)
定格流量 毎分40リットル (10.5 US gpm)
最大圧力 250 bar (3600 psi)
吸入口 G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
吐出口 G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
ポートサイズ G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT

This P40-G12-OT mini excavator monoblock directional valve is a high-performance hydraulic component for a variety of applications. It offers a 3-section design with a manual control method, making it easy to operate. The valve boasts a rated flow of 40 L/min and can withstand a maximum pressure of 250 bar. Its operating viscosity range is 15 - 75 mm²/s, and it can withstand ambient temperatures from -40°C to +80°C. This versatile valve is suitable for a wide range of applications in material handling, construction and earth moving, agriculture, and industrial vehicles. Some common applications include telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders.
