Monoblock Directional Valve P40-G12-2OT | Key Features & Advantages

制御方法:手動

スプール:2スプール

定格流量:毎分40リットル (10.5 US gpm)

最大圧力:250 bar (3600 psi)

吸入口:G1/2

吐出口:G1/2

ポートサイズ:G1/2

ベンダー:BXHS

製品タイプ:モノブロック方向制御弁

製品シリーズ:P40シリーズ モノブロック方向制御弁

梱包サイズ:23*18*13

総重量:5.00 kg

在庫状況: 在庫あり

949 この製品を探している人もいます

Monoblock Directional Valve P40-G12-2OT | Key Features & Advantages

Monoblock Directional Valve P40-G12-2OT | Key Features & Advantages

Monoblock Directional Valve P40-G12-2OT | Key Features & Advantages drawing image

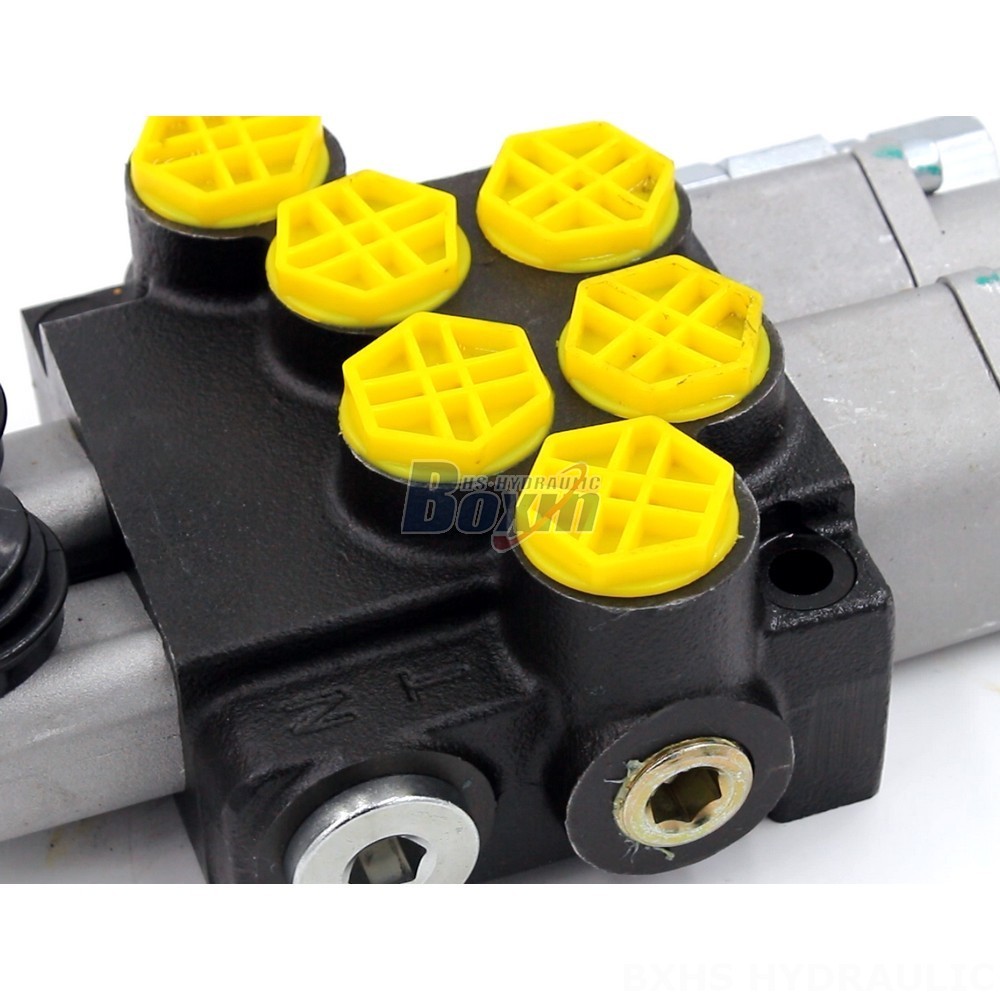

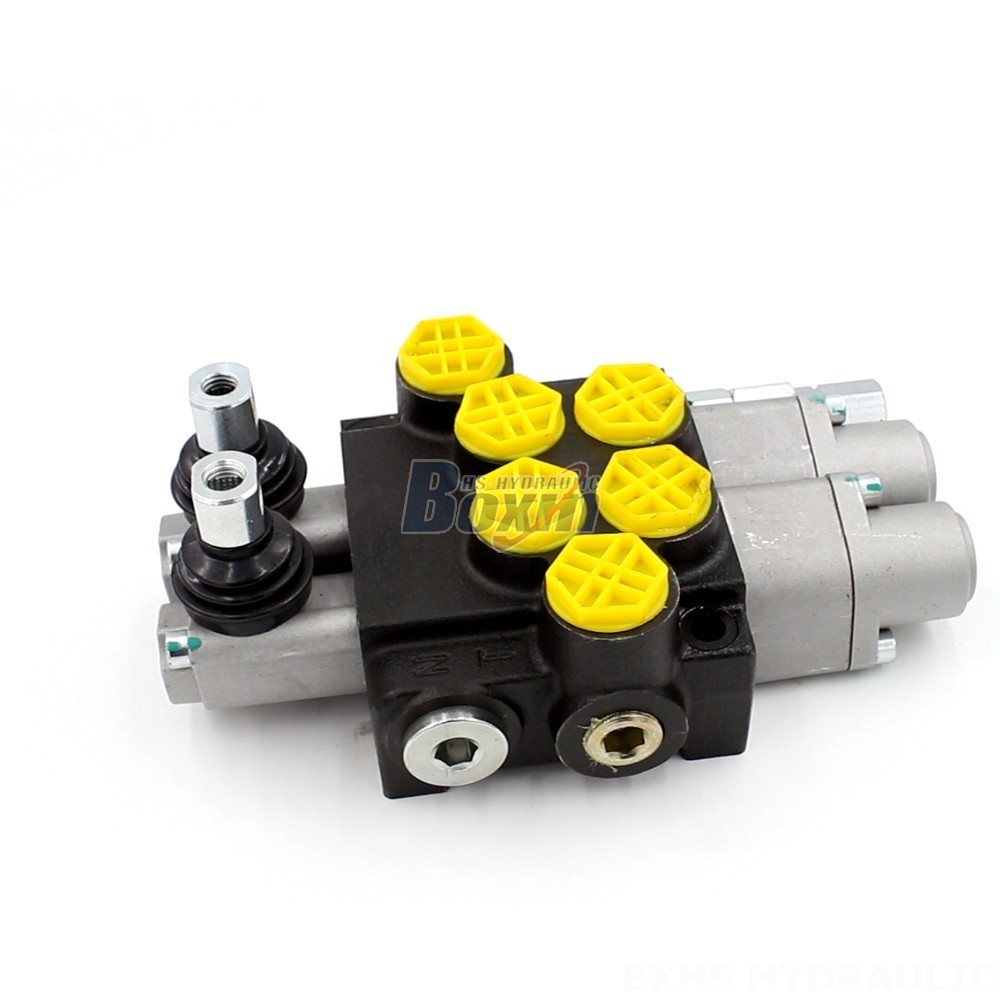

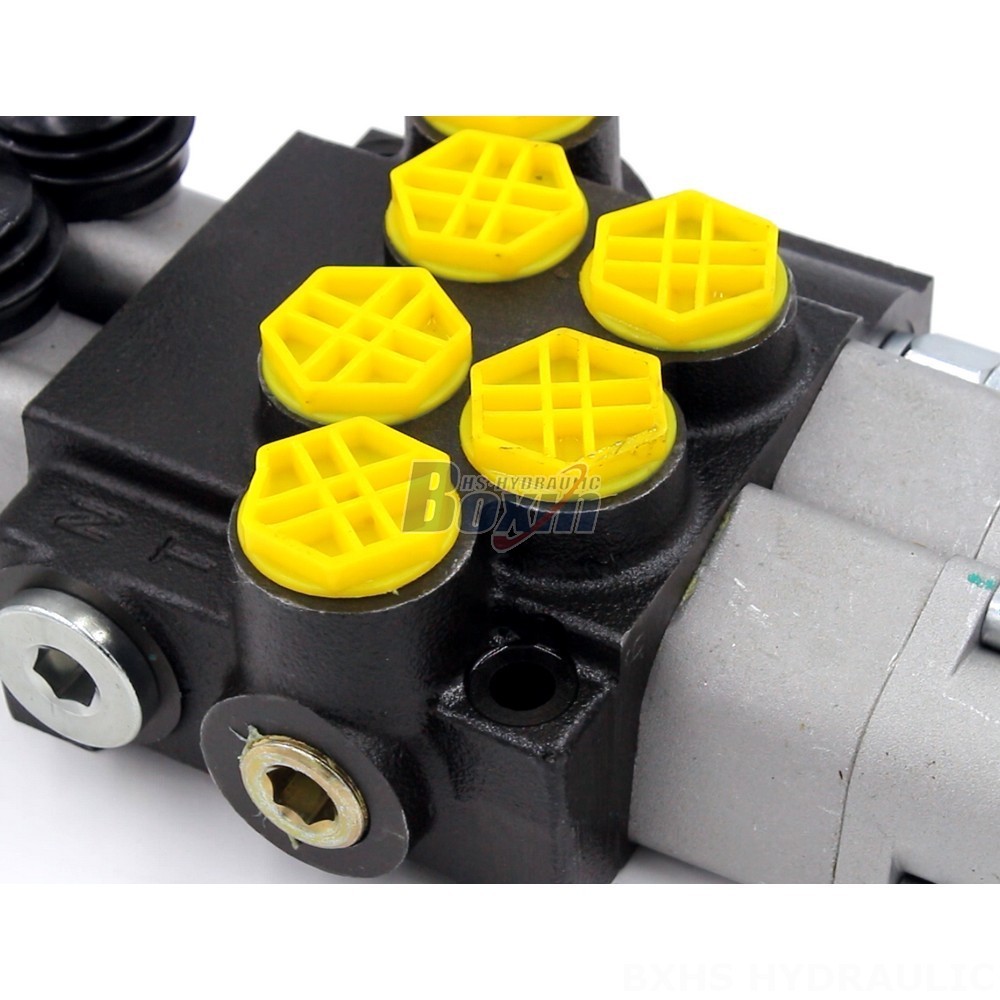

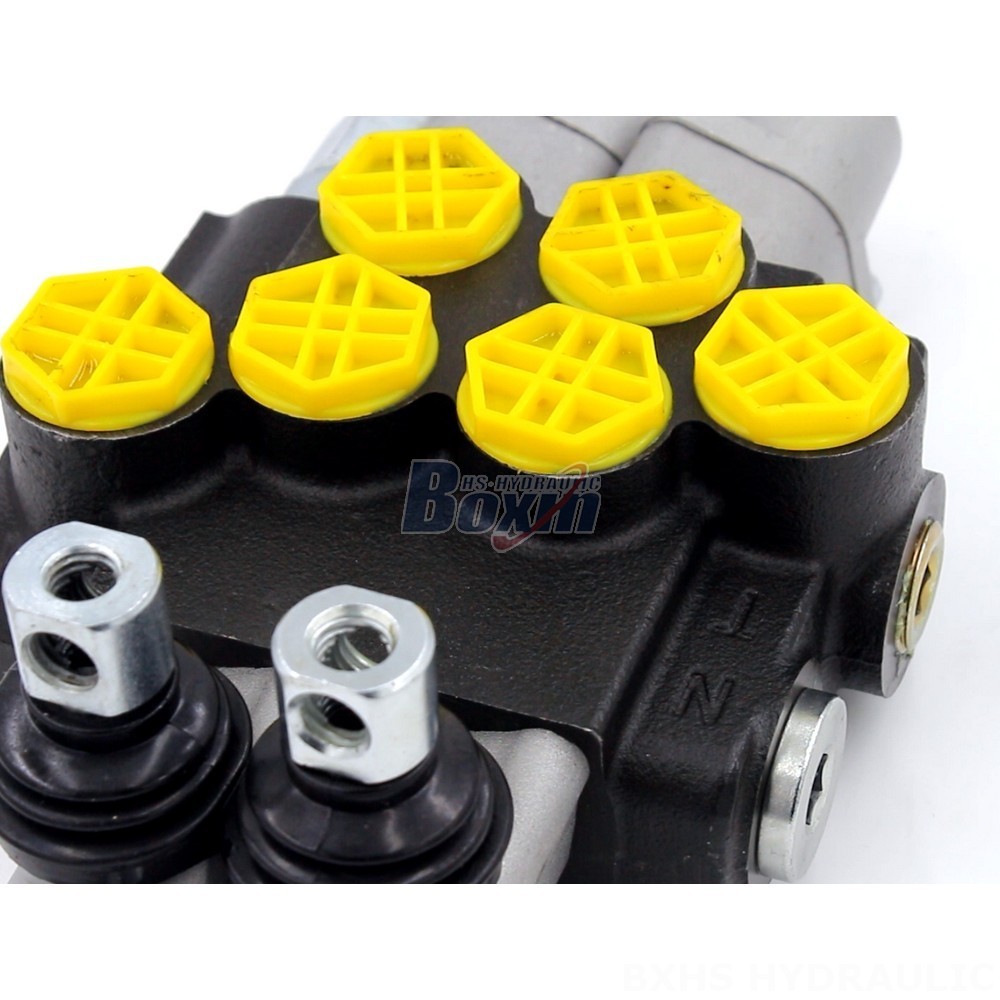

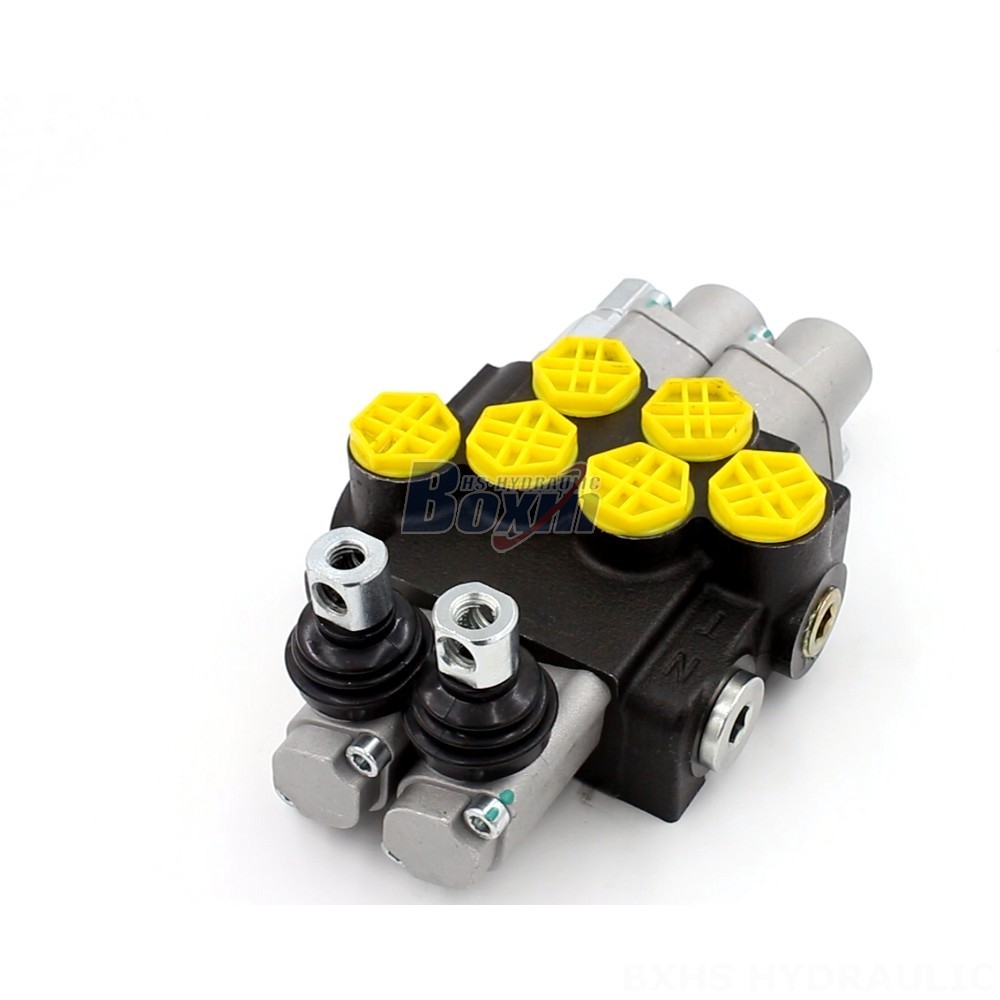

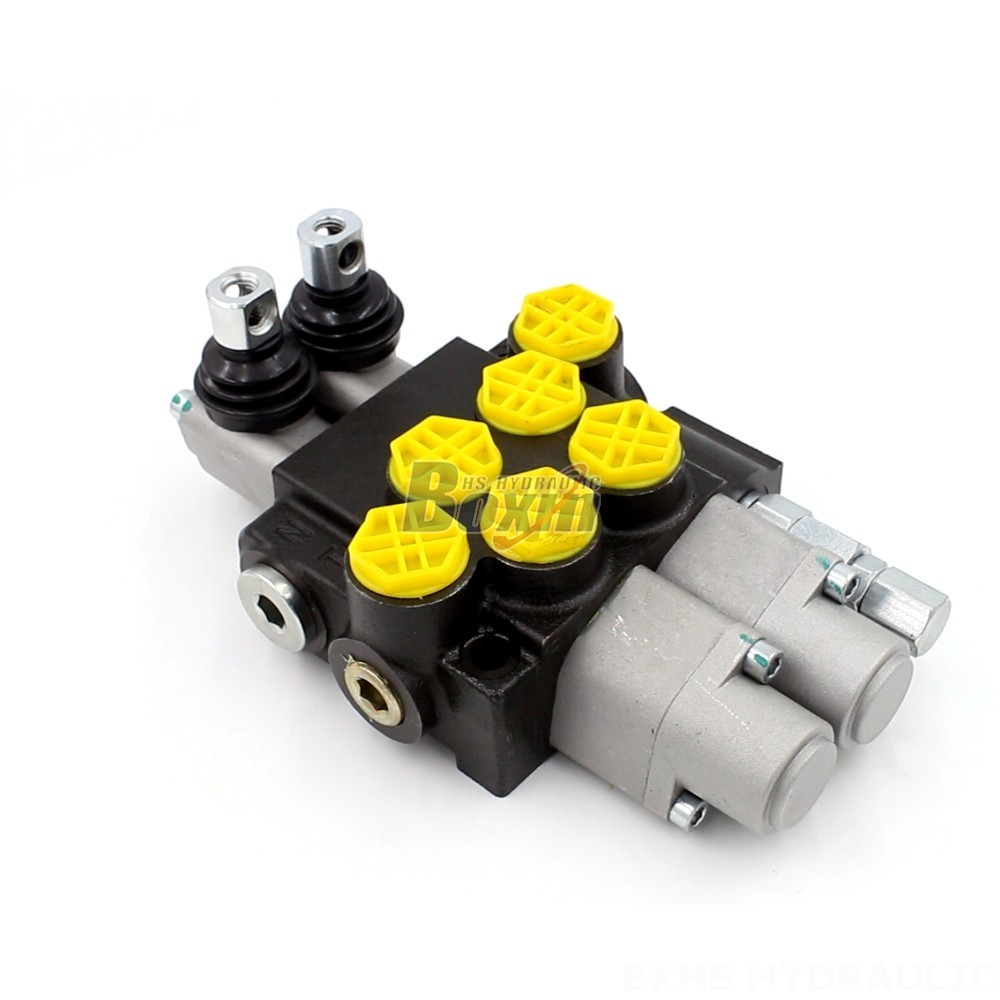

The P40-G12-2OT Directional Control Monoblock Valve is a robust and reliable hydraulic valve designed for demanding applications in material handling, construction, agriculture, and industrial vehicles. This 2-section, manually controlled valve boasts a rated flow of 40 L/min and a maximum pressure of 250 bar, making it ideal for a wide range of equipment, including telehandlers, forklifts, cranes, and excavators.

P40シリーズ モノブロック方向制御弁 パラメーター
制御方法 手動, 空圧, 電空, 電気油圧, ソレノイド, 油圧, 油圧および手動, ケーブル, ジョイスティック, ソレノイド・ジョイスティック, 手動・ジョイスティック, ソレノイドおよびケーブル式
スプール 1スプール, 2スプール, 3スプール, 4スプール, 5スプール, 6スプール, 7スプール
周囲温度範囲 -40°C to +80°C (-40°F to +176°F)
構造タイプ モノブロック弁
セクション 1セクション, 2セクション, 3セクション, 4セクション, 5セクション, 6セクション, 7セクション
作動粘度範囲 15 - 75 mm²/s (15 cSt to 75 cSt)
定格流量 毎分40リットル (10.5 US gpm)
最大圧力 250 bar (3600 psi)
吸入口 G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
吐出口 G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
ポートサイズ G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT

This P40 series monoblock directional valve offers a compact and efficient solution for controlling hydraulic systems. Its manual control method provides simple and direct operation, while its 2-section design allows for versatile control configurations. With a rated flow of 40 L/min and a maximum pressure of 250 bar, this valve can handle a variety of hydraulic applications. Its wide operating viscosity range (15-75 mm²/s) and ambient temperature range (-40°C to +80°C) ensure reliable performance in diverse environments. This valve is specifically suited for equipment like telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders.
