What is the primary application of the Manufacturer of P40-G12-YW Monoblock Valves: Wholesale & Customization Available?

The Manufacturer of P40-G12-YW Monoblock Valves: Wholesale & Customization Available is designed for mobile hydraulic systems, agricultural machinery (such as tractors and harvesters), construction equipment (such as loaders and excavators), and industrial machinery. It ensures precise flow and directional control.

Is Boxinhuasheng a factory-direct manufacturer?

Yes, Boxinhuasheng (Qingzhou Boxinhuasheng Hydraulic Technology Co., Ltd.) is a factory-direct manufacturer established in 2001. We operate a 68,000m虏 facility with 4 modern manufacturing plants and 260+ production machines, supplying certified products directly to global customers.

What quality certifications do Boxinhuasheng products have?

All Boxinhuasheng directional control valves, gear pumps, and hydraulic accessories are CE certified, IATF 16949 compliant, and verified on-site by SGS, meeting international engineering standards.

Can Boxinhuasheng provide OEM/ODM customization services?

Yes, Boxinhuasheng has a team of 35 senior hydraulic engineers providing custom OEM manufacturing, ODM development, private labeling, and customized hydraulic system solutions tailored to specific operating pressures and flows.

What is the warranty and shipping lead time?

We offer a 1-year warranty with free replacement for any quality defects. Standard express delivery is within 30 days, supported by our robust annual capacity of 1.5 million hydraulic units and export experience to 80+ countries.

Manufacturer of P40-G12-YW Monoblock Valves: Wholesale & Customization Available

Name: Manufacturer of P40-G12-YW Monoblock Valves: Wholesale & Customization Available
Brand: Boxinhuasheng
SKU: BXHS-53911
Availability: InStock

sales2@chinesehydraulic.com

イノベーションが開発を推進し、テクノロジーが未来を築きます

ホームモノブロック方向制御弁P40シリーズ製品詳細

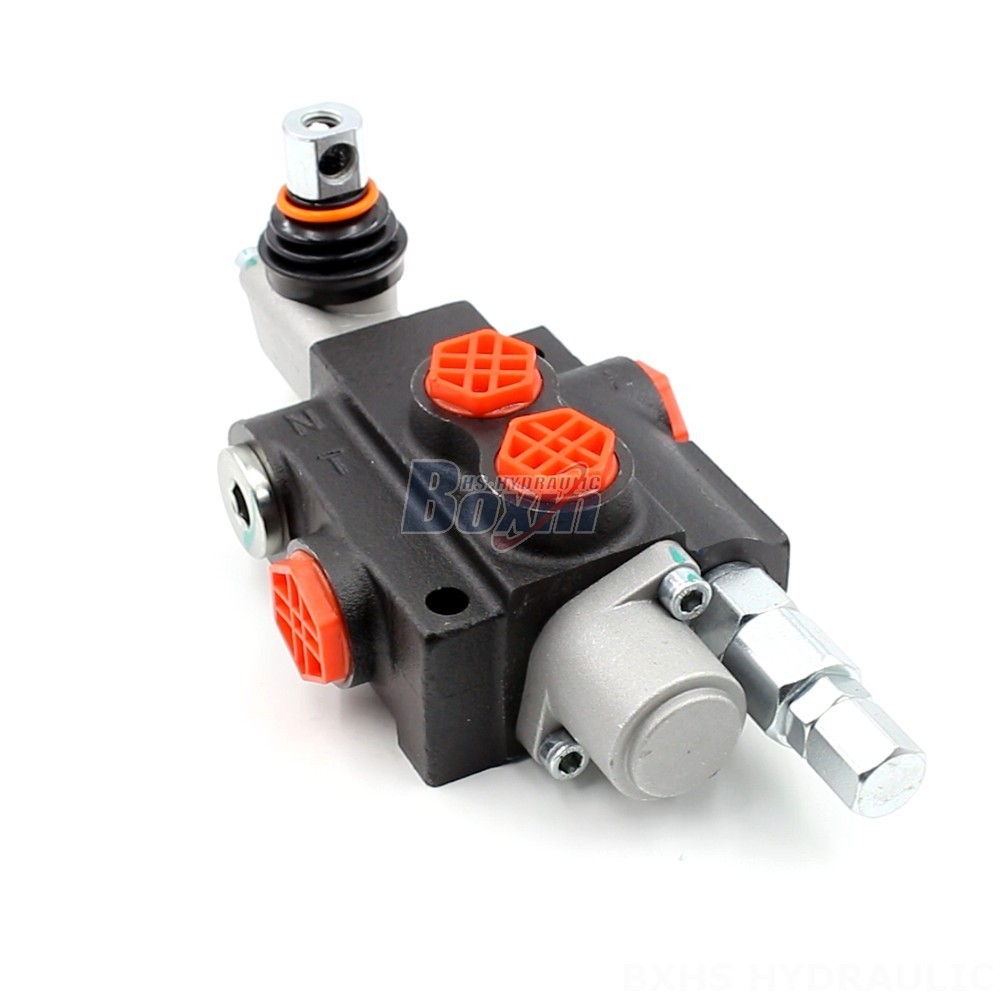

Manufacturer of P40-G12-YW Monoblock Valves: Wholesale & Customization Available cover photo

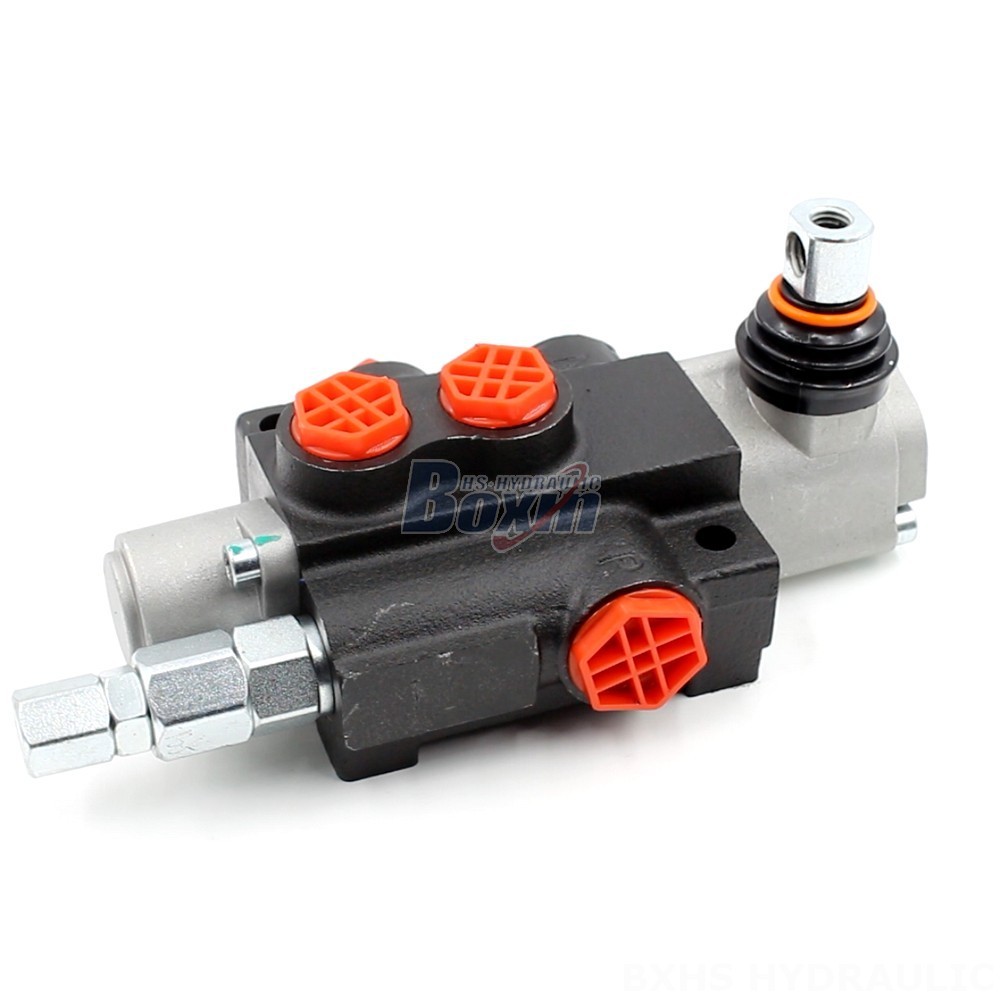

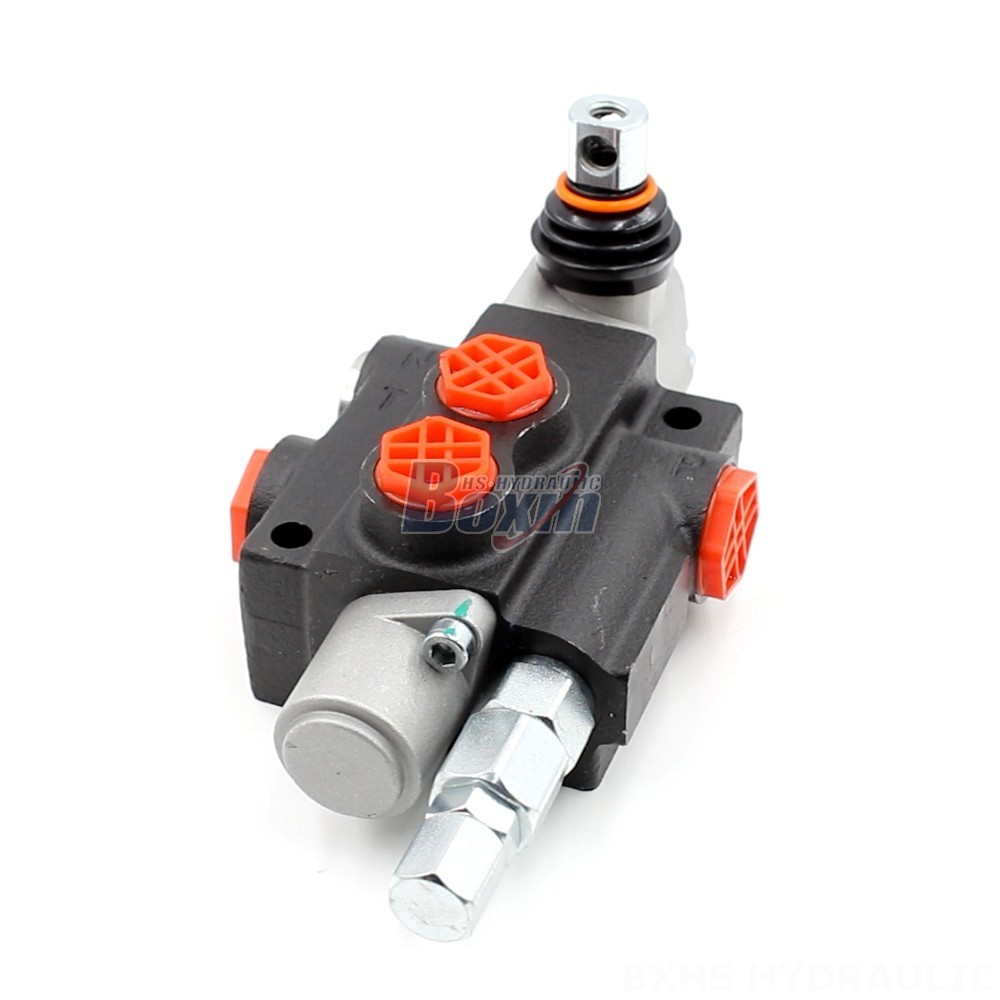

Manufacturer of P40-G12-YW Monoblock Valves: Wholesale & Customization Available main image

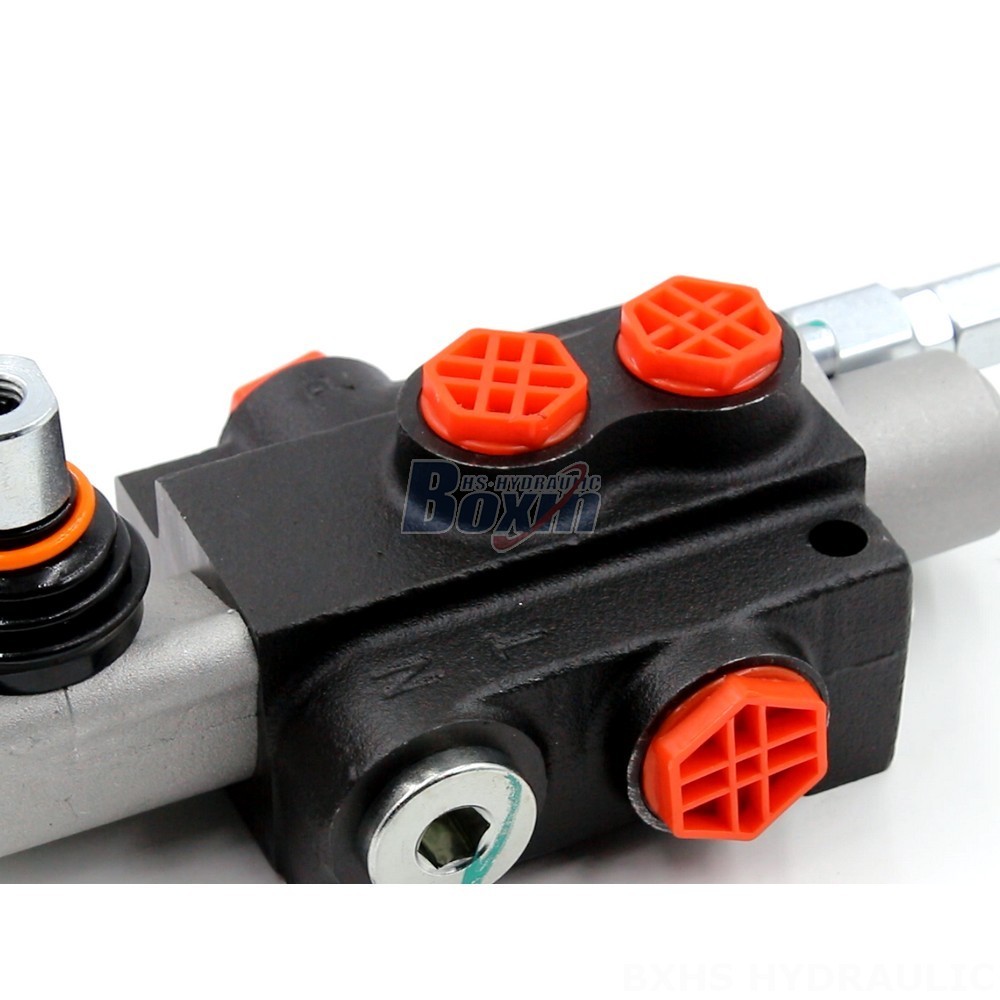

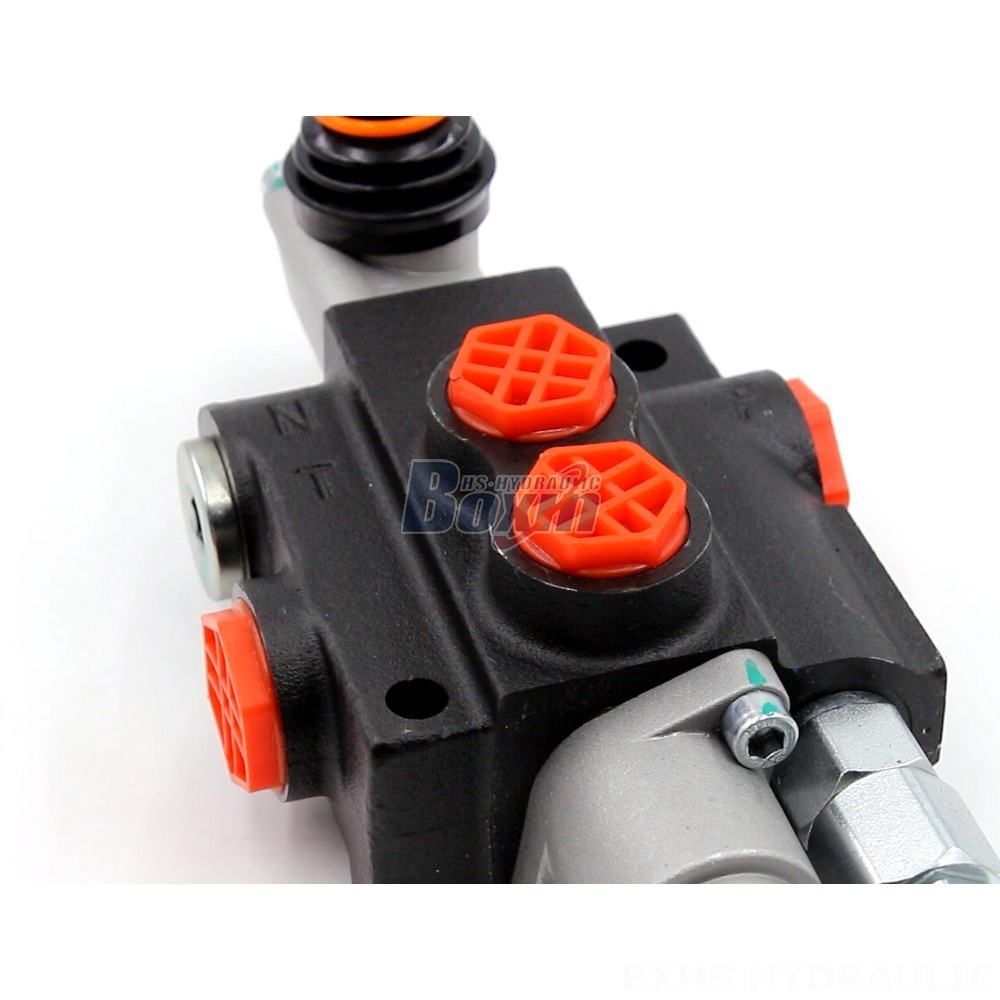

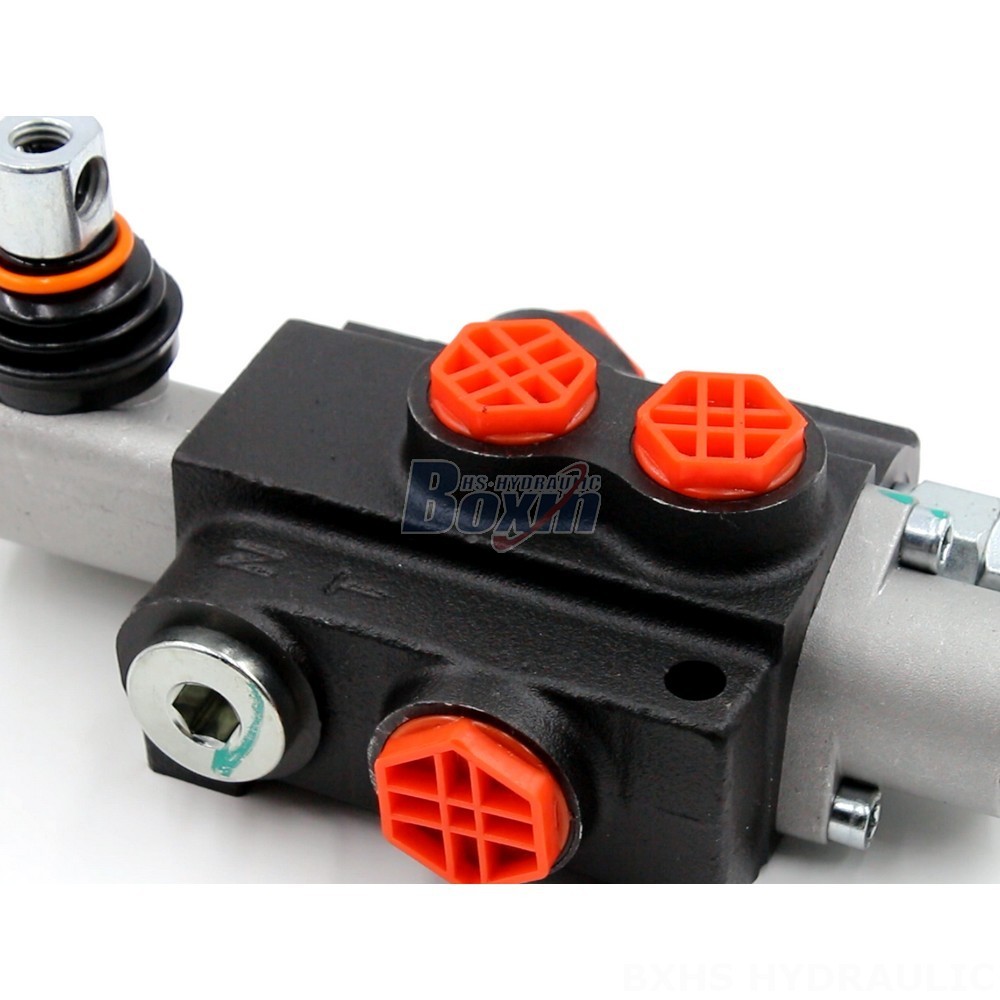

Manufacturer of P40-G12-YW Monoblock Valves: Wholesale & Customization Available detail image

Manufacturer of P40-G12-YW Monoblock Valves: Wholesale & Customization Available

制御方法:手動

スプール:1スプール

定格流量:毎分40リットル (10.5 US gpm)

最大圧力:250 bar (3600 psi)

吸入口:G1/2

吐出口:G1/2

ポートサイズ:G1/2

ベンダー:BXHS

製品タイプ:モノブロック方向制御弁

製品シリーズ:P40シリーズモノブロック方向制御弁

梱包サイズ:23*16*11

総重量:3.00 kg

在庫状況: 在庫あり

お問い合わせ

872 この製品を探している人もいます

Manufacturer of P40-G12-YW Monoblock Valves: Wholesale & Customization Available

Manufacturer of P40-G12-YW Monoblock Valves: Wholesale & Customization Available drawing image

P40-G12-YW Monoblock Valves are hydraulic control valves designed for various industrial applications. These valves feature manual control, 40 L/min rated flow, 250 bar max pressure, and a wide operating viscosity range. They are suitable for use in material handling, construction, agriculture, and industrial vehicles.

P40シリーズモノブロック方向制御弁パラメーター
制御方法	手動, 空圧, 電空, 電気油圧, ソレノイド, 油圧, 油圧および手動, ケーブル, ジョイスティック, ソレノイド・ジョイスティック, 手動・ジョイスティック, ソレノイドおよびケーブル式
スプール	1スプール, 2スプール, 3スプール, 4スプール, 5スプール, 6スプール, 7スプール
周囲温度範囲	-40°C to +80°C (-40°F to +176°F)
構造タイプ	モノブロック弁
セクション	1セクション, 2セクション, 3セクション, 4セクション, 5セクション, 6セクション, 7セクション
作動粘度範囲	15 - 75 mm²/s (15 cSt to 75 cSt)
定格流量	毎分40リットル (10.5 US gpm)
最大圧力	250 bar (3600 psi)
吸入口	G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
吐出口	G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
ポートサイズ	G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT

**Manufacturer of P40-G12-YW Monoblock Valves: Wholesale & Customization Available**

**Product Parameters:**

- Control Method: Manual
- Section: 1 Section
- Structure Type: Monoblock valve
- Rated Flow: 40 L/min (10.5 US gpm)
- Max Pressure: 250 bar (3600 psi)
- Operating Viscosity Range: 15 - 75 mm²/s (15 cSt to 75 cSt)
- Ambient Temperature Range: -40°C to +80°C (-40°F to +176°F)
- Spool: 1 Spool
- Series: P40 Series
- Application Area: MATERIAL HANDLING, CONSTRUCTION AND EARTH MOVING, AGRICULTURE, INDUSTRIAL VEHICLES
- Applicable Model: TELEHANDLER, FORKLIFT, ALL TERRAIN CRANE, STACKER, AERIAL PLATFORM, MOTOR GRADER, MIDI-EXCAVATOR, MINI-EXCAVATOR, SKID STEER LOADER, COMPACT WHEEL LOADER

As a leading manufacturer and supplier of hydraulic products, we offer a comprehensive range of monoblock valves, including the P40-G12-YW model. Our valves are manufactured to the highest quality standards, ensuring exceptional performance and reliability. We also provide customized solutions to meet specific customer requirements.

With our extensive production capabilities and global distribution network, we can deliver the P40-G12-YW monoblock valves to customers worldwide. We offer competitive factory-direct pricing and flexible ordering options. Contact us today to discuss your requirements and receive a customized quote.
