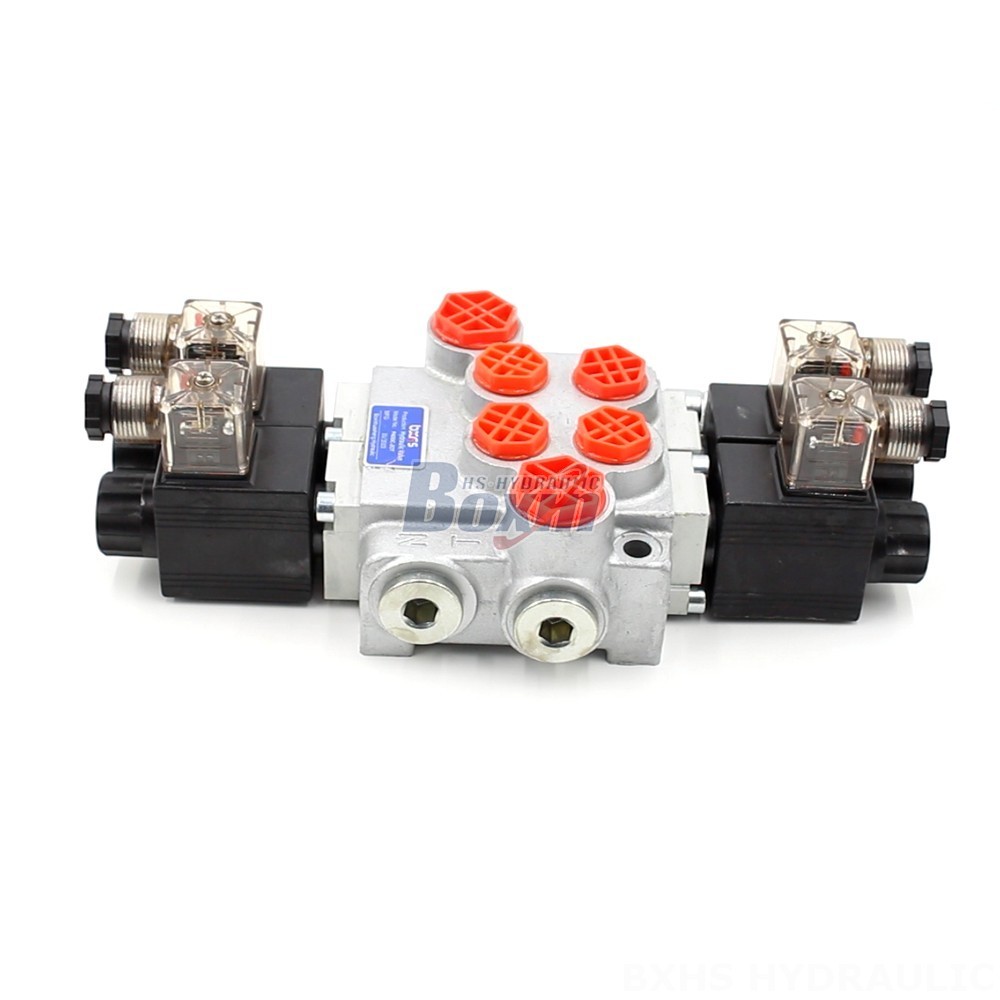

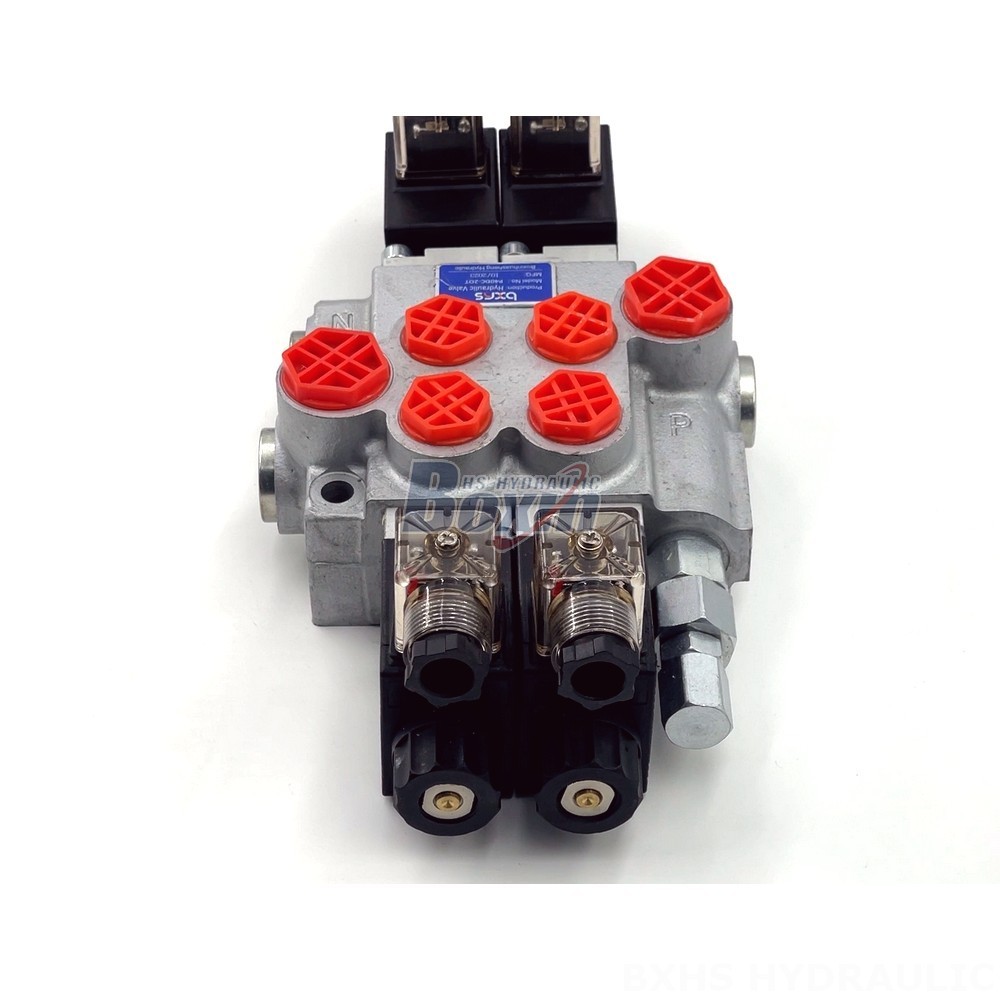

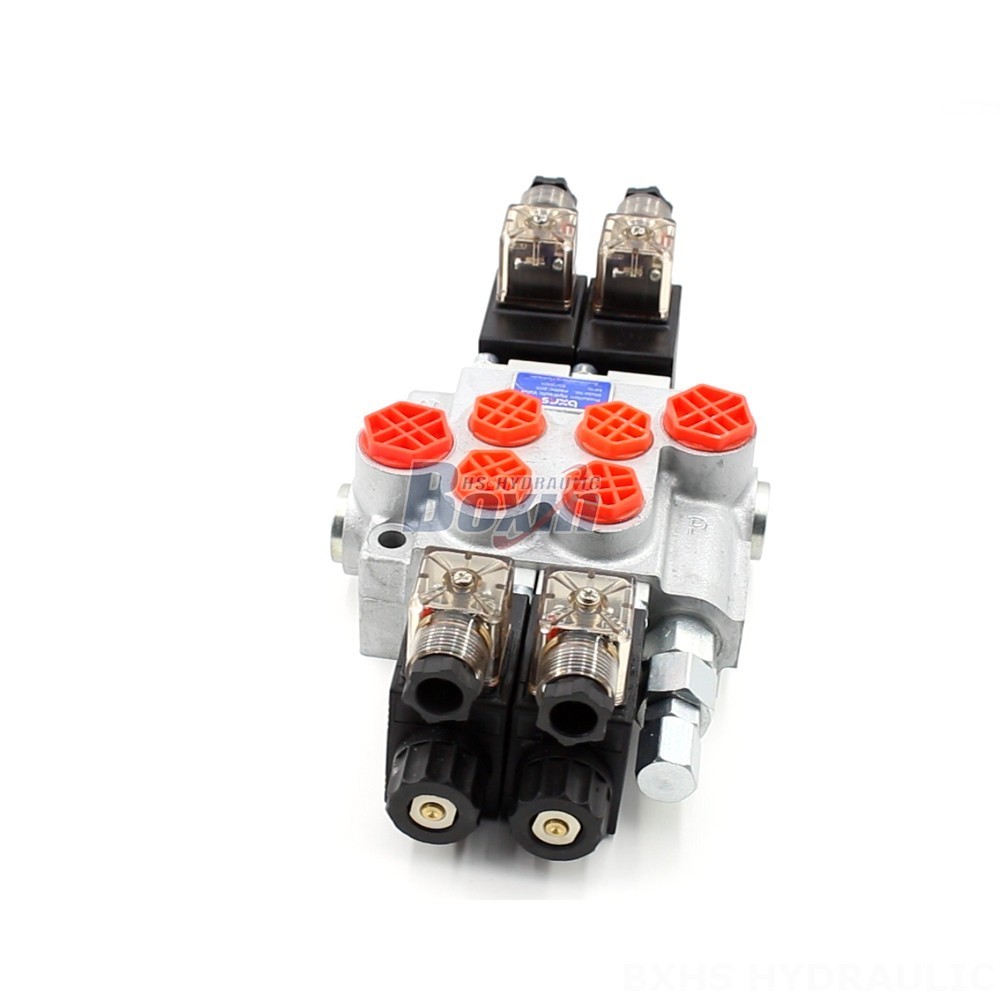

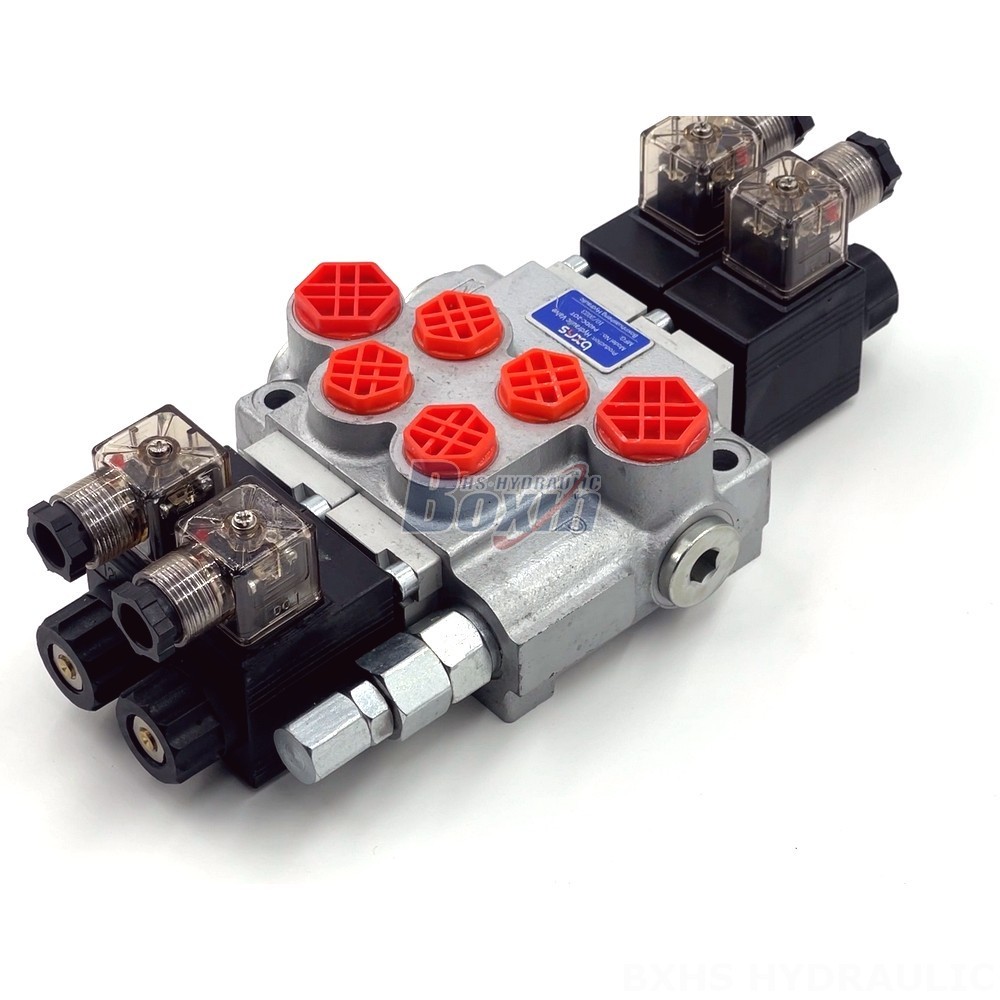

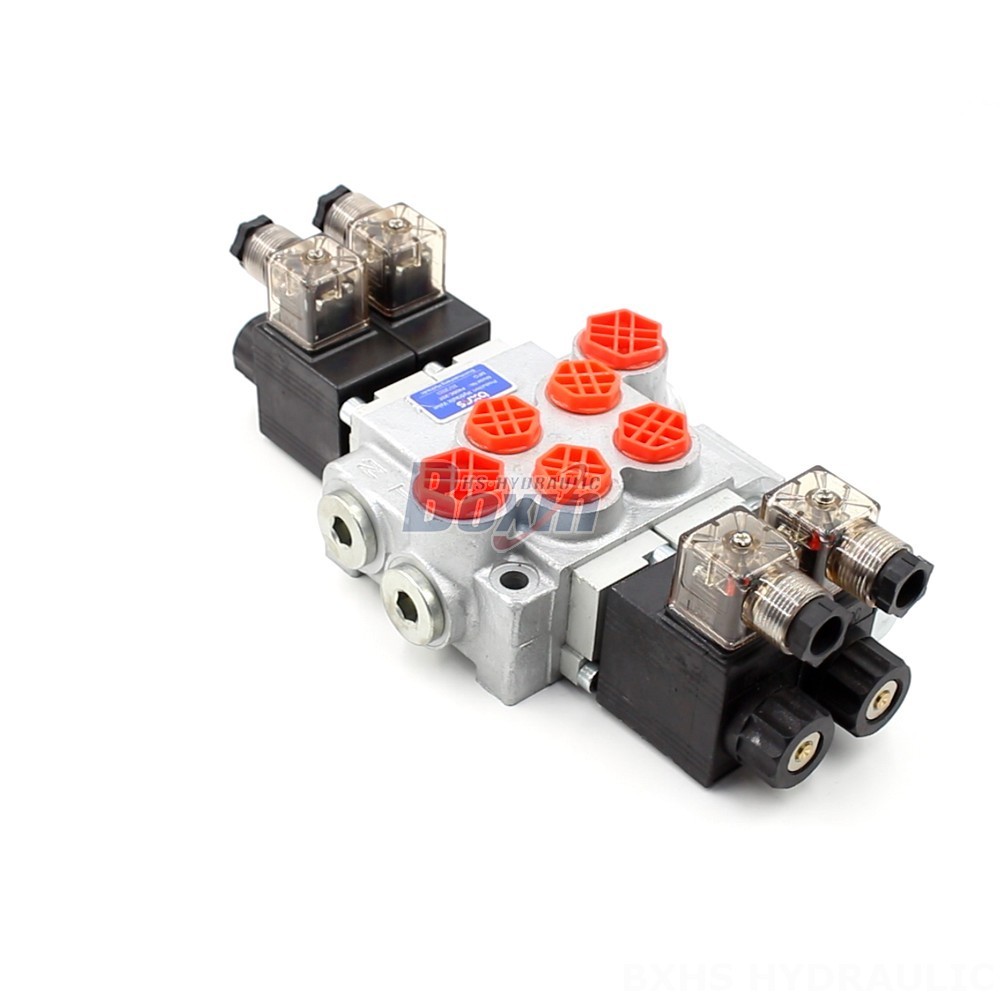

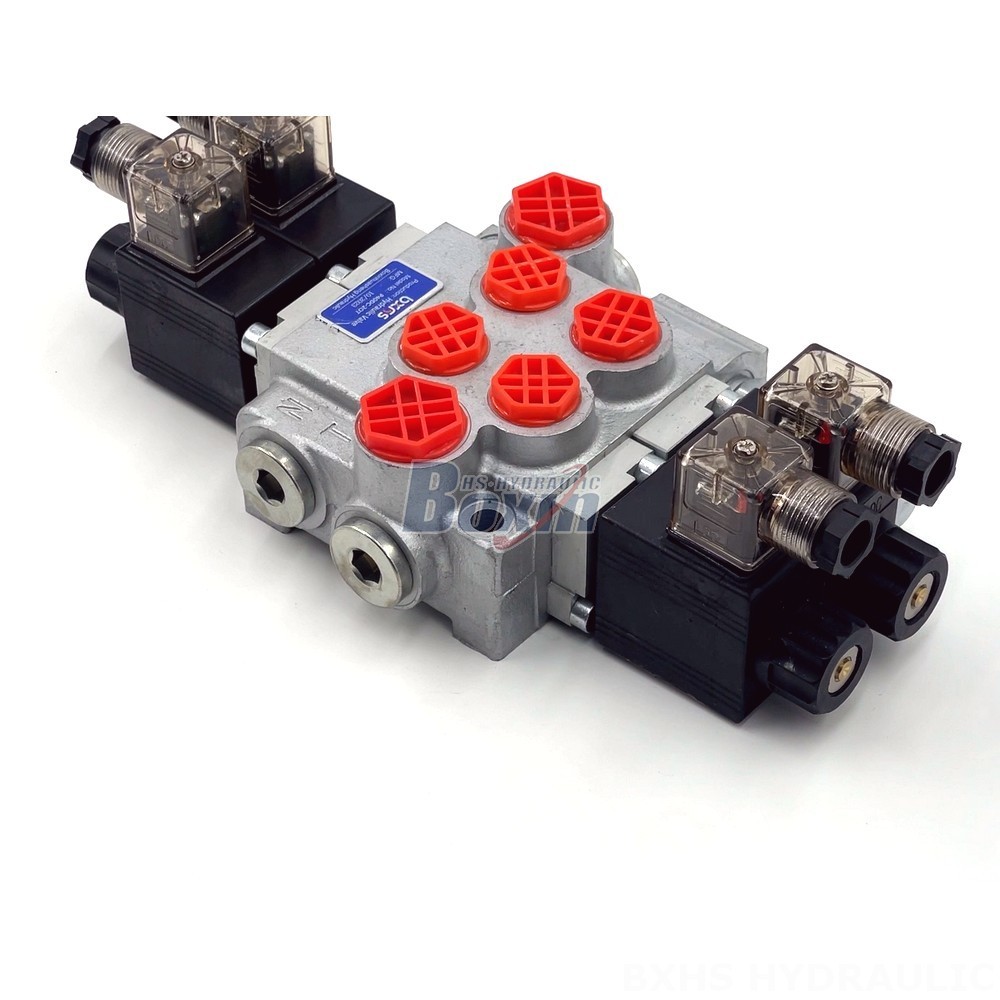

The P40-DKL Monoblock Valve is a high-performance hydraulic valve designed for demanding applications in various industries. With its solenoid control, 2 section design, 40 L/min rated flow, and 250 bar max pressure, this valve offers precise and reliable control of hydraulic systems. It operates within a viscosity range of 15 - 75 mm²/s and an ambient temperature range of -40°C to +80°C.
| P40-DKLシリーズ モノブロック方向制御弁 パラメーター | |
|---|---|
| 制御方法 | 手動, 空圧, 電空, 電気油圧, ソレノイド, 油圧, 油圧および手動, ケーブル, ジョイスティック, 手動・ジョイスティック |
| スプール | 1スプール, 2スプール, 3スプール, 4スプール, 5スプール, 6スプール, 7スプール |
| 定格流量 | 毎分40リットル (10.5 US gpm) |
| 最大圧力 | 250 bar (3600 psi) |
| 吸入口 | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| 吐出口 | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| ポートサイズ | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| セクション | 1セクション, 2セクション, 3セクション, 4セクション, 5セクション, 6セクション, 7セクション |
| 構造タイプ | モノブロック弁 |
| 周囲温度範囲 | -40°C to +80°C (-40°F to +176°F) |
| 作動粘度範囲 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
**Key Features:**
* Solenoid control for precise and responsive operation
* 2 section design for versatile flow control
* 40 L/min rated flow to handle demanding hydraulic systems
* 250 bar max pressure for high-pressure applications
* 15 - 75 mm²/s operating viscosity range for compatibility with various fluids
* -40°C to +80°C ambient temperature range for reliable performance in diverse environments
* 2 spool for efficient flow management
* Rugged construction for durability and long service life
* CE certified and ISO standard compliant for quality assurance
**Applications:**
The P40-DKL Monoblock Valve is widely used in a variety of industries, including:
* Material handling
* Construction and earth moving
* Agriculture
* Industrial vehicles
