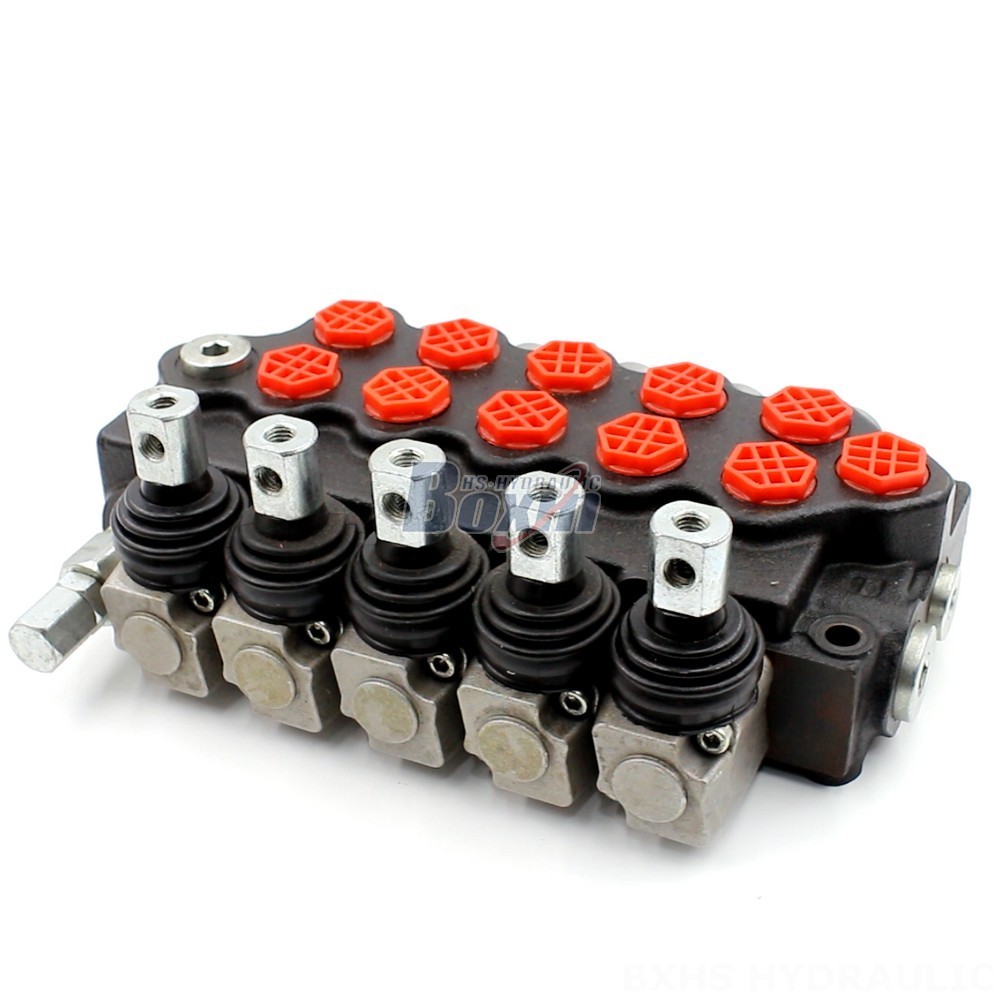

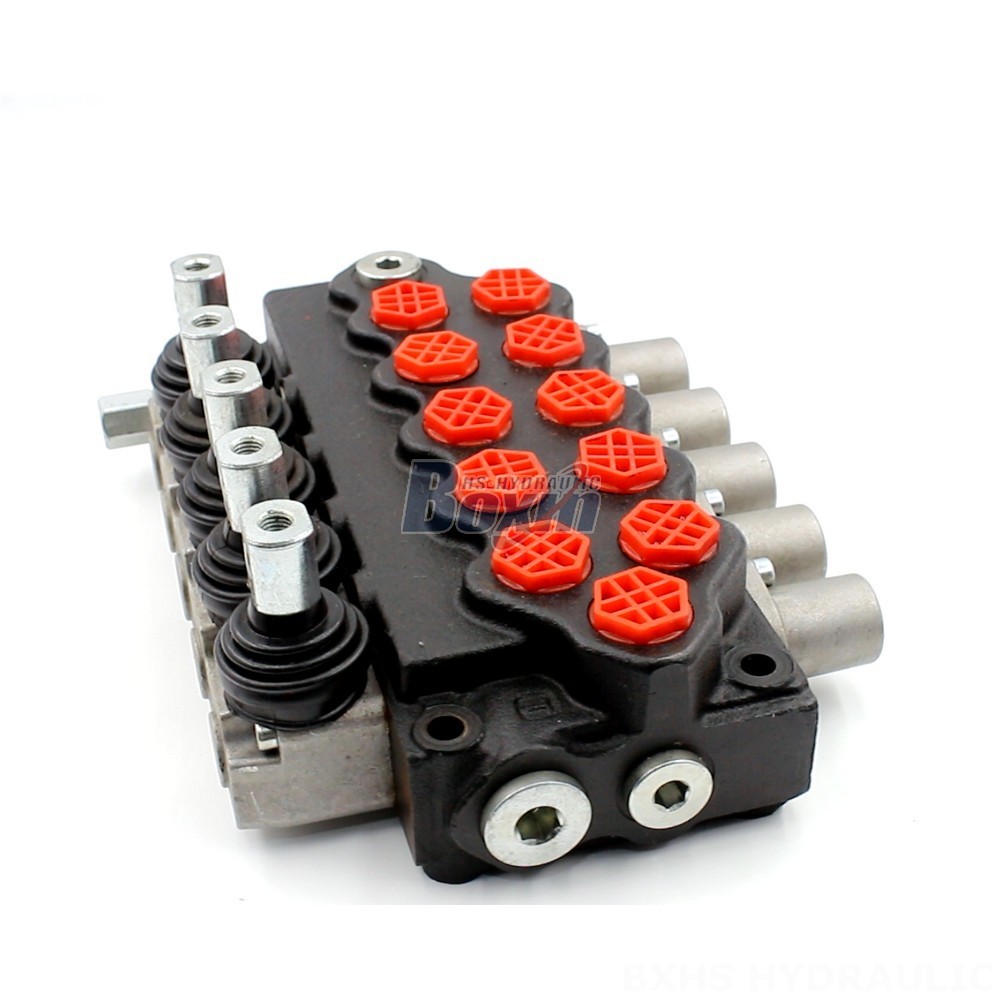

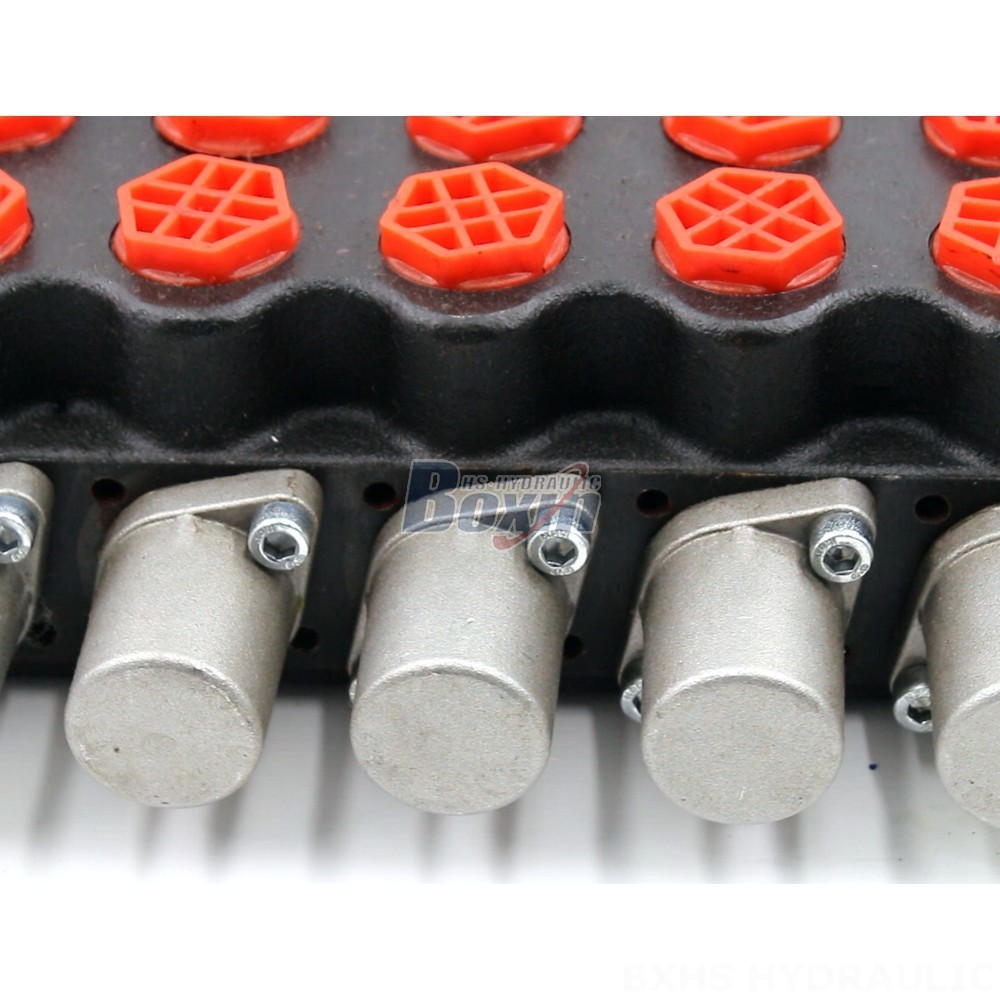

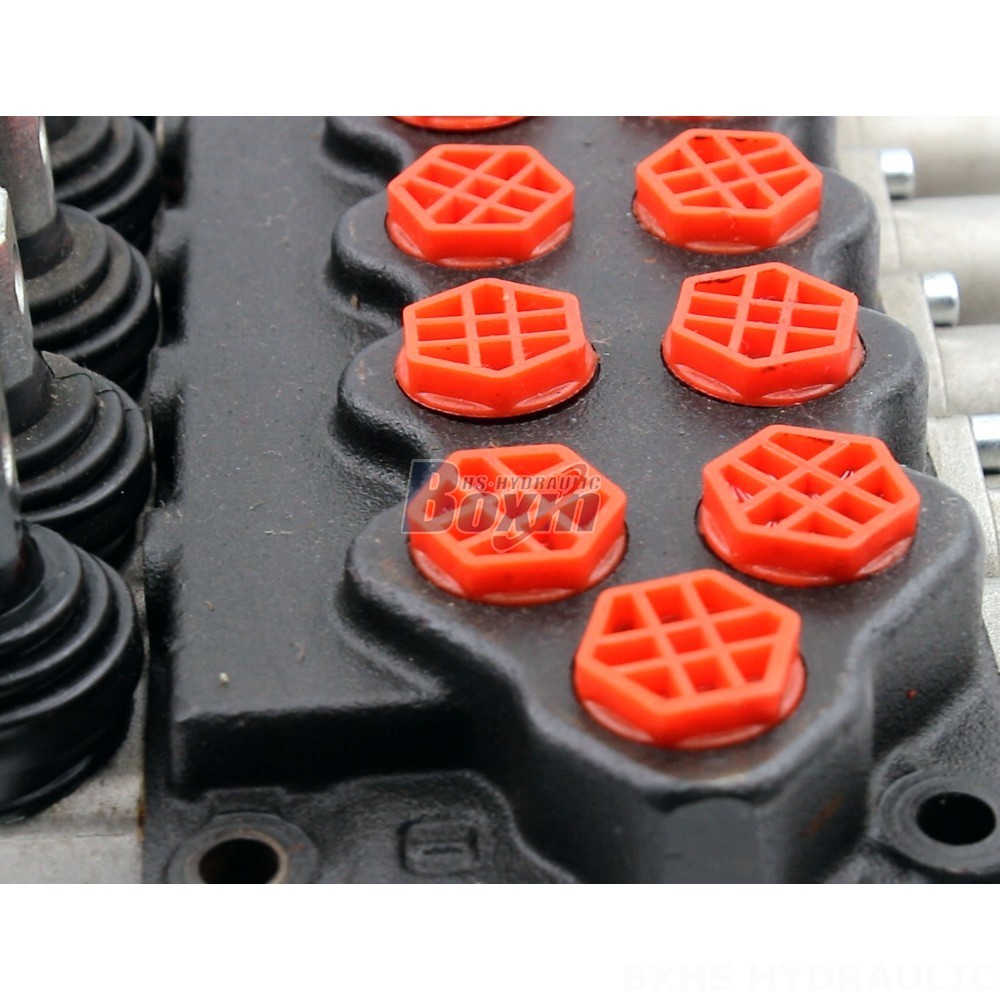

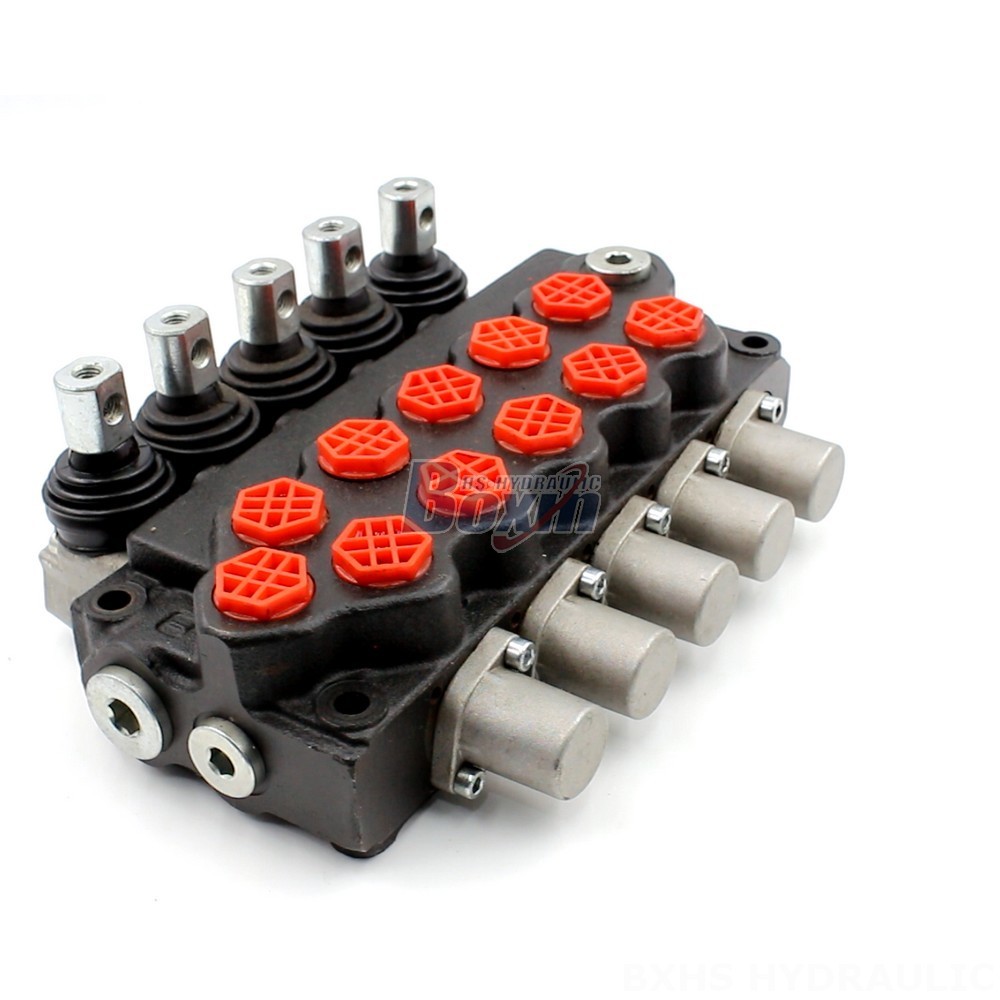

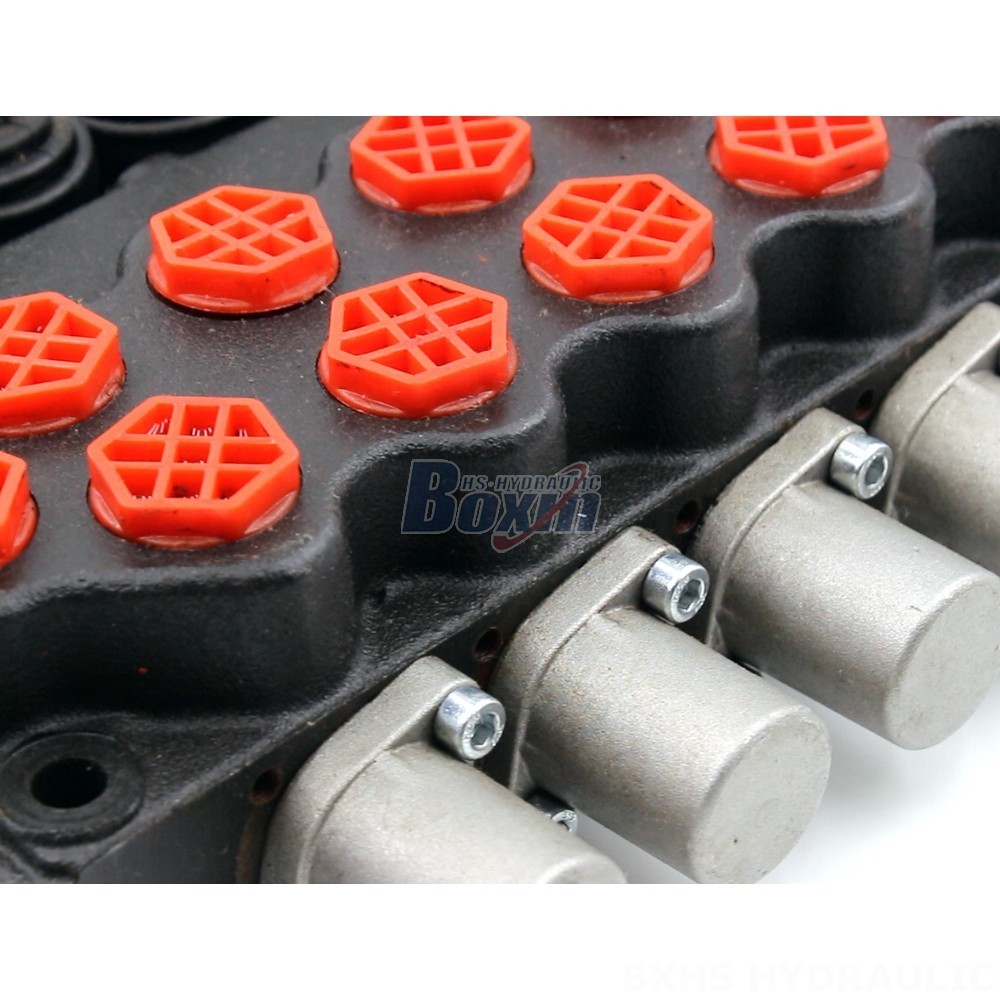

Manual Monoblock Directional Valve - SD5-G38 Series | Wholesale & OEM

制御方法:手動

スプール:5スプール

定格流量:毎分45リットル (11.8 US gpm)

最大圧力:315 bar (4600 psi)

吸入口:G3/8

吐出口:G3/8

ポートサイズ:G3/8

ベンダー:BXHS

製品タイプ:モノブロック方向制御弁

製品シリーズ:SD5シリーズ モノブロック方向制御弁

梱包サイズ:35*31*21

総重量:12.50 kg

在庫状況: 在庫あり

1369 この製品を探している人もいます

Manual Monoblock Directional Valve - SD5-G38 Series | Wholesale & OEM

Manual Monoblock Directional Valve - SD5-G38 Series | Wholesale & OEM

Manual Monoblock Directional Valve - SD5-G38 Series | Wholesale & OEM drawing image

The SD5-G38 Series Lever Hydraulic Valve is a 5-section, manual monoblock directional valve designed for heavy-duty applications in construction, material handling, agriculture, and industrial vehicles. This high-performance valve features a rated flow of 40 L/min and a maximum pressure of 305 bar, making it ideal for demanding operating conditions.

SD5シリーズ モノブロック方向制御弁 パラメーター
制御方法 手動, 空圧, 電空, 電気油圧, ソレノイド, 油圧, 油圧および手動, ケーブル, ジョイスティック
スプール 1スプール, 2スプール, 3スプール, 4スプール, 5スプール, 6スプール, 7スプール
周囲温度範囲 -40°C to +60°C (-40°F to +140°F)
構造タイプ モノブロック弁
セクション 1セクション, 2セクション, 3セクション, 4セクション, 5セクション, 6セクション, 7セクション
作動粘度範囲 15 - 75 mm²/s (15 cSt to 75 cSt)
定格流量 毎分40リットル (10.5 US gpm)
最大圧力 305 bar (4400 psi)
吸入口 G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8, G1-1/2
吐出口 G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8
ポートサイズ G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8

The SD5-G38 Series Lever Hydraulic Valve is a robust and reliable 5-section, manual monoblock directional valve. It is designed for use in a wide range of heavy-duty applications, including telehandlers, forklifts, motor graders, midi-excavators, mini-excavators, skid steer loaders, compact wheel loaders, harvesters, and other construction and industrial vehicles. This valve offers a rated flow of 40 L/min and a maximum pressure of 305 bar, making it suitable for demanding operating conditions. The valve also features a wide operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) and an ambient temperature range of -40°C to +60°C (-40°F to +140°F), ensuring reliable performance in various environments. We offer wholesale and OEM options, making it easy for you to find the perfect solution for your needs. Contact us today to learn more about this high-performance hydraulic valve.
