生産と納品
15~30日の生産リードタイム

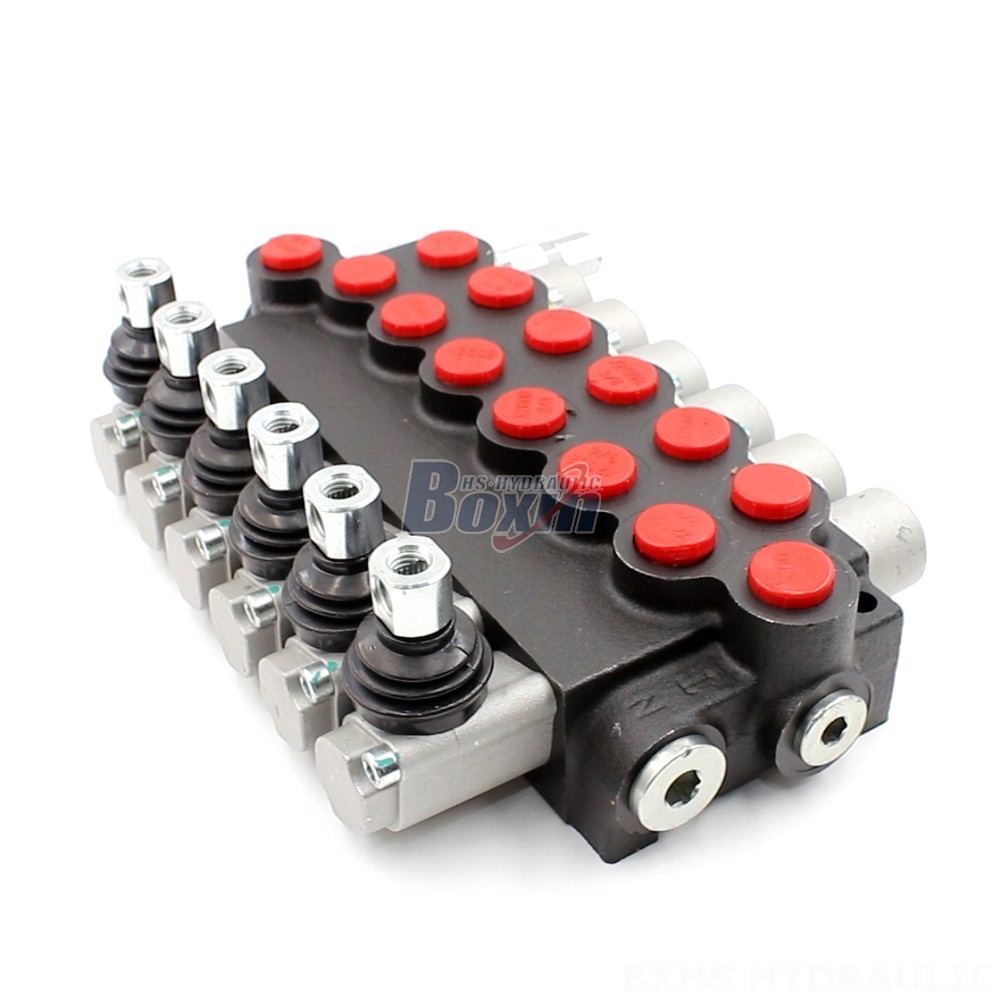

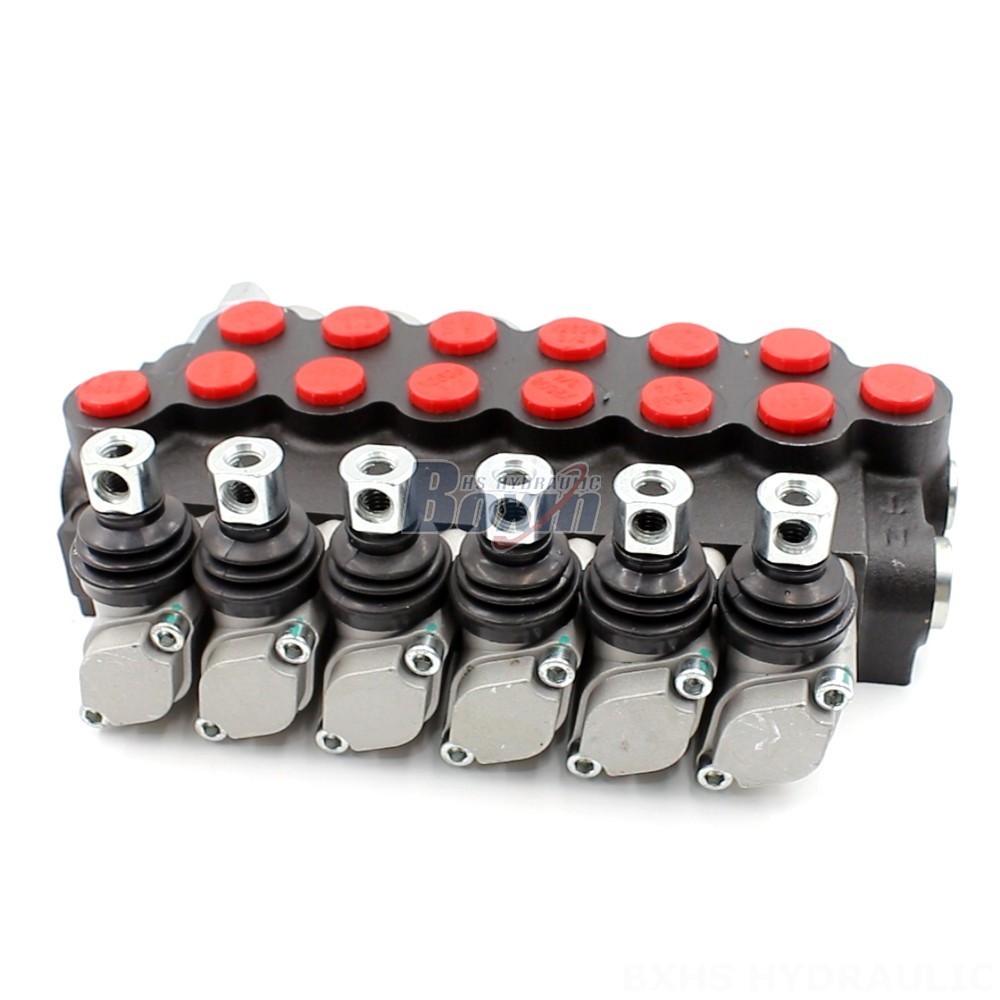

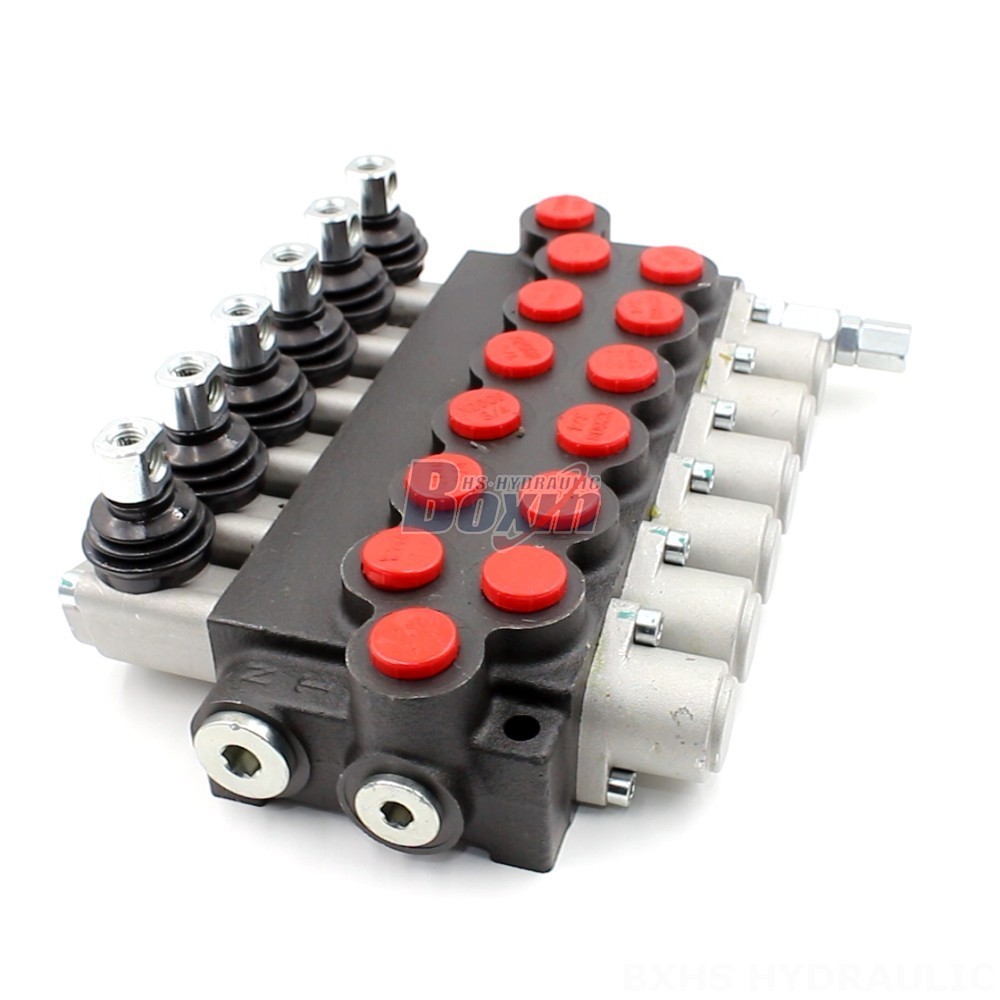

The P40-U34 is a 6-section, manual hydraulic directional valve designed for use in a variety of industrial, construction, and agricultural applications. It features a robust monoblock design, rated flow of 40 L/min, and maximum pressure of 250 bar. This versatile valve is customizable and available for OEM applications.
| P40シリーズ モノブロック方向制御弁 パラメーター | |
|---|---|
| 制御方法 | 手動, 空圧, 電空, 電気油圧, ソレノイド, 油圧, 油圧および手動, ケーブル, ジョイスティック, ソレノイド・ジョイスティック, 手動・ジョイスティック, ソレノイドおよびケーブル式 |
| スプール | 1スプール, 2スプール, 3スプール, 4スプール, 5スプール, 6スプール, 7スプール |
| 周囲温度範囲 | -40°C to +80°C (-40°F to +176°F) |
| 構造タイプ | モノブロック弁 |
| セクション | 1セクション, 2セクション, 3セクション, 4セクション, 5セクション, 6セクション, 7セクション |
| 作動粘度範囲 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 定格流量 | 毎分40リットル (10.5 US gpm) |
| 最大圧力 | 250 bar (3600 psi) |
| 吸入口 | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| 吐出口 | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| ポートサイズ | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
The P40-U34 is a high-performance, 6-section manual hydraulic directional valve built for durability and reliability. With its monoblock construction, it provides exceptional strength and stability. The valve is rated for a flow rate of 40 L/min (10.5 US gpm) and a maximum pressure of 250 bar (3600 psi), making it suitable for a wide range of demanding applications. It operates with a viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) and can withstand ambient temperatures from -40°C to +80°C (-40°F to +176°F). This valve is specifically designed for use in industrial vehicles, construction and earthmoving equipment, and agriculture applications. It is compatible with a variety of models, including telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, mini excavators, skid steer loaders, compact wheel loaders, and wheel loaders. As a manufacturer, we offer a range of services including manufacturing, OEM, private labeling, customization, and wholesale distribution. We are actively seeking distributors, wholesalers, agents, and traders to expand our global reach.
