Manual and Joystick Valve | P40-2OT Series | Key Features & Applications

制御方法:手動・ジョイスティック

スプール:2スプール

定格流量:毎分40リットル (10.5 US gpm)

最大圧力:250 bar (3600 psi)

吸入口:G1/2

吐出口:G1/2

ポートサイズ:G3/8

ベンダー:BXHS

製品タイプ:モノブロック方向制御弁

製品シリーズ:P40シリーズ モノブロック方向制御弁

梱包サイズ:23*18*13

総重量:5.20 kg

在庫状況: 在庫あり

1198 この製品を探している人もいます

Manual and Joystick Valve | P40-2OT Series | Key Features & Applications

Manual and Joystick Valve | P40-2OT Series | Key Features & Applications

Manual and Joystick Valve | P40-2OT Series | Key Features & Applications drawing image

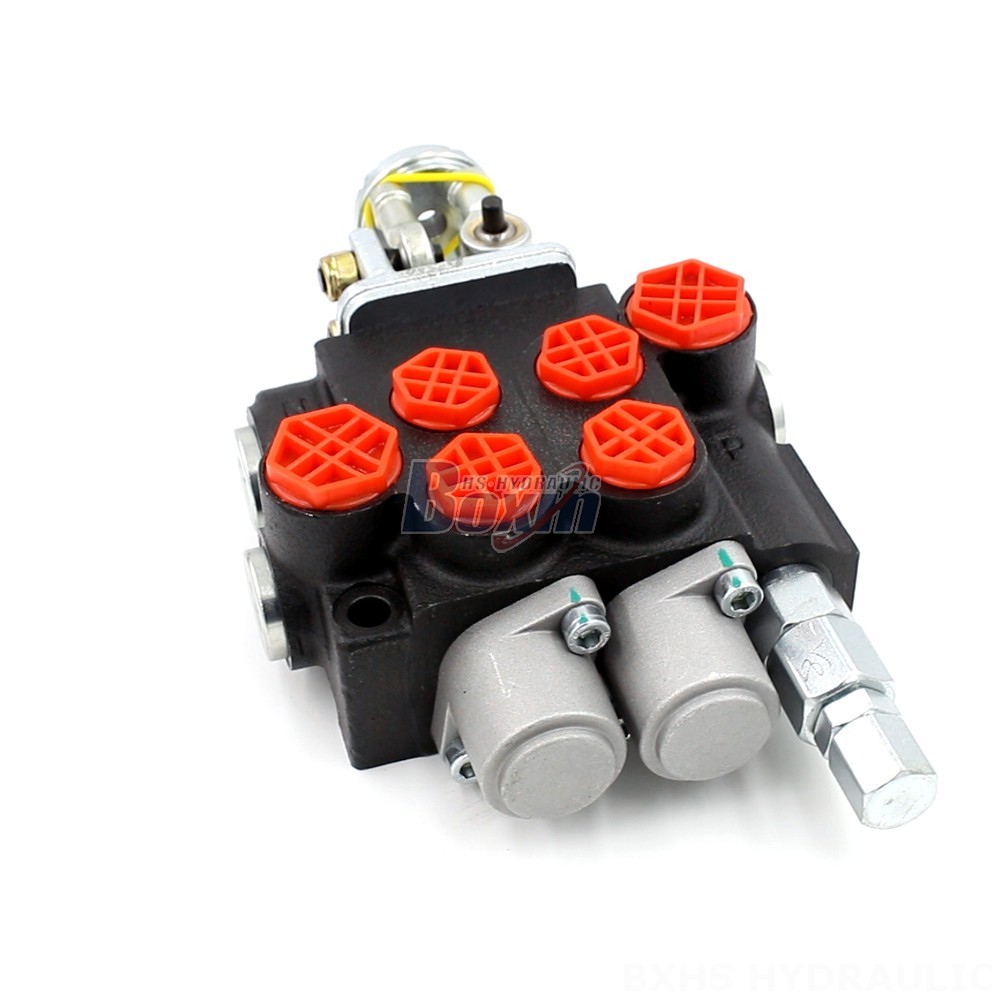

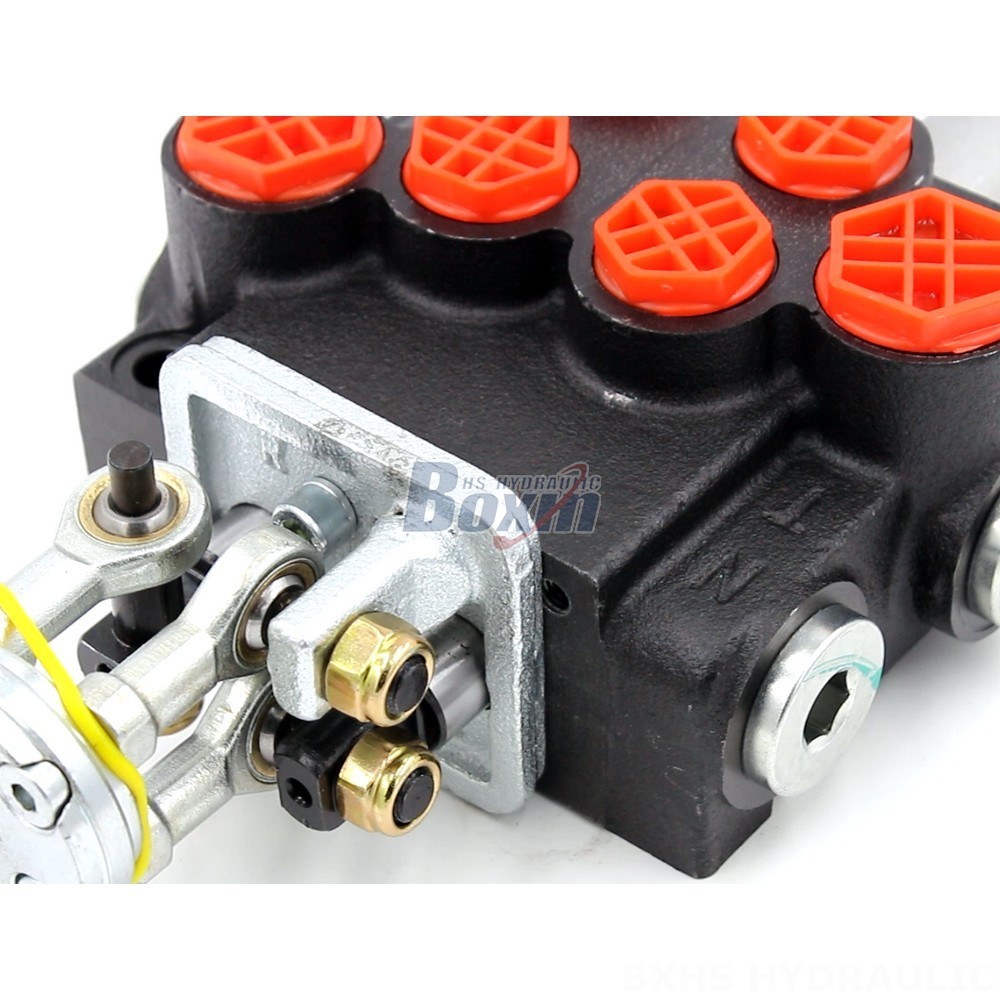

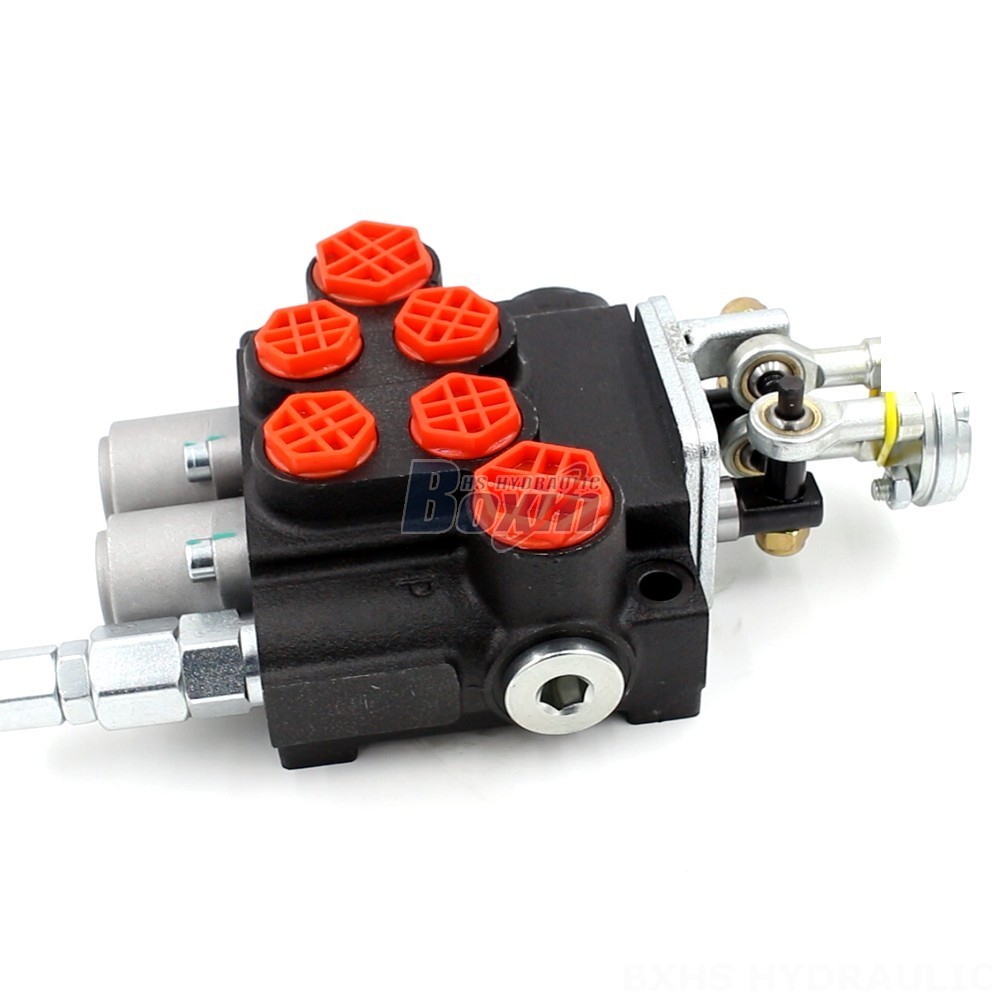

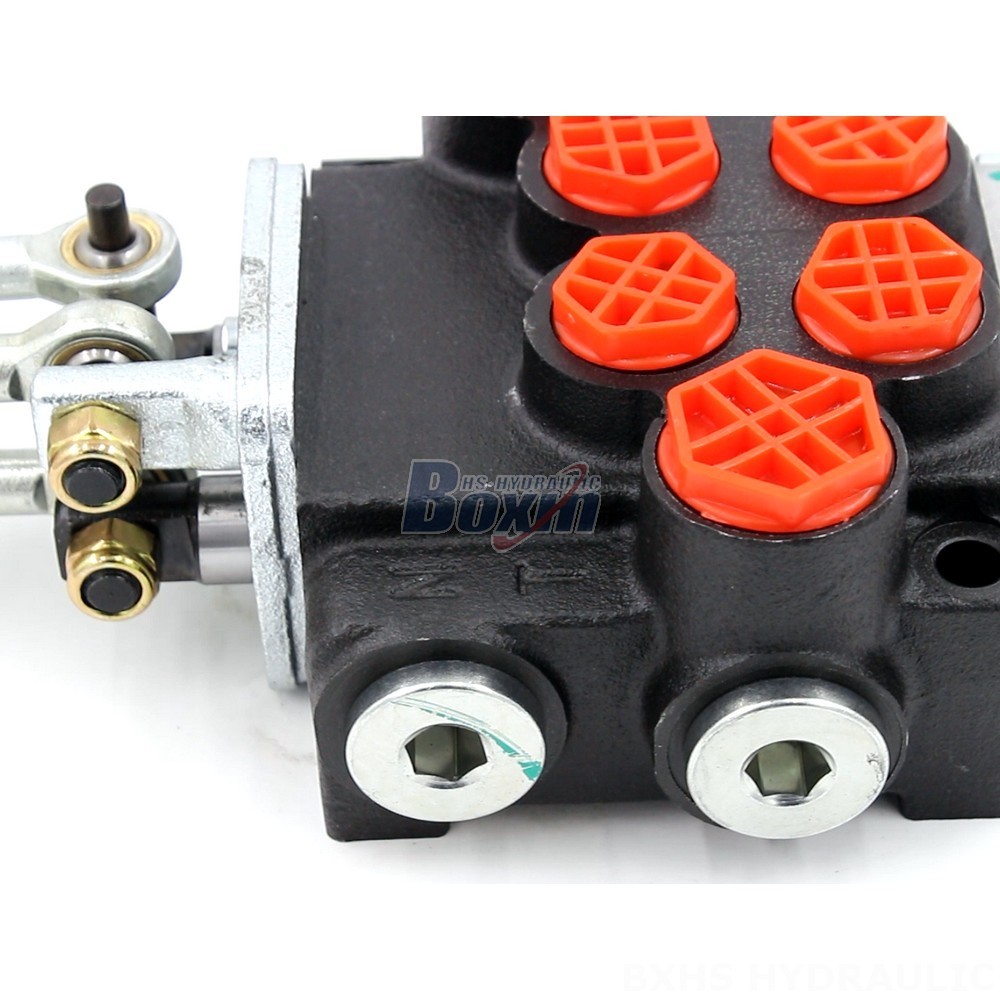

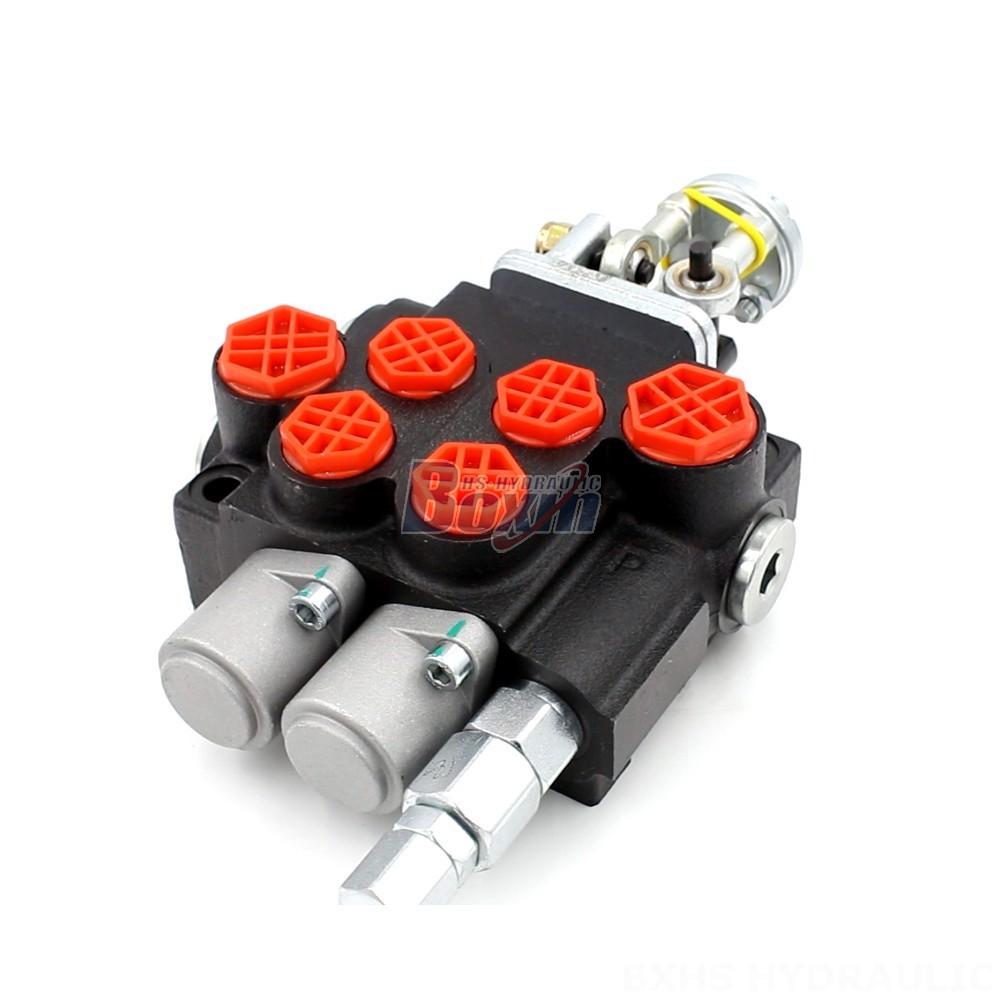

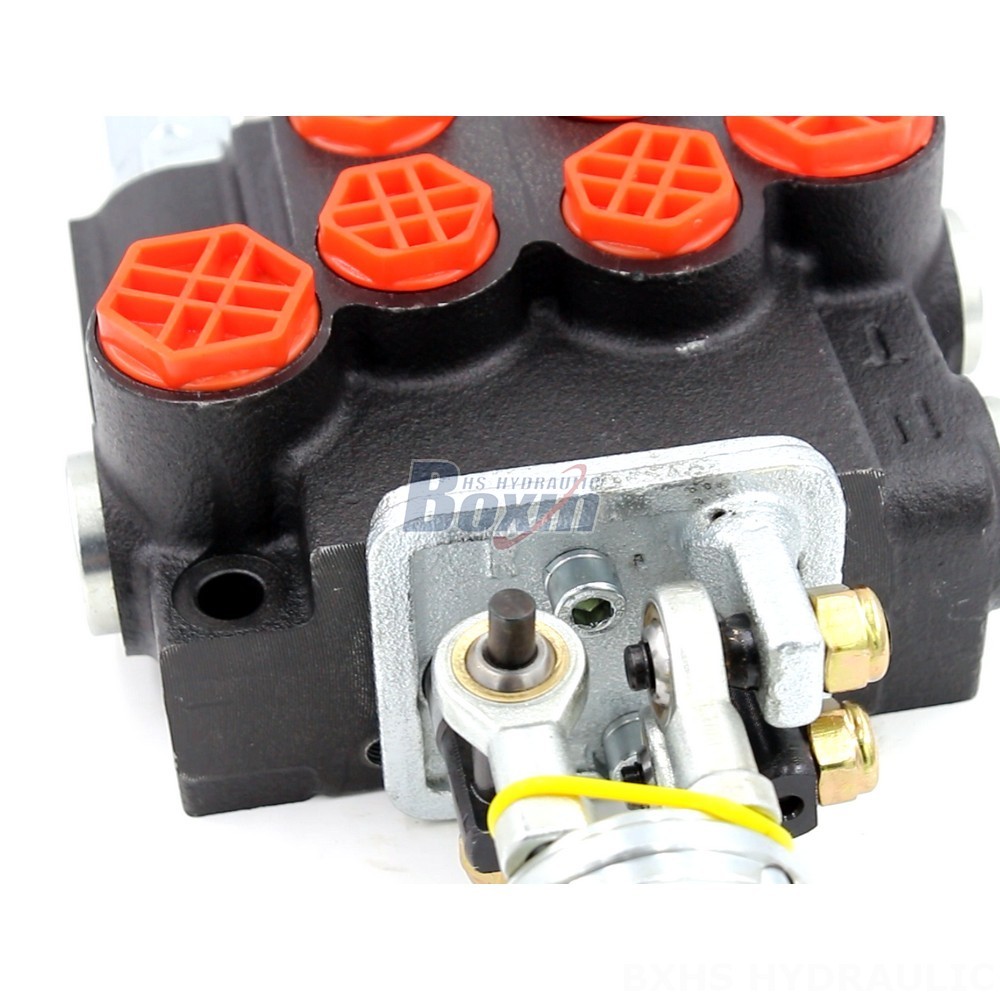

The Bxhs P40-2OT Series Hydraulic Manual and Joystick Valve is a 2-section monoblock valve with a rated flow of 40 L/min and a maximum pressure of 250 bar. Ideal for various applications in material handling, construction, and industrial vehicles.

P40シリーズ モノブロック方向制御弁 パラメーター
制御方法 手動, 空圧, 電空, 電気油圧, ソレノイド, 油圧, 油圧および手動, ケーブル, ジョイスティック, ソレノイド・ジョイスティック, 手動・ジョイスティック, ソレノイドおよびケーブル式
スプール 1スプール, 2スプール, 3スプール, 4スプール, 5スプール, 6スプール, 7スプール
周囲温度範囲 -40°C to +80°C (-40°F to +176°F)
構造タイプ モノブロック弁
セクション 1セクション, 2セクション, 3セクション, 4セクション, 5セクション, 6セクション, 7セクション
作動粘度範囲 15 - 75 mm²/s (15 cSt to 75 cSt)
定格流量 毎分40リットル (10.5 US gpm)
最大圧力 250 bar (3600 psi)
吸入口 G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
吐出口 G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
ポートサイズ G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT

The Bxhs P40-2OT Series is a robust and versatile hydraulic valve designed for demanding applications in material handling, construction, and industrial vehicles. This 2-section monoblock valve features a manual and joystick control method, offering precise and reliable control. It boasts a rated flow of 40 L/min and a maximum pressure of 250 bar, making it suitable for a wide range of equipment. The valve operates within a viscosity range of 15 to 75 mm²/s and can withstand ambient temperatures from -40°C to +80°C. With its 2-spool design, the P40-2OT Series provides flexibility and adaptability, ensuring compatibility with various machine types. This valve is specifically designed for applications in telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders.
