生産と納品
15~30日の生産リードタイム

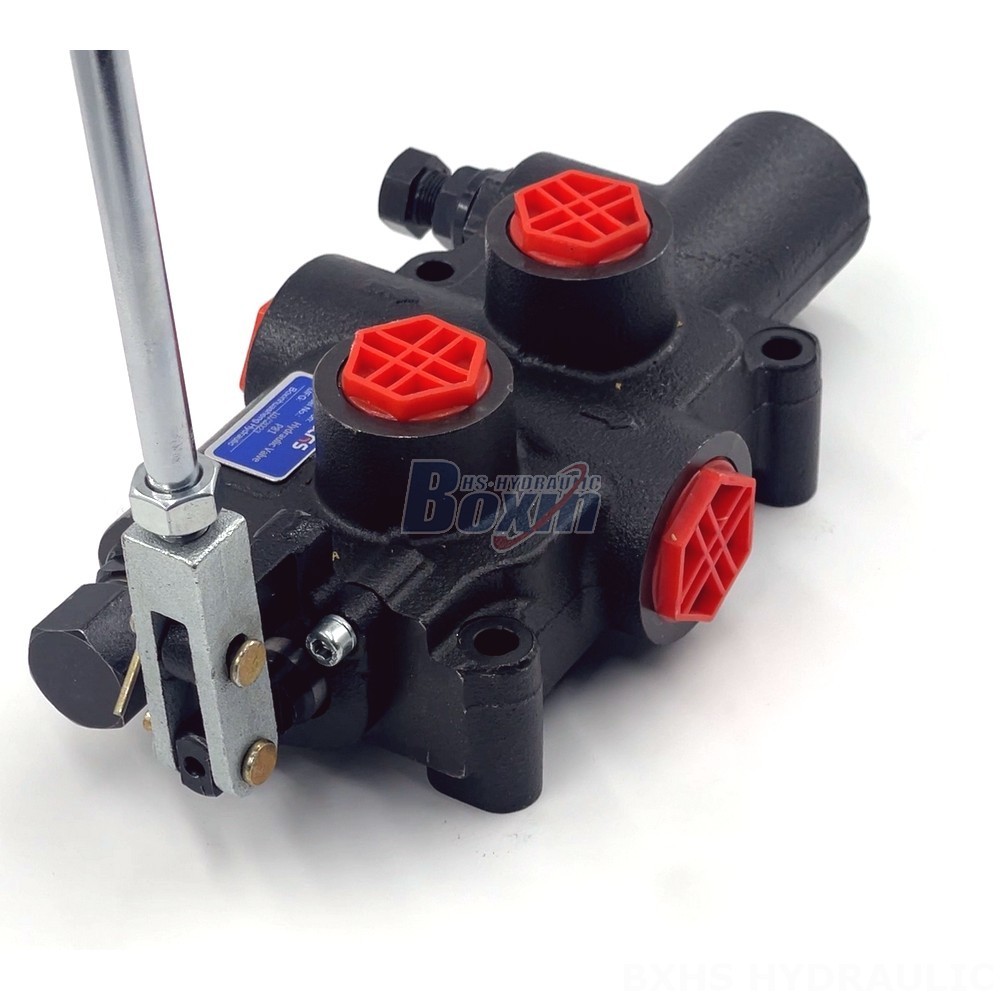

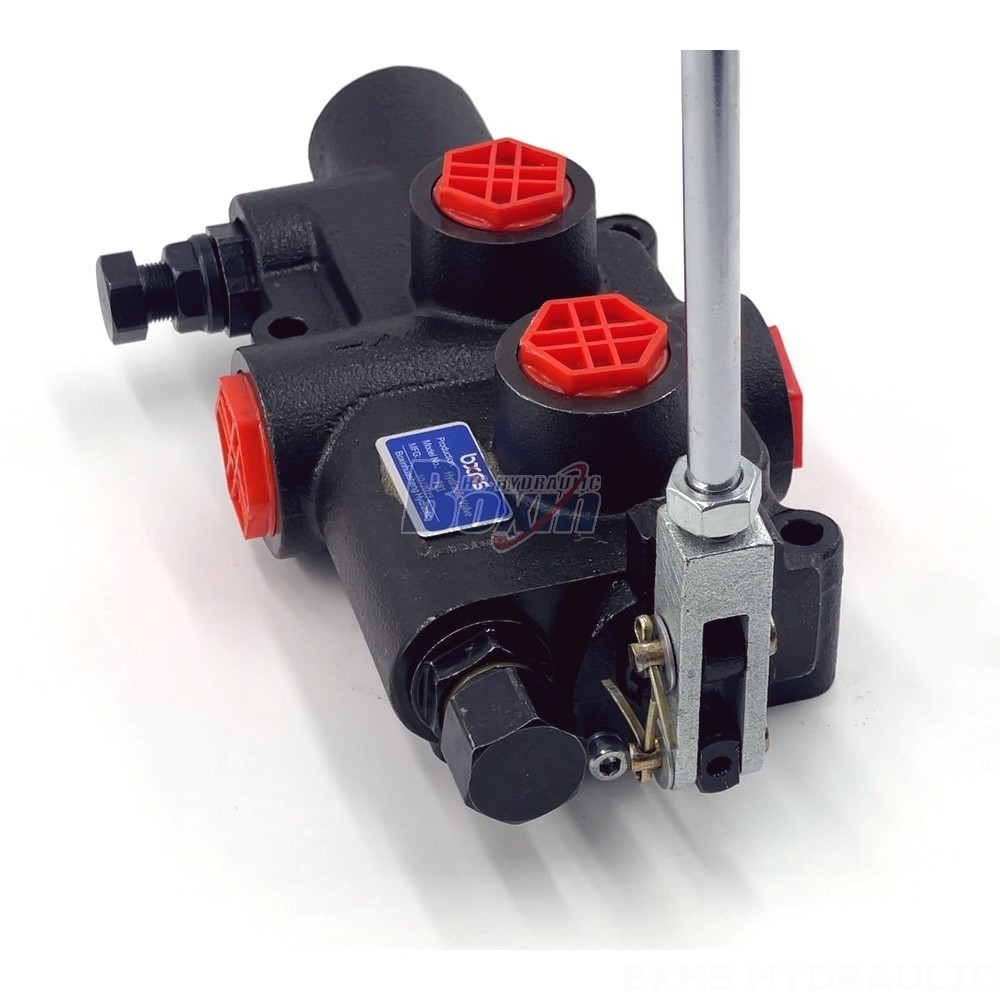

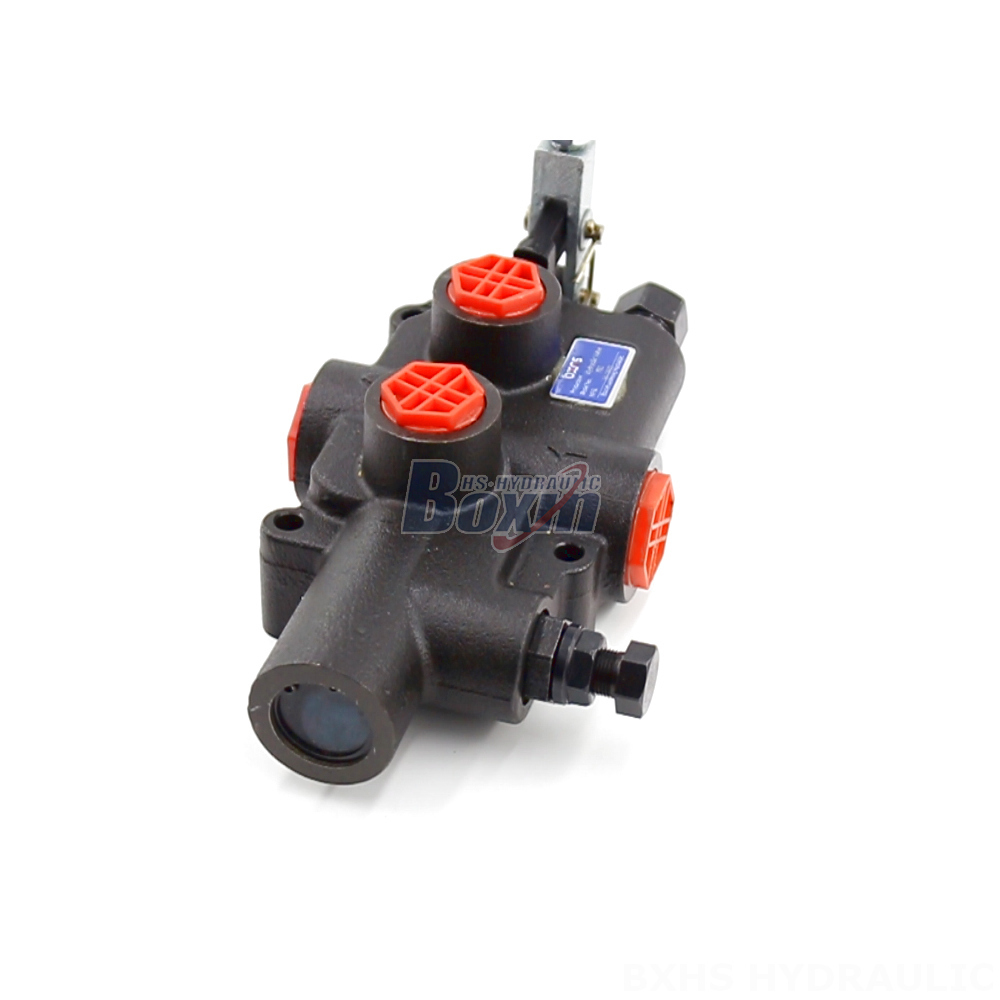

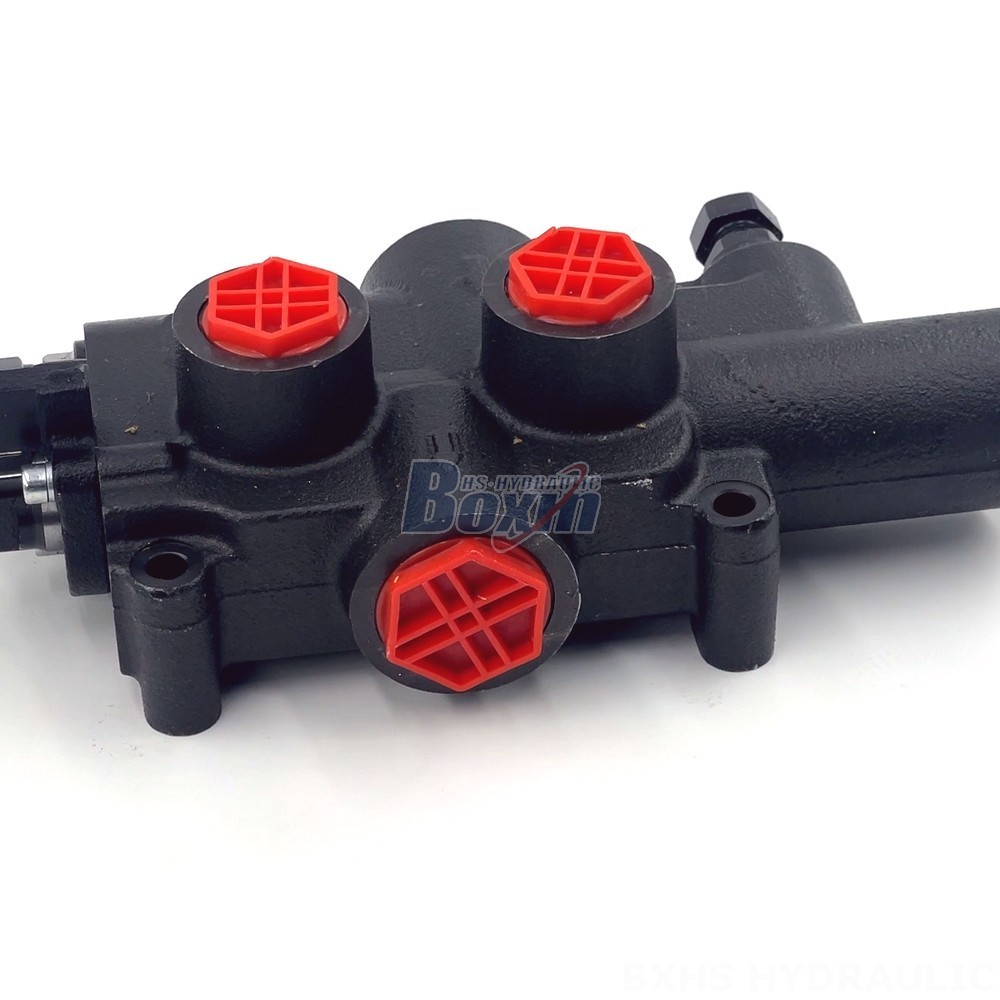

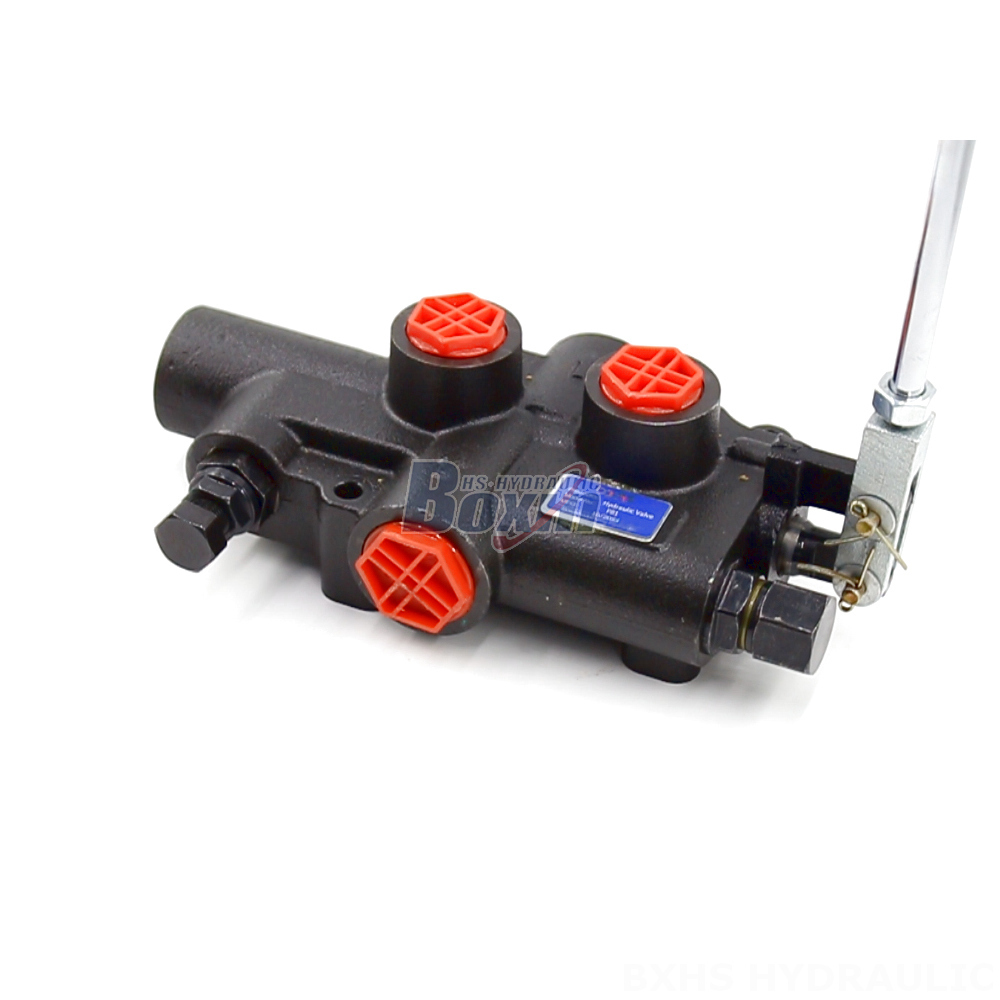

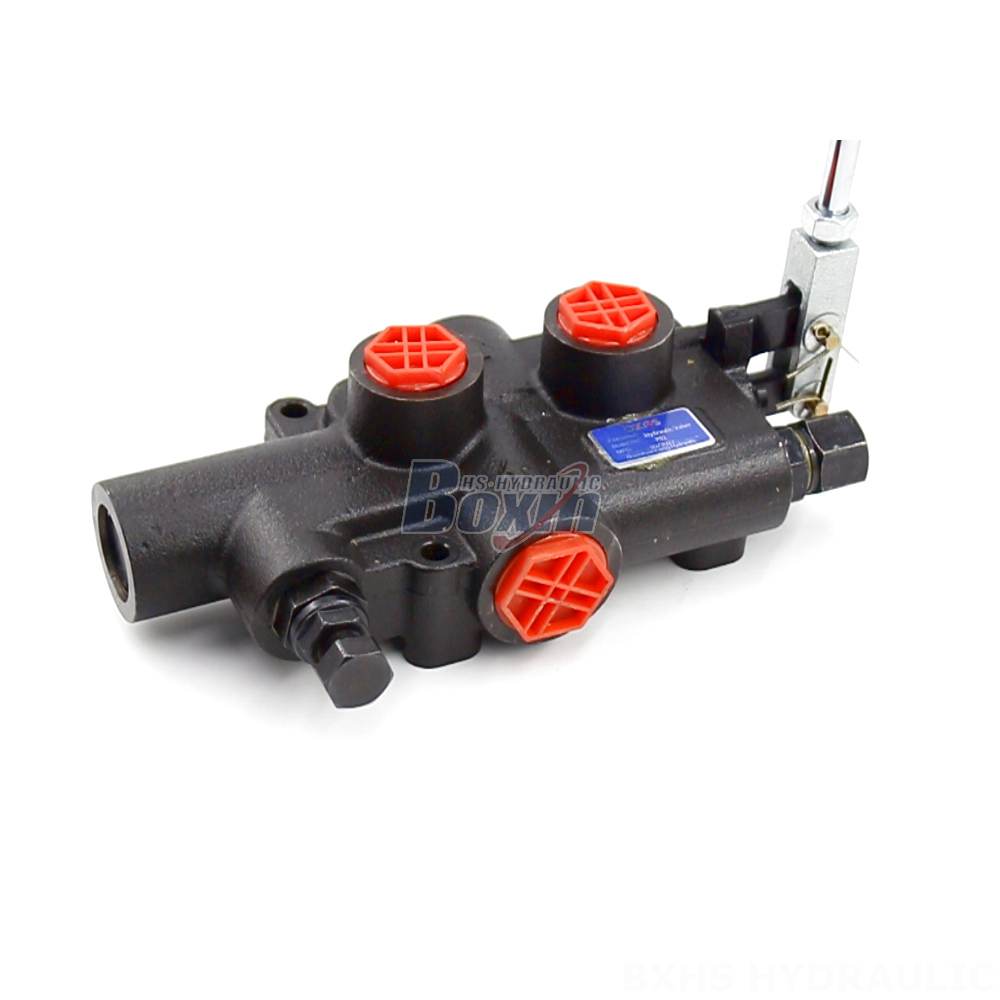

The P81 hydraulic valve is a high-performance, heavy-duty valve designed for use in tractor-powered log splitters. It features a manual control method, 1 section monoblock construction, 80 L/min flow rate, and 250 bar maximum pressure. This durable valve is perfect for industrial applications and offers customizable options to meet your specific needs.
| P81シリーズ 薪割り機用コントロールバルブ パラメーター | |
|---|---|
| 制御方法 | 手動 |
| スプール | 1スプール |
| 周囲温度範囲 | -40°C to +80°C (-40°F to +176°F) |
| 構造タイプ | モノブロック弁 |
| セクション | 1セクション |
| 作動粘度範囲 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 定格流量 | 毎分80リットル (21.2 US gpm), 毎分95リットル (25.1 US gpm) |
| 最大圧力 | 19 MPa (2735 psi) |
| 吸入口 | G1/2 |
| 吐出口 | G1/2 |
| ポートサイズ | G3/4 |
The P81 model is a robust tractor joy stick log splitter hydraulic valve, ideal for industrial vehicles. This monoblock valve boasts a 1 section design and offers a rated flow of 80 L/min (21.2 US gpm) with a maximum pressure of 250 bar (3600 psi). It operates within a wide viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) and can withstand ambient temperatures from -40°C to +80°C (-40°F to +176°F). The valve features a single spool with a kick-out setting pressure of 70~140bar (1015-2030psi). We offer this valve for manufacturing, OEM, private label, and custom orders, allowing you to tailor it to your specific requirements. We are also actively seeking distributors, wholesalers, agents, and traders worldwide. Contact us today to discuss your needs and explore the possibilities of this high-quality, customizable hydraulic valve.
