生産と納品
15~30日の生産リードタイム

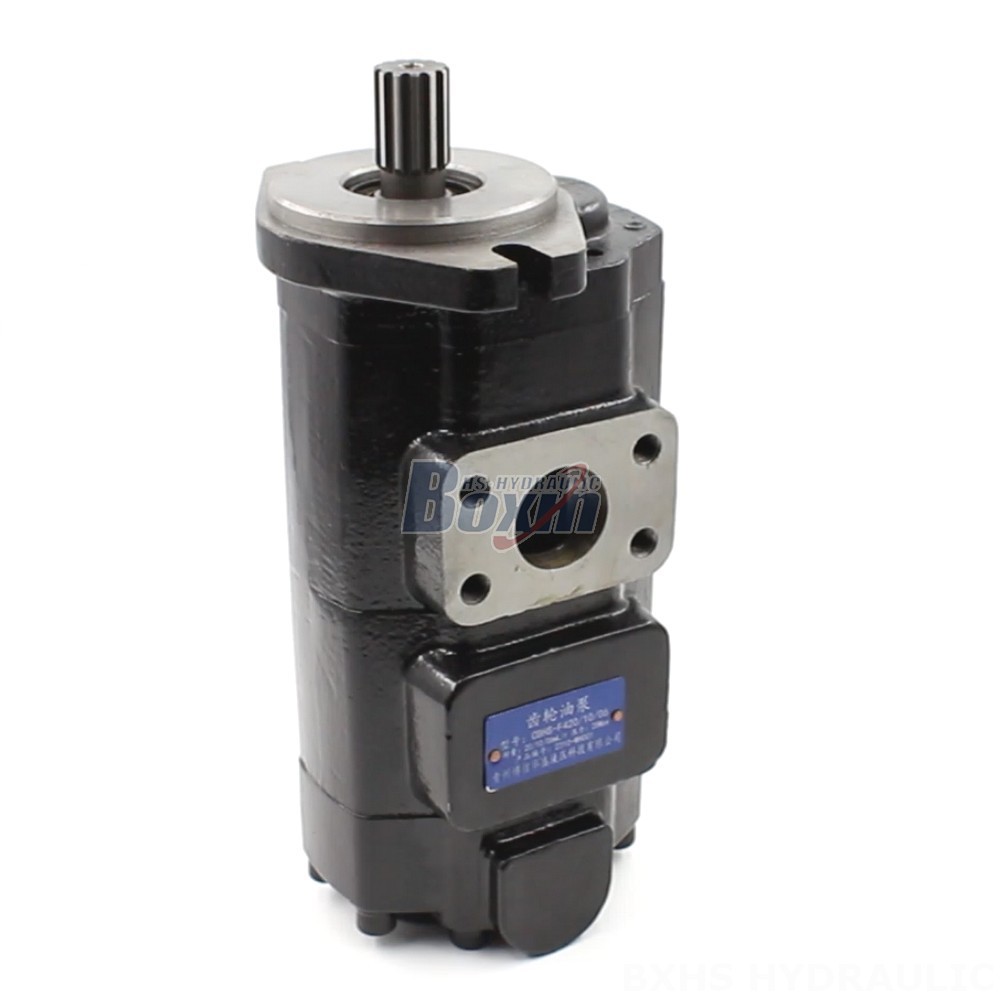

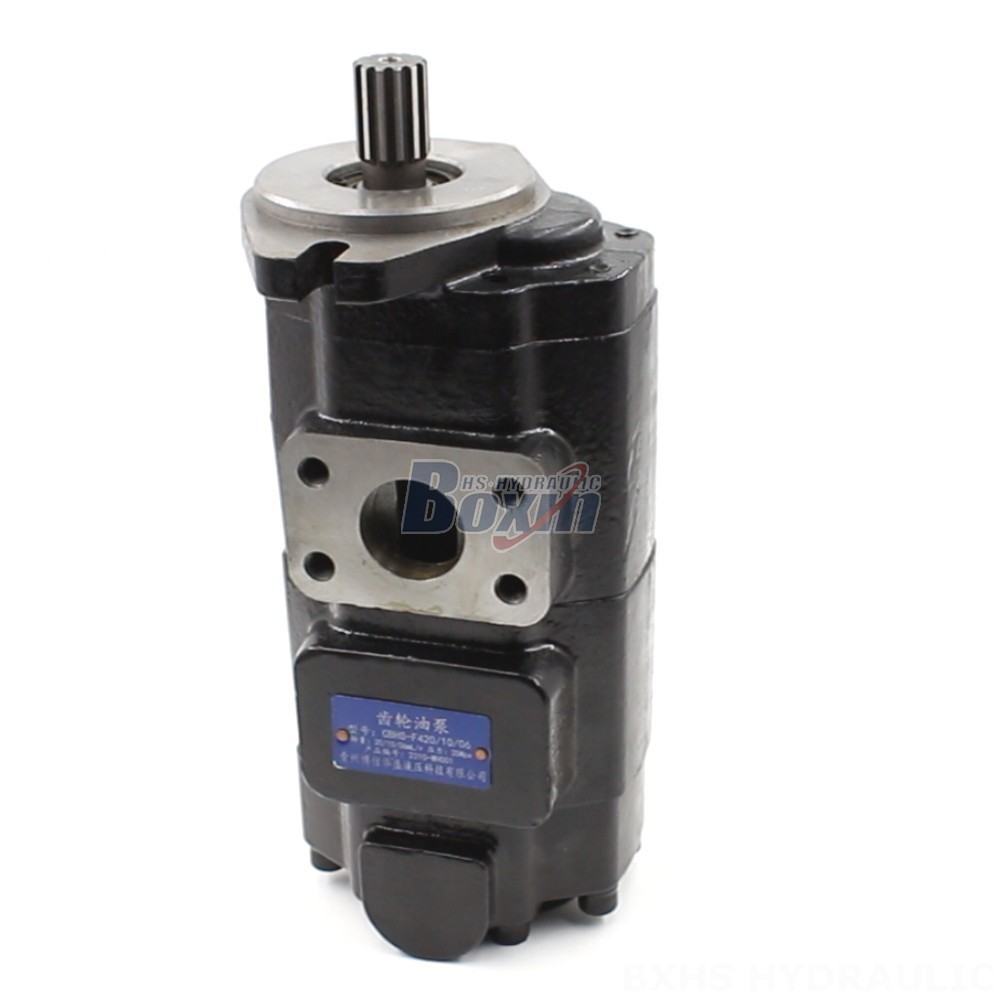

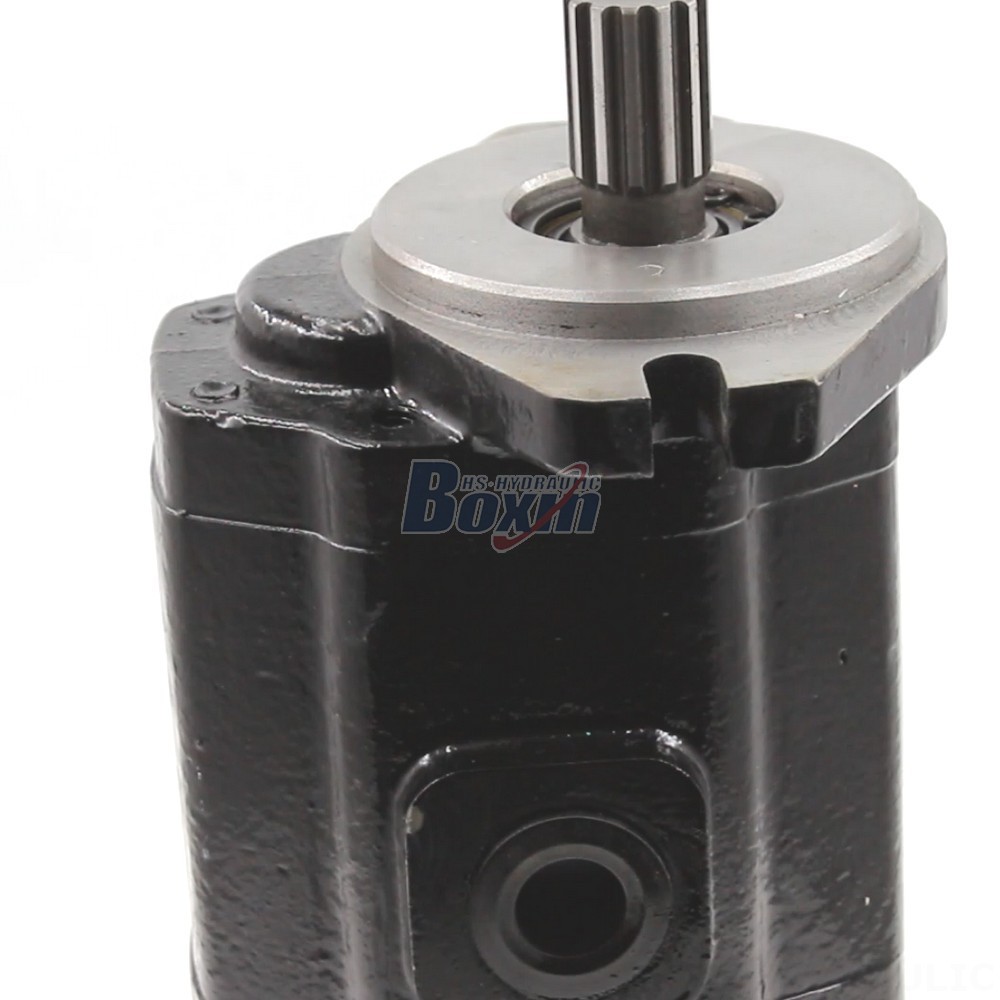

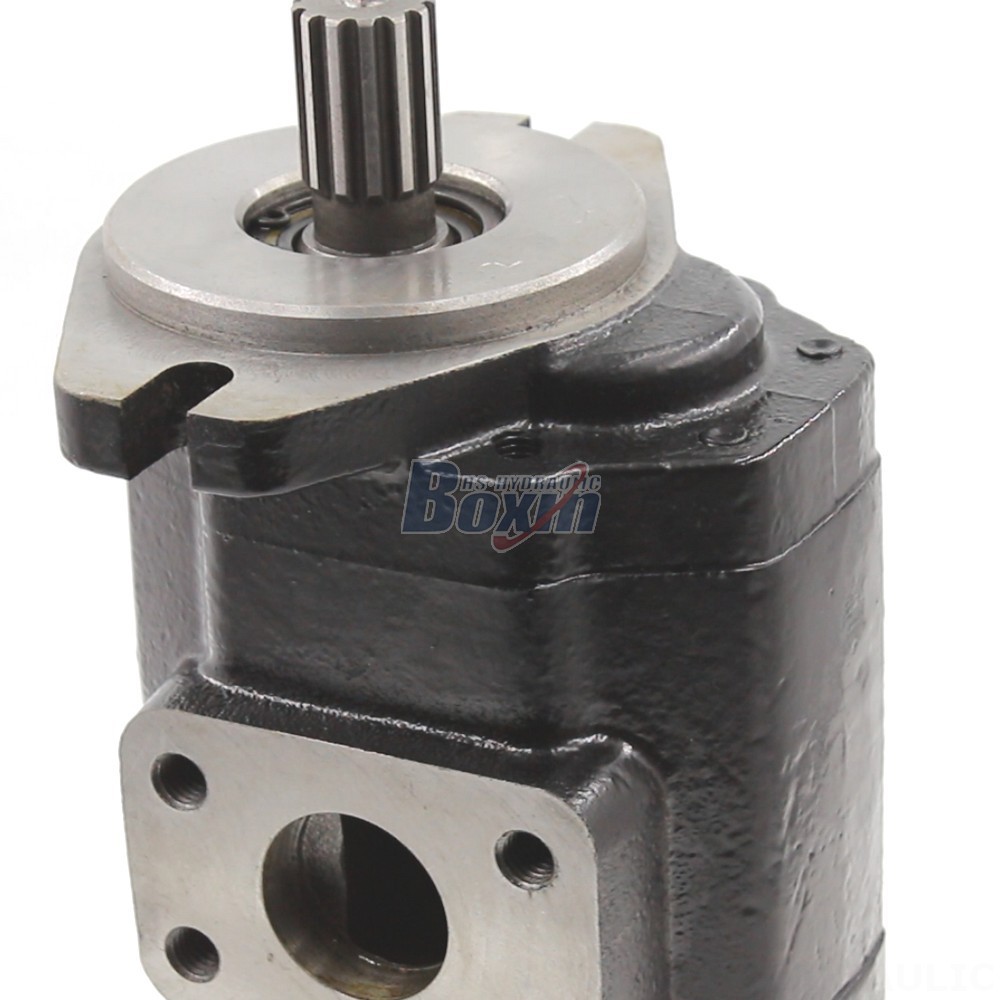

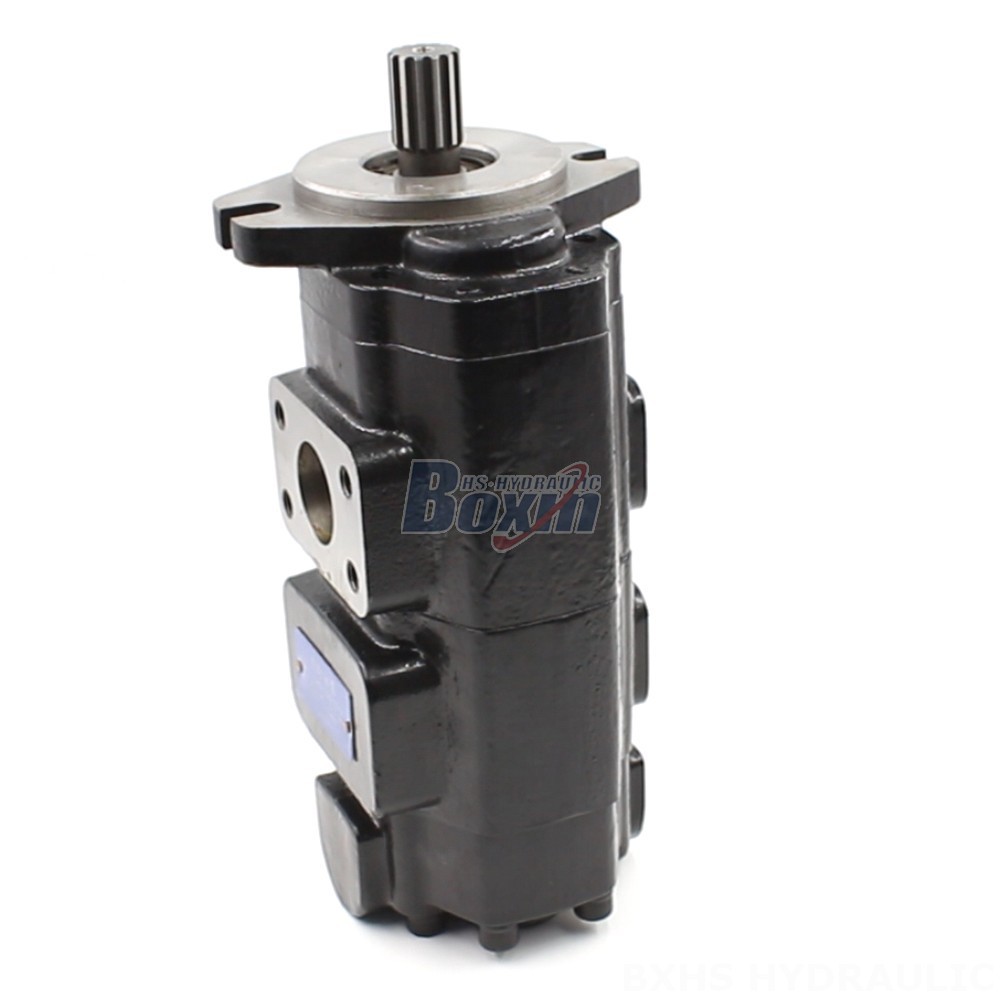

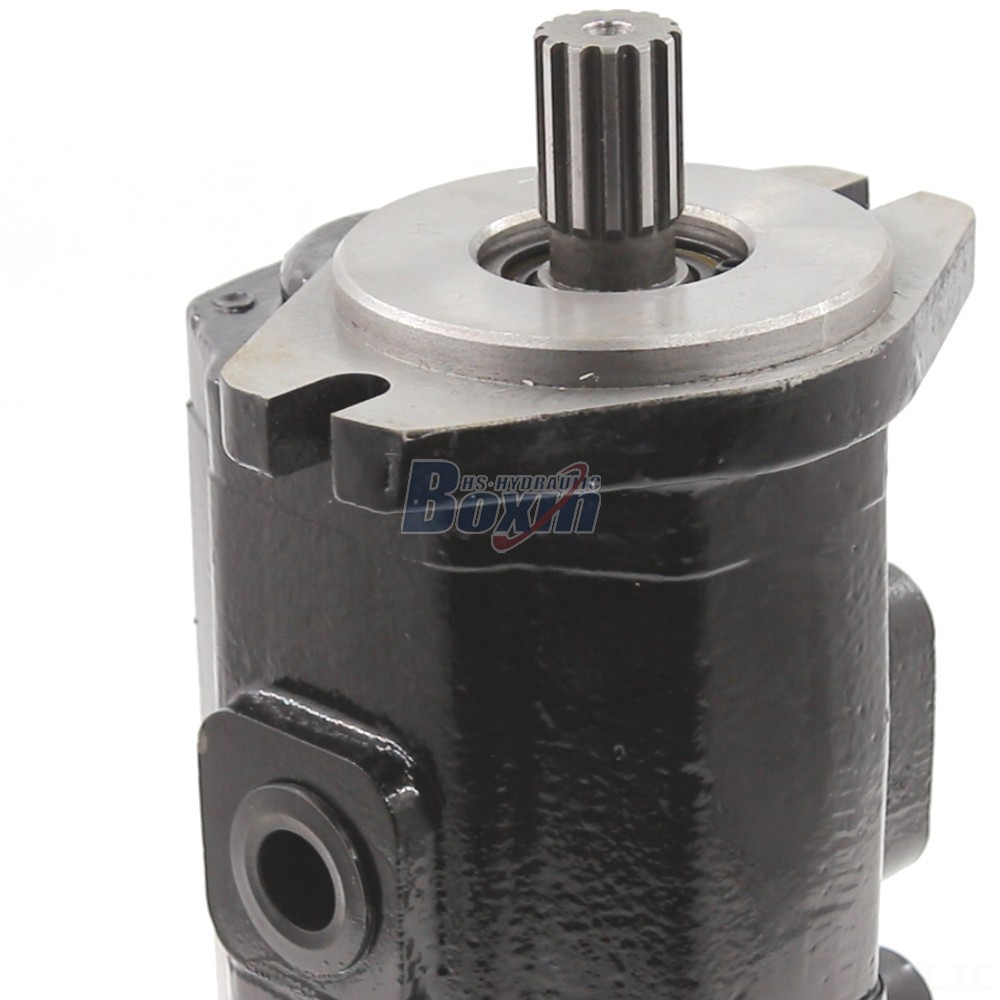

This Industrial Hydraulic Gear Pump is a high-performance, durable and reliable pump designed for various construction, agricultural, and industrial applications. Available in different displacement sizes and pressure ratings, it caters to diverse needs and equipment types.
| CBHS-F4 シリーズ 油圧ギア・ポンプ パラメーター | |
|---|---|
| 変位 | 40 cc/回転, 25 cc/回転, 20 cc/回転 |
| 定格圧力 | 20 MPa (2900 psi), 25 MPa (3625 psi) |
| 最大圧力 | 25 MPa (3625 psi) |
| 定格回転速度 | 2000 r/min |
| 最大回転速度 | 2500 r/min |
| 回転方向 | 左 (逆時針), 右 (順時針) |
| 材質 | 鋳鉄, 鋁鑄鐵, 鋁 |
| 構造 | 斜盤式 |
| フランジモデル | A-橢圓形凸緣, B-方形凸緣, ISO-4 安裝孔, UNI-3 安裝孔, SAEフランジ |
| 軸タイプ | H:矩形花鍵, X:漸開線花鍵, P:プレーンキー |
This Industrial Hydraulic Gear Pump is a reliable and durable solution for a wide range of applications in construction, agriculture, and industrial vehicles. It offers displacement options ranging from 32 cc/rev to 80 cc/rev and pressure ratings up to 3625 psi (25 MPa). The pump features an external gear design with a cam plate type structure and is available with both A-oval and B-square flange versions. It also features a rectangle spline shaft for easy installation. The pump is suitable for various equipment such as forklifts, telehandlers, mini-excavators, midi-excavators, skid steer loaders, compact wheel loaders, wheel loaders, backhoe loaders, tractors, front-end loaders, and harvesters. Our company offers manufacturing, OEM, ODM, and customization services to meet the specific needs of our clients. We are actively seeking distributors, wholesalers, agents, and traders to expand our global reach and offer our high-quality hydraulic gear pumps to a wider market.
