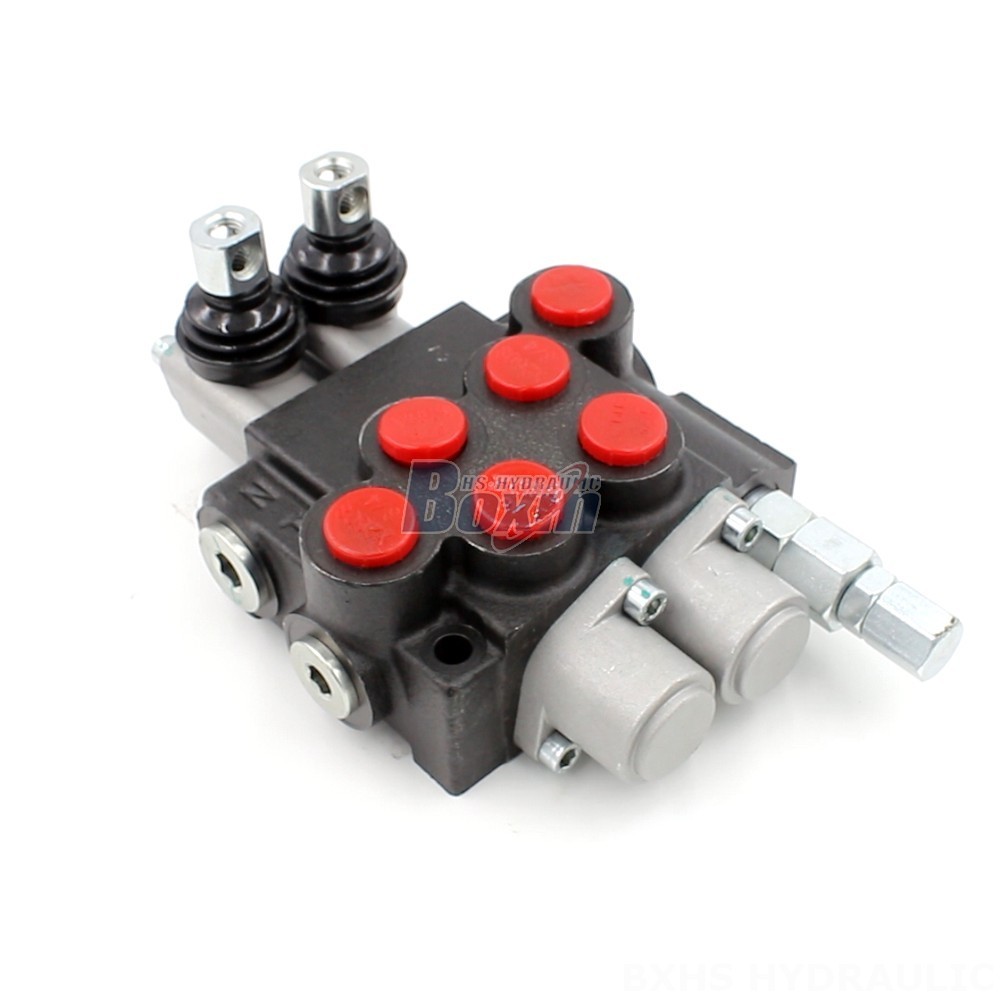

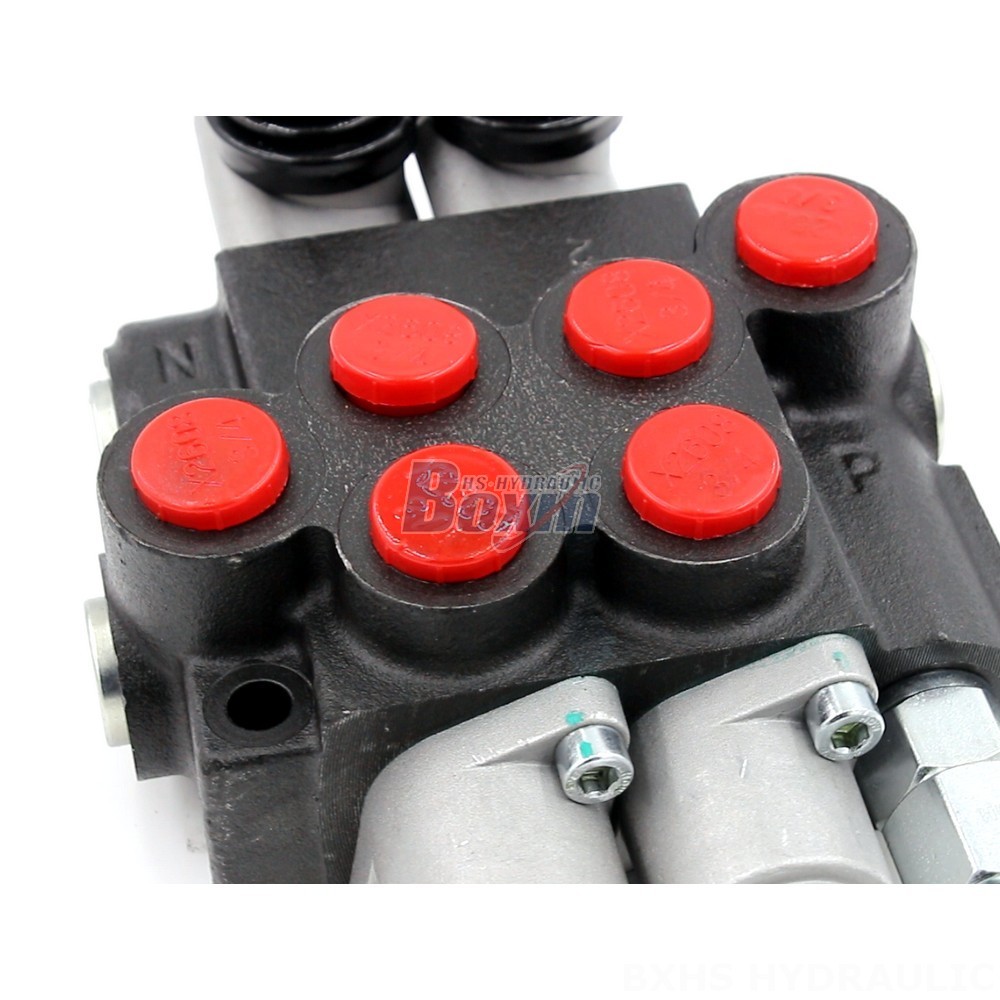

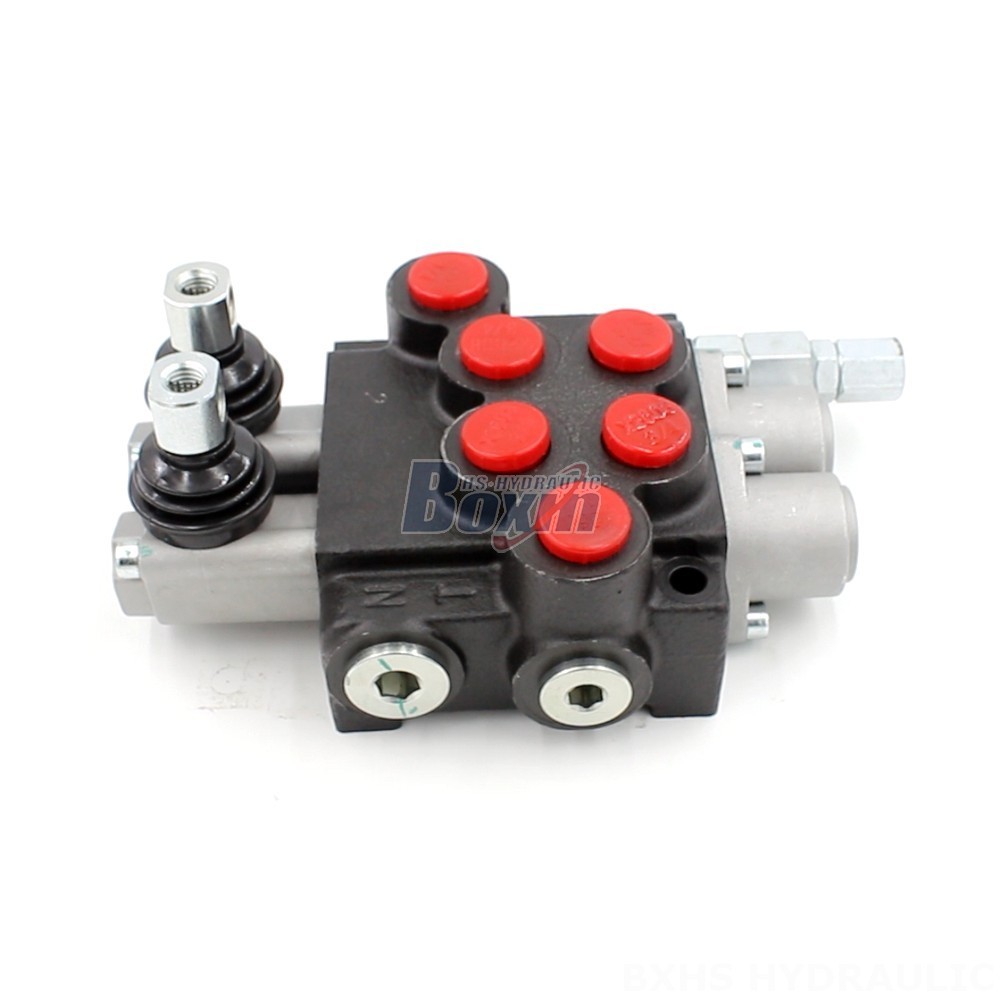

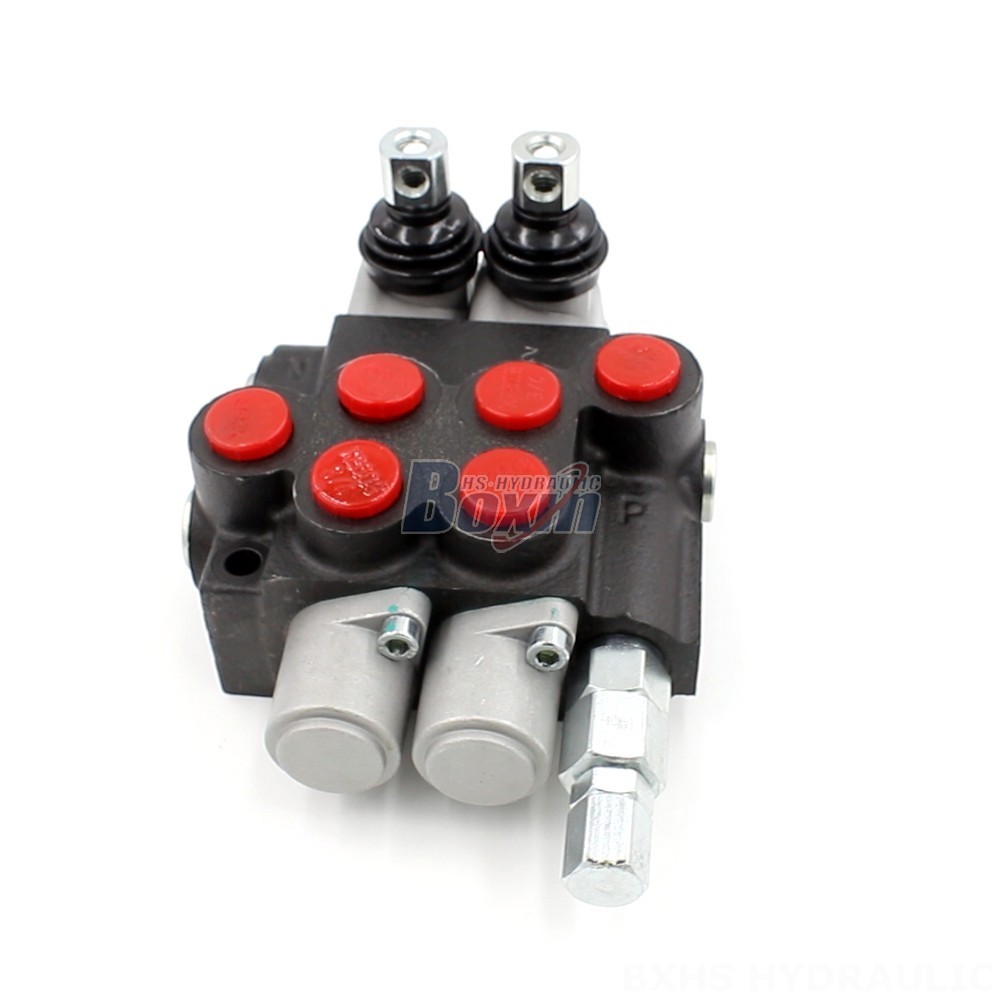

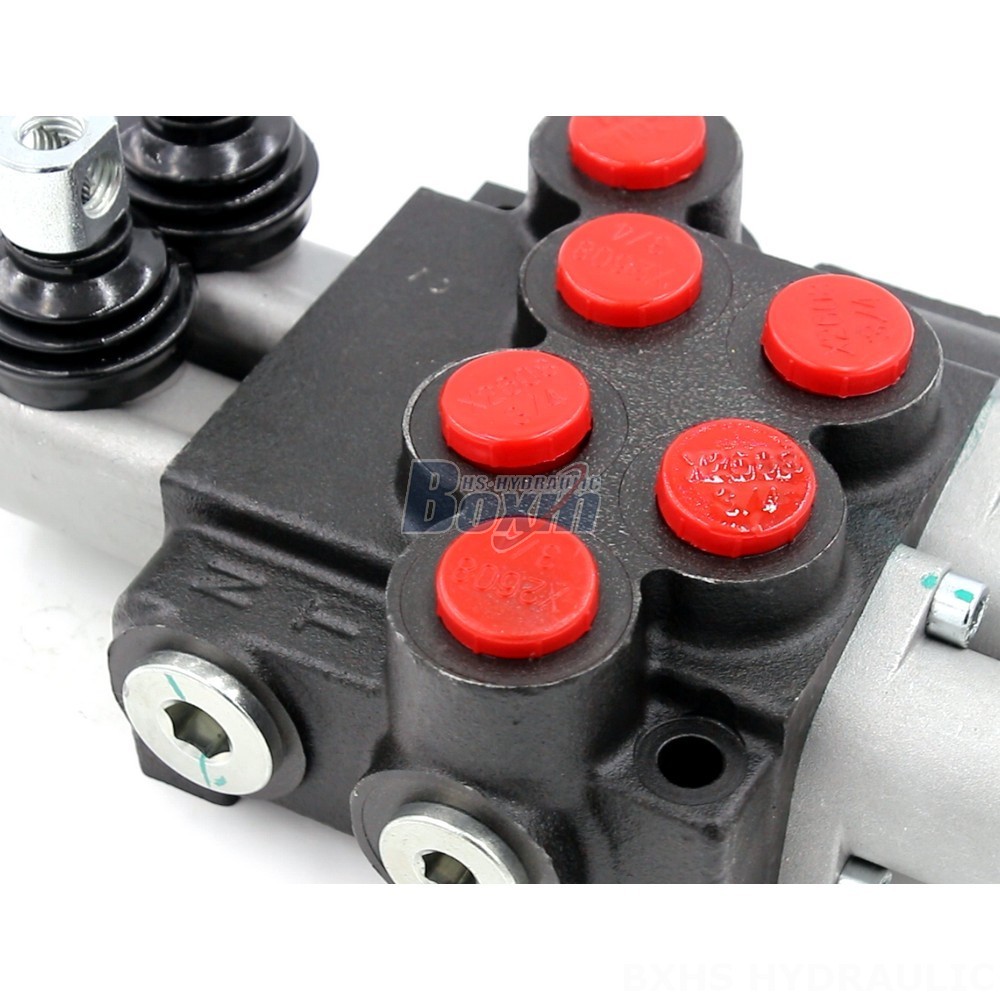

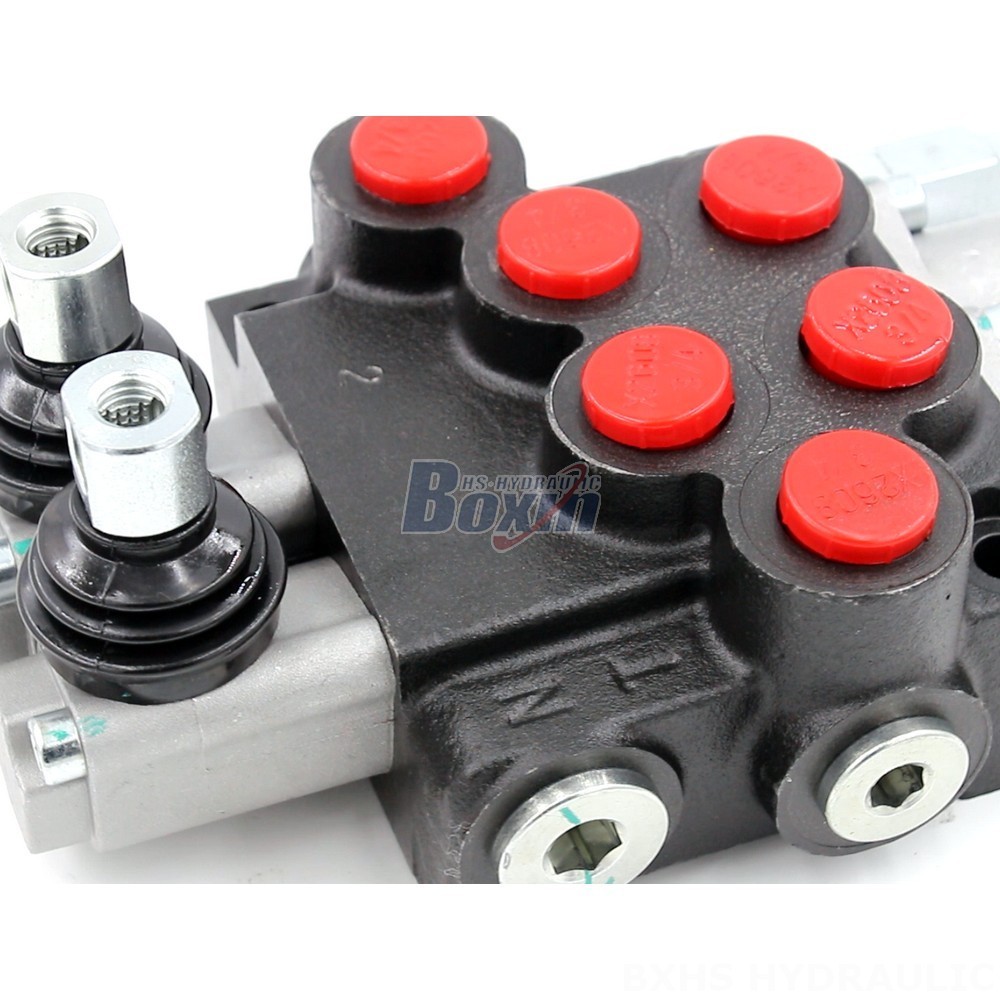

The P40-U34-2OT is a high-performance electromagnetic hydraulic valve designed for demanding applications in material handling, construction, and industrial vehicles. This 2-section monoblock valve boasts a rated flow of 40 L/min and a maximum pressure of 250 bar, ensuring reliable operation in a wide range of environments.
| P40シリーズ モノブロック方向制御弁 パラメーター | |
|---|---|
| 制御方法 | 手動, 空圧, 電空, 電気油圧, ソレノイド, 油圧, 油圧および手動, ケーブル, ジョイスティック, ソレノイド・ジョイスティック, 手動・ジョイスティック, ソレノイドおよびケーブル式 |
| スプール | 1スプール, 2スプール, 3スプール, 4スプール, 5スプール, 6スプール, 7スプール |
| 周囲温度範囲 | -40°C to +80°C (-40°F to +176°F) |
| 構造タイプ | モノブロック弁 |
| セクション | 1セクション, 2セクション, 3セクション, 4セクション, 5セクション, 6セクション, 7セクション |
| 作動粘度範囲 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 定格流量 | 毎分40リットル (10.5 US gpm) |
| 最大圧力 | 250 bar (3600 psi) |
| 吸入口 | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| 吐出口 | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| ポートサイズ | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
The P40-U34-2OT is a robust and reliable electromagnetic hydraulic valve specifically engineered for heavy-duty applications. It features a compact monoblock design with a 2-section configuration, offering efficient control and high flow capacity. This valve is capable of handling a rated flow of 40 L/min (10.5 US gpm) at a maximum pressure of 250 bar (3600 psi), making it suitable for demanding applications. Its wide operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) and ambient temperature range of -40°C to +80°C (-40°F to +176°F) ensure reliable performance in various operating conditions. The P40-U34-2OT is specifically designed for applications in material handling, construction, and industrial vehicles, including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, mini-excavators, skid steer loaders, compact wheel loaders, and wheel loaders. Its high performance and durability make it an ideal choice for manufacturers and end-users looking for reliable and efficient hydraulic control solutions.
