What is the primary application of the Hydraulic System Optimization: P80-U116-U78-OT Directional Control Valve?

The Hydraulic System Optimization: P80-U116-U78-OT Directional Control Valve is designed for mobile hydraulic systems, agricultural machinery (such as tractors and harvesters), construction equipment (such as loaders and excavators), and industrial machinery. It ensures precise flow and directional control.

Is Boxinhuasheng a factory-direct manufacturer?

Yes, Boxinhuasheng (Qingzhou Boxinhuasheng Hydraulic Technology Co., Ltd.) is a factory-direct manufacturer established in 2001. We operate a 68,000m虏 facility with 4 modern manufacturing plants and 260+ production machines, supplying certified products directly to global customers.

What quality certifications do Boxinhuasheng products have?

All Boxinhuasheng directional control valves, gear pumps, and hydraulic accessories are CE certified, IATF 16949 compliant, and verified on-site by SGS, meeting international engineering standards.

Can Boxinhuasheng provide OEM/ODM customization services?

Yes, Boxinhuasheng has a team of 35 senior hydraulic engineers providing custom OEM manufacturing, ODM development, private labeling, and customized hydraulic system solutions tailored to specific operating pressures and flows.

What is the warranty and shipping lead time?

We offer a 1-year warranty with free replacement for any quality defects. Standard express delivery is within 30 days, supported by our robust annual capacity of 1.5 million hydraulic units and export experience to 80+ countries.

Hydraulic System Optimization: P80-U116-U78-OT Directional Control Valve

Name: Hydraulic System Optimization: P80-U116-U78-OT Directional Control Valve
Brand: Boxinhuasheng
SKU: BXHS-55706
Availability: InStock

イノベーションが開発を推進し、テクノロジーが未来を築きます

ホームモノブロック方向制御弁P80シリーズ製品詳細

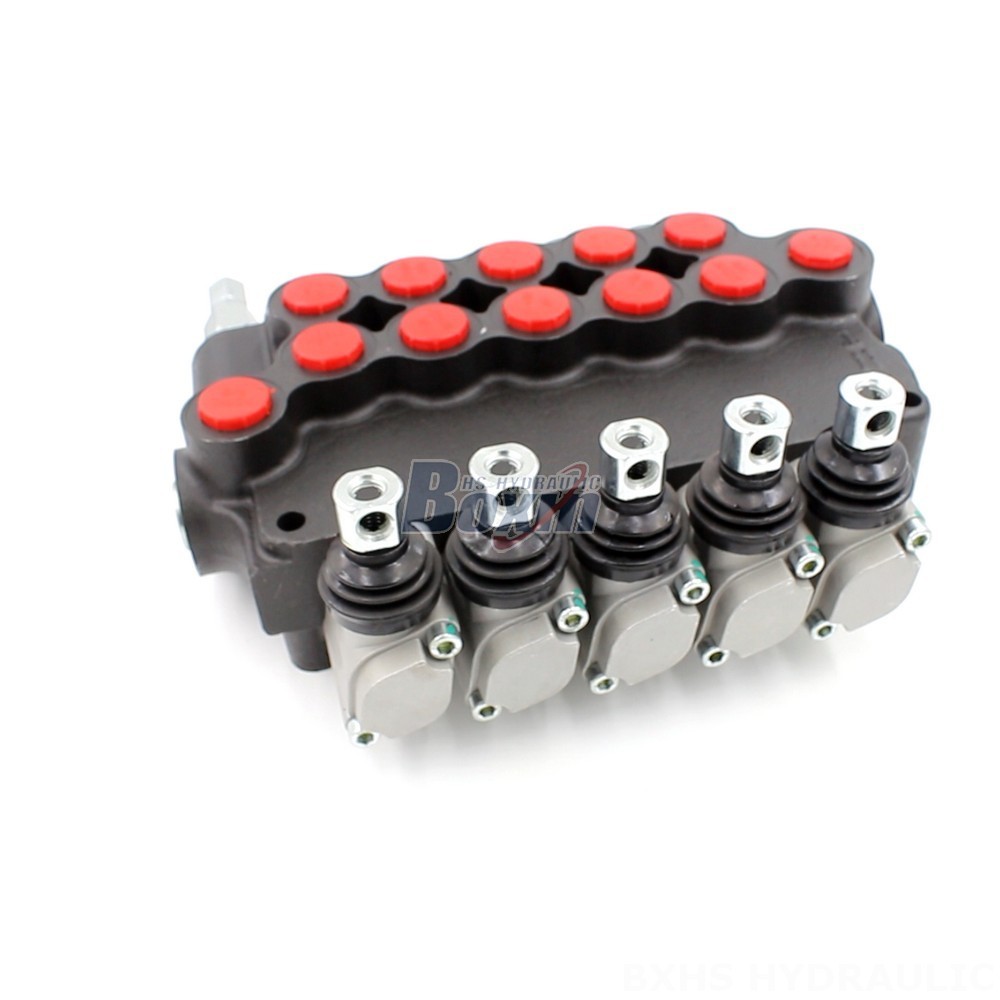

Hydraulic System Optimization: P80-U116-U78-OT Directional Control Valve cover photo

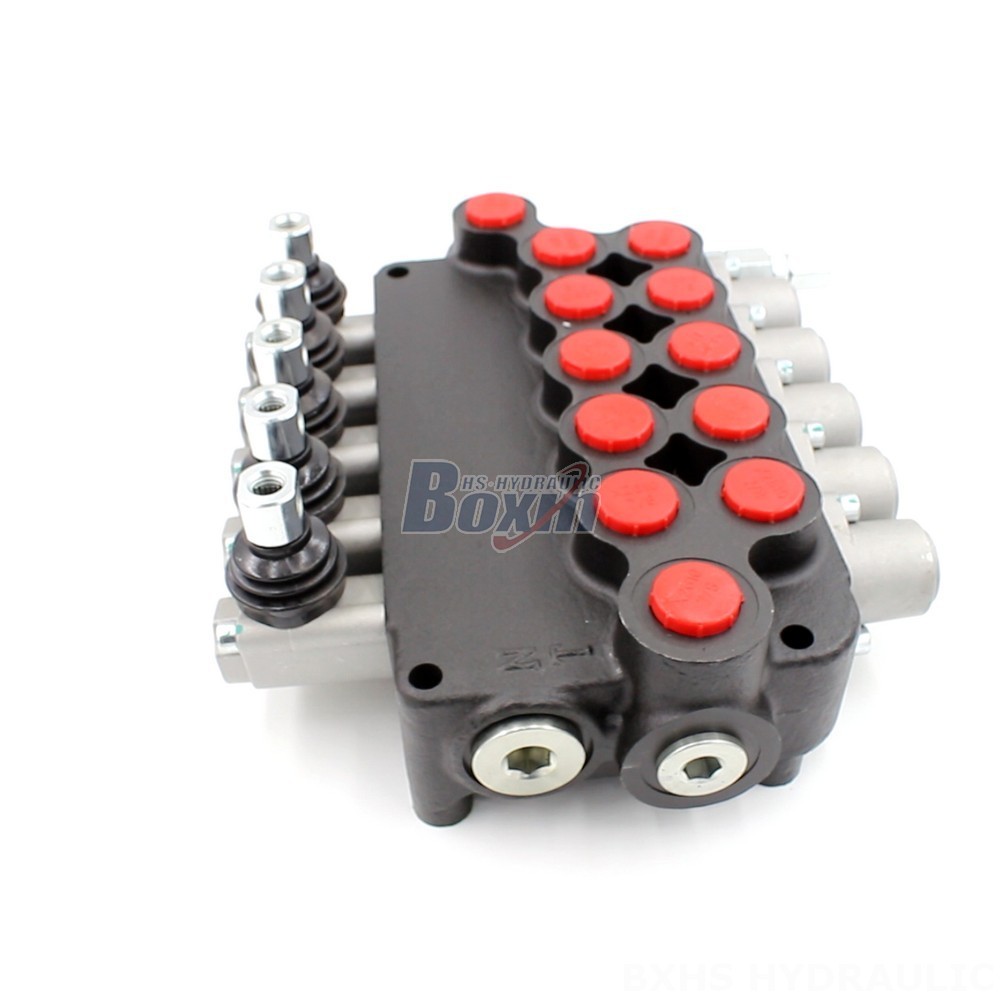

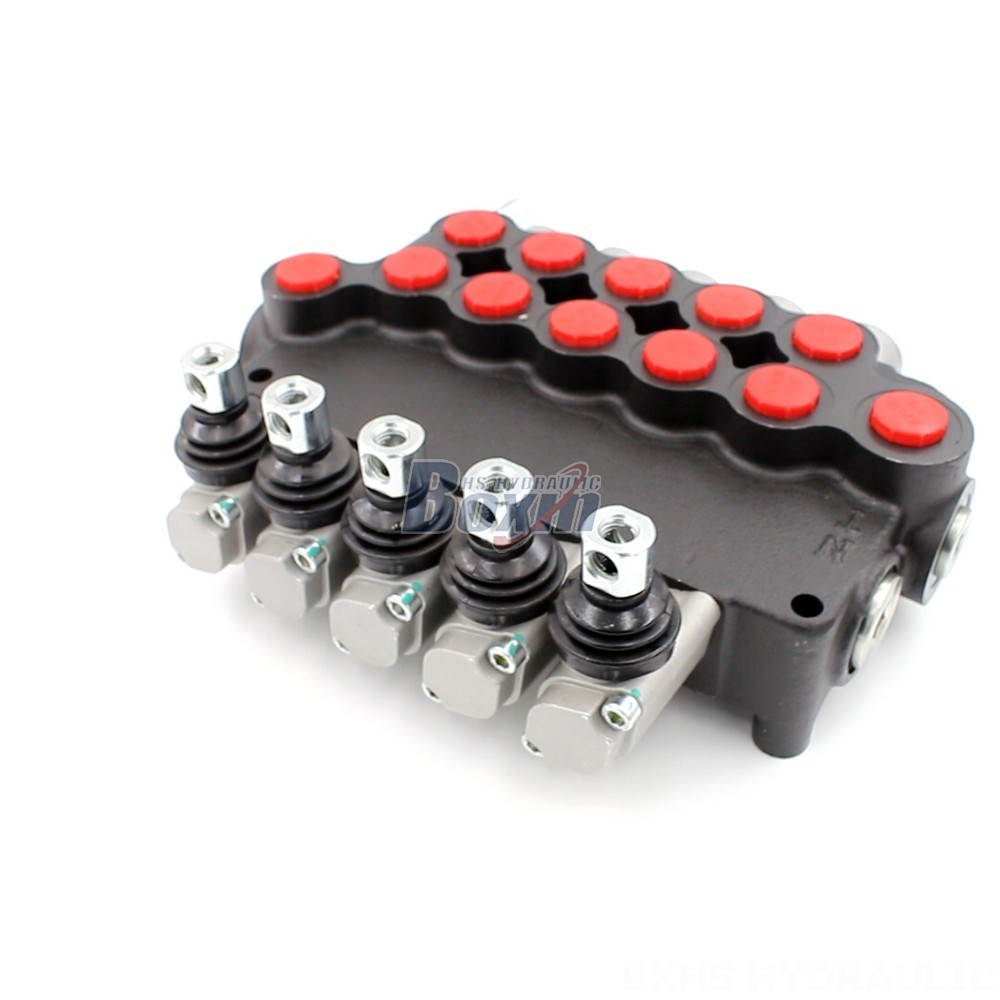

Hydraulic System Optimization: P80-U116-U78-OT Directional Control Valve main image

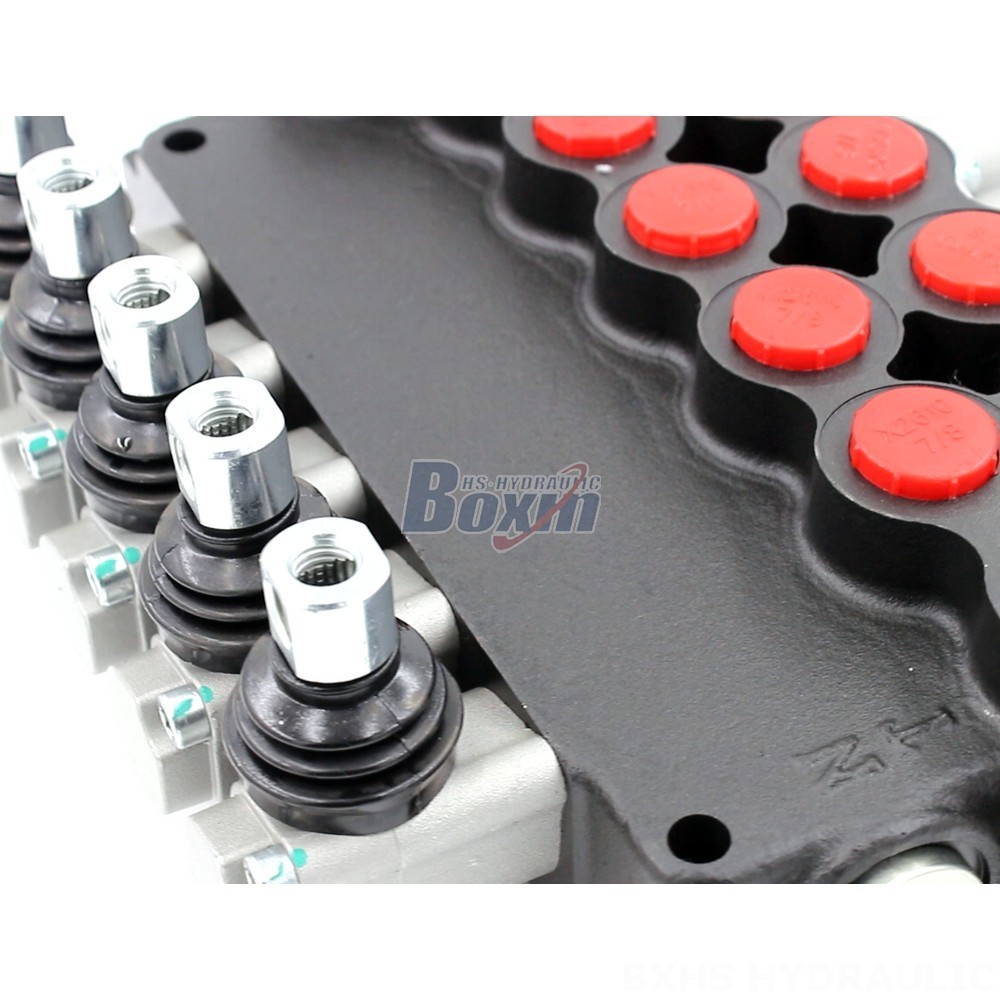

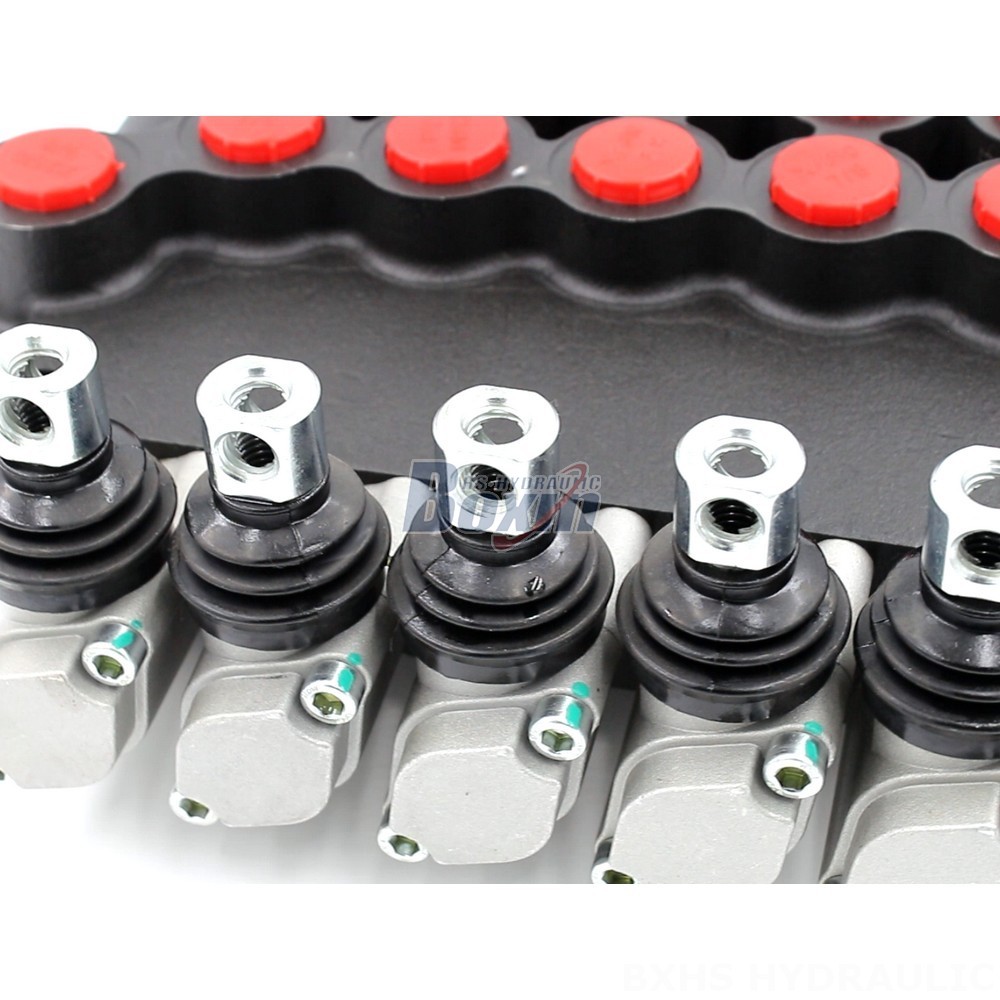

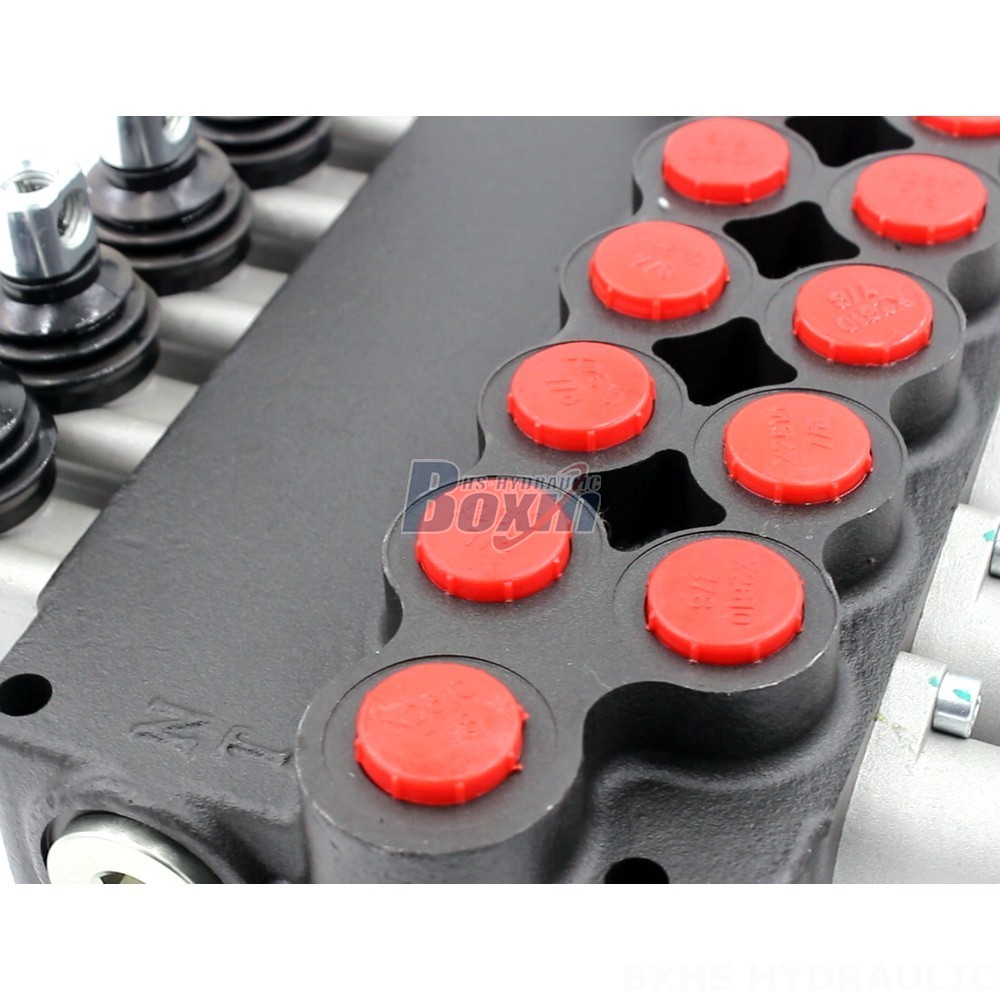

Hydraulic System Optimization: P80-U116-U78-OT Directional Control Valve detail image

Hydraulic System Optimization: P80-U116-U78-OT Directional Control Valve

制御方法:手動

スプール:5スプール

定格流量:毎分80リットル (21.2 US gpm)

最大圧力:250 bar (3600 psi)

吸入口:SAE 10

吐出口:SAE 10

ポートサイズ:SAE 10

ベンダー:BXHS

製品タイプ:モノブロック方向制御弁

製品シリーズ:P80シリーズモノブロック方向制御弁

梱包サイズ:25.1*30*11

総重量:16.00 kg

在庫状況: 在庫あり

お問い合わせ

1019 この製品を探している人もいます

Hydraulic System Optimization: P80-U116-U78-OT Directional Control Valve

Hydraulic System Optimization: P80-U116-U78-OT Directional Control Valve drawing image

The P80-U116-U78-OT Directional Control Valve is a high-performance hydraulic valve designed for demanding applications in various industries. It features a robust monoblock construction, manual control, and a compact 5-section design.

P80シリーズモノブロック方向制御弁パラメーター
制御方法	手動, 空圧, 電空, 電気油圧, ソレノイド, 油圧, 油圧および手動, ケーブル, ジョイスティック, 手動・ジョイスティック
スプール	1スプール, 2スプール, 3スプール, 4スプール, 5スプール, 6スプール, 7スプール
周囲温度範囲	-40°C to +80°C (-40°F to +176°F)
構造タイプ	モノブロック弁
セクション	1セクション, 2セクション, 3セクション, 4セクション, 5セクション, 6セクション, 7セクション
作動粘度範囲	15 - 75 mm²/s (15 cSt to 75 cSt)
定格流量	毎分80リットル (21.2 US gpm)
最大圧力	315 bar (4600 psi)
吸入口	G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
吐出口	G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
ポートサイズ	G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT

**P80-U116-U78-OT Directional Control Valve**

**Product Overview:**

The P80-U116-U78-OT Directional Control Valve is a versatile and reliable hydraulic component engineered to provide precise control over fluid flow in hydraulic systems. It is widely used in mobile and industrial applications, including material handling, construction, agriculture, and industrial vehicles.

**Key Features:**

* Manual control for intuitive operation
* Monoblock construction for durability and compactness
* 5-section design for versatility and customization
* Rated flow of 80 L/min for high flow capacity
* Maximum pressure of 250 bar for robust performance
* Operating viscosity range of 15 - 75 mm²/s for compatibility with various fluids
* Ambient temperature range of -40°C to +80°C for wide-ranging applications
* 5 spool design for precise flow control
* Compatible with P80 Series valves for system integration

**Applications:**

The P80-U116-U78-OT Directional Control Valve finds applications in a wide range of hydraulic systems, including:

* Telehandlers
* Forklifts
* All-terrain cranes
* Stackers
* Aerial platforms
* Motor graders
* Mini-excavators
* Skid steer loaders
* Compact wheel loaders
* Wheel loaders
