What is the primary application of the Hydraulic Spool Valve 4-Way | Distributor & Wholesale?

The Hydraulic Spool Valve 4-Way | Distributor & Wholesale is designed for mobile hydraulic systems, agricultural machinery (such as tractors and harvesters), construction equipment (such as loaders and excavators), and industrial machinery. It ensures precise flow and directional control.

Is Boxinhuasheng a factory-direct manufacturer?

Yes, Boxinhuasheng (Qingzhou Boxinhuasheng Hydraulic Technology Co., Ltd.) is a factory-direct manufacturer established in 2001. We operate a 68,000m虏 facility with 4 modern manufacturing plants and 260+ production machines, supplying certified products directly to global customers.

What quality certifications do Boxinhuasheng products have?

All Boxinhuasheng directional control valves, gear pumps, and hydraulic accessories are CE certified, IATF 16949 compliant, and verified on-site by SGS, meeting international engineering standards.

Can Boxinhuasheng provide OEM/ODM customization services?

Yes, Boxinhuasheng has a team of 35 senior hydraulic engineers providing custom OEM manufacturing, ODM development, private labeling, and customized hydraulic system solutions tailored to specific operating pressures and flows.

What is the warranty and shipping lead time?

We offer a 1-year warranty with free replacement for any quality defects. Standard express delivery is within 30 days, supported by our robust annual capacity of 1.5 million hydraulic units and export experience to 80+ countries.

Hydraulic Spool Valve 4-Way | Distributor & Wholesale

Name: Hydraulic Spool Valve 4-Way | Distributor & Wholesale
Brand: Boxinhuasheng
SKU: BXHS-55258
Availability: InStock

イノベーションが開発を推進し、テクノロジーが未来を築きます

ホームモノブロック方向制御弁P80シリーズ製品詳細

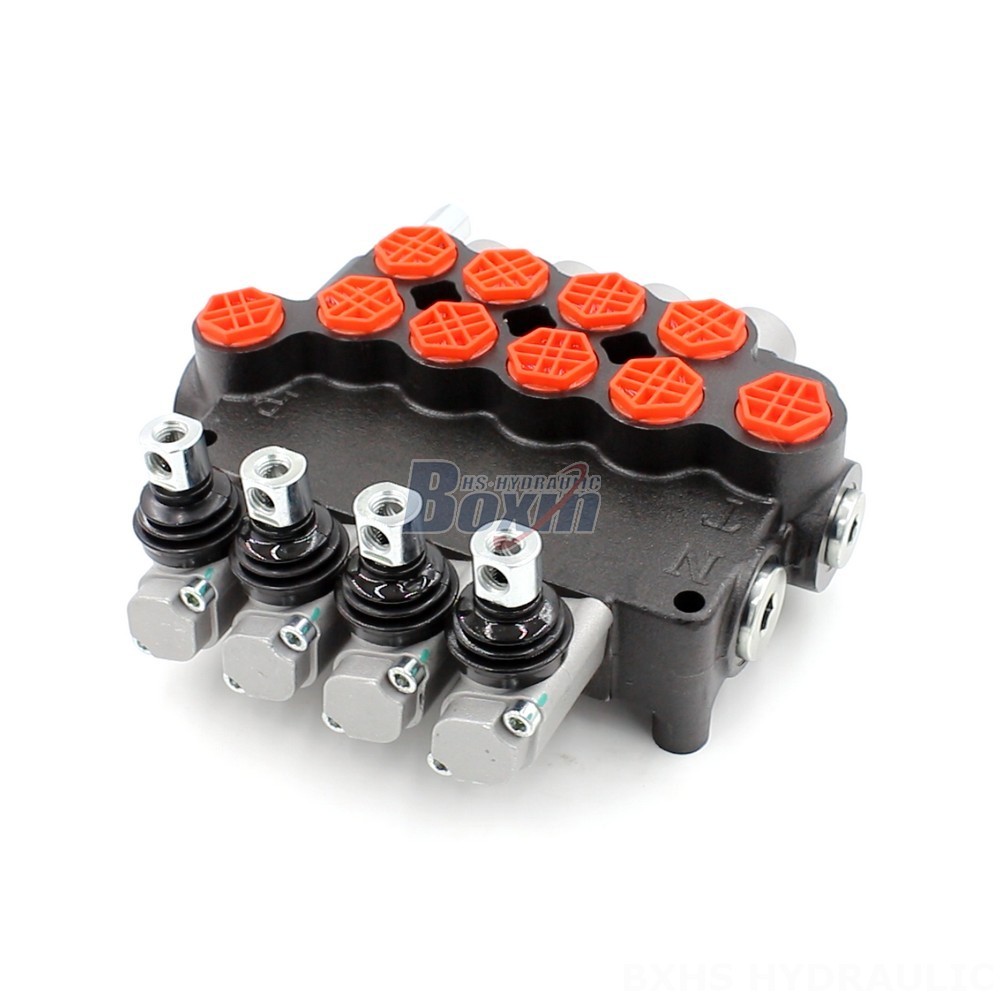

Hydraulic Spool Valve 4-Way | Distributor & Wholesale cover photo

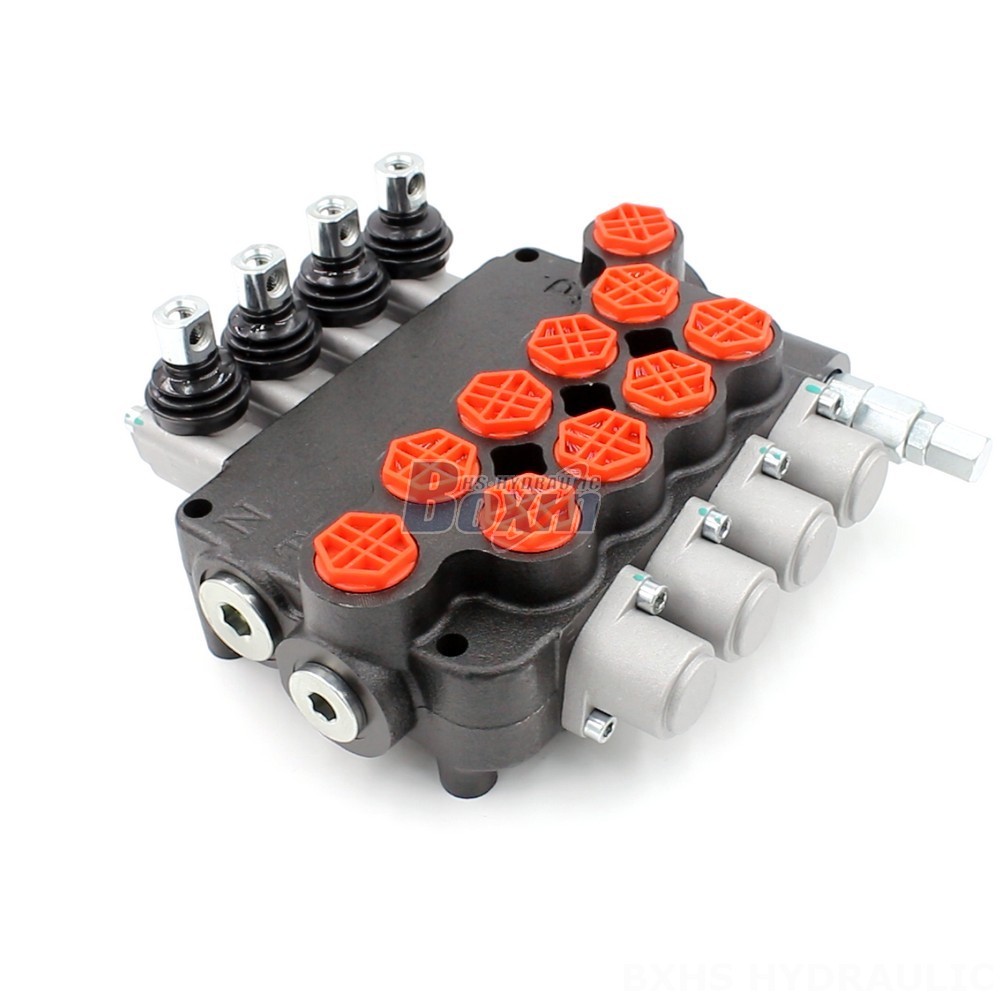

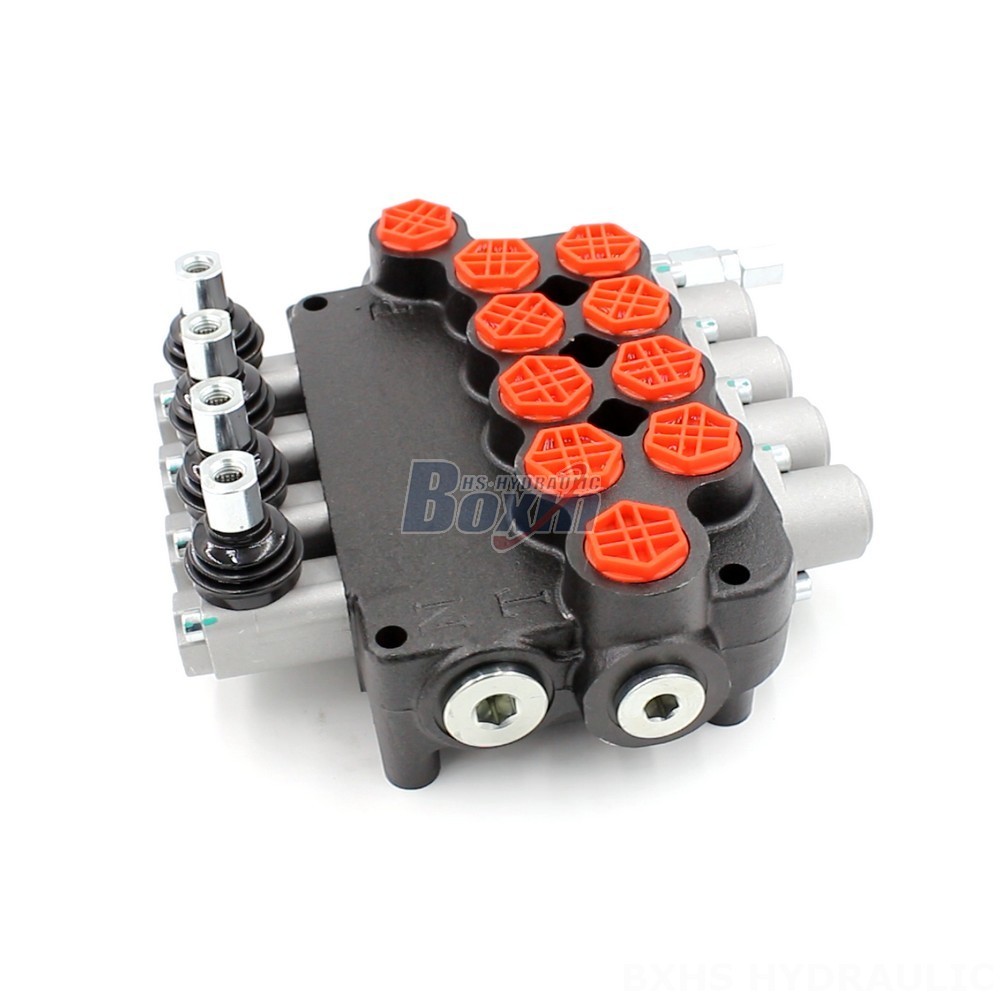

Hydraulic Spool Valve 4-Way | Distributor & Wholesale main image

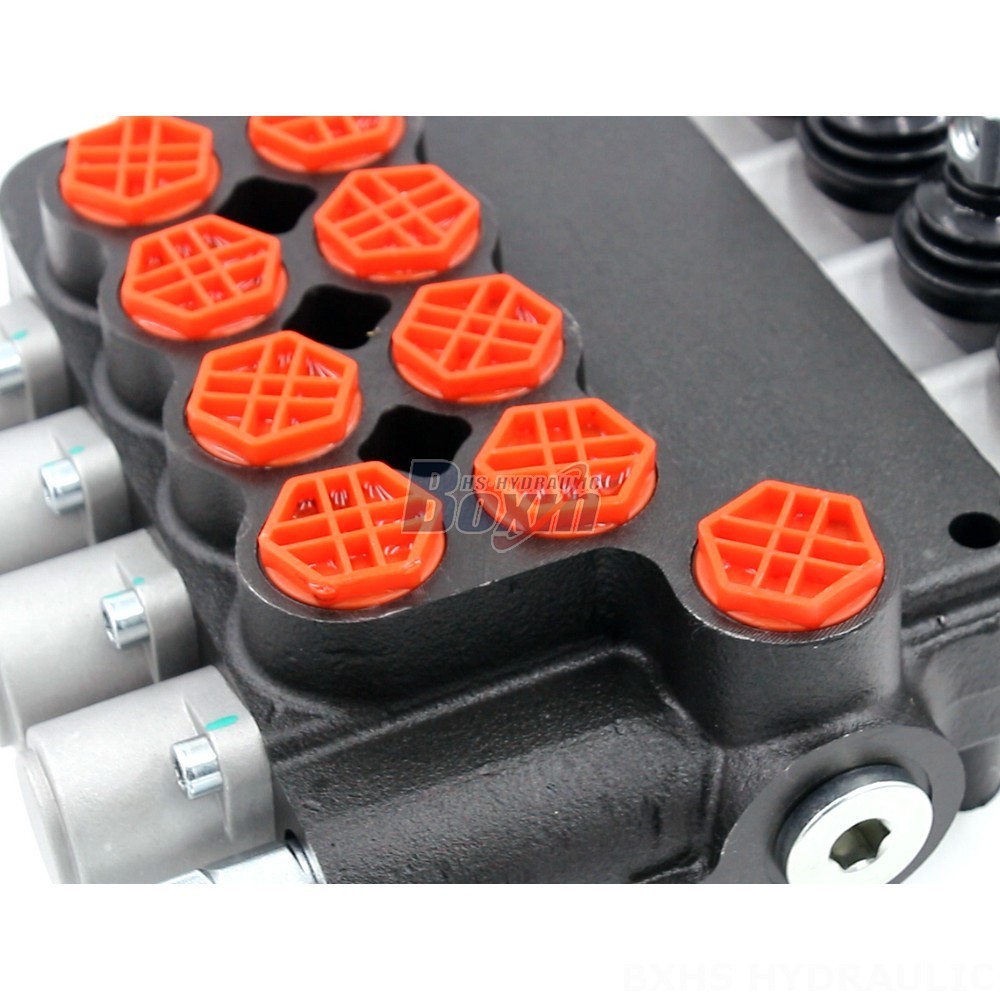

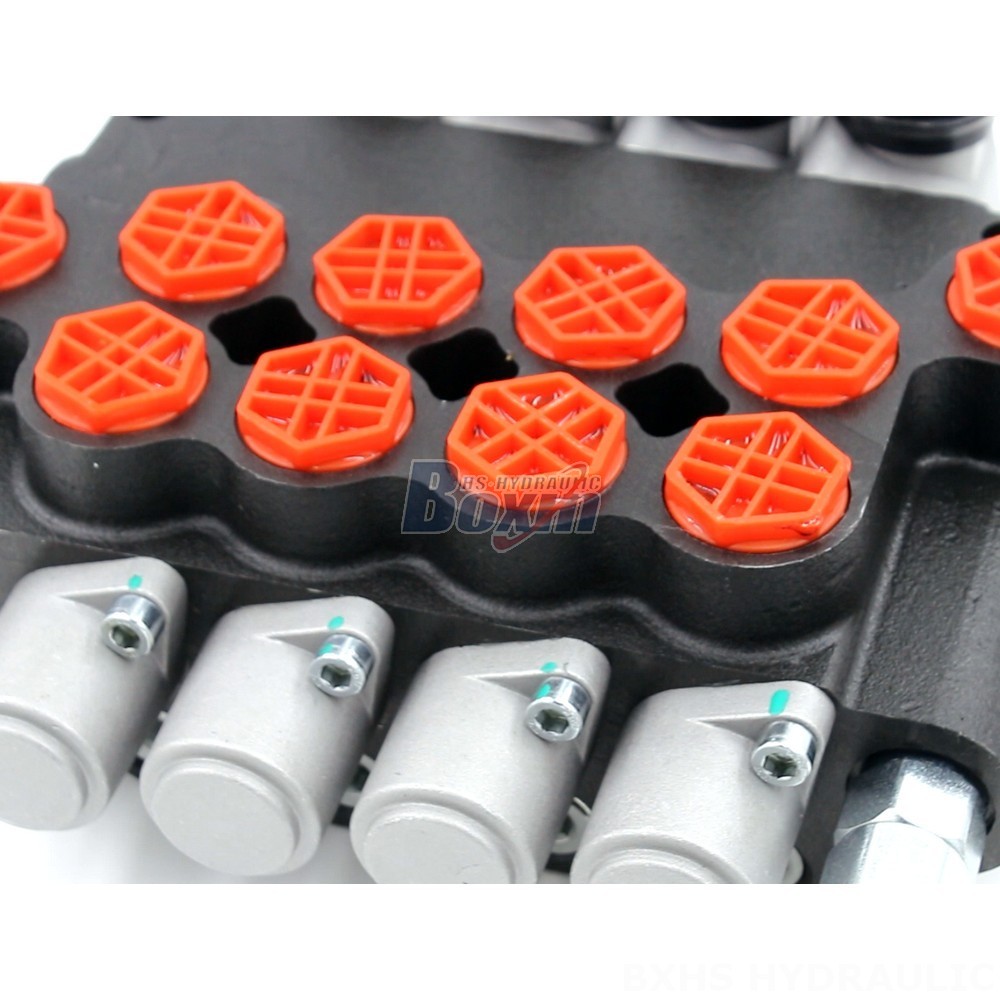

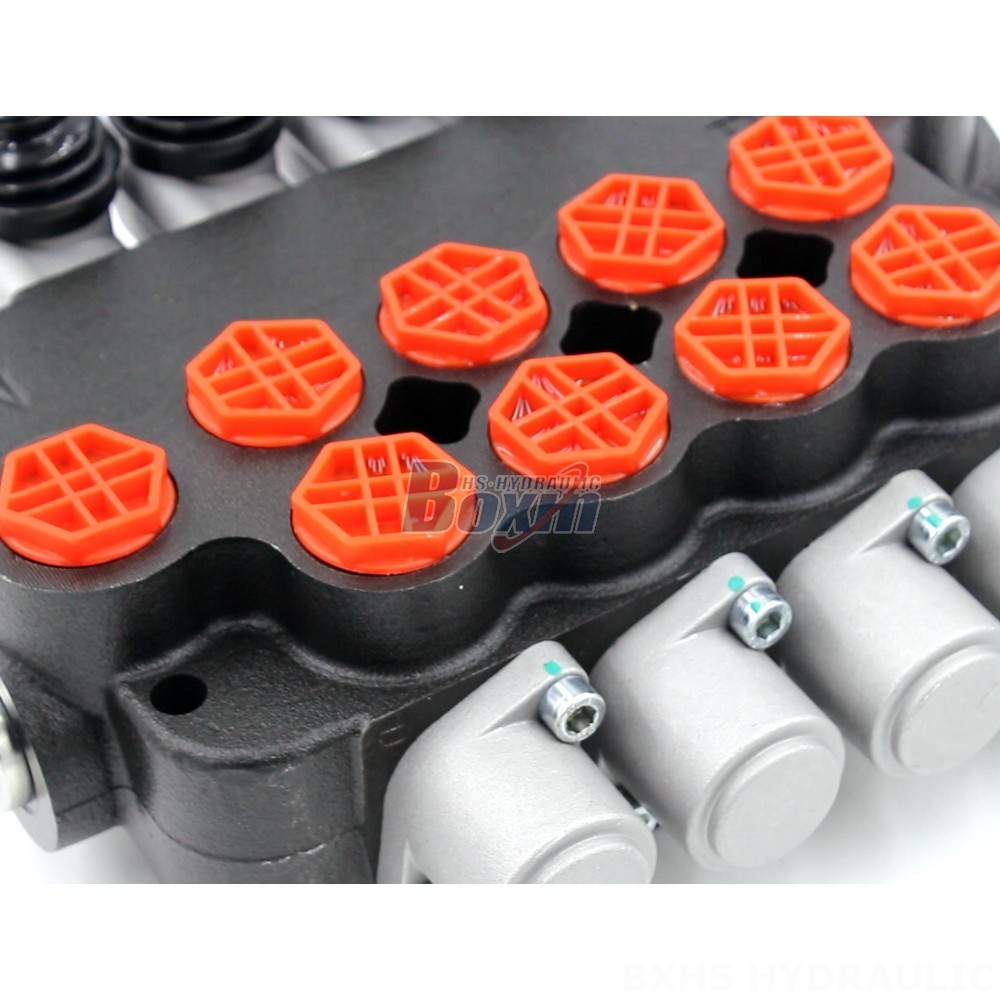

Hydraulic Spool Valve 4-Way | Distributor & Wholesale detail image

Hydraulic Spool Valve 4-Way | Distributor & Wholesale

制御方法:手動

スプール:4スプール

定格流量:毎分80リットル (21.2 US gpm)

最大圧力:250 bar (3600 psi)

吸入口:G1/2

吐出口:G1/2

ポートサイズ:G1/2

ベンダー:BXHS

製品タイプ:モノブロック方向制御弁

製品シリーズ:P80シリーズモノブロック方向制御弁

梱包サイズ:26*23*11

総重量:13.40 kg

在庫状況: 在庫あり

お問い合わせ

1618 この製品を探している人もいます

Hydraulic Spool Valve 4-Way | Distributor & Wholesale

Hydraulic Spool Valve 4-Way | Distributor & Wholesale drawing image

The P80 series 3 Spool Electric Hydraulic Control Valve is a high-performance 4-way valve designed for various applications, including material handling, construction, and agriculture. It offers a robust construction, high flow rate, and reliable electric control.

P80シリーズモノブロック方向制御弁パラメーター
制御方法	手動, 空圧, 電空, 電気油圧, ソレノイド, 油圧, 油圧および手動, ケーブル, ジョイスティック, 手動・ジョイスティック
スプール	1スプール, 2スプール, 3スプール, 4スプール, 5スプール, 6スプール, 7スプール
周囲温度範囲	-40°C to +80°C (-40°F to +176°F)
構造タイプ	モノブロック弁
セクション	1セクション, 2セクション, 3セクション, 4セクション, 5セクション, 6セクション, 7セクション
作動粘度範囲	15 - 75 mm²/s (15 cSt to 75 cSt)
定格流量	毎分80リットル (21.2 US gpm)
最大圧力	315 bar (4600 psi)
吸入口	G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
吐出口	G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
ポートサイズ	G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT

This 3 Spool Electric Hydraulic Control Valve from the P80 series is a 4-way monoblock valve with manual control, providing reliable and efficient operation in demanding applications. It is designed for a rated flow of 80 L/min and a maximum pressure of 250 bar. The valve features 4 spools and is suitable for various applications including telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, excavators, skid steer loaders, and compact wheel loaders. It is built for durability and performance, operating within a temperature range of -40°C to +80°C.

Hydraulic Spool Valve 4-Way | Distributor & Wholesale
